Sayfa 3-30 - Isuzu EPC

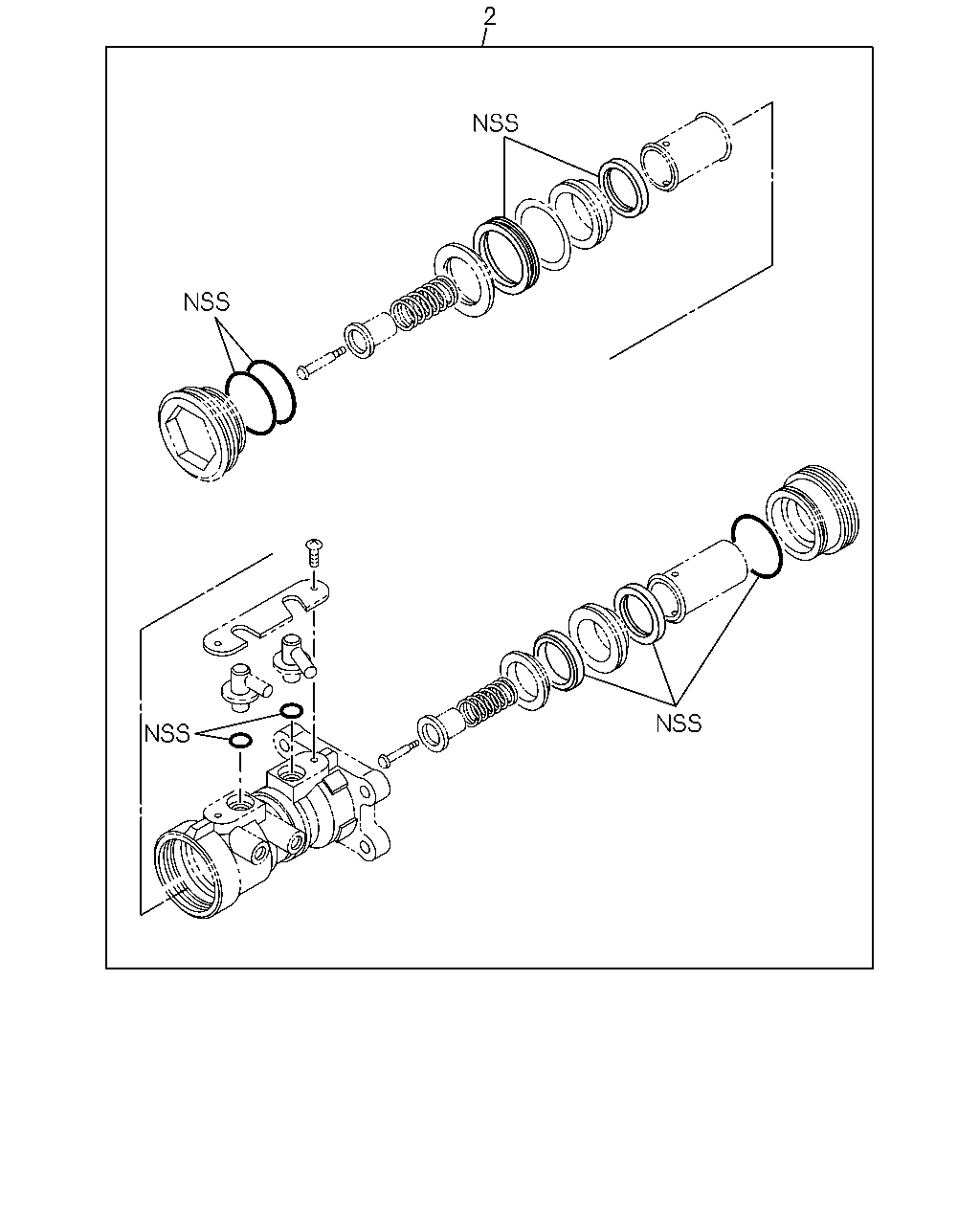

3-30 — BRAKE MASTER CYLINDER (#23034) — 26 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	2	04.649 REPAIR KIT; BRK,M/CYL	8-97206-412-0	01	1	0609-0609
	2	04.649 REPAIR KIT; BRK,M/CYL	8-97130-470-0	01	1	0610-

1 44 23 24 23 24 12 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.650 CYLINDER ASM; BRK MASTER	8-97181-861-0	01	1	0609-0609
1	04.650 CYLINDER ASM; BRK MASTER	8-97224-373-0	01	1	0610-
11	04.653 GASKET; STOPPER BOLT TO BRK M/CY	8-94107-675-0	01	1	0609-0609
12	04.653 BOLT; STOPPER,BRK M/CYL	8-97033-978-0	01	1	0609-0609
23	04.651 CONNECTOR; BRK M/CYL TO RESERVE	8-97080-899-0	02	1	0609-0609
24	04.651 CLIP; CONN TO BRK M/CYL	8-94405-178-0	02	1	0609-0609
44	04.656 RING; SNAP,M/CYL	8-97033-005-0	01	1	0609-0609

2 44 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	04.649 REPAIR KIT; BRK,M/CYL	8-97206-412-0	01	1	0609-0609
2	04.649 REPAIR KIT; BRK,M/CYL	8-97130-470-0	01	1	0610-
11	04.653 GASKET; STOPPER BOLT TO BRK M/CY	8-94107-675-0	01	1	0609-0609
44	04.656 RING; SNAP,M/CYL	8-97033-005-0	01	1	0609-0609

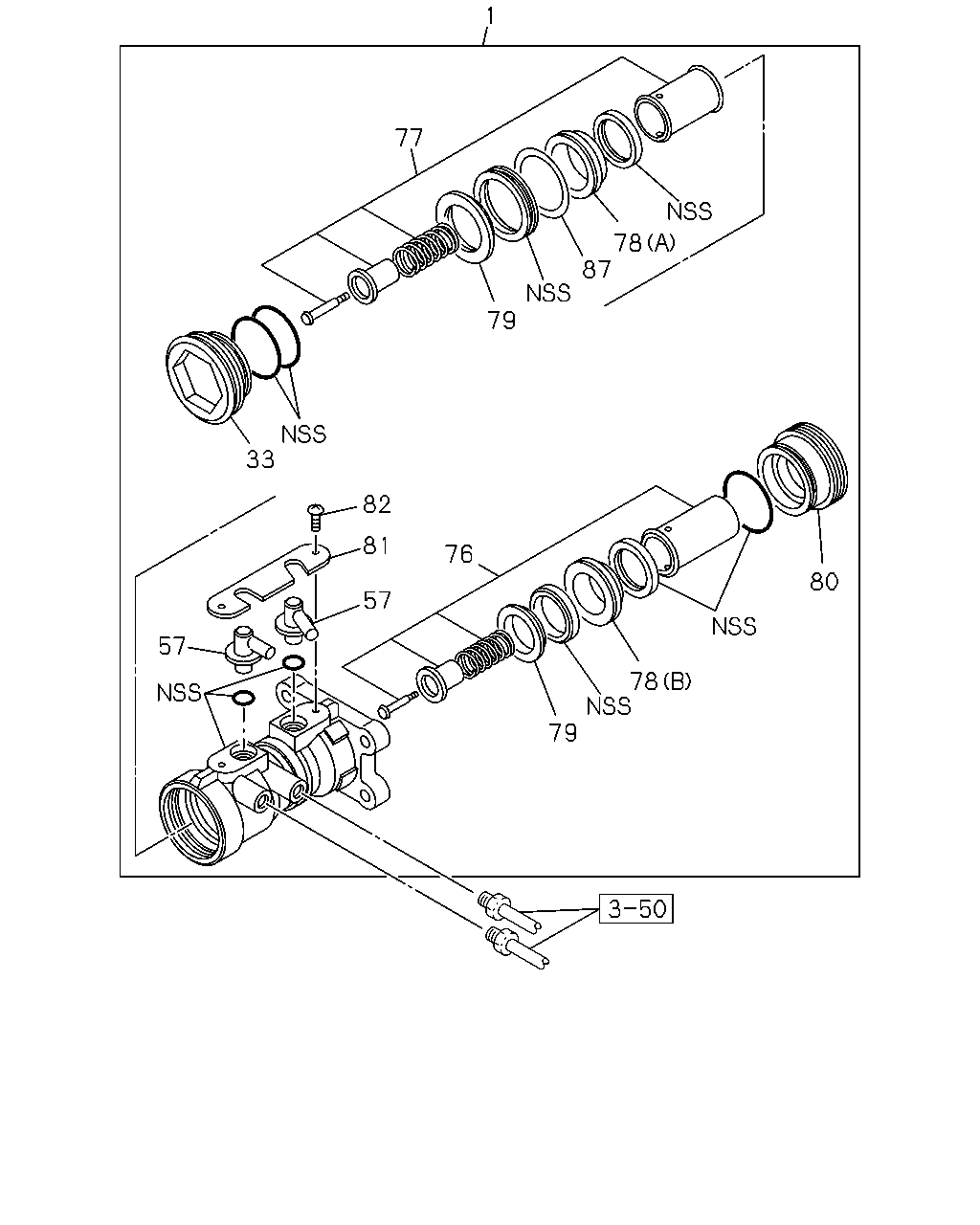

1 77 78 87 79 33 82 81 76 80 57 57 78 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.650 CYLINDER ASM; BRK MASTER	8-97181-861-0	01	1	0609-0609
1	04.650 CYLINDER ASM; BRK MASTER	8-97224-373-0	01	1	0610-
33	04.661 PLUG; END,M/CYL	8-97186-696-0	01	1	0610-
57	04.651 NIPPLE; BRK M/CYL	8-97130-442-0	02	1	0610-
76	04.653 PISTON ASM; PRIMARY	8-97224-636-0	01	1	0610-
77	04.653 PISTON ASM; SECONDARY	8-97224-635-0	01	1	0610-
78	04.651 BUSHING; MASTER CYL (A)	8-97130-454-0	01	1	0610-
78	04.651 BUSHING; MASTER CYL (B)	8-97217-310-0	01	1	0610-
79	04.651 SUPPORTER; CUP	8-97130-462-0	02	1	0610-
80	04.651 COVER; MASTER CYL	8-97130-448-0	01	1	0610-
81	04.651 HOLDER; NIPPLE	8-97130-445-0	01	1	0610-
82	04.651 SCREW; HOLDER	8-97130-446-0	02	1	0610-
87	04.662 SPACER; CUP	8-97130-458-0	01	1	0610-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
