◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51101 - NHR EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶

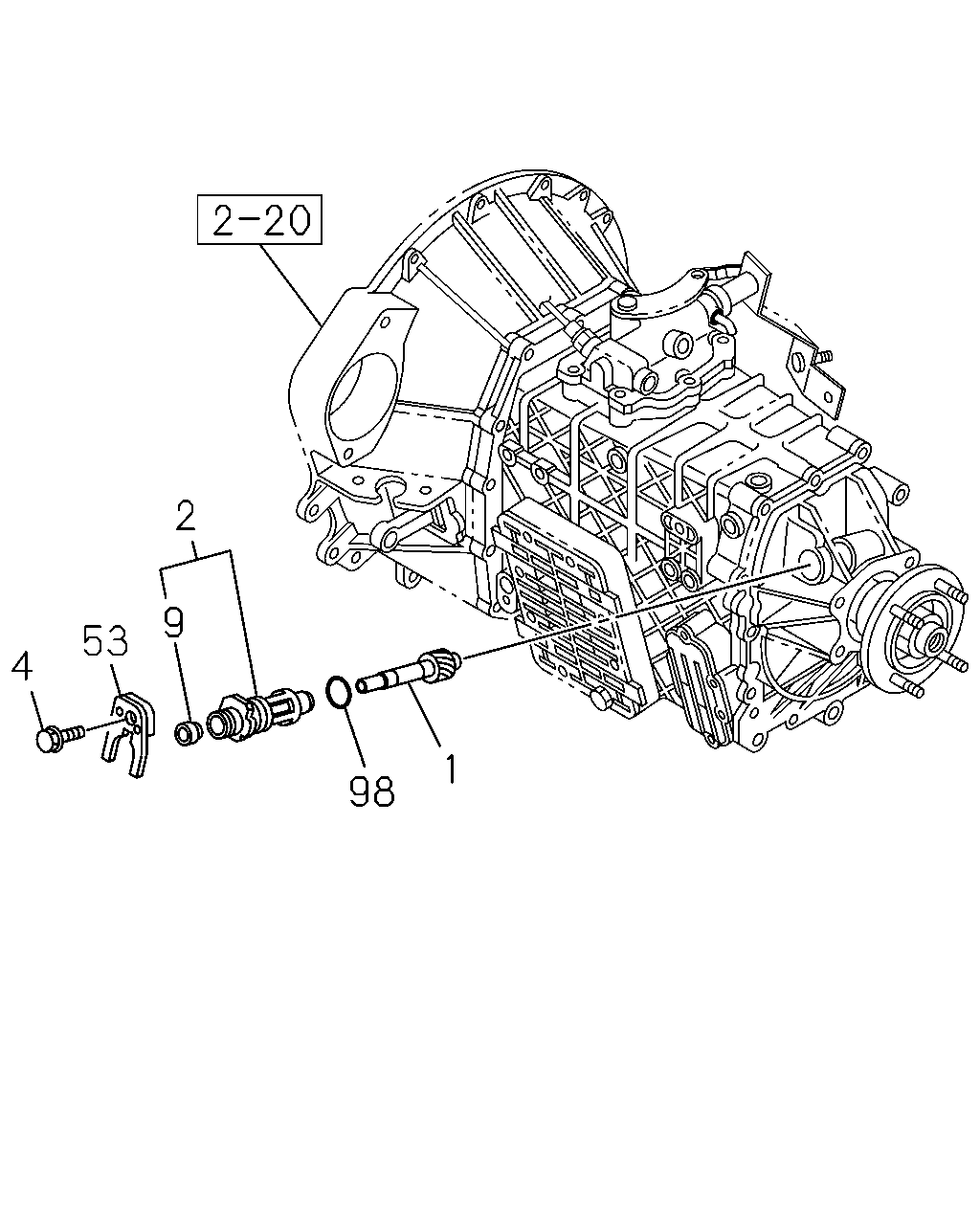

2-25 — SPEEDOMETER DRIVEN GEAR (#23023) — 13 parça
çizim 13755
2 9 53 4 1 98
BalonParca AdiParca NoAdetTipApplied Date
1 04.337 GEAR; DRIVEN,SPD
FRT 6-15-8 5.5KX15-30 RR 5.5-13-8 4JX13-98 (9ZX) Z=13 		8-97253-562-1 01 1 0609-0609
1 04.337 GEAR; DRIVEN,SPD
FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13- 98(BYZ) Z=14 		8-97253-561-1 01 1 0609-0609
1 04.337 GEAR; DRIVEN,SPD
Z=10 		8-97253-579-1 01 1 0610-0610
1 04.337 GEAR; DRIVEN,SPD
Z=13 		8-97253-562-1 01 1 0610-
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13- 98(BYZ),FRT 6-15-8 5.5KX15-30 RR 5.5-13-8 4JX13-98(9ZX) MARK "12,13,14,15" 		8-97253-125-0 01 1 0609-0609
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
MARK "10,11,16,17" 		8-97253-124-0 01 1 0610-0610
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
MARK "12,13,14,15" 		8-97253-125-0 01 1 0610-
4 04.338 BOLT; RET,DRIVEN GEAR
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0609-
9 04.338 SEAL; OIL,DRIVEN GEAR
FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13- 98(BYZ),FRT 6-15-8 5.5KX15-30 RR 5.5-13-8 4JX13-98(9ZX) NOK 		8-97131-328-1 01 1 0609-0609
9 04.338 SEAL; OIL,DRIVEN GEAR
NOK 		8-97131-328-1 01 1 0610-
53 04.338 PLATE; LOCK,DRIVEN GEAR 8-98046-217-0 01 1 0609-
98 04.338 SEAL; OIL,BUSH
FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13- 98(BYZ),FRT 6-15-8 5.5KX15-30 RR 5.5-13-8 4JX13-98(9ZX) 04.439 		9-09561-324-0 01 1 0609-0609
98 04.338 SEAL; OIL,BUSH
04.439 		9-09561-324-0 01 1 0610-
