2-08 — CLUTCH MASTER CYLINDER (#23020) — 14 parça

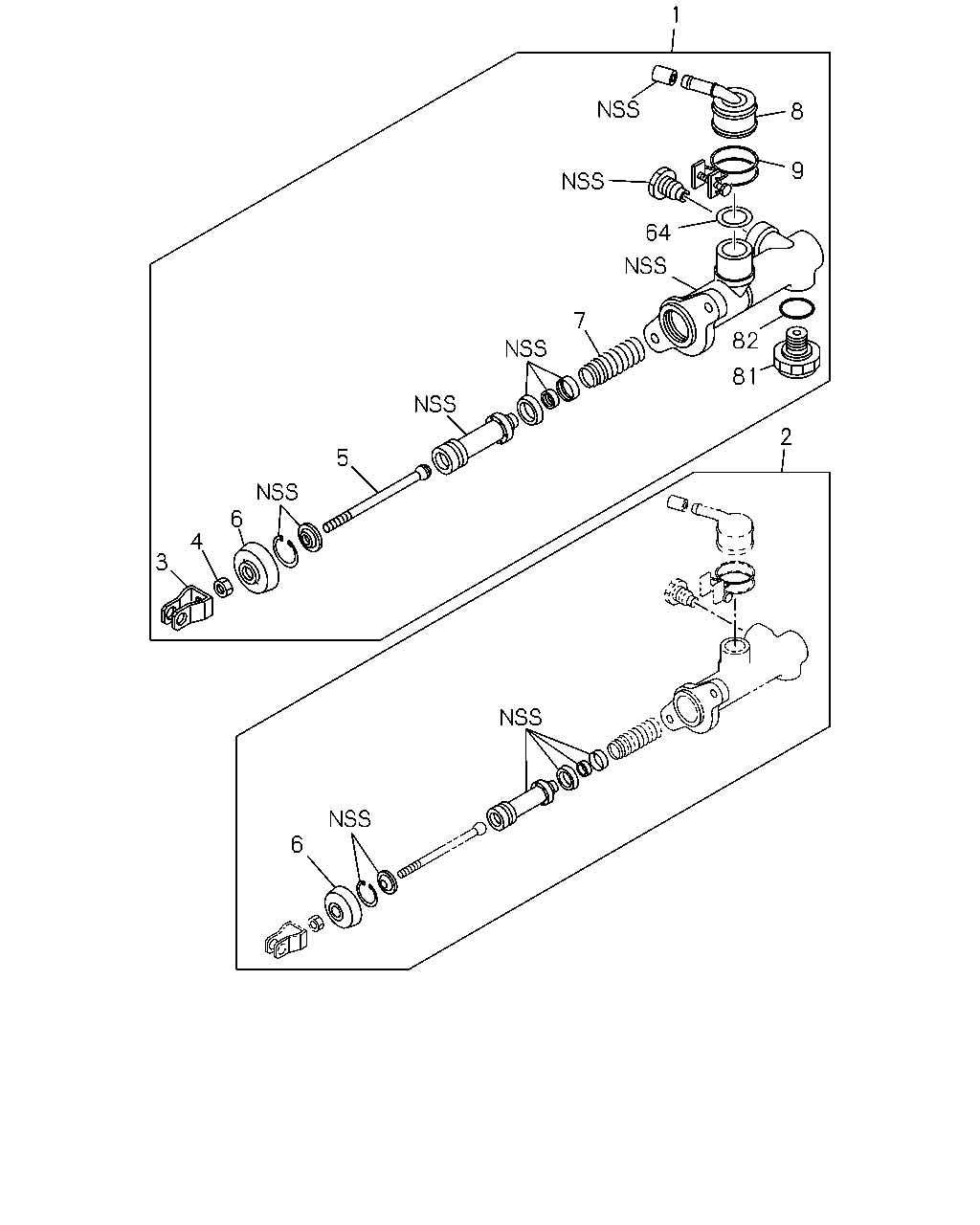

çizim 55574
1 8 9 64 7 82 81 2 5 6 4 3 6
BalonParca AdiParca NoAdetTipApplied Date
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97300-210-0 01 1 0609-0803
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-98117-641-0 01 1 0804-
2 00.775 REPAIR KIT; CLU M/CYL 5-87831-597-0 01 1 0609-0803
2 00.775 REPAIR KIT; CLU M/CYL 5-87832-226-0 01 1 0804-
3 00.777 JOINT; JAW,CLU M/CYL 8-97167-770-0 01 1 0609-
4 00.777 NUT; JAW JOINT
M8 		0-91111-508-0 01 1 0609-
5 00.775 ROD; PUSH,CLU M/CYL 8-97167-768-0 01 1 0609-
6 00.775 BOOT; CLU M/CYL 8-94412-200-0 01 1 0609-
7 00.775 SPRING ASM; CLU M/CYL 8-97167-780-0 01 1 0609-
8 00.777 CONNECTOR; PIPE,CLU M/CYL 8-97163-191-0 01 1 0609-
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 0609-
64 00.777 GASKET; CONNECTOR 8-97167-767-0 01 1 0609-
81 00.777 DAMPER; MASTER CYL 8-97190-913-0 01 1 0609-
82 00.777 GASKET; DAMPER 8-97191-396-0 01 1 0609-
