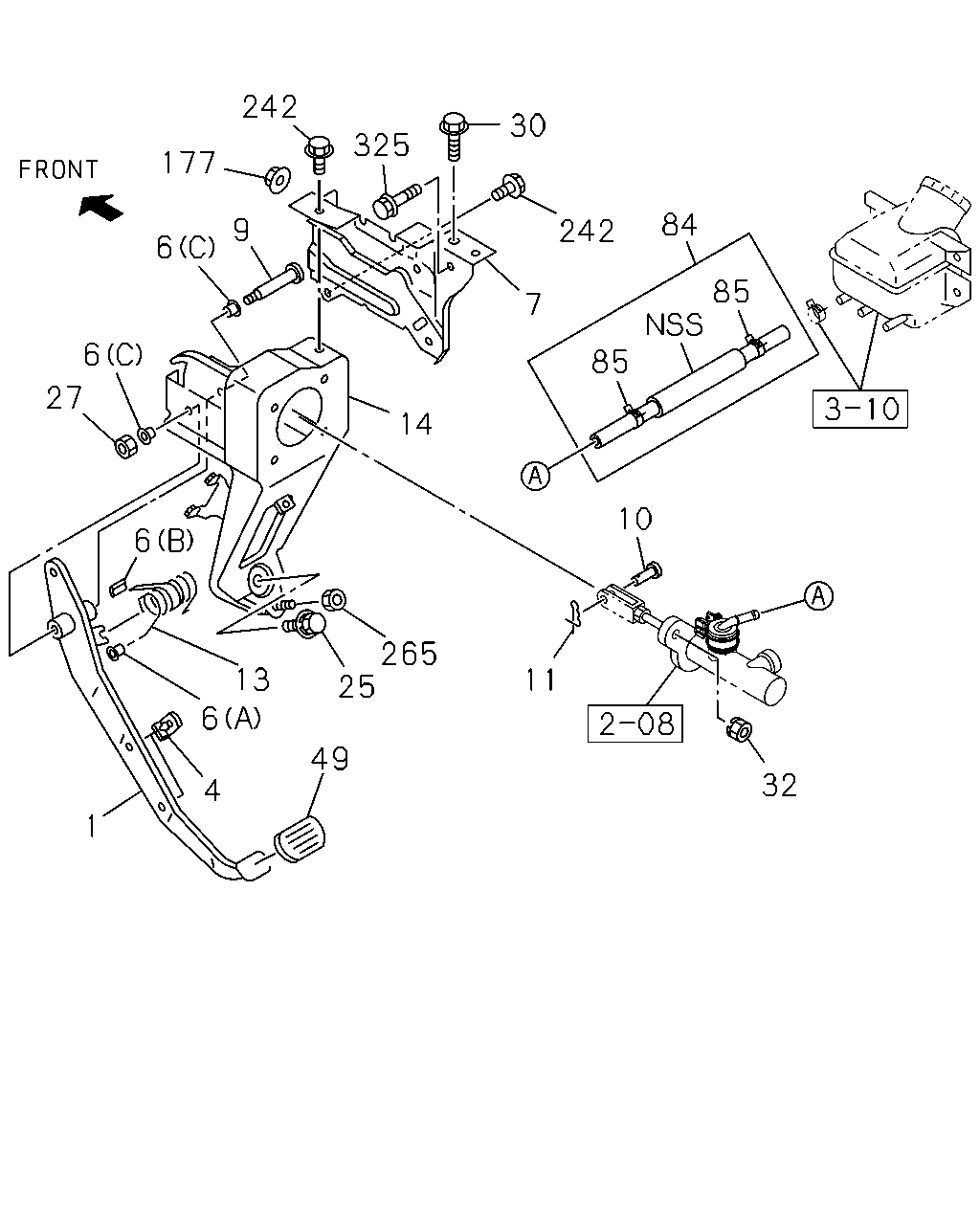

2-03 — CLUTCH PEDAL AND CONTROL (#23017) — 23 parça

242 30 325 177 84 9 242 6 85 7 6 85 27 14 10 6 265 25 13 11 6 49 32 4 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	00.830 PEDAL; CLU	8-97853-219-2	01	1	0609-
4	00.829 STOPPER; CLU PEDAL	8-97853-534-1	02	1	0609-
6	00.831 BUSHING; CLU PEDAL 04.792 (C)	8-94238-596-0	02	1	0609-
6	00.831 BUSHING; CLU PEDAL (A)	8-97853-619-0	02	1	0609-
6	00.831 BUSHING; CLU PEDAL (B)	8-97853-620-0	01	1	0609-
7	00.829 BRACKET; CLU PEDAL	8-97853-522-5	01	1	0609-
9	00.833 PIN; CLU PEDAL 04.634	8-97866-667-0	01	1	0609-
10	00.833 PIN; CLU PEDAL 04.634	8-94410-276-0	01	1	0609-
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL 04.634	8-94279-912-0	01	1	0609-
13	00.844 SPRING; ASSIST,CLU PEDAL	8-97853-221-1	01	1	0609-
14	00.829 BRACKET ASM; CLU PEDAL MTG	8-97892-848-3	01	1	0609-
25	00.833 BOLT; PEDAL M10X22 W/PL WASHER	8-97313-188-0	01	1	0609-
27	00.833 NUT; FULCRUM PIN M10 FLANGE	1-09440-022-0	01	1	0609-
30	00.829 BOLT; CLU MTG BRKT 07.833 M10X25 FLANGE	0-28661-025-0	01	1	0609-
32	00.777 NUT; BRKT TO CLU M/CYL M8 W/LK WASHER	8-94279-050-0	02	1	0609-
49	00.829 RUBBER; PAD,CLU PEDAL	8-97853-413-2	01	1	0609-
84	00.785 HOSE; RUBBER,CLU LINE	8-97135-024-0	01	1	0609-
85	00.785 CLIP; HOSE TO M/CYL 04.681	8-97130-480-0	02	1	0609-
177	00.785 NUT; BRKT 00.777 M8 W/LK WASHER	8-94279-050-0	02	1	0609-
242	00.785 BOLT; BRKT,CLUTCH 03.604 M8X16 FLANGE	0-28450-816-0	02	1	0609-
265	00.777 NUT; BRKT,COLUMN SUPT TO C.PDL 04.010 M8 FLANGE	8-97046-127-0	01	1	0609-0610
265	00.777 NUT; BRKT,COLUMN SUPT TO C.PDL 01.840 M8 W/DISHED WASHER	8-97329-625-0	01	1	0611-
325	00.782 BOLT; BRKT,STRG SUPPORT 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0609-
