◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#23016) — 95 parça

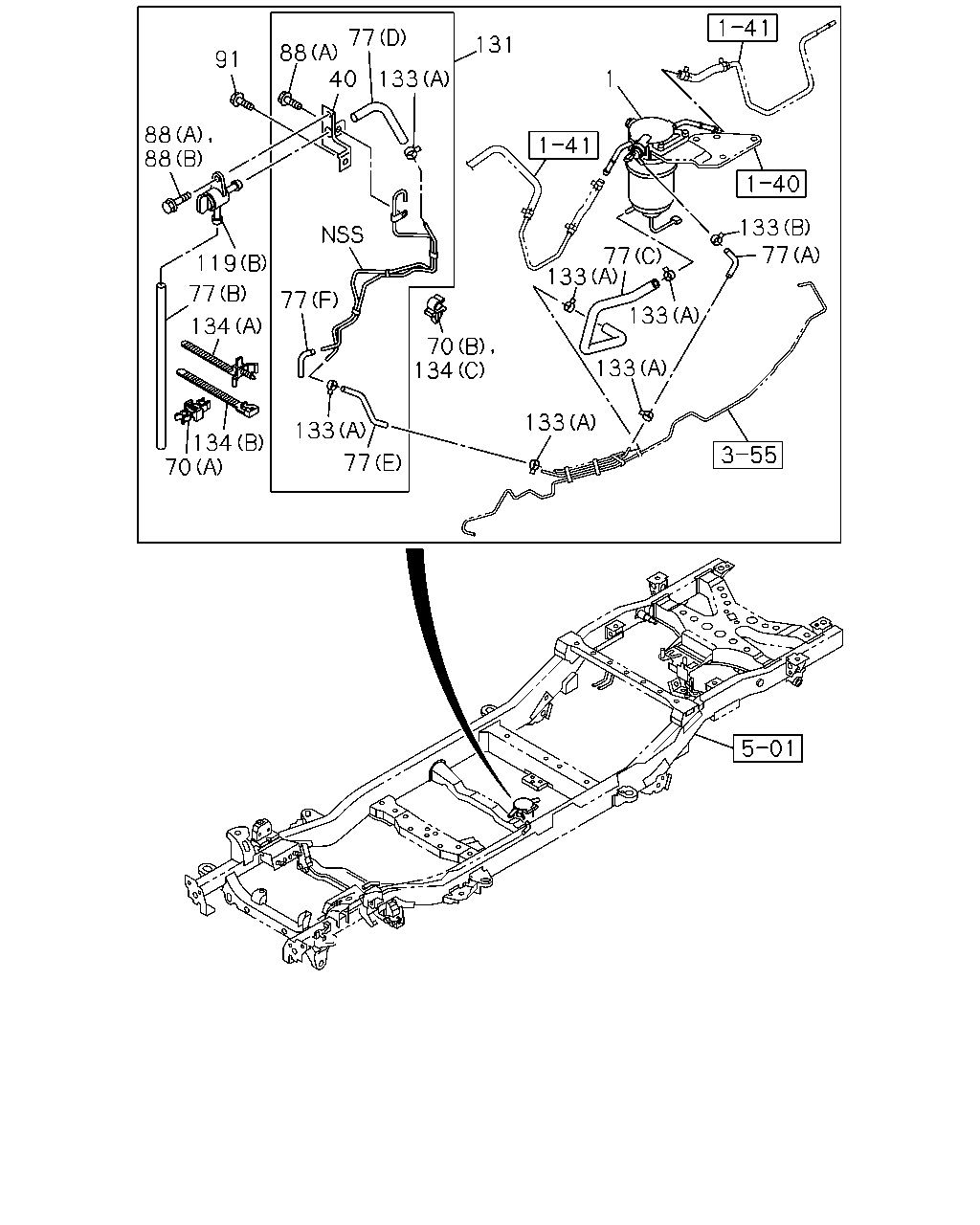

çizim 46503
77 131 88 40 91 133 1 88 88 133 77 77 133 119 77 77 133 134 70 134 133 133 133 134 70 77
BalonParca AdiParca NoAdetTipApplied Date A B C
1 FILTER ASM; FUEL
THA 		8-97287-518-1 01 1 0303-0408 ●
1 FILTER ASM; FUEL
THA 		8-98150-028-0 01 1 0409-0412 ●
1 FILTER ASM; FUEL
THA 		8-98150-028-0 01 1 0501-0606 ● ●
1 FILTER ASM; FUEL
THA 		8-98048-333-0 01 1 0607-0907 ● ●
1 FILTER ASM; FUEL
THA 		8-98150-029-0 01 1 0908- ● ●
40 BRACKET; FUEL FILTER
THA 		8-98043-611-1 01 1 0607- ● ●
70 CLIP; FUEL PIPE
(A) ID=7.5 & 7.5 THA 		8-97019-084-0 01 1 0607- ● ●
70 CLIP; FUEL PIPE
(B) ID=6.8 THA 		8-97134-154-0 01 1 0607- ● ●
77 HOSE; FUEL FILTER
(D) L=120 SERVICED BY L=3000 THA 		0-01755-300-0 01 1 0607-1004 ● ●
77 HOSE; FUEL FILTER
(C) L=249 THA 		8-98165-271-0 01 1 1005- ● ●
77 HOSE; FUEL FILTER
(E) L=220 SERVICED BY L=3000 THA 		0-01755-300-0 01 1 0607-1004 ● ●
77 HOSE; FUEL FILTER
(D) L=120 THA 		8-98165-853-0 01 1 1005- ● ●
77 HOSE; FUEL FILTER
(F) L=120 SERVICED BY L=3000 IMA 		0-04740-300-0 01 1 0607- ● ●
77 HOSE; FUEL FILTER
(A) L=78.7 THA 		8-98034-993-0 01 1 0607- ● ●
77 HOSE; FUEL FILTER
(C) L=249 THA 		8-98048-455-0 01 1 0607-1004 ● ●
77 HOSE; FUEL FILTER
(E) L=220 THA 		8-98165-854-0 01 1 1005- ● ●
77 HOSE; FUEL FILTER
(B) L=940 THA 		8-98049-047-0 01 1 0607- ● ●
88 BOLT; BRKT,FUEL FILTER
(A) M6X16 FLANGE THA 		0-28650-616-0 02 1 0607-0611 ● ●
88 BOLT; BRKT,FUEL FILTER
(A) M6X16 FLANGE THA 		0-28650-616-0 01 1 0612- ● ●
88 BOLT; BRKT,FUEL FILTER
(B) M6X16 FLANGE THA 		8-98049-357-0 01 1 0612- ● ●
91 BOLT; FUEL FILTER
4X2<TFB***> M6X20 FLANGE THA 		0-28650-620-0 01 1 0607- ● ●
119 PLUG; DRAIN,FUEL FILTER
(A) THA 		8-97375-983-0 01 1 0409-0412 ●
119 PLUG; DRAIN,FUEL FILTER
(A) THA 		8-97375-983-0 01 1 0501-0606 ● ●
119 PLUG; DRAIN,FUEL FILTER
(A) THA 		8-98048-185-0 01 1 0607- ● ●
119 PLUG; DRAIN,FUEL FILTER
(B) THA 		8-98048-635-0 01 1 0607- ● ●
131 PIPE; FILTER
THA 		8-98049-527-0 01 1 0607-1004 ● ●
131 PIPE; FILTER
THA 		8-98165-820-0 01 1 1005- ● ●
133 CLAMP; HOSE
(A) ID=11.5 THA 		8-98008-096-0 06 1 0607-1004 ● ●
133 CLAMP; HOSE
(B) ID=11.5 THA 		8-98051-892-0 01 1 0607-1004 ● ●
133 CLAMP; HOSE
(B) ID=11.5 THA 		8-98051-892-0 07 1 1005- ● ●
134 CLIP; FUEL HOSE
EXC. ANTI LOCK BRAKE SYSTEM<JE5> (C) ID=6.8 THA 		8-97134-154-0 01 1 0607-0710 ●
134 CLIP; FUEL HOSE
4X2<TFB***> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (C) ID=6.8 THA 		8-97134-154-0 01 1 0607-0710 ●
134 CLIP; FUEL HOSE
4X2<TFB***> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (C) ID=6.8 THA 		8-97134-154-0 01 1 0711- ● ●
134 CLIP; FUEL HOSE
(A) L=135 IMA 		8-94473-399-0 01 1 0607- ● ●
134 CLIP; FUEL HOSE
4X2<TFB***> ANTI LOCK BRAKE SYSTEM<JE5> (B) L=158.7 THA 		8-97922-209-0 01 1 0607- ● ●
134 CLIP; FUEL HOSE
4X4<TFS***> (B) L=158.7 THA 		8-97922-209-0 01 1 0607- ●
çizim 46865
1 1 5 6 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 FILTER ASM; FUEL
THA 		8-97287-518-1 01 1 0303-0408 ●
1 FILTER ASM; FUEL
THA 		8-98150-028-0 01 1 0409-0412 ●
1 FILTER ASM; FUEL
THA 		8-98150-028-0 01 1 0501-0606 ● ●
1 FILTER ASM; FUEL
THA 		8-98048-333-0 01 1 0607-0907 ● ●
1 FILTER ASM; FUEL
THA 		8-98150-029-0 01 1 0908- ● ●
2 ELEMENT KIT; FUEL FILTER
THA 		8-97916-993-1 01 1 0303-0408 ●
2 ELEMENT KIT; FUEL FILTER
THA 		8-98149-983-0 01 1 0409-0412 ●
2 ELEMENT KIT; FUEL FILTER
THA 		8-98149-983-0 01 1 0501-0606 ● ●
2 ELEMENT KIT; FUEL FILTER
THA 		8-98036-321-0 01 1 0607-0907 ● ●
2 ELEMENT KIT; FUEL FILTER
THA 		8-98149-982-0 01 1 0908- ● ●
5 BOLT; FUEL FILTER
THA 		8-97942-945-0 01 1 0303-0408 ●
5 BOLT; FUEL FILTER
M8X30 FLANGE THA 		0-28650-830-0 02 1 0409-0412 ●
5 BOLT; FUEL FILTER
M8X30 FLANGE THA 		0-28650-830-0 02 1 0501- ● ●
5 BOLT; FUEL FILTER
M6X16 FLANGE THA 		0-28050-616-0 01 1 0607-0609 ● ●
6 GASKET; FUEL FILTER
THA 		8-97942-938-0 01 1 0303-0408 ●
çizim 46866
5 1 119 2 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 FILTER ASM; FUEL
THA 		8-97287-518-1 01 1 0303-0408 ●
1 FILTER ASM; FUEL
THA 		8-98150-028-0 01 1 0409-0412 ●
1 FILTER ASM; FUEL
THA 		8-98150-028-0 01 1 0501-0606 ● ●
1 FILTER ASM; FUEL
THA 		8-98048-333-0 01 1 0607-0907 ● ●
1 FILTER ASM; FUEL
THA 		8-98150-029-0 01 1 0908- ● ●
2 ELEMENT KIT; FUEL FILTER
THA 		8-97916-993-1 01 1 0303-0408 ●
2 ELEMENT KIT; FUEL FILTER
THA 		8-98149-983-0 01 1 0409-0412 ●
2 ELEMENT KIT; FUEL FILTER
THA 		8-98149-983-0 01 1 0501-0606 ● ●
2 ELEMENT KIT; FUEL FILTER
THA 		8-98036-321-0 01 1 0607-0907 ● ●
2 ELEMENT KIT; FUEL FILTER
THA 		8-98149-982-0 01 1 0908- ● ●
3 SENSOR ASM; FUEL FILTER
THA 		8-97388-827-0 01 1 0409-0412 ●
3 SENSOR ASM; FUEL FILTER
THA 		8-97388-827-0 01 1 0501-0606 ● ●
3 SENSOR ASM; FUEL FILTER
THA 		8-98047-661-0 01 1 0607- ● ●
5 BOLT; FUEL FILTER
THA 		8-97942-945-0 01 1 0303-0408 ●
5 BOLT; FUEL FILTER
M8X30 FLANGE THA 		0-28650-830-0 02 1 0409-0412 ●
5 BOLT; FUEL FILTER
M8X30 FLANGE THA 		0-28650-830-0 02 1 0501- ● ●
5 BOLT; FUEL FILTER
M6X16 FLANGE THA 		0-28050-616-0 01 1 0607-0609 ● ●
119 PLUG; DRAIN,FUEL FILTER
(A) THA 		8-97375-983-0 01 1 0409-0412 ●
119 PLUG; DRAIN,FUEL FILTER
(A) THA 		8-97375-983-0 01 1 0501-0606 ● ●
119 PLUG; DRAIN,FUEL FILTER
(A) THA 		8-98048-185-0 01 1 0607- ● ●
119 PLUG; DRAIN,FUEL FILTER
(B) THA 		8-98048-635-0 01 1 0607- ● ●
çizim 46867
5 1 124 119 2 105 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 FILTER ASM; FUEL
THA 		8-97287-518-1 01 1 0303-0408 ●
1 FILTER ASM; FUEL
THA 		8-98150-028-0 01 1 0409-0412 ●
1 FILTER ASM; FUEL
THA 		8-98150-028-0 01 1 0501-0606 ● ●
1 FILTER ASM; FUEL
THA 		8-98048-333-0 01 1 0607-0907 ● ●
1 FILTER ASM; FUEL
THA 		8-98150-029-0 01 1 0908- ● ●
2 ELEMENT KIT; FUEL FILTER
THA 		8-97916-993-1 01 1 0303-0408 ●
2 ELEMENT KIT; FUEL FILTER
THA 		8-98149-983-0 01 1 0409-0412 ●
2 ELEMENT KIT; FUEL FILTER
THA 		8-98149-983-0 01 1 0501-0606 ● ●
2 ELEMENT KIT; FUEL FILTER
THA 		8-98036-321-0 01 1 0607-0907 ● ●
2 ELEMENT KIT; FUEL FILTER
THA 		8-98149-982-0 01 1 0908- ● ●
3 SENSOR ASM; FUEL FILTER
THA 		8-97388-827-0 01 1 0409-0412 ●
3 SENSOR ASM; FUEL FILTER
THA 		8-97388-827-0 01 1 0501-0606 ● ●
3 SENSOR ASM; FUEL FILTER
THA 		8-98047-661-0 01 1 0607- ● ●
5 BOLT; FUEL FILTER
THA 		8-97942-945-0 01 1 0303-0408 ●
5 BOLT; FUEL FILTER
M8X30 FLANGE THA 		0-28650-830-0 02 1 0409-0412 ●
5 BOLT; FUEL FILTER
M8X30 FLANGE THA 		0-28650-830-0 02 1 0501- ● ●
5 BOLT; FUEL FILTER
M6X16 FLANGE THA 		0-28050-616-0 01 1 0607-0609 ● ●
105 CASE; FUEL FILTER
THA 		8-98048-537-0 01 1 0607- ● ●
119 PLUG; DRAIN,FUEL FILTER
(A) THA 		8-97375-983-0 01 1 0409-0412 ●
119 PLUG; DRAIN,FUEL FILTER
(A) THA 		8-97375-983-0 01 1 0501-0606 ● ●
119 PLUG; DRAIN,FUEL FILTER
(A) THA 		8-98048-185-0 01 1 0607- ● ●
119 PLUG; DRAIN,FUEL FILTER
(B) THA 		8-98048-635-0 01 1 0607- ● ●
124 SWITCH; PRESSURE,FUEL FILTER
THA 		8-98036-319-0 01 1 0607- ● ●
