◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#23015) — 439 parça

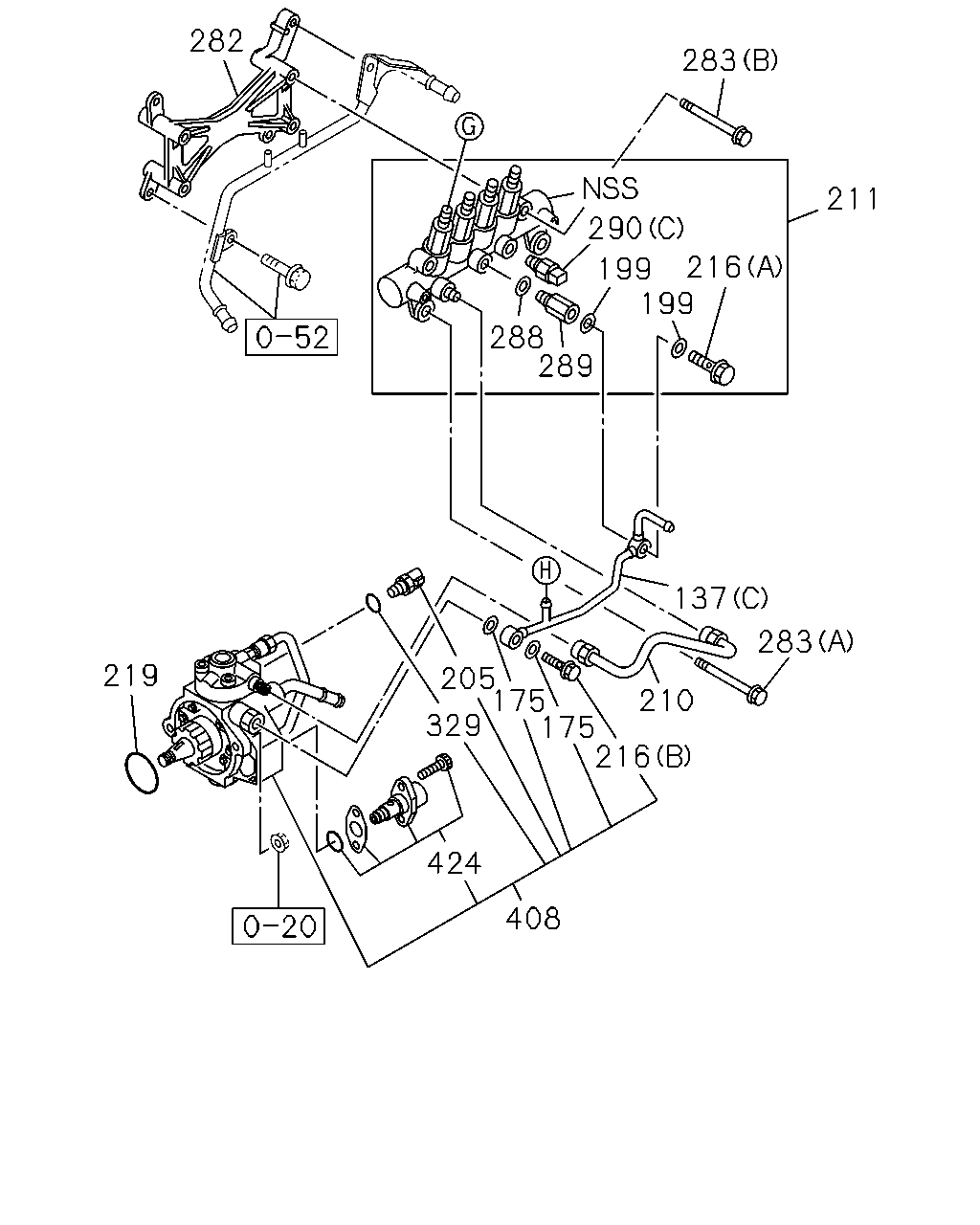

çizim 46864
282 283 211 290 199 288 289 137 283 219 205 175 175 216 210 329 424 408 199 216
BalonParca AdiParca NoAdetTipApplied Date A B C
137 PIPE ASM; LEAK OFF
(A) THA 		8-97315-230-1 01 1 0409-0412 ●
137 PIPE ASM; LEAK OFF
(A) THA 		8-97315-230-2 01 1 0501- ● ●
137 PIPE ASM; LEAK OFF
(B) THA 		8-97315-231-1 03 1 0409-0412 ●
137 PIPE ASM; LEAK OFF
(B) THA 		8-97315-231-2 03 1 0501- ● ●
137 PIPE ASM; LEAK OFF
(C) THA 		8-97357-916-3 01 1 0409-0412 ●
137 PIPE ASM; LEAK OFF
(C) THA 		8-97357-916-4 01 1 0501- ● ●
137 PIPE ASM; LEAK OFF
(D) THA 		8-97372-938-2 01 1 0409-0412 ●
137 PIPE ASM; LEAK OFF
(D) THA 		8-97372-938-3 01 1 0501- ● ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=10.2 OD=15.2 IMA 		1-09630-083-0 02 1 0607- ● ●
199 GASKET; EYE BOLT
IMA 		8-97602-218-0 02 1 0607- ● ●
205 SENSOR; FUEL TEMP
THA 		8-97216-283-0 01 1 0607-0611 ● ●
205 SENSOR; FUEL TEMP
IMA 		8-98023-581-0 01 1 0612- ● ●
210 PIPE; INJ,C/R
THA 		8-97388-902-0 01 1 0409-0412 ●
210 PIPE; INJ,C/R
THA 		8-97388-902-0 01 1 0501- ● ●
211 RAIL ASM; COMMON
THA 		8-97311-370-1 01 1 0409-0412 ●
211 RAIL ASM; COMMON
THA 		8-97311-370-2 01 1 0501-0606 ● ●
211 RAIL ASM; COMMON
THA 		8-98011-888-0 01 1 0607-0708 ● ●
211 RAIL ASM; COMMON
THA 		8-98052-238-1 01 1 0709- ● ●
216 BOLT; EYE
(B) THA 		9-88130-088-0 01 1 0809-1402 ● ●
216 BOLT; EYE
(B) THA 		8-98209-777-0 01 1 1403- ● ●
216 BOLT; EYE
(B) THA 		8-98056-937-0 01 1 0607-0808 ● ●
216 BOLT; EYE
(A) IMA 		8-98043-033-0 01 1 0607- ● ●
219 GASKET
ID=49.7 THA 		1-09623-541-0 01 1 0409-0412 ●
219 GASKET
ID=49.7 THA 		1-09623-541-0 01 1 0501- ● ●
282 BRACKET; COMMON RAIL
THA 		8-97312-104-4 01 1 0409-0412 ●
282 BRACKET; COMMON RAIL
THA 		8-97312-104-4 01 1 0501-0606 ● ●
282 BRACKET; COMMON RAIL
THA 		8-98011-890-1 01 1 0607- ● ●
283 BOLT; COMMON RAIL
(A) M8X70 FLANGE THA 		0-28050-870-0 02 1 0409-0412 ●
283 BOLT; COMMON RAIL
(A) M8X70 FLANGE THA 		0-28050-870-0 02 1 0501- ● ●
283 BOLT; COMMON RAIL
(B) M8X81 FLANGE THA 		8-97354-584-0 02 1 0409-0412 ●
283 BOLT; COMMON RAIL
(B) M8X81 FLANGE THA 		8-97354-584-0 02 1 0501- ● ●
288 GASKET
ID=11 OD=16.3 IMA 		1-15641-046-0 01 1 0607- ● ●
289 LIMITER; FUEL PRESS
THA 		8-98032-549-0 01 1 0607- ● ●
290 SENSOR; PRESS
(A) THA 		8-09350-899-1 01 1 0409-0412 ●
290 SENSOR; PRESS
(A) THA 		8-09350-899-1 01 1 0501-0606 ● ●
290 SENSOR; PRESS
(B) IMA 		8-98020-514-0 01 1 0607- ● ●
290 SENSOR; PRESS
(C) IMA 		8-97318-684-0 01 1 0607-0708 ● ●
290 SENSOR; PRESS
(C) THA 		8-98014-320-0 01 1 0709-1208 ● ●
290 SENSOR; PRESS
(C) THA 		8-98181-616-0 01 1 1209- ● ●
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 THA 		9-09566-110-0 01 1 0711- ● ●
408 PUMP ASM; FUEL,SUPPLY
THA 		8-97311-373-4 01 1 0409-0412 ●
408 PUMP ASM; FUEL,SUPPLY
THA 		8-97311-373-9 01 1 0501- ● ●
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER THA 		8-98145-453-0 01 1 0409-0412 ●
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER THA 		8-98145-453-0 01 1 0501-0808 ● ●
424 OVERHAUL KIT; SUPPLY PUMP
THA 		8-98145-455-0 01 1 0809- ● ●
çizim 46901
324 354 29 30 29 29 30 29
BalonParca AdiParca NoAdetTipApplied Date A B C
29 CLIP; HOSE
(B) ID=19 IMA 		8-94238-569-0 02 1 0303-0303 ●
29 CLIP; HOSE
(B) ID=17.1 IMA 		8-94122-679-0 02 1 0303-0408 ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0409-0412 ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0501- ● ●
29 CLIP; HOSE
(A) ID=12 IMA 		8-94238-610-0 04 1 0303-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=110 SERVICED BY L=3000 THA 		0-01256-300-0 01 1 0303-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 IMA 		0-01804-130-0 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 IMA 		0-01804-130-0 01 1 0501-0611 ● ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 THA 		8-98053-692-0 01 1 0612- ● ●
30 HOSE; RUBBER,FUEL LEAK
(C) L=270 SERVICED BY L=3000 IMA 		0-01262-300-0 01 1 0303-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=98 IMA 		8-97354-652-0 03 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=98 IMA 		8-97354-652-0 03 1 0501-0611 ● ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=96 THA 		8-98053-693-0 03 1 0612- ● ●
30 HOSE; RUBBER,FUEL LEAK
(A) IRC THA 		8-97912-624-0 01 1 0303-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0501-0810 ● ●
30 HOSE; RUBBER,FUEL LEAK
(D) THA 		8-98112-034-0 01 1 0811- ● ●
30 HOSE; RUBBER,FUEL LEAK
(A) PCR THA 		8-97912-625-1 01 1 0303-0408 ●
324 PIPE; FUEL RETURN
THA 		8-97287-515-2 01 1 0303-0408 ●
354 BOLT; FUEL PIPE
M6X16 FLANGE THA 		0-28650-616-0 02 1 0303-0408 ●

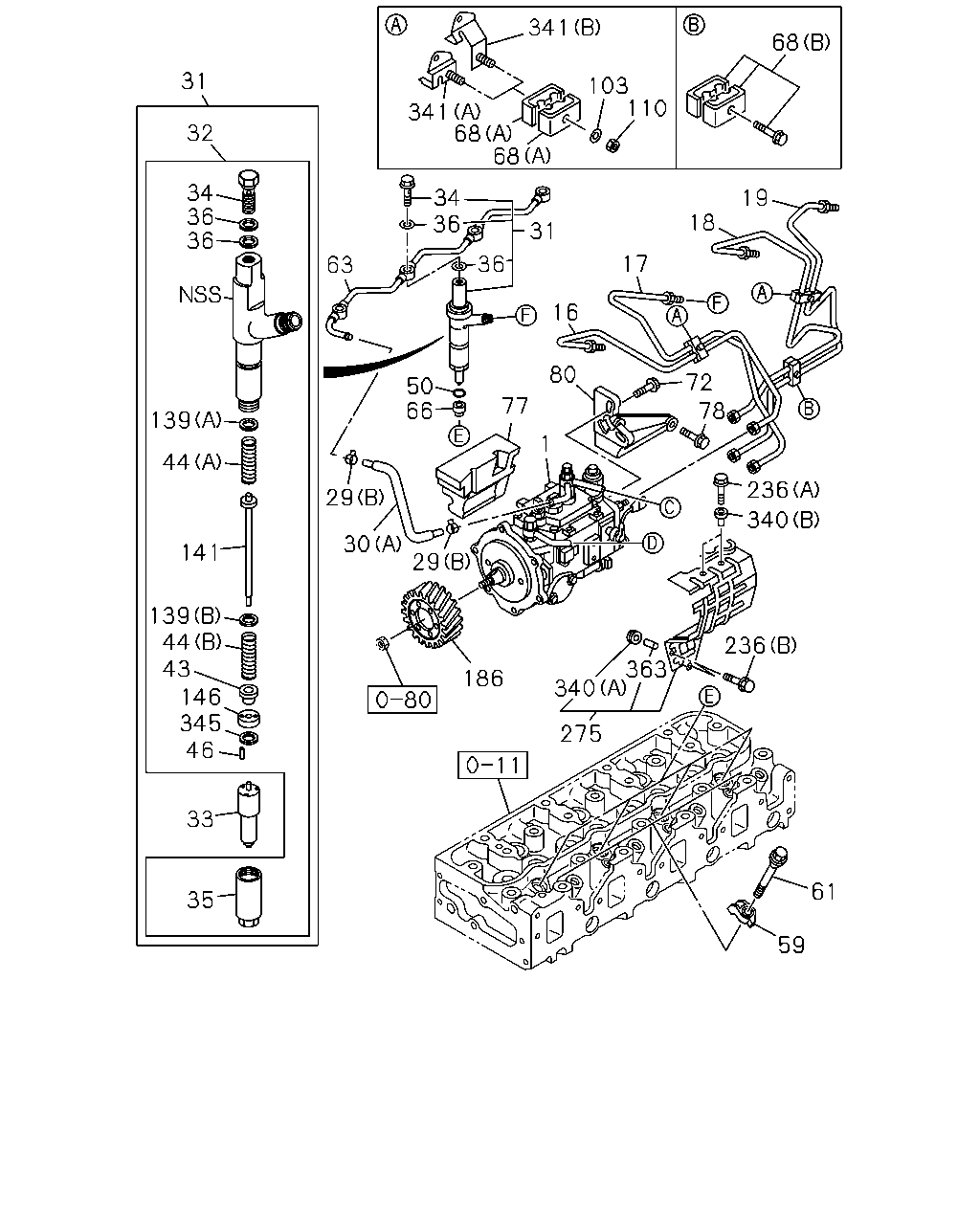

çizim 100686
341 68 31 103 110 341 68 68 32 34 36 36 34 36 19 18 31 17 36 63 16 80 72 50 66 77 78 139 1 44 236 29 340 30 141 29 139 44 43 146 345 46 236 363 186 340 275 33 61 35 59
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. IMA 		8-97214-093-5 01 1 0303-0408 ●
16 PIPE; INJ NO.1
THA 		8-97920-022-2 01 1 0303-0408 ●
16 PIPE; INJ NO.1
THA 		8-97312-099-2 01 1 0409-0412 ●
16 PIPE; INJ NO.1
THA 		8-97312-099-2 01 1 0501-0606 ● ●
16 PIPE; INJ NO.1
THA 		8-98011-606-0 01 1 0607- ● ●
17 PIPE; INJ NO.2
THA 		8-97920-023-2 01 1 0303-0408 ●
17 PIPE; INJ NO.2
THA 		8-97312-100-2 01 1 0409-0412 ●
17 PIPE; INJ NO.2
THA 		8-97312-100-2 01 1 0501-0606 ● ●
17 PIPE; INJ NO.2
THA 		8-98043-684-0 01 1 0607- ● ●
18 PIPE; INJ NO.3
THA 		8-97920-024-2 01 1 0303-0408 ●
18 PIPE; INJ NO.3
THA 		8-97312-101-2 01 1 0409-0412 ●
18 PIPE; INJ NO.3
THA 		8-97312-101-2 01 1 0501-0606 ● ●
18 PIPE; INJ NO.3
THA 		8-98011-608-0 01 1 0607- ● ●
19 PIPE; INJ NO.4
THA 		8-97920-025-2 01 1 0303-0408 ●
19 PIPE; INJ NO.4
THA 		8-97312-102-2 01 1 0409-0412 ●
19 PIPE; INJ NO.4
THA 		8-97312-102-2 01 1 0501-0606 ● ●
19 PIPE; INJ NO.4
THA 		8-98011-609-0 01 1 0607- ● ●
29 CLIP; HOSE
(B) ID=19 IMA 		8-94238-569-0 02 1 0303-0303 ●
29 CLIP; HOSE
(B) ID=17.1 IMA 		8-94122-679-0 02 1 0303-0408 ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0409-0412 ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0501- ● ●
29 CLIP; HOSE
(A) ID=12 IMA 		8-94238-610-0 04 1 0303-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=110 SERVICED BY L=3000 THA 		0-01256-300-0 01 1 0303-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 IMA 		0-01804-130-0 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 IMA 		0-01804-130-0 01 1 0501-0611 ● ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 THA 		8-98053-692-0 01 1 0612- ● ●
30 HOSE; RUBBER,FUEL LEAK
(C) L=270 SERVICED BY L=3000 IMA 		0-01262-300-0 01 1 0303-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=98 IMA 		8-97354-652-0 03 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=98 IMA 		8-97354-652-0 03 1 0501-0611 ● ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=96 THA 		8-98053-693-0 03 1 0612- ● ●
30 HOSE; RUBBER,FUEL LEAK
(A) IRC THA 		8-97912-624-0 01 1 0303-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0501-0810 ● ●
30 HOSE; RUBBER,FUEL LEAK
(D) THA 		8-98112-034-0 01 1 0811- ● ●
30 HOSE; RUBBER,FUEL LEAK
(A) PCR THA 		8-97912-625-1 01 1 0303-0408 ●
31 NOZZLE ASM; INJ
IMA 		8-97226-335-2 04 1 0303-0408 ●
31 NOZZLE ASM; INJ
THA 		8-97311-372-4 04 1 0409-0606 ●
31 NOZZLE ASM; INJ
THA 		8-98011-604-0 04 1 0607-0704 ●
31 NOZZLE ASM; INJ
THA 		8-98055-862-3 04 1 0705-1306 ●
31 NOZZLE ASM; INJ
THA 		8-98011-604-5 04 1 1307- ●
31 NOZZLE ASM; INJ
THA 		8-97354-811-1 04 1 0501-0606 ●
31 NOZZLE ASM; INJ
THA 		8-98011-605-0 04 1 0607-0704 ●
31 NOZZLE ASM; INJ
THA 		8-98055-863-3 04 1 0705-1306 ●
31 NOZZLE ASM; INJ
THA 		8-98011-605-5 04 1 1307- ●
32 HOLDER ASM; NOZZLE
IMA 		8-97289-581-0 04 1 0303-0408 ●
33 NOZZLE; INJ
IMA 		8-97228-407-0 04 1 0303-0408 ●
34 BOLT; EYE,NOZZLE HOLDER
THA 		8-97238-601-0 04 1 0303-0408 ●
35 NUT; NOZZLE RET,NOZZLE HOLDER
IMA 		8-97300-529-0 04 1 0303-0408 ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
THA 		8-97238-599-0 08 1 0303-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
L=2.66 IMA 		8-97288-027-0 04 1 0303-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
L=2.67 IMA 		8-97288-028-0 04 1 0303-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
L=2.68 IMA 		8-97288-029-0 04 1 0303-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
L=2.69 IMA 		8-97288-031-0 04 1 0303-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
L=2.70 IMA 		8-97288-032-0 04 1 0303-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
L=2.71 IMA 		8-97288-033-0 04 1 0303-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
L=2.72 IMA 		8-97288-034-0 04 1 0303-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
L=2.73 IMA 		8-97288-035-0 04 1 0303-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
L=2.74 IMA 		8-97288-036-0 04 1 0303-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
L=2.75 IMA 		8-97288-037-0 04 1 0303-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
L=2.76 IMA 		8-97288-038-0 04 1 0303-0408 ●
44 SPRING; NOZZLE,NOZZLE HOLDER
(B) IMA 		8-97300-503-0 04 1 0303-0408 ●
44 SPRING; NOZZLE,NOZZLE HOLDER
(A) IMA 		8-97300-504-0 04 1 0303-0408 ●
46 PIN; NOZZLE SET,NOZZLE HOLDER
IMA 		8-97300-651-0 08 1 0303-0408 ●
50 GASKET; NOZZLE HOLDER
THA 		8-97912-615-0 04 1 0303-0408 ●
59 CLAMP; NOZZLE HOLDER
THA 		8-97920-006-0 04 1 0303-0408 ●
59 CLAMP; NOZZLE HOLDER
THA 		8-97374-468-0 04 1 0409-0412 ●
59 CLAMP; NOZZLE HOLDER
THA 		8-97374-468-0 04 1 0501-0606 ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98011-528-2 04 1 0607-0710 ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98092-539-0 04 1 0711- ● ●
61 BOLT; CLAMP NOZZLE HOLDER
THA 		8-97920-028-0 04 1 0303-0408 ●
63 PIPE; FUEL,NOZZLE LEAK OFF
THA 		8-97920-247-0 01 1 0303-0408 ●
66 GASKET; INJ NOZZLE
ID=7.2 OD=15.0 T=6.6 THA 		8-97171-331-0 04 1 0303-0408 ●
66 GASKET; INJ NOZZLE
THA 		8-97251-334-0 04 1 0409-0412 ●
66 GASKET; INJ NOZZLE
THA 		8-97251-334-0 04 1 0501-0608 ● ●
66 GASKET; INJ NOZZLE
THA 		8-98057-731-0 04 1 0609-0701 ● ●
66 GASKET; INJ NOZZLE
THA 		8-98077-165-0 04 1 0702-1012 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) IMA 		8-98181-540-0 04 1 1101- ● ●
68 CLIP; INJ PIPE
(A) THA 		1-09701-132-1 04 1 0303-0408 ●
68 CLIP; INJ PIPE
(C) THA 		8-97213-481-0 04 1 0409-0412 ●
68 CLIP; INJ PIPE
(C) THA 		8-97213-481-0 04 1 0501- ● ●
68 CLIP; INJ PIPE
(B) THA 		8-97224-041-1 01 1 0303-0408 ●
72 BOLT; BRKT TO INJ PUMP
M8X25 FLANGE THA 		0-28650-825-0 02 1 0303-0408 ●
77 RUBBER; SPACE,INJ PUMP
THA 		8-97942-632-0 01 1 0303-0308 ●
78 BOLT; BRKT TO C/BL
M8X25 FLANGE THA 		0-28650-825-0 02 1 0303-0408 ●
80 BRACKET; PUMP
THA 		8-97920-065-0 01 1 0303-0408 ●
103 WASHER; LK,CLIP,INJ PIPE
ID=6.1 THA 		9-09150-506-0 02 1 0303-0406 ●
110 NUT; CLIP
M6 IMA 		0-91110-506-0 02 1 0303-0406 ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-206-0 02 1 0407-0408 ●
110 NUT; CLIP
M6 FLANGE THA 		0-91150-106-0 02 1 0409-0412 ●
110 NUT; CLIP
M6 FLANGE THA 		0-91150-106-0 02 1 0501-0605 ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 02 1 0606- ● ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.85 IMA 		8-97288-049-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.90 IMA 		8-97288-050-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.95 IMA 		8-97288-051-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.00 IMA 		8-97288-052-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.05 IMA 		8-97288-053-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.10 IMA 		8-97288-054-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.15 IMA 		8-97288-055-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.20 IMA 		8-97288-056-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.25 IMA 		8-97288-057-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.30 IMA 		8-97288-058-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.35 IMA 		8-97288-059-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.40 IMA 		8-97288-060-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.45 IMA 		8-97288-061-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.50 IMA 		8-97288-062-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.55 IMA 		8-97288-063-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.60 IMA 		8-97288-064-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.65 IMA 		8-97288-065-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.70 IMA 		8-97288-066-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.75 IMA 		8-97288-067-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.80 IMA 		8-97288-068-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.85 IMA 		8-97288-069-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.90 IMA 		8-97288-070-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.95 IMA 		8-97288-071-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.00 IMA 		8-97288-072-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.05 IMA 		8-97288-073-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.10 IMA 		8-97288-074-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.15 IMA 		8-97288-075-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.20 IMA 		8-97288-076-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.00 IMA 		8-97288-077-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.05 IMA 		8-97288-078-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.10 IMA 		8-97288-079-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.15 IMA 		8-97288-080-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.20 IMA 		8-97288-081-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.25 IMA 		8-97288-082-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.30 IMA 		8-97288-083-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.35 IMA 		8-97288-084-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.40 IMA 		8-97288-085-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.45 IMA 		8-97288-086-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.50 IMA 		8-97288-087-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.55 IMA 		8-97288-088-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.60 IMA 		8-97288-089-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.65 IMA 		8-97288-090-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.70 IMA 		8-97288-091-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.75 IMA 		8-97288-092-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.80 IMA 		8-97288-093-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.85 IMA 		8-97288-094-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.90 IMA 		8-97288-095-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.95 IMA 		8-97288-096-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.00 IMA 		8-97288-097-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.05 IMA 		8-97288-098-0 04 1 0303-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.10 IMA 		8-97288-099-0 04 1 0303-0408 ●
141 ROD; PUSH,UPR,NOZZLE HOLDER
IMA 		8-97300-502-0 04 1 0303-0408 ●
146 SPACER; NOZZLE
IMA 		8-97300-650-0 04 1 0303-0408 ●
186 GEAR; INJ PUMP
THA 		8-97322-651-0 01 1 0303-0408 ●
236 BOLT; COVER
(A) M6X30 FLANGE THA 		0-28650-630-0 02 1 0303-0408 ●
236 BOLT; COVER
(B) M10X30 FLANGE THA 		0-28651-030-0 02 1 0303-0408 ●
275 COVER; INJ PUMP
THA 		8-97287-510-3 01 1 0303-0408 ●
340 RUBBER; MTG
(A) OD=22 THA 		8-94140-428-1 02 1 0303-0408 ●
340 RUBBER; MTG
(B) IMA 		8-97168-200-1 02 1 0303-0408 ●
341 BRACKET; CLIP,INJ PIPE
(A) INJ PIPE NO.3,4 THA 		8-97920-070-0 01 1 0303-0408 ●
341 BRACKET; CLIP,INJ PIPE
(B) INJ PIPE NO.1,2 THA 		8-97920-071-1 01 1 0303-0408 ●
345 WASHER; NOZZLE HOLDER
T=2.400 IMA 		8-97288-041-0 04 1 0303-0408 ●
345 WASHER; NOZZLE HOLDER
T=2.425 IMA 		8-97288-043-0 04 1 0303-0408 ●
345 WASHER; NOZZLE HOLDER
T=2.450 IMA 		8-97288-044-0 04 1 0303-0408 ●
345 WASHER; NOZZLE HOLDER
T=2.475 IMA 		8-97288-045-0 04 1 0303-0408 ●
345 WASHER; NOZZLE HOLDER
T=2.500 IMA 		8-97288-046-0 04 1 0303-0408 ●
363 GUIDE
OD=13 T=9.5 THA 		8-94140-427-1 02 1 0303-0408 ●

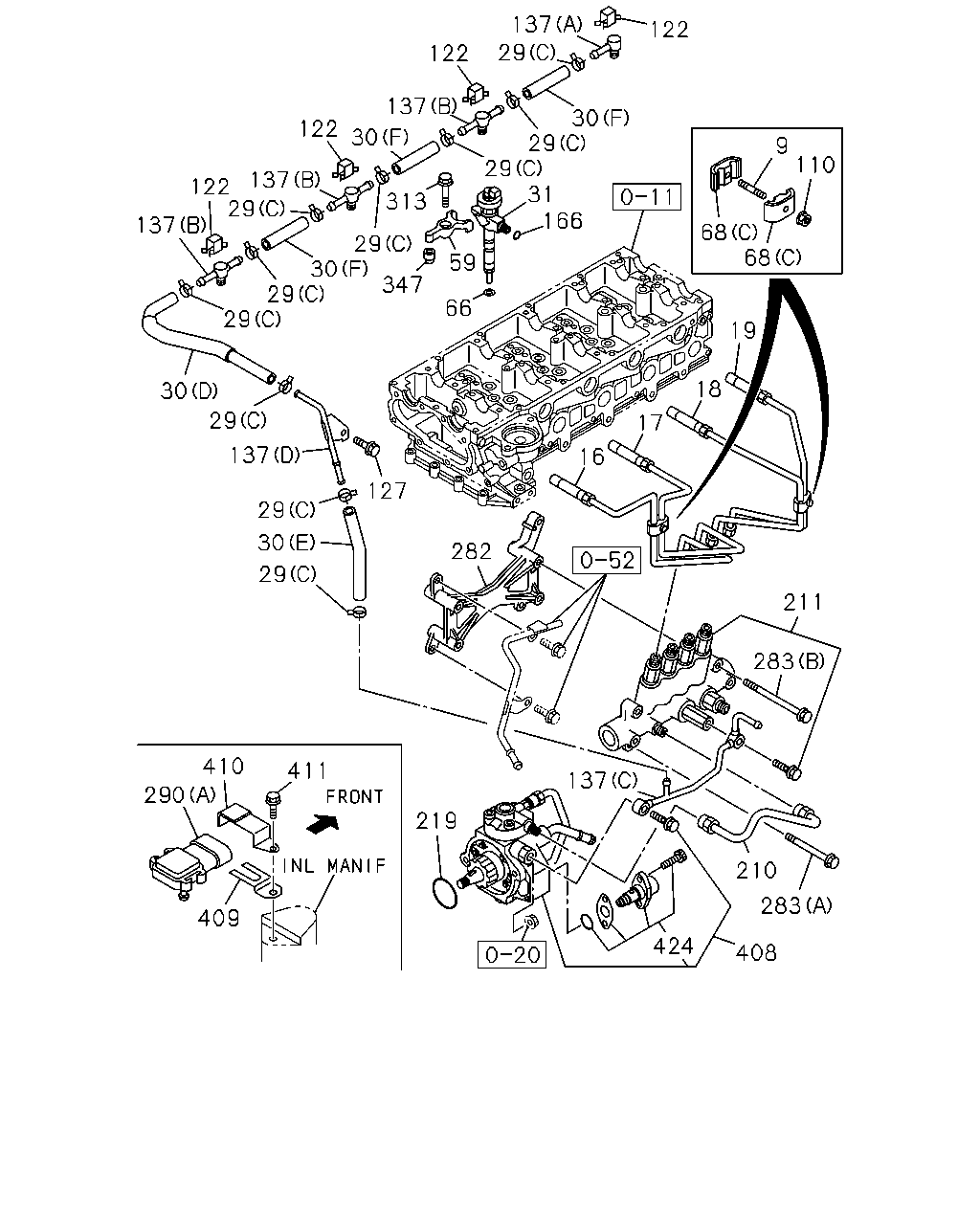

çizim 100687
137 29 122 122 137 30 29 29 31 166 122 30 9 110 137 122 29 313 137 68 68 29 30 29 29 59 347 66 19 18 30 17 29 137 16 127 29 30 282 29 211 283 410 411 137 290 219 210 283 409 424 408
BalonParca AdiParca NoAdetTipApplied Date A B C
9 STUD; CLIP
M6X25 L=36 THA 		8-97214-234-0 02 1 0409-0412 ●
9 STUD; CLIP
M6X25 L=36 THA 		8-97214-234-1 02 1 0501- ● ●
16 PIPE; INJ NO.1
THA 		8-97920-022-2 01 1 0303-0408 ●
16 PIPE; INJ NO.1
THA 		8-97312-099-2 01 1 0409-0412 ●
16 PIPE; INJ NO.1
THA 		8-97312-099-2 01 1 0501-0606 ● ●
16 PIPE; INJ NO.1
THA 		8-98011-606-0 01 1 0607- ● ●
17 PIPE; INJ NO.2
THA 		8-97920-023-2 01 1 0303-0408 ●
17 PIPE; INJ NO.2
THA 		8-97312-100-2 01 1 0409-0412 ●
17 PIPE; INJ NO.2
THA 		8-97312-100-2 01 1 0501-0606 ● ●
17 PIPE; INJ NO.2
THA 		8-98043-684-0 01 1 0607- ● ●
18 PIPE; INJ NO.3
THA 		8-97920-024-2 01 1 0303-0408 ●
18 PIPE; INJ NO.3
THA 		8-97312-101-2 01 1 0409-0412 ●
18 PIPE; INJ NO.3
THA 		8-97312-101-2 01 1 0501-0606 ● ●
18 PIPE; INJ NO.3
THA 		8-98011-608-0 01 1 0607- ● ●
19 PIPE; INJ NO.4
THA 		8-97920-025-2 01 1 0303-0408 ●
19 PIPE; INJ NO.4
THA 		8-97312-102-2 01 1 0409-0412 ●
19 PIPE; INJ NO.4
THA 		8-97312-102-2 01 1 0501-0606 ● ●
19 PIPE; INJ NO.4
THA 		8-98011-609-0 01 1 0607- ● ●
29 CLIP; HOSE
(B) ID=19 IMA 		8-94238-569-0 02 1 0303-0303 ●
29 CLIP; HOSE
(B) ID=17.1 IMA 		8-94122-679-0 02 1 0303-0408 ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0409-0412 ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0501- ● ●
29 CLIP; HOSE
(A) ID=12 IMA 		8-94238-610-0 04 1 0303-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=110 SERVICED BY L=3000 THA 		0-01256-300-0 01 1 0303-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 IMA 		0-01804-130-0 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 IMA 		0-01804-130-0 01 1 0501-0611 ● ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 THA 		8-98053-692-0 01 1 0612- ● ●
30 HOSE; RUBBER,FUEL LEAK
(C) L=270 SERVICED BY L=3000 IMA 		0-01262-300-0 01 1 0303-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=98 IMA 		8-97354-652-0 03 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=98 IMA 		8-97354-652-0 03 1 0501-0611 ● ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=96 THA 		8-98053-693-0 03 1 0612- ● ●
30 HOSE; RUBBER,FUEL LEAK
(A) IRC THA 		8-97912-624-0 01 1 0303-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0501-0810 ● ●
30 HOSE; RUBBER,FUEL LEAK
(D) THA 		8-98112-034-0 01 1 0811- ● ●
30 HOSE; RUBBER,FUEL LEAK
(A) PCR THA 		8-97912-625-1 01 1 0303-0408 ●
31 NOZZLE ASM; INJ
IMA 		8-97226-335-2 04 1 0303-0408 ●
31 NOZZLE ASM; INJ
THA 		8-97311-372-4 04 1 0409-0606 ●
31 NOZZLE ASM; INJ
THA 		8-98011-604-0 04 1 0607-0704 ●
31 NOZZLE ASM; INJ
THA 		8-98055-862-3 04 1 0705-1306 ●
31 NOZZLE ASM; INJ
THA 		8-98011-604-5 04 1 1307- ●
31 NOZZLE ASM; INJ
THA 		8-97354-811-1 04 1 0501-0606 ●
31 NOZZLE ASM; INJ
THA 		8-98011-605-0 04 1 0607-0704 ●
31 NOZZLE ASM; INJ
THA 		8-98055-863-3 04 1 0705-1306 ●
31 NOZZLE ASM; INJ
THA 		8-98011-605-5 04 1 1307- ●
59 CLAMP; NOZZLE HOLDER
THA 		8-97920-006-0 04 1 0303-0408 ●
59 CLAMP; NOZZLE HOLDER
THA 		8-97374-468-0 04 1 0409-0412 ●
59 CLAMP; NOZZLE HOLDER
THA 		8-97374-468-0 04 1 0501-0606 ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98011-528-2 04 1 0607-0710 ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98092-539-0 04 1 0711- ● ●
66 GASKET; INJ NOZZLE
ID=7.2 OD=15.0 T=6.6 THA 		8-97171-331-0 04 1 0303-0408 ●
66 GASKET; INJ NOZZLE
THA 		8-97251-334-0 04 1 0409-0412 ●
66 GASKET; INJ NOZZLE
THA 		8-97251-334-0 04 1 0501-0608 ● ●
66 GASKET; INJ NOZZLE
THA 		8-98057-731-0 04 1 0609-0701 ● ●
66 GASKET; INJ NOZZLE
THA 		8-98077-165-0 04 1 0702-1012 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) IMA 		8-98181-540-0 04 1 1101- ● ●
68 CLIP; INJ PIPE
(A) THA 		1-09701-132-1 04 1 0303-0408 ●
68 CLIP; INJ PIPE
(C) THA 		8-97213-481-0 04 1 0409-0412 ●
68 CLIP; INJ PIPE
(C) THA 		8-97213-481-0 04 1 0501- ● ●
68 CLIP; INJ PIPE
(B) THA 		8-97224-041-1 01 1 0303-0408 ●
110 NUT; CLIP
M6 IMA 		0-91110-506-0 02 1 0303-0406 ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-206-0 02 1 0407-0408 ●
110 NUT; CLIP
M6 FLANGE THA 		0-91150-106-0 02 1 0409-0412 ●
110 NUT; CLIP
M6 FLANGE THA 		0-91150-106-0 02 1 0501-0605 ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 02 1 0606- ● ●
122 CLIP; LEAK OFF PIPE
IMA 		8-97315-286-0 04 1 0409-0412 ●
122 CLIP; LEAK OFF PIPE
IMA 		8-97315-286-0 04 1 0501- ● ●
127 BOLT; CLIP LEAK OFF PIPE
M8X12 FLANGE THA 		0-28050-812-0 01 1 0409-0412 ●
127 BOLT; CLIP LEAK OFF PIPE
M8X12 FLANGE THA 		0-28050-812-0 01 1 0501- ● ●
137 PIPE ASM; LEAK OFF
(A) THA 		8-97315-230-1 01 1 0409-0412 ●
137 PIPE ASM; LEAK OFF
(A) THA 		8-97315-230-2 01 1 0501- ● ●
137 PIPE ASM; LEAK OFF
(B) THA 		8-97315-231-1 03 1 0409-0412 ●
137 PIPE ASM; LEAK OFF
(B) THA 		8-97315-231-2 03 1 0501- ● ●
137 PIPE ASM; LEAK OFF
(C) THA 		8-97357-916-3 01 1 0409-0412 ●
137 PIPE ASM; LEAK OFF
(C) THA 		8-97357-916-4 01 1 0501- ● ●
137 PIPE ASM; LEAK OFF
(D) THA 		8-97372-938-2 01 1 0409-0412 ●
137 PIPE ASM; LEAK OFF
(D) THA 		8-97372-938-3 01 1 0501- ● ●
166 GASKET; FUEL INJECTOR
ID=11 OD=14.8 THA 		9-09566-111-0 04 1 0409-0412 ●
166 GASKET; FUEL INJECTOR
ID=11 OD=14.8 THA 		9-09566-111-0 04 1 0501- ● ●
210 PIPE; INJ,C/R
THA 		8-97388-902-0 01 1 0409-0412 ●
210 PIPE; INJ,C/R
THA 		8-97388-902-0 01 1 0501- ● ●
211 RAIL ASM; COMMON
THA 		8-97311-370-1 01 1 0409-0412 ●
211 RAIL ASM; COMMON
THA 		8-97311-370-2 01 1 0501-0606 ● ●
211 RAIL ASM; COMMON
THA 		8-98011-888-0 01 1 0607-0708 ● ●
211 RAIL ASM; COMMON
THA 		8-98052-238-1 01 1 0709- ● ●
219 GASKET
ID=49.7 THA 		1-09623-541-0 01 1 0409-0412 ●
219 GASKET
ID=49.7 THA 		1-09623-541-0 01 1 0501- ● ●
282 BRACKET; COMMON RAIL
THA 		8-97312-104-4 01 1 0409-0412 ●
282 BRACKET; COMMON RAIL
THA 		8-97312-104-4 01 1 0501-0606 ● ●
282 BRACKET; COMMON RAIL
THA 		8-98011-890-1 01 1 0607- ● ●
283 BOLT; COMMON RAIL
(A) M8X70 FLANGE THA 		0-28050-870-0 02 1 0409-0412 ●
283 BOLT; COMMON RAIL
(A) M8X70 FLANGE THA 		0-28050-870-0 02 1 0501- ● ●
283 BOLT; COMMON RAIL
(B) M8X81 FLANGE THA 		8-97354-584-0 02 1 0409-0412 ●
283 BOLT; COMMON RAIL
(B) M8X81 FLANGE THA 		8-97354-584-0 02 1 0501- ● ●
290 SENSOR; PRESS
(A) THA 		8-09350-899-1 01 1 0409-0412 ●
290 SENSOR; PRESS
(A) THA 		8-09350-899-1 01 1 0501-0606 ● ●
290 SENSOR; PRESS
(B) IMA 		8-98020-514-0 01 1 0607- ● ●
290 SENSOR; PRESS
(C) IMA 		8-97318-684-0 01 1 0607-0708 ● ●
290 SENSOR; PRESS
(C) THA 		8-98014-320-0 01 1 0709-1208 ● ●
290 SENSOR; PRESS
(C) THA 		8-98181-616-0 01 1 1209- ● ●
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER THA 		8-97372-144-0 04 1 0409-0412 ●
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER THA 		8-97372-144-0 04 1 0501-0707 ● ●
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER THA 		8-98095-575-0 04 1 0708- ● ●
347 PIN
THA 		8-97383-286-0 04 1 0409-0412 ●
347 PIN
THA 		8-97383-286-0 04 1 0501-1012 ● ●
347 PIN
THA 		8-98165-035-0 04 1 1101- ● ●
408 PUMP ASM; FUEL,SUPPLY
THA 		8-97311-373-4 01 1 0409-0412 ●
408 PUMP ASM; FUEL,SUPPLY
THA 		8-97311-373-9 01 1 0501- ● ●
409 PLATE; SENSOR
THA 		8-97377-206-0 01 1 0409-0412 ●
409 PLATE; SENSOR
THA 		8-97377-206-0 01 1 0501-0606 ● ●
410 BRACKET; SENSOR
THA 		8-97374-929-0 01 1 0409-0412 ●
410 BRACKET; SENSOR
THA 		8-97374-929-0 01 1 0501-0606 ● ●
410 BRACKET; SENSOR
THA 		8-98013-801-1 01 1 0607- ● ●
411 BOLT; SENSOR
M6X12 FLANGE THA 		0-28050-612-0 01 1 0409-0412 ●
411 BOLT; SENSOR
M6X12 FLANGE THA 		0-28050-612-0 01 1 0501- ● ●
411 BOLT; SENSOR
M6X20 FLANGE THA 		0-28650-620-0 02 1 0607- ● ●
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER THA 		8-98145-453-0 01 1 0409-0412 ●
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER THA 		8-98145-453-0 01 1 0501-0808 ● ●
424 OVERHAUL KIT; SUPPLY PUMP
THA 		8-98145-455-0 01 1 0809- ● ●

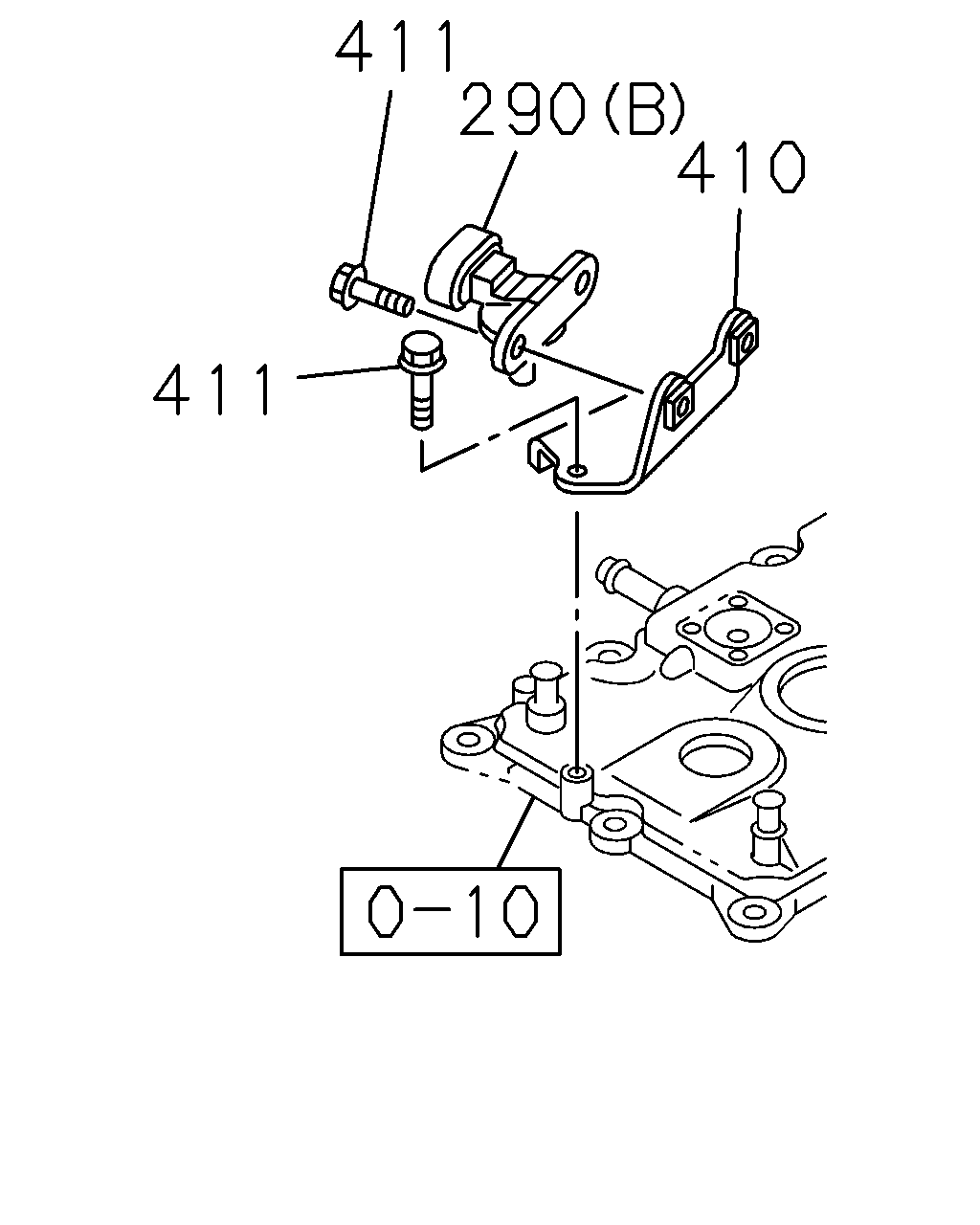

çizim 100688
411 290 410 411
BalonParca AdiParca NoAdetTipApplied Date A B C
290 SENSOR; PRESS
(A) THA 		8-09350-899-1 01 1 0409-0412 ●
290 SENSOR; PRESS
(A) THA 		8-09350-899-1 01 1 0501-0606 ● ●
290 SENSOR; PRESS
(B) IMA 		8-98020-514-0 01 1 0607- ● ●
290 SENSOR; PRESS
(C) IMA 		8-97318-684-0 01 1 0607-0708 ● ●
290 SENSOR; PRESS
(C) THA 		8-98014-320-0 01 1 0709-1208 ● ●
290 SENSOR; PRESS
(C) THA 		8-98181-616-0 01 1 1209- ● ●
410 BRACKET; SENSOR
THA 		8-97374-929-0 01 1 0409-0412 ●
410 BRACKET; SENSOR
THA 		8-97374-929-0 01 1 0501-0606 ● ●
410 BRACKET; SENSOR
THA 		8-98013-801-1 01 1 0607- ● ●
411 BOLT; SENSOR
M6X12 FLANGE THA 		0-28050-612-0 01 1 0409-0412 ●
411 BOLT; SENSOR
M6X12 FLANGE THA 		0-28050-612-0 01 1 0501- ● ●
411 BOLT; SENSOR
M6X20 FLANGE THA 		0-28650-620-0 02 1 0607- ● ●

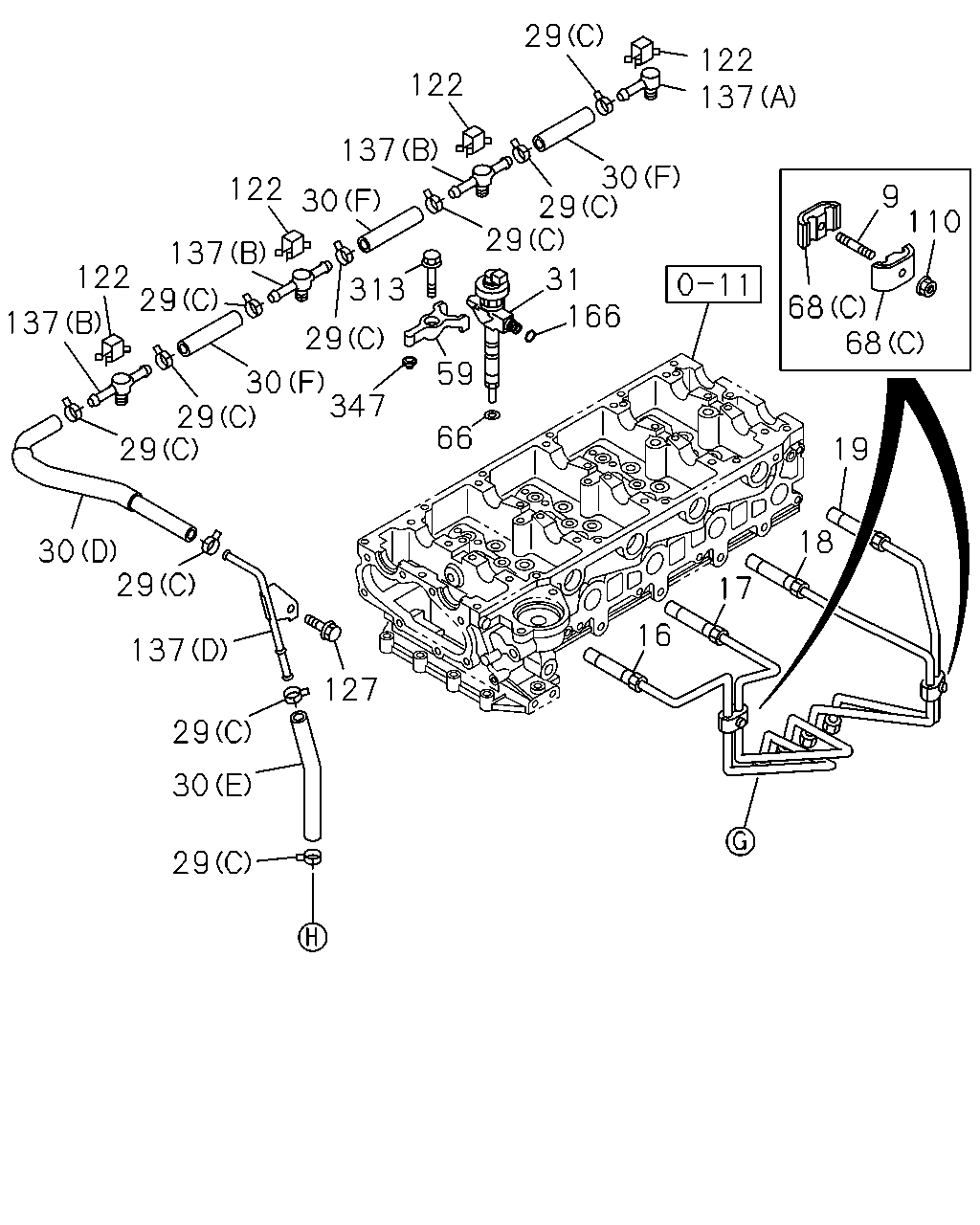

çizim 100689
29 122 137 122 137 30 29 29 122 9 110 30 137 122 29 31 166 313 68 68 137 29 59 30 347 29 29 66 19 18 30 29 17 16 137 127 29 30 29
BalonParca AdiParca NoAdetTipApplied Date A B C
9 STUD; CLIP
M6X25 L=36 THA 		8-97214-234-0 02 1 0409-0412 ●
9 STUD; CLIP
M6X25 L=36 THA 		8-97214-234-1 02 1 0501- ● ●
16 PIPE; INJ NO.1
THA 		8-97920-022-2 01 1 0303-0408 ●
16 PIPE; INJ NO.1
THA 		8-97312-099-2 01 1 0409-0412 ●
16 PIPE; INJ NO.1
THA 		8-97312-099-2 01 1 0501-0606 ● ●
16 PIPE; INJ NO.1
THA 		8-98011-606-0 01 1 0607- ● ●
17 PIPE; INJ NO.2
THA 		8-97920-023-2 01 1 0303-0408 ●
17 PIPE; INJ NO.2
THA 		8-97312-100-2 01 1 0409-0412 ●
17 PIPE; INJ NO.2
THA 		8-97312-100-2 01 1 0501-0606 ● ●
17 PIPE; INJ NO.2
THA 		8-98043-684-0 01 1 0607- ● ●
18 PIPE; INJ NO.3
THA 		8-97920-024-2 01 1 0303-0408 ●
18 PIPE; INJ NO.3
THA 		8-97312-101-2 01 1 0409-0412 ●
18 PIPE; INJ NO.3
THA 		8-97312-101-2 01 1 0501-0606 ● ●
18 PIPE; INJ NO.3
THA 		8-98011-608-0 01 1 0607- ● ●
19 PIPE; INJ NO.4
THA 		8-97920-025-2 01 1 0303-0408 ●
19 PIPE; INJ NO.4
THA 		8-97312-102-2 01 1 0409-0412 ●
19 PIPE; INJ NO.4
THA 		8-97312-102-2 01 1 0501-0606 ● ●
19 PIPE; INJ NO.4
THA 		8-98011-609-0 01 1 0607- ● ●
29 CLIP; HOSE
(B) ID=19 IMA 		8-94238-569-0 02 1 0303-0303 ●
29 CLIP; HOSE
(B) ID=17.1 IMA 		8-94122-679-0 02 1 0303-0408 ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0409-0412 ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0501- ● ●
29 CLIP; HOSE
(A) ID=12 IMA 		8-94238-610-0 04 1 0303-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=110 SERVICED BY L=3000 THA 		0-01256-300-0 01 1 0303-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 IMA 		0-01804-130-0 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 IMA 		0-01804-130-0 01 1 0501-0611 ● ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 THA 		8-98053-692-0 01 1 0612- ● ●
30 HOSE; RUBBER,FUEL LEAK
(C) L=270 SERVICED BY L=3000 IMA 		0-01262-300-0 01 1 0303-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=98 IMA 		8-97354-652-0 03 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=98 IMA 		8-97354-652-0 03 1 0501-0611 ● ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=96 THA 		8-98053-693-0 03 1 0612- ● ●
30 HOSE; RUBBER,FUEL LEAK
(A) IRC THA 		8-97912-624-0 01 1 0303-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0501-0810 ● ●
30 HOSE; RUBBER,FUEL LEAK
(D) THA 		8-98112-034-0 01 1 0811- ● ●
30 HOSE; RUBBER,FUEL LEAK
(A) PCR THA 		8-97912-625-1 01 1 0303-0408 ●
31 NOZZLE ASM; INJ
IMA 		8-97226-335-2 04 1 0303-0408 ●
31 NOZZLE ASM; INJ
THA 		8-97311-372-4 04 1 0409-0606 ●
31 NOZZLE ASM; INJ
THA 		8-98011-604-0 04 1 0607-0704 ●
31 NOZZLE ASM; INJ
THA 		8-98055-862-3 04 1 0705-1306 ●
31 NOZZLE ASM; INJ
THA 		8-98011-604-5 04 1 1307- ●
31 NOZZLE ASM; INJ
THA 		8-97354-811-1 04 1 0501-0606 ●
31 NOZZLE ASM; INJ
THA 		8-98011-605-0 04 1 0607-0704 ●
31 NOZZLE ASM; INJ
THA 		8-98055-863-3 04 1 0705-1306 ●
31 NOZZLE ASM; INJ
THA 		8-98011-605-5 04 1 1307- ●
59 CLAMP; NOZZLE HOLDER
THA 		8-97920-006-0 04 1 0303-0408 ●
59 CLAMP; NOZZLE HOLDER
THA 		8-97374-468-0 04 1 0409-0412 ●
59 CLAMP; NOZZLE HOLDER
THA 		8-97374-468-0 04 1 0501-0606 ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98011-528-2 04 1 0607-0710 ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98092-539-0 04 1 0711- ● ●
66 GASKET; INJ NOZZLE
ID=7.2 OD=15.0 T=6.6 THA 		8-97171-331-0 04 1 0303-0408 ●
66 GASKET; INJ NOZZLE
THA 		8-97251-334-0 04 1 0409-0412 ●
66 GASKET; INJ NOZZLE
THA 		8-97251-334-0 04 1 0501-0608 ● ●
66 GASKET; INJ NOZZLE
THA 		8-98057-731-0 04 1 0609-0701 ● ●
66 GASKET; INJ NOZZLE
THA 		8-98077-165-0 04 1 0702-1012 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) IMA 		8-98181-540-0 04 1 1101- ● ●
68 CLIP; INJ PIPE
(A) THA 		1-09701-132-1 04 1 0303-0408 ●
68 CLIP; INJ PIPE
(C) THA 		8-97213-481-0 04 1 0409-0412 ●
68 CLIP; INJ PIPE
(C) THA 		8-97213-481-0 04 1 0501- ● ●
68 CLIP; INJ PIPE
(B) THA 		8-97224-041-1 01 1 0303-0408 ●
110 NUT; CLIP
M6 IMA 		0-91110-506-0 02 1 0303-0406 ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-206-0 02 1 0407-0408 ●
110 NUT; CLIP
M6 FLANGE THA 		0-91150-106-0 02 1 0409-0412 ●
110 NUT; CLIP
M6 FLANGE THA 		0-91150-106-0 02 1 0501-0605 ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 02 1 0606- ● ●
122 CLIP; LEAK OFF PIPE
IMA 		8-97315-286-0 04 1 0409-0412 ●
122 CLIP; LEAK OFF PIPE
IMA 		8-97315-286-0 04 1 0501- ● ●
127 BOLT; CLIP LEAK OFF PIPE
M8X12 FLANGE THA 		0-28050-812-0 01 1 0409-0412 ●
127 BOLT; CLIP LEAK OFF PIPE
M8X12 FLANGE THA 		0-28050-812-0 01 1 0501- ● ●
137 PIPE ASM; LEAK OFF
(A) THA 		8-97315-230-1 01 1 0409-0412 ●
137 PIPE ASM; LEAK OFF
(A) THA 		8-97315-230-2 01 1 0501- ● ●
137 PIPE ASM; LEAK OFF
(B) THA 		8-97315-231-1 03 1 0409-0412 ●
137 PIPE ASM; LEAK OFF
(B) THA 		8-97315-231-2 03 1 0501- ● ●
137 PIPE ASM; LEAK OFF
(C) THA 		8-97357-916-3 01 1 0409-0412 ●
137 PIPE ASM; LEAK OFF
(C) THA 		8-97357-916-4 01 1 0501- ● ●
137 PIPE ASM; LEAK OFF
(D) THA 		8-97372-938-2 01 1 0409-0412 ●
137 PIPE ASM; LEAK OFF
(D) THA 		8-97372-938-3 01 1 0501- ● ●
166 GASKET; FUEL INJECTOR
ID=11 OD=14.8 THA 		9-09566-111-0 04 1 0409-0412 ●
166 GASKET; FUEL INJECTOR
ID=11 OD=14.8 THA 		9-09566-111-0 04 1 0501- ● ●
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER THA 		8-97372-144-0 04 1 0409-0412 ●
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER THA 		8-97372-144-0 04 1 0501-0707 ● ●
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER THA 		8-98095-575-0 04 1 0708- ● ●
347 PIN
THA 		8-97383-286-0 04 1 0409-0412 ●
347 PIN
THA 		8-97383-286-0 04 1 0501-1012 ● ●
347 PIN
THA 		8-98165-035-0 04 1 1101- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
