Sayfa 0-82C - Isuzu EPC

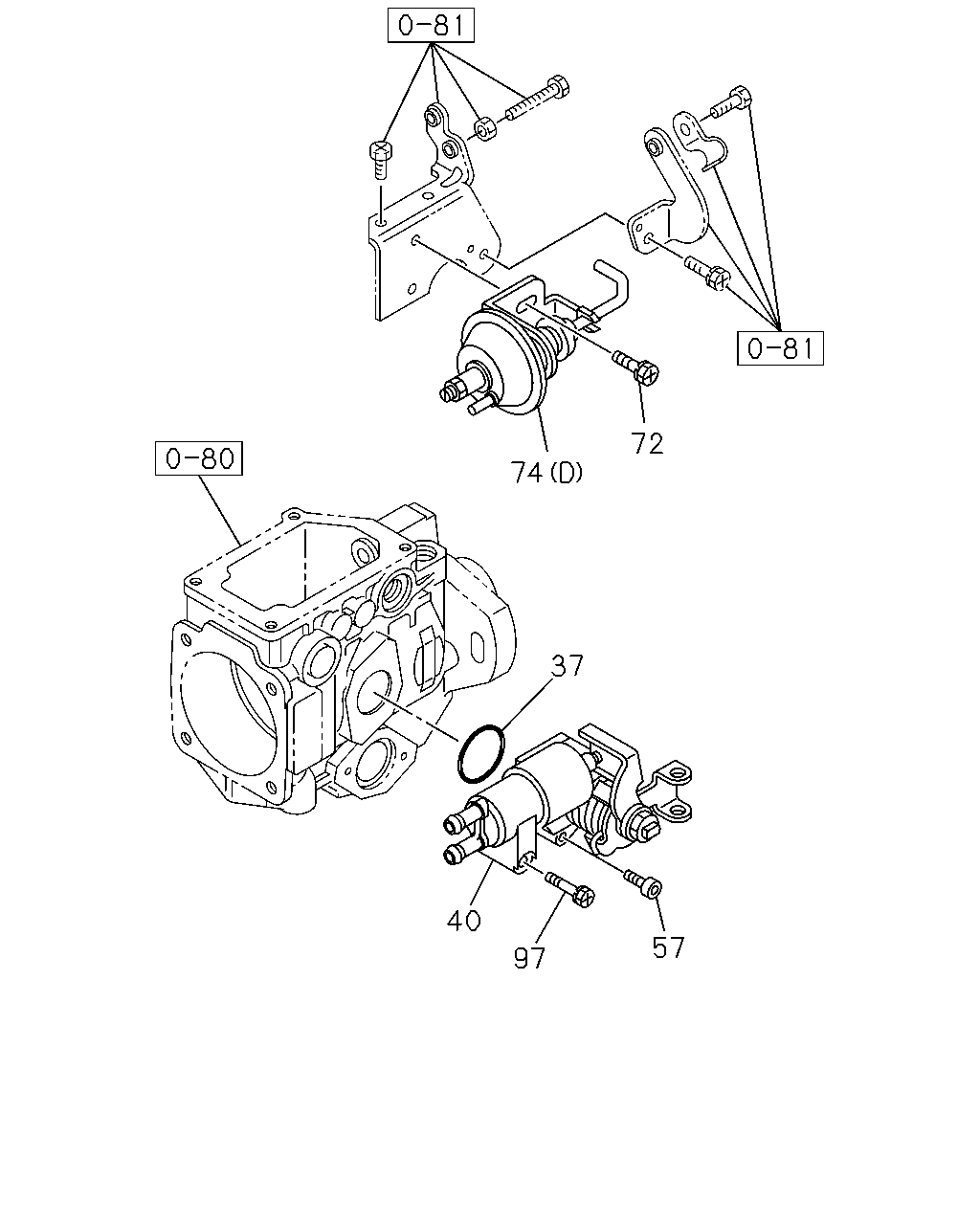

0-82C — BOOST COMPENSATOR; INJECTION GOVERNOR (#23005) — 6 parça

72 74 37 40 57 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	03.306 GASKET; STARTING ADVANCER,INJ PU ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-491-0	01	1	-
40	03.308 ADVANCER ASM; STARTING,GOV ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97148-141-0	01	1	-
57	03.308 BOLT; START ADVANCE ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	1-15619-276-0	02	1	-
72	03.330 BOLT; BRKT FIX,INJ PUMP ASM PART: C = 8-97324-405-1, 97324405	8-94343-302-0	02	1	-
74	03.320 ACTUATOR ASM; FAST IDLE,A/C,INJ (D) ASM PART: C = 8-97324-405-1, 97324405	8-97180-420-0	01	1	-
97	03.306 BOLT; PLATE,START ADVANCE ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97029-204-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
