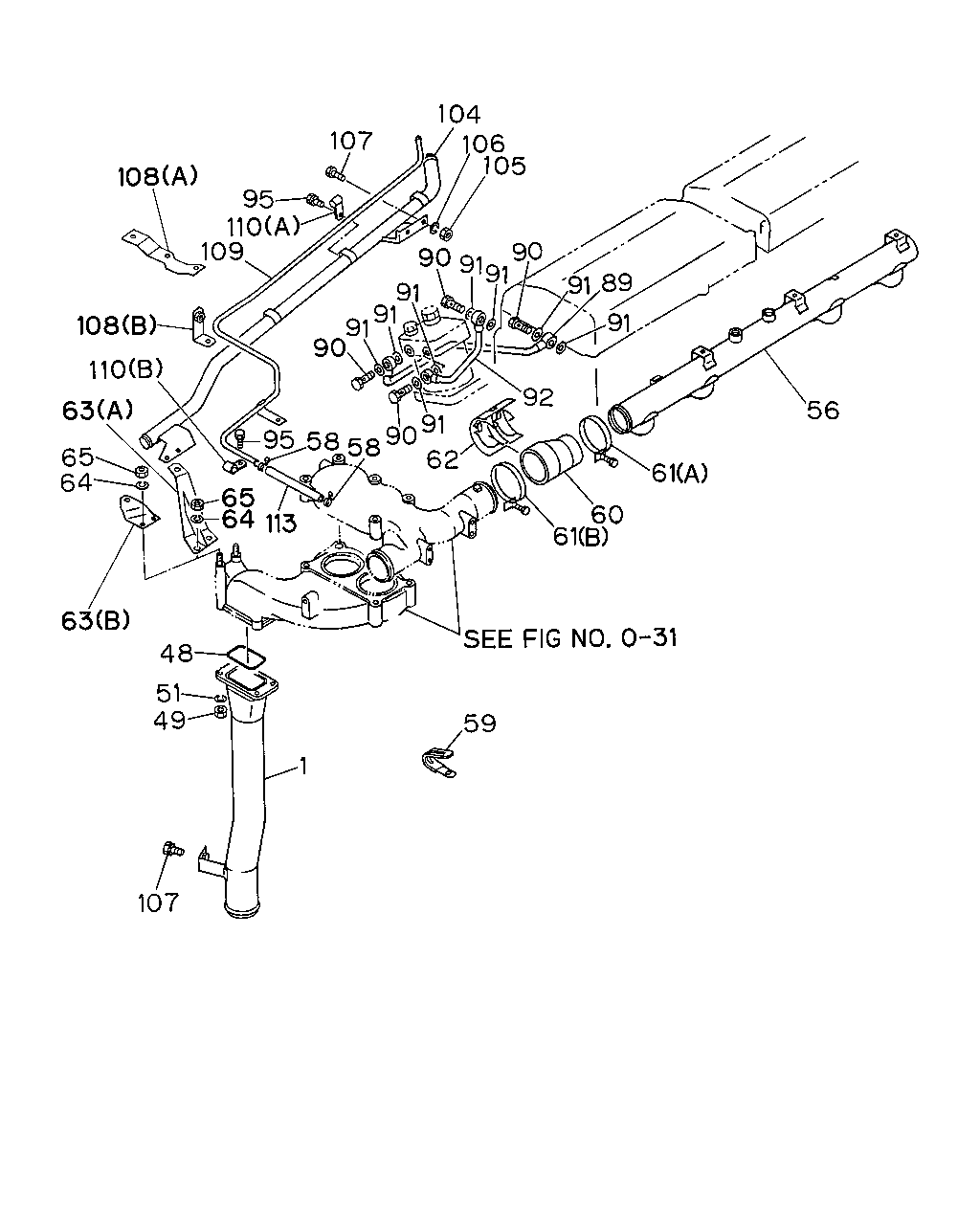

0-32A — WATER PIPING; ENGINE (#2300) — 55 parça

108 95 107 104 106 105 110 109 108 110 63 65 64 63 48 51 49 1 59 113 64 65 95 58 58 90 91 62 61 92 61 60 90 91 91 91 90 91 91 90 91 89 91 56 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; WATER PUMP,INL	1-13711-387-1	01	1	9002-	●	●	●
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-217-0	01	1	9002-	●	●	●
49	NUT; WATER PIPE M8	9-09110-508-0	04	1	9002-	●	●	●
51	WASHER; LK,PIPE ID=8.2	9-09150-508-0	04	1	9002-	●	●	●
56	PIPE; WATER OUTLET	1-13711-304-2	01	1	9002-9005		●
56	PIPE; WATER OUTLET	1-13711-421-0	01	1	9002-9005	●		●
56	PIPE; WATER OUTLET	1-13711-421-0	01	1	9006-	●	●	●
58	CLIP; RUBBER HOSE	5-09704-056-0	02	1	9002-9003		●
58	CLIP; RUBBER HOSE	5-09704-056-0	02	1	9004-9306	●	●
59	CLIP; HARNESS,WATER OUTLET PIPE L=36	8-94224-891-1	01	1	9002-	●		●
60	HOSE; OUTLET PIPE TO HSG	1-09360-446-0	01	1	9002-9008	●	●	●
60	HOSE; OUTLET PIPE TO HSG	1-09360-895-0	01	1	9009-	●	●	●
61	CLIP; HOSE,OUTLET PIPE TO HSG (A) ID=63	1-09704-067-0	01	1	9002-	●	●	●
61	CLIP; HOSE,OUTLET PIPE TO HSG (B) ID=70	1-09704-078-0	01	1	9002-	●	●	●
62	PROTECTOR; HEAT,RUB HOSE,OUTLET PIPE	1-14181-156-1	01	1	9002-	●	●	●
63	BRACKET; WATER PIPE (B)	1-13719-042-3	01	1	9002-9306		●
63	BRACKET; WATER PIPE (A)	1-13719-056-0	01	1	9002-			●
64	WASHER; LK ID=8.2	9-09150-508-0	02	1	9002-		●	●
65	NUT M8	9-09110-408-0	02	1	9002-		●	●
89	PIPE; WATER,AIR CMPR,IN	1-13721-256-0	01	1	9002-	●	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 FLANGE	1-09675-086-0	04	1	9002-	●	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	9002-	●	●	●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-359-0	01	1	9002-	●	●	●
95	BOLT; CLIP M10X20 W/LK WASHER	0-50041-020-0	01	1	9002-9306		●
95	BOLT; CLIP M6X12 W/LK WASHER	9-01910-612-0	01	1	9002-9005		●
95	BOLT; CLIP M6X12 W/LK WASHER	0-50040-612-0	01	1	9006-9306		●
95	BOLT; CLIP M6X14	9-01910-614-0	03	1	9002-9005	●		●
95	BOLT; CLIP M6X14 W/LK WASHER	0-50040-614-0	03	1	9006-	●		●
104	PIPE; WATER CHARGE	1-13721-331-0	01	1	9002-9306		●
104	PIPE; WATER CHARGE	1-13721-241-2	01	1	9002-9306	●
104	PIPE; WATER CHARGE	1-13721-301-1	01	1	9002-			●
105	NUT; PIPE M10	9-09110-410-0	03	1	9002-		●	●
105	NUT; PIPE M8	9-09110-408-0	02	1	9002-9011	●
105	NUT; PIPE M10	9-09110-410-0	02	1	9002-9306	●
105	NUT; PIPE M8	9-09110-408-0	02	1	9012-9306	●
106	WASHER; LK ID=8.2	9-09150-508-0	02	1	9002-9306	●
106	WASHER; LK ID=10.2	9-09150-510-0	02	1	9002-9306	●
106	WASHER; LK ID=10.2	9-09150-510-0	03	1	9002-		●	●
107	BOLT; WATER PIPE M10X20 W/LK WASHER	0-50041-020-0	02	1	9002-		●	●
107	BOLT; WATER PIPE M8X20 W/LK WASHER	9-01910-820-0	01	1	9002-9005	●
107	BOLT; WATER PIPE M8X20 W/LK WASHER	0-50040-820-0	01	1	9006-9306	●
108	BRACKET; WATER CHARGE (A)	1-13729-002-0	01	1	9002-9306	●
108	BRACKET; WATER CHARGE (B)	1-13729-003-0	01	1	9002-			●
109	PIPE; AIR,LEAK,THERMOSTAT HSG	1-13721-351-0	01	1	9002-9306		●
109	PIPE; AIR,LEAK,THERMOSTAT HSG	1-13721-204-2	01	1	9002-9306	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG	1-13721-302-0	01	1	9002-			●
110	CLIP; AIR PIPE (A) ID=11 L=16	9-09525-023-0	01	1	9002-9101		●
110	CLIP; AIR PIPE (A) ID=11 L=16	9-09525-023-0	01	1	9102-9106		●	●
110	CLIP; AIR PIPE (A) ID=11 L=16	9-09525-023-0	01	1	9107-9306		●
110	CLIP; AIR PIPE (A) ID=11 L=20	9-09525-033-0	03	1	9002-9106	●	●	●
110	CLIP; AIR PIPE (A) ID=11 L=20	9-09525-033-0	03	1	9107-9306	●		●
110	CLIP; AIR PIPE (B) ID=11 L=28	9-09917-544-0	01	1	9002-	●	●	●
110	CLIP; AIR PIPE (A) ID=11 L=20	9-09525-033-0	03	1	9307-			●
113	HOSE; RUBBER,AIR LEAK L=180 SERVICED BY L=3000	0-03259-300-0	01	1	9002-9003		●
113	HOSE; RUBBER,AIR LEAK L=180 SERVICED BY L=3000	0-03259-300-0	01	1	9004-9306	●	●
