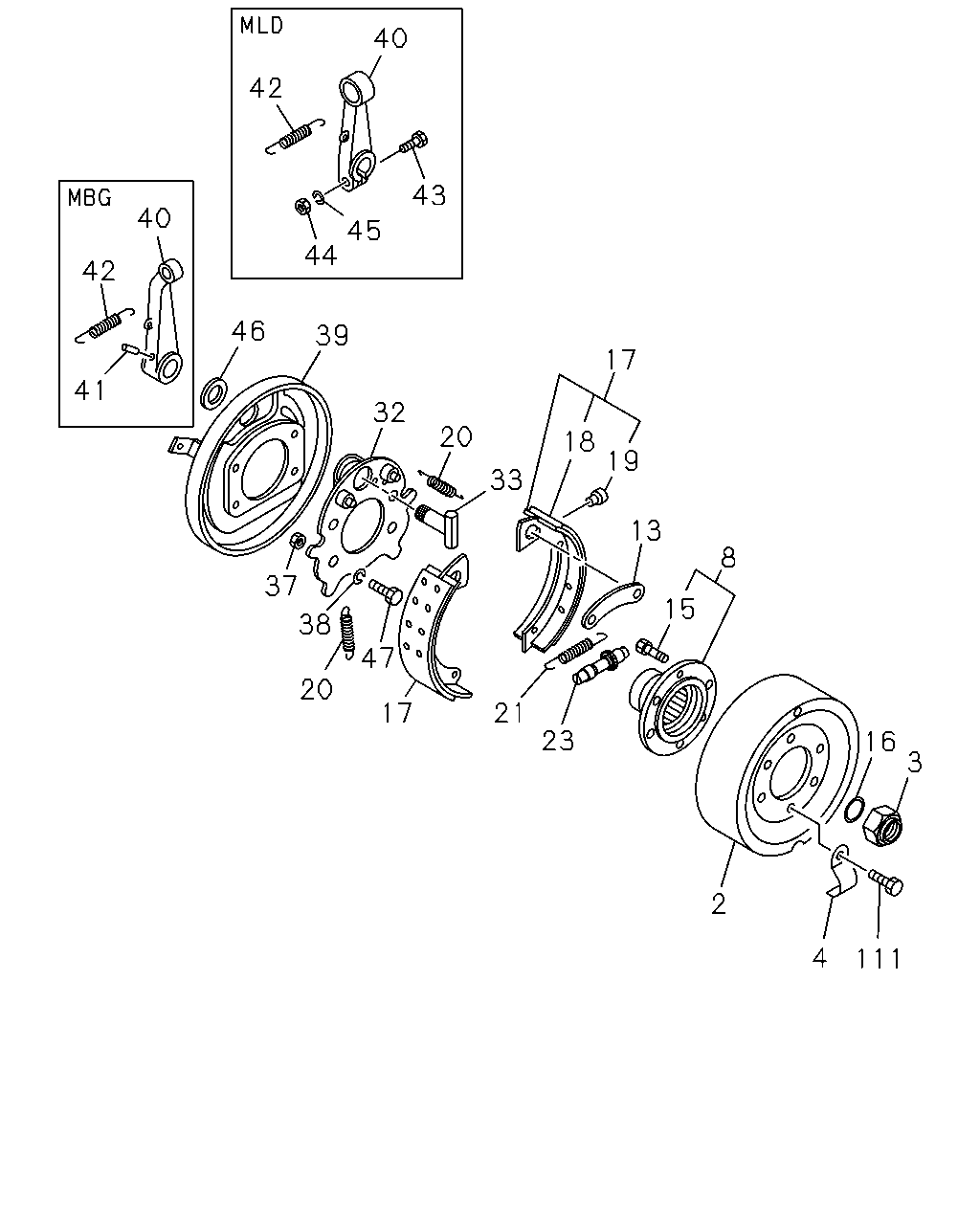

3-08A — PARKING BRAKE (#23) — 62 parça

40 42 43 40 45 44 42 46 39 17 41 32 20 18 19 33 13 8 37 38 47 15 20 21 17 23 16 3 2 4 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	DRUM; PARKING BRK P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46211-020-0	01	1	9202-	●	●	●
2	DRUM; PARKING BRK P30 PROP SHAFT(B2F) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46211-004-1	01	1	9202-	●	●
2	DRUM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46211-019-0	01	1	9202-				●
3	NUT; LK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M30 FLANGE	1-09449-066-1	01	1	9202-	●	●	●
3	NUT; LK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M36 FLANGE	1-09449-063-0	01	1	9202-				●
4	COVER; ADJ HOLE P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46219-018-0	02	1	9202-	●	●	●
4	COVER; ADJ HOLE P30 PROP SHAFT(B2F) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46219-015-1	02	1	9202-	●	●
4	COVER; ADJ HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46219-030-0	02	1	9202-				●
8	FLANGE; PARKING BRK P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-245-0	01	1	9202-	●	●	●
8	FLANGE; PARKING BRK P30 PROP SHAFT(B2F) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-225-0	01	1	9202-	●	●
8	FLANGE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-235-0	01	1	9202-				●
13	BRACE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46239-003-0	01	1	9202-	●	●	●
13	BRACE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46239-002-0	01	1	9202-				●
15	BOLT; FLANGE P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X43 KNURL	1-09046-003-0	04	1	9202-	●	●	●
15	BOLT; FLANGE P30 PROP SHAFT(B2F) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X39	1-09046-001-1	04	1	9202-	●	●
15	BOLT; FLANGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16X55	1-46219-039-0	04	1	9202-				●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=35.7 T=5	1-09623-379-0	01	1	9202-	●	●	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=47 T=5	1-09623-380-0	01	1	9202-				●
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46220-012-0	02	1	9202-9411	●	●	●
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46220-024-0	02	1	9412-	●	●	●
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46220-009-0	02	1	9202-9411				●
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46220-022-0	02	1	9412-				●
18	LINING; BRK,PARKING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46225-006-0	02	1	9202-9411				●
18	LINING; BRK,PARKING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46225-015-0	02	1	9412-				●
19	RIVET; LINING,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09732-012-0	32	1	9202-				●
20	SPRING; RETURN,SECONDARY,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-567-1	02	1	9202-	●	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-434-0	02	1	9202-				●
21	SPRING; RETURN,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-268-0	01	1	9202-	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-516-0	01	1	9202-				●
23	SCREW; ADJ,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46240-008-0	01	1	9202-	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46240-003-0	01	1	9202-				●
32	PLATE; SUPPORT,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-023-0	01	1	9202-	●	●	●
32	PLATE; SUPPORT,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-039-0	01	1	9202-				●
33	SHAFT; CAM,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46251-002-0	01	1	9202-	●	●	●
33	SHAFT; CAM,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46251-006-0	01	1	9202-				●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-514-0	01	1	9202-9207	●		●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	1-09440-047-0	01	1	9208-9310	●		●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	1-09440-048-0	01	1	9311-	●		●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-514-0	04	1	9202-9207		●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99110-514-0	04	1	9202-9207				●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	1-09440-047-0	04	1	9208-9310		●		●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	1-09440-048-0	04	1	9311-		●		●
38	WASHER; LK,SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	04	1	9202-9207	●	●	●	●
38	WASHER; LK,SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	03	1	9208-	●		●
39	COVER; DUST,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-067-0	01	1	9202-	●	●	●
39	COVER; DUST,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-038-0	01	1	9202-				●
40	LEVER; CM/SHF,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46252-003-0	01	1	9202-	●	●	●
40	LEVER; CM/SHF,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46252-013-0	01	1	9202-				●
41	PIN; KNOCK,LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09878-594-0	01	1	9202-	●	●	●
42	SPRING; RETURN,LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-592-0	01	1	9202-	●	●	●
42	SPRING; RETURN,LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-104-0	01	1	9202-				●
43	BOLT; LEVER TO CM/SHF EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-01041-040-0	01	1	9202-9204				●
43	BOLT; LEVER TO CM/SHF EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	0-10811-040-0	01	1	9205-				●
44	NUT; LEVER TO CM/SHF EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10	9-09111-410-0	01	1	9202-				●
45	WASHER; LK,LEVER TO CM/SHF EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2	9-09150-010-0	01	1	9202-				●
46	WASHER; LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09855-367-0	01	1	9202-	●	●	●
46	WASHER; LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09855-362-0	01	1	9202-				●
47	BOLT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X32	0-23801-432-0	03	1	9202-	●		●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X18 W/LK WASHER	9-01900-818-0	02	1	9202-9204	●	●	●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X18 W/LK WASHER	0-50040-818-0	02	1	9205-	●	●	●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	9-01900-820-0	02	1	9202-9204				●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
