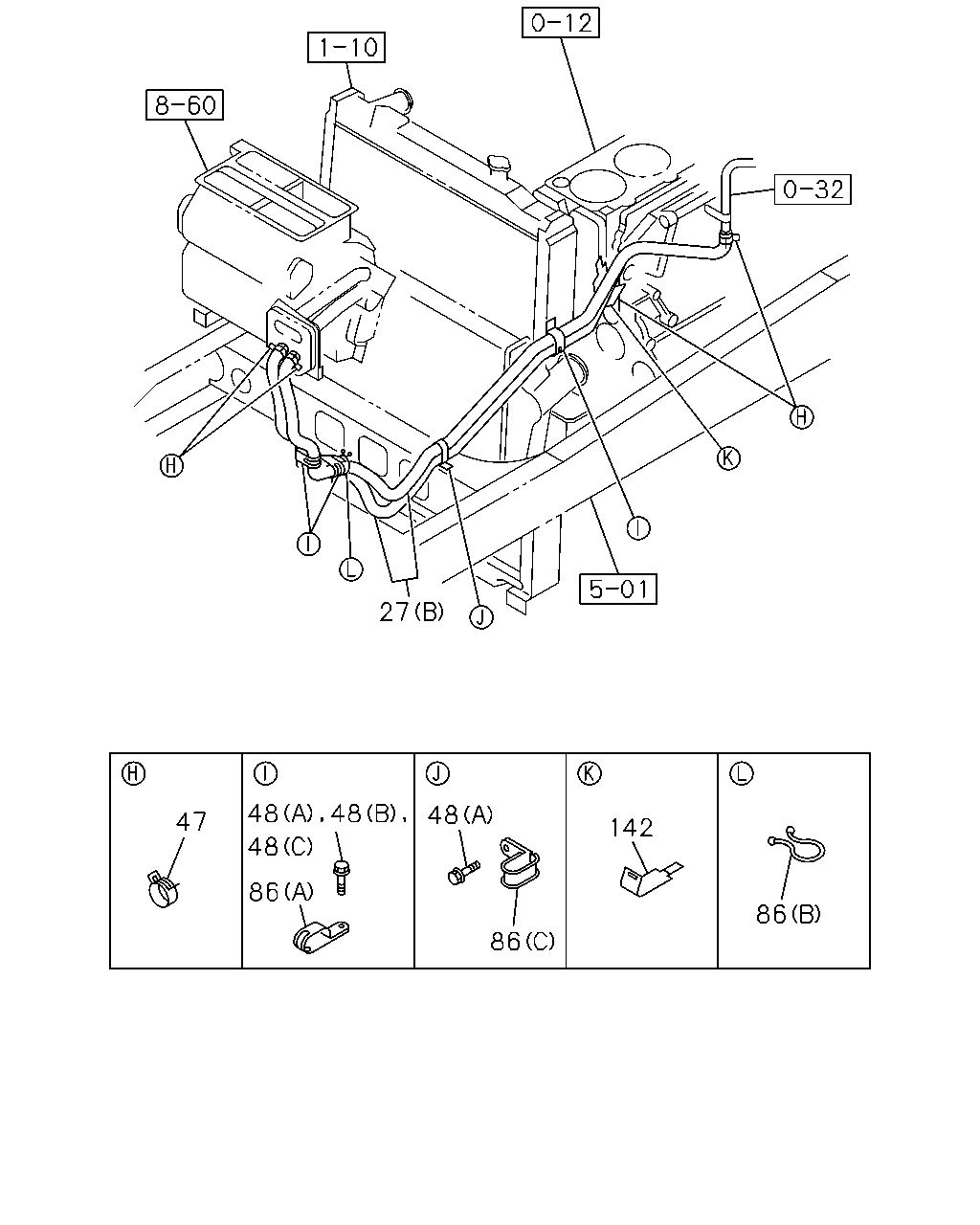

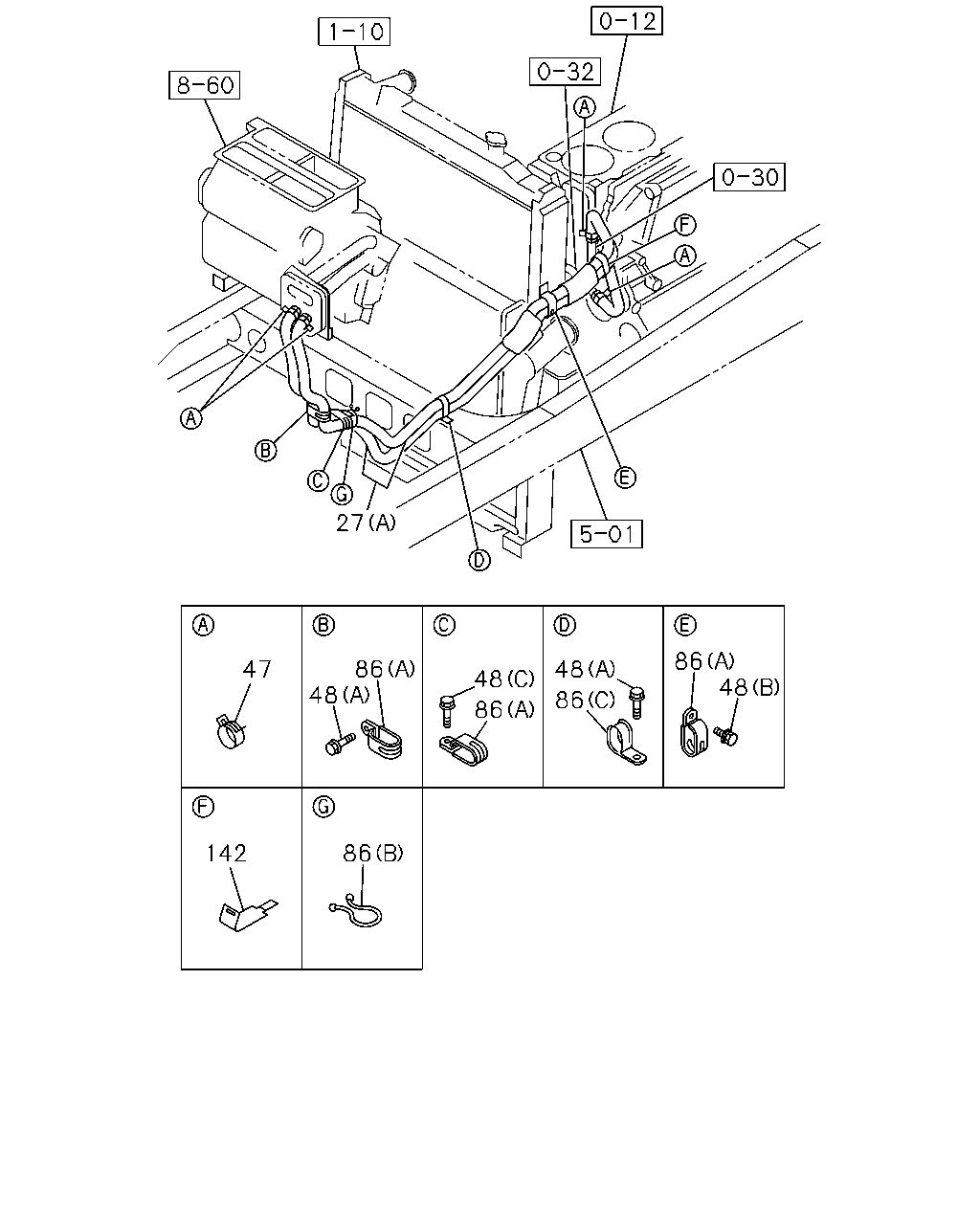

8-45 — HEATER PIPING (#22979) — 86 parça

27 86 48 86 48 47 48 48 86 86 142 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> (B)	8-98163-393-0	01	1	1110-1112
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98163-393-0	01	1	1201-
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98085-573-0	01	1	1001-1109
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (A)	8-98085-573-0	01	1	1110-1112
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (A)	8-98085-573-0	01	1	1201-
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A)	8-98085-573-0	01	1	1201-
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	1001-
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X16 FLANGE SOU	0-28050-816-0	01	1	1001-
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 W/LK&PL WASHER SOU	1-09980-498-0	01	1	1001-
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	01	1	1001-
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	02	1	1001-
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=44	8-94463-508-0	01	1	1001-1008
86	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=44	8-94463-508-0	01	1	1009-
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98029-677-0	01	1	1001-
142	CLIP; BAND HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	1001-1205
142	CLIP; BAND HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	8-98166-021-0	01	1	1206-

27 56 103 56 56 63 103 56 63 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> (B)	8-98163-393-0	01	1	1110-1112
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98163-393-0	01	1	1201-
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98085-573-0	01	1	1001-1109
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (A)	8-98085-573-0	01	1	1110-1112
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (A)	8-98085-573-0	01	1	1201-
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A)	8-98085-573-0	01	1	1201-
56	CLAMP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	1001-
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> (D)	8-98117-223-0	01	1	1110-1112
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (D)	8-98117-223-0	01	1	1201-
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> (E)	8-98117-224-0	01	1	1110-1112
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (E)	8-98117-224-0	01	1	1201-
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> (F)	8-98117-225-0	01	1	1110-1112
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (F)	8-98117-225-0	01	1	1201-
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98113-054-0	01	1	1001-1109
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (A)	8-98113-054-0	01	1	1110-1112
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (A)	8-98113-054-0	01	1	1201-
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A)	8-98113-054-0	01	1	1201-
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98113-055-0	01	1	1001-1109
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98113-055-0	01	1	1110-1112
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98113-055-0	01	1	1201-
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-98113-055-0	01	1	1201-
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98113-056-0	01	1	1001-1109
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (C)	8-98113-056-0	01	1	1110-1112
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (C)	8-98113-056-0	01	1	1201-
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C)	8-98113-056-0	01	1	1201-
103	CONNECTOR; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	9-09703-048-0	02	1	1001-

27 56 103 56 56 63 103 56 63 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> (B)	8-98163-393-0	01	1	1110-1112
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98163-393-0	01	1	1201-
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98085-573-0	01	1	1001-1109
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (A)	8-98085-573-0	01	1	1110-1112
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (A)	8-98085-573-0	01	1	1201-
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A)	8-98085-573-0	01	1	1201-
56	CLAMP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	1001-
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> (D)	8-98117-223-0	01	1	1110-1112
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (D)	8-98117-223-0	01	1	1201-
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> (E)	8-98117-224-0	01	1	1110-1112
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (E)	8-98117-224-0	01	1	1201-
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> (F)	8-98117-225-0	01	1	1110-1112
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (F)	8-98117-225-0	01	1	1201-
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98113-054-0	01	1	1001-1109
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (A)	8-98113-054-0	01	1	1110-1112
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (A)	8-98113-054-0	01	1	1201-
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A)	8-98113-054-0	01	1	1201-
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98113-055-0	01	1	1001-1109
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98113-055-0	01	1	1110-1112
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98113-055-0	01	1	1201-
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-98113-055-0	01	1	1201-
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98113-056-0	01	1	1001-1109
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (C)	8-98113-056-0	01	1	1110-1112
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (C)	8-98113-056-0	01	1	1201-
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C)	8-98113-056-0	01	1	1201-
103	CONNECTOR; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	9-09703-048-0	02	1	1001-

27 48 48 48 47 142 48 86 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> (B)	8-98163-393-0	01	1	1110-1112
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98163-393-0	01	1	1201-
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98085-573-0	01	1	1001-1109
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (A)	8-98085-573-0	01	1	1110-1112
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (A)	8-98085-573-0	01	1	1201-
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A)	8-98085-573-0	01	1	1201-
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	1001-
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X16 FLANGE SOU	0-28050-816-0	01	1	1001-
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 W/LK&PL WASHER SOU	1-09980-498-0	01	1	1001-
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	01	1	1001-
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	02	1	1001-
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=44	8-94463-508-0	01	1	1001-1008
86	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=44	8-94463-508-0	01	1	1009-
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98029-677-0	01	1	1001-
142	CLIP; BAND HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	1001-1205
142	CLIP; BAND HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	8-98166-021-0	01	1	1206-
