◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11165 - FTR SOUTH AFRICA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#22977) — 83 parça
çizim 127235
531
BalonParca AdiParca NoAdetTipApplied Date
531 RELAY; MAIN
24V 30A MITSUBA 		8-97238-540-0 01 1 1001-1402
531 RELAY; MAIN
24V 30A MITSUBA 		8-98259-779-0 01 1 1403-
çizim 127237
41 35 424 36 33 34 34 39 34 34 34 261
BalonParca AdiParca NoAdetTipApplied Date
33 VALVE; MAG,PTO CONT
H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO WO/LEVER(SH5) SOU 		1-82563-871-2 01 1 1001-1109
33 VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ> SOU 		1-82563-871-2 01 1 1001-1109
33 VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> SOU 		1-82563-871-2 01 1 1001-1109
33 VALVE; MAG,PTO CONT
H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO WO/LEVER(SH5) SOU 		1-82563-871-2 01 1 1110-
33 VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ>,TRANSMISSION CONTROL-SMOOTHER(8GF) SOU 		1-82563-871-2 01 1 1110-
33 VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> SOU 		1-82563-871-2 01 1 1110-
34 CONNECTOR; MAG VLV,INL PORT
H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW SOU 		1-09650-430-0 01 1 1001-1109
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 ELBOW SOU 		1-09650-430-0 01 1 1001-1109
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) M12 & PT1/4 ELBOW SOU 		1-09650-430-0 01 1 1001-1109
34 CONNECTOR; MAG VLV,INL PORT
H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW SOU 		1-09650-430-0 01 1 1110-
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW SOU 		1-09650-430-0 01 1 1110-
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (A) M12 & PT1/4 ELBOW SOU 		1-09650-430-0 01 1 1110-
34 CONNECTOR; MAG VLV,INL PORT
H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12 & PT1/4 3WAY SOU 		1-09656-586-1 01 1 1001-1109
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M12 & PT1/4 3WAY SOU 		1-09656-586-1 01 1 1001-1109
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (B) M12 & PT1/4 3WAY SOU 		1-09656-586-1 01 1 1001-1109
34 CONNECTOR; MAG VLV,INL PORT
H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 & PT1/4 3WAY SOU 		1-09656-586-1 01 1 1110-1111
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 & PT1/4 3WAY SOU 		1-09656-586-1 01 1 1110-1111
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (B) M12 & PT1/4 3WAY SOU 		1-09656-586-1 01 1 1110-1111
34 CONNECTOR; MAG VLV,INL PORT
H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) DIN8X2 & PT1/4 DOUBLE ELBOW SOU 		8-98179-708-0 01 1 1112-
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ>,TRANSMISSION CONTROL-SMOOTHER(8GF) (E) DIN8X2 & PT1/4 DOUBLE ELBOW SOU 		8-98179-708-0 01 1 1112-
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (E) DIN8X2 & PT1/4 DOUBLE ELBOW SOU 		8-98179-708-0 01 1 1112-
34 CONNECTOR; MAG VLV,INL PORT
H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN8 & R1/4 ELBOW SOU 		1-09660-956-0 01 1 1001-1109
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ> (C) DIN8 & R1/4 ELBOW SOU 		1-09660-956-0 01 1 1001-1109
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (C) DIN8 & R1/4 ELBOW SOU 		1-09660-956-0 01 1 1001-1109
34 CONNECTOR; MAG VLV,INL PORT
H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN8 & R1/4 ELBOW SOU 		1-09660-956-0 01 1 1110-1111
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) DIN8 & R1/4 ELBOW SOU 		1-09660-956-0 01 1 1110-1111
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (C) DIN8 & R1/4 ELBOW SOU 		1-09660-956-0 01 1 1110-1111
34 CONNECTOR; MAG VLV,INL PORT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN8 & R1/4 ELBOW SOU 		1-09660-956-0 01 1 1112-
34 CONNECTOR; MAG VLV,INL PORT
H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW SOU 		1-09661-067-0 01 1 1001-1109
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW SOU 		1-09661-067-0 01 1 1001-1109
34 CONNECTOR; MAG VLV,INL PORT
H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW SOU 		1-09661-067-0 01 1 1110-
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ>,TRANSMISSION CONTROL-SMOOTHER(8GF) (D) DIN6 & R1/4 ELBOW SOU 		1-09661-067-0 01 1 1110-
35 BRACKET; MAG VLV,PTO CONT
H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO WO/LEVER(SH5) SOU 		1-47471-374-1 01 1 1001-1004
35 BRACKET; MAG VLV,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ> SOU 		1-47471-374-1 01 1 1001-1004
35 BRACKET; MAG VLV,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> SOU 		1-47471-374-1 01 1 1001-1004
35 BRACKET; MAG VLV,PTO CONT
H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO WO/LEVER(SH5) SOU 		8-98154-633-0 01 1 1005-1109
35 BRACKET; MAG VLV,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ> SOU 		8-98154-633-0 01 1 1005-1109
35 BRACKET; MAG VLV,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> SOU 		8-98154-633-0 01 1 1005-1109
35 BRACKET; MAG VLV,PTO CONT
H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO WO/LEVER(SH5) SOU 		8-98154-633-0 01 1 1110-
35 BRACKET; MAG VLV,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ>,TRANSMISSION CONTROL-SMOOTHER(8GF) SOU 		8-98154-633-0 01 1 1110-
35 BRACKET; MAG VLV,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> SOU 		8-98154-633-0 01 1 1110-
36 BOLT; MAG VLV,PTO CONT
H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 02 1 1001-1109
36 BOLT; MAG VLV,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 02 1 1001-1109
36 BOLT; MAG VLV,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 02 1 1001-1109
36 BOLT; MAG VLV,PTO CONT
H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 02 1 1110-
36 BOLT; MAG VLV,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ>,TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 02 1 1110-
36 BOLT; MAG VLV,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 02 1 1110-
39 BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M8X35 FLANGE SOU 		0-28650-835-0 02 1 1001-
41 NUT; BRKT,MAG VLV
PTO CONTROL<SV6> M8 FLANGE SOU 		0-91180-108-0 02 1 1001-
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1001-
424 ADAPTER
H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1001-1109
424 ADAPTER
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1001-1109
424 ADAPTER
TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1001-1109
424 ADAPTER
H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1110-1111
424 ADAPTER
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ>,TRANSMISSION CONTROL-SMOOTHER(8GF) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1110-1111
424 ADAPTER
TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1110-1111

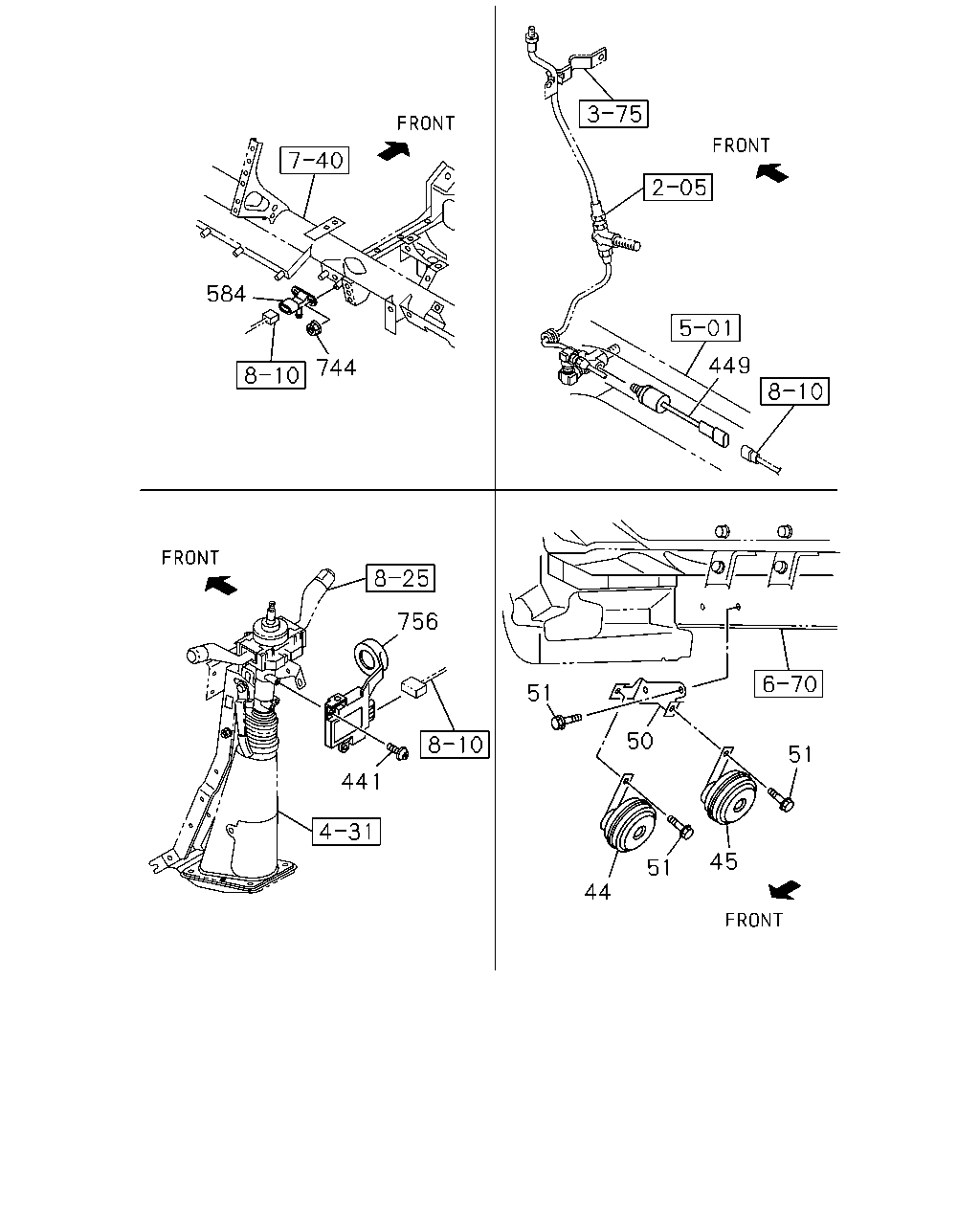

çizim 127244
584 449 744 756 51 50 51 441 45 51 44
BalonParca AdiParca NoAdetTipApplied Date
44 HORN; HIGH NOTE 8-98022-022-0 01 1 1001-
45 HORN; LOW NOTE 8-98022-023-0 01 1 1001-
50 BRACKET; HORN 8-97613-300-2 01 1 1001-
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER SOU 		8-97086-825-0 04 1 1001-1001
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER SOU 		8-97086-825-0 02 1 1002-
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER SOU 		8-97086-825-0 02 1 1002-
441 SCREW; CONT UNIT
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 1001-
449 SWITCH; OIL PRESS,CLUTCH
H.S.A SYSTEM<6EP> 		1-82410-143-1 01 1 1001-1109
449 SWITCH; OIL PRESS,CLUTCH
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-82410-143-1 01 1 1110-
584 SENSOR; PRESSURE 8-98020-514-0 01 1 1001-
744 NUT; SENSOR
M6 FLANGE SOU 		0-91180-106-0 02 1 1001-
756 CONTROL UNIT; IMMOBILIZER 8-98097-554-0 01 1 1001-1005
756 CONTROL UNIT; IMMOBILIZER 8-98158-127-0 01 1 1006-

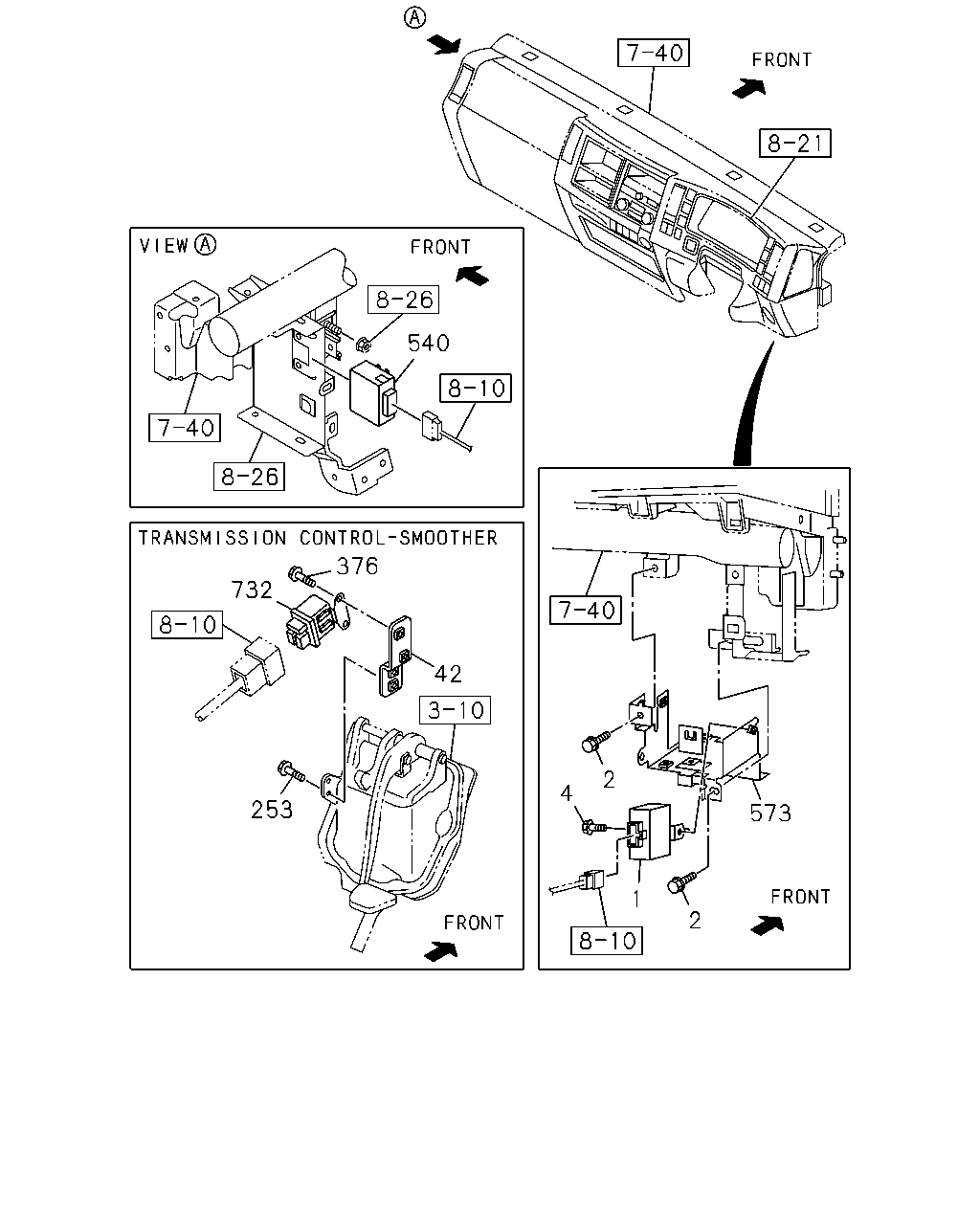

çizim 127276
540 376 732 42 2 4 253 573 1 2
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER 8-98025-533-1 01 1 1001-
2 BOLT; FLASHER UNIT
M6X16 FLANGE SOU 		0-28650-616-0 02 1 1001-
4 SCREW; FLASHER UNIT
BOLT M6X16 FLANGE SOU 		0-28650-616-0 01 1 1001-
42 BRACKET; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-051-2 01 1 1110-
253 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE SOU 		0-28050-816-0 02 1 1110-
376 BOLT; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1110-
540 RELAY; WIPER INTERVAL 8-98060-388-0 01 1 1001-1308
540 RELAY; WIPER INTERVAL 8-98233-976-0 01 1 1309-
573 BRACKET; FLASHER UNIT 8-97609-984-5 01 1 1001-
732 RELAY; EDS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-82550-337-1 01 1 1110-

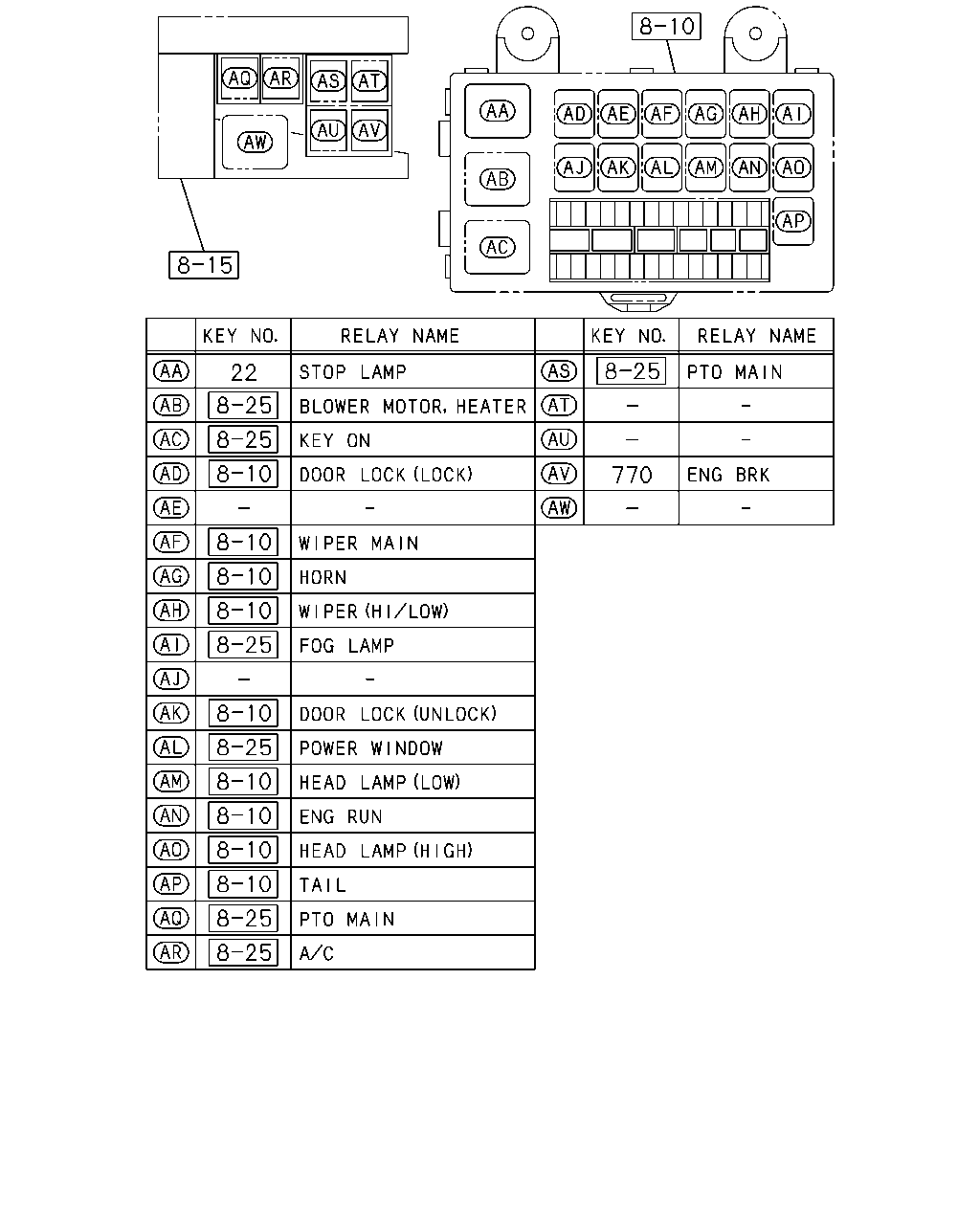

çizim 127295
22 770
BalonParca AdiParca NoAdetTipApplied Date
22 RELAY; STOP LAMP
24V 12.5A PANASONIC SOU 		8-97262-933-0 01 1 1001-
770 RELAY; ENG BRK
24V 10A PANASONIC 		8-97173-035-1 01 1 1001-
