Sayfa 8-15 - Isuzu EPC

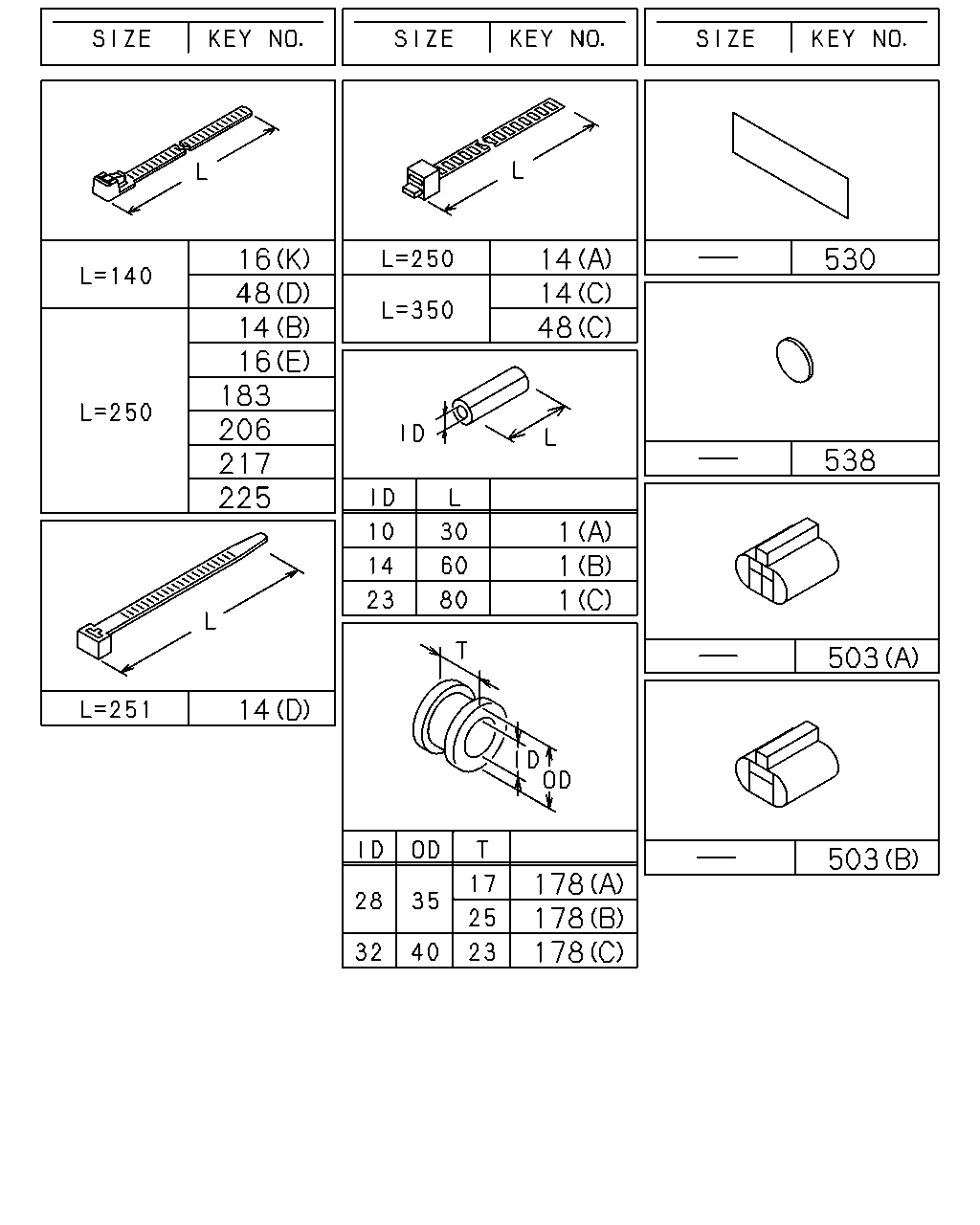

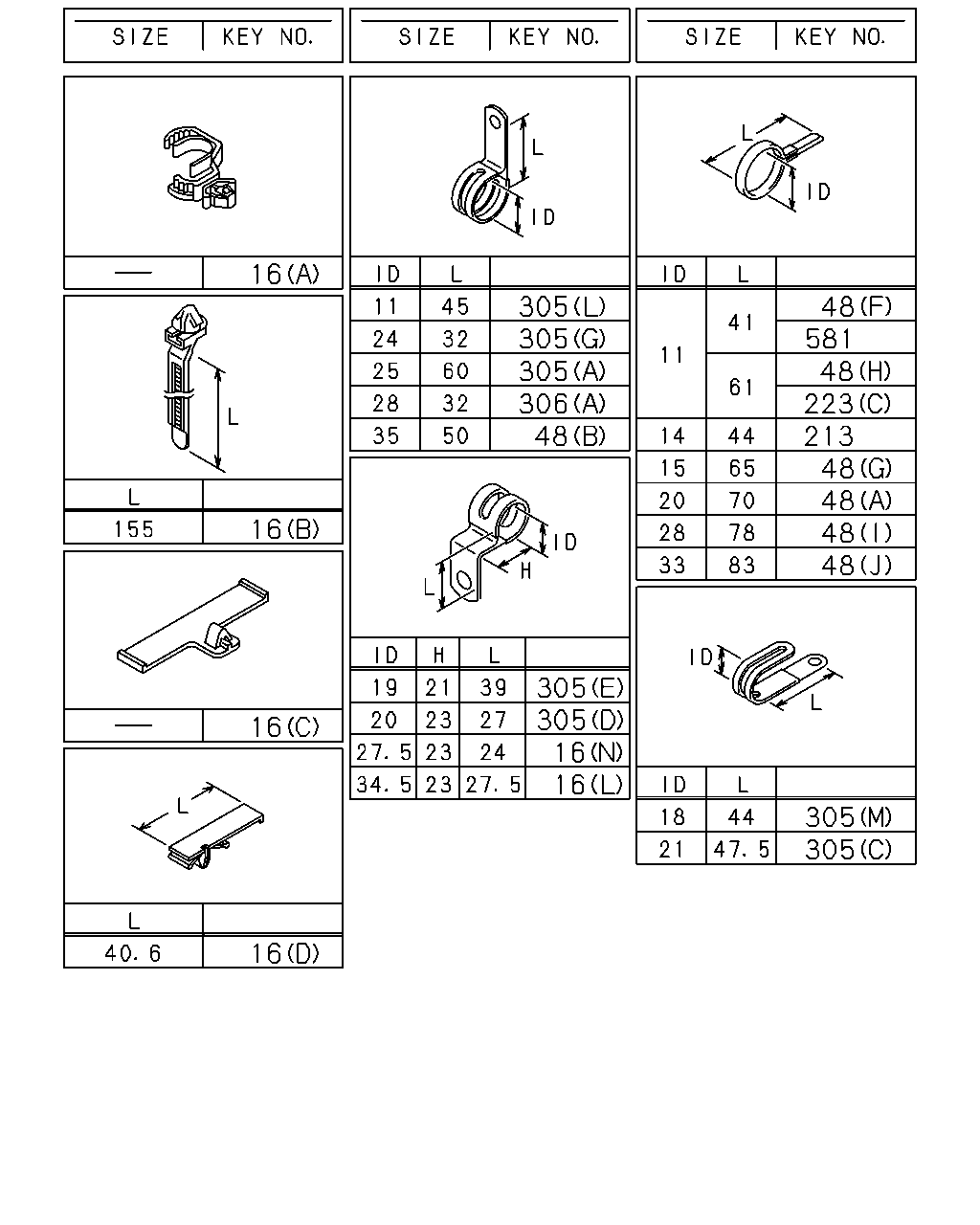

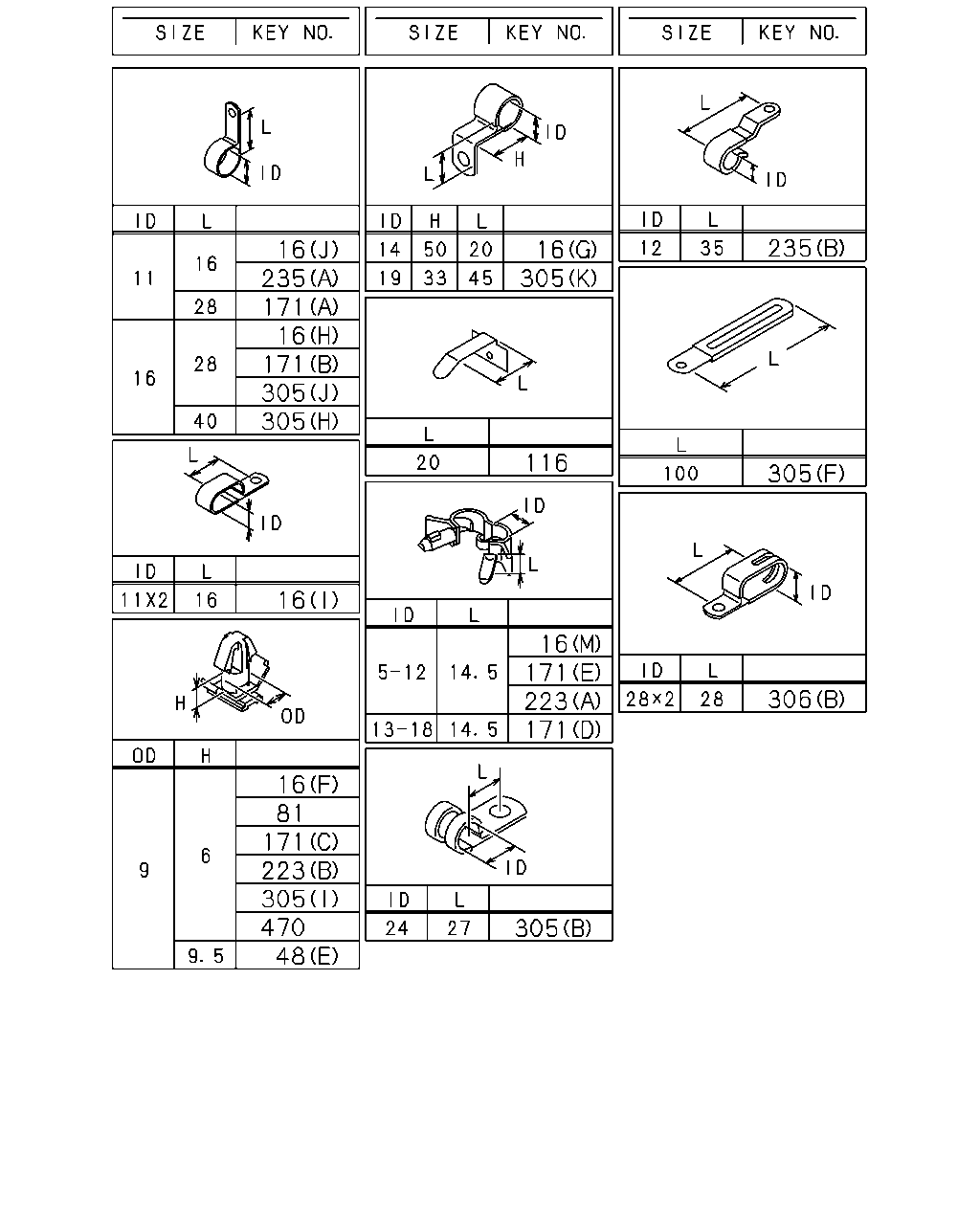

8-15 — FIXING PARTS; WIRING HARNESS (#22971) — 337 parça

16 305 305 305 306 48 48 581 48 223 213 48 48 48 48 16 305 305 16 16 16 305 305 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (N) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1110-
16	CLIP; HARNESS (J) ID=11 L=16	0-95235-025-0	02	1	1001-
16	CLIP; HARNESS (H) ID=16 L=28	0-95235-556-0	02	1	1001-
16	CLIP; HARNESS (I) ID=11X2 L=16	0-95325-025-0	02	1	1001-
16	CLIP; HARNESS (G) ID=14 H=50 L=20	1-09700-843-0	02	1	1001-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1001-1109
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1110-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1001-
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	1001-
16	CLIP; HARNESS (E) L=250 SOU	5-09707-030-1	03	1	1001-
16	CLIP; HARNESS (K) L=140 SOU	5-09707-031-1	01	1	1001-
16	CLIP; HARNESS (A) ID=10 & 16 SOU	8-94413-325-0	01	1	1001-
16	CLIP; HARNESS (B) L=155 SOU	8-97173-307-0	18	1	1001-
16	CLIP; HARNESS (D) L=40.6	8-97229-357-0	02	1	1001-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1001-
16	CLIP; HARNESS EXC. AIR DRYER<PS7> (F) OD=9 H=6	1-09709-178-0	01	1	1001-1405
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	01	1	1108-1109
48	CLIP; FRAME HARNESS VIN MODEL YEAR 2011<VZB> (G) ID=15 L=65	1-09700-466-0	01	1	1110-
48	CLIP; FRAME HARNESS (H) ID=11 L=61	1-09700-484-0	01	1	1108-1109
48	CLIP; FRAME HARNESS VIN MODEL YEAR 2011<VZB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) ID=11 L=61	1-09700-484-0	01	1	1110-
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	01	1	1108-1109
48	CLIP; FRAME HARNESS VIN MODEL YEAR 2011<VZB> (A) ID=20 L=70	1-09700-485-0	01	1	1110-
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	03	1	1108-1109
48	CLIP; FRAME HARNESS VIN MODEL YEAR 2011<VZB> (A) ID=20 L=70	1-09700-485-0	03	1	1110-
48	CLIP; FRAME HARNESS (I) ID=28 L=78	1-09700-858-0	02	1	1108-1109
48	CLIP; FRAME HARNESS VIN MODEL YEAR 2011<VZB> (I) ID=28 L=78	1-09700-858-0	02	1	1110-
48	CLIP; FRAME HARNESS (J) ID=33 L=83	1-09701-291-0	04	1	1108-1109
48	CLIP; FRAME HARNESS VIN MODEL YEAR 2011<VZB> (J) ID=33 L=83	1-09701-291-0	04	1	1110-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (G) ID=15 L=65	1-09700-466-0	05	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (G) ID=15 L=65	1-09700-466-0	08	1	1008-
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	02	1	1008-1201
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	02	1	1202-
48	CLIP; FRAME HARNESS (F) ID=11 L=41	1-09700-403-0	01	1	1001-1109
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (F) ID=11 L=41	1-09700-403-0	01	1	1110-
48	CLIP; FRAME HARNESS (B) ID=35 L=50	1-09701-214-0	01	1	1001-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	01	1	1001-
48	CLIP; FRAME HARNESS (D) L=140 SOU	5-09707-031-1	02	1	1001-
48	CLIP; FRAME HARNESS (E) OD=9 H=9.5	1-09709-179-0	01	1	1001-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (A) ID=20 L=70	1-09700-485-0	12	1	1001-1007
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (A) ID=20 L=70	1-09700-485-0	05	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	20	1	1001-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	10	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (A) ID=20 L=70	1-09700-485-0	22	1	1001-1007
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (A) ID=20 L=70	1-09700-485-0	12	1	1008-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1001-
223	CLIP; AIR TANK HARNESS EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1110-
223	CLIP; AIR TANK HARNESS EXC. VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61	1-09700-484-0	01	1	1110-
223	CLIP; AIR TANK HARNESS (C) ID=11 L=61	1-09700-484-0	01	1	1001-1011
223	CLIP; AIR TANK HARNESS EXC. VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61	1-09700-484-0	01	1	1012-1102
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1001-1005
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1006-1109
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1110-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (B) OD=9 H=6	1-09709-178-0	01	1	1001-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (F) L=100	8-94443-021-1	01	1	1311-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (K) ID=19 H=33 L=45	1-09701-045-0	01	1	1110-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (L) ID=11 L=45	8-94296-897-1	01	1	1110-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (M) ID=18 L=44	8-97367-985-1	01	1	1110-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1001-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	1001-
305	CLIP; ENG HARNESS (G) ID=24 L=32	1-09700-766-1	01	1	1001-
305	CLIP; ENG HARNESS (B) ID=24 L=27	1-09700-809-0	03	1	1001-1109
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (B) ID=24 L=27	1-09700-809-0	03	1	1110-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1001-
305	CLIP; ENG HARNESS (E) ID=19 L=39 H=21	1-09700-972-1	01	1	1001-1109
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (E) ID=19 L=39 H=21	1-09700-972-1	01	1	1110-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1001-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	1001-
305	CLIP; ENG HARNESS (C) ID=21 L=47.5	8-94178-108-0	01	1	1001-1311
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> (C) ID=21 L=47.5	8-94178-108-0	01	1	1312-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (C) ID=21 L=47.5	8-94178-108-0	01	1	1312-
305	CLIP; ENG HARNESS (F) L=100	8-94443-021-1	01	1	1001-1310
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (F) L=100	8-94443-021-1	02	1	1311-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1001-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1001-
581	CLIP; HARNESS,REAR SUSP ID=11 L=41	1-09700-403-0	01	1	1001-

7 53 53 59 59 59 59 59 59 69 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

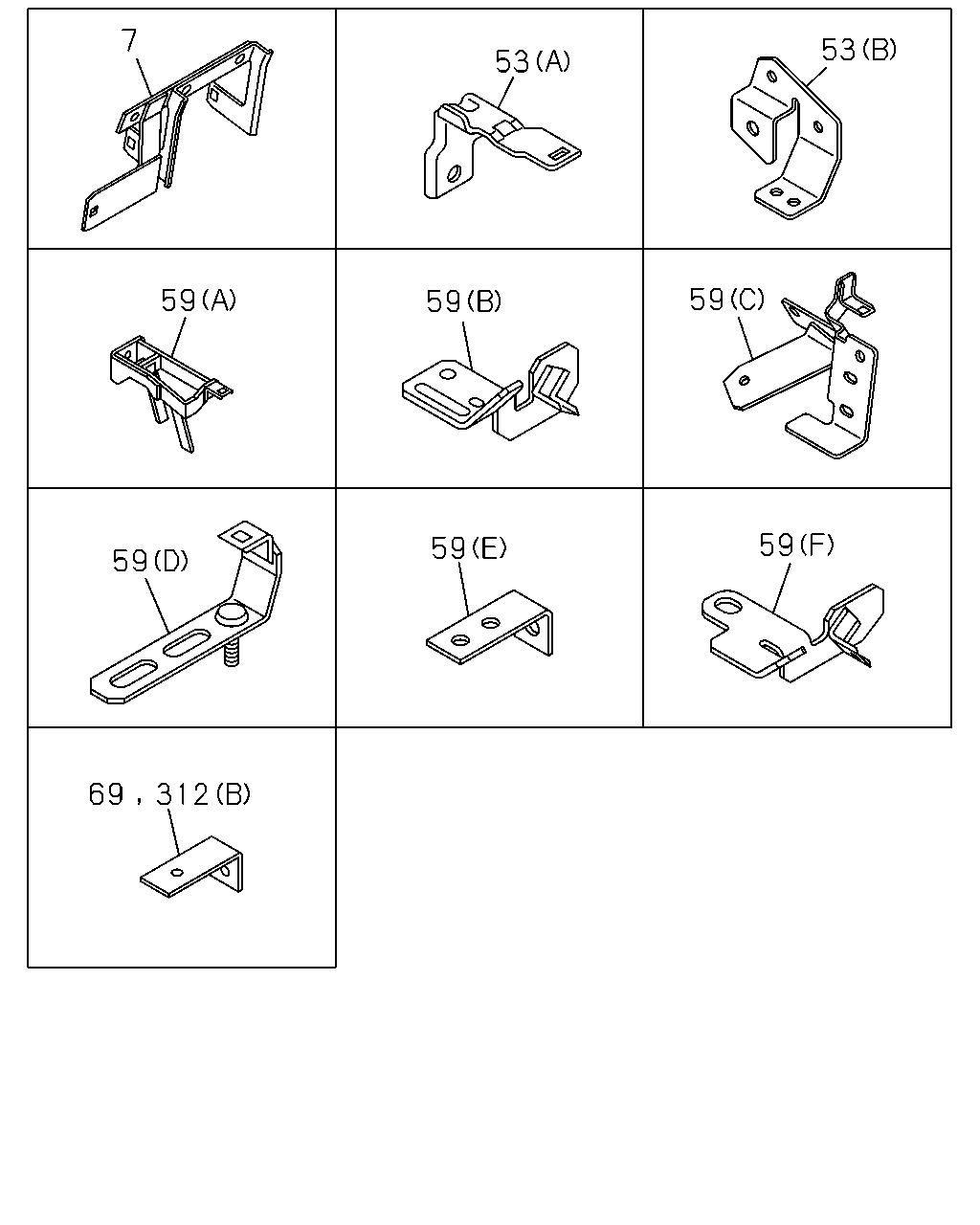

7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1001-
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1001-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98084-590-0	01	1	1001-
59	BRACKET; FRAME HARNESS (E) L=62	1-21464-170-2	01	1	1001-
59	BRACKET; FRAME HARNESS (B)	8-97616-305-0	01	1	1001-1502
59	BRACKET; FRAME HARNESS (F)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (D)	8-98047-730-0	02	1	1001-
59	BRACKET; FRAME HARNESS (C)	8-98107-611-0	01	1	1001-
59	BRACKET; FRAME HARNESS MLD6W M/T(Y2C) (A)	8-97627-325-0	01	1	1001-
59	BRACKET; FRAME HARNESS MZX6P M/T(RSW),MZW6P M/T(RSZ) (A)	8-97609-264-2	01	1	1001-
69	BRACKET; CLIP L=55	1-47475-304-0	01	1	1001-1109
69	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=55	1-47475-304-0	01	1	1110-
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	1001-
312	BRACKET; CLIP HARNESS (A)	8-97609-110-1	01	1	1001-

235 16 235 171 16 171 305 305 16 305 116 305 16 16 171 223 171 306 16 81 171 223 305 470 48 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (N) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1110-
16	CLIP; HARNESS (J) ID=11 L=16	0-95235-025-0	02	1	1001-
16	CLIP; HARNESS (H) ID=16 L=28	0-95235-556-0	02	1	1001-
16	CLIP; HARNESS (I) ID=11X2 L=16	0-95325-025-0	02	1	1001-
16	CLIP; HARNESS (G) ID=14 H=50 L=20	1-09700-843-0	02	1	1001-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1001-1109
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1110-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1001-
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	1001-
16	CLIP; HARNESS (E) L=250 SOU	5-09707-030-1	03	1	1001-
16	CLIP; HARNESS (K) L=140 SOU	5-09707-031-1	01	1	1001-
16	CLIP; HARNESS (A) ID=10 & 16 SOU	8-94413-325-0	01	1	1001-
16	CLIP; HARNESS (B) L=155 SOU	8-97173-307-0	18	1	1001-
16	CLIP; HARNESS (D) L=40.6	8-97229-357-0	02	1	1001-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1001-
16	CLIP; HARNESS EXC. AIR DRYER<PS7> (F) OD=9 H=6	1-09709-178-0	01	1	1001-1405
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	01	1	1108-1109
48	CLIP; FRAME HARNESS VIN MODEL YEAR 2011<VZB> (G) ID=15 L=65	1-09700-466-0	01	1	1110-
48	CLIP; FRAME HARNESS (H) ID=11 L=61	1-09700-484-0	01	1	1108-1109
48	CLIP; FRAME HARNESS VIN MODEL YEAR 2011<VZB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) ID=11 L=61	1-09700-484-0	01	1	1110-
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	01	1	1108-1109
48	CLIP; FRAME HARNESS VIN MODEL YEAR 2011<VZB> (A) ID=20 L=70	1-09700-485-0	01	1	1110-
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	03	1	1108-1109
48	CLIP; FRAME HARNESS VIN MODEL YEAR 2011<VZB> (A) ID=20 L=70	1-09700-485-0	03	1	1110-
48	CLIP; FRAME HARNESS (I) ID=28 L=78	1-09700-858-0	02	1	1108-1109
48	CLIP; FRAME HARNESS VIN MODEL YEAR 2011<VZB> (I) ID=28 L=78	1-09700-858-0	02	1	1110-
48	CLIP; FRAME HARNESS (J) ID=33 L=83	1-09701-291-0	04	1	1108-1109
48	CLIP; FRAME HARNESS VIN MODEL YEAR 2011<VZB> (J) ID=33 L=83	1-09701-291-0	04	1	1110-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (G) ID=15 L=65	1-09700-466-0	05	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (G) ID=15 L=65	1-09700-466-0	08	1	1008-
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	02	1	1008-1201
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	02	1	1202-
48	CLIP; FRAME HARNESS (F) ID=11 L=41	1-09700-403-0	01	1	1001-1109
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (F) ID=11 L=41	1-09700-403-0	01	1	1110-
48	CLIP; FRAME HARNESS (B) ID=35 L=50	1-09701-214-0	01	1	1001-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	01	1	1001-
48	CLIP; FRAME HARNESS (D) L=140 SOU	5-09707-031-1	02	1	1001-
48	CLIP; FRAME HARNESS (E) OD=9 H=9.5	1-09709-179-0	01	1	1001-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (A) ID=20 L=70	1-09700-485-0	12	1	1001-1007
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (A) ID=20 L=70	1-09700-485-0	05	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	20	1	1001-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	10	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (A) ID=20 L=70	1-09700-485-0	22	1	1001-1007
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (A) ID=20 L=70	1-09700-485-0	12	1	1008-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> OD=9 H=6	1-09709-178-0	01	1	1001-1010
81	CLIP; HARNESS OD=9 H=6	1-09709-178-0	01	1	1011-1109
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=9 H=6	1-09709-178-0	01	1	1110-
116	CLIP; ROOF HARNESS LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE SOU	1-09987-246-2	04	1	1001-
116	CLIP; ROOF HARNESS EXC. LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE SOU	1-09987-246-2	03	1	1001-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (A) ID=11 L=28	0-95235-055-0	01	1	1001-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (B) ID=16 L=28	0-95235-556-0	01	1	1001-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (C) OD=9 H=6	1-09709-178-0	02	1	1001-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1001-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (E) ID=5-12 L=14.5	1-09987-221-0	01	1	1001-
223	CLIP; AIR TANK HARNESS EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1110-
223	CLIP; AIR TANK HARNESS EXC. VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61	1-09700-484-0	01	1	1110-
223	CLIP; AIR TANK HARNESS (C) ID=11 L=61	1-09700-484-0	01	1	1001-1011
223	CLIP; AIR TANK HARNESS EXC. VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61	1-09700-484-0	01	1	1012-1102
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1001-1005
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1006-1109
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1110-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (B) OD=9 H=6	1-09709-178-0	01	1	1001-
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=11 L=16	0-95235-025-0	02	1	1001-
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD6W M/T(Y2C) (B) ID=12 L=35	5-09700-206-0	01	1	1001-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (F) L=100	8-94443-021-1	01	1	1311-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (K) ID=19 H=33 L=45	1-09701-045-0	01	1	1110-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (L) ID=11 L=45	8-94296-897-1	01	1	1110-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (M) ID=18 L=44	8-97367-985-1	01	1	1110-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1001-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	1001-
305	CLIP; ENG HARNESS (G) ID=24 L=32	1-09700-766-1	01	1	1001-
305	CLIP; ENG HARNESS (B) ID=24 L=27	1-09700-809-0	03	1	1001-1109
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (B) ID=24 L=27	1-09700-809-0	03	1	1110-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1001-
305	CLIP; ENG HARNESS (E) ID=19 L=39 H=21	1-09700-972-1	01	1	1001-1109
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (E) ID=19 L=39 H=21	1-09700-972-1	01	1	1110-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1001-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	1001-
305	CLIP; ENG HARNESS (C) ID=21 L=47.5	8-94178-108-0	01	1	1001-1311
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> (C) ID=21 L=47.5	8-94178-108-0	01	1	1312-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (C) ID=21 L=47.5	8-94178-108-0	01	1	1312-
305	CLIP; ENG HARNESS (F) L=100	8-94443-021-1	01	1	1001-1310
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (F) L=100	8-94443-021-1	02	1	1311-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1001-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1001-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1001-

137 137 137 308 308 308 308 308 308 335 324 428 312 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP (B)	8-97609-797-1	02	1	1001-
137	BRACKET; HARNESS CLAMP (C)	8-97614-728-1	01	1	1001-
137	BRACKET; HARNESS CLAMP (A)	8-97624-013-0	01	1	1001-
308	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3> (E)	8-97614-078-0	01	1	1110-
308	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3> (F)	8-98021-291-2	01	1	1110-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1001-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	1001-
308	BRACKET; CLIP,ENG HARNESS (B)	8-98032-178-0	01	1	1001-1109
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION<NT2> (B)	8-98032-178-0	01	1	1110-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98075-824-0	01	1	1001-1109
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION<NT2> (C)	8-98075-824-0	01	1	1110-
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	1001-
312	BRACKET; CLIP HARNESS (A)	8-97609-110-1	01	1	1001-
324	BRACKET; CLIP	1-47479-430-0	02	1	1001-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1001-
428	BRACKET (A)	1-47476-658-0	01	1	1001-
428	BRACKET (B)	8-97620-514-0	01	1	1001-

16 48 14 16 183 206 217 225 530 14 14 48 538 1 1 1 503 14 503 178 178 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	1001-1109
1	SLEEVE; RUBBER EURO2 SPECIFICATION<NT2> (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	1110-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1001-1109
1	SLEEVE; RUBBER EURO3 SPECIFICATION<NT3> (C) ID=23 OD=27 L=80	8-97608-976-0	06	1	1110-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1110-
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION<NT3> (B) L=250 SOU	5-09707-030-1	13	1	1110-1205
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION<NT3> (B) L=250	8-98216-430-0	13	1	1206-
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION<NT3> (D) L=251	8-97619-917-0	01	1	1110-
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	1001-
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	01	1	1001-
14	CLIP; BAND,HARNESS (B) L=250 SOU	5-09707-030-1	08	1	1001-1109
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION<NT2> (B) L=250 SOU	5-09707-030-1	08	1	1110-1205
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION<NT2> (B) L=250	8-98216-430-0	08	1	1206-
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (N) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1110-
16	CLIP; HARNESS (J) ID=11 L=16	0-95235-025-0	02	1	1001-
16	CLIP; HARNESS (H) ID=16 L=28	0-95235-556-0	02	1	1001-
16	CLIP; HARNESS (I) ID=11X2 L=16	0-95325-025-0	02	1	1001-
16	CLIP; HARNESS (G) ID=14 H=50 L=20	1-09700-843-0	02	1	1001-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1001-1109
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1110-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1001-
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	1001-
16	CLIP; HARNESS (E) L=250 SOU	5-09707-030-1	03	1	1001-
16	CLIP; HARNESS (K) L=140 SOU	5-09707-031-1	01	1	1001-
16	CLIP; HARNESS (A) ID=10 & 16 SOU	8-94413-325-0	01	1	1001-
16	CLIP; HARNESS (B) L=155 SOU	8-97173-307-0	18	1	1001-
16	CLIP; HARNESS (D) L=40.6	8-97229-357-0	02	1	1001-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1001-
16	CLIP; HARNESS EXC. AIR DRYER<PS7> (F) OD=9 H=6	1-09709-178-0	01	1	1001-1405
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	01	1	1108-1109
48	CLIP; FRAME HARNESS VIN MODEL YEAR 2011<VZB> (G) ID=15 L=65	1-09700-466-0	01	1	1110-
48	CLIP; FRAME HARNESS (H) ID=11 L=61	1-09700-484-0	01	1	1108-1109
48	CLIP; FRAME HARNESS VIN MODEL YEAR 2011<VZB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) ID=11 L=61	1-09700-484-0	01	1	1110-
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	01	1	1108-1109
48	CLIP; FRAME HARNESS VIN MODEL YEAR 2011<VZB> (A) ID=20 L=70	1-09700-485-0	01	1	1110-
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	03	1	1108-1109
48	CLIP; FRAME HARNESS VIN MODEL YEAR 2011<VZB> (A) ID=20 L=70	1-09700-485-0	03	1	1110-
48	CLIP; FRAME HARNESS (I) ID=28 L=78	1-09700-858-0	02	1	1108-1109
48	CLIP; FRAME HARNESS VIN MODEL YEAR 2011<VZB> (I) ID=28 L=78	1-09700-858-0	02	1	1110-
48	CLIP; FRAME HARNESS (J) ID=33 L=83	1-09701-291-0	04	1	1108-1109
48	CLIP; FRAME HARNESS VIN MODEL YEAR 2011<VZB> (J) ID=33 L=83	1-09701-291-0	04	1	1110-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (G) ID=15 L=65	1-09700-466-0	05	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (G) ID=15 L=65	1-09700-466-0	08	1	1008-
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	02	1	1008-1201
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	02	1	1202-
48	CLIP; FRAME HARNESS (F) ID=11 L=41	1-09700-403-0	01	1	1001-1109
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (F) ID=11 L=41	1-09700-403-0	01	1	1110-
48	CLIP; FRAME HARNESS (B) ID=35 L=50	1-09701-214-0	01	1	1001-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	01	1	1001-
48	CLIP; FRAME HARNESS (D) L=140 SOU	5-09707-031-1	02	1	1001-
48	CLIP; FRAME HARNESS (E) OD=9 H=9.5	1-09709-179-0	01	1	1001-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (A) ID=20 L=70	1-09700-485-0	12	1	1001-1007
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (A) ID=20 L=70	1-09700-485-0	05	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	20	1	1001-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	10	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (A) ID=20 L=70	1-09700-485-0	22	1	1001-1007
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (A) ID=20 L=70	1-09700-485-0	12	1	1008-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	02	1	1001-
178	GROMMET; HARNESS (C) ID=32 OD=40 T=23	1-09332-112-0	01	1	1001-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1001-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1001-
183	CLIP; CONNECTOR H.S.A SYSTEM<6EP> L=250 SOU	5-09707-030-1	01	1	1001-
206	CLIP; FUEL TANK HARNESS L=250 SOU	5-09707-030-1	02	1	1001-
217	CLIP; RR BODY HARNESS L=250 SOU	5-09707-030-1	02	1	1001-
225	CLIP; AIR TANK HARNESS L=250 SOU	5-09707-030-1	04	1	1001-1011
225	CLIP; AIR TANK HARNESS L=250 SOU	5-09707-030-1	04	1	1012-1102
225	CLIP; AIR TANK HARNESS VIN MODEL YEAR 2011<VZB> L=250 SOU	5-09707-030-1	04	1	1012-1102
225	CLIP; AIR TANK HARNESS L=250 SOU	5-09707-030-1	04	1	1103-1109
225	CLIP; AIR TANK HARNESS L=250 SOU	5-09707-030-1	04	1	1103-1109
225	CLIP; AIR TANK HARNESS L=250 SOU	5-09707-030-1	04	1	1110-
225	CLIP; AIR TANK HARNESS VIN MODEL YEAR 2011<VZB> L=250 SOU	5-09707-030-1	04	1	1110-
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) SOU	1-82690-668-0	01	1	1001-
503	CONNECTOR EXC. AIR DRYER<PS7> (A) SOU	1-82690-666-0	01	1	1001-1405
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	1001-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-
530	SEAL; HARNESS 100X40 SOU	1-72498-022-1	06	1	1001-1305
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-
530	SEAL; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 180X40	1-72498-019-1	01	1	1306-
538	SEAL; HOLE OD=25 BLACK SOU	1-76798-019-0	01	1	1001-

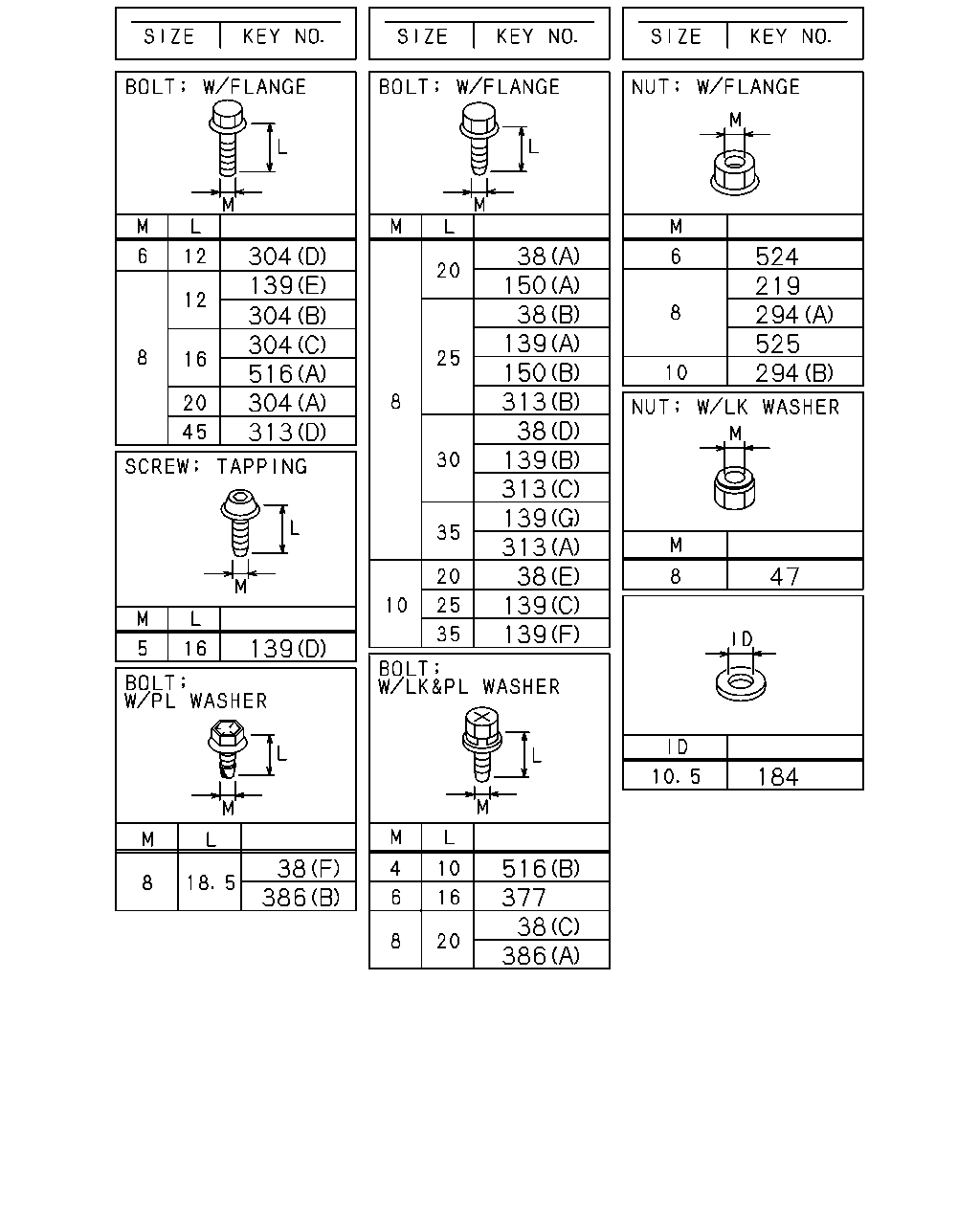

304 304 139 304 304 516 313 139 38 386 38 38 150 139 313 150 38 139 139 313 313 139 139 516 377 38 386 524 294 219 525 294 47 184 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1001-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1001-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1001-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE SOU	0-28650-825-0	04	1	1001-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	1001-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	1001-
38	BOLT; CLIP,HARNESS (C) M8X20 W/LK&PL WASHER SOU	8-97086-825-0	03	1	1001-1201
38	BOLT; CLIP,HARNESS (F) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
38	BOLT; CLIP,HARNESS MLD6W M/T(Y2C) (E) M10X20 FLANGE	0-28751-020-0	01	1	1001-
47	NUT; GEN TERMINAL M8 W/LK WASHER SOU	8-94279-050-0	01	1	1409-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1001-
139	BOLT; BRKT (A) M8X25 FLANGE SOU	0-28650-825-0	01	1	1001-1109
139	BOLT; BRKT (A) M8X25 FLANGE SOU	0-28650-825-0	01	1	1001-1109
139	BOLT; BRKT (A) M8X25 FLANGE SOU	0-28650-825-0	01	1	1110-
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE SOU	0-28650-825-0	01	1	1110-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1001-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1001-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1001-
139	BOLT; BRKT (G) M8X35 FLANGE SOU	0-28650-835-0	01	1	1001-
139	BOLT; BRKT (C) M10X25 FLANGE SOU	0-28651-025-0	02	1	1001-
139	BOLT; BRKT (F) M10X35 FLANGE SOU	0-28651-035-0	01	1	1001-
139	BOLT; BRKT (F) M10X35 FLANGE SOU	0-28651-035-0	01	1	1001-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1001-
150	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1001-
150	BOLT; CLIP (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-
184	WASHER; PL,STARTER EARTH EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> ID=10.5 OD=22 T=2.0 SOU	1-09503-265-0	01	1	1110-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0 SOU	1-09503-265-0	02	1	1001-1109
184	WASHER; PL,STARTER EARTH EURO2 SPECIFICATION<NT2> ID=10.5 OD=22 T=2.0 SOU	1-09503-265-0	02	1	1110-
184	WASHER; PL,STARTER EARTH EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> ID=10.5 OD=22 T=2.0 SOU	1-09503-265-0	02	1	1110-
219	NUT M8 FLANGE SOU	0-91180-108-0	01	1	1001-
219	NUT M8 FLANGE SOU	0-91180-108-0	02	1	1001-1509
219	NUT M8 FLANGE SOU	0-91180-108-0	02	1	1510-
219	NUT M8 FLANGE SOU	0-91180-108-0	02	1	1510-
219	NUT M8 FLANGE SOU	0-91180-108-0	02	1	1510-
219	NUT M8 FLANGE SOU	0-91180-108-0	04	1	1001-1509
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	02	1	1001-
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	04	1	1001-
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	05	1	1001-
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	01	1	1001-
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	01	1	1001-
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	01	1	1001-
294	NUT (B) M10 FLANGE SOU	0-91180-210-0	02	1	1001-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (D) M6X12 FLANGE SOU	0-28050-612-0	01	1	1110-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (B) M8X12 FLANGE	0-28050-812-0	03	1	1110-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (C) M8X16 FLANGE SOU	0-28050-816-0	03	1	1110-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28050-820-0	01	1	1110-
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	06	1	1001-1109
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (B) M8X12 FLANGE	0-28050-812-0	06	1	1110-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE SOU	0-28050-816-0	05	1	1001-1109
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE SOU	0-28050-816-0	05	1	1110-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	04	1	1001-1109
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	04	1	1110-
313	BOLT; BRKT (D) M8X45 FLANGE SOU	0-28050-845-0	01	1	1001-
313	BOLT; BRKT (B) M8X25 FLANGE SOU	0-28650-825-0	01	1	1001-
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	1001-
313	BOLT; BRKT (A) M8X35 FLANGE SOU	0-28650-835-0	01	1	1001-
313	BOLT; BRKT (A) M8X35 FLANGE SOU	0-28650-835-0	01	1	1001-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1001-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER SOU	8-97086-825-0	02	1	1001-1202
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-
516	BOLT; HARNESS (B) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1001-
516	BOLT; HARNESS MLD6W M/T(Y2C) (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-
524	NUT; HARNESS M6 FLANGE SOU	0-91180-106-0	04	1	1001-
525	NUT; CLIP EURO3 SPECIFICATION<NT3> T=8.5 M8 FLANGE	5-09440-010-0	01	1	1110-
525	NUT; CLIP T=8.0 M8 FLANGE SOU	0-91180-108-0	01	1	1001-
525	NUT; CLIP T=8.0 M8 FLANGE SOU	0-91180-108-0	02	1	1001-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
