◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11165 - FTR SOUTH AFRICA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#22970) — 267 parça

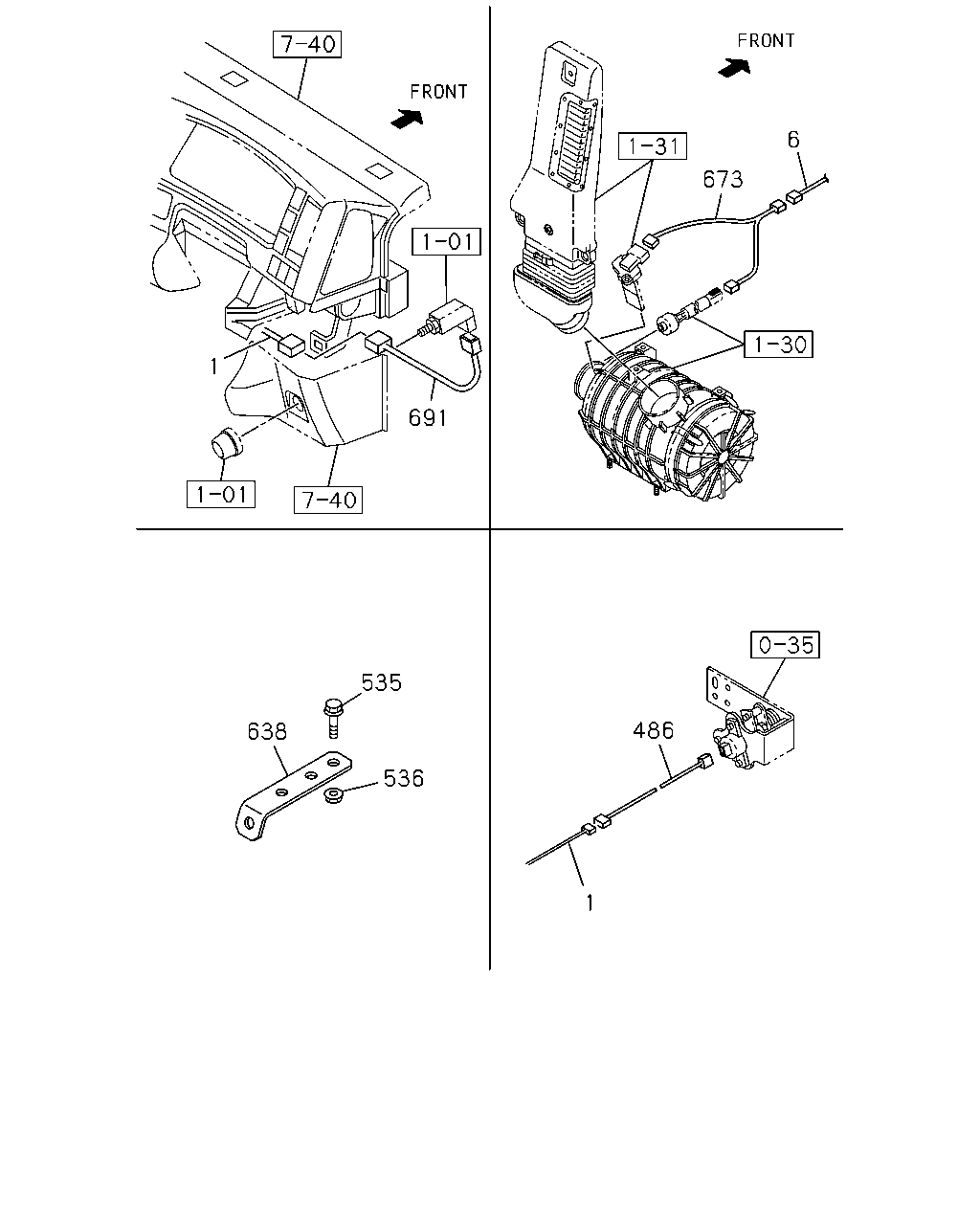

çizim 127217
6 673 1 691 535 486 638 536 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-952-0 01 1 1110-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-952-0 01 1 1210-
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),ASSISTOR SHIFT CONTROL<WX8> 		8-98198-683-0 01 1 1110-1209
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),ASSISTOR SHIFT CONTROL<WX8> 		8-98198-683-0 01 1 1210-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3) 		8-98187-951-0 01 1 1110-1209
1 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3) 		8-98187-951-0 01 1 1210-
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>, ASSISTOR SHIFT CONTROL<WX8> 		8-98198-685-0 01 1 1110-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98084-936-2 01 1 1001-1109
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-936-2 01 1 1110-1110
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-936-2 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3) 		8-98084-935-2 01 1 1001-1109
1 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3) 		8-98084-935-2 01 1 1110-1110
1 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF> 		8-98084-935-2 01 1 1110-1209
6 HARNESS; FRAME
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-612-4 01 1 1110-
6 HARNESS; FRAME
EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> 		8-98199-323-1 01 1 1110-
6 HARNESS; FRAME
VIN MODEL YEAR 2011<VZB> 		8-98173-976-1 01 1 1012-1102
6 HARNESS; FRAME 8-98173-976-1 01 1 1103-1109
6 HARNESS; FRAME
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> 		8-98173-976-1 01 1 1110-
6 HARNESS; FRAME 8-98113-612-3 01 1 1001-1011
6 HARNESS; FRAME
EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-612-3 01 1 1012-1102
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82675-898-0 01 1 1001-
535 BOLT; BRKT FIX
M8X35 FLANGE SOU 		0-28650-835-0 01 1 1001-
536 NUT; BRKT FIX
M8 FLANGE SOU 		0-91180-108-0 01 1 1001-
638 BRACKET; SPD SENSOR 1-82698-167-0 01 1 1001-
673 HARNESS; EXT,SENSOR
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-98098-510-0 01 1 1110-
673 HARNESS; EXT,SENSOR 8-98069-172-0 01 1 1001-1109
673 HARNESS; EXT,SENSOR
EURO2 SPECIFICATION<NT2> 		8-98069-172-0 01 1 1110-
673 HARNESS; EXT,SENSOR
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-98069-172-0 01 1 1110-
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 1001-

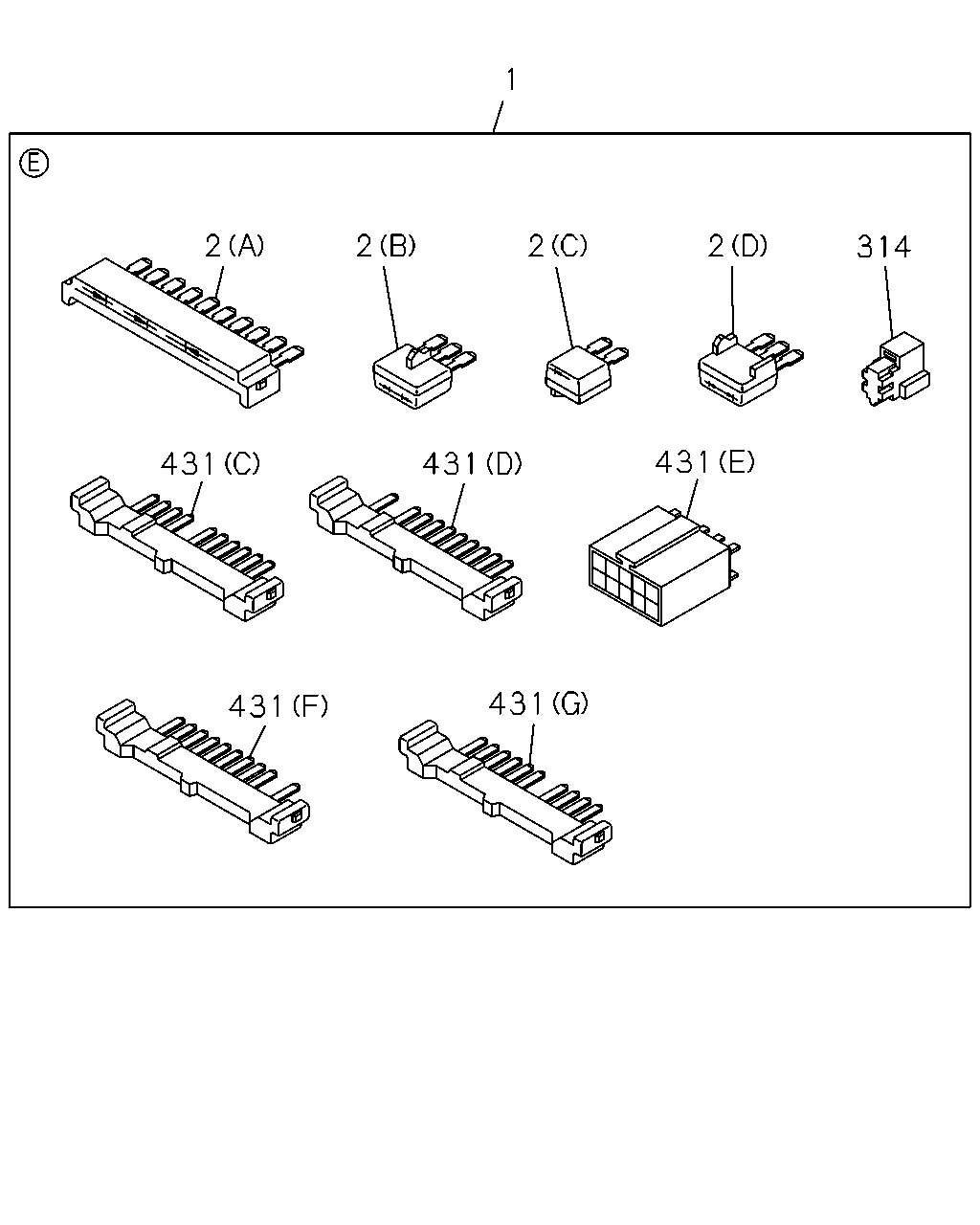

çizim 127218
1 2 2 2 2 314 431 431 431 431 431
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-952-0 01 1 1110-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-952-0 01 1 1210-
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),ASSISTOR SHIFT CONTROL<WX8> 		8-98198-683-0 01 1 1110-1209
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),ASSISTOR SHIFT CONTROL<WX8> 		8-98198-683-0 01 1 1210-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3) 		8-98187-951-0 01 1 1110-1209
1 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3) 		8-98187-951-0 01 1 1210-
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>, ASSISTOR SHIFT CONTROL<WX8> 		8-98198-685-0 01 1 1110-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98084-936-2 01 1 1001-1109
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-936-2 01 1 1110-1110
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-936-2 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3) 		8-98084-935-2 01 1 1001-1109
1 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3) 		8-98084-935-2 01 1 1110-1110
1 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF> 		8-98084-935-2 01 1 1110-1209
2 DIODE; CABLE HARNESS
(A) BLACK 10P SOU 		1-82699-703-0 01 1 1001-
2 DIODE; CABLE HARNESS
(D) BLACK 3P-1.5A SOU 		8-94416-438-1 01 1 1001-
2 DIODE; CABLE HARNESS
(C) BLACK 2P-1.5A SOU 		8-94422-639-1 03 1 1001-
2 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A SOU 		8-94422-640-1 01 1 1001-
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 1001-
431 CONNECTOR; JOINT
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (C) 10P BLUE 		1-82699-598-0 04 1 1110-1511
431 CONNECTOR; JOINT
EXC. VIN MODEL YEAR 2011<VZB> (C) 10P BLUE 		1-82699-598-0 04 1 1012-1102
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 1001-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1001-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 02 1 1001-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1001-1011
431 CONNECTOR; JOINT
VIN MODEL YEAR 2011<VZB> (C) 10P BLUE 		1-82699-598-0 05 1 1012-1102
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 05 1 1103-1109
431 CONNECTOR; JOINT
VIN MODEL YEAR 2011<VZB> (C) 10P BLUE 		1-82699-598-0 05 1 1110-1511
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 05 1 1512-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 1001-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1001-
431 CONNECTOR; JOINT
(D) 10P BROWN SOU 		1-82699-601-0 01 1 1001-
431 CONNECTOR; JOINT
(D) 10P BROWN SOU 		1-82699-601-0 09 1 1001-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1001-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 1001-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1001-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1001-

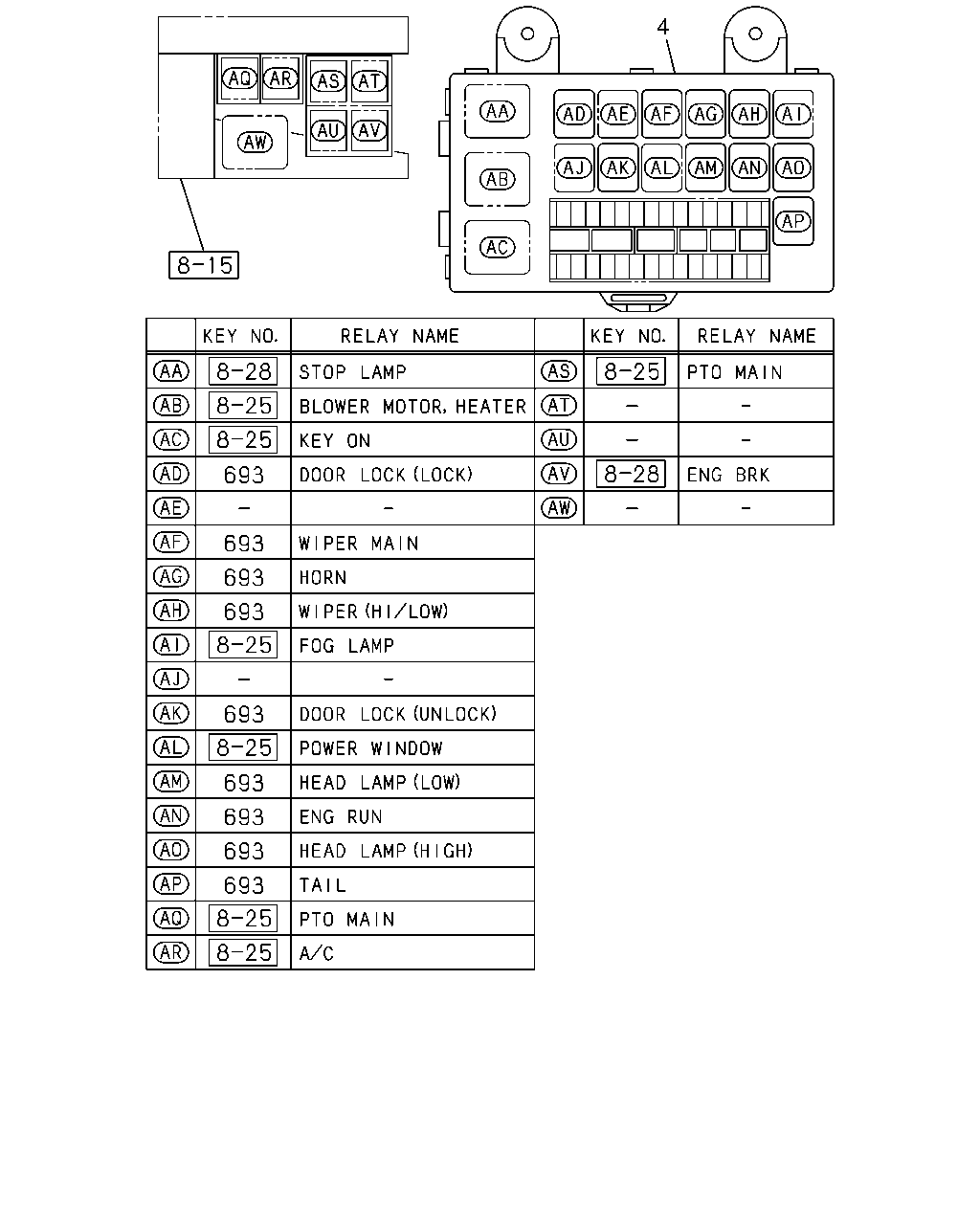

çizim 127219
4 693 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1001-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1001-

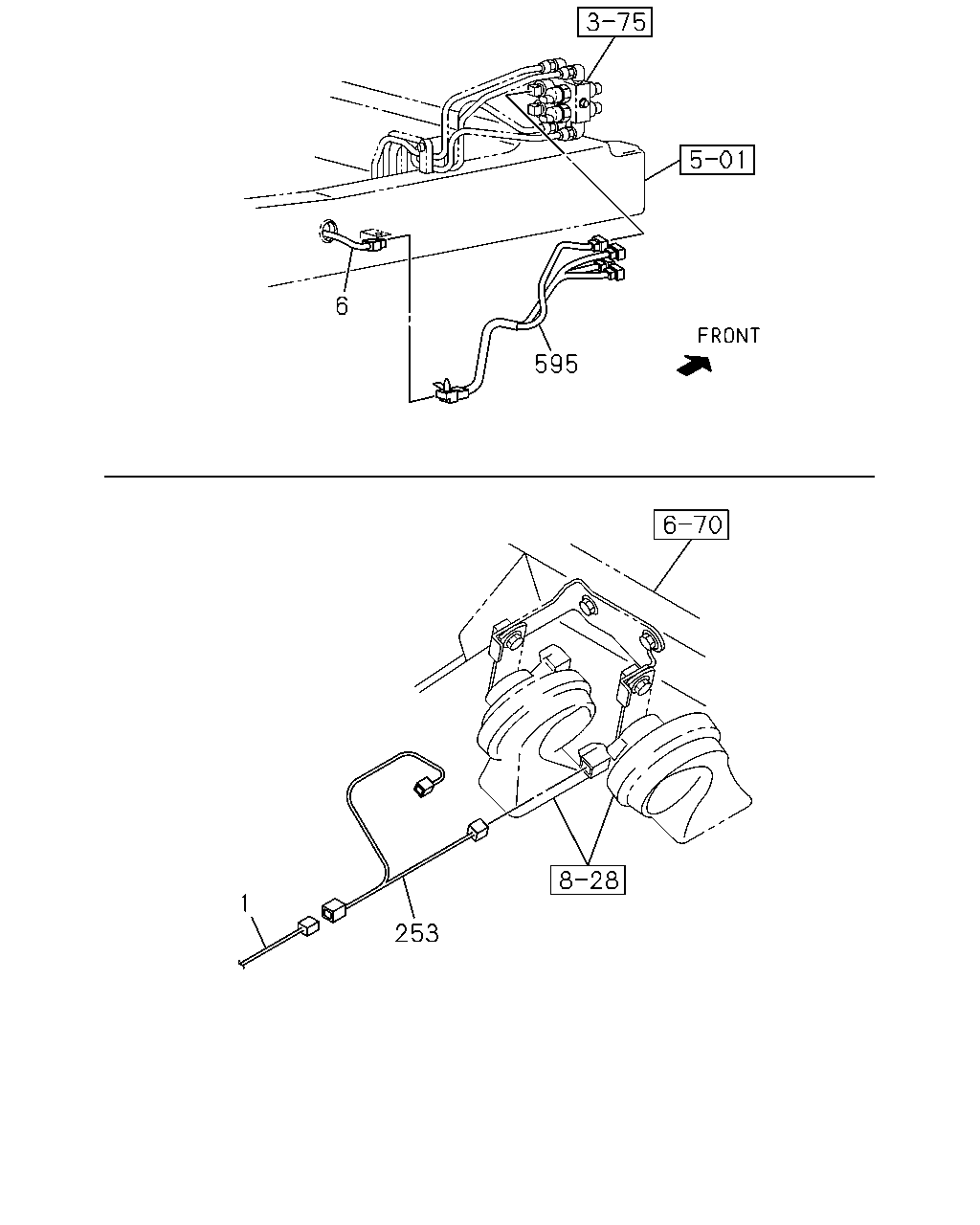

çizim 127220
6 595 1 253
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-952-0 01 1 1110-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-952-0 01 1 1210-
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),ASSISTOR SHIFT CONTROL<WX8> 		8-98198-683-0 01 1 1110-1209
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),ASSISTOR SHIFT CONTROL<WX8> 		8-98198-683-0 01 1 1210-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3) 		8-98187-951-0 01 1 1110-1209
1 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3) 		8-98187-951-0 01 1 1210-
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>, ASSISTOR SHIFT CONTROL<WX8> 		8-98198-685-0 01 1 1110-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98084-936-2 01 1 1001-1109
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-936-2 01 1 1110-1110
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-936-2 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3) 		8-98084-935-2 01 1 1001-1109
1 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3) 		8-98084-935-2 01 1 1110-1110
1 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF> 		8-98084-935-2 01 1 1110-1209
6 HARNESS; FRAME
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-612-4 01 1 1110-
6 HARNESS; FRAME
EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> 		8-98199-323-1 01 1 1110-
6 HARNESS; FRAME
VIN MODEL YEAR 2011<VZB> 		8-98173-976-1 01 1 1012-1102
6 HARNESS; FRAME 8-98173-976-1 01 1 1103-1109
6 HARNESS; FRAME
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> 		8-98173-976-1 01 1 1110-
6 HARNESS; FRAME 8-98113-612-3 01 1 1001-1011
6 HARNESS; FRAME
EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-612-3 01 1 1012-1102
253 HARNESS; EXT,HORN 8-98074-080-3 01 1 1001-
595 HARNESS; WARNING,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97620-488-1 01 1 1110-
595 HARNESS; WARNING,BRK 8-97620-487-1 01 1 1001-1109
595 HARNESS; WARNING,BRK
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97620-487-1 01 1 1110-

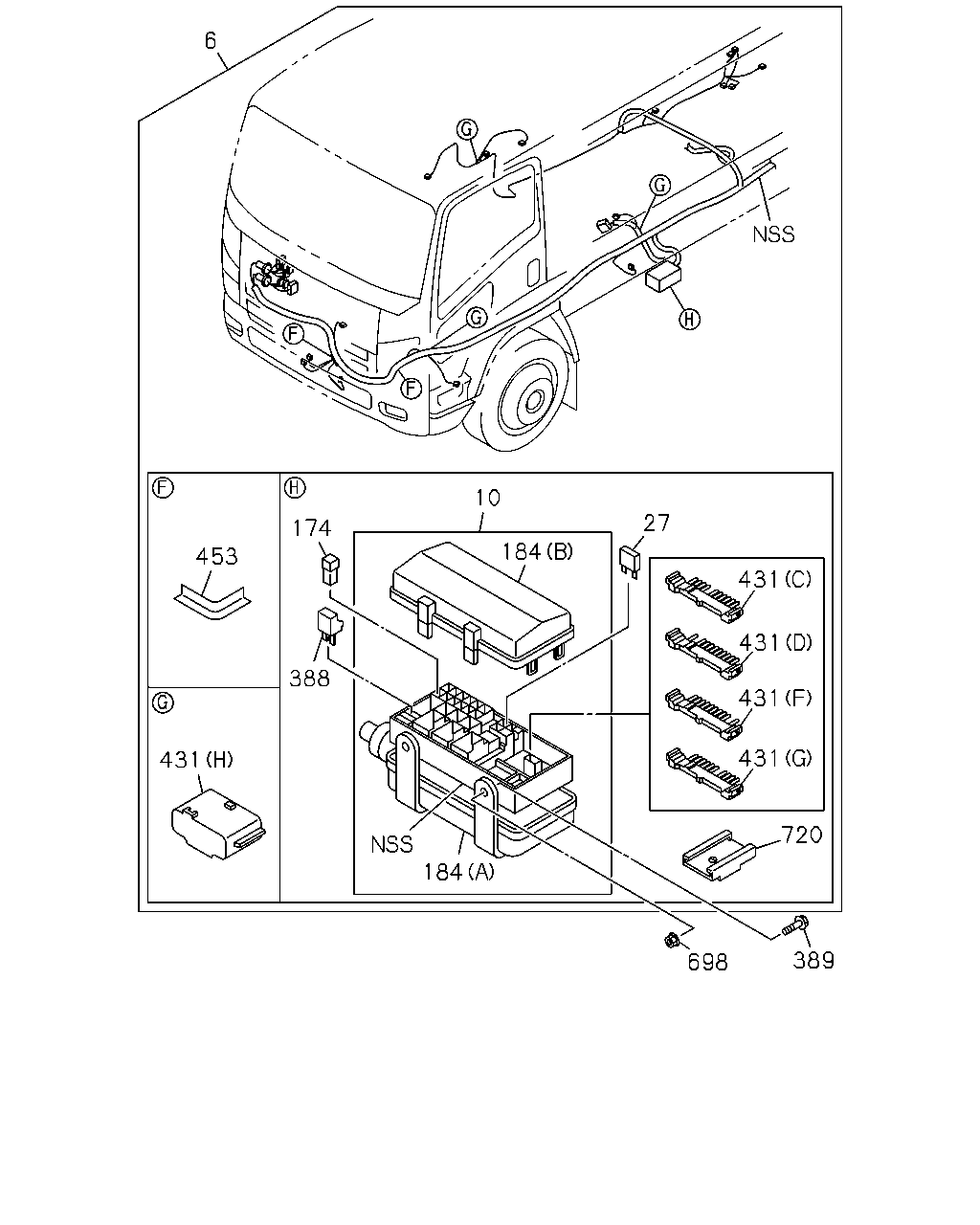

çizim 127227
6 10 27 174 184 453 431 431 388 431 431 431 720 184 389 698
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-612-4 01 1 1110-
6 HARNESS; FRAME
EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> 		8-98199-323-1 01 1 1110-
6 HARNESS; FRAME
VIN MODEL YEAR 2011<VZB> 		8-98173-976-1 01 1 1012-1102
6 HARNESS; FRAME 8-98173-976-1 01 1 1103-1109
6 HARNESS; FRAME
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> 		8-98173-976-1 01 1 1110-
6 HARNESS; FRAME 8-98113-612-3 01 1 1001-1011
6 HARNESS; FRAME
EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-612-3 01 1 1012-1102
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1001-
27 FUSE UNIT
10A RED SOU 		8-98054-257-0 01 1 1001-
27 FUSE UNIT
15A BLUE SOU 		8-98054-258-0 02 1 1001-
174 FUSE; SLOW BLOW
60A YELLOW SOU 		8-97219-407-0 01 1 1107-1109
174 FUSE; SLOW BLOW
EURO2 SPECIFICATION<NT2> 60A YELLOW SOU 		8-97219-407-0 01 1 1110-
174 FUSE; SLOW BLOW
EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> 60A YELLOW SOU 		8-97219-407-0 03 1 1110-
174 FUSE; SLOW BLOW
EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> 30A PINK SOU 		8-98079-191-0 02 1 1110-
174 FUSE; SLOW BLOW
30A PINK SOU 		8-98079-191-0 01 1 1001-1109
174 FUSE; SLOW BLOW
EURO2 SPECIFICATION<NT2> 30A PINK SOU 		8-98079-191-0 01 1 1110-
174 FUSE; SLOW BLOW
40A GREEN SOU 		8-98079-192-0 01 1 1001-
174 FUSE; SLOW BLOW
50A RED SOU 		8-98079-193-0 03 1 1001-
174 FUSE; SLOW BLOW
60A YELLOW SOU 		8-97219-407-0 03 1 1001-1106
174 FUSE; SLOW BLOW
60A YELLOW 60A YELLOW SOU 		8-97219-407-0 02 1 1107-1109
174 FUSE; SLOW BLOW
EURO2 SPECIFICATION<NT2> 60A YELLOW SOU 		8-97219-407-0 02 1 1110-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1001-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1001-
388 DIODE; RELAY BOX
BLACK 2P-1.5A SOU 		8-94422-639-1 01 1 1001-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1001-
431 CONNECTOR; JOINT
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (C) 10P BLUE 		1-82699-598-0 04 1 1110-1511
431 CONNECTOR; JOINT
EXC. VIN MODEL YEAR 2011<VZB> (C) 10P BLUE 		1-82699-598-0 04 1 1012-1102
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 1001-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1001-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 02 1 1001-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1001-1011
431 CONNECTOR; JOINT
VIN MODEL YEAR 2011<VZB> (C) 10P BLUE 		1-82699-598-0 05 1 1012-1102
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 05 1 1103-1109
431 CONNECTOR; JOINT
VIN MODEL YEAR 2011<VZB> (C) 10P BLUE 		1-82699-598-0 05 1 1110-1511
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 05 1 1512-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 1001-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1001-
431 CONNECTOR; JOINT
(D) 10P BROWN SOU 		1-82699-601-0 01 1 1001-
431 CONNECTOR; JOINT
(D) 10P BROWN SOU 		1-82699-601-0 09 1 1001-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1001-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 1001-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1001-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1001-
453 PROTECTOR; HARNESS 1-82699-709-0 01 1 1001-
698 NUT; COVER,RELAY BOX
M8 FLANGE SOU 		0-91180-108-0 02 1 1001-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1001-

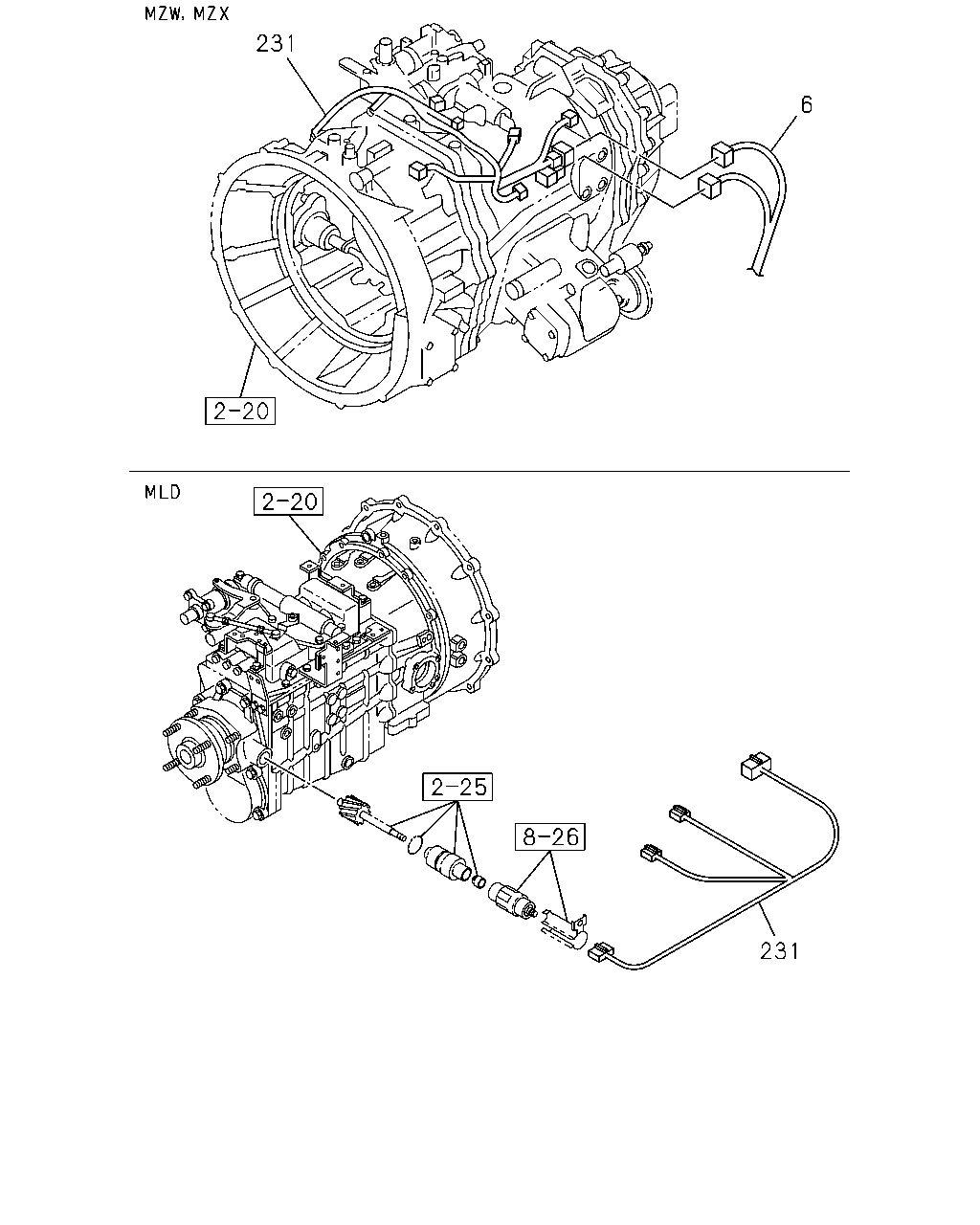

çizim 127231
231 6 231
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-612-4 01 1 1110-
6 HARNESS; FRAME
EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> 		8-98199-323-1 01 1 1110-
6 HARNESS; FRAME
VIN MODEL YEAR 2011<VZB> 		8-98173-976-1 01 1 1012-1102
6 HARNESS; FRAME 8-98173-976-1 01 1 1103-1109
6 HARNESS; FRAME
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> 		8-98173-976-1 01 1 1110-
6 HARNESS; FRAME 8-98113-612-3 01 1 1001-1011
6 HARNESS; FRAME
EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-612-3 01 1 1012-1102
231 HARNESS; TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97620-317-3 01 1 1110-
231 HARNESS; TRANS
MLD6W M/T(Y2C) 		8-97626-769-1 01 1 1001-
231 HARNESS; TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-97618-932-2 01 1 1001-1109
231 HARNESS; TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97618-932-2 01 1 1110-

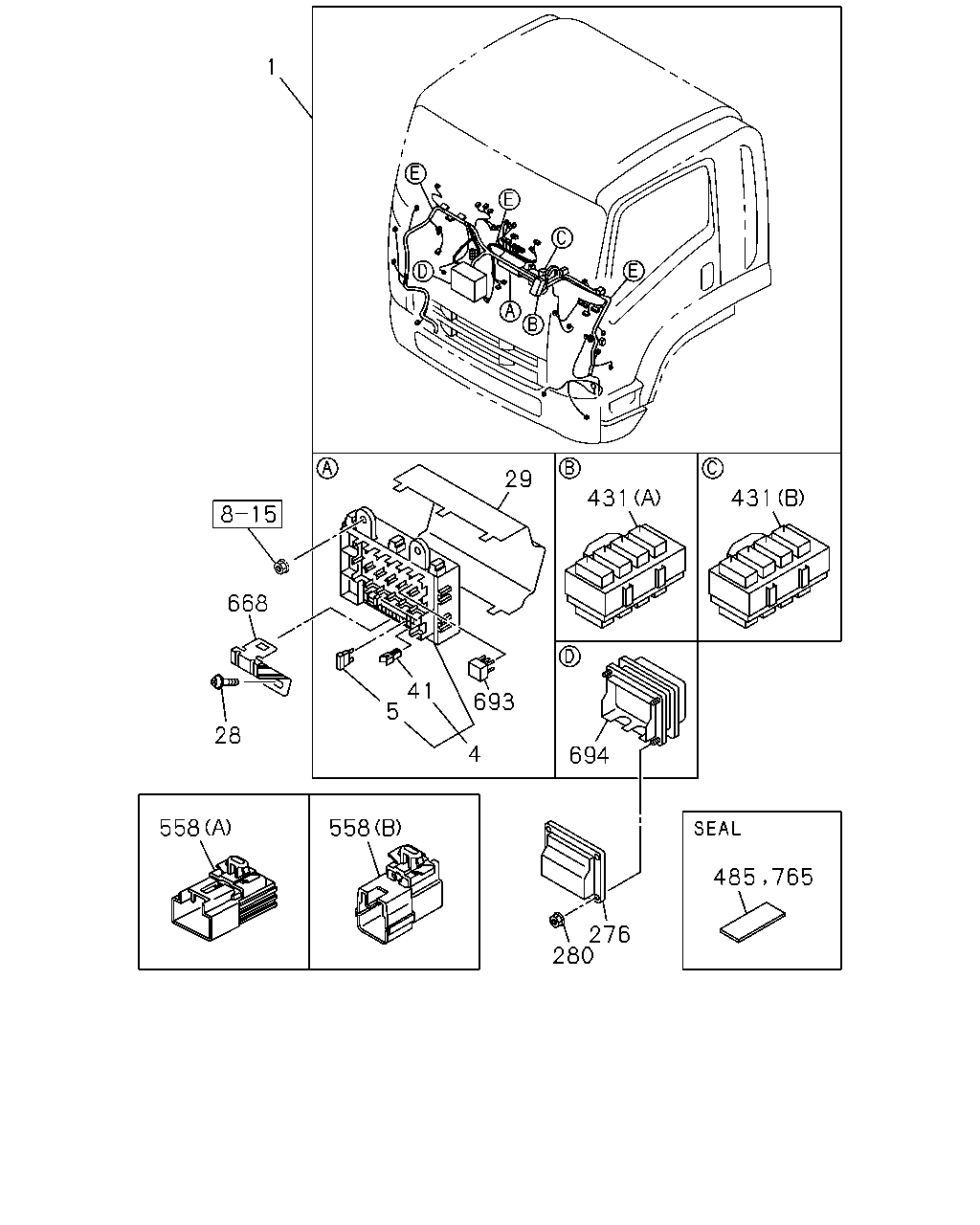

çizim 127233
280 276 485 765 558 558 28 668 5 4 693 41 694 431 431 29 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-952-0 01 1 1110-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-952-0 01 1 1210-
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),ASSISTOR SHIFT CONTROL<WX8> 		8-98198-683-0 01 1 1110-1209
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),ASSISTOR SHIFT CONTROL<WX8> 		8-98198-683-0 01 1 1210-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3) 		8-98187-951-0 01 1 1110-1209
1 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3) 		8-98187-951-0 01 1 1210-
1 HARNESS; CAB
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>, ASSISTOR SHIFT CONTROL<WX8> 		8-98198-685-0 01 1 1110-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98084-936-2 01 1 1001-1109
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-936-2 01 1 1110-1110
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-936-2 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3) 		8-98084-935-2 01 1 1001-1109
1 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3) 		8-98084-935-2 01 1 1110-1110
1 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF> 		8-98084-935-2 01 1 1110-1209
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1001-
5 FUSE; FACIA HARNESS
10A RED SOU 		8-98054-257-0 AR 1 1001-
5 FUSE; FACIA HARNESS
15A BLUE SOU 		8-98054-258-0 AR 1 1001-
5 FUSE; FACIA HARNESS
20A YELLOW SOU 		8-98054-259-0 AR 1 1001-
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 02 1 1001-
28 SCREW; FUSE BOX
BOLT M6X16 FLANGE SOU 		0-28650-616-0 01 1 1001-
29 COVER; FUSE BOX 8-98056-968-0 01 1 1001-
41 PULLER; FUSE
SOU 		8-98054-260-0 01 1 1001-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1001-
280 NUT; BOX ASM FIX
M6 FLANGE SOU 		0-91180-106-0 04 1 1001-
431 CONNECTOR; JOINT
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (C) 10P BLUE 		1-82699-598-0 04 1 1110-1511
431 CONNECTOR; JOINT
EXC. VIN MODEL YEAR 2011<VZB> (C) 10P BLUE 		1-82699-598-0 04 1 1012-1102
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 1001-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1001-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 02 1 1001-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1001-1011
431 CONNECTOR; JOINT
VIN MODEL YEAR 2011<VZB> (C) 10P BLUE 		1-82699-598-0 05 1 1012-1102
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 05 1 1103-1109
431 CONNECTOR; JOINT
VIN MODEL YEAR 2011<VZB> (C) 10P BLUE 		1-82699-598-0 05 1 1110-1511
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 05 1 1512-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 1001-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1001-
431 CONNECTOR; JOINT
(D) 10P BROWN SOU 		1-82699-601-0 01 1 1001-
431 CONNECTOR; JOINT
(D) 10P BROWN SOU 		1-82699-601-0 09 1 1001-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1001-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 1001-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1001-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1001-
485 SEAL; CONNECTOR
180X40 		1-72498-019-1 01 1 1001-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 1001-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 1001-
668 BRACKET; HARNESS 8-98095-653-2 01 1 1001-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1001-
694 BOX ASM; CONNECTOR 8-98063-269-1 01 1 1001-
765 TAPE
100X40 SOU 		1-72498-022-1 01 1 1409-

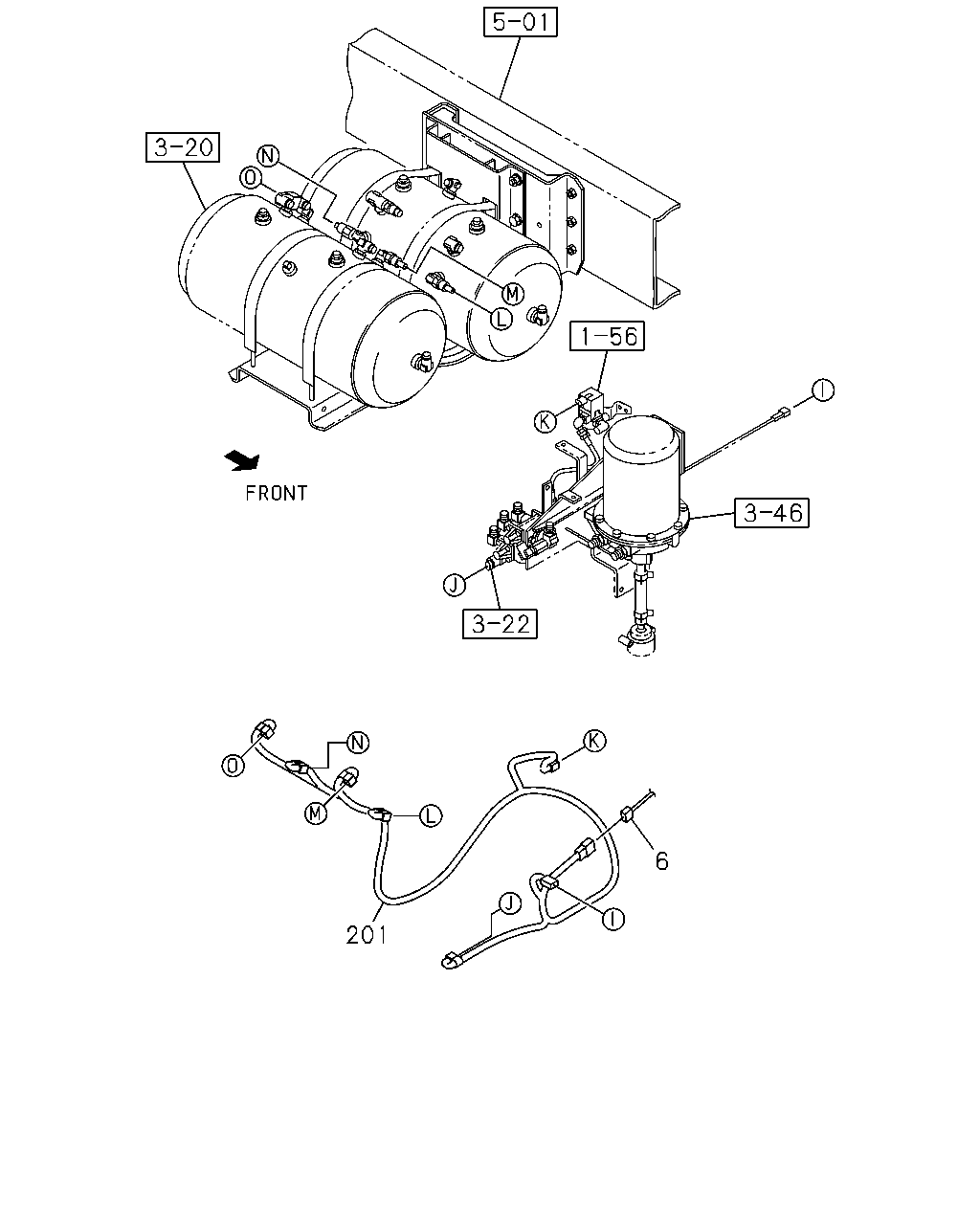

çizim 127241
6 201
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-612-4 01 1 1110-
6 HARNESS; FRAME
EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> 		8-98199-323-1 01 1 1110-
6 HARNESS; FRAME
VIN MODEL YEAR 2011<VZB> 		8-98173-976-1 01 1 1012-1102
6 HARNESS; FRAME 8-98173-976-1 01 1 1103-1109
6 HARNESS; FRAME
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> 		8-98173-976-1 01 1 1110-
6 HARNESS; FRAME 8-98113-612-3 01 1 1001-1011
6 HARNESS; FRAME
EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-612-3 01 1 1012-1102
201 HARNESS; AIR TANK
VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> 		8-98240-716-0 01 1 1406-
201 HARNESS; AIR TANK
EXC. VIN MODEL YEAR 2011<VZB> 		8-98069-170-1 01 1 1110-
201 HARNESS; AIR TANK
VIN MODEL YEAR 2011<VZB> 		8-98173-996-0 01 1 1012-1012
201 HARNESS; AIR TANK
VIN MODEL YEAR 2011<VZB> 		8-98184-703-0 01 1 1012-1102
201 HARNESS; AIR TANK 8-98184-703-0 01 1 1103-1109
201 HARNESS; AIR TANK
VIN MODEL YEAR 2011<VZB> 		8-98184-703-0 01 1 1110-1405
201 HARNESS; AIR TANK
VIN MODEL YEAR 2011<VZB> AIR DRYER<PS7> 		8-98184-703-0 01 1 1406-
201 HARNESS; AIR TANK 8-98069-170-1 01 1 1001-1011
201 HARNESS; AIR TANK
EXC. VIN MODEL YEAR 2011<VZB> 		8-98069-170-1 01 1 1012-1102

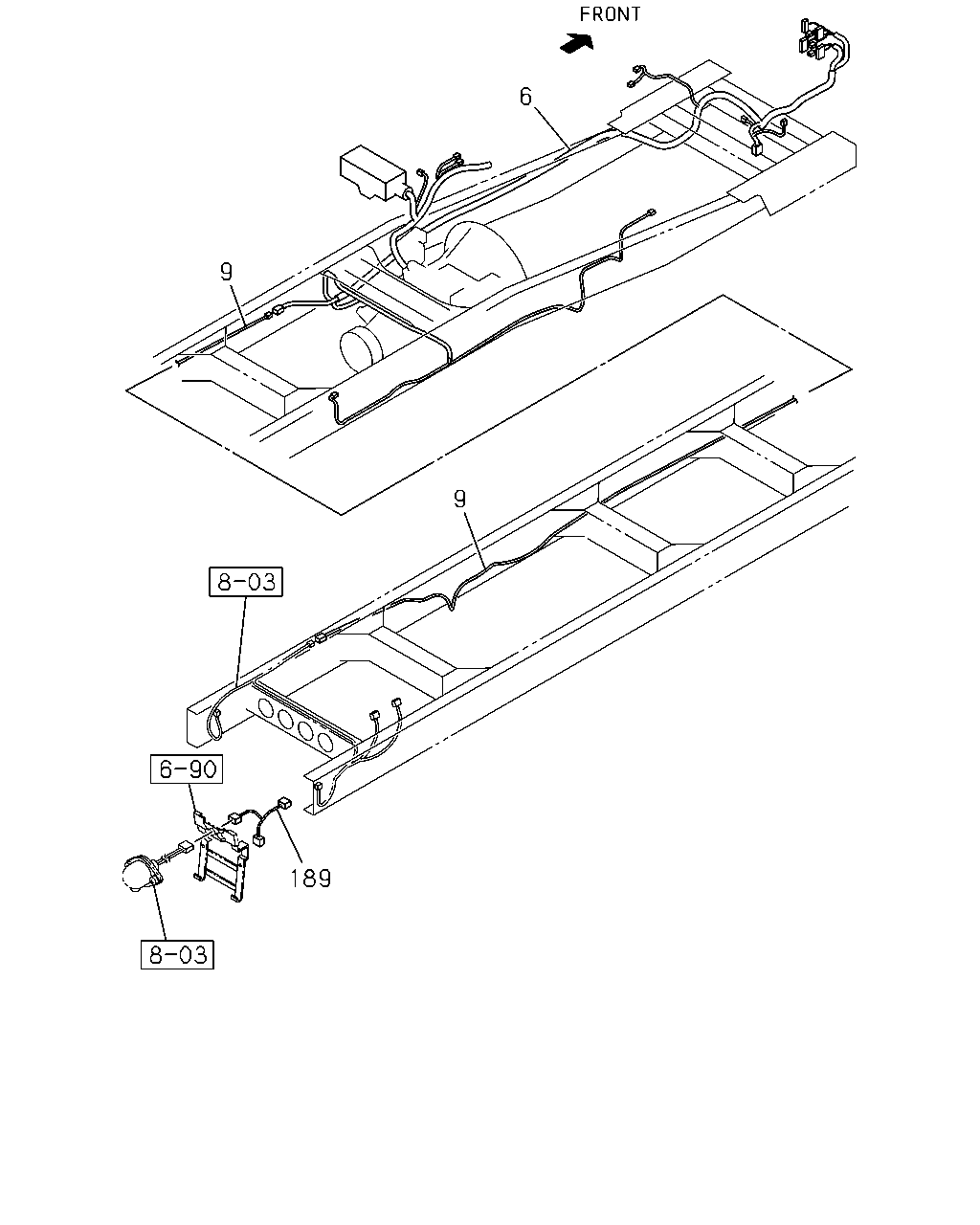

çizim 127243
6 9 9 189
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-612-4 01 1 1110-
6 HARNESS; FRAME
EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> 		8-98199-323-1 01 1 1110-
6 HARNESS; FRAME
VIN MODEL YEAR 2011<VZB> 		8-98173-976-1 01 1 1012-1102
6 HARNESS; FRAME 8-98173-976-1 01 1 1103-1109
6 HARNESS; FRAME
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> 		8-98173-976-1 01 1 1110-
6 HARNESS; FRAME 8-98113-612-3 01 1 1001-1011
6 HARNESS; FRAME
EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-612-3 01 1 1012-1102
9 HARNESS; FRAME,RR
WHEEL BASE 3900MM(39W) 		8-98100-966-2 01 1 1001-1007
9 HARNESS; FRAME,RR
WHEEL BASE 3900MM(39W) 		8-98168-647-0 01 1 1008-1109
9 HARNESS; FRAME,RR
WHEEL BASE 3900MM(39W) 		8-98191-179-0 01 1 1110-
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) 		8-98100-970-2 01 1 1001-1007
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) 		8-98168-649-0 01 1 1008-1109
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) 		8-98191-180-0 01 1 1110-
9 HARNESS; FRAME,RR
WHEEL BASE 6000MM(60W) 		8-98100-972-2 01 1 1001-1007
9 HARNESS; FRAME,RR
WHEEL BASE 6000MM(60W) 		8-98168-650-0 01 1 1008-1109
9 HARNESS; FRAME,RR
WHEEL BASE 6000MM(60W) 		8-98191-181-0 01 1 1110-
189 HARNESS; EXT 8-98131-066-0 01 1 1001-

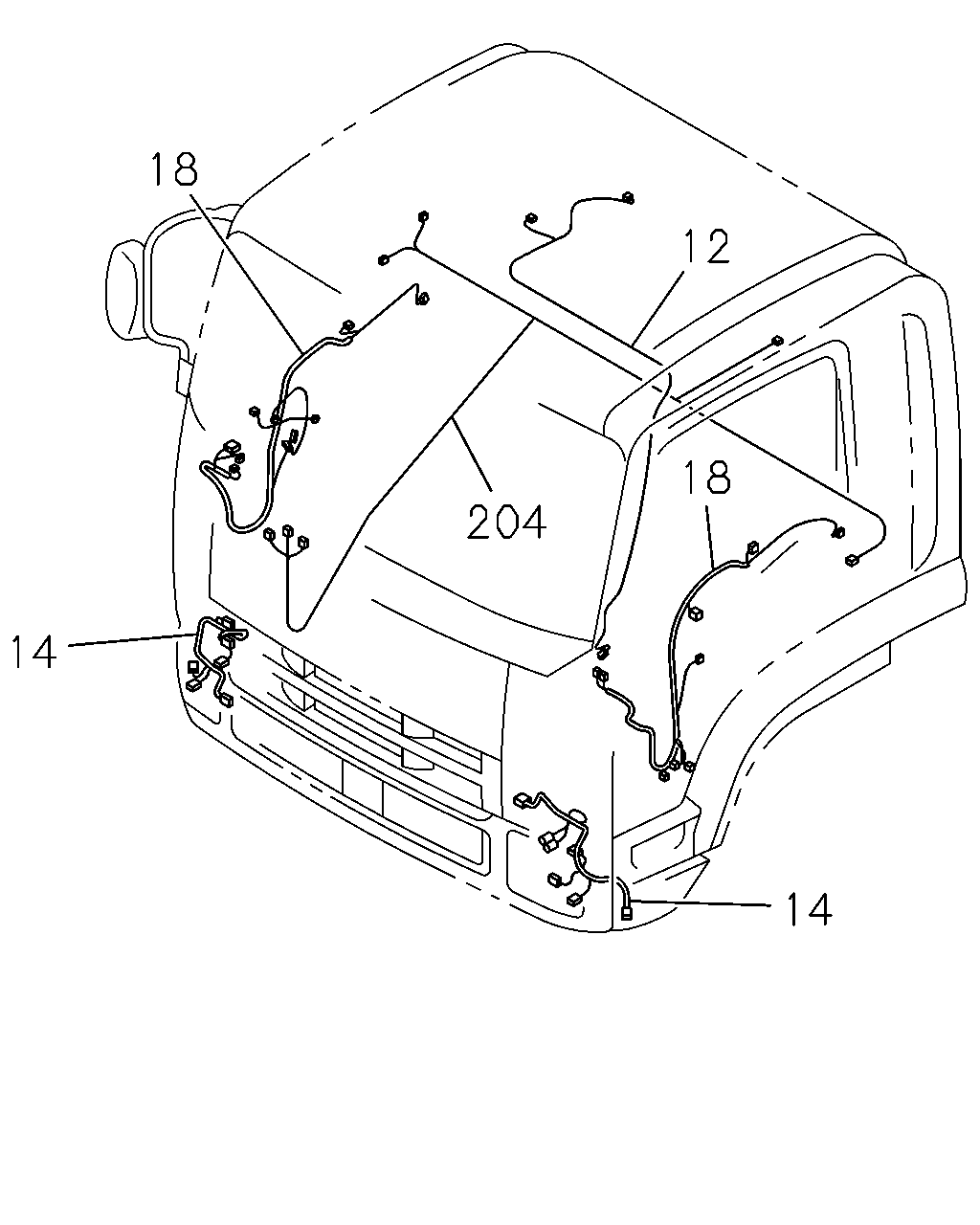

çizim 127246
18 12 18 204 14 14
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
LAMPS TWO ROOF MARKER<TEC> 		8-98085-333-0 01 1 1001-
12 HARNESS; ROOF
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98041-949-2 01 1 1001-
14 HARNESS; HEADLAMP
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-94270-986-0 02 1 1307-
14 HARNESS; HEADLAMP 8-98069-166-0 02 1 1001-1306
14 HARNESS; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98069-166-1 02 1 1307-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98084-288-3 01 1 1001-1202
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98108-440-1 01 1 1203-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98084-283-3 01 1 1001-1202
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98108-439-1 01 1 1203-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98084-287-3 01 1 1001-1202
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98076-305-3 01 1 1203-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98084-282-3 01 1 1001-1202
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98076-304-3 01 1 1203-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-292-1 01 1 1110-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-293-1 01 1 1110-
204 HARNESS; CABLE,FLOOR
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3) 		8-98085-289-0 01 1 1110-
204 HARNESS; CABLE,FLOOR
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3) 		8-98085-290-1 01 1 1110-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		8-98085-279-1 01 1 1001-1109
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98085-279-1 01 1 1110-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98085-280-1 01 1 1001-1109
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98085-280-1 01 1 1110-
204 HARNESS; CABLE,FLOOR
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> EXC. AIR BAG DRIVER(AJ3) 		8-98085-274-0 01 1 1001-1109
204 HARNESS; CABLE,FLOOR
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3) 		8-98085-274-0 01 1 1110-
204 HARNESS; CABLE,FLOOR
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. AIR BAG DRIVER(AJ3) 		8-98085-275-1 01 1 1001-1109
204 HARNESS; CABLE,FLOOR
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3) 		8-98085-275-1 01 1 1110-

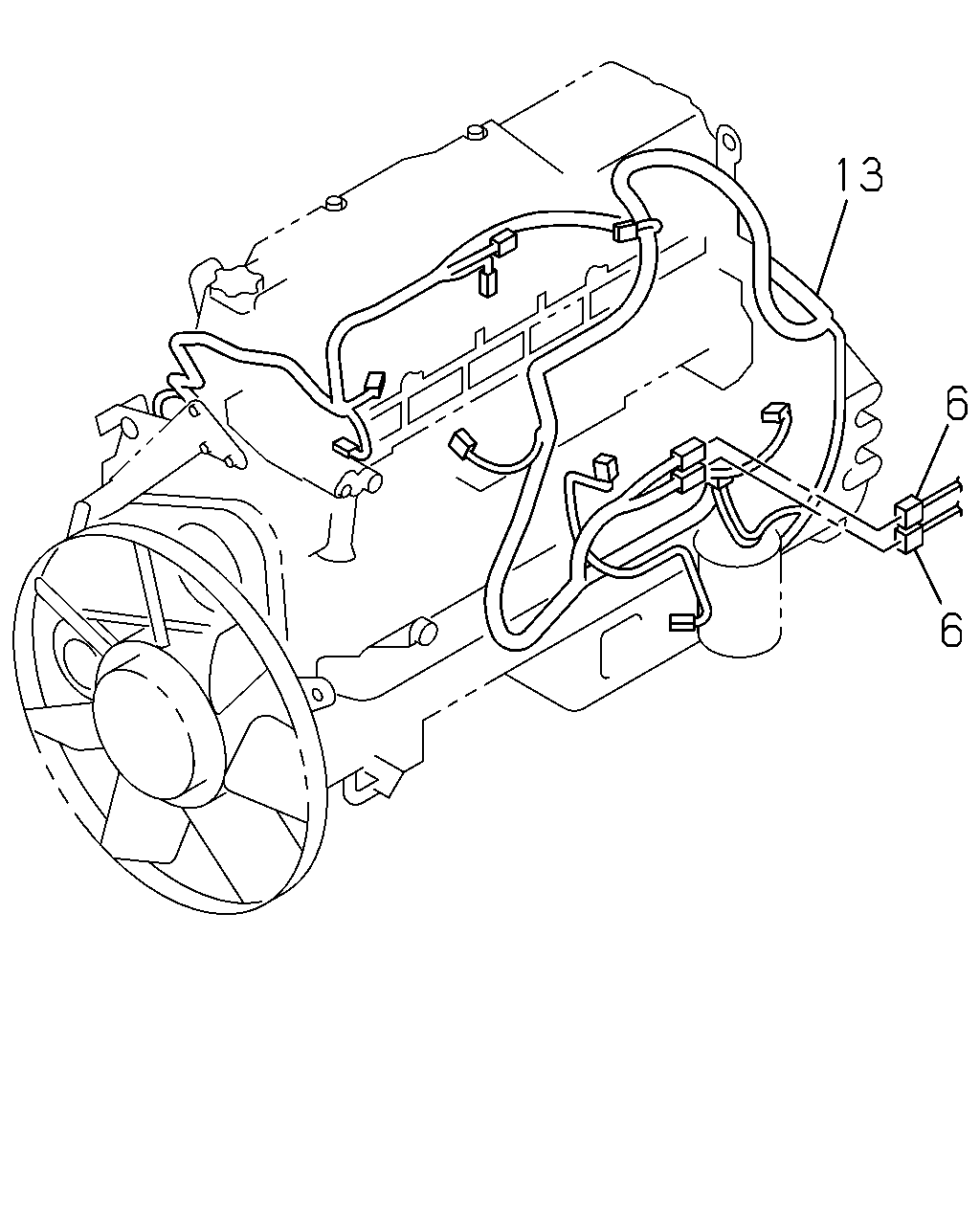

çizim 127248
13 6 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-612-4 01 1 1110-
6 HARNESS; FRAME
EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> 		8-98199-323-1 01 1 1110-
6 HARNESS; FRAME
VIN MODEL YEAR 2011<VZB> 		8-98173-976-1 01 1 1012-1102
6 HARNESS; FRAME 8-98173-976-1 01 1 1103-1109
6 HARNESS; FRAME
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> 		8-98173-976-1 01 1 1110-
6 HARNESS; FRAME 8-98113-612-3 01 1 1001-1011
6 HARNESS; FRAME
EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-612-3 01 1 1012-1102
13 HARNESS; ENG
GENERATOR 24V60A(KG2) EURO3 SPECIFICATION<NT3> 		8-98177-188-0 01 1 1110-
13 HARNESS; ENG
GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> 		8-98177-187-0 01 1 1110-
13 HARNESS; ENG
GENERATOR 24V50A(K89) 		8-98075-774-5 01 1 1001-1109
13 HARNESS; ENG
GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> 		8-98075-774-5 01 1 1110-
13 HARNESS; ENG
GENERATOR 24V60A(KG2) 		8-98075-775-5 01 1 1001-1109
13 HARNESS; ENG
GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> 		8-98075-775-5 01 1 1110-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
