Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10653 - EXZ
▶
0 - Engine, Emission, Engine Electrical
▶
0-30B - WATER PUMP AND CORROSION RESISTOR
▶
0-30B — WATER PUMP AND CORROSION RESISTOR
(#2297) — 55 parça
Tümü
A - 12PD1 STD ENG
B - 10PD1 STD ENG
C - 8PD1 STD ENG
◀

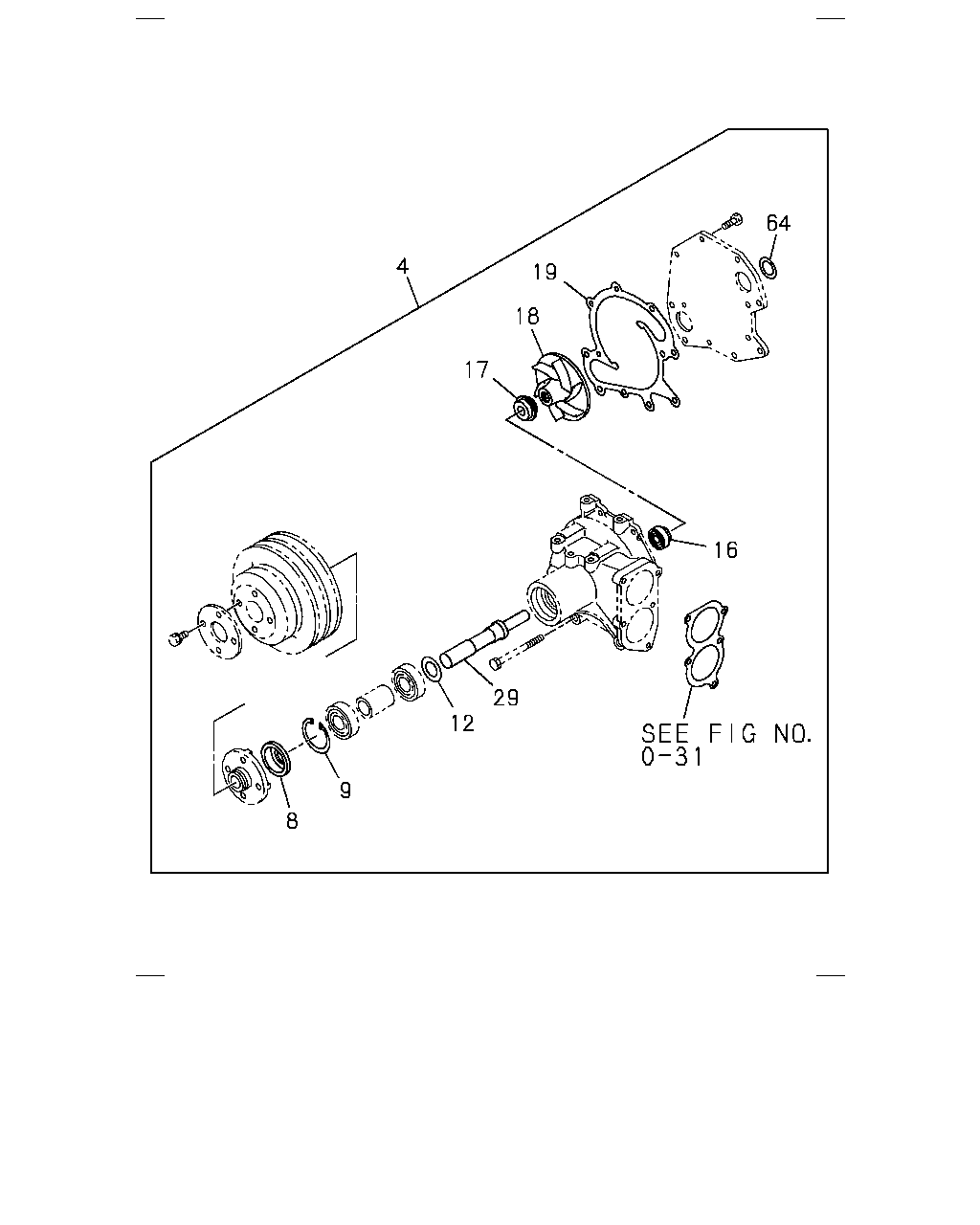

[030B] REPAIR KIT (16 parça)

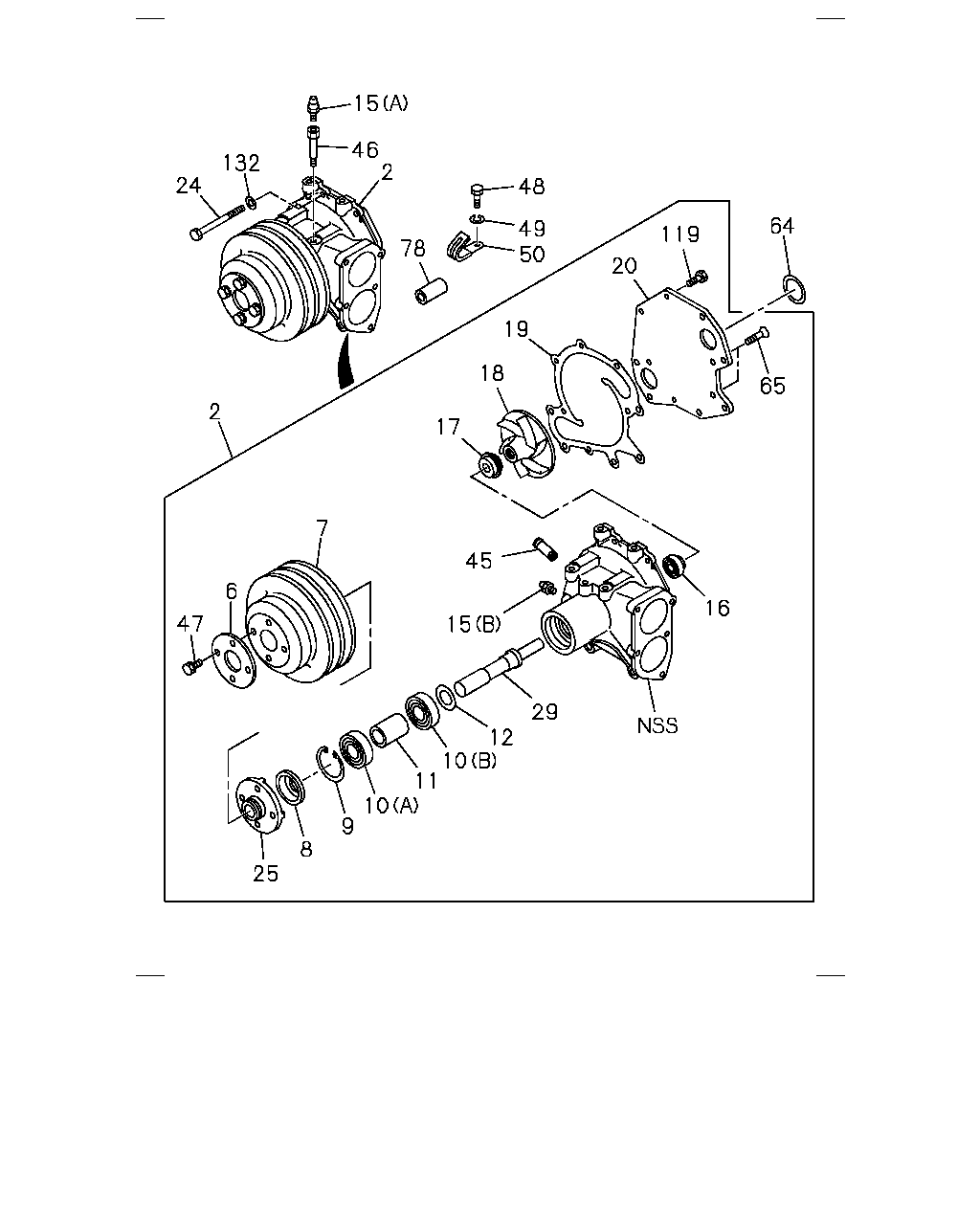

[030B] ASM AND OTHER PARTS (39 parça)
▶
4
19
18
17
64
16
29
12
9
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
4
REPAIR KIT; WATER PUMP
1-87810-979-0
01
1
9002-9306
●
4
REPAIR KIT; WATER PUMP
1-87810-772-1
01
1
9002-9306
●
4
REPAIR KIT; WATER PUMP
1-87810-979-0
01
1
9307-
●
4
REPAIR KIT; WATER PUMP
1-87810-987-0
01
1
9307-
●
8
THROWER; DUST,WATER PUMP
1-13639-021-0
01
1
9002-
●
●
●
9
RING; SNAP,WATER PUMP
ID=57.9
9-09180-162-0
01
1
9002-
●
●
●
12
WASHER; BALL BRG
1-09503-024-0
01
1
9002-
●
●
●
16
SEAL; OIL,WATER PUMP
1-09625-437-0
01
1
9002-
●
●
●
17
SEAL UNIT; WATER PUMP
1-13620-016-0
01
1
9002-
●
●
●
18
IMPELLER; WATER PUMP
1-13621-022-0
01
1
9002-
●
●
18
IMPELLER; WATER PUMP
1-13621-025-0
01
1
9307-
●
19
GASKET; COVER TO BODY
1-13613-037-0
01
1
9002-9106
●
●
19
GASKET; COVER TO BODY
1-13613-048-0
01
1
9107-
●
●
19
GASKET; COVER TO BODY
1-13613-049-0
01
1
9307-
●
29
SHAFT; WATER PUMP
1-13631-060-1
01
1
9002-
●
●
●
64
GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-425-0
02
1
9002-
●
●
●
25
8
9
10
11
10
12
29
15
45
16
47
6
7
2
24
132
46
15
2
78
50
49
48
119
20
19
18
17
65
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
PUMP ASM; WATER
1-13610-789-3
01
1
9002-
●
●
2
PUMP ASM; WATER
1-13610-790-3
01
1
9307-
●
6
WASHER; PL,PULLEY
1-13639-024-0
01
1
9002-
●
●
●
7
PULLEY; WATER PUMP
2-GROOVE
1-13641-104-0
01
1
9002-
●
●
●
8
THROWER; DUST,WATER PUMP
1-13639-021-0
01
1
9002-
●
●
●
9
RING; SNAP,WATER PUMP
ID=57.9
9-09180-162-0
01
1
9002-
●
●
●
10
BEARING; WATER PUMP
(A)
1-09800-011-0
01
1
9002-
●
●
●
10
BEARING; WATER PUMP
(B)
1-09800-012-0
01
1
9002-
●
●
●
11
SPACER; BRG,WATER PUMP
1-13634-009-0
01
1
9002-
●
●
●
12
WASHER; BALL BRG
1-09503-024-0
01
1
9002-
●
●
●
15
NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT
1-09380-002-0
01
1
9002-
●
●
●
15
NIPPLE; GREASE,WATER PUMP
(A)
9-09031-010-0
01
1
9002-9410
●
●
●
15
NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT
9-09031-010-0
01
1
9411-
●
●
16
SEAL; OIL,WATER PUMP
1-09625-437-0
01
1
9002-
●
●
●
17
SEAL UNIT; WATER PUMP
1-13620-016-0
01
1
9002-
●
●
●
18
IMPELLER; WATER PUMP
1-13621-022-0
01
1
9002-
●
●
18
IMPELLER; WATER PUMP
1-13621-025-0
01
1
9307-
●
19
GASKET; COVER TO BODY
1-13613-037-0
01
1
9002-9106
●
●
19
GASKET; COVER TO BODY
1-13613-048-0
01
1
9107-
●
●
19
GASKET; COVER TO BODY
1-13613-049-0
01
1
9307-
●
20
COVER; WATER PUMP
1-13612-027-1
01
1
9002-
●
●
●
24
BOLT; WATER PUMP
M10X110
1-09020-004-0
03
1
9002-
●
●
●
24
BOLT; WATER PUMP
M10X170
1-09020-013-0
01
1
9002-
●
●
●
25
CENTER; WATER PUMP
1-13669-092-0
01
1
9002-
●
●
●
29
SHAFT; WATER PUMP
1-13631-060-1
01
1
9002-
●
●
●
45
JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47
9-09903-631-0
01
1
9002-
●
●
●
46
CONNECTOR; GREASE PIPE
1-09660-102-0
01
1
9002-
●
●
●
47
BOLT; PULLEY TO CENTER
M10X22 W/LK WASHER
0-50051-022-0
04
1
9002-
●
●
●
48
BOLT; CLIP
M10X16
0-23801-016-0
01
1
9002-
●
●
48
BOLT; CLIP
M10X60 FLANGE
0-28181-060-0
01
1
9307-
●
49
WASHER; LK,CLIP
ID=10.2
9-09150-510-0
01
1
9002-
●
●
50
CLIP; ENG HARNESS
L=36
8-94224-891-1
01
1
9002-
●
●
●
64
GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-425-0
02
1
9002-
●
●
●
65
SCREW; COVER,WATER PUMP
M8X16 CK-HEAD
9-03090-816-0
02
1
9002-
●
●
●
78
TUBE; DIST
1-13219-121-0
01
1
9307-
●
119
BOLT; PUMP COVER
M8X18 W/LK WASHER
9-01910-818-0
04
1
9002-9005
●
●
119
BOLT; PUMP COVER
M8X18 W/LK WASHER
0-50040-818-0
04
1
9006-
●
●
●
132
WASHER; PL,WATER PUMP
ID=10.2
9-09150-610-0
04
1
9002-9106
●
●
132
WASHER; PL,WATER PUMP
ID=10.5
9-09851-866-0
04
1
9107-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
