◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11165 - FTR SOUTH AFRICA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#22965) — 24 parça

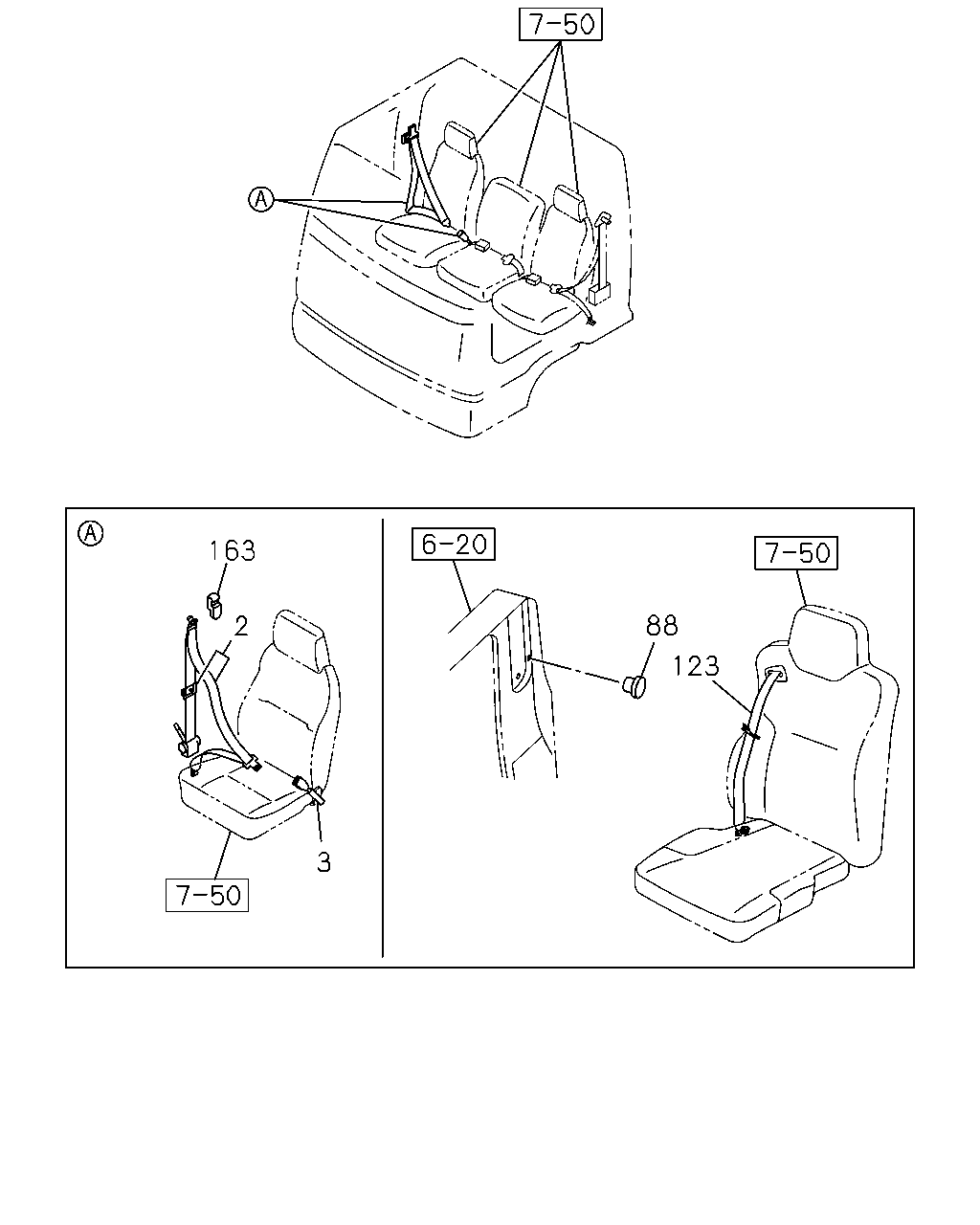

çizim 127208
163 88 2 123 3
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97407-771-5 01 1 1001-1209
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97423-521-2 01 1 1210-1310
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97423-521-2 01 1 1311-1407
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97428-394-0 01 1 1408-
2 BELT; SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER(AJ3),DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97407-770-4 01 1 1001-1209
2 BELT; SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER(AJ3),DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97423-516-1 01 1 1210-1310
2 BELT; SEAT,TONGUE SIDE
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> EXC. AIR BAG DRIVER(AJ3) GRAY 		8-97423-516-1 01 1 1311-1407
2 BELT; SEAT,TONGUE SIDE
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> EXC. AIR BAG DRIVER(AJ3) GRAY 		8-97428-435-0 01 1 1408-
3 BELT; SEAT,BUCKLE SIDE
EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97407-375-4 01 1 1001-
88 PLUG; HOLE
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DARK GRAY 		8-97411-466-0 01 1 1001-
123 BELT ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-971-0 01 1 1001-
123 BELT ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-969-0 01 1 1001-
163 COVER; ADJUSTER
EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97405-991-0 01 1 1001-

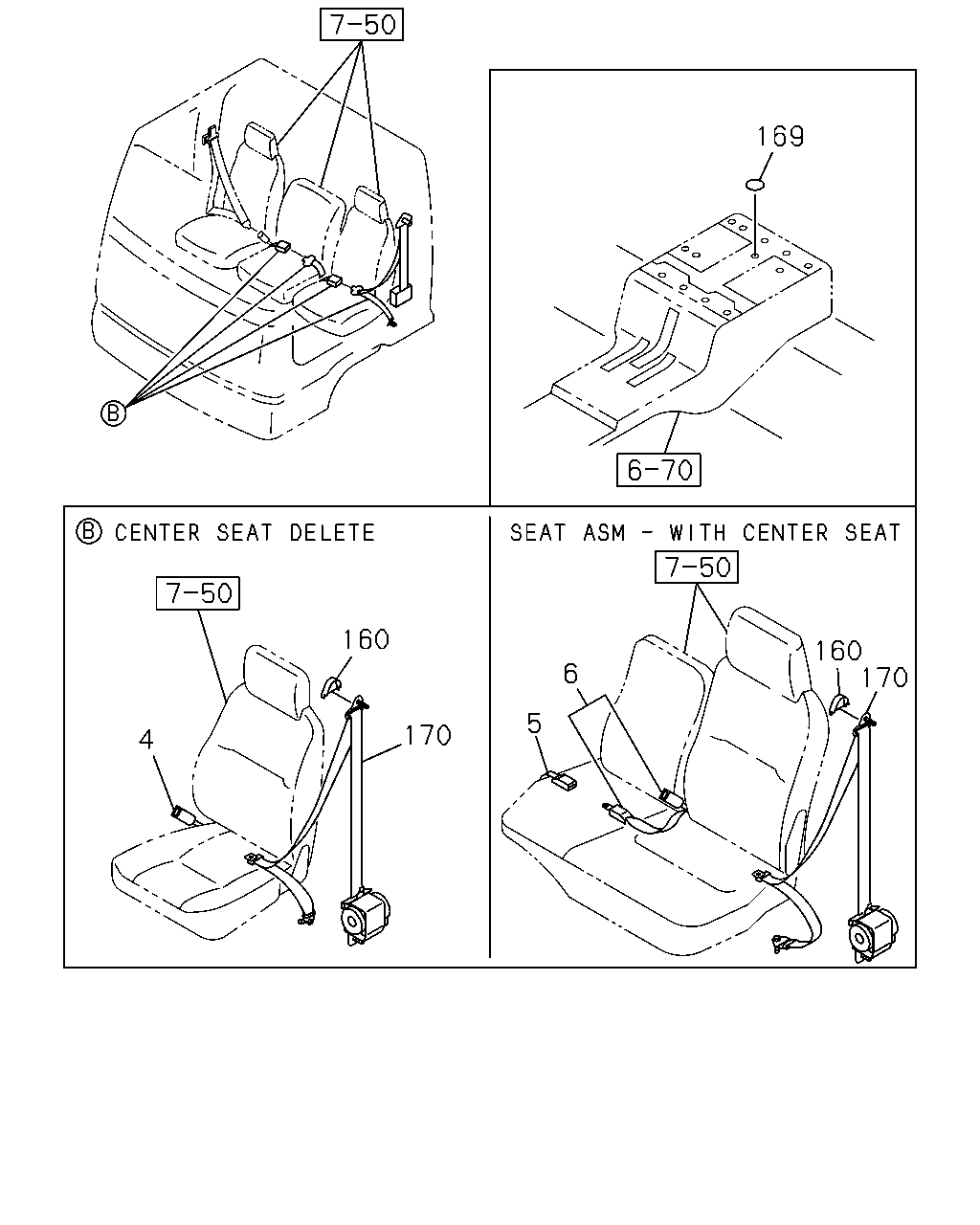

çizim 127216
169 160 160 170 6 5 170 4
BalonParca AdiParca NoAdetTipApplied Date
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE<SP9> GRAY 		8-97407-376-1 01 1 1001-1310
4 BELT; PASSENGER SEAT,BUCKLE SIDE
EXC. SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-376-1 01 1 1311-
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-377-1 01 1 1001-
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-768-3 01 1 1001-1209
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97423-515-1 01 1 1210-
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1001-
169 SEAL
CENTER SEAT DELETE<SP9> OD=25 BLACK SOU 		1-76798-019-0 02 1 1001-1201
169 SEAL
CENTER SEAT DELETE<SP9> OD=25 BLACK SOU 		1-76798-019-0 01 1 1202-
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97407-770-4 01 1 1001-1209
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97423-516-1 01 1 1210-1407
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97428-435-0 01 1 1408-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
