◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11165 - FTR SOUTH AFRICA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#22954) — 12 parça

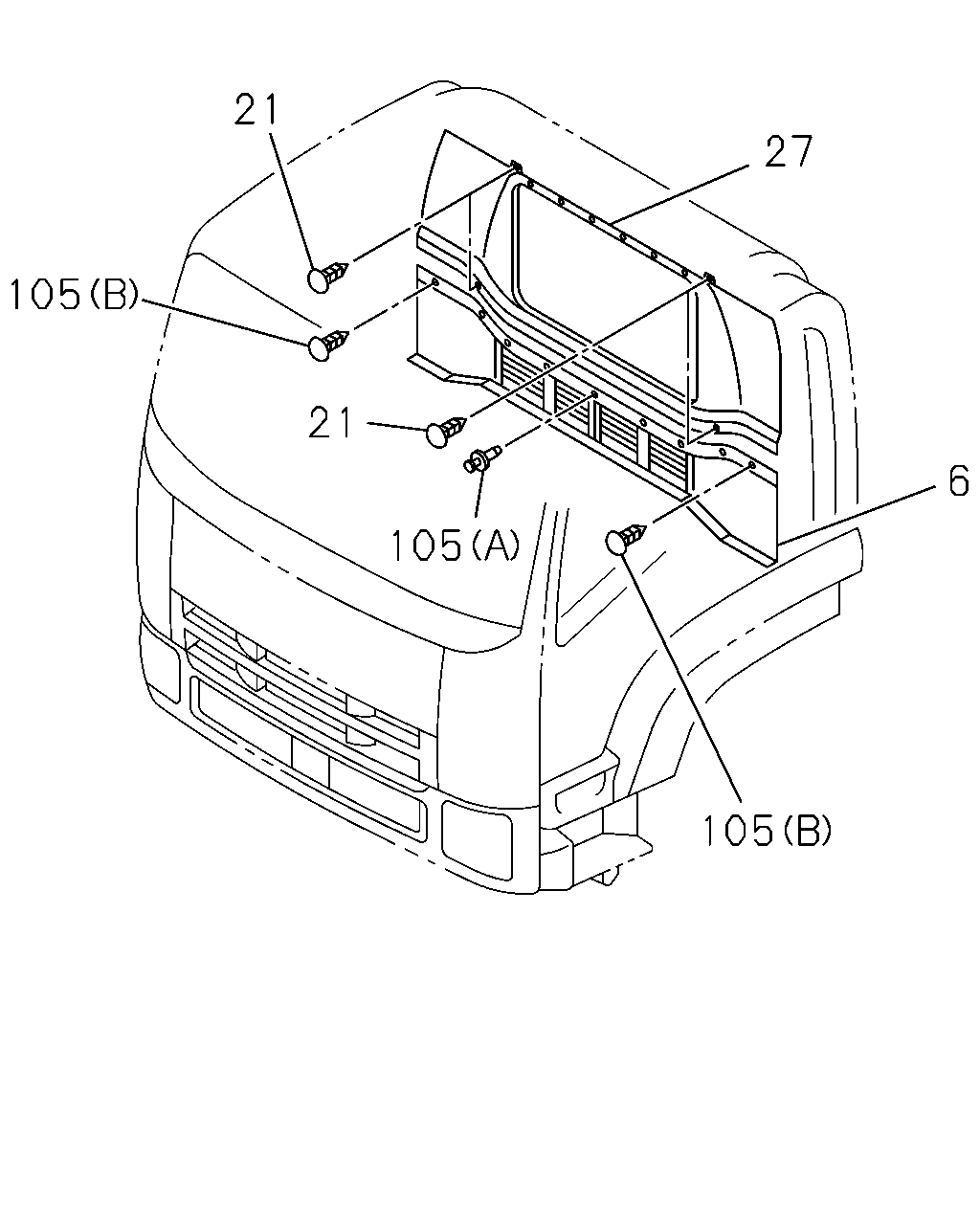

çizim 127532
21 27 105 21 6 105 105
BalonParca AdiParca NoAdetTipApplied Date
6 MAT; SILENCER,CAB BACK
INSULATION ACOUSTICAL PKG DELETE<BS3> GRAY 		8-97422-491-1 01 1 1012-
6 MAT; SILENCER,CAB BACK
GRAY 		8-97407-458-1 01 1 1001-1011
6 MAT; SILENCER,CAB BACK
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> GRAY 		8-97407-458-1 01 1 1012-
21 RETAINER; TRIM,BED ROOM
GRAY 		8-97407-467-0 04 1 1001-
27 COVER; TRIM,BACK
INSULATION ACOUSTICAL PKG DELETE<BS3> ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97422-495-1 01 1 1012-
27 COVER; TRIM,BACK
INSULATION ACOUSTICAL PKG DELETE<BS3> EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97422-494-1 01 1 1012-
27 COVER; TRIM,BACK
ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97407-466-2 01 1 1001-1011
27 COVER; TRIM,BACK
ROUND CURTAIN RAIL<EDH> EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> DARK GRAY 		8-97407-466-2 01 1 1012-
27 COVER; TRIM,BACK
EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97407-464-2 01 1 1001-1011
27 COVER; TRIM,BACK
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3>,ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97407-464-2 01 1 1012-
105 CLIP; BACK TRIM
(B) GRAY 		8-97407-467-0 02 1 1001-
105 CLIP; BACK TRIM
(A) GRAY 		8-97408-022-0 07 1 1001-
