◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10653 - EXZ ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-28B - VENTILATION SYSTEM ▶
0-28B — VENTILATION SYSTEM (#2295) — 23 parça

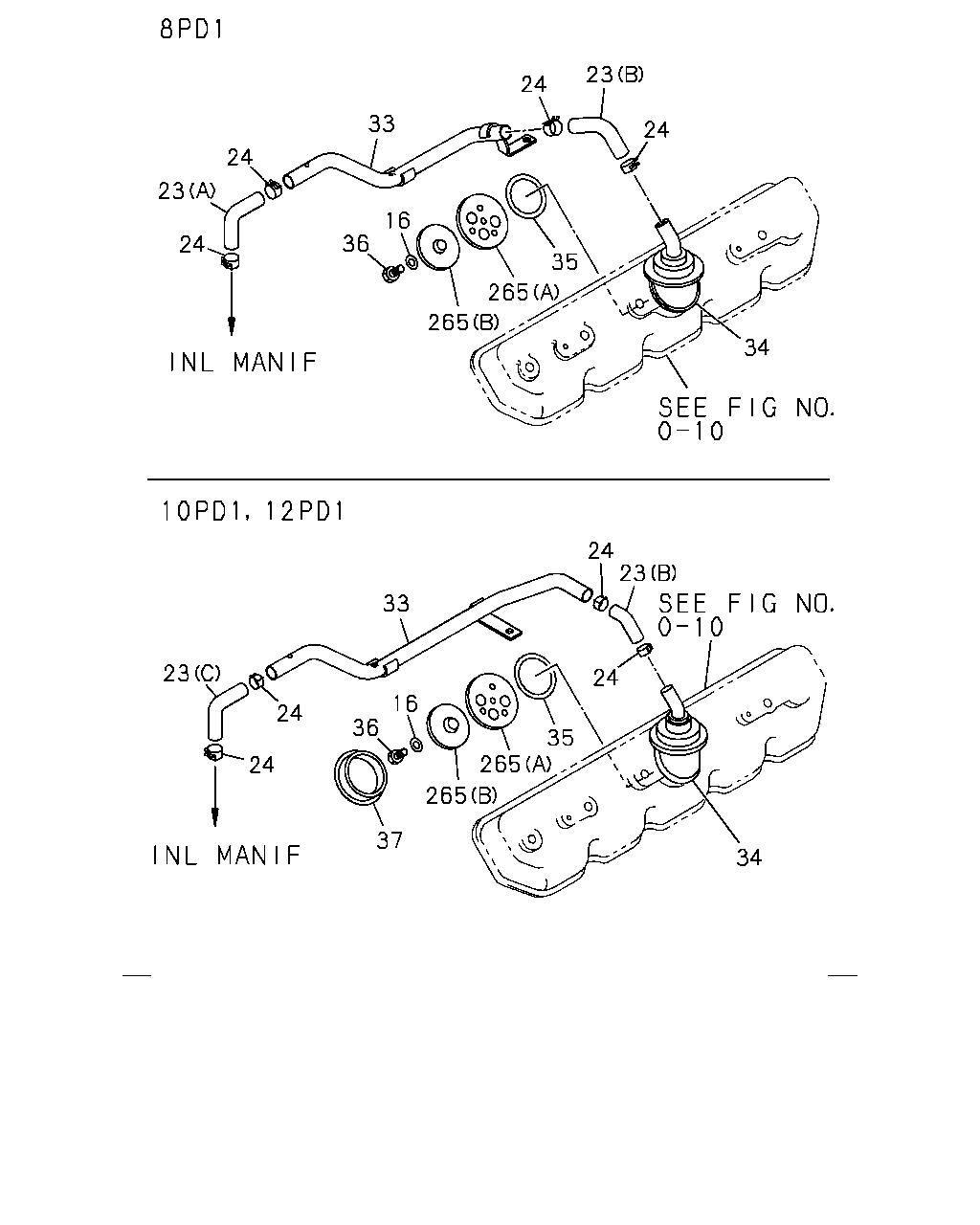

çizim 93285
24 23 24 33 16 36 265 265 35 24 23 24 34 24 23 33 23 24 24 36 16 24 35 265 34 265 37
BalonParca AdiParca NoAdetTipApplied Date A B C
16 WASHER; LK,BREATHER
TAIWAN EQUIPMENT(WW5) ID=6.1 		9-09150-506-0 04 1 9002-9306 ●
16 WASHER; LK,BREATHER
ID=6.1 		9-09150-506-0 04 1 9307-9410 ●
16 WASHER; LK,BREATHER
EXZ&RHD(EX*5**) EXC. ANTI NOISE EQUIPMENT<SV9> ID=6.1 		9-09150-506-0 04 1 9411-9504 ●
16 WASHER; LK,BREATHER
ID=6.1 		9-09150-506-0 04 1 9411-9504 ●
16 WASHER; LK,BREATHER
ID=6.1 		9-09150-506-0 04 1 9505- ●
23 HOSE; RUBBER,VENTILATOR PIPE
(B) 		1-09360-775-1 01 1 9002- ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(C) 		1-09360-831-0 01 1 9002- ● ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(A) 		1-09360-810-1 01 1 9307- ●
24 CLIP; RUBBER HOSE,VENTILATOR
ID=26 		1-09707-091-0 04 1 9002- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
ID=20 		1-09707-084-1 04 1 9002- ●
33 PIPE; VENTILATOR 1-14236-080-4 01 1 9002-9306 ●
33 PIPE; VENTILATOR 1-14236-085-4 01 1 9307- ●
33 PIPE; VENTILATOR 1-14236-084-4 01 1 9002- ●
34 VENTILATOR 1-14360-043-2 01 1 9002-9602 ● ● ●
34 VENTILATOR 1-14360-052-0 01 1 9603- ● ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-418-0 01 1 9002- ● ● ●
36 BOLT; VENTILATOR
M6X12 		9-02050-612-0 04 1 9002-9005 ● ●
36 BOLT; VENTILATOR
M6X12 		0-20800-612-0 04 1 9006- ● ● ●
36 BOLT; VENTILATOR
ANTI NOISE EQUIPMENT<SV9> M6X12 FLANGE 		0-28080-612-0 04 1 9505- ●
37 GROMMET; BREATHER,HD COVER
ANTI NOISE EQUIPMENT<SV9> 		1-09333-132-0 01 1 9411- ●
37 GROMMET; BREATHER,HD COVER
TAIWAN EQUIPMENT(WW5) 		1-09333-132-0 01 1 9002-9306 ●
265 PLATE; BAFFLE HD COVER
(A) OD=75 		1-14369-051-0 01 1 9002- ● ● ●
265 PLATE; BAFFLE HD COVER
(B) OD=92 		1-14369-052-0 01 1 9002- ● ● ●
