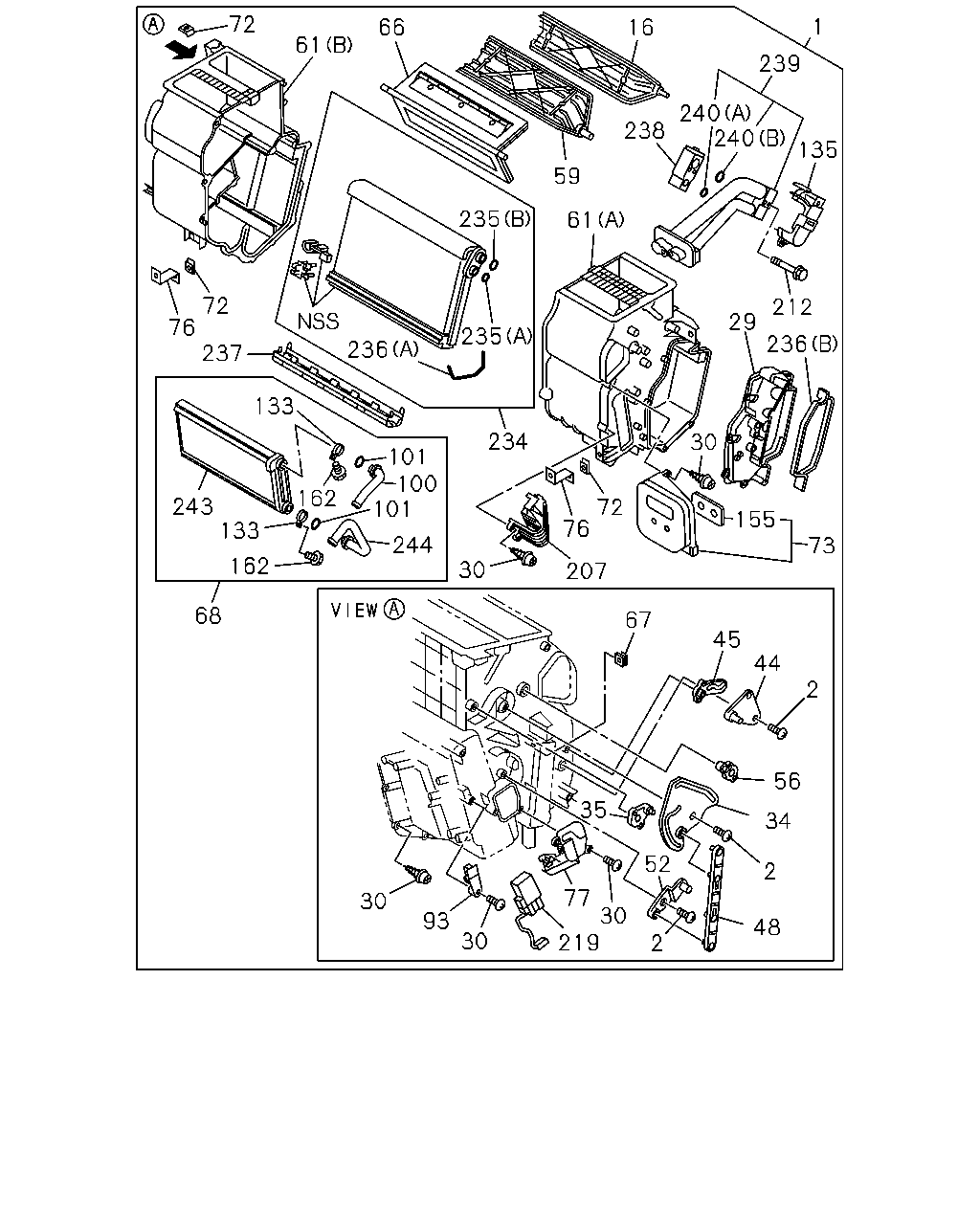

1 |
HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-98021-972-4 |
01 |
1 |
0907- |
| |
2 |
SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60)
M4X16
|
8-98047-416-0 |
03 |
1 |
0907- |
| |
16 |
SHUTTER; HTR UNIT,CENTER UPR
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-98047-387-0 |
01 |
1 |
0907- |
| |
29 |
COVER; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-98074-119-0 |
01 |
1 |
0907- |
| |
30 |
SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
M4X16 TAPPING
|
8-97957-708-0 |
27 |
1 |
0907- |
| |
34 |
LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-98047-389-0 |
01 |
1 |
0907- |
| |
35 |
LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-98047-392-0 |
01 |
1 |
0907- |
| |
44 |
LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-98047-394-0 |
01 |
1 |
0907- |
| |
45 |
LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-98047-395-0 |
01 |
1 |
0907- |
| |
48 |
LEVER; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-98047-391-0 |
01 |
1 |
0907- |
| |
52 |
LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-98047-390-0 |
01 |
1 |
0907- |
| |
56 |
LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-98047-393-0 |
01 |
1 |
0907- |
| |
59 |
SHUTTER; HTR UNIT,SIDE
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-98047-386-0 |
01 |
1 |
0907- |
| |
61 |
CASE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
(B)
|
8-98047-375-0 |
01 |
1 |
0907- |
| |
61 |
CASE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
(A)
|
8-98047-376-0 |
01 |
1 |
0907- |
| |
66 |
SHUTTER; HTR UNIT,CENTER LWR
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-98047-385-0 |
01 |
1 |
0907- |
| |
67 |
CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-98047-417-0 |
02 |
1 |
0907- |
| |
68 |
CORE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-98047-380-0 |
01 |
1 |
0907- |
| |
72 |
NUT; CASE,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
M6
|
8-98047-428-0 |
03 |
1 |
0907- |
| |
73 |
PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-98074-118-0 |
01 |
1 |
0907- |
| |
76 |
BRACKET; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-98009-742-1 |
02 |
1 |
0907- |
| |
77 |
COVER; HTR CASE
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-98047-414-0 |
01 |
1 |
0907- |
| |
93 |
PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-98047-427-0 |
01 |
1 |
0907- |
| |
100 |
PIPE; CORE,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-98072-528-0 |
01 |
1 |
0907- |
| |
101 |
GASKET; CORE,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-98072-531-0 |
02 |
1 |
0907- |
| |
133 |
CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-98072-530-0 |
02 |
1 |
0907- |
| |
135 |
COVER; HTR
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-98047-384-0 |
01 |
1 |
0907- |
| |
155 |
GROMMET; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-98047-431-0 |
01 |
1 |
0907- |
| |
162 |
SCREW; CLIP FIX
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-98072-529-0 |
02 |
1 |
0907- |
| |
207 |
CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-98047-379-0 |
01 |
1 |
0907- |
| |
212 |
BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
M5X61
|
8-98047-415-0 |
02 |
1 |
0907- |
| |
219 |
AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-98047-429-0 |
01 |
1 |
0907- |
| |
234 |
EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-98074-116-1 |
01 |
1 |
0907- |
| |
235 |
GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60)
(A)
ID=11.7
|
8-97095-907-0 |
01 |
1 |
0907- |
| |
235 |
GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60)
(B)
ID=14.5
|
8-97095-908-0 |
01 |
1 |
0907- |
| |
236 |
GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60)
(A)
|
8-98047-420-0 |
01 |
1 |
0907- |
| |
236 |
GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60)
(B)
|
8-98047-421-0 |
01 |
1 |
0907- |
| |
237 |
INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-98047-382-0 |
01 |
1 |
0907- |
| |
238 |
VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-98047-383-0 |
01 |
1 |
0907- |
| |
239 |
TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-98074-115-0 |
01 |
1 |
0907- |
| |
240 |
GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60)
(A)
ID=7.4
|
8-97095-906-0 |
01 |
1 |
0907- |
| |
240 |
GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60)
(B)
ID=14.5
|
8-97095-908-0 |
01 |
1 |
0907- |
| |
243 |
CORE
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-98048-508-0 |
01 |
1 |
0907- |
| |
244 |
PIPE; INLET
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-98048-510-0 |
01 |
1 |
0907- |
