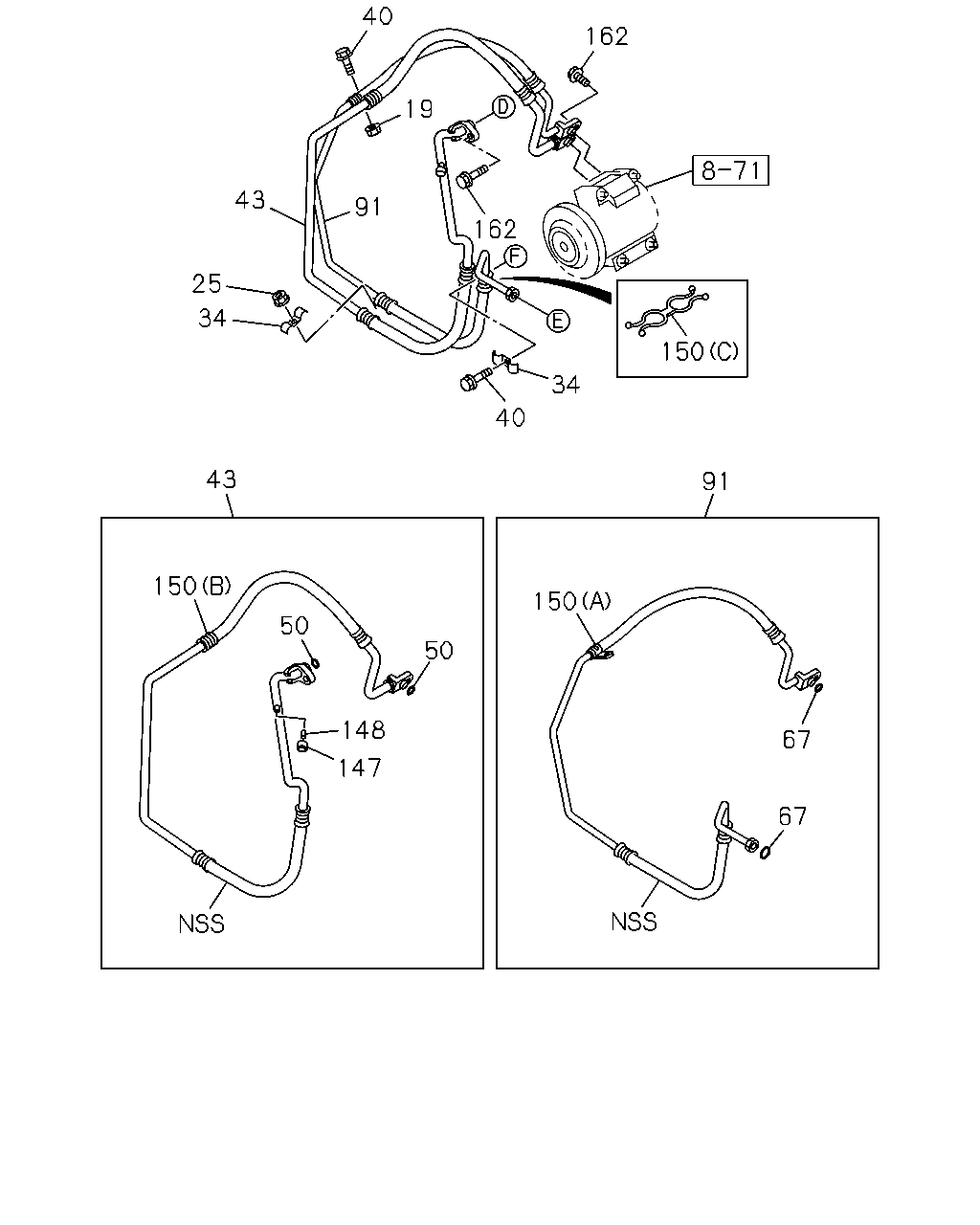

8-52 — PIPING; AIR CONDITIONING (#22923) — 26 parça

40 162 19 43 91 162 25 34 150 34 40 43 91 150 150 50 50 148 67 147 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0907-
25	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0907-
34	CLIP; COOLER PIPE	8-98043-673-0	02	1	0907-
40	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0907-
43	HOSE; FLEX,A/C,EVAP TO CMPR	8-98043-675-1	01	1	0907-
50	GASKET; FLEX HOSE,A/C ID=14.5	8-97095-908-0	02	1	0907-
67	GASKET; FLEX HOSE ID=11.7	8-97095-907-0	02	1	0907-
91	HOSE; FLEX,CMPR	8-98043-676-1	01	1	0907-
147	CAP; FLEX HOSE CAP MARK L	1-83539-331-0	01	1	0907-
148	VALVE; FLEX HOSE	8-97095-909-0	01	1	0907-
150	CLIP; HOSE (A)	1-83574-249-0	01	1	0907-
150	CLIP; HOSE (B)	1-83574-264-0	01	1	0907-
150	CLIP; HOSE (C)	8-94423-042-0	01	1	0907-
162	BOLT; FLEX HOSE M6X25 FLANGE	0-28050-625-0	03	1	0907-

27 158 174 116 33 116 158 171 156 27 27 202 33 12 158 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	8-98041-328-0	01	1	0907-
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=9 H=20 L=20	0-95207-308-0	01	1	0907-
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=16 H=24 L=20	0-95207-315-0	01	1	0907-
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	0907-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X16 FLANGE	0-28650-616-0	02	1	0907-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4	8-97095-906-0	02	1	0907-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11.7	8-97095-907-0	01	1	0907-
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-98151-702-0	01	1	0907-
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	03	1	0907-
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97095-911-0	01	1	0907-
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-98041-330-0	01	1	0907-
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-391-0	01	1	0907-
