◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11227 - FSR(CNG)AUSTRALIA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#22922) — 22 parça
çizim 15881
66 25 378 378
BalonParca AdiParca NoAdetTipApplied Date
25 PULLEY ASM; IDLER,CMPR 8-97605-079-0 01 1 0907-
66 BELT; A/C CMPR
L=1114 		8-97605-102-0 01 1 0907-
66 BELT; A/C CMPR
BEST VALUE PARTS 		1-87610-104-0 01 1 0907-
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98041-428-0 01 1 0907-
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98041-759-0 01 1 0907-1111
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98204-846-0 01 1 1112-

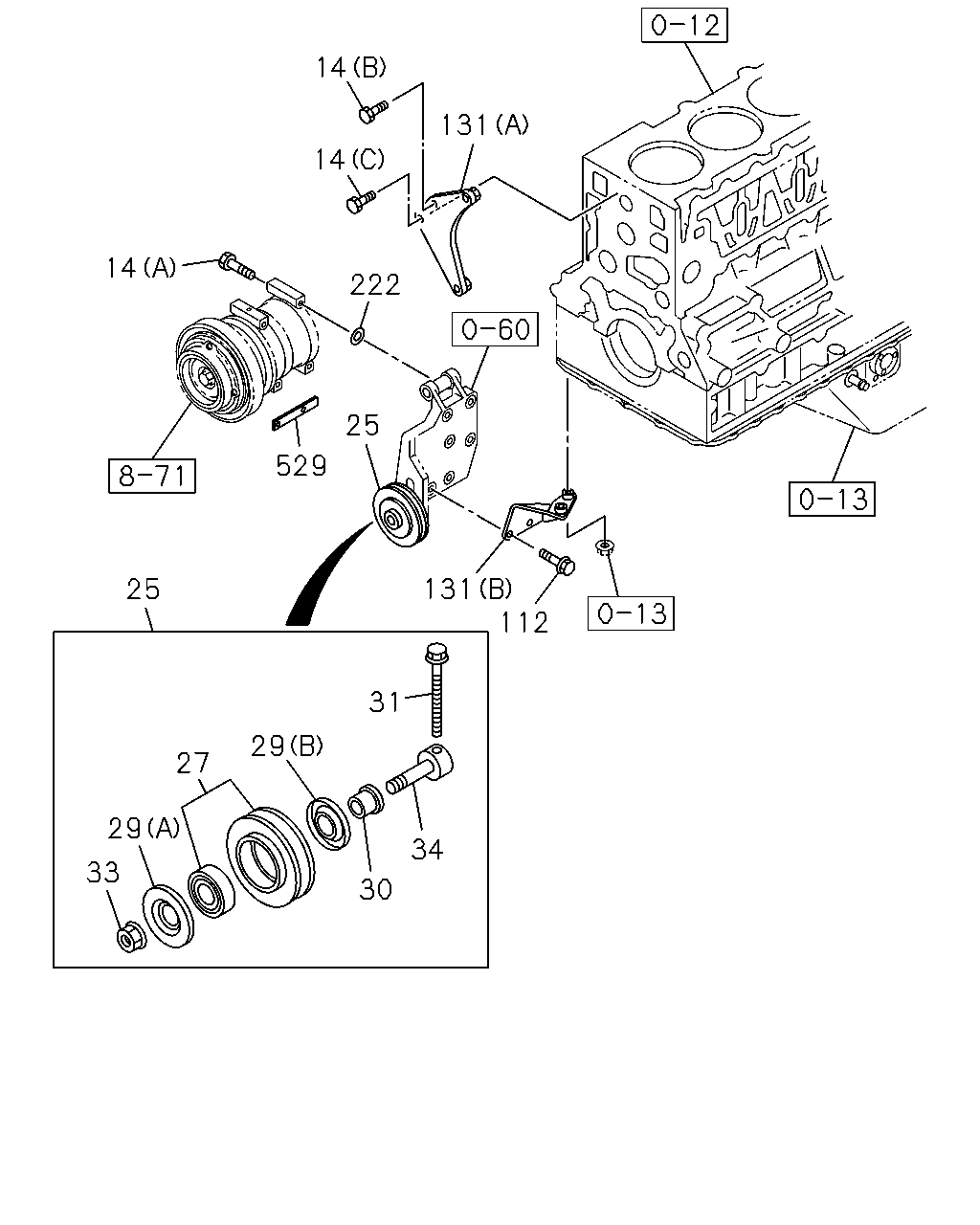

çizim 61789
14 131 14 14 222 25 529 131 112 25 31 29 27 29 34 33 30
BalonParca AdiParca NoAdetTipApplied Date
14 BOLT; CMPR
(B) M10X35 FLANGE 		0-28151-035-0 01 1 0907-
14 BOLT; CMPR
(C) M10X45 FLANGE 		0-28151-045-0 01 1 0907-
14 BOLT; CMPR
(A) M8X78 W/LK WASHER 		5-09000-228-1 04 1 0907-
25 PULLEY ASM; IDLER,CMPR 8-97605-079-0 01 1 0907-
27 PULLEY; IDLE,A/C 8-97605-323-0 01 1 0907-
29 COVER; DUST,IDLE PULLEY
(A) 		8-97605-329-0 01 1 0907-
29 COVER; DUST,IDLE PULLEY
(B) 		8-97605-330-0 01 1 0907-
30 COLLAR; IDLE PULLEY 8-97605-328-0 01 1 0907-
31 BOLT; ADJ,IDLE PULLEY 8-97605-325-0 01 1 0907-
33 NUT; IDLER PULLEY 8-97605-326-0 01 1 0907-
34 SHAFT; IDLE PULLEY 8-97605-327-0 01 1 0907-
112 BOLT; STAY
M8X16 FLANGE 		0-28050-816-0 02 1 0907-
131 STAY; CMPR BRKT
(B) 		8-97601-869-1 01 1 0907-
131 STAY; CMPR BRKT
(A) 		8-98051-636-0 01 1 0907-
222 GASKET; CONNECTOR
ID=8.2 		8-94312-733-0 02 1 0907-
529 SPACER 1-83573-271-0 01 1 0907-
