Isuzu WW
▶
TRUCKS
▶
FSR
▶
11227 - FSR(CNG)AUSTRALIA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶
8-45 — HEATER PIPING
(#22921) — 20 parça
◀

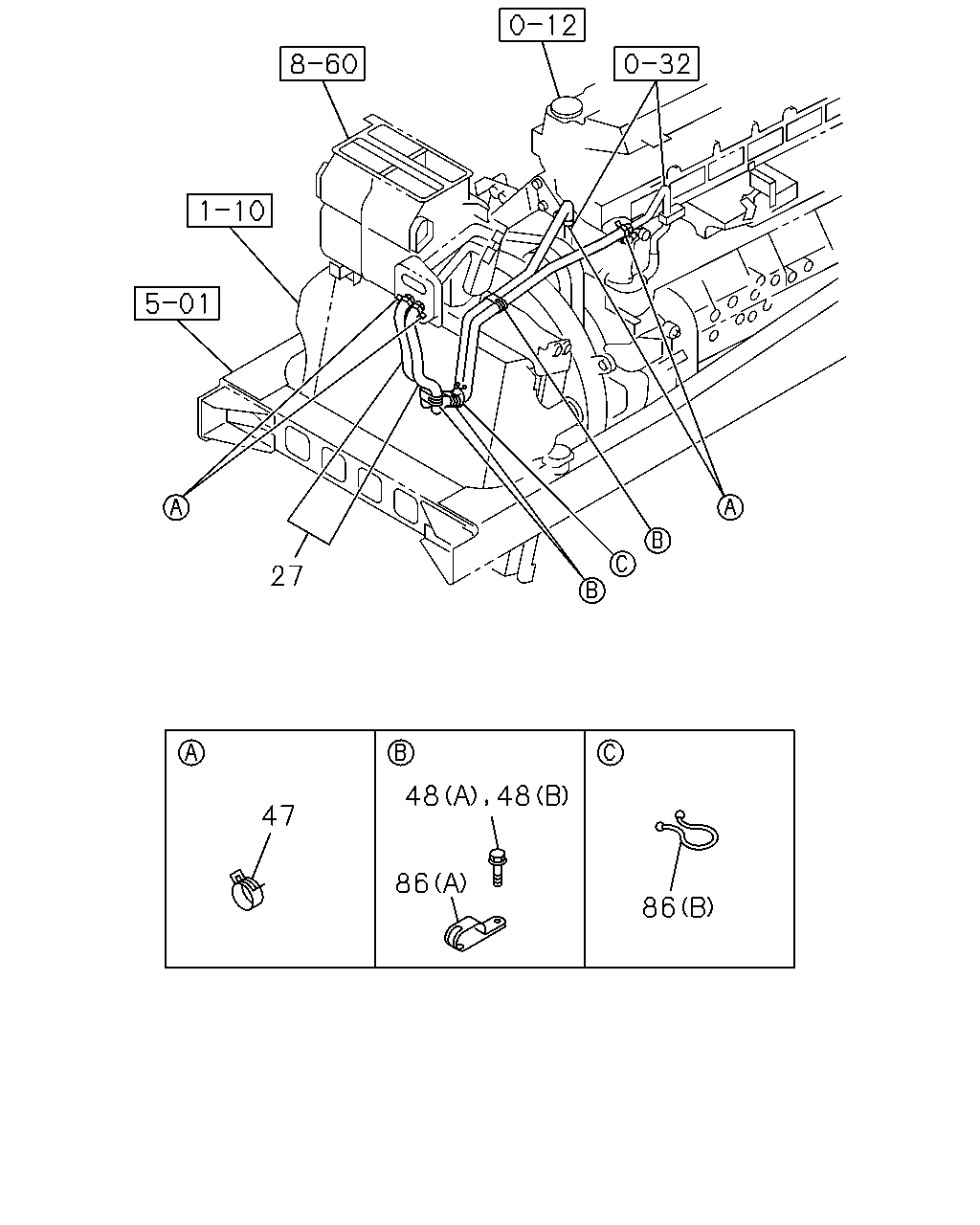

[845A] NO.1 (7 parça)

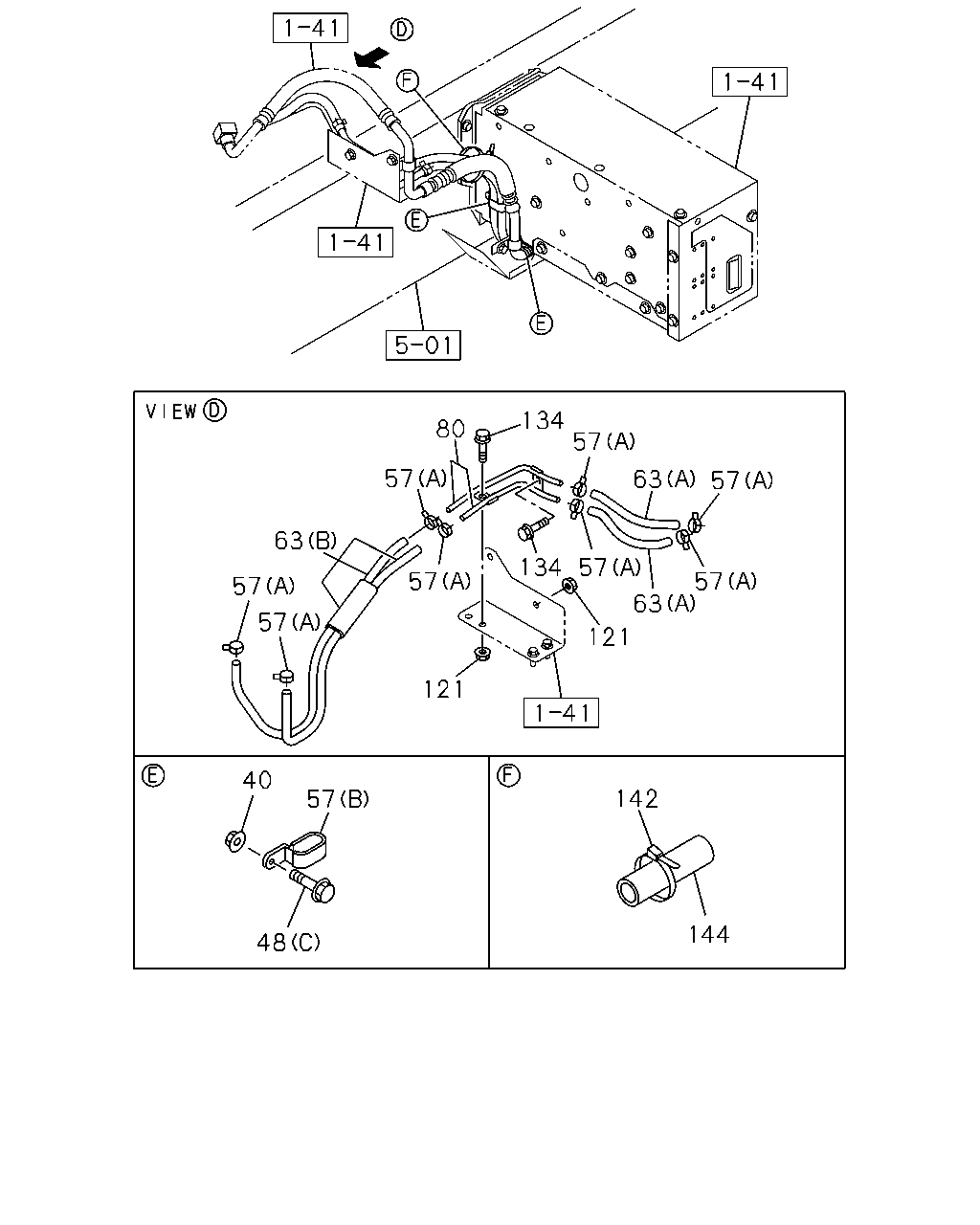

[845A] NO.2 (13 parça)
▶
27
48
48
47
86
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
8-98044-031-1
01
1
0907-
47
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
04
1
0907-
48
BOLT; CLIP FIX
(B) M8X16 FLANGE
0-28050-816-0
02
1
0907-
48
BOLT; CLIP FIX
(C) M8X20 FLANGE
0-28650-820-0
02
1
0907-
48
BOLT; CLIP FIX
(A) M8X25 FLANGE
0-28650-825-0
01
1
0907-
86
CLIP; HTR HOSE
(A) ID=24X2 L=25
1-09700-710-0
03
1
0907-
86
CLIP; HTR HOSE
(B)
8-94463-508-0
01
1
0907-
134
57
80
57
63
57
63
134
57
57
57
57
63
57
121
121
40
142
57
144
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
40
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0907-
48
BOLT; CLIP FIX
(B) M8X16 FLANGE
0-28050-816-0
02
1
0907-
48
BOLT; CLIP FIX
(C) M8X20 FLANGE
0-28650-820-0
02
1
0907-
48
BOLT; CLIP FIX
(A) M8X25 FLANGE
0-28650-825-0
01
1
0907-
57
CLIP; HOSE
(B) ID=14X29 H=15 L=20
1-09700-744-0
02
1
0907-
57
CLIP; HOSE
(A) ID=11.5
8-97375-638-0
08
1
0907-
63
HOSE; WATER
(A) L=230 SERVICED BY L=3000
0-03257-300-0
02
1
0907-
63
HOSE; WATER
(B)
8-97626-784-1
01
1
0907-
80
PIPE; WATER
8-97620-481-0
01
1
0907-
121
NUT; PIPE
M8 FLANGE
0-91180-108-0
02
1
0907-
134
BOLT; PIPE
M8X20 FLANGE
0-28650-820-0
02
1
0907-
142
CLIP; BAND
L=250
5-09707-030-1
01
1
0907-
144
SLEEVE; RUBBER
ID=29 OD=39 L=40
1-09337-013-0
01
1
0907-
