Isuzu WW
▶
TRUCKS
▶
FSR
▶
11227 - FSR(CNG)AUSTRALIA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#22917) — 59 parça
◀

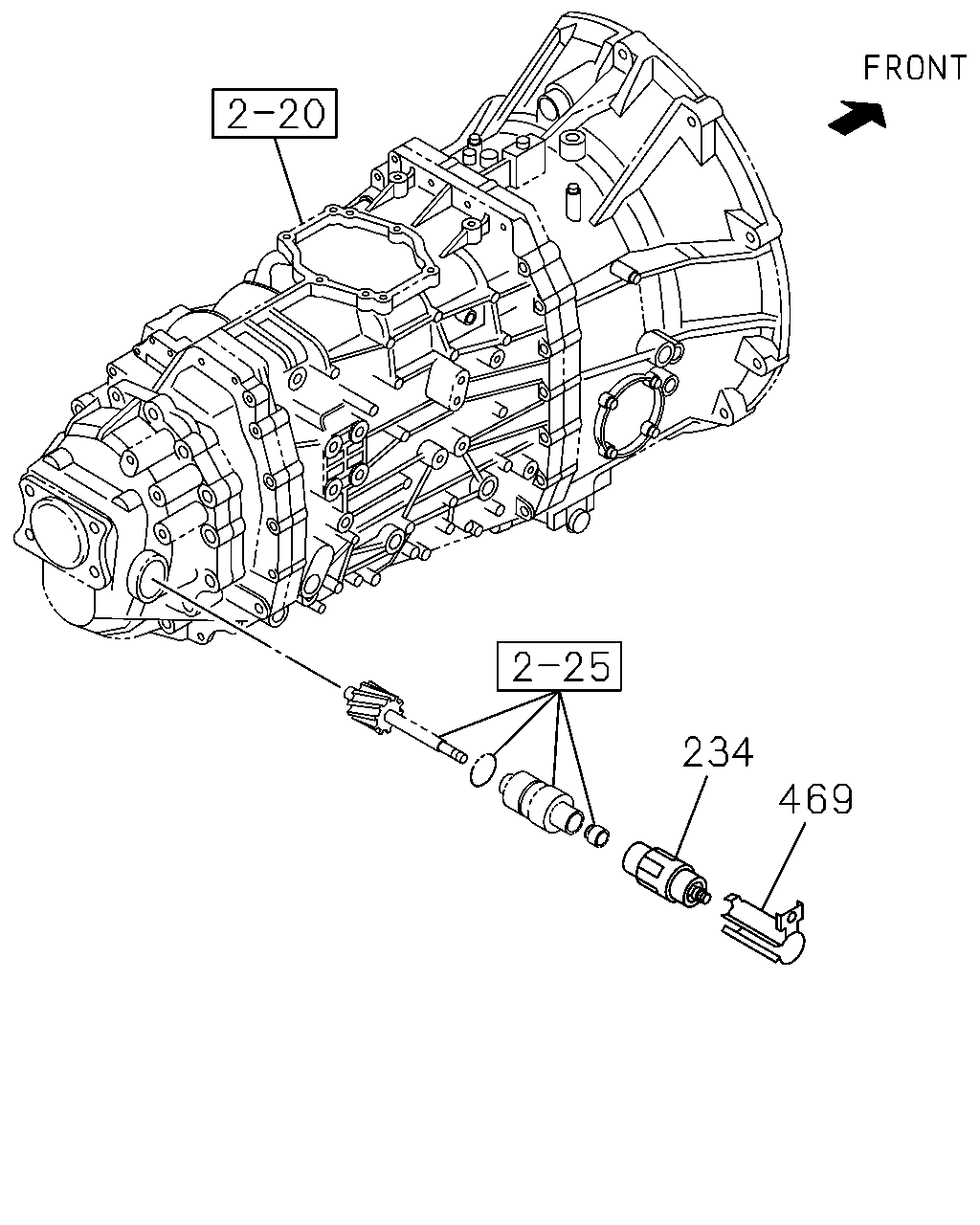

[826A] SENSOR;VEHICLE SPEED (3 parça)

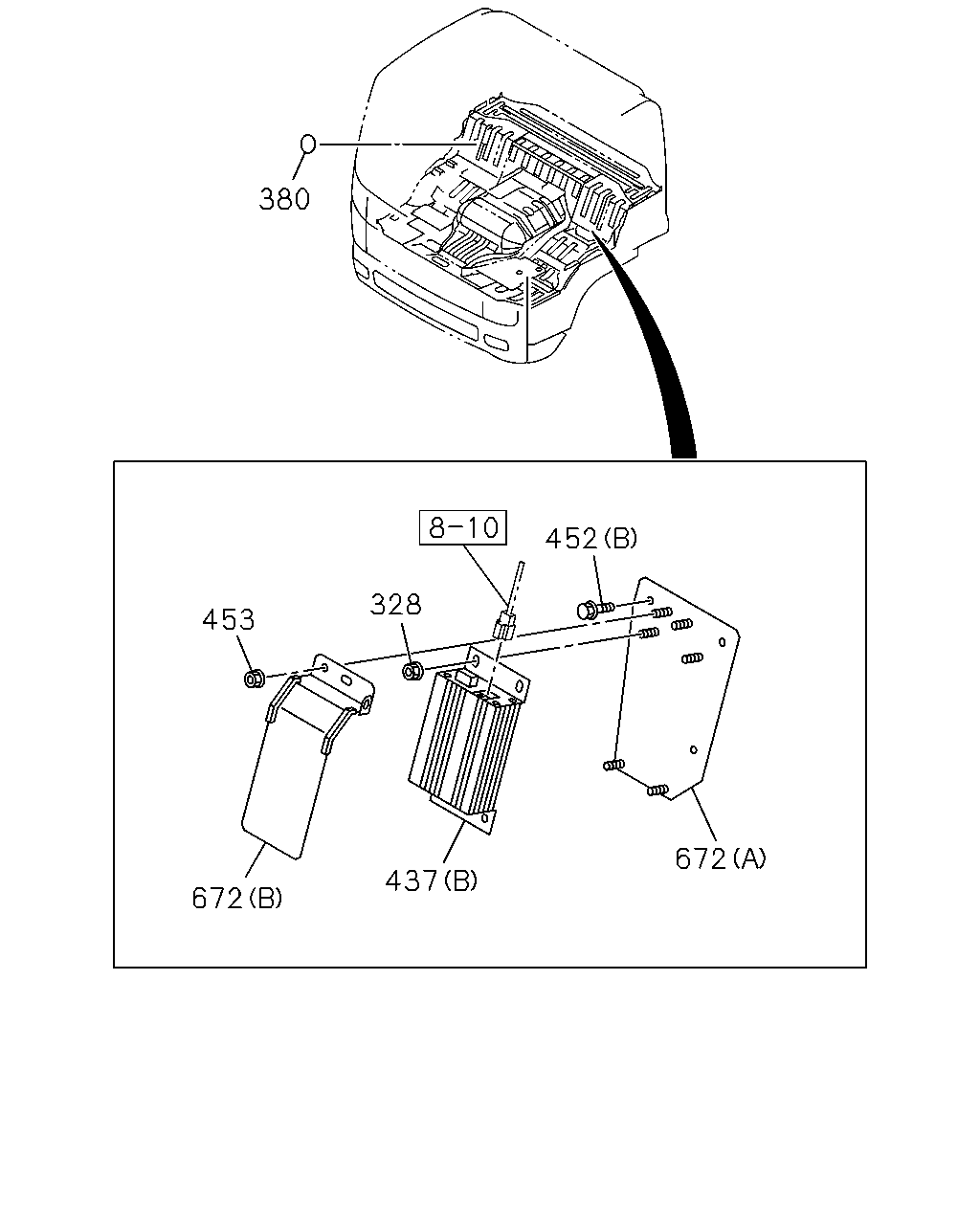

[826A] CAB SIDE NO.2 (10 parça)

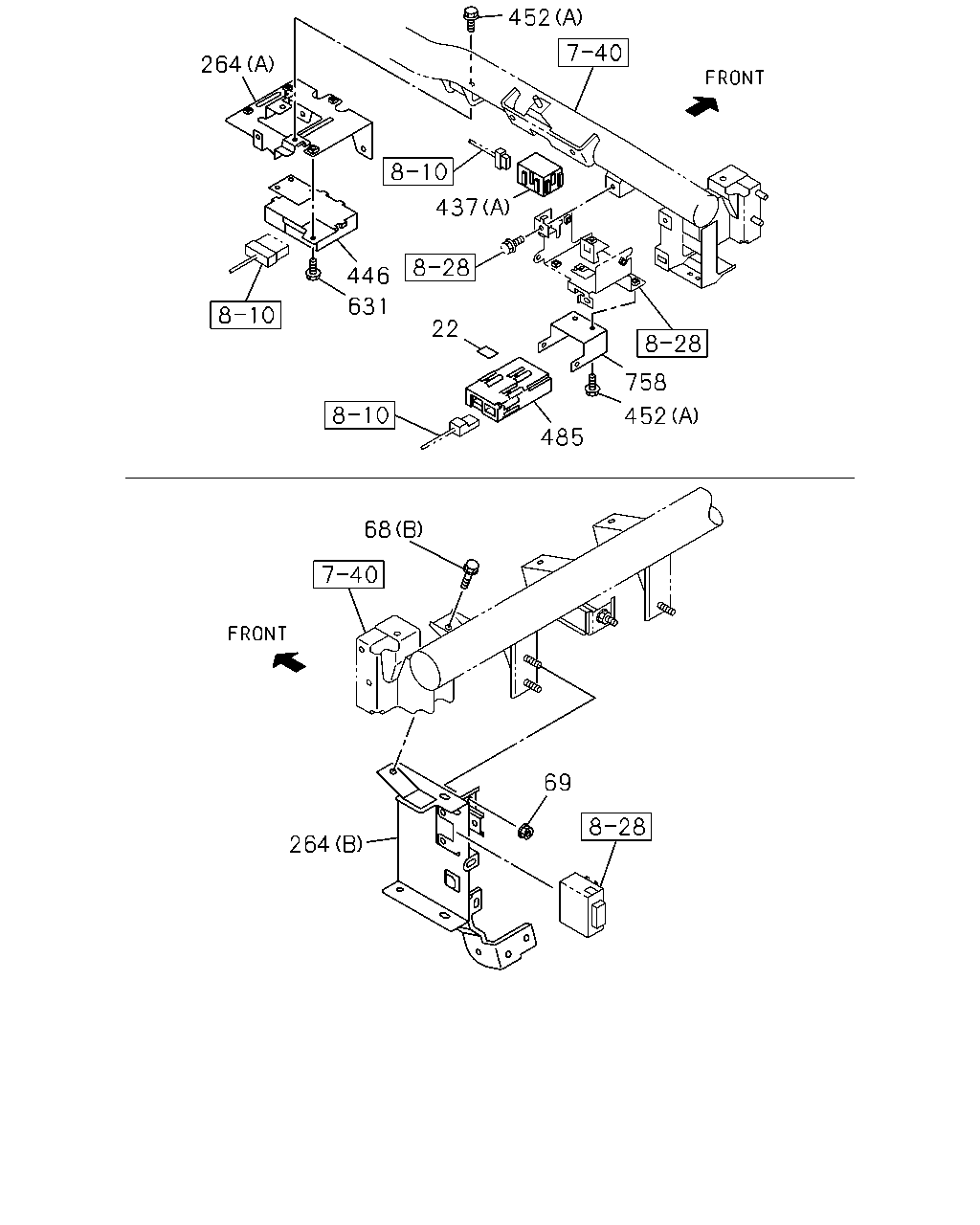

[826A] INST PANEL SIDE NO.2 (21 parça)

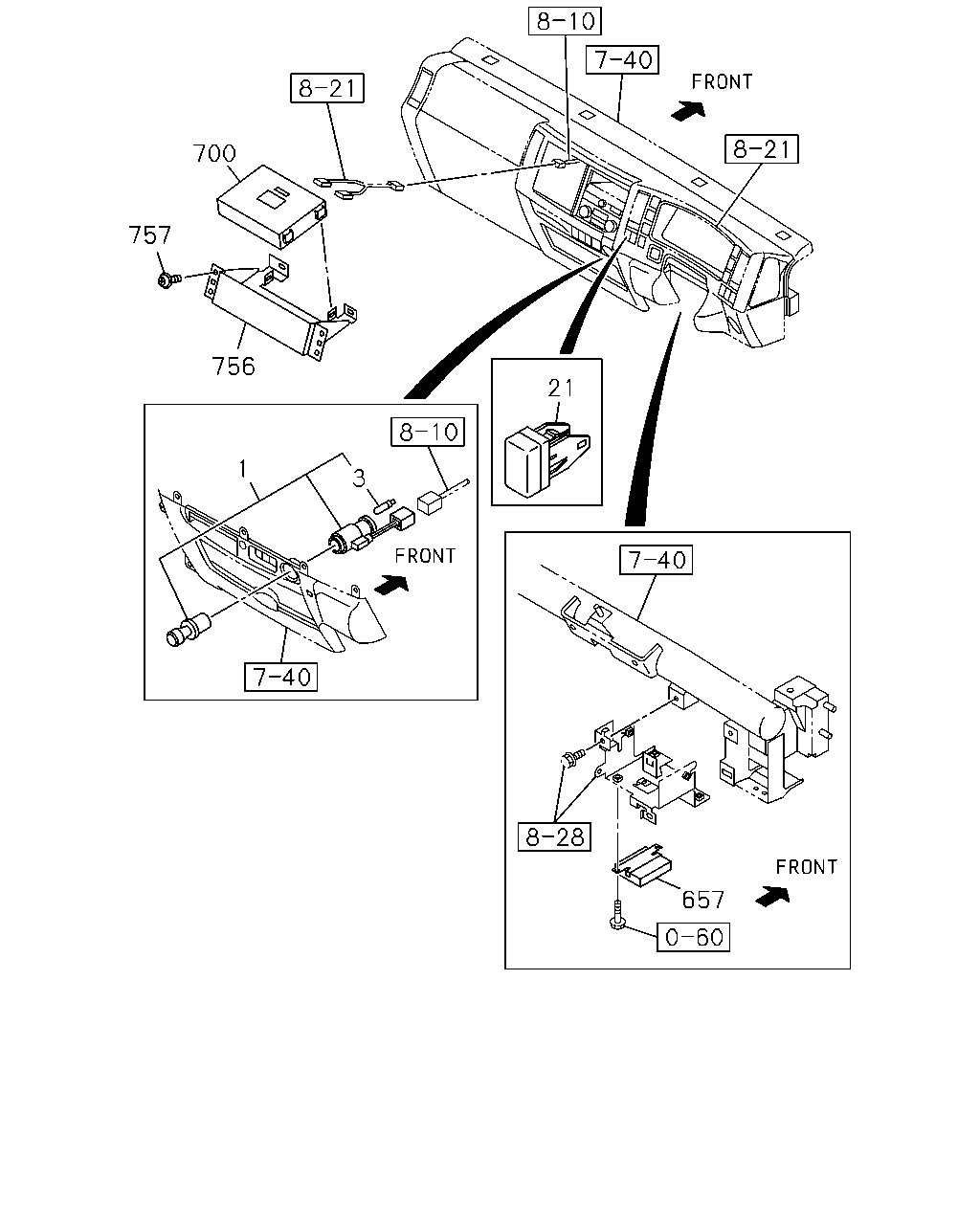

[826A] INST PANEL SIDE NO.1 (12 parça)

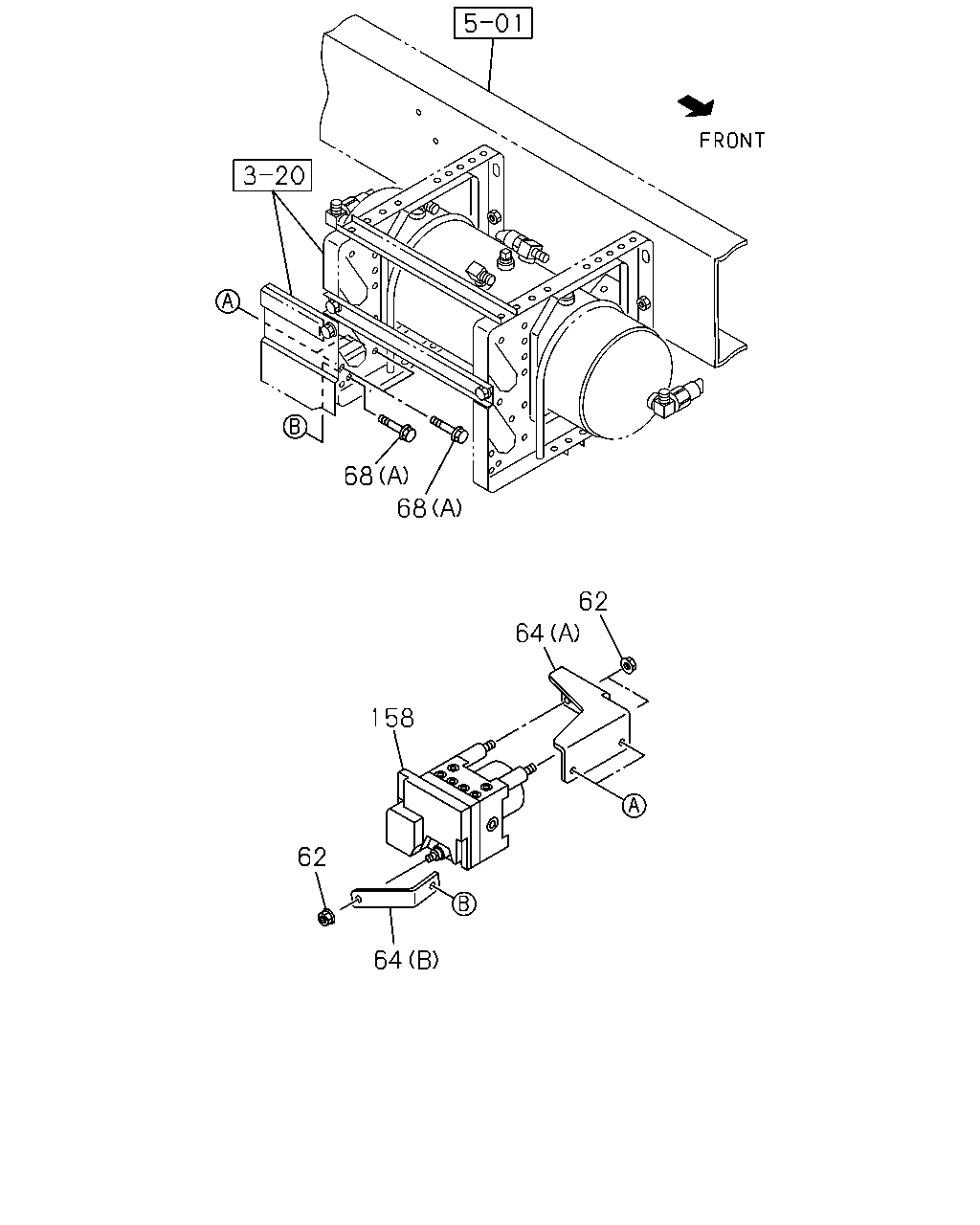

[826A] CONTROLLER;ABS (7 parça)
[826A] CAB SIDE NO.1 (6 parça)
▶
234
469
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
234
SENSOR; VEHICLE SPD
25 PULSE
1-80240-029-0
01
1
0907-1301
234
SENSOR; VEHICLE SPD
25 PULSE
8-98234-167-0
01
1
1302-
469
PROTECTOR; SPEED SENSOR
8-98119-901-0
01
1
0907-
380
452
328
453
672
437
672
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
328
NUT
M6 FLANGE
0-91180-106-0
02
1
0907-
328
NUT
M6 FLANGE
0-91180-106-0
04
1
0907-
380
SEAL
OD=25 BLACK
1-76798-019-0
01
1
0907-
437
CONVERTER; DC
(B)
8-97254-654-0
01
1
0907-
437
CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) KOITO
8-97359-129-0
01
1
0907-
452
BOLT; BRKT
(B) M6X25 FLANGE
0-28650-625-0
03
1
0907-
452
BOLT; BRKT
(A) M6X16 FLANGE
0-28650-616-0
02
1
0907-
453
NUT; BRKT
M6 FLANGE
0-91180-106-0
02
1
0907-
672
BRACKET; CONV
(A)
8-97617-472-3
01
1
0907-
672
BRACKET; CONV
(B)
8-98092-601-0
01
1
0907-
69
264
68
485
452
758
437
22
631
446
452
264
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
SEAL; TAPE
SPEED LIMITER 100KM(NMU)
1-80199-006-0
01
1
0907-1212
22
SEAL; TAPE
SPEED LIMITER 100KM(NMU)
8-98166-639-0
01
1
1301-
68
BOLT; BRKT
(B) M6X16 FLANGE
0-28650-616-0
01
1
0907-
68
BOLT; BRKT
(A) M8X25 FLANGE
0-28650-825-0
03
1
0907-
69
NUT; BRKT
M6 FLANGE
0-91180-106-0
01
1
0907-
264
BRACKET; CONT UNIT
(B)
8-97609-985-9
01
1
0907-
264
BRACKET; CONT UNIT
(A)
8-98064-901-0
01
1
0907-
437
CONVERTER; DC
(B)
8-97254-654-0
01
1
0907-
437
CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) KOITO
8-97359-129-0
01
1
0907-
446
CONTROL UNIT; HSA
8-98136-318-1
01
1
0907-
452
BOLT; BRKT
(B) M6X25 FLANGE
0-28650-625-0
03
1
0907-
452
BOLT; BRKT
(A) M6X16 FLANGE
0-28650-616-0
02
1
0907-
485
CONTROL UNIT; SPEED SENSOR
SPEED LIMITER 100KM(NMU)
1-80190-059-1
01
1
0907-1008
485
CONTROL UNIT; SPEED SENSOR
TACHOGRAPH 140KM/H<WC7> EXC. SPEED LIMITER 100KM(NMU)
1-80190-059-1
01
1
0907-1008
485
CONTROL UNIT; SPEED SENSOR
SPEED LIMITER 100KM(NMU)
8-98140-862-0
01
1
1009-1109
485
CONTROL UNIT; SPEED SENSOR
TACHOGRAPH 140KM/H<WC7> EXC. SPEED LIMITER 100KM(NMU)
8-98140-862-0
01
1
1009-1109
485
CONTROL UNIT; SPEED SENSOR
SPEED LIMITER 100KM(NMU)
1-80190-059-1
01
1
1110-
485
CONTROL UNIT; SPEED SENSOR
TACHOGRAPH 140KM/H<WC7> EXC. SPEED LIMITER 100KM(NMU)
1-80190-059-1
01
1
1110-
631
BOLT; CONT UNIT
M6X16 FLANGE
0-28650-616-0
02
1
0907-
758
BRACKET; ELEC CONT UNIT,SPEED SENSOR
SPEED LIMITER 100KM(NMU)
8-98048-743-1
01
1
0907-
758
BRACKET; ELEC CONT UNIT,SPEED SENSOR
TACHOGRAPH 140KM/H<WC7> EXC. SPEED LIMITER 100KM(NMU)
8-98048-743-1
01
1
0907-
21
700
757
756
3
1
657
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LIGHTER; CIGAR
8-98076-255-0
01
1
0907-0908
1
LIGHTER; CIGAR
8-98142-962-0
01
1
0909-1306
1
LIGHTER; CIGAR
VIN MODEL YEAR 2014<VZE> ASH TRAY PASSENGER DOOR<8LX>
8-98142-962-0
01
1
1307-
1
LIGHTER; CIGAR
EXC. VIN MODEL YEAR 2014<VZE>
8-98142-962-0
01
1
1307-
3
BULB; CIGAR LIGHTER
28V 1.8W
8-97173-159-0
01
1
0907-0908
21
COVER; HOLE
8-98025-954-1
01
1
0907-
657
CONTROL UNIT; MIMAMORI
8-98013-144-6
01
1
0907-0907
657
CONTROL UNIT; MIMAMORI
8-98127-629-5
01
1
0907-
700
CONTROL UNIT; CAN CONVERTER
VIN MODEL YEAR 2013<VZD> CAN INTERFACE FMS STD<8PG>
8-98219-812-0
01
1
1210-1306
756
BRACKET; ECU,BCM
CAN INTERFACE FMS STD<8PG>
8-98222-208-0
01
1
1210-1306
757
BOLT; BRKT,BCM
CAN INTERFACE FMS STD<8PG> M5X20 HEXALOBULAR SOCKET
8-98177-743-0
04
1
1210-1210
757
BOLT; BRKT,BCM
CAN INTERFACE FMS STD<8PG> M5X20 TAPPING HEXALOBULAR
0-72180-520-0
04
1
1211-1306
68
68
62
64
158
62
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
62
NUT; BRKT
M8 FLANGE
0-91180-108-0
03
1
0907-
64
BRACKET; CONTROLLER
(A)
8-98044-238-2
01
1
0907-
64
BRACKET; CONTROLLER
(B)
8-98044-239-1
01
1
0907-
68
BOLT; BRKT
(B) M6X16 FLANGE
0-28650-616-0
01
1
0907-
68
BOLT; BRKT
(A) M8X25 FLANGE
0-28650-825-0
03
1
0907-
158
CONTROLLER; ABS
8-98048-308-2
01
1
0907-1006
158
CONTROLLER; ABS
8-98157-994-1
01
1
1007-
744
448
491
373
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
373
HARNESS; CLU SWITCH
8-98059-419-2
01
1
0907-
448
BOLT; SENSOR
M6X18 W/PL WASHER
8-97105-796-1
02
1
0907-1306
448
BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/PL WASHER
8-97105-796-1
02
1
1307-
491
PLUG; HOLE,CONT UNIT
OD=60
8-98054-651-0
01
1
0907-
744
SENSOR; AIR BAG
8-97386-841-2
01
1
0907-1306
744
SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)
8-97386-841-2
01
1
1307-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
