8-21 — METER ASM (#22915) — 23 parça

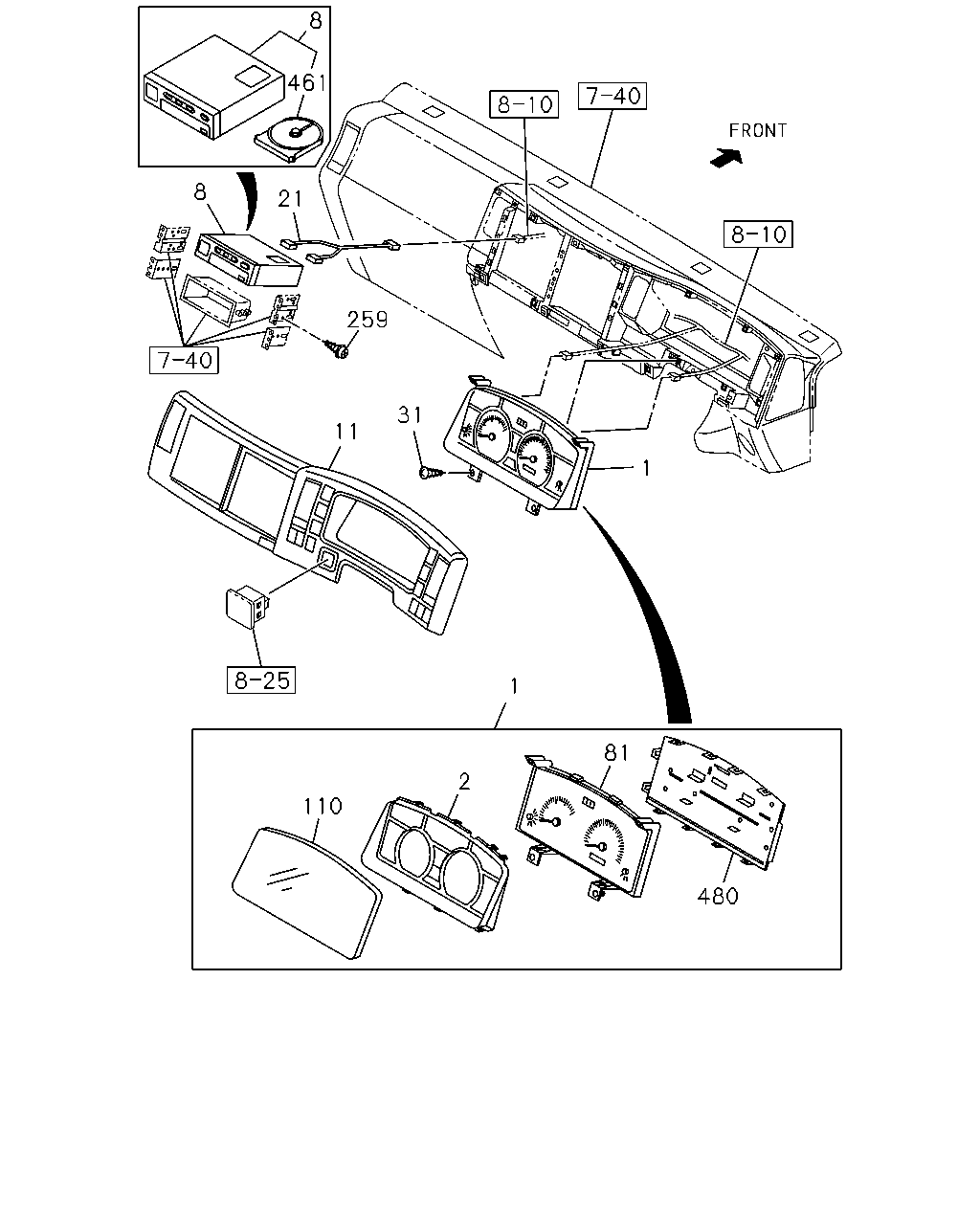

çizim 61707
8 461 8 21 259 31 11 1 1 81 2 110 480
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER 8-98145-671-1 01 1 0907-
2 PANEL; CLUSTER 8-98054-432-0 01 1 0907-
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		8-97387-082-2 01 1 0907-
11 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-6 01 1 0907-
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> CAN INTERFACE FMS STD<8PG> 		8-98225-657-0 01 1 1210-1306
21 HARNESS; TACHOGRAPH
VIN MODEL YEAR 2013<VZD>,VIN MODEL YEAR 2014<VZE> TACHOGRAPH 140KM/H<WC7> 		8-98201-154-0 01 1 1307-
21 HARNESS; TACHOGRAPH
CAN INTERFACE FMS STD<8PG> EXC. TACHOGRAPH 140KM/H<WC7> 		8-98204-881-1 01 1 1210-1306
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		8-98074-077-0 01 1 0907-1209
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> EXC. CAN INTERFACE FMS STD<8PG> 		8-98074-077-0 01 1 1210-1306
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> EXC. VIN MODEL YEAR 2013<VZD>,VIN MODEL YEAR 2014<VZE> 		8-98074-077-0 01 1 1307-
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0907-
81 METER SUB ASM 8-98146-928-0 01 1 0907-
110 GLASS; CLUSTER METER 8-98054-431-0 01 1 0907-
259 SCREW; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 0907-
461 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		1-83129-433-0 01 1 0907-
480 COVER; METER
BLACK 		8-98054-433-0 01 1 0907-

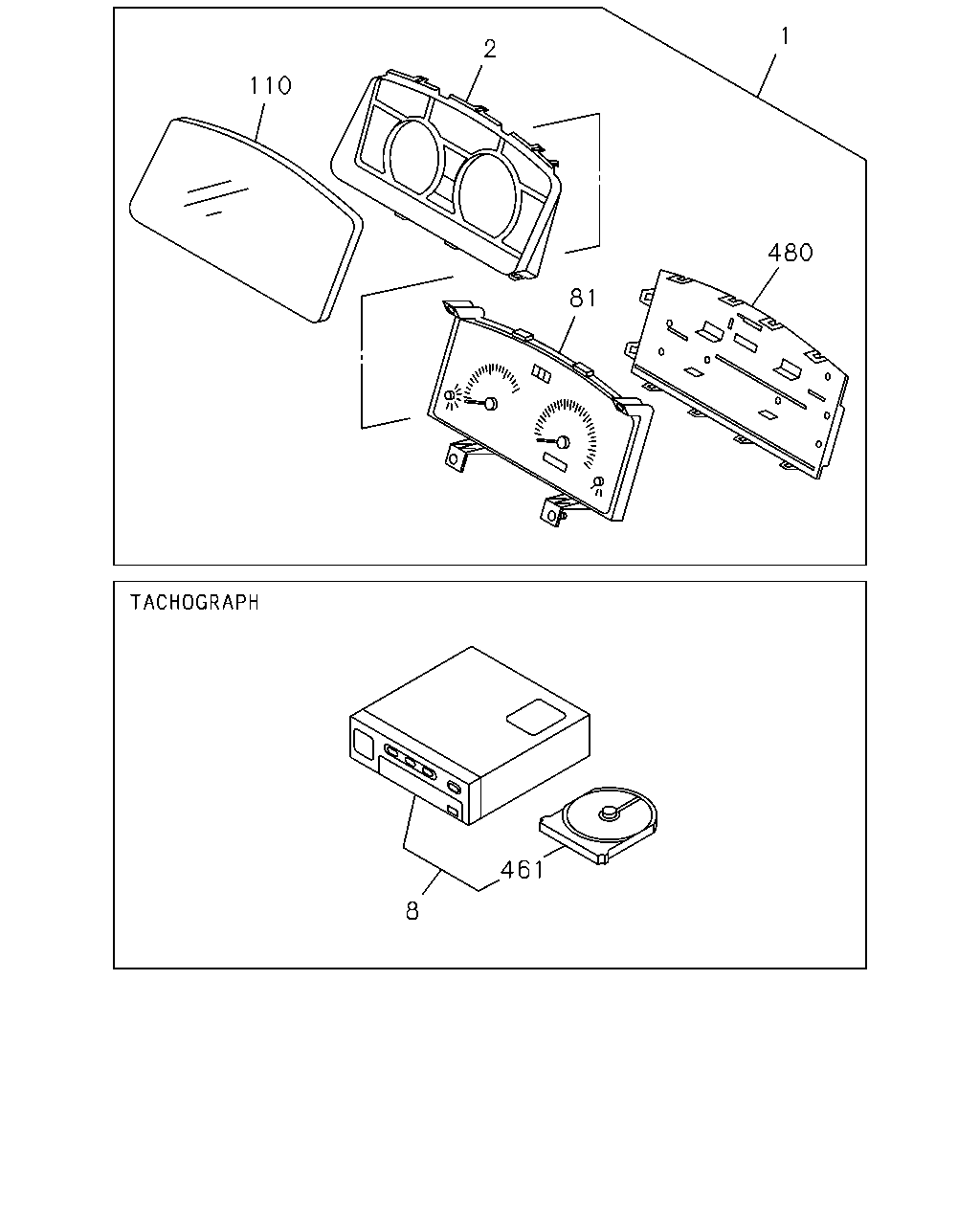

çizim 62821
1 2 110 480 81 461 8
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER 8-98145-671-1 01 1 0907-
2 PANEL; CLUSTER 8-98054-432-0 01 1 0907-
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		8-97387-082-2 01 1 0907-
81 METER SUB ASM 8-98146-928-0 01 1 0907-
110 GLASS; CLUSTER METER 8-98054-431-0 01 1 0907-
461 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		1-83129-433-0 01 1 0907-
480 COVER; METER
BLACK 		8-98054-433-0 01 1 0907-
