Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#22913) — 284 parça

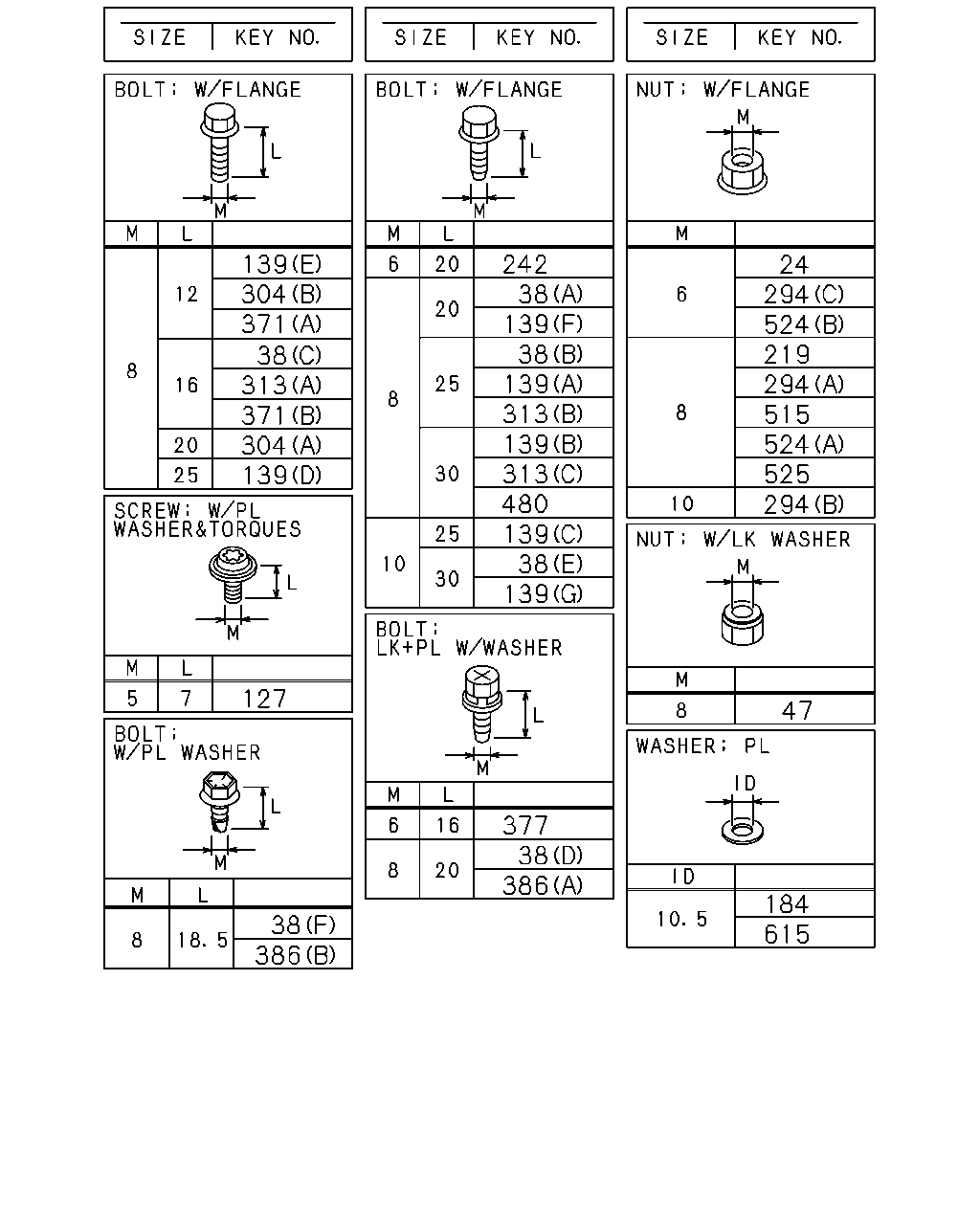

139 371 304 38 371 313 304 139 127 38 386 242 139 38 38 313 139 139 480 313 139 139 38 377 38 386 24 524 294 219 515 294 524 294 525 47 184 615

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	NUT; HARNESS M6 FLANGE	0-91180-106-0	01	1	0907-
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE	0-28050-816-0	01	1	0907-
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE	0-28050-816-0	03	1	0907-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0907-0912
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0907-0912
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0907-0912
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0907-0912
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1001-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1001-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1001-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1001-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	03	1	0907-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	03	1	0907-
38	BOLT; CLIP,HARNESS (E) M10X30 FLANGE	0-28651-030-0	01	1	0907-
38	BOLT; CLIP,HARNESS (D) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0907-1201
38	BOLT; CLIP,HARNESS (F) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0907-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	0907-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0907-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	0907-
139	BOLT; BRKT (F) M8X20 FLANGE	0-28650-820-0	02	1	0907-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0907-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0907-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	06	1	0907-
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	01	1	0907-
139	BOLT; BRKT (D) M8X25 FLANGE	0-28050-825-0	02	1	0907-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0907-
219	NUT M8 FLANGE	0-91180-108-0	02	1	0907-
219	NUT M8 FLANGE	0-91180-108-0	03	1	0907-
242	BOLT; BRKT,HARNESS M6X20 FLANGE	0-28650-620-0	02	1	0907-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0907-
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	0907-
294	NUT (C) M6 FLANGE	0-91180-106-0	02	1	0907-
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	0907-
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	0907-
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	0907-
294	NUT (B) M10 FLANGE	0-91180-210-0	03	1	0907-
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	02	1	0907-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	02	1	0907-
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	1001-
313	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0907-
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0907-0912
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1001-
371	BOLT; GEN HARNESS (A) M8X12 FLANGE	0-28050-812-0	01	1	0907-
371	BOLT; GEN HARNESS (B) M8X16 FLANGE	0-28050-816-0	04	1	0907-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	0907-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0907-1202
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-
480	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0907-
515	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0907-
524	NUT; HARNESS (B) M6 FLANGE	0-91180-106-0	04	1	0907-
524	NUT; HARNESS (A) M8 FLANGE	0-91180-108-0	01	1	0907-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0911-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0907-1006
525	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1007-
615	WASHER; HARNESS ID=10.5 OD=40 T=3.2	8-98010-405-0	01	1	0907-0912

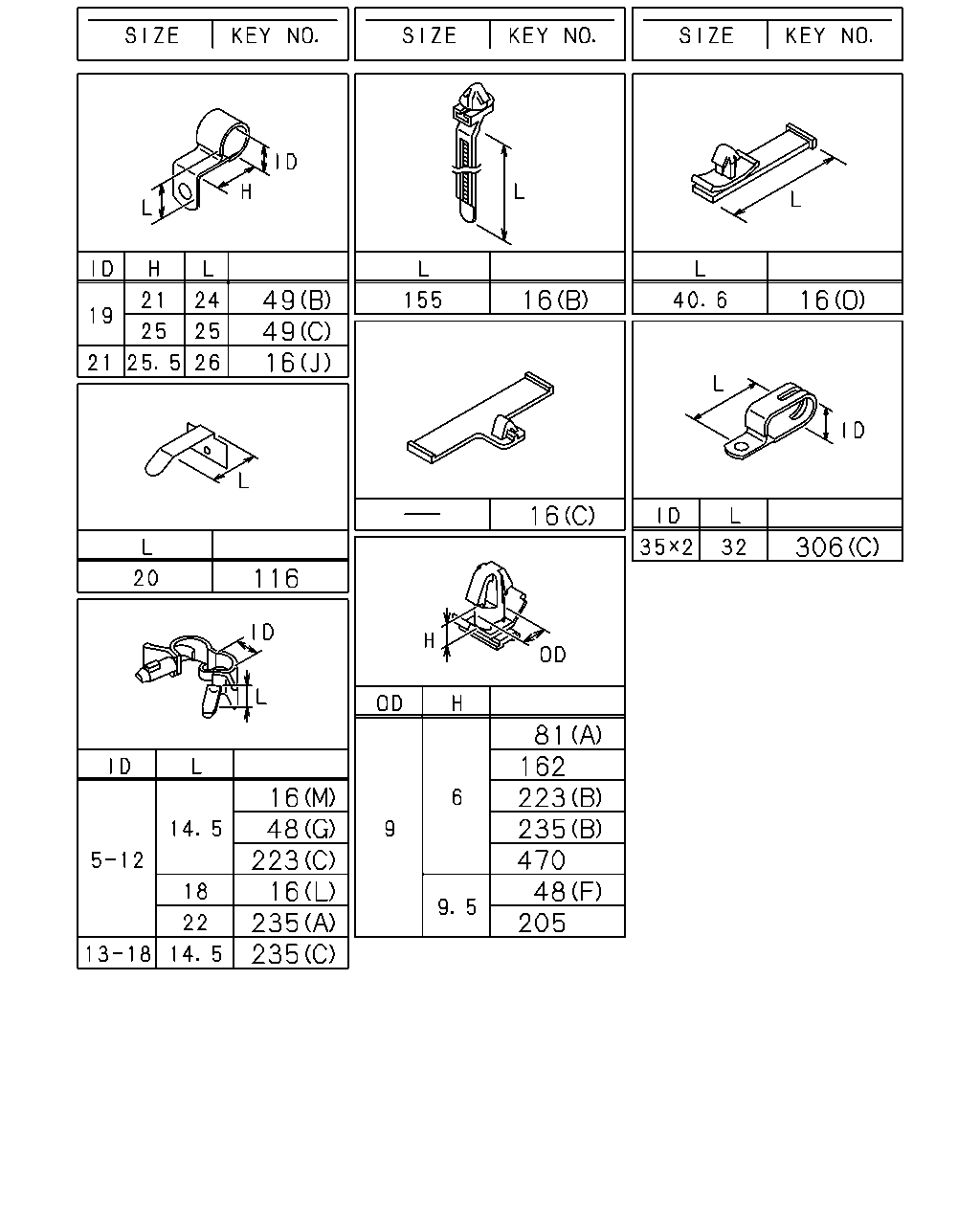

49 49 16 16 16 16 306 116 81 162 223 235 470 48 205 16 48 223 16 235 235

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (G) ID=10 & 12	1-09709-278-1	02	1	0907-0911
16	CLIP; HARNESS (G) ID=10 & 12	1-09709-278-1	01	1	0912-
16	CLIP; HARNESS (V) ID=21 L=30 H=40	1-09700-991-1	01	1	1009-
16	CLIP; HARNESS (U) ID=7 L=16	0-95234-625-0	01	1	0907-
16	CLIP; HARNESS (H) ID=11 L=16	0-95235-025-0	02	1	0907-
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	02	1	0907-
16	CLIP; HARNESS (I) ID=11X2 L=16	1-09700-734-0	01	1	0907-
16	CLIP; HARNESS (E) ID=35 L=35	1-09700-895-0	01	1	0907-
16	CLIP; HARNESS (R) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0907-
16	CLIP; HARNESS (F) ID=35 H=45 L=33	1-09700-947-0	01	1	0907-0912
16	CLIP; HARNESS (S) ID=19 L=32	1-09701-235-0	01	1	0907-0910
16	CLIP; HARNESS (W) ID=16 L=28	0-95235-556-0	03	1	0911-1008
16	CLIP; HARNESS (X) ID=19 L=20	0-95235-836-0	02	1	1009-
16	CLIP; HARNESS (T) L=180	1-09707-162-1	01	1	0907-
16	CLIP; HARNESS (K) ID=10 & 10	1-09709-277-1	03	1	0907-0911
16	CLIP; HARNESS (K) ID=10 & 10	1-09709-277-1	04	1	0912-
16	CLIP; HARNESS (L) ID=5-12 L=18	1-09709-287-0	03	1	0907-
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	01	1	0907-
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	03	1	0907-
16	CLIP; HARNESS (P) L=250	5-09707-030-1	01	1	0907-
16	CLIP; HARNESS (N) L=140	5-09707-031-1	01	1	0907-
16	CLIP; HARNESS (J) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0907-
16	CLIP; HARNESS (Q) ID=21 L=24	8-94176-807-1	01	1	0907-0910
16	CLIP; HARNESS (Q) ID=21 L=24	8-94176-807-1	01	1	0907-0910
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0907-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0907-1202
16	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS (O) L=40.6	8-97229-357-0	02	1	0907-1202
16	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (O) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0907-1202
16	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (C)	8-98052-679-0	02	1	1203-
48	CLIP; FRAME HARNESS (H) L=250	5-09707-030-1	02	1	0907-
48	CLIP; FRAME HARNESS (J) ID=14 L=44	9-09917-427-0	14	1	1008-
48	CLIP; FRAME HARNESS (C) L=600	1-09707-107-1	01	1	0907-
48	CLIP; FRAME HARNESS (F) OD=9 H=9.5	1-09709-179-0	01	1	0907-
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	0907-
48	CLIP; FRAME HARNESS (I) ID=18 L=48	9-09917-429-0	16	1	0907-1007
48	CLIP; FRAME HARNESS (I) ID=18 L=48	9-09917-429-0	02	1	1008-1201
48	CLIP; FRAME HARNESS (J) ID=14 L=44	9-09917-427-0	02	1	1202-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0907-
48	CLIP; FRAME HARNESS (A) ID=32 L=50	1-09701-055-1	01	1	0907-
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	0907-
48	CLIP; FRAME HARNESS (D) ID=17.5X2 L=25	5-09700-358-0	01	1	0907-
49	CLIP; GEN HARNESS (A) ID=19 L=20	0-95235-836-0	04	1	0907-
49	CLIP; GEN HARNESS (B) ID=19 H=21 L=24	5-09700-360-0	01	1	0907-
49	CLIP; GEN HARNESS (C) ID=19 H=25 L=25	9-09917-035-0	01	1	0907-
49	CLIP; GEN HARNESS (D) ID=20 L=50	9-09917-430-0	01	1	0907-0912
81	CLIP; HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	0907-
81	CLIP; HARNESS (B) ID=6.35 & 15	1-09709-276-1	01	1	0907-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	04	1	0907-
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	0907-
205	CLIP; BACK LAMP HARNESS OD=9 H=9.5	1-09709-179-0	01	1	0907-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	03	1	0907-
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	06	1	0907-
223	CLIP; AIR TANK HARNESS (A) L=180	1-09707-162-1	01	1	0907-
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) OD=9 H=6	1-09709-178-0	01	1	0907-
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=5-12 L=22	1-09709-288-0	02	1	0907-
235	CLIP; HARNESS,SPD SENSOR,SSPS (C) ID=13-18 L=14.5	1-09709-290-0	01	1	0907-
306	CLIP; HARNESS,ELEC GOV (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0907-
306	CLIP; HARNESS,ELEC GOV (B) ID=28 L=32	1-09701-107-1	01	1	0907-
306	CLIP; HARNESS,ELEC GOV (C) ID=35X2 L=32	1-09701-314-0	01	1	0907-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	0907-1205

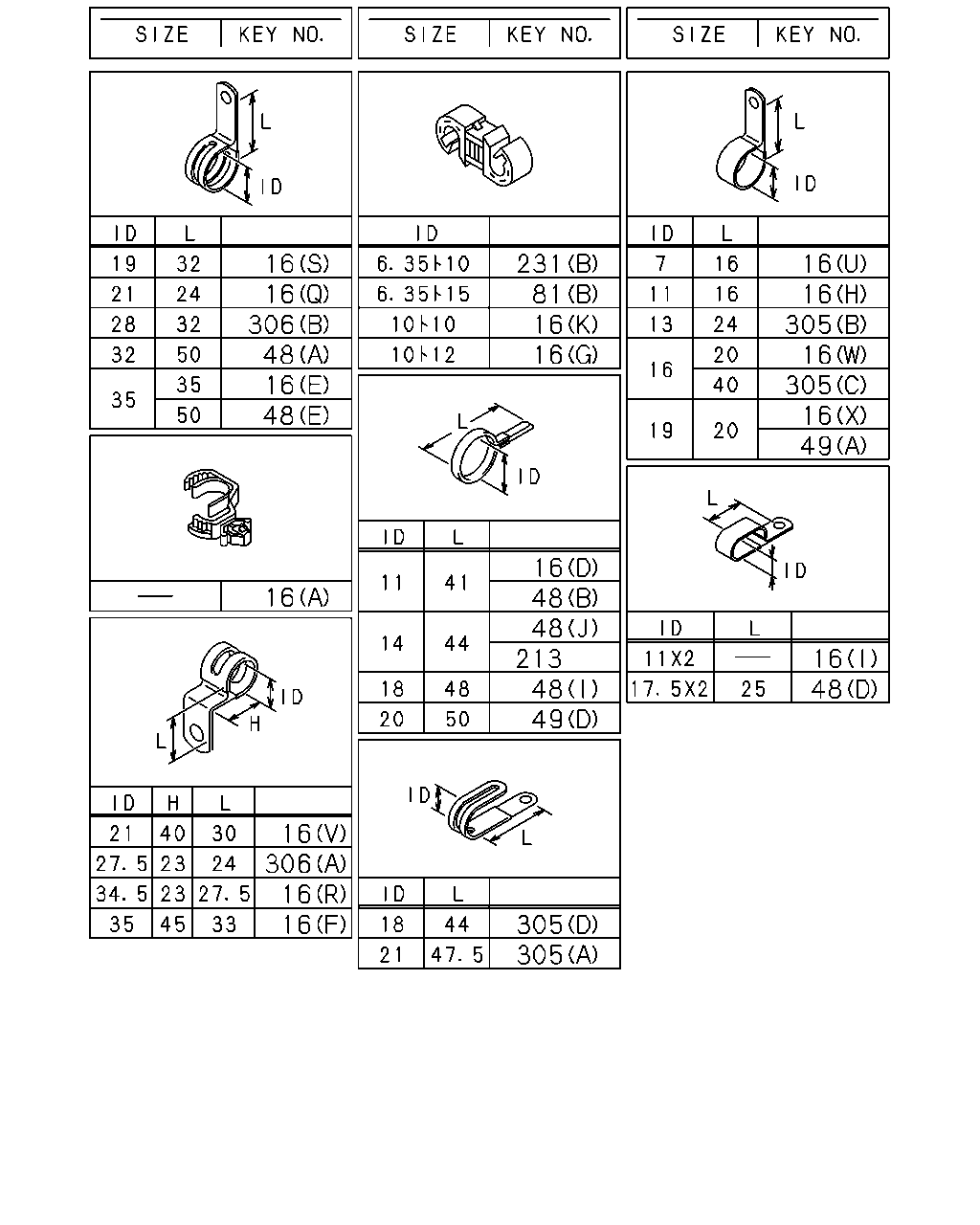

16 16 306 48 16 48 231 81 16 16 16 16 305 16 305 16 49 16 48 48 213 48 49 16 16 48 16 306 16 16 305 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (G) ID=10 & 12	1-09709-278-1	02	1	0907-0911
16	CLIP; HARNESS (G) ID=10 & 12	1-09709-278-1	01	1	0912-
16	CLIP; HARNESS (V) ID=21 L=30 H=40	1-09700-991-1	01	1	1009-
16	CLIP; HARNESS (U) ID=7 L=16	0-95234-625-0	01	1	0907-
16	CLIP; HARNESS (H) ID=11 L=16	0-95235-025-0	02	1	0907-
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	02	1	0907-
16	CLIP; HARNESS (I) ID=11X2 L=16	1-09700-734-0	01	1	0907-
16	CLIP; HARNESS (E) ID=35 L=35	1-09700-895-0	01	1	0907-
16	CLIP; HARNESS (R) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0907-
16	CLIP; HARNESS (F) ID=35 H=45 L=33	1-09700-947-0	01	1	0907-0912
16	CLIP; HARNESS (S) ID=19 L=32	1-09701-235-0	01	1	0907-0910
16	CLIP; HARNESS (W) ID=16 L=28	0-95235-556-0	03	1	0911-1008
16	CLIP; HARNESS (X) ID=19 L=20	0-95235-836-0	02	1	1009-
16	CLIP; HARNESS (T) L=180	1-09707-162-1	01	1	0907-
16	CLIP; HARNESS (K) ID=10 & 10	1-09709-277-1	03	1	0907-0911
16	CLIP; HARNESS (K) ID=10 & 10	1-09709-277-1	04	1	0912-
16	CLIP; HARNESS (L) ID=5-12 L=18	1-09709-287-0	03	1	0907-
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	01	1	0907-
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	03	1	0907-
16	CLIP; HARNESS (P) L=250	5-09707-030-1	01	1	0907-
16	CLIP; HARNESS (N) L=140	5-09707-031-1	01	1	0907-
16	CLIP; HARNESS (J) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0907-
16	CLIP; HARNESS (Q) ID=21 L=24	8-94176-807-1	01	1	0907-0910
16	CLIP; HARNESS (Q) ID=21 L=24	8-94176-807-1	01	1	0907-0910
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0907-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0907-1202
16	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS (O) L=40.6	8-97229-357-0	02	1	0907-1202
16	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (O) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0907-1202
16	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (C)	8-98052-679-0	02	1	1203-
48	CLIP; FRAME HARNESS (H) L=250	5-09707-030-1	02	1	0907-
48	CLIP; FRAME HARNESS (J) ID=14 L=44	9-09917-427-0	14	1	1008-
48	CLIP; FRAME HARNESS (C) L=600	1-09707-107-1	01	1	0907-
48	CLIP; FRAME HARNESS (F) OD=9 H=9.5	1-09709-179-0	01	1	0907-
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	0907-
48	CLIP; FRAME HARNESS (I) ID=18 L=48	9-09917-429-0	16	1	0907-1007
48	CLIP; FRAME HARNESS (I) ID=18 L=48	9-09917-429-0	02	1	1008-1201
48	CLIP; FRAME HARNESS (J) ID=14 L=44	9-09917-427-0	02	1	1202-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0907-
48	CLIP; FRAME HARNESS (A) ID=32 L=50	1-09701-055-1	01	1	0907-
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	0907-
48	CLIP; FRAME HARNESS (D) ID=17.5X2 L=25	5-09700-358-0	01	1	0907-
49	CLIP; GEN HARNESS (A) ID=19 L=20	0-95235-836-0	04	1	0907-
49	CLIP; GEN HARNESS (B) ID=19 H=21 L=24	5-09700-360-0	01	1	0907-
49	CLIP; GEN HARNESS (C) ID=19 H=25 L=25	9-09917-035-0	01	1	0907-
49	CLIP; GEN HARNESS (D) ID=20 L=50	9-09917-430-0	01	1	0907-0912
81	CLIP; HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	0907-
81	CLIP; HARNESS (B) ID=6.35 & 15	1-09709-276-1	01	1	0907-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	0907-
231	CLIP; BAND,OIL PRESS (A) L=180	1-09707-162-1	02	1	0907-
231	CLIP; BAND,OIL PRESS (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0907-
305	CLIP; ENG HARNESS (B) ID=13 L=24	0-95235-245-0	01	1	0907-
305	CLIP; ENG HARNESS (C) ID=16 L=40	0-95235-576-0	01	1	0907-
305	CLIP; ENG HARNESS (A) ID=21 L=47.5	8-94178-108-0	01	1	0907-
305	CLIP; ENG HARNESS (D) ID=18 L=44	8-97367-985-1	01	1	0907-
306	CLIP; HARNESS,ELEC GOV (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0907-
306	CLIP; HARNESS,ELEC GOV (B) ID=28 L=32	1-09701-107-1	01	1	0907-
306	CLIP; HARNESS,ELEC GOV (C) ID=35X2 L=32	1-09701-314-0	01	1	0907-

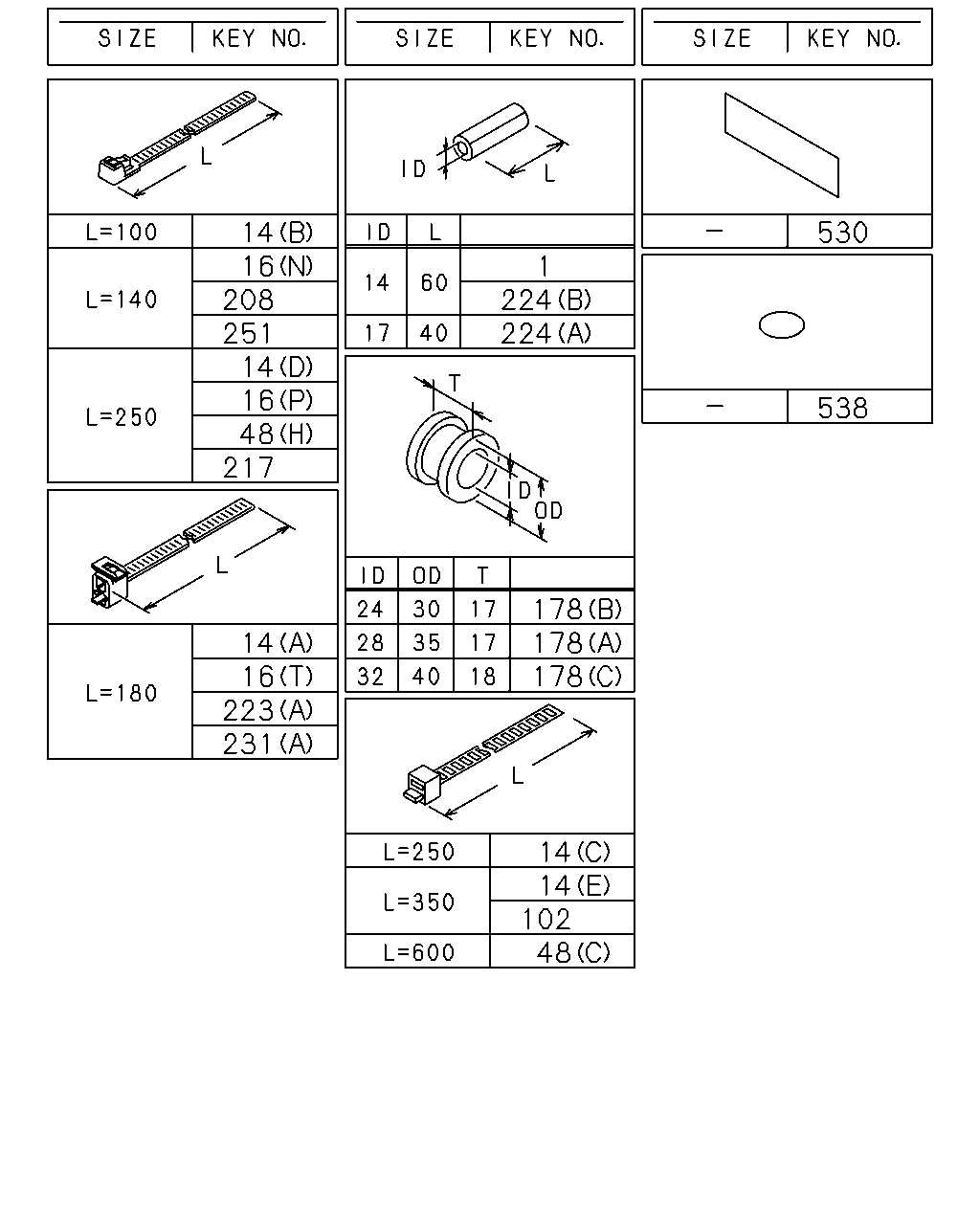

14 16 208 251 14 16 48 217 530 1 224 224 538 178 178 178 14 16 223 231 14 14 102 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER ID=14 OD=18 L=60	1-09337-030-0	04	1	0907-
14	CLIP; BAND,HARNESS (C) L=250	1-09707-126-0	02	1	0907-
14	CLIP; BAND,HARNESS (A) L=180	1-09707-162-1	08	1	0907-1207
14	CLIP; BAND,HARNESS (A) L=180	8-98216-427-0	08	1	1208-
14	CLIP; BAND,HARNESS (E) L=350	1-09707-183-0	01	1	0907-0907
14	CLIP; BAND,HARNESS (E) L=350	1-09707-183-0	02	1	0908-
14	CLIP; BAND,HARNESS (D) L=250	5-09707-030-1	02	1	0907-1106
14	CLIP; BAND,HARNESS (D) L=250	5-09707-030-1	08	1	1107-1205
14	CLIP; BAND,HARNESS (D) L=250	8-98216-430-0	08	1	1206-
14	CLIP; BAND,HARNESS (D) L=250	5-09707-030-1	01	1	0907-0910
14	CLIP; BAND,HARNESS (D) L=250	5-09707-030-1	03	1	0907-
14	CLIP; BAND,HARNESS (B) L=100	5-09707-036-1	06	1	0907-1106
16	CLIP; HARNESS (G) ID=10 & 12	1-09709-278-1	02	1	0907-0911
16	CLIP; HARNESS (G) ID=10 & 12	1-09709-278-1	01	1	0912-
16	CLIP; HARNESS (V) ID=21 L=30 H=40	1-09700-991-1	01	1	1009-
16	CLIP; HARNESS (U) ID=7 L=16	0-95234-625-0	01	1	0907-
16	CLIP; HARNESS (H) ID=11 L=16	0-95235-025-0	02	1	0907-
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	02	1	0907-
16	CLIP; HARNESS (I) ID=11X2 L=16	1-09700-734-0	01	1	0907-
16	CLIP; HARNESS (E) ID=35 L=35	1-09700-895-0	01	1	0907-
16	CLIP; HARNESS (R) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0907-
16	CLIP; HARNESS (F) ID=35 H=45 L=33	1-09700-947-0	01	1	0907-0912
16	CLIP; HARNESS (S) ID=19 L=32	1-09701-235-0	01	1	0907-0910
16	CLIP; HARNESS (W) ID=16 L=28	0-95235-556-0	03	1	0911-1008
16	CLIP; HARNESS (X) ID=19 L=20	0-95235-836-0	02	1	1009-
16	CLIP; HARNESS (T) L=180	1-09707-162-1	01	1	0907-
16	CLIP; HARNESS (K) ID=10 & 10	1-09709-277-1	03	1	0907-0911
16	CLIP; HARNESS (K) ID=10 & 10	1-09709-277-1	04	1	0912-
16	CLIP; HARNESS (L) ID=5-12 L=18	1-09709-287-0	03	1	0907-
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	01	1	0907-
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	03	1	0907-
16	CLIP; HARNESS (P) L=250	5-09707-030-1	01	1	0907-
16	CLIP; HARNESS (N) L=140	5-09707-031-1	01	1	0907-
16	CLIP; HARNESS (J) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0907-
16	CLIP; HARNESS (Q) ID=21 L=24	8-94176-807-1	01	1	0907-0910
16	CLIP; HARNESS (Q) ID=21 L=24	8-94176-807-1	01	1	0907-0910
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0907-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0907-1202
16	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS (O) L=40.6	8-97229-357-0	02	1	0907-1202
16	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (O) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0907-1202
16	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (C)	8-98052-679-0	02	1	1203-
48	CLIP; FRAME HARNESS (H) L=250	5-09707-030-1	02	1	0907-
48	CLIP; FRAME HARNESS (J) ID=14 L=44	9-09917-427-0	14	1	1008-
48	CLIP; FRAME HARNESS (C) L=600	1-09707-107-1	01	1	0907-
48	CLIP; FRAME HARNESS (F) OD=9 H=9.5	1-09709-179-0	01	1	0907-
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	0907-
48	CLIP; FRAME HARNESS (I) ID=18 L=48	9-09917-429-0	16	1	0907-1007
48	CLIP; FRAME HARNESS (I) ID=18 L=48	9-09917-429-0	02	1	1008-1201
48	CLIP; FRAME HARNESS (J) ID=14 L=44	9-09917-427-0	02	1	1202-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0907-
48	CLIP; FRAME HARNESS (A) ID=32 L=50	1-09701-055-1	01	1	0907-
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	0907-
48	CLIP; FRAME HARNESS (D) ID=17.5X2 L=25	5-09700-358-0	01	1	0907-
102	CLIP; BAND L=350	1-09707-183-0	01	1	0907-0911
178	GROMMET; HARNESS (C) ID=32 OD=40 T=18	1-09891-003-0	01	1	0907-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	0907-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	0907-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0907-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	03	1	0907-
208	CLIP; HARNESS,MAG VLV L=140	5-09707-031-1	02	1	0907-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	0907-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	03	1	0907-
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	06	1	0907-
223	CLIP; AIR TANK HARNESS (A) L=180	1-09707-162-1	01	1	0907-
224	SLEEVE; RUBBER,HARNESS (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	0907-
224	SLEEVE; RUBBER,HARNESS (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	0907-
231	CLIP; BAND,OIL PRESS (A) L=180	1-09707-162-1	02	1	0907-
231	CLIP; BAND,OIL PRESS (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0907-
251	CLIP; WATER LEVEL HARNESS L=140	5-09707-031-1	01	1	0907-
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	0907-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	01	1	1306-
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	0907-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	15	1	1306-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	0907-

308 312 312 312 335 428 324 324 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
308	BRACKET; CLIP,ENG HARNESS	8-97602-870-1	01	1	0907-
312	BRACKET; CLIP HARNESS (A)	1-34656-009-0	01	1	0907-
312	BRACKET; CLIP HARNESS (C) L=55	1-47475-304-0	01	1	0907-
312	BRACKET; CLIP HARNESS (B)	8-98097-366-0	01	1	0907-
324	BRACKET; CLIP (A)	1-82699-182-0	01	1	0907-
324	BRACKET; CLIP (B)	8-98051-649-1	01	1	0907-
324	BRACKET; CLIP (B)	8-98051-648-1	01	1	0907-
335	BRACKET; CONNECTOR	1-82698-167-0	01	1	0907-
428	BRACKET (A)	8-97609-798-0	01	1	0907-0912
428	BRACKET (B)	8-98155-277-0	01	1	1001-

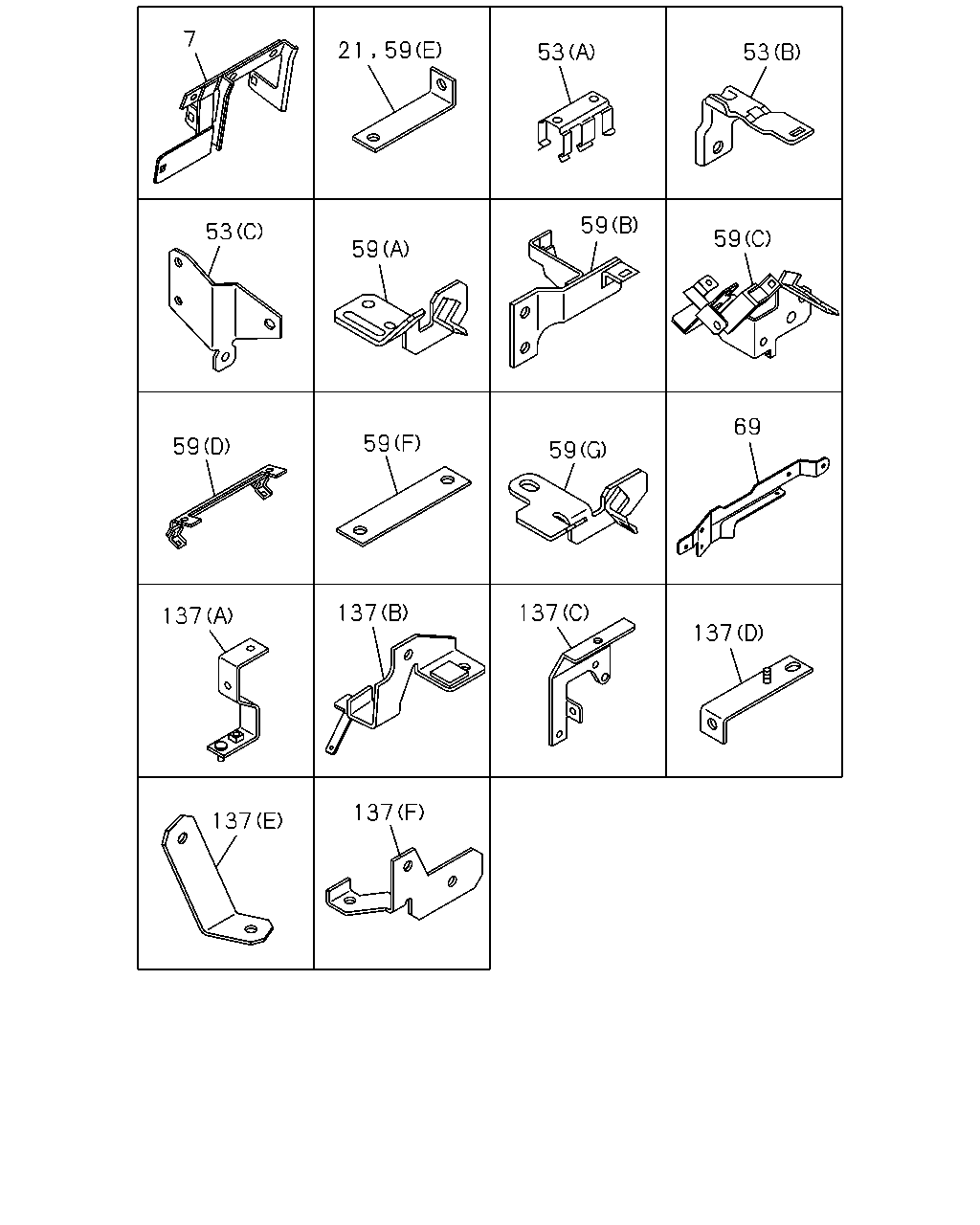

7 21 59 53 53 59 59 59 53 59 59 59 69 137 137 137 137 137 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	0907-
21	BRACKET; ENG HARNESS L=95	1-82699-085-0	01	1	0907-
53	BRACKET; HARNESS (A)	8-97262-725-0	01	1	0907-
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	0907-
53	BRACKET; HARNESS (C)	8-98047-891-0	01	1	0907-
53	BRACKET; HARNESS (C)	8-98047-890-0	01	1	0907-
59	BRACKET; FRAME HARNESS (E) L=55	1-47475-304-0	01	1	0907-0912
59	BRACKET; FRAME HARNESS (F) L=85	8-98044-743-0	01	1	1001-
59	BRACKET; FRAME HARNESS (D)	8-97619-533-0	01	1	0907-
59	BRACKET; FRAME HARNESS (B)	8-98094-803-0	01	1	0907-
59	BRACKET; FRAME HARNESS (A)	8-97616-305-0	01	1	0907-1502
59	BRACKET; FRAME HARNESS (G)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (C)	8-97619-534-0	01	1	0907-
69	BRACKET; CLIP	8-97614-738-0	01	1	0907-
137	BRACKET; HARNESS CLAMP (E)	8-97614-728-1	01	1	0907-
137	BRACKET; HARNESS CLAMP (C)	8-97618-098-2	01	1	0907-
137	BRACKET; HARNESS CLAMP (D)	8-97624-013-0	01	1	0907-
137	BRACKET; HARNESS CLAMP (A)	8-98065-904-0	01	1	0907-
137	BRACKET; HARNESS CLAMP (B)	8-98047-324-0	01	1	0907-
137	BRACKET; HARNESS CLAMP (F)	8-98059-231-1	01	1	0907-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
