◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11227 - FSR(CNG)AUSTRALIA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#22912) — 207 parça

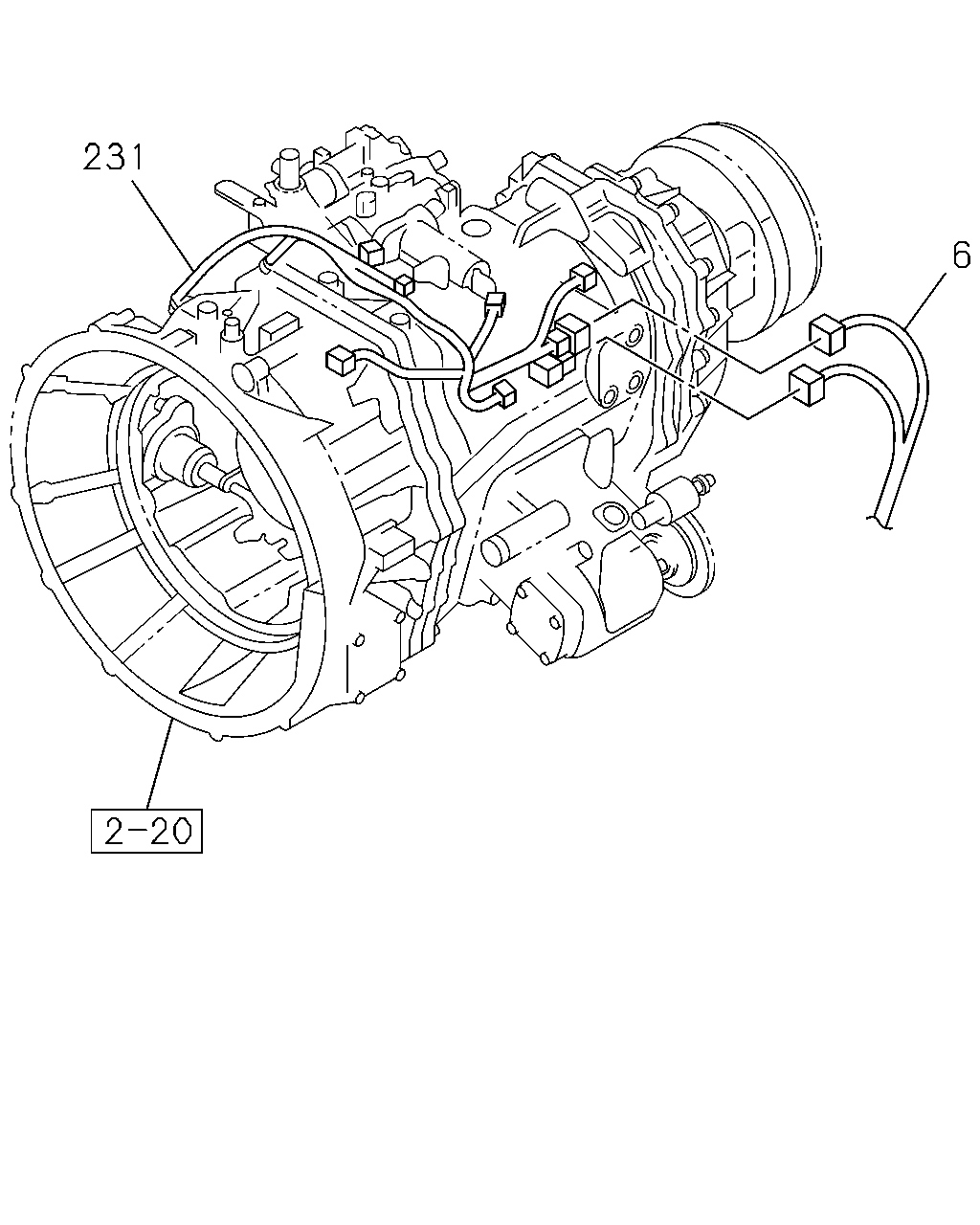

çizim 14924
231 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
FRONT UNDER RUN PROTECTOR<EBE> SPEED LIMITER 100KM(NMU) 		8-98195-675-2 01 1 1108-
6 HARNESS; FRAME 8-98146-787-0 01 1 0907-0912
6 HARNESS; FRAME 8-98157-801-1 01 1 1001-1107
6 HARNESS; FRAME
EXC. FRONT UNDER RUN PROTECTOR<EBE>,SPEED LIMITER 100KM(NMU) 		8-98157-801-3 01 1 1108-
231 HARNESS; TRANS
VIN MODEL YEAR 2014<VZE> 		8-98245-295-0 01 1 1307-
231 HARNESS; TRANS 8-98094-478-0 01 1 0907-0910
231 HARNESS; TRANS 8-98157-114-3 01 1 0911-1306
231 HARNESS; TRANS
EXC. VIN MODEL YEAR 2014<VZE> 		8-98157-114-3 01 1 1307-

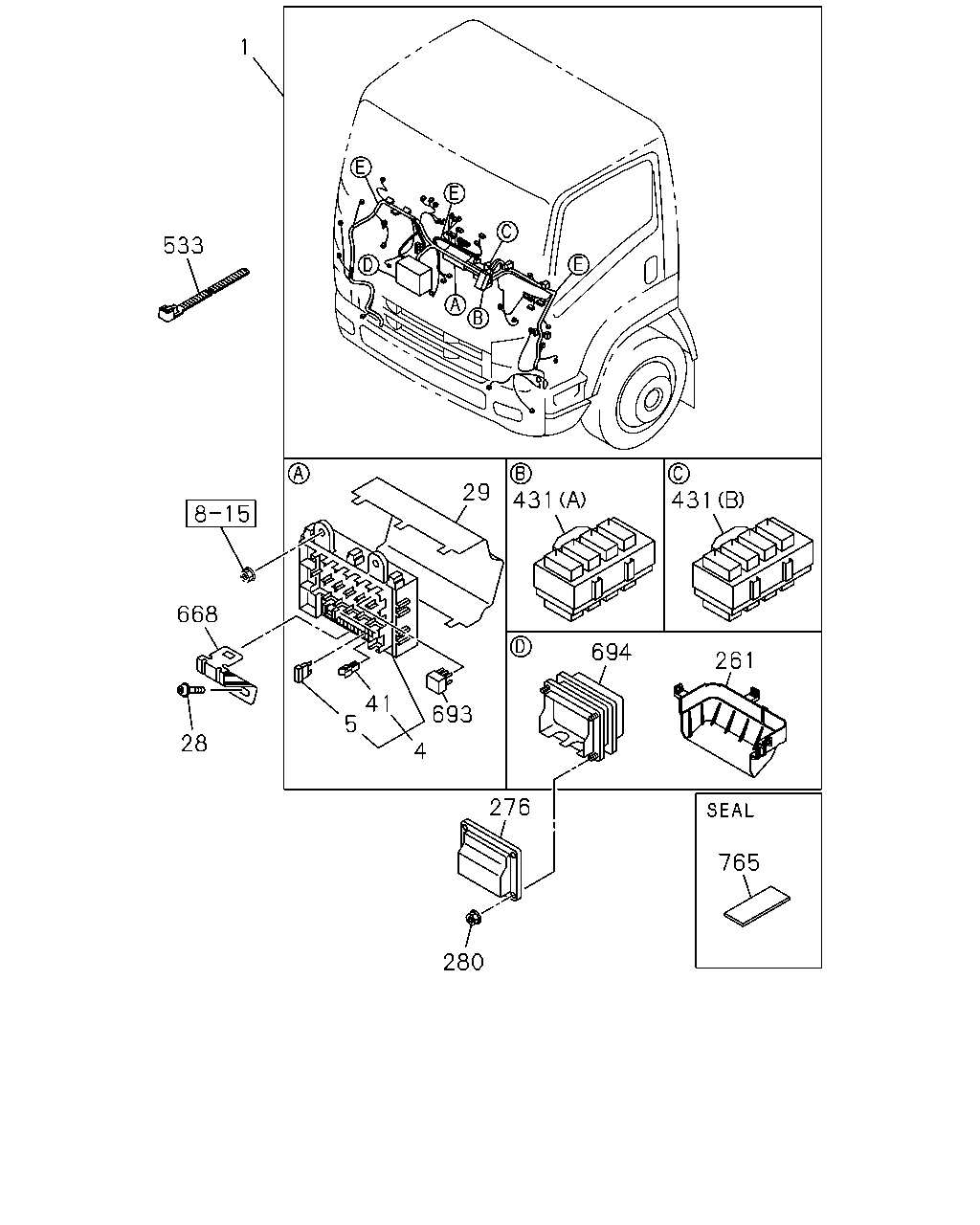

çizim 14953
1 533 29 431 431 261 694 693 41 5 4 28 668 280 276 765
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2014<VZE> 		8-98244-200-0 01 1 1307-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> 		8-98189-100-0 01 1 1110-1203
1 HARNESS; CAB 8-98189-100-0 01 1 1204-1206
1 HARNESS; CAB 8-98208-114-0 01 1 1207-1209
1 HARNESS; CAB
EXC. VIN MODEL YEAR 2013<VZD> 		8-98208-114-0 01 1 1210-1306
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. VIN MODEL YEAR 2013<VZD>,VIN MODEL YEAR 2014<VZE> 		8-98208-114-0 01 1 1307-
1 HARNESS; CAB
VIN MODEL YEAR 2013<VZD> 		8-98224-954-1 01 1 1210-1306
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2013<VZD>,VIN MODEL YEAR 2014<VZE> 		8-98224-954-1 01 1 1307-
1 HARNESS; CAB 8-98142-295-1 01 1 0907-1109
1 HARNESS; CAB
EXC. IN HOUSE PRODUCTION<TKF> 		8-98142-295-1 01 1 1110-1203
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 0907-1306
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1307-
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 0907-1306
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1307-
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 0907-1306
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1307-
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 0907-1306
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1307-
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 01 1 0907-1206
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 AR 1 1207-
28 SCREW; FUSE BOX
AIR CONDITIONER MANUAL CONTROL(C60) T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 0907-
29 COVER; FUSE BOX 8-98056-968-0 01 1 0907-1306
29 COVER; FUSE BOX 8-98056-968-0 01 1 1307-
41 PULLER; FUSE 8-98054-260-0 01 1 0907-1306
41 PULLER; FUSE 8-98054-260-0 01 1 1307-
261 COVER; CONNECTOR BOX 8-98065-986-1 01 1 1207-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 0907-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 0907-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 0907-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 0907-1107
431 CONNECTOR; JOINT
EXC. FRONT UNDER RUN PROTECTOR<EBE>,SPEED LIMITER 100KM(NMU) (H) 6P BLACK 		8-97616-194-0 01 1 1108-
431 CONNECTOR; JOINT
(H) 6P LIGHT GRAY 		8-97616-195-0 01 1 0907-1107
431 CONNECTOR; JOINT
EXC. FRONT UNDER RUN PROTECTOR<EBE>,SPEED LIMITER 100KM(NMU) (H) 6P LIGHT GRAY 		8-97616-195-0 01 1 1108-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 02 1 0907-1206
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 03 1 0907-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 0907-1206
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 03 1 0907-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 0907-1206
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 0907-1206
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 0907-1306
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1307-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 0907-1306
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1307-
533 CLIP
L=180 		1-09707-162-1 01 1 1206-
533 CLIP
L=250 		5-09707-030-1 01 1 1206-
668 BRACKET; HARNESS 8-98095-653-2 01 1 0907-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 0907-1306
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1307-
694 BOX ASM; CONNECTOR 8-98063-269-1 01 1 0907-1206
694 BOX ASM; CONNECTOR 8-98057-771-0 01 1 1207-
765 TAPE
100X40 		1-72498-022-1 01 1 1409-

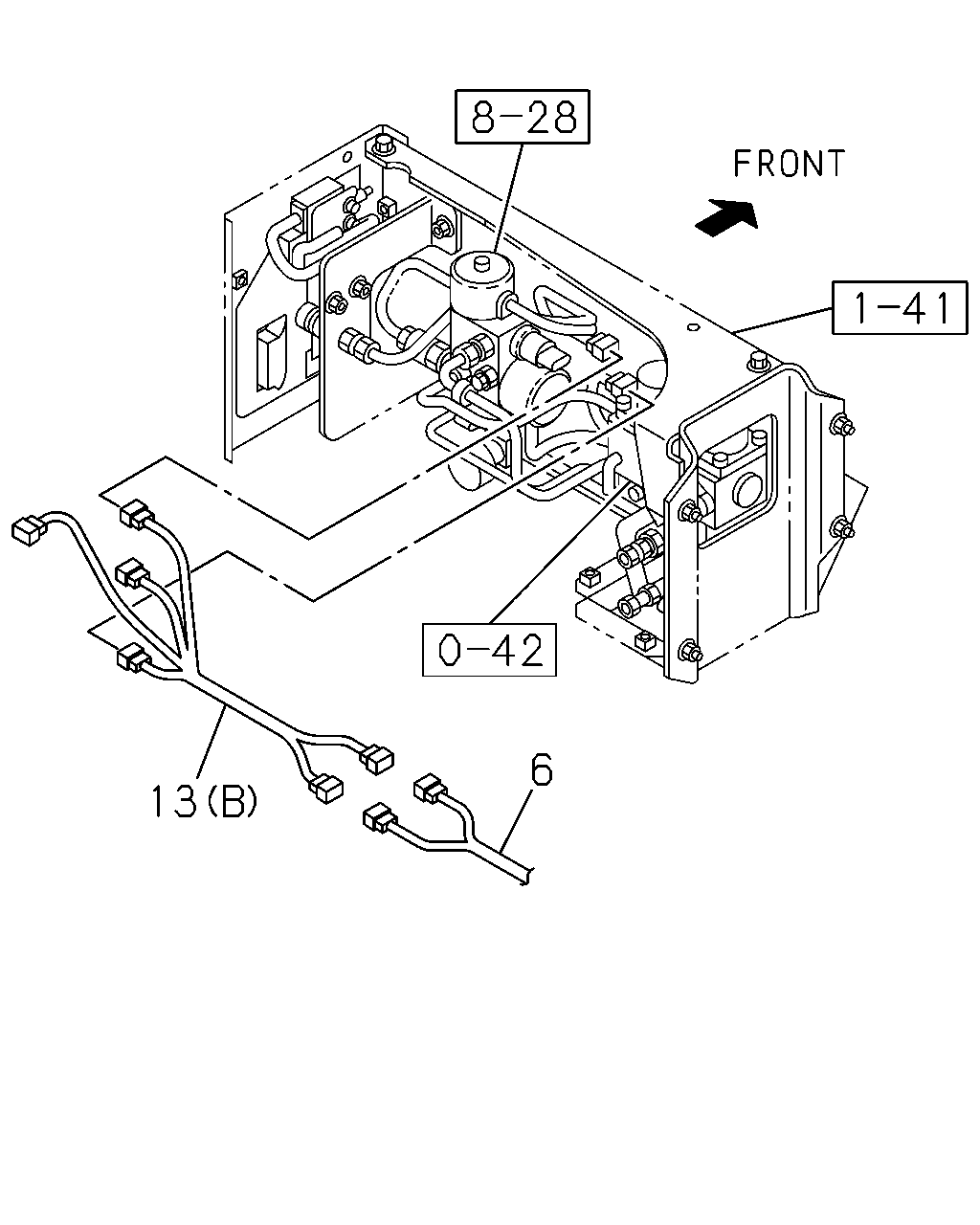

çizim 14955
6 13
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
FRONT UNDER RUN PROTECTOR<EBE> SPEED LIMITER 100KM(NMU) 		8-98195-675-2 01 1 1108-
6 HARNESS; FRAME 8-98146-787-0 01 1 0907-0912
6 HARNESS; FRAME 8-98157-801-1 01 1 1001-1107
6 HARNESS; FRAME
EXC. FRONT UNDER RUN PROTECTOR<EBE>,SPEED LIMITER 100KM(NMU) 		8-98157-801-3 01 1 1108-
13 HARNESS; ENG
(B) 		8-97615-514-0 01 1 0907-
13 HARNESS; ENG
(A) 		8-98093-379-3 01 1 0907-1006
13 HARNESS; ENG
(A) 		8-98172-307-0 01 1 1007-

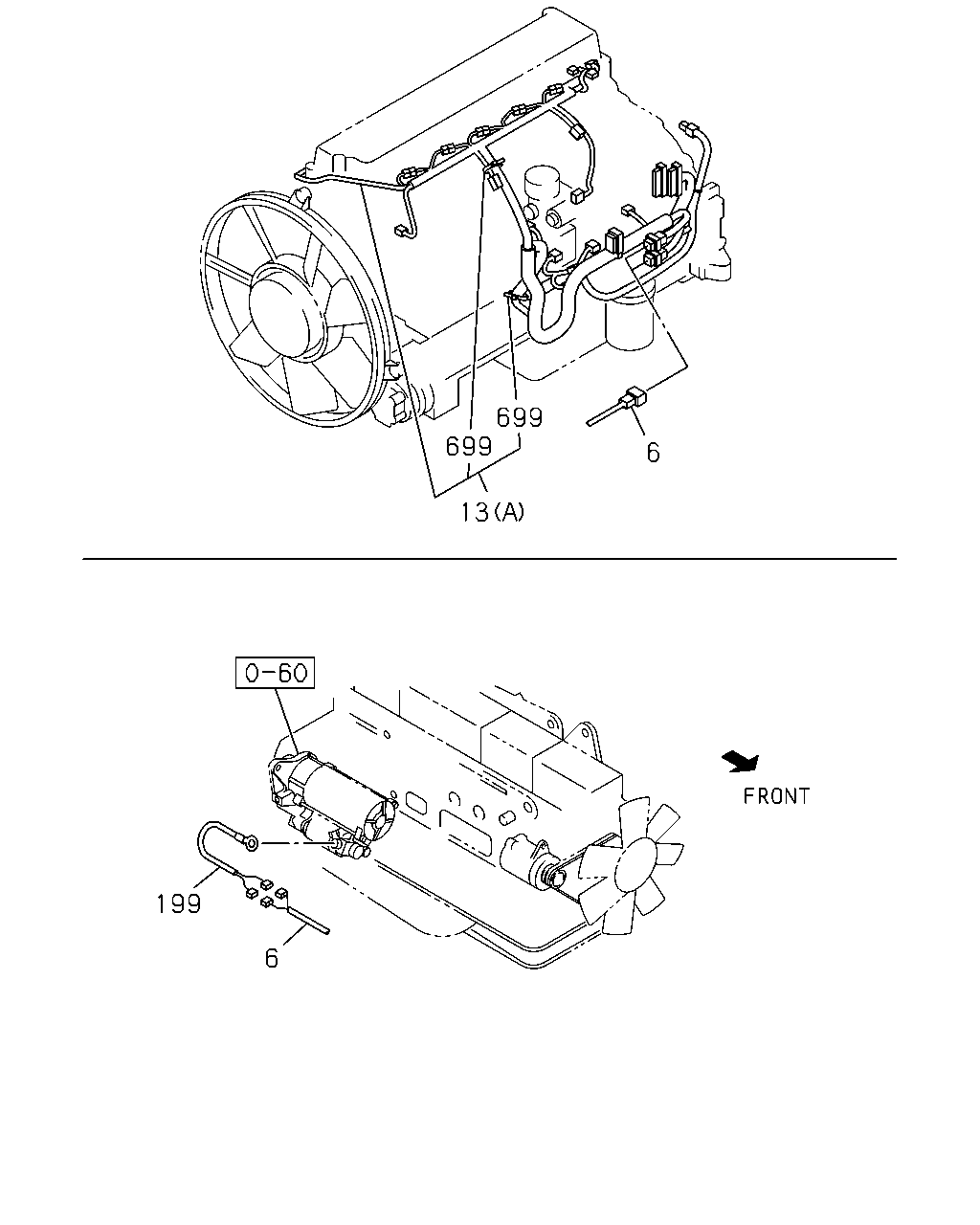

çizim 14956
699 699 6 13 199 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
FRONT UNDER RUN PROTECTOR<EBE> SPEED LIMITER 100KM(NMU) 		8-98195-675-2 01 1 1108-
6 HARNESS; FRAME 8-98146-787-0 01 1 0907-0912
6 HARNESS; FRAME 8-98157-801-1 01 1 1001-1107
6 HARNESS; FRAME
EXC. FRONT UNDER RUN PROTECTOR<EBE>,SPEED LIMITER 100KM(NMU) 		8-98157-801-3 01 1 1108-
13 HARNESS; ENG
(B) 		8-97615-514-0 01 1 0907-
13 HARNESS; ENG
(A) 		8-98093-379-3 01 1 0907-1006
13 HARNESS; ENG
(A) 		8-98172-307-0 01 1 1007-
199 HARNESS; STARTER 8-98082-159-1 01 1 0907-0910
699 CLIP; ENG HARNESS
L=170.3 		1-09987-182-0 02 1 0907-

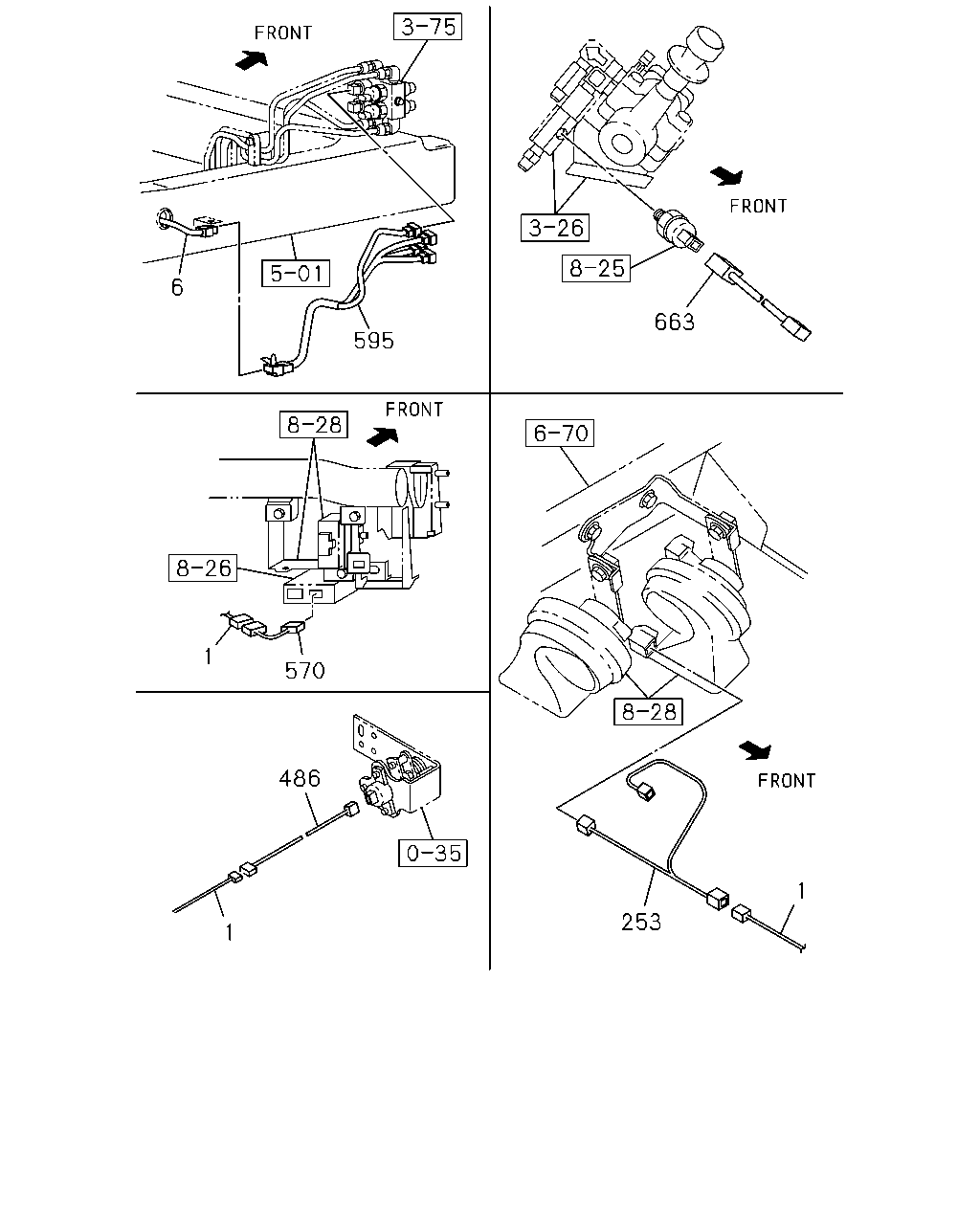

çizim 61835
6 663 595 1 570 486 1 253 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2014<VZE> 		8-98244-200-0 01 1 1307-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> 		8-98189-100-0 01 1 1110-1203
1 HARNESS; CAB 8-98189-100-0 01 1 1204-1206
1 HARNESS; CAB 8-98208-114-0 01 1 1207-1209
1 HARNESS; CAB
EXC. VIN MODEL YEAR 2013<VZD> 		8-98208-114-0 01 1 1210-1306
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. VIN MODEL YEAR 2013<VZD>,VIN MODEL YEAR 2014<VZE> 		8-98208-114-0 01 1 1307-
1 HARNESS; CAB
VIN MODEL YEAR 2013<VZD> 		8-98224-954-1 01 1 1210-1306
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2013<VZD>,VIN MODEL YEAR 2014<VZE> 		8-98224-954-1 01 1 1307-
1 HARNESS; CAB 8-98142-295-1 01 1 0907-1109
1 HARNESS; CAB
EXC. IN HOUSE PRODUCTION<TKF> 		8-98142-295-1 01 1 1110-1203
6 HARNESS; FRAME
FRONT UNDER RUN PROTECTOR<EBE> SPEED LIMITER 100KM(NMU) 		8-98195-675-2 01 1 1108-
6 HARNESS; FRAME 8-98146-787-0 01 1 0907-0912
6 HARNESS; FRAME 8-98157-801-1 01 1 1001-1107
6 HARNESS; FRAME
EXC. FRONT UNDER RUN PROTECTOR<EBE>,SPEED LIMITER 100KM(NMU) 		8-98157-801-3 01 1 1108-
253 HARNESS; EXT,HORN 8-98074-081-2 01 1 0907-
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82675-898-0 01 1 0907-
570 HARNESS; SPEED SENSOR
TACHOGRAPH 140KM/H<WC7> 		8-98058-327-1 01 1 0907-1012
570 HARNESS; SPEED SENSOR
SPEED LIMITER 100KM(NMU) 		8-98058-327-1 01 1 1101-
570 HARNESS; SPEED SENSOR
TACHOGRAPH 140KM/H<WC7> EXC. SPEED LIMITER 100KM(NMU) 		8-98058-327-1 01 1 1101-
595 HARNESS; WARNING,BRK 8-97621-003-3 01 1 0907-
663 HARNESS; EXTENSION,RR WHEEL PARKING 8-98126-779-0 01 1 0907-0907

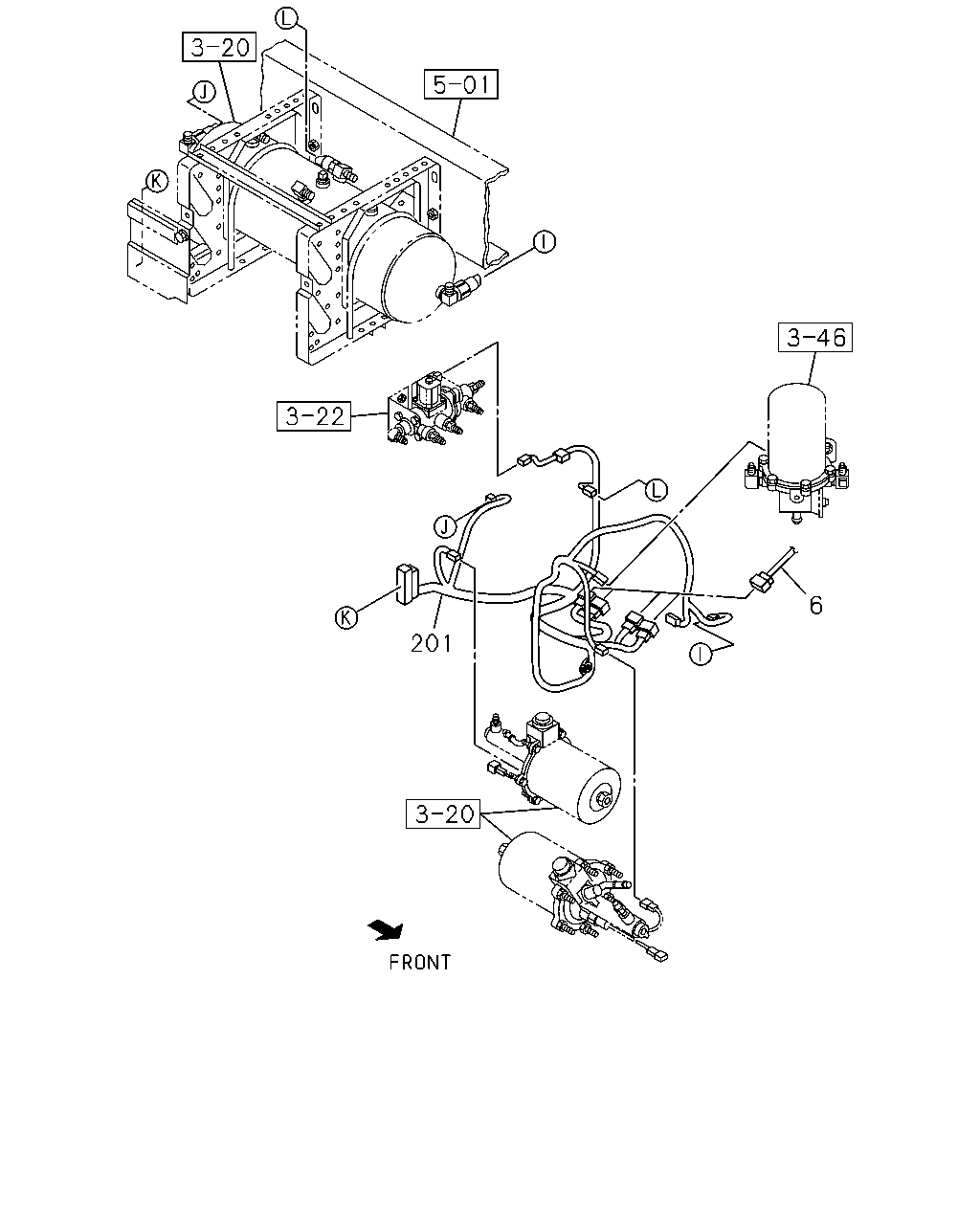

çizim 62866
6 201
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
FRONT UNDER RUN PROTECTOR<EBE> SPEED LIMITER 100KM(NMU) 		8-98195-675-2 01 1 1108-
6 HARNESS; FRAME 8-98146-787-0 01 1 0907-0912
6 HARNESS; FRAME 8-98157-801-1 01 1 1001-1107
6 HARNESS; FRAME
EXC. FRONT UNDER RUN PROTECTOR<EBE>,SPEED LIMITER 100KM(NMU) 		8-98157-801-3 01 1 1108-
201 HARNESS; AIR TANK 8-98146-693-2 01 1 0907-

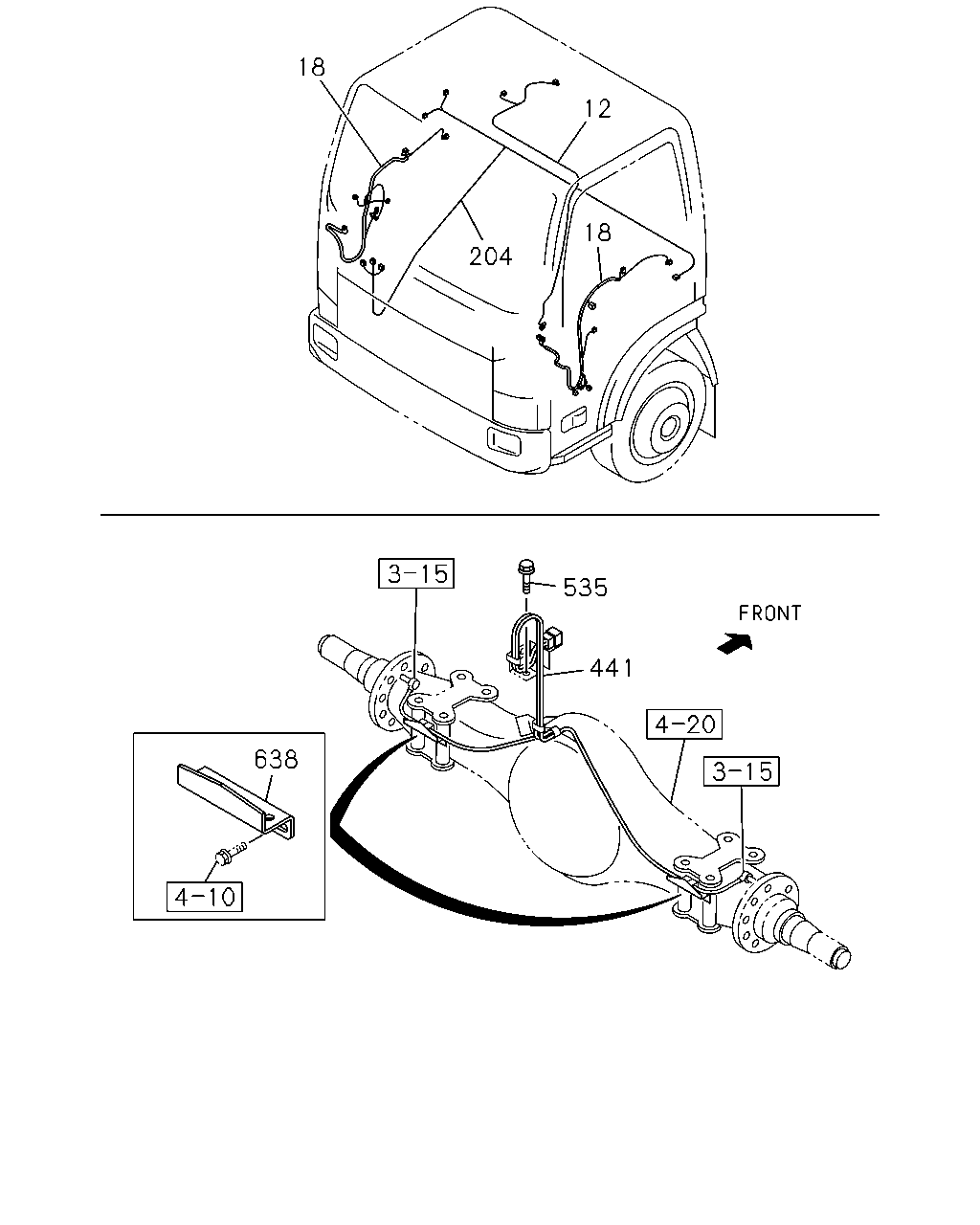

çizim 63169
18 12 18 204 535 441 638
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF 8-98079-071-1 01 1 0907-
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> CORNERING LAMP<T87> 		8-98225-378-0 01 1 1210-
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> CORNERING LAMP<T87> 		8-98225-379-0 01 1 1210-
18 HARNESS; DOOR 8-98079-076-5 01 1 0907-1202
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> 		8-98079-076-5 01 1 1203-1209
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> 		8-98079-076-5 01 1 1210-
18 HARNESS; DOOR 8-98079-079-5 01 1 0907-1202
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> 		8-98079-079-5 01 1 1203-1209
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> 		8-98079-079-5 01 1 1210-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER(AK5) 		8-98244-234-0 01 1 1307-
204 HARNESS; CABLE,FLOOR 8-98142-294-0 01 1 0907-1306
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) 		8-98142-294-0 01 1 1307-
441 HARNESS; CABLE,SPEED SENSOR 8-98061-652-0 01 1 0907-
535 BOLT; BRKT FIX
M8X10 W/LK WASHER 		8-98029-928-0 02 1 0907-
638 BRACKET; SPD SENSOR 8-98012-580-1 02 1 0907-

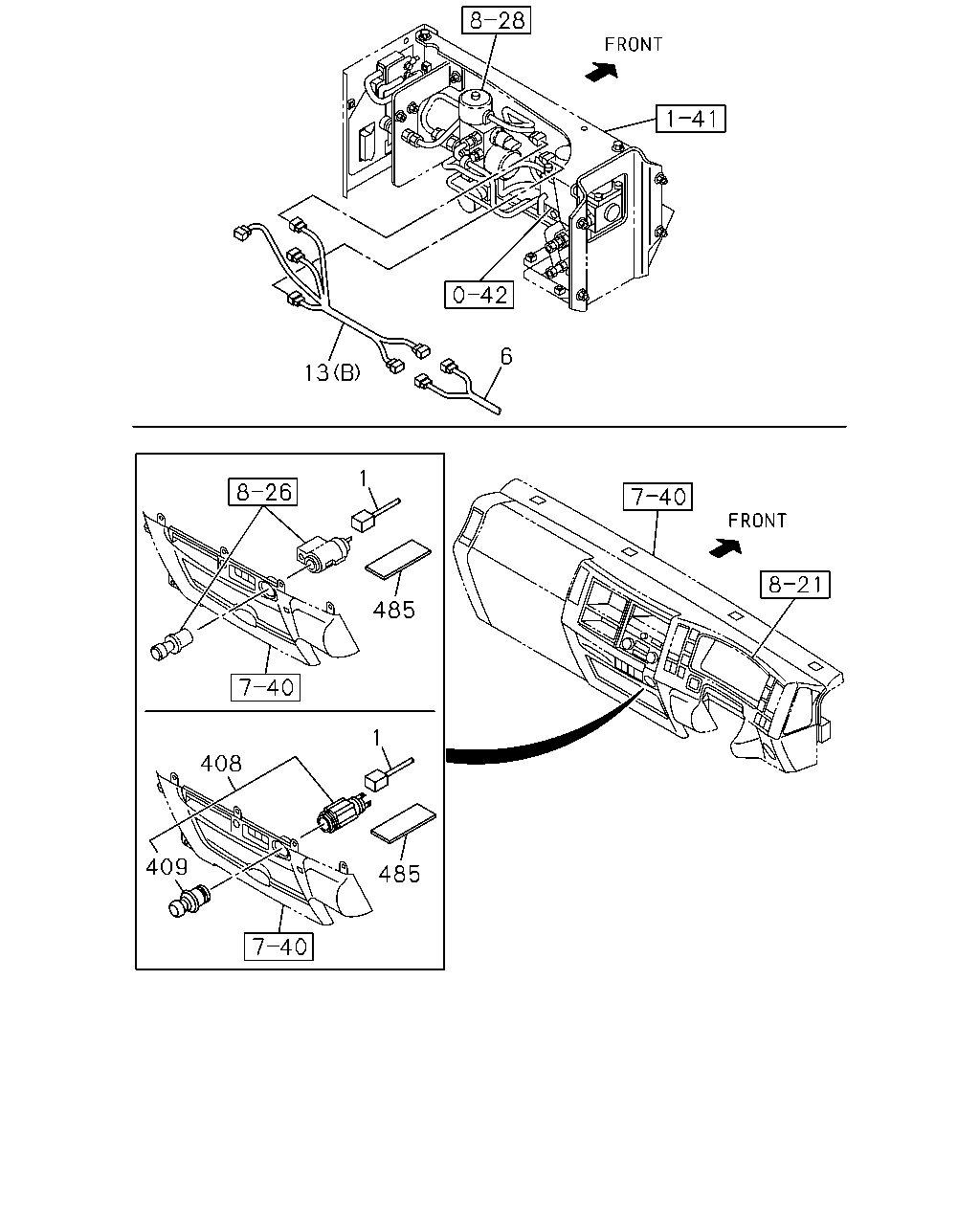

çizim 63225
13 6 1 485 1 408 485 409
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2014<VZE> 		8-98244-200-0 01 1 1307-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> 		8-98189-100-0 01 1 1110-1203
1 HARNESS; CAB 8-98189-100-0 01 1 1204-1206
1 HARNESS; CAB 8-98208-114-0 01 1 1207-1209
1 HARNESS; CAB
EXC. VIN MODEL YEAR 2013<VZD> 		8-98208-114-0 01 1 1210-1306
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. VIN MODEL YEAR 2013<VZD>,VIN MODEL YEAR 2014<VZE> 		8-98208-114-0 01 1 1307-
1 HARNESS; CAB
VIN MODEL YEAR 2013<VZD> 		8-98224-954-1 01 1 1210-1306
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2013<VZD>,VIN MODEL YEAR 2014<VZE> 		8-98224-954-1 01 1 1307-
1 HARNESS; CAB 8-98142-295-1 01 1 0907-1109
1 HARNESS; CAB
EXC. IN HOUSE PRODUCTION<TKF> 		8-98142-295-1 01 1 1110-1203
6 HARNESS; FRAME
FRONT UNDER RUN PROTECTOR<EBE> SPEED LIMITER 100KM(NMU) 		8-98195-675-2 01 1 1108-
6 HARNESS; FRAME 8-98146-787-0 01 1 0907-0912
6 HARNESS; FRAME 8-98157-801-1 01 1 1001-1107
6 HARNESS; FRAME
EXC. FRONT UNDER RUN PROTECTOR<EBE>,SPEED LIMITER 100KM(NMU) 		8-98157-801-3 01 1 1108-
13 HARNESS; ENG
(B) 		8-97615-514-0 01 1 0907-
13 HARNESS; ENG
(A) 		8-98093-379-3 01 1 0907-1006
13 HARNESS; ENG
(A) 		8-98172-307-0 01 1 1007-
408 SOCKET ASM; ACCESSORY
VIN MODEL YEAR 2014<VZE> EXC. ASH TRAY PASSENGER DOOR<8LX> 		8-98169-757-0 01 1 1307-
409 CAP; ACCESSORY SOCKET
VIN MODEL YEAR 2014<VZE> EXC. ASH TRAY PASSENGER DOOR<8LX> 		8-98183-771-0 01 1 1307-
485 SEAL; CONNECTOR
180X40 		1-72498-019-1 01 1 0909-

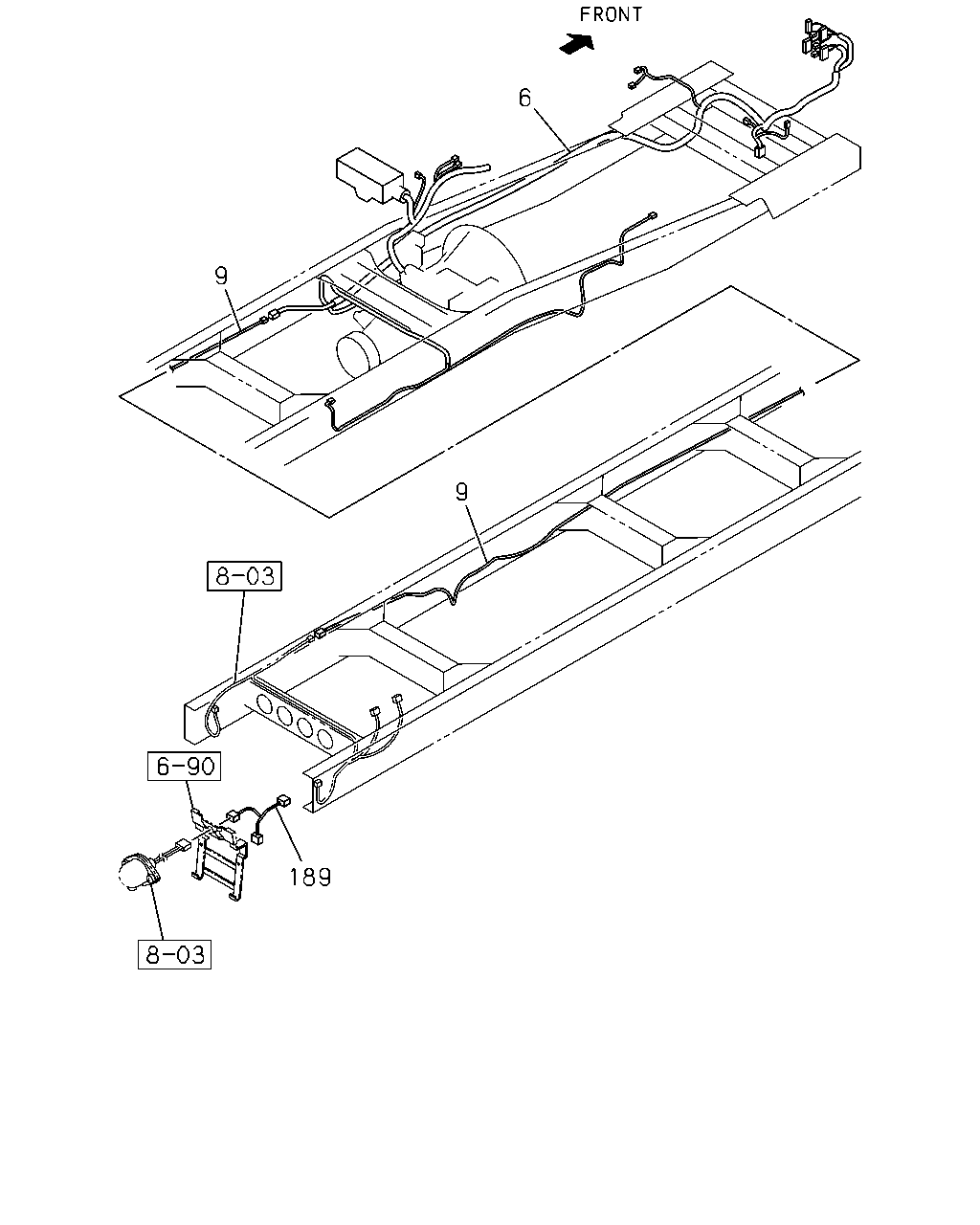

çizim 63243
6 9 9 189
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
FRONT UNDER RUN PROTECTOR<EBE> SPEED LIMITER 100KM(NMU) 		8-98195-675-2 01 1 1108-
6 HARNESS; FRAME 8-98146-787-0 01 1 0907-0912
6 HARNESS; FRAME 8-98157-801-1 01 1 1001-1107
6 HARNESS; FRAME
EXC. FRONT UNDER RUN PROTECTOR<EBE>,SPEED LIMITER 100KM(NMU) 		8-98157-801-3 01 1 1108-
9 HARNESS; FRAME,RR 8-98147-153-0 01 1 0907-1007
9 HARNESS; FRAME,RR 8-98168-603-0 01 1 1008-
189 HARNESS; EXT 8-98131-066-0 01 1 1206-

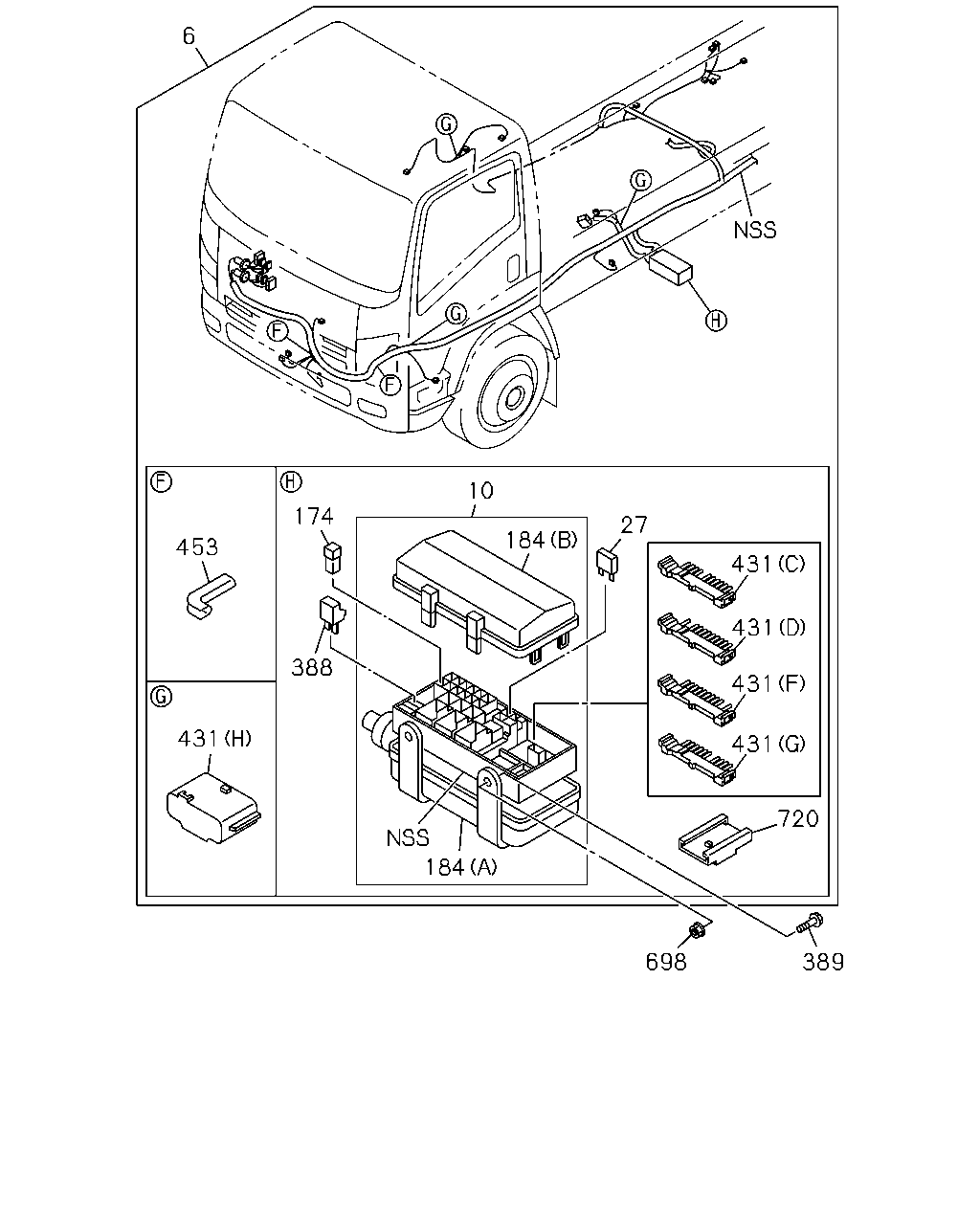

çizim 63248
6 10 174 27 184 453 431 431 388 431 431 431 720 184 698 389
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
FRONT UNDER RUN PROTECTOR<EBE> SPEED LIMITER 100KM(NMU) 		8-98195-675-2 01 1 1108-
6 HARNESS; FRAME 8-98146-787-0 01 1 0907-0912
6 HARNESS; FRAME 8-98157-801-1 01 1 1001-1107
6 HARNESS; FRAME
EXC. FRONT UNDER RUN PROTECTOR<EBE>,SPEED LIMITER 100KM(NMU) 		8-98157-801-3 01 1 1108-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 0907-
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 0907-
27 FUSE UNIT
15A BLUE 		8-98054-258-0 02 1 0907-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1107-
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 0907-
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 01 1 0907-
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 02 1 0907-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 02 1 0907-1106
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 0907-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 0907-
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 0907-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 0907-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 0907-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 0907-1107
431 CONNECTOR; JOINT
EXC. FRONT UNDER RUN PROTECTOR<EBE>,SPEED LIMITER 100KM(NMU) (H) 6P BLACK 		8-97616-194-0 01 1 1108-
431 CONNECTOR; JOINT
(H) 6P LIGHT GRAY 		8-97616-195-0 01 1 0907-1107
431 CONNECTOR; JOINT
EXC. FRONT UNDER RUN PROTECTOR<EBE>,SPEED LIMITER 100KM(NMU) (H) 6P LIGHT GRAY 		8-97616-195-0 01 1 1108-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 02 1 0907-1206
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 03 1 0907-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 0907-1206
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 03 1 0907-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 0907-1206
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 0907-1206
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 0907-1306
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1307-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 0907-1306
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1307-
453 PROTECTOR; HARNESS 1-82699-709-0 01 1 0907-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 0907-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 0907-

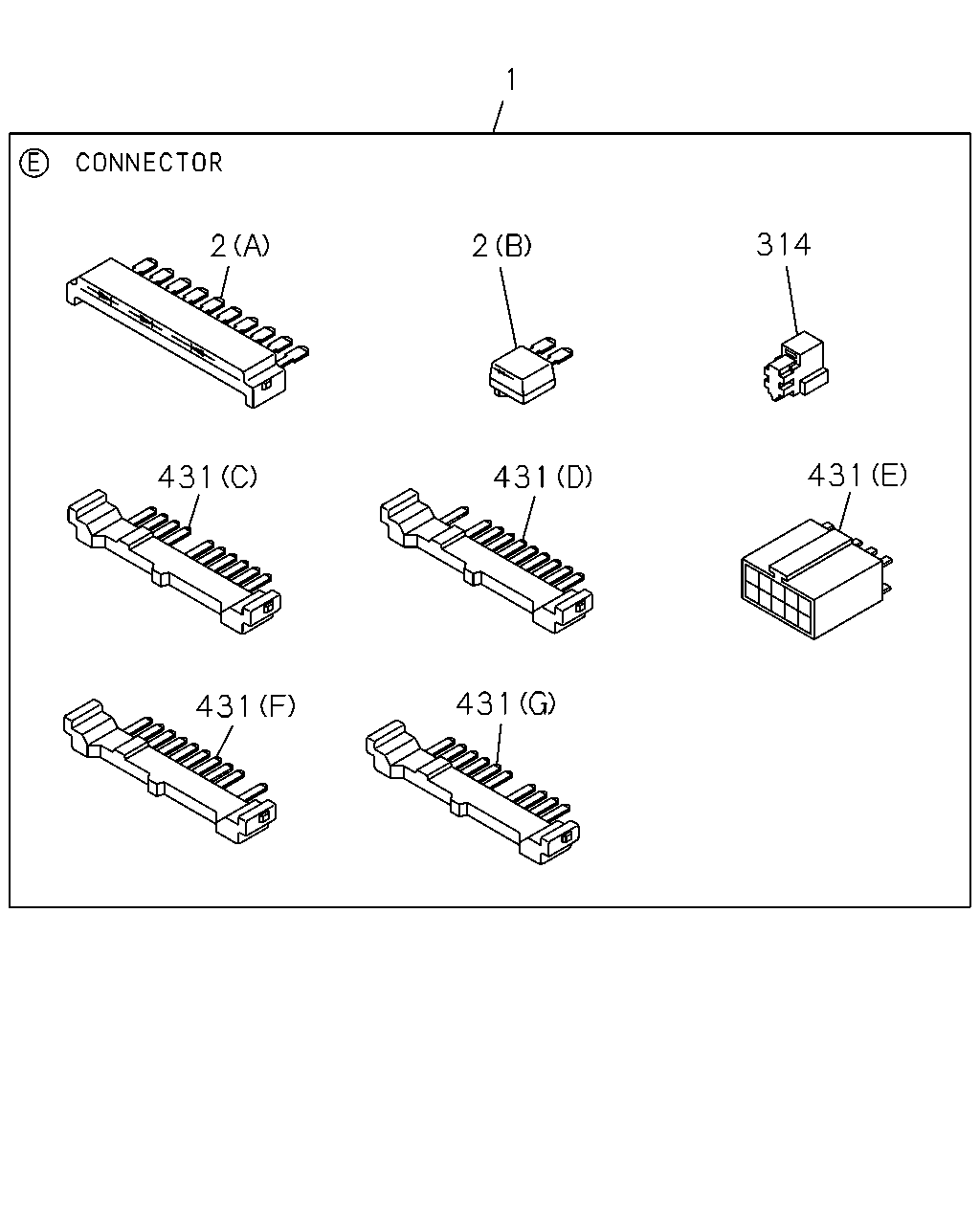

çizim 63426
1 314 2 2 431 431 431 431 431
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2014<VZE> 		8-98244-200-0 01 1 1307-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> 		8-98189-100-0 01 1 1110-1203
1 HARNESS; CAB 8-98189-100-0 01 1 1204-1206
1 HARNESS; CAB 8-98208-114-0 01 1 1207-1209
1 HARNESS; CAB
EXC. VIN MODEL YEAR 2013<VZD> 		8-98208-114-0 01 1 1210-1306
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. VIN MODEL YEAR 2013<VZD>,VIN MODEL YEAR 2014<VZE> 		8-98208-114-0 01 1 1307-
1 HARNESS; CAB
VIN MODEL YEAR 2013<VZD> 		8-98224-954-1 01 1 1210-1306
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2013<VZD>,VIN MODEL YEAR 2014<VZE> 		8-98224-954-1 01 1 1307-
1 HARNESS; CAB 8-98142-295-1 01 1 0907-1109
1 HARNESS; CAB
EXC. IN HOUSE PRODUCTION<TKF> 		8-98142-295-1 01 1 1110-1203
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 0907-1206
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 AR 1 1207-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 02 1 0907-1206
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1207-
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 0907-1206
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 0907-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 0907-1107
431 CONNECTOR; JOINT
EXC. FRONT UNDER RUN PROTECTOR<EBE>,SPEED LIMITER 100KM(NMU) (H) 6P BLACK 		8-97616-194-0 01 1 1108-
431 CONNECTOR; JOINT
(H) 6P LIGHT GRAY 		8-97616-195-0 01 1 0907-1107
431 CONNECTOR; JOINT
EXC. FRONT UNDER RUN PROTECTOR<EBE>,SPEED LIMITER 100KM(NMU) (H) 6P LIGHT GRAY 		8-97616-195-0 01 1 1108-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 02 1 0907-1206
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 03 1 0907-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 0907-1206
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 03 1 0907-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 0907-1206
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 0907-1206
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 0907-1306
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1307-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 0907-1306
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1307-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
