Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10653 - EXZ
▶
0 - Engine, Emission, Engine Electrical
▶
0-25B - INLET MANIFOLD
▶
0-25B — INLET MANIFOLD
(#2291) — 150 parça
Tümü
A - 12PD1 STD ENG
B - 10PD1 STD ENG
C - 8PD1 STD ENG
◀

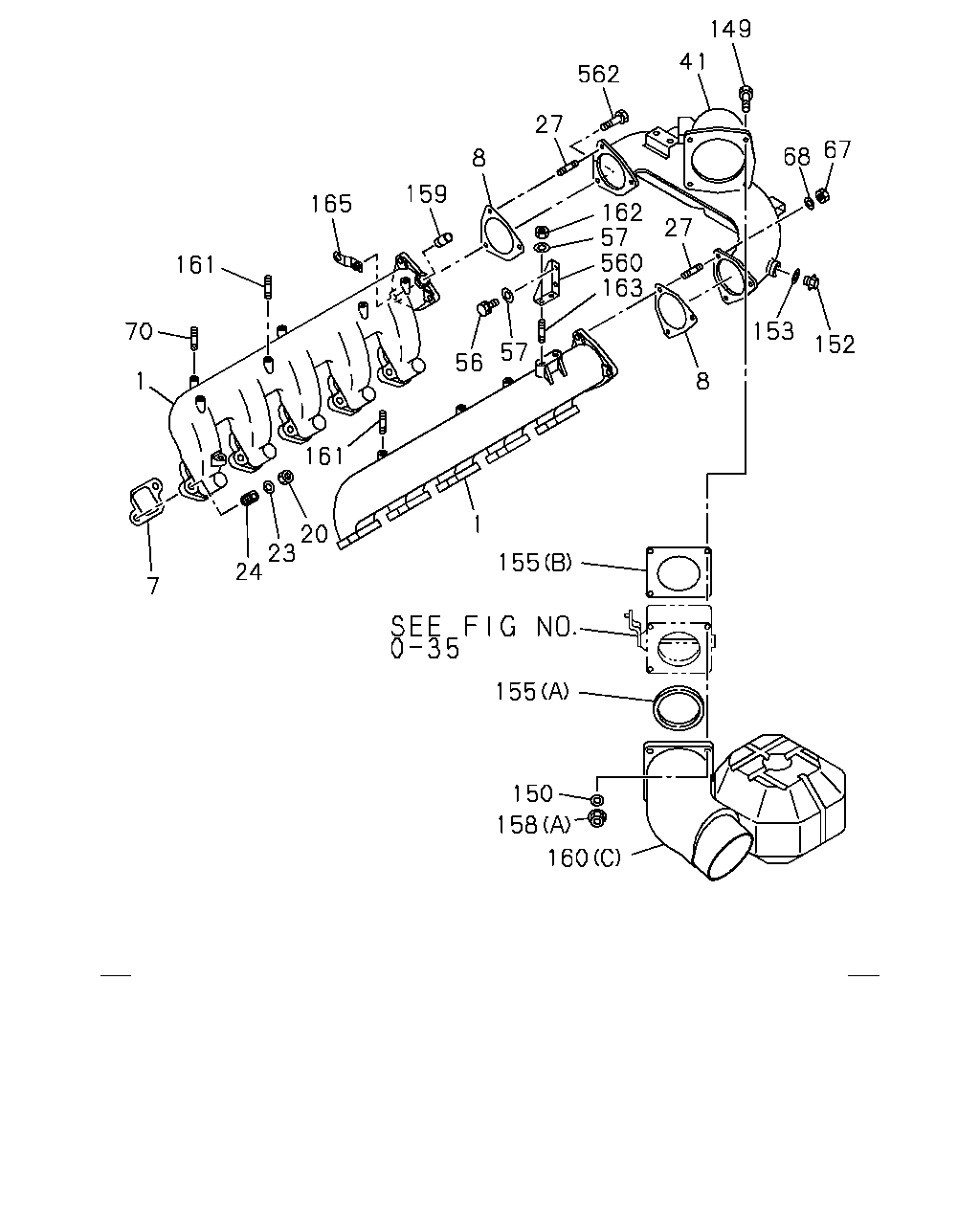

[025B] 8PD1 (52 parça)

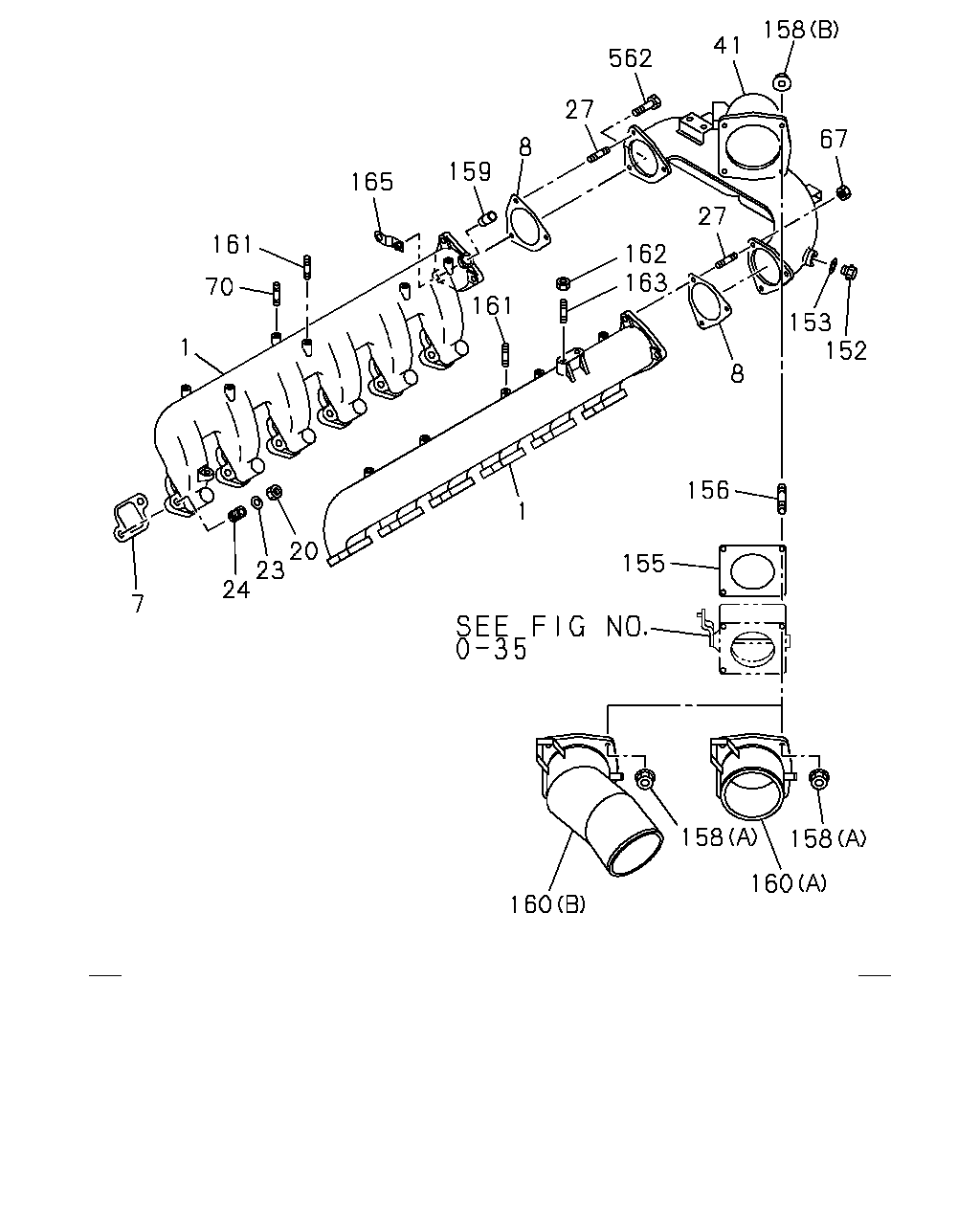

[025B] 10PD1 (53 parça)

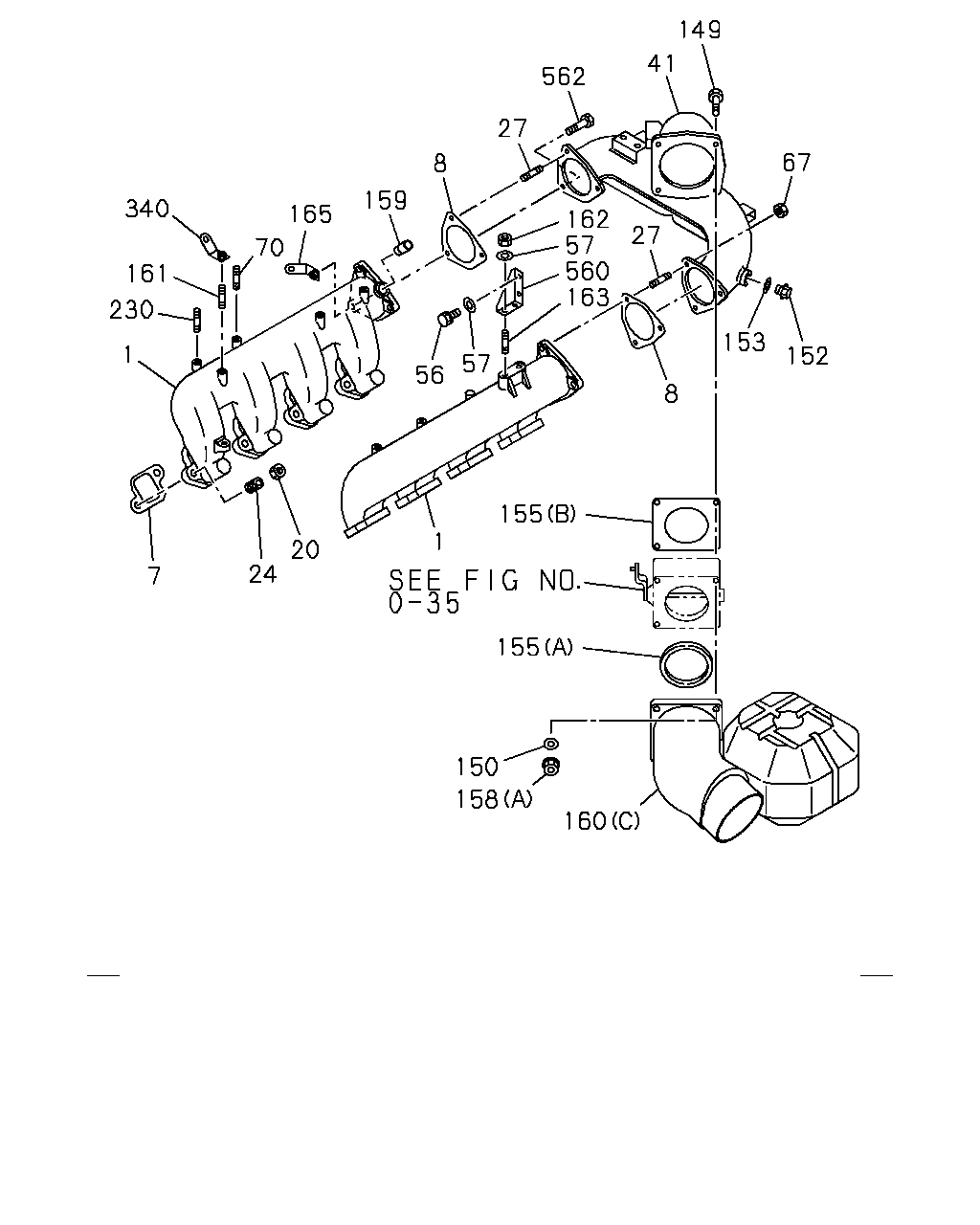

[025B] 12PD1 (45 parça)
▶
160
158
150
155
155
1
20
24
7
8
153
152
163
560
57
162
27
67
41
149
562
27
8
159
165
70
56
57
1
230
161
340
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
MANIFOLD; INL
RH BANK
1-14112-287-0
01
1
9002-9306
●
1
MANIFOLD; INL
LH BANK
1-14112-289-2
01
1
9002-9306
●
1
MANIFOLD; INL
RH BANK
1-14112-281-1
01
1
9002-
●
1
MANIFOLD; INL
LH BANK
1-14112-284-3
01
1
9002-
●
1
MANIFOLD; INL
RH BANK
1-14112-336-0
01
1
9307-
●
1
MANIFOLD; INL
LH BANK
1-14112-338-1
01
1
9307-
●
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14115-048-0
12
1
9002-9306
●
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14115-048-0
10
1
9002-
●
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14115-048-0
08
1
9307-
●
8
GASKET; INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14117-044-0
02
1
9002-9509
●
●
●
8
GASKET; INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14117-044-0
02
1
9510-
●
●
20
NUT; INL MANIF
M10
9-09110-410-0
24
1
9002-9306
●
20
NUT; INL MANIF
M10 FLANGE
0-91150-110-0
20
1
9203-
●
20
NUT; INL MANIF
M10
9-09110-410-0
20
1
9002-9202
●
20
NUT; INL MANIF
M10 FLANGE
0-91150-110-0
16
1
9307-
●
24
SPRING; INL MANIF
1-09580-156-0
24
1
9002-9306
●
24
SPRING; INL MANIF
1-09580-156-0
20
1
9002-
●
24
SPRING; INL MANIF
1-09580-156-0
16
1
9307-
●
27
STUD; INL MANIF
M10X35 L=55
9-04311-035-0
01
1
9002-9005
●
●
27
STUD; INL MANIF
M10X35 L=55
9-04311-035-0
03
1
9006-
●
●
●
27
STUD; INL MANIF
M10X30 L=45
9-04411-030-0
03
1
9002-
●
●
●
41
DUCT; INT COVER
1-14114-818-4
01
1
9002-
●
●
●
56
BOLT; STAY AIR DUCT
M10X22
0-28081-022-0
01
1
9002-9306
●
56
BOLT; STAY AIR DUCT
M10X20 W/LK&PL WASHER
0-50141-020-0
01
1
9307-
●
●
57
WASHER; PL
ID=10.5 OD=26
9-09160-710-0
01
1
9002-9306
●
57
WASHER; PL
ID=10.5 OD=26
9-09160-710-0
02
1
9307-
●
●
67
NUT; INL DUCT
M10
9-09110-410-0
04
1
9002-9306
●
67
NUT; INL DUCT
M10 FLANGE
0-91150-110-0
06
1
9002-
●
●
70
STUD; WATER PIPE
M8X16 L=28
9-04110-816-0
02
1
9002-
●
●
●
149
BOLT; INT SHUTTER
M10X80
9-01056-080-0
04
1
9002-9004
●
149
BOLT; INT SHUTTER
M10X80
0-10806-080-0
04
1
9005-
●
●
150
WASHER; PL,INT SHUTTER
ID=10.5 OD=18
9-09160-510-0
04
1
9002-
●
●
152
PLUG; INT DUCT
EXC. INTAKE HEATER<SL2> M22X12
1-09604-035-0
02
1
9002-
●
●
●
153
GASKET; PLUG,INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INTAKE HEATER<SL2> ID=22.5
9-09571-422-0
02
1
9002-
●
●
●
155
GASKET; INL DUCT TO SHUTTER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=120
1-14317-027-0
02
1
9002-9306
●
155
GASKET; INL DUCT TO SHUTTER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=125.4
1-13213-012-0
01
1
9002-
●
●
155
GASKET; INL DUCT TO SHUTTER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=120
1-14317-027-0
01
1
9002-
●
●
158
NUT; INT SHUTTER
(B) M10
9-09110-410-0
04
1
9002-9306
●
●
158
NUT; INT SHUTTER
(B) M10
9-09110-410-0
04
1
9307-
●
158
NUT; INT SHUTTER
(A) M10 FLANGE
0-91150-110-0
04
1
9002-
●
●
●
159
PIPE; VENTILATOR
9-14119-228-1
01
1
9002-
●
●
●
160
DUCT; AIR
(A)
1-14114-548-2
01
1
9002-9201
●
160
DUCT; AIR
(B)
1-14114-918-0
01
1
9202-9306
●
160
DUCT; AIR
(C)
1-14114-872-2
01
1
9002-
●
●
161
STUD; BRKT,INJ PUMP
M8X16 L=28
9-04110-816-0
06
1
9002-
●
●
●
162
NUT; STAY
M10 FLANGE
0-91150-110-0
02
1
9002-
●
●
●
163
STUD; BRKT,ENG SPD CONT
M10X20 L=35
9-04411-020-0
02
1
9002-
●
●
●
165
BRACKET; CLIP,EXH BRK PIPE
1-22196-219-0
01
1
9002-
●
●
●
230
STUD; INL MANIF,PIPE
M8X16 L=28
9-04110-816-0
01
1
9307-
●
340
BRACKET; HARNESS INL MANIF
1-82699-105-0
01
1
9307-
●
560
BRACKET; AIR PIPE
1-14119-336-0
01
1
9002-
●
●
562
BOLT; INL DUCT
M10X45 W/LK&PL WASHER
0-50151-045-0
02
1
9002-
●
●
●
160
158
150
155
155
1
20
23
24
7
161
1
70
161
165
159
8
27
562
162
57
560
163
57
56
8
153
152
27
68
67
41
149
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
MANIFOLD; INL
RH BANK
1-14112-287-0
01
1
9002-9306
●
1
MANIFOLD; INL
LH BANK
1-14112-289-2
01
1
9002-9306
●
1
MANIFOLD; INL
RH BANK
1-14112-281-1
01
1
9002-
●
1
MANIFOLD; INL
LH BANK
1-14112-284-3
01
1
9002-
●
1
MANIFOLD; INL
RH BANK
1-14112-336-0
01
1
9307-
●
1
MANIFOLD; INL
LH BANK
1-14112-338-1
01
1
9307-
●
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14115-048-0
12
1
9002-9306
●
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14115-048-0
10
1
9002-
●
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14115-048-0
08
1
9307-
●
8
GASKET; INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14117-044-0
02
1
9002-9509
●
●
●
8
GASKET; INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14117-044-0
02
1
9510-
●
●
20
NUT; INL MANIF
M10
9-09110-410-0
24
1
9002-9306
●
20
NUT; INL MANIF
M10 FLANGE
0-91150-110-0
20
1
9203-
●
20
NUT; INL MANIF
M10
9-09110-410-0
20
1
9002-9202
●
20
NUT; INL MANIF
M10 FLANGE
0-91150-110-0
16
1
9307-
●
23
WASHER; PL,INL MANIF
1-09503-067-1
24
1
9002-9306
●
23
WASHER; PL,INL MANIF
1-09503-067-1
20
1
9002-9202
●
24
SPRING; INL MANIF
1-09580-156-0
24
1
9002-9306
●
24
SPRING; INL MANIF
1-09580-156-0
20
1
9002-
●
24
SPRING; INL MANIF
1-09580-156-0
16
1
9307-
●
27
STUD; INL MANIF
M10X35 L=55
9-04311-035-0
01
1
9002-9005
●
●
27
STUD; INL MANIF
M10X35 L=55
9-04311-035-0
03
1
9006-
●
●
●
27
STUD; INL MANIF
M10X30 L=45
9-04411-030-0
03
1
9002-
●
●
●
41
DUCT; INT COVER
1-14114-818-4
01
1
9002-
●
●
●
56
BOLT; STAY AIR DUCT
M10X22
0-28081-022-0
01
1
9002-9306
●
56
BOLT; STAY AIR DUCT
M10X20 W/LK&PL WASHER
0-50141-020-0
01
1
9307-
●
●
57
WASHER; PL
ID=10.5 OD=26
9-09160-710-0
01
1
9002-9306
●
57
WASHER; PL
ID=10.5 OD=26
9-09160-710-0
02
1
9307-
●
●
67
NUT; INL DUCT
M10
9-09110-410-0
04
1
9002-9306
●
67
NUT; INL DUCT
M10 FLANGE
0-91150-110-0
06
1
9002-
●
●
68
WASHER; PL,INL DUCT
ID=10.5 OD=18
9-09160-510-0
02
1
9002-
●
70
STUD; WATER PIPE
M8X16 L=28
9-04110-816-0
02
1
9002-
●
●
●
149
BOLT; INT SHUTTER
M10X80
9-01056-080-0
04
1
9002-9004
●
149
BOLT; INT SHUTTER
M10X80
0-10806-080-0
04
1
9005-
●
●
150
WASHER; PL,INT SHUTTER
ID=10.5 OD=18
9-09160-510-0
04
1
9002-
●
●
152
PLUG; INT DUCT
EXC. INTAKE HEATER<SL2> M22X12
1-09604-035-0
02
1
9002-
●
●
●
153
GASKET; PLUG,INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INTAKE HEATER<SL2> ID=22.5
9-09571-422-0
02
1
9002-
●
●
●
155
GASKET; INL DUCT TO SHUTTER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=120
1-14317-027-0
02
1
9002-9306
●
155
GASKET; INL DUCT TO SHUTTER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=125.4
1-13213-012-0
01
1
9002-
●
●
155
GASKET; INL DUCT TO SHUTTER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=120
1-14317-027-0
01
1
9002-
●
●
158
NUT; INT SHUTTER
(B) M10
9-09110-410-0
04
1
9002-9306
●
●
158
NUT; INT SHUTTER
(B) M10
9-09110-410-0
04
1
9307-
●
158
NUT; INT SHUTTER
(A) M10 FLANGE
0-91150-110-0
04
1
9002-
●
●
●
159
PIPE; VENTILATOR
9-14119-228-1
01
1
9002-
●
●
●
160
DUCT; AIR
(A)
1-14114-548-2
01
1
9002-9201
●
160
DUCT; AIR
(B)
1-14114-918-0
01
1
9202-9306
●
160
DUCT; AIR
(C)
1-14114-872-2
01
1
9002-
●
●
161
STUD; BRKT,INJ PUMP
M8X16 L=28
9-04110-816-0
06
1
9002-
●
●
●
162
NUT; STAY
M10 FLANGE
0-91150-110-0
02
1
9002-
●
●
●
163
STUD; BRKT,ENG SPD CONT
M10X20 L=35
9-04411-020-0
02
1
9002-
●
●
●
165
BRACKET; CLIP,EXH BRK PIPE
1-22196-219-0
01
1
9002-
●
●
●
560
BRACKET; AIR PIPE
1-14119-336-0
01
1
9002-
●
●
562
BOLT; INL DUCT
M10X45 W/LK&PL WASHER
0-50151-045-0
02
1
9002-
●
●
●
7
24
23
20
1
156
155
158
160
160
158
1
70
161
165
159
161
162
163
8
27
562
41
158
67
27
153
152
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
MANIFOLD; INL
RH BANK
1-14112-287-0
01
1
9002-9306
●
1
MANIFOLD; INL
LH BANK
1-14112-289-2
01
1
9002-9306
●
1
MANIFOLD; INL
RH BANK
1-14112-281-1
01
1
9002-
●
1
MANIFOLD; INL
LH BANK
1-14112-284-3
01
1
9002-
●
1
MANIFOLD; INL
RH BANK
1-14112-336-0
01
1
9307-
●
1
MANIFOLD; INL
LH BANK
1-14112-338-1
01
1
9307-
●
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14115-048-0
12
1
9002-9306
●
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14115-048-0
10
1
9002-
●
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14115-048-0
08
1
9307-
●
8
GASKET; INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14117-044-0
02
1
9002-9509
●
●
●
8
GASKET; INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14117-044-0
02
1
9510-
●
●
20
NUT; INL MANIF
M10
9-09110-410-0
24
1
9002-9306
●
20
NUT; INL MANIF
M10 FLANGE
0-91150-110-0
20
1
9203-
●
20
NUT; INL MANIF
M10
9-09110-410-0
20
1
9002-9202
●
20
NUT; INL MANIF
M10 FLANGE
0-91150-110-0
16
1
9307-
●
23
WASHER; PL,INL MANIF
1-09503-067-1
24
1
9002-9306
●
23
WASHER; PL,INL MANIF
1-09503-067-1
20
1
9002-9202
●
24
SPRING; INL MANIF
1-09580-156-0
24
1
9002-9306
●
24
SPRING; INL MANIF
1-09580-156-0
20
1
9002-
●
24
SPRING; INL MANIF
1-09580-156-0
16
1
9307-
●
27
STUD; INL MANIF
M10X35 L=55
9-04311-035-0
01
1
9002-9005
●
●
27
STUD; INL MANIF
M10X35 L=55
9-04311-035-0
03
1
9006-
●
●
●
27
STUD; INL MANIF
M10X30 L=45
9-04411-030-0
03
1
9002-
●
●
●
41
DUCT; INT COVER
1-14114-818-4
01
1
9002-
●
●
●
67
NUT; INL DUCT
M10
9-09110-410-0
04
1
9002-9306
●
67
NUT; INL DUCT
M10 FLANGE
0-91150-110-0
06
1
9002-
●
●
70
STUD; WATER PIPE
M8X16 L=28
9-04110-816-0
02
1
9002-
●
●
●
152
PLUG; INT DUCT
EXC. INTAKE HEATER<SL2> M22X12
1-09604-035-0
02
1
9002-
●
●
●
153
GASKET; PLUG,INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INTAKE HEATER<SL2> ID=22.5
9-09571-422-0
02
1
9002-
●
●
●
155
GASKET; INL DUCT TO SHUTTER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=120
1-14317-027-0
02
1
9002-9306
●
155
GASKET; INL DUCT TO SHUTTER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=125.4
1-13213-012-0
01
1
9002-
●
●
155
GASKET; INL DUCT TO SHUTTER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=120
1-14317-027-0
01
1
9002-
●
●
156
STUD; AIR DUCT,INT SHUTTER FIX
1-09302-089-0
04
1
9002-9306
●
158
NUT; INT SHUTTER
(B) M10
9-09110-410-0
04
1
9002-9306
●
●
158
NUT; INT SHUTTER
(B) M10
9-09110-410-0
04
1
9307-
●
158
NUT; INT SHUTTER
(A) M10 FLANGE
0-91150-110-0
04
1
9002-
●
●
●
159
PIPE; VENTILATOR
9-14119-228-1
01
1
9002-
●
●
●
160
DUCT; AIR
(A)
1-14114-548-2
01
1
9002-9201
●
160
DUCT; AIR
(B)
1-14114-918-0
01
1
9202-9306
●
160
DUCT; AIR
(C)
1-14114-872-2
01
1
9002-
●
●
161
STUD; BRKT,INJ PUMP
M8X16 L=28
9-04110-816-0
06
1
9002-
●
●
●
162
NUT; STAY
M10 FLANGE
0-91150-110-0
02
1
9002-
●
●
●
163
STUD; BRKT,ENG SPD CONT
M10X20 L=35
9-04411-020-0
02
1
9002-
●
●
●
165
BRACKET; CLIP,EXH BRK PIPE
1-22196-219-0
01
1
9002-
●
●
●
562
BOLT; INL DUCT
M10X45 W/LK&PL WASHER
0-50151-045-0
02
1
9002-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
