◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11227 - FSR(CNG)AUSTRALIA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#22906) — 233 parça

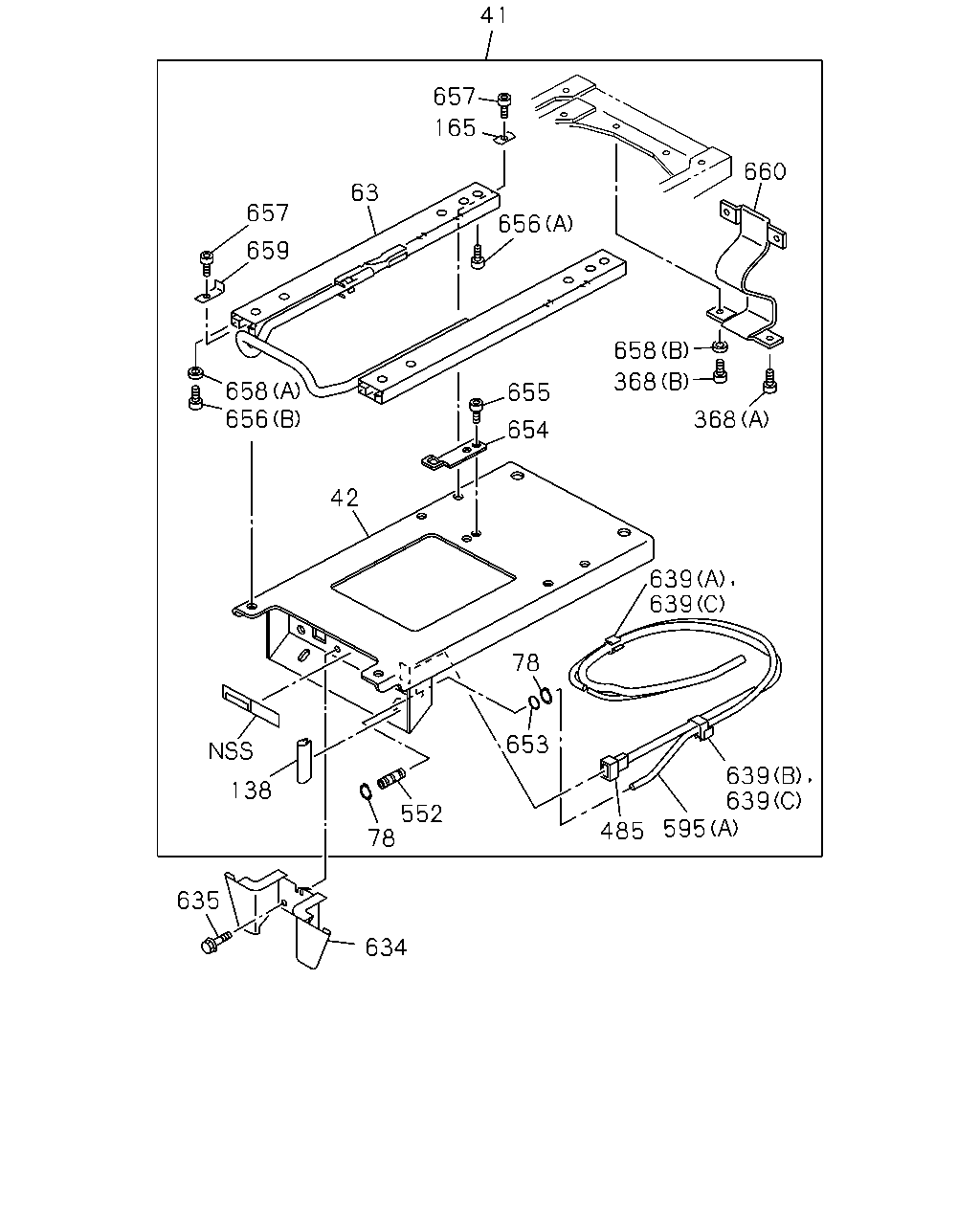

çizim 14575
41 657 63 657 658 655 656 42 138 78 634 635 552 653 485 639 639 595 639 78 654 368 658 660 656 165 659 368 639
BalonParca AdiParca NoAdetTipApplied Date
41 SEAT ASM; DRIVER 8-98046-984-2 01 1 0907-1212
41 SEAT ASM; DRIVER 8-98195-063-1 01 1 1301-1306
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-1 01 1 1307-
42 STAND; DRIVER SEAT 8-98106-346-0 01 1 0907-1306
42 STAND; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-346-0 01 1 1307-
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 0907-1306
63 ADJUSTER; SEAT SLIDE
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-005-0 01 1 1307-
78 RING; SNAP 8-98101-900-0 02 1 0907-1306
78 RING; SNAP
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98101-900-0 02 1 1307-
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 0907-1306
138 PROTECTOR; SEAT STAND
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-351-0 01 1 1307-
165 WASHER; PL 1-75590-086-0 04 1 0907-1306
165 WASHER; PL
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		1-75590-086-0 04 1 1307-
368 BOLT; SEAT
(A) 		8-98106-353-0 03 1 0907-1306
368 BOLT; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-353-0 03 1 1307-
368 BOLT; SEAT
(B) 		8-98106-358-0 01 1 0907-1306
368 BOLT; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98106-358-0 01 1 1307-
485 HARNESS; FRT SEAT 8-98106-360-0 01 1 0907-1306
485 HARNESS; FRT SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-360-0 01 1 1307-
552 CONNECTOR 8-98101-902-0 01 1 0907-1306
552 CONNECTOR
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98101-902-0 01 1 1307-1508
552 CONNECTOR
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98308-101-0 01 1 1509-
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 0907-1306
595 TUBE; NYLON
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-348-0 01 1 1307-
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 0907-
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 0907-
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 0907-
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 0907-1306
639 CLIP; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-349-0 01 1 1307-1508
639 CLIP; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98308-100-0 02 1 1509-
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 0907-1306
639 CLIP; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98106-350-0 01 1 1307-1508
653 GASKET 8-98101-901-0 01 1 0907-1306
653 GASKET
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98101-901-0 01 1 1307-
654 HOOK; STOPPER 8-98106-352-0 01 1 0907-1306
654 HOOK; STOPPER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-352-0 01 1 1307-
655 BOLT; HOOK 8-98106-353-0 02 1 0907-1306
655 BOLT; HOOK
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-353-0 02 1 1307-
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 0907-1306
656 BOLT; SLIDER TO SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		1-75590-085-0 04 1 1307-
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 0907-1306
656 BOLT; SLIDER TO SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98106-354-0 02 1 1307-
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 0907-1306
657 BOLT; SLIDER TO STAND
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		1-75590-085-0 06 1 1307-
658 SPACER; BOLT
(A) 		8-98106-355-0 02 1 0907-1306
658 SPACER; BOLT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-355-0 02 1 1307-
658 SPACER; BOLT
(B) 		8-98106-359-0 01 1 0907-1306
658 SPACER; BOLT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98106-359-0 01 1 1307-
659 STOPPER 8-98106-356-0 02 1 0907-1306
659 STOPPER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-356-0 02 1 1307-
660 BELT; TETHER 8-98106-357-0 01 1 0907-1306
660 BELT; TETHER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-357-0 01 1 1307-

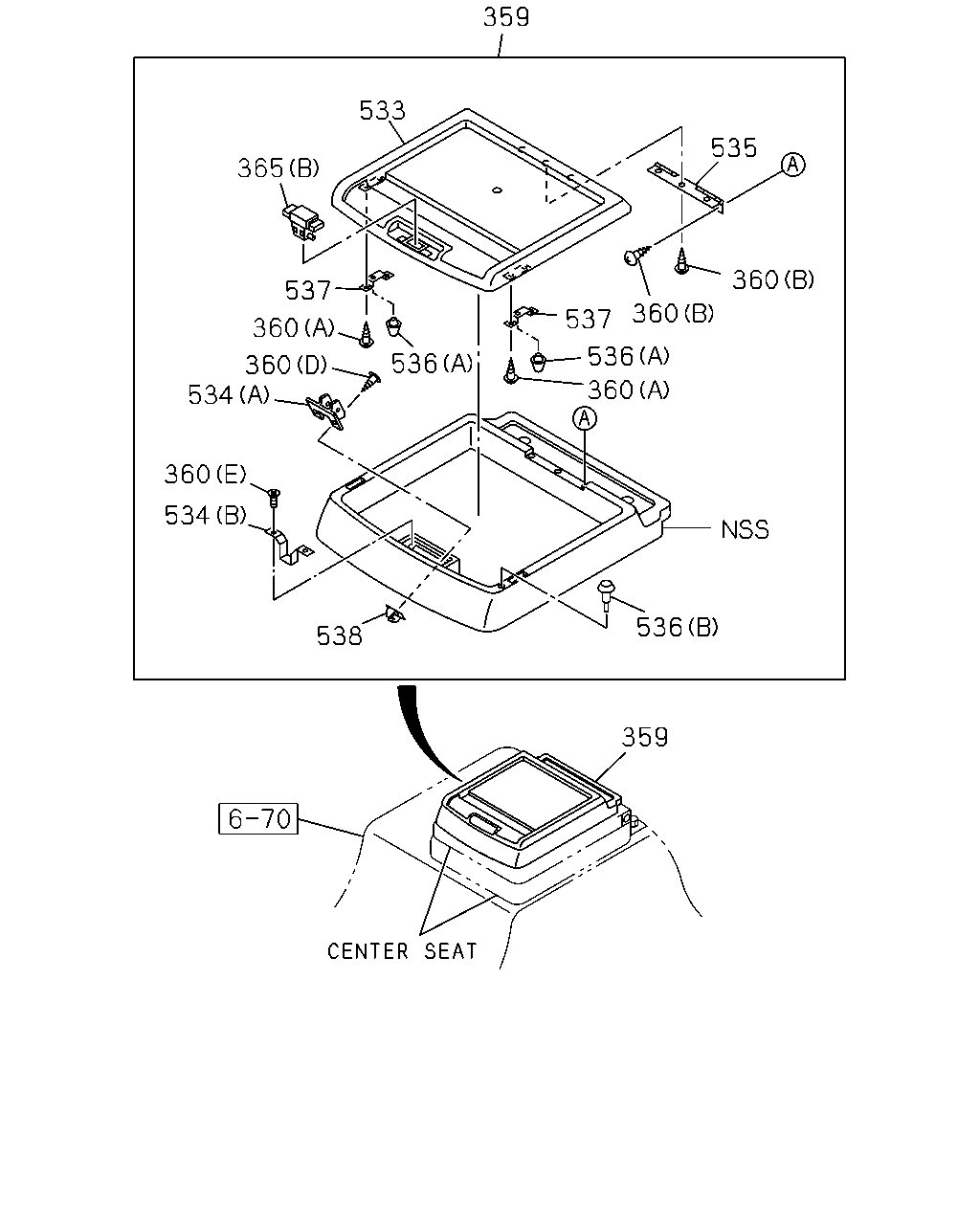

çizim 15255
359 533 365 537 360 360 534 360 534 538 536 537 536 360 360 360 535 536 359
BalonParca AdiParca NoAdetTipApplied Date
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> GRAY 		8-97409-977-2 01 1 0907-0912
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-977-2 01 1 1001-1006
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1007-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0907-0912
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 1001-1009
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) M4X16 		0-70040-416-0 06 1 0907-0912
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1001-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0907-0912
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 1001-1110
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1111-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (D) M5X20 		9-09829-324-1 02 1 0907-0912
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20 		9-09829-324-1 02 1 1001-1009
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 0907-1306
365 LOCK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-972-0 01 1 1307-
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		1-72538-312-0 01 1 0907-0912
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1001-
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> GRAY 		8-97409-979-1 01 1 0907-0912
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-979-1 01 1 1001-1006
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1007-
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (A) 		1-72538-181-0 01 1 0907-0912
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> (A) 		1-72538-181-0 01 1 1001-1009
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-190-0 01 1 1010-
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> 		1-72447-391-1 01 1 0907-0912
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1001-
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (A) 		5-09983-002-1 02 1 0907-0912
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> (A) 		5-09983-002-1 02 1 1001-1009
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-187-0 02 1 1010-
537 BRACKET; RUBBER
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> 		1-72548-057-1 02 1 0907-0912
537 BRACKET; RUBBER
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72548-057-1 02 1 1001-1009
538 GROMMET; SCREW
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> 		1-09983-165-0 02 1 0907-0912
538 GROMMET; SCREW
SEAT ASM - WITH CENTER SEAT<7BC> 		1-09983-165-0 02 1 1001-1009

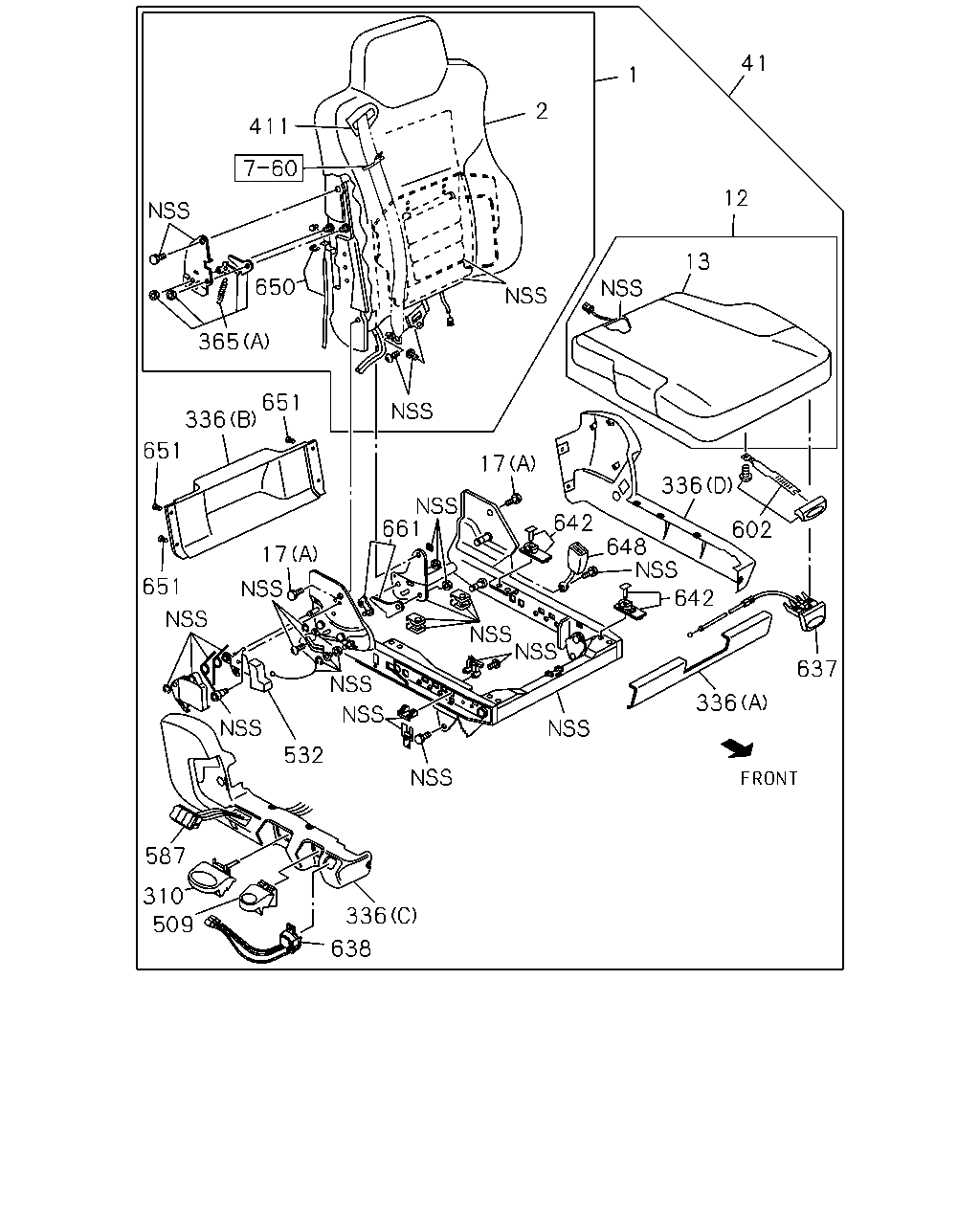

çizim 61773
41 12 13 1 2 17 642 336 602 637 336 642 648 661 17 651 336 365 650 411 651 651 532 336 638 509 587 310
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT 8-98097-964-0 01 1 0907-1306
1 BACK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-964-0 01 1 1307-
2 COVER; TRIM,FRT SEAT,BACK 8-98097-966-0 01 1 0907-1212
2 COVER; TRIM,FRT SEAT,BACK 8-98232-353-0 01 1 1301-1306
2 COVER; TRIM,FRT SEAT,BACK
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98232-353-0 01 1 1307-
12 CUSHION; SEAT,FRT 8-98098-006-0 01 1 0907-1306
12 CUSHION; SEAT,FRT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-006-0 01 1 1307-
13 COVER; TRIM,FRT SEAT,CUSHION 8-98098-007-0 01 1 0907-1306
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-007-0 01 1 1307-
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 0907-1306
17 BOLT; RECLINING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-974-0 02 1 1307-
17 BOLT; RECLINING
SEAT CLOTH<7FL> (B) M8X20 		8-98092-334-0 02 1 0907-0912
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1001-
41 SEAT ASM; DRIVER 8-98046-984-2 01 1 0907-1212
41 SEAT ASM; DRIVER 8-98195-063-1 01 1 1301-1306
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-1 01 1 1307-
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT 8-98097-992-0 01 1 0907-1306
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-992-0 01 1 1307-
336 COVER; DRIVER SEAT
(D) 		8-98097-978-0 01 1 0907-1306
336 COVER; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (D) 		8-98097-978-0 01 1 1307-1508
336 COVER; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (D) 		8-98331-313-0 01 1 1509-
336 COVER; DRIVER SEAT
(C) 		8-98097-984-0 01 1 0907-1306
336 COVER; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-984-0 01 1 1307-
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 0907-1306
336 COVER; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-995-0 01 1 1307-
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 0907-1306
336 COVER; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98097-996-0 01 1 1307-
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 0907-1306
365 LOCK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-972-0 01 1 1307-
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		1-72538-312-0 01 1 0907-0912
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1001-
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 0907-1306
411 GUIDE; SEAT BELT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-967-0 01 1 1307-
509 LEVER; DAMPER 8-98097-988-0 01 1 0907-1306
509 LEVER; DAMPER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-988-0 01 1 1307-
532 LEVER ASM; TILT 8-98097-982-0 01 1 0907-1306
532 LEVER ASM; TILT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-982-0 01 1 1307-
587 VALVE; LUMBAR SUPPORT 8-98097-986-0 01 1 0907-1306
587 VALVE; LUMBAR SUPPORT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-986-0 01 1 1307-
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 0907-1306
602 KNOB; ADJ,SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-008-0 01 1 1307-
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 0907-1306
637 LEVER; SLOPE ADJ
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-989-0 01 1 1307-
638 VALVE; LOWERING 8-98097-994-0 01 1 0907-1306
638 VALVE; LOWERING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-994-0 01 1 1307-
642 SLIDER; CUSHION 8-98192-932-0 04 1 0907-1306
642 SLIDER; CUSHION
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98192-932-0 04 1 1307-
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 0907-1306
648 BUCKLE; SEAT BELT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-976-0 01 1 1307-
650 CABLE 8-98097-973-0 01 1 0907-1212
650 CABLE 8-98232-354-0 01 1 1301-1306
650 CABLE
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98232-354-0 01 1 1307-
651 RIVET 8-98194-075-0 04 1 0907-1306
651 RIVET
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98194-075-0 04 1 1307-
661 LOCK ASM; RECLINING 8-98097-980-0 01 1 0907-1306
661 LOCK ASM; RECLINING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-980-0 01 1 1307-

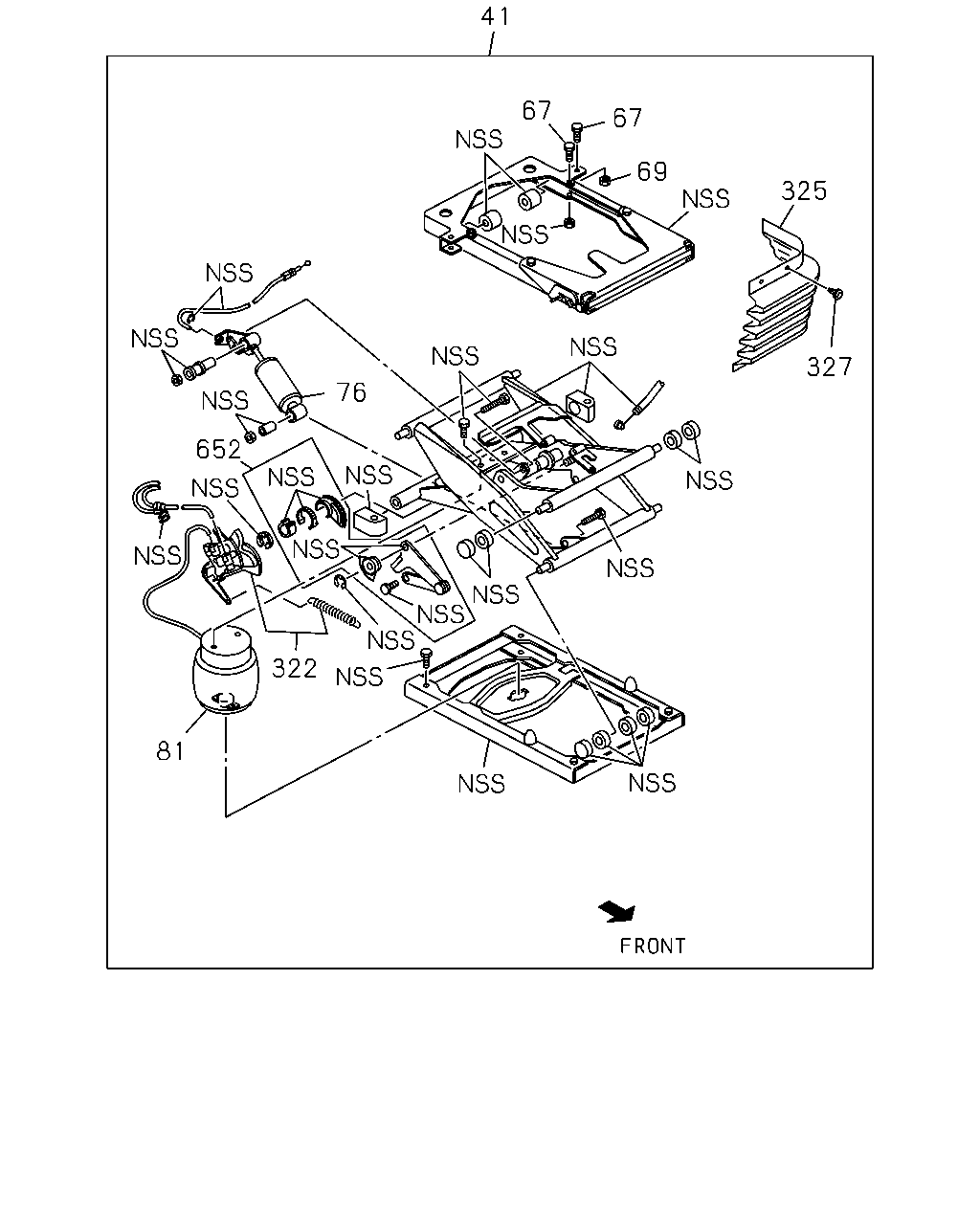

çizim 61917
41 67 67 69 325 327 76 652 81 322
BalonParca AdiParca NoAdetTipApplied Date
41 SEAT ASM; DRIVER 8-98046-984-2 01 1 0907-1212
41 SEAT ASM; DRIVER 8-98195-063-1 01 1 1301-1306
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-1 01 1 1307-
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 0907-
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 0907-
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 0907-1306
76 DAMPER; AIR SUSP
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-999-0 01 1 1307-
81 SPRING; AIR 8-98098-000-0 01 1 0907-1306
81 SPRING; AIR
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-000-0 01 1 1307-
322 VALVE; AIR SPRING 8-98098-001-0 01 1 0907-1306
322 VALVE; AIR SPRING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-001-0 01 1 1307-1508
322 VALVE; AIR SPRING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98331-314-0 01 1 1509-
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 0907-1306
325 COVER; SUSPENSION DEVICE
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-003-0 01 1 1307-
327 CLIP; COVER 8-98098-004-0 01 1 0907-1306
327 CLIP; COVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-004-0 01 1 1307-
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 0907-1306
652 LOCK ASM; HEIGHT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-002-0 01 1 1307-
çizim 61988
506 360 359 126 175 176 188 16 403 179 182 403 188
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> 		1-75418-062-1 01 1 0907-0912
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1001-
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> 		8-97854-900-0 01 1 0907-0912
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		8-97854-900-0 01 1 1001-
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97416-233-0 01 1 0907-0912
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97416-233-0 01 1 1001-1009
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-434-1 01 1 1010-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97416-234-0 01 1 0907-0912
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97416-234-0 01 1 1001-1009
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-435-1 01 1 1010-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97416-237-0 01 1 0907-0912
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97416-237-0 01 1 1001-1009
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-432-1 01 1 1010-
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97416-235-0 01 1 0907-0912
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97416-235-0 01 1 1001-1009
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-430-3 01 1 1010-
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> M10X16 FLANGE 		1-75198-053-0 04 1 0907-0912
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1001-
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> GRAY 		8-97409-977-2 01 1 0907-0912
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-977-2 01 1 1001-1006
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1007-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0907-0912
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 1001-1009
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) M4X16 		0-70040-416-0 06 1 0907-0912
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1001-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0907-0912
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 1001-1110
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1111-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (D) M5X20 		9-09829-324-1 02 1 0907-0912
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20 		9-09829-324-1 02 1 1001-1009
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE 		0-91180-108-0 04 1 0907-
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> GRAY 		8-97409-980-1 04 1 0907-0912
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 04 1 1001-1006
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1007-

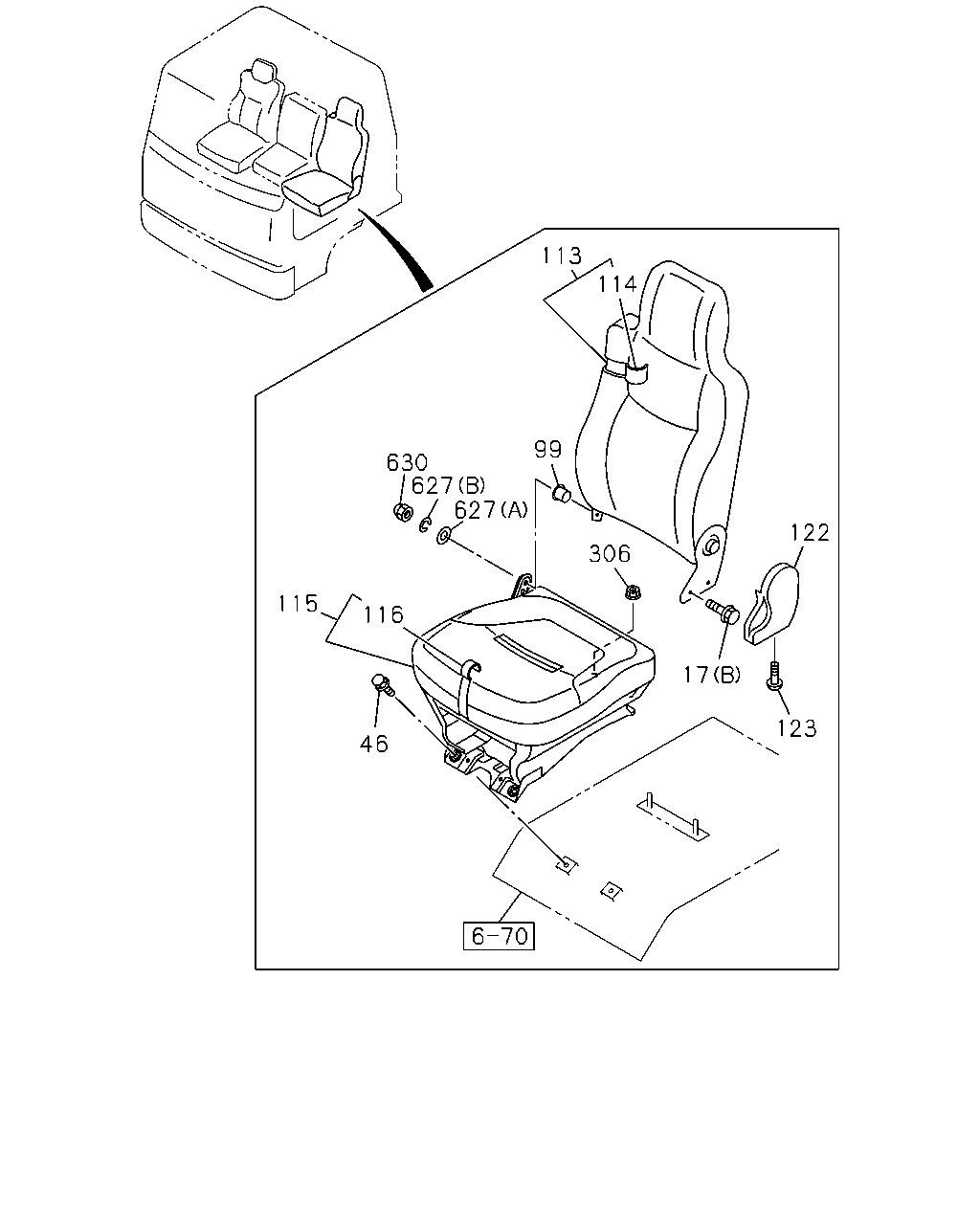

çizim 62838
113 114 122 306 99 17 123 627 627 630 116 115 46
BalonParca AdiParca NoAdetTipApplied Date
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 0907-1306
17 BOLT; RECLINING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-974-0 02 1 1307-
17 BOLT; RECLINING
SEAT CLOTH<7FL> (B) M8X20 		8-98092-334-0 02 1 0907-0912
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1001-
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0907-
99 BUSHING; SEAT BACK
SEAT CLOTH<7FL> 		8-98063-219-0 01 1 0907-0912
99 BUSHING; SEAT BACK 8-98063-219-0 01 1 1001-1009
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1010-
113 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97416-221-0 01 1 0907-0912
113 BACK ASM; SEAT
DARK GRAY 		8-97416-221-0 01 1 1001-1009
113 BACK ASM; SEAT
DARK GRAY 		8-97421-422-0 01 1 1010-
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97416-223-0 01 1 0907-0912
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97416-223-0 01 1 1001-1009
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-424-0 01 1 1010-
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97416-225-0 01 1 0907-0912
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97416-225-0 01 1 1001-1009
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-418-1 01 1 1010-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97416-227-0 01 1 0907-0912
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97416-227-0 01 1 1001-1009
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97421-420-0 01 1 1010-
122 COVER; ADJ,RECLINING
SEAT CLOTH<7FL> GRAY 		8-97409-967-0 01 1 0907-0912
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 1001-
123 SCREW; COVER,RECLINING
SEAT CLOTH<7FL> M5 		8-98070-026-0 01 1 0907-0912
123 SCREW; COVER,RECLINING
M5 		8-98070-026-0 01 1 1001-
306 NUT; SEAT ADJ
M10 FLANGE 		0-91180-110-0 02 1 0907-
627 WASHER; FRT SEAT
SEAT CLOTH<7FL> (A) 		8-98063-223-0 01 1 0907-0912
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1001-
627 WASHER; FRT SEAT
SEAT CLOTH<7FL> (B) 		8-98063-224-0 01 1 0907-0912
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1001-
630 NUT; CAP
SEAT CLOTH<7FL> M8 		8-98063-225-0 01 1 0907-0912
630 NUT; CAP
M8 		8-98063-225-0 01 1 1001-

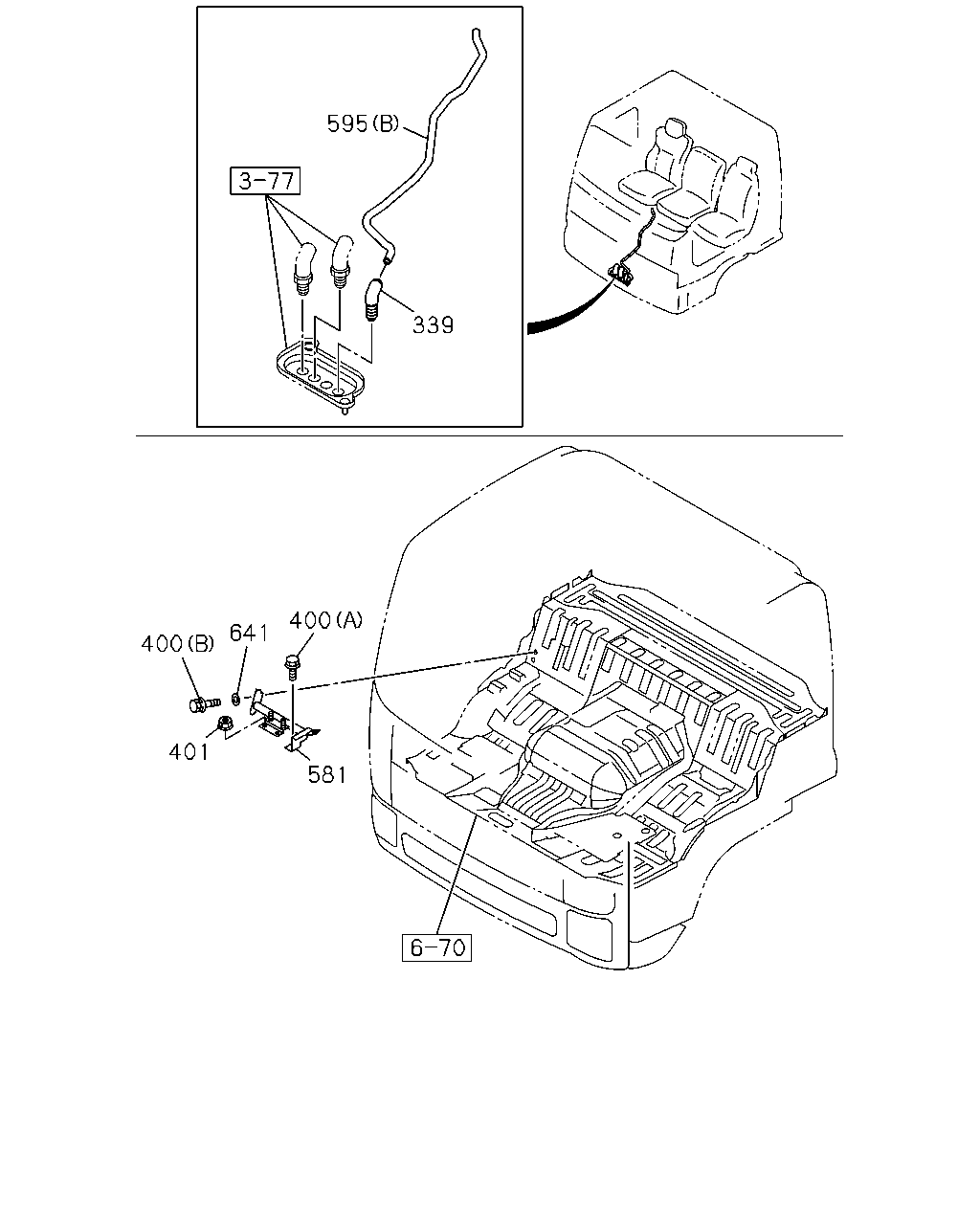

çizim 320122
595 339 400 641 400 581 401
BalonParca AdiParca NoAdetTipApplied Date
339 UNION; DRIVER SEAT 8-98014-971-0 01 1 0907-
400 BOLT; SUPPORT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0907-
400 BOLT; SUPPORT
(B) 		8-98098-996-0 02 1 0907-
401 NUT; SUPPORT
M10 FLANGE 		0-91180-110-0 02 1 0907-
581 PIPE; SEAT 8-97589-692-3 01 1 0907-
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 0907-1306
595 TUBE; NYLON
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-348-0 01 1 1307-
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 0907-
641 WASHER; SUPPORT 8-98099-007-0 02 1 0907-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
