7-20 — MIRROR AND MIRROR STAY (#22900) — 107 parça

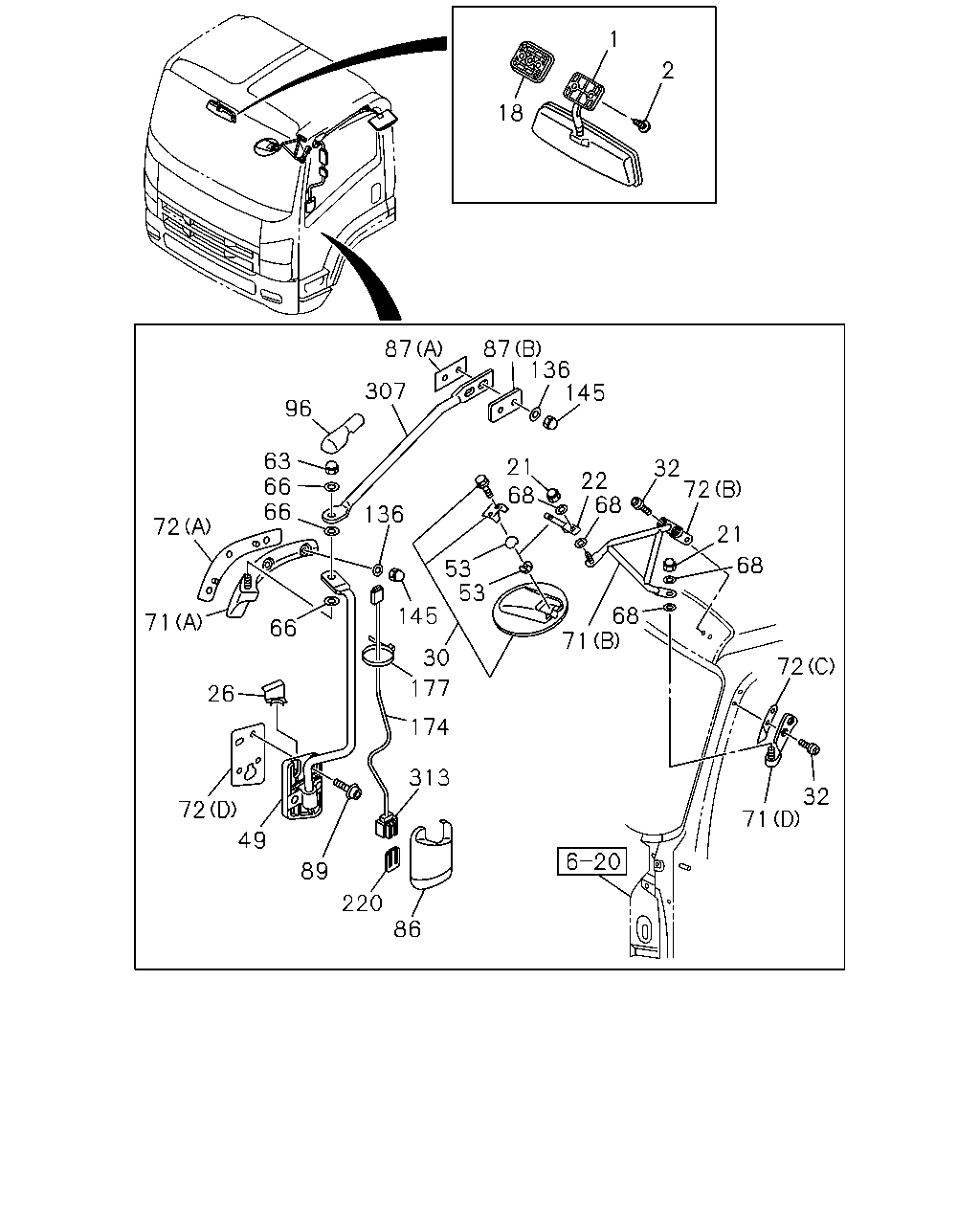

1 2 18 87 87 136 145 307 96 63 66 66 21 32 72 22 68 68 136 72 21 68 53 53 68 71 145 71 66 30 72 177 26 174 313 32 71 72 49 89 220 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM RR VIEW MIRROR<D31> DARK GRAY	8-98097-534-1	01	1	0907-
2	SCREW; MIRROR TO BODY RR VIEW MIRROR<D31> M6X26	8-98033-674-0	02	1	0907-
18	CLIP; MIRROR RR VIEW MIRROR<D31> DARK GRAY	8-97408-241-0	01	1	0907-
21	NUT; MIRROR O/SIDE MIRROR UNDER VIEW<RR9> M10 CAP NUT	1-09984-134-0	02	1	0907-
22	STAY; OUTSIDE MIRROR O/SIDE MIRROR UNDER VIEW<RR9>	8-98092-493-0	01	1	0907-
26	COVER; OUTSIDE MIRROR	8-98031-806-0	01	1	0907-
26	COVER; OUTSIDE MIRROR	8-98031-805-0	01	1	0907-
30	MIRROR; UNDER O/SIDE MIRROR UNDER VIEW<RR9>	8-98055-994-0	01	1	0907-1504
30	MIRROR; UNDER O/SIDE MIRROR UNDER VIEW<RR9>	8-98309-725-0	01	1	1505-
32	SCREW; UNDER MIRROR O/SIDE MIRROR UNDER VIEW<RR9> M8X26 W/PL WASHER	8-98067-249-2	04	1	0907-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>	8-98064-779-0	01	1	0907-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>	8-98166-201-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>	8-98064-778-0	01	1	0907-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>	8-98166-200-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW LONG ARM<DH2>	8-98075-055-0	01	1	0907-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW LONG ARM<DH2>	8-98166-185-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW LONG ARM<DH2>	8-98075-054-0	01	1	0907-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW LONG ARM<DH2>	8-98166-184-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98075-069-0	01	1	0907-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98166-213-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98075-068-0	01	1	0907-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98166-212-0	01	1	1203-
53	PIVOT; SIDE MIRROR O/SIDE MIRROR UNDER VIEW<RR9> ID=19.1	1-71737-633-2	02	1	0907-
63	NUT; STAY M10 CAP NUT	1-09984-134-0	02	1	0907-
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	0907-
68	WASHER; STAY O/SIDE MIRROR UNDER VIEW<RR9> ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0907-
71	BRACKET; OUTSIDE MIRROR (C)	8-98039-277-2	02	1	0907-1202
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (C)	8-98039-277-2	02	1	1203-
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-794-2	01	1	0907-
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-793-2	01	1	0907-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR UNDER VIEW<RR9> (D)	8-98060-240-0	01	1	0907-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR UNDER VIEW<RR9> (B)	8-98092-492-3	01	1	0907-
72	SHEET (A)	8-98031-797-0	01	1	0907-
72	SHEET (A)	8-98031-796-0	01	1	0907-
72	SHEET O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (D)	8-98101-865-0	01	1	0907-
72	SHEET O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (D)	8-98101-864-0	01	1	0907-
72	SHEET O/SIDE MIRROR UNDER VIEW<RR9> (B)	8-98060-245-1	01	1	0907-
72	SHEET O/SIDE MIRROR UNDER VIEW<RR9> (C)	8-98064-776-0	01	1	0907-
86	COVER; STAY,OUTSIDE MIRROR	8-98031-803-2	01	1	0907-
86	COVER; STAY,OUTSIDE MIRROR	8-98031-802-2	01	1	0907-
87	SPACER (A)	8-98063-786-0	02	1	0907-
87	SPACER (B)	8-98063-789-0	02	1	0907-
89	SCREW; BRKT,OUTSIDE MIRROR M8X23	8-97310-216-1	08	1	0907-
96	CAP; MIRROR STAY	8-98080-173-0	02	1	0907-
136	WASHER; LK,BRKT,MIRROR STAY ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	0907-
145	NUT; CAP,SUB STAY M8 CAP NUT	8-98059-914-0	10	1	0907-
174	HARNESS; MIRROR O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98137-139-0	02	1	0907-
174	HARNESS; MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>	8-98136-172-0	02	1	0907-
177	CLIP; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> L=140	5-09707-031-1	02	1	0907-
220	HOLDER; CONNECTOR O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-94479-375-0	02	1	0907-
307	STAY; MIRROR SUPPORT	8-98063-785-2	01	1	0907-
307	STAY; MIRROR SUPPORT	8-98063-784-2	01	1	0907-
313	CONNECTOR; MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-94479-370-0	02	1	0907-

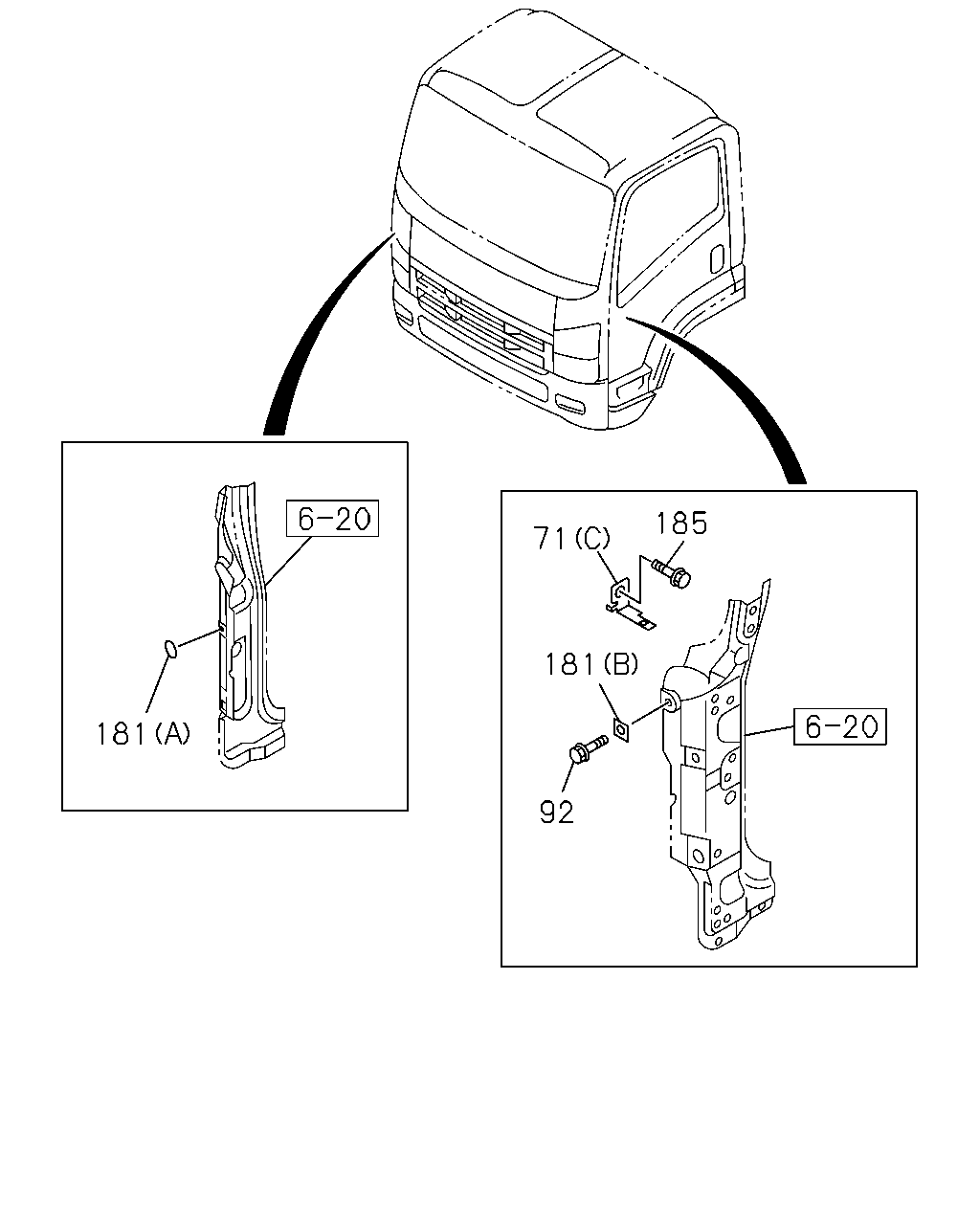

185 71 181 181 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
71	BRACKET; OUTSIDE MIRROR (C)	8-98039-277-2	02	1	0907-1202
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (C)	8-98039-277-2	02	1	1203-
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-794-2	01	1	0907-
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-793-2	01	1	0907-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR UNDER VIEW<RR9> (D)	8-98060-240-0	01	1	0907-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR UNDER VIEW<RR9> (B)	8-98092-492-3	01	1	0907-
92	BOLT; STAY BRKT,MIRROR M8X16 FLANGE	8-98076-109-0	01	1	0907-
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	0907-
181	SEAL; BRKT (A) OD=25 BLACK	1-76798-019-0	01	1	0907-
185	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0907-1202
185	BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> M8X16 FLANGE	0-28050-816-0	02	1	1203-

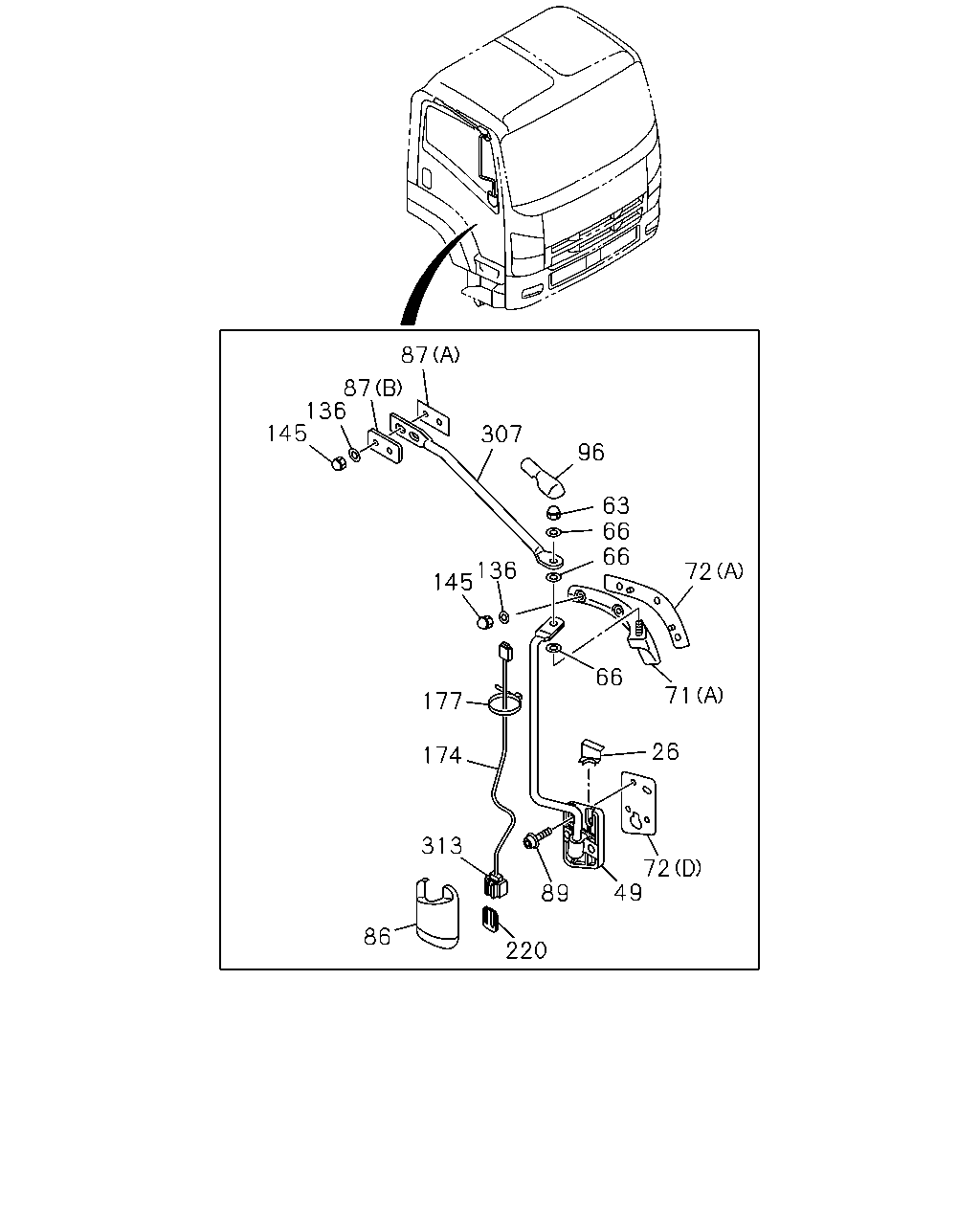

87 87 136 145 307 96 63 66 66 136 145 72 66 71 177 26 174 313 72 49 89 86 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	COVER; OUTSIDE MIRROR	8-98031-806-0	01	1	0907-
26	COVER; OUTSIDE MIRROR	8-98031-805-0	01	1	0907-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>	8-98064-779-0	01	1	0907-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>	8-98166-201-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>	8-98064-778-0	01	1	0907-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>	8-98166-200-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW LONG ARM<DH2>	8-98075-055-0	01	1	0907-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW LONG ARM<DH2>	8-98166-185-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW LONG ARM<DH2>	8-98075-054-0	01	1	0907-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW LONG ARM<DH2>	8-98166-184-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98075-069-0	01	1	0907-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98166-213-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98075-068-0	01	1	0907-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98166-212-0	01	1	1203-
63	NUT; STAY M10 CAP NUT	1-09984-134-0	02	1	0907-
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	0907-
71	BRACKET; OUTSIDE MIRROR (C)	8-98039-277-2	02	1	0907-1202
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (C)	8-98039-277-2	02	1	1203-
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-794-2	01	1	0907-
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-793-2	01	1	0907-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR UNDER VIEW<RR9> (D)	8-98060-240-0	01	1	0907-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR UNDER VIEW<RR9> (B)	8-98092-492-3	01	1	0907-
72	SHEET (A)	8-98031-797-0	01	1	0907-
72	SHEET (A)	8-98031-796-0	01	1	0907-
72	SHEET O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (D)	8-98101-865-0	01	1	0907-
72	SHEET O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (D)	8-98101-864-0	01	1	0907-
72	SHEET O/SIDE MIRROR UNDER VIEW<RR9> (B)	8-98060-245-1	01	1	0907-
72	SHEET O/SIDE MIRROR UNDER VIEW<RR9> (C)	8-98064-776-0	01	1	0907-
86	COVER; STAY,OUTSIDE MIRROR	8-98031-803-2	01	1	0907-
86	COVER; STAY,OUTSIDE MIRROR	8-98031-802-2	01	1	0907-
87	SPACER (A)	8-98063-786-0	02	1	0907-
87	SPACER (B)	8-98063-789-0	02	1	0907-
89	SCREW; BRKT,OUTSIDE MIRROR M8X23	8-97310-216-1	08	1	0907-
96	CAP; MIRROR STAY	8-98080-173-0	02	1	0907-
136	WASHER; LK,BRKT,MIRROR STAY ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	0907-
145	NUT; CAP,SUB STAY M8 CAP NUT	8-98059-914-0	10	1	0907-
174	HARNESS; MIRROR O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98137-139-0	02	1	0907-
174	HARNESS; MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>	8-98136-172-0	02	1	0907-
177	CLIP; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> L=140	5-09707-031-1	02	1	0907-
220	HOLDER; CONNECTOR O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-94479-375-0	02	1	0907-
307	STAY; MIRROR SUPPORT	8-98063-785-2	01	1	0907-
307	STAY; MIRROR SUPPORT	8-98063-784-2	01	1	0907-
313	CONNECTOR; MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-94479-370-0	02	1	0907-
