◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10625 - FSR-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#229) — 53 parça

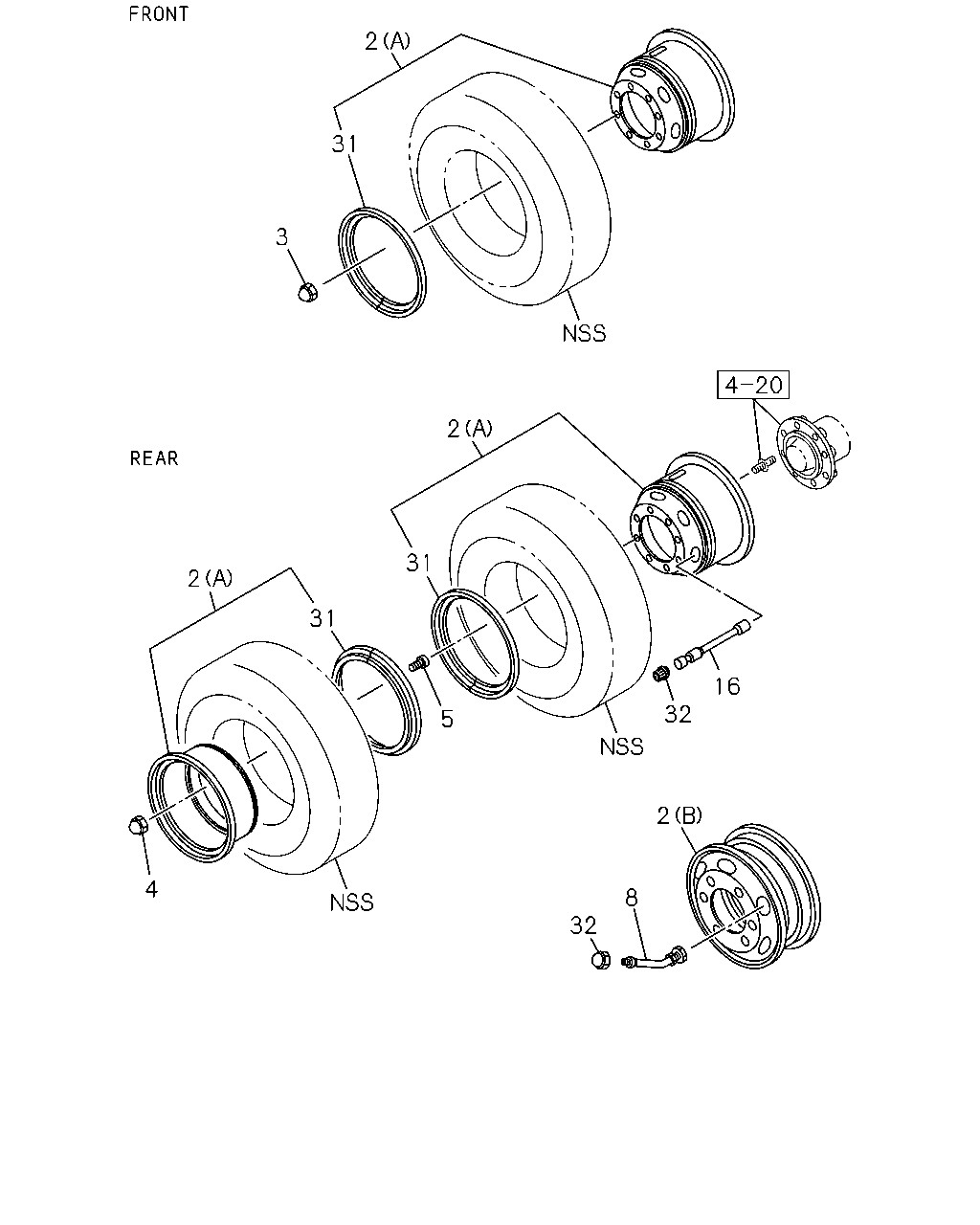

çizim 94683
2 31 3 2 31 2 31 16 32 5 2 4 8 32
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPARE<N79> WHEEL 6STUD 6.00GSX16 135-9(SG7) (A) 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 01 1 9212-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPARE<N79> WHEEL 6STUD 6.00X17.5 135-9(SBG) WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-399-2 01 1 9212-9408
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPARE<N79> WHEEL 6STUD 6.00X17.5 135-9(SBG) WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-488-0 01 1 9409-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPARE<N79> WHEEL 8STUD 6.00SX20 135-10(SBB) (A) 		1-42350-197-0 01 1 9212-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPARE<N79> WHEEL 8STUD 6.50TX20 145-10(Q47) (A) 8-STUD 		1-42350-302-2 01 1 9212-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPARE<N79> WHEEL 8STUD 6.50TX20 152-11(Q50) (A) 		1-42350-268-2 01 1 9212-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 145-11(PT1) WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-407-1 01 1 9212-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 152-11(SCB) (B) 		1-42350-409-1 01 1 9212-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPARE<N79> WHEEL 8STUD 7.00TX20 152-12(SDP) (A) 		1-42350-195-1 01 1 9212-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPARE<N79> WHEEL 8STUD 7.00TX20 162-12(Q54) (A) 		1-42350-131-3 01 1 9212-9402
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPARE<N79> WHEEL 8STUD 7.00TX20 162-12(Q54) (A) 		1-42350-478-0 01 1 9403-
2 WHEEL; DISC
WHEEL 6STUD 6.00GSX16 135-9(SG7) (A) 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 06 1 9212-
2 WHEEL; DISC
WHEEL 6STUD 6.00X17.5 135-9(SBG) WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-399-2 06 1 9212-9408
2 WHEEL; DISC
WHEEL 6STUD 6.00X17.5 135-9(SBG) WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-488-0 06 1 9409-
2 WHEEL; DISC
WHEEL 8STUD 6.00SX20 135-10(SBB) (A) 		1-42350-197-0 06 1 9212-
2 WHEEL; DISC
WHEEL 8STUD 6.50TX20 145-10(Q47) (A) 8-STUD 		1-42350-302-2 06 1 9212-
2 WHEEL; DISC
WHEEL 8STUD 6.50TX20 152-11(Q50) (A) 		1-42350-268-2 06 1 9212-
2 WHEEL; DISC
WHEEL 8STUD 6.75X22.5 145-11(PT1) WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-407-1 06 1 9212-
2 WHEEL; DISC
WHEEL 8STUD 6.75X22.5 152-11(SCB) (B) 		1-42350-409-1 06 1 9212-
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 152-12(SDP) (A) 		1-42350-195-1 06 1 9212-
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12(Q54) (A) 		1-42350-131-3 06 1 9212-9402
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12(Q54) (A) 		1-42350-478-0 06 1 9403-
3 NUT; WHEEL,FRT AXLE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M24 		1-42334-022-0 08 1 9212-
3 NUT; WHEEL,FRT AXLE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M24 		1-42333-022-0 08 1 9212-
3 NUT; WHEEL,FRT AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M24 		1-42334-022-0 06 1 9212-
3 NUT; WHEEL,FRT AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M24 		1-42333-022-0 06 1 9212-
4 NUT; WHEEL,RR AXLE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M30 		1-42334-023-0 08 1 9212-
4 NUT; WHEEL,RR AXLE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M30 		1-42333-023-0 08 1 9212-
4 NUT; WHEEL,RR AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M30 		1-42334-023-0 06 1 9212-
4 NUT; WHEEL,RR AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M30 		1-42333-023-0 06 1 9212-
5 NUT; WHEEL,INNER,RR AXLE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) OUTER M30,INNER M20 		1-42336-005-0 08 1 9212-
5 NUT; WHEEL,INNER,RR AXLE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) OUTER M30,INNER M20 		1-42335-005-0 08 1 9212-
5 NUT; WHEEL,INNER,RR AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) OUTER M30,INNER M20 		1-42336-005-0 06 1 9212-
5 NUT; WHEEL,INNER,RR AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) OUTER M30,INNER M20 		1-42335-005-0 06 1 9212-
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPARE<N79> WHEEL 6STUD 6.00X17.5 135-9(SBG) 		1-42370-019-3 01 1 9212-
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.75X22.5 152-11(SCB) 		1-42370-022-3 01 1 9212-9306
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.75X22.5 152-11(SCB) 		1-42370-020-3 01 1 9307-
8 VALVE; TIRE
WHEEL 6STUD 6.00X17.5 135-9(SBG) 		1-42370-019-3 06 1 9212-
8 VALVE; TIRE
WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.75X22.5 152-11(SCB) 		1-42370-022-3 06 1 9212-9306
8 VALVE; TIRE
WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.75X22.5 152-11(SCB) 		1-42370-020-3 06 1 9307-
16 HOLDER; TIRE VALVE,DISC WHEEL
WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 6STUD 6.00X17.5 135-9(SBG),WHEEL 8STUD 6.75X22.5 152-11(SCB) L=115 		1-42370-015-2 02 1 9212-9504
16 HOLDER; TIRE VALVE,DISC WHEEL
L=115 		1-42370-015-2 02 1 9505-
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPARE<N79> WHEEL 6STUD 6.00GSX16 135-9(SG7) 16X6.00GS STAMP, BLACK 		1-42355-015-2 01 1 9212-
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPARE<N79> WHEEL 8STUD 6.00SX20 135-10(SBB) 		1-42355-002-0 01 1 9212-
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPARE<N79> WHEEL 8STUD 6.50TX20 145-10(Q47),WHEEL 8STUD 6.50TX20 152-11(Q50) 		1-42355-012-1 01 1 9212-
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPARE<N79> WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.00TX20 152-12(SDP) 		1-42355-003-1 01 1 9212-
31 RING; SIDE,DISC WHEEL
WHEEL 6STUD 6.00GSX16 135-9(SG7) 16X6.00GS STAMP, BLACK 		1-42355-015-2 06 1 9212-
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 6.00SX20 135-10(SBB) 		1-42355-002-0 06 1 9212-
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 6.50TX20 145-10(Q47),WHEEL 8STUD 6.50TX20 152-11(Q50) 		1-42355-012-1 06 1 9212-
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.00TX20 152-12(SDP) 		1-42355-003-1 06 1 9212-
32 CAP; VALVE
DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 9304-
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 9304-
32 CAP; VALVE
EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 06 1 9304-
