◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11227 - FSR(CNG)AUSTRALIA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#22899) — 15 parça
çizim 15055
35 49 228
BalonParca AdiParca NoAdetTipApplied Date
35 PLATE; CAUTION,CAB 8-98065-363-0 01 1 0907-
49 PLATE; CAUTION,FUSE BOX 8-98147-002-0 01 1 0907-
228 PLATE; CAUTION,AIR DRYER 1-48199-325-0 01 1 0907-1001

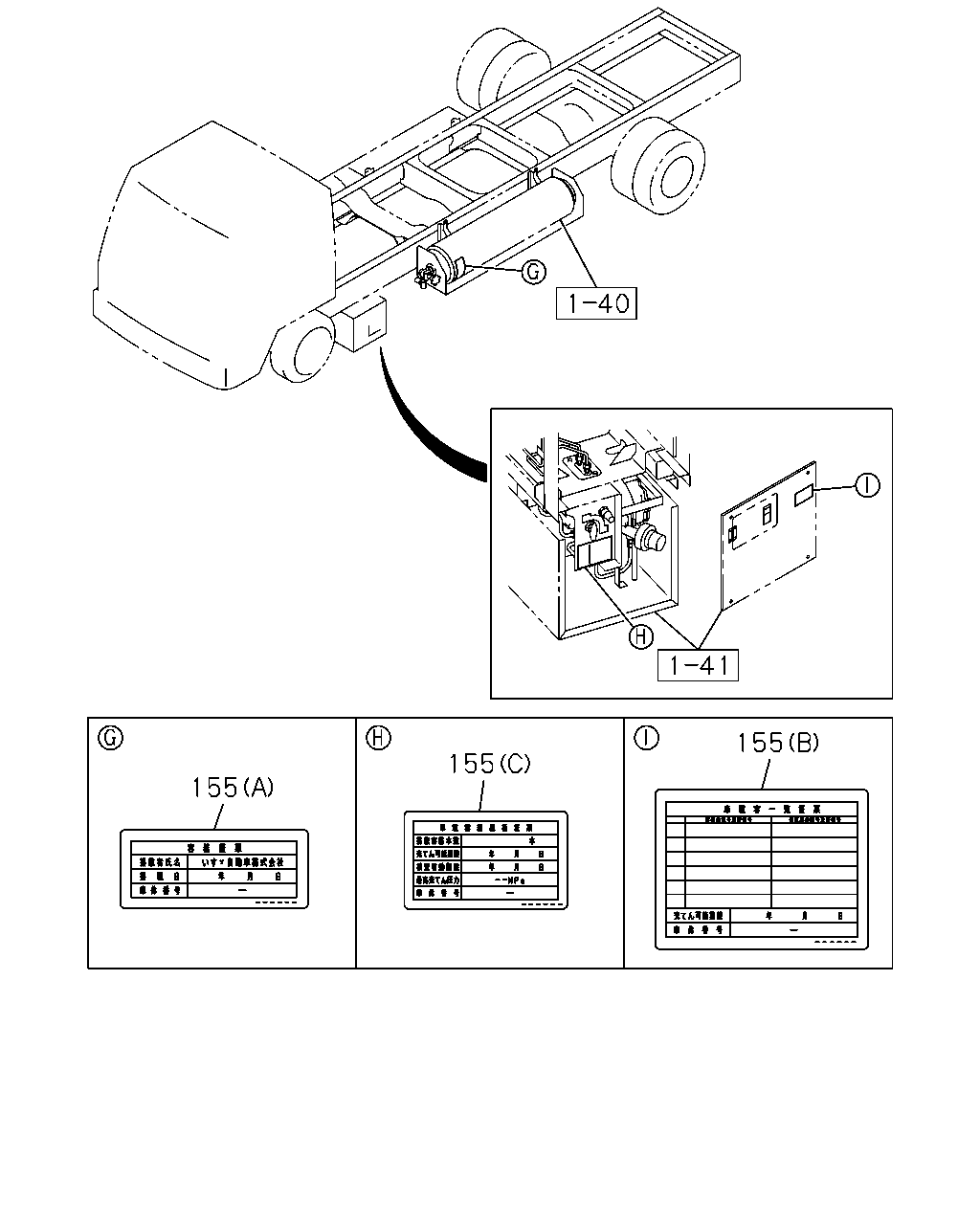

çizim 15230
155 155 155
BalonParca AdiParca NoAdetTipApplied Date
155 PLATE; CAUTION,FUEL TANK
(A) 		1-85881-866-0 01 1 0907-
155 PLATE; CAUTION,FUEL TANK
(C) 		1-85881-868-0 01 1 0907-1407
155 PLATE; CAUTION,FUEL TANK
(C) 		8-98288-933-0 01 1 1408-1504
155 PLATE; CAUTION,FUEL TANK
(C) 		8-98315-272-0 01 1 1505-
155 PLATE; CAUTION,FUEL TANK
(B) 		1-85881-930-0 01 1 0907-1407
155 PLATE; CAUTION,FUEL TANK
(B) 		8-98288-934-0 01 1 1408-1504
155 PLATE; CAUTION,FUEL TANK
(B) 		8-98315-273-0 01 1 1505-

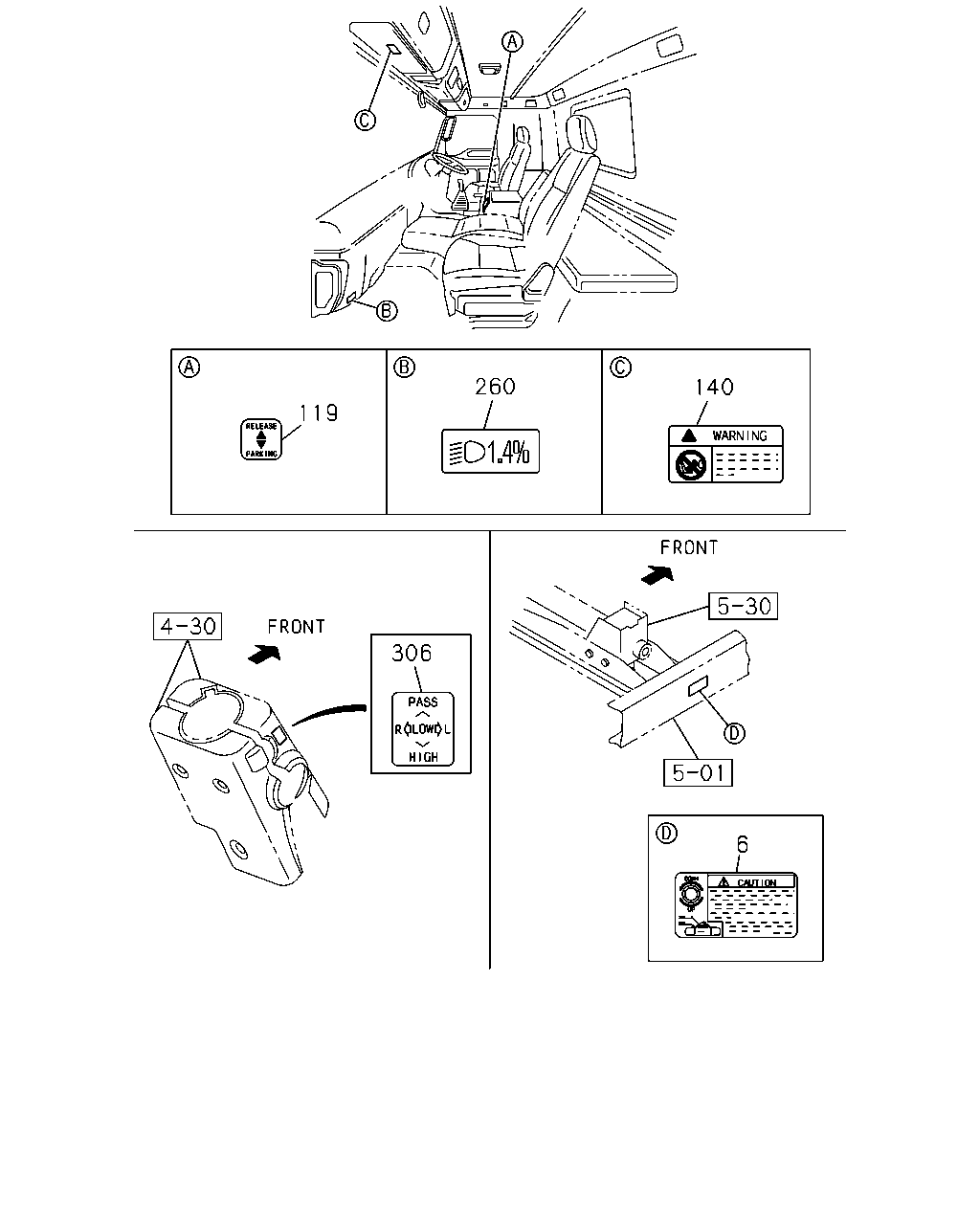

çizim 62734
140 260 119 306 6
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		8-98082-437-0 01 1 0907-
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0907-
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98080-839-0 02 1 1307-
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-501-1 01 1 0907-
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 0907-
