◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11227 - FSR(CNG)AUSTRALIA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#22890) — 58 parça

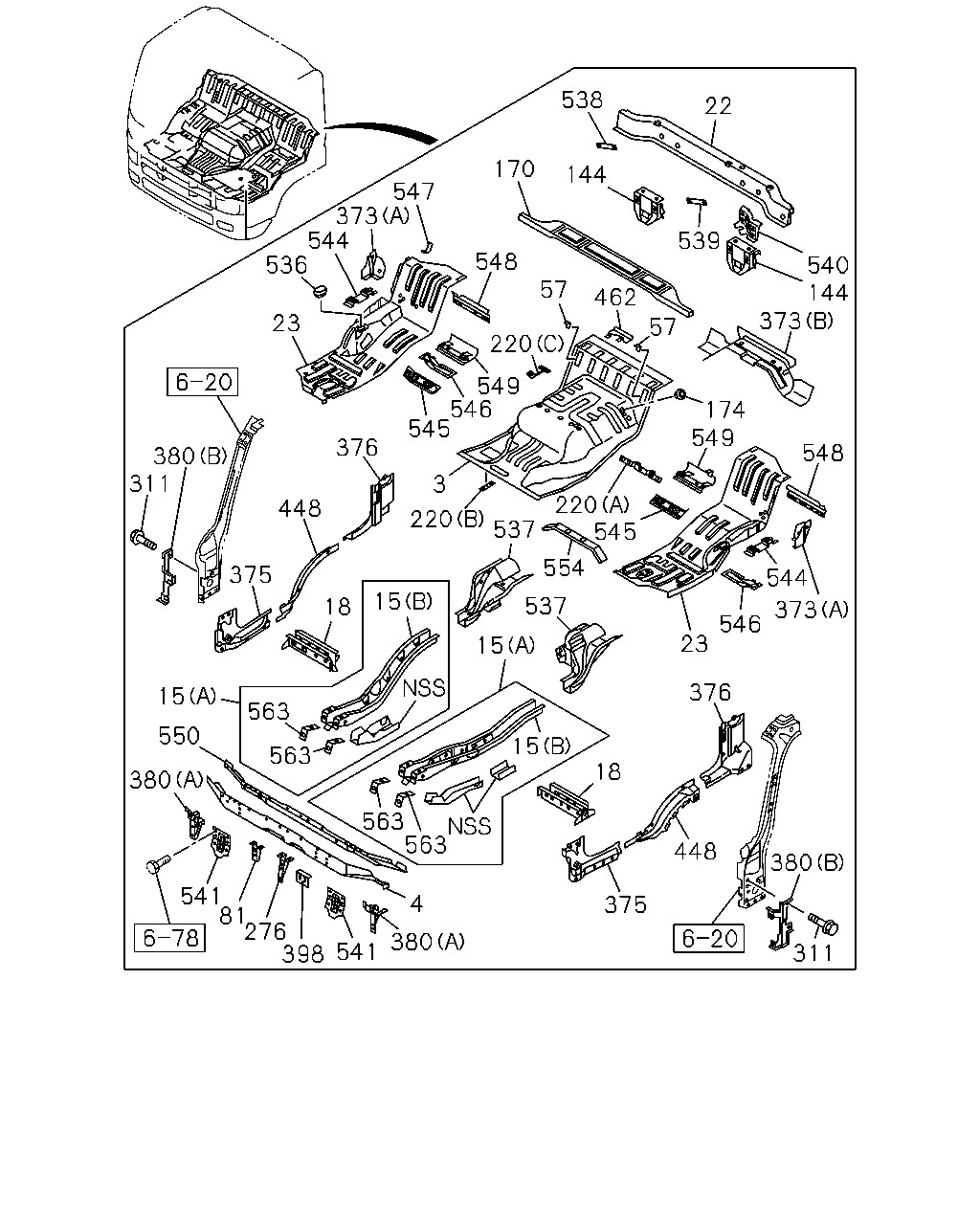

çizim 15232
538 22 170 144 547 373 544 536 539 548 540 144 373 57 462 23 57 220 549 546 545 174 549 376 548 380 311 3 220 545 448 220 537 554 375 544 15 537 18 373 546 23 15 376 15 563 550 563 15 18 380 563 563 448 380 541 81 276 398 4 375 380 541 311
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG 8-98081-356-4 01 1 0907-
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 0907-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 0907-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 0907-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 0907-
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 0907-
18 FRAME; FLOOR,CENTER SIDE 8-97584-397-5 01 1 0907-
18 FRAME; FLOOR,CENTER SIDE 8-97584-420-4 01 1 0907-
22 FRAME; FLOOR REAR 8-97584-430-5 01 1 0907-
23 PANEL; FLOOR,SIDE 8-97584-371-7 01 1 0907-
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 0907-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 0907-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 0907-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 0907-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 0907-
170 EXTENSION; RR FLOOR 8-97589-204-3 01 1 0907-
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 0907-
220 PATCH
(A) 		8-97588-840-4 01 1 0907-
220 PATCH
(B) 		8-97589-603-3 01 1 0907-
220 PATCH
(C) 		8-97589-627-2 01 1 0907-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 0907-
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0907-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 0907-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 0907-
373 REINFORCEMENT; SEAT BELT
(B) 		8-98081-349-3 01 1 0907-1507
373 REINFORCEMENT; SEAT BELT
(B) 		8-98228-266-0 01 1 1508-
375 CLOSING; PILLAR 8-98044-897-3 01 1 0907-
375 CLOSING; PILLAR 8-98044-898-3 01 1 0907-
376 CLOSING; PILLAR,LWR 8-97589-553-1 01 1 0907-
376 CLOSING; PILLAR,LWR 8-97589-555-1 01 1 0907-
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 0907-
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 0907-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 0907-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 0907-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 0907-
448 CLOSING; ROCKER 8-97589-551-2 01 1 0907-
448 CLOSING; ROCKER 8-97589-552-2 01 1 0907-
462 BRACKET; EXTINGUISHER 8-97585-688-1 01 1 0907-1002
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 0907-
537 SUPPORT ASM; MTG RR 8-97584-390-4 01 1 0907-
537 SUPPORT ASM; MTG RR 8-97584-416-4 01 1 0907-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 0907-
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 0907-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 0907-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 0907-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 0907-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 0907-
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 0907-
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 0907-
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 0907-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 0907-
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 0907-
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 0907-
549 BRACKET; SEAT RR 8-97588-958-4 01 1 0907-
549 BRACKET; SEAT RR 8-98050-187-1 01 1 0907-
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 0907-
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 0907-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 0907-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
