◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11227 - FSR(CNG)AUSTRALIA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#22889) — 10 parça

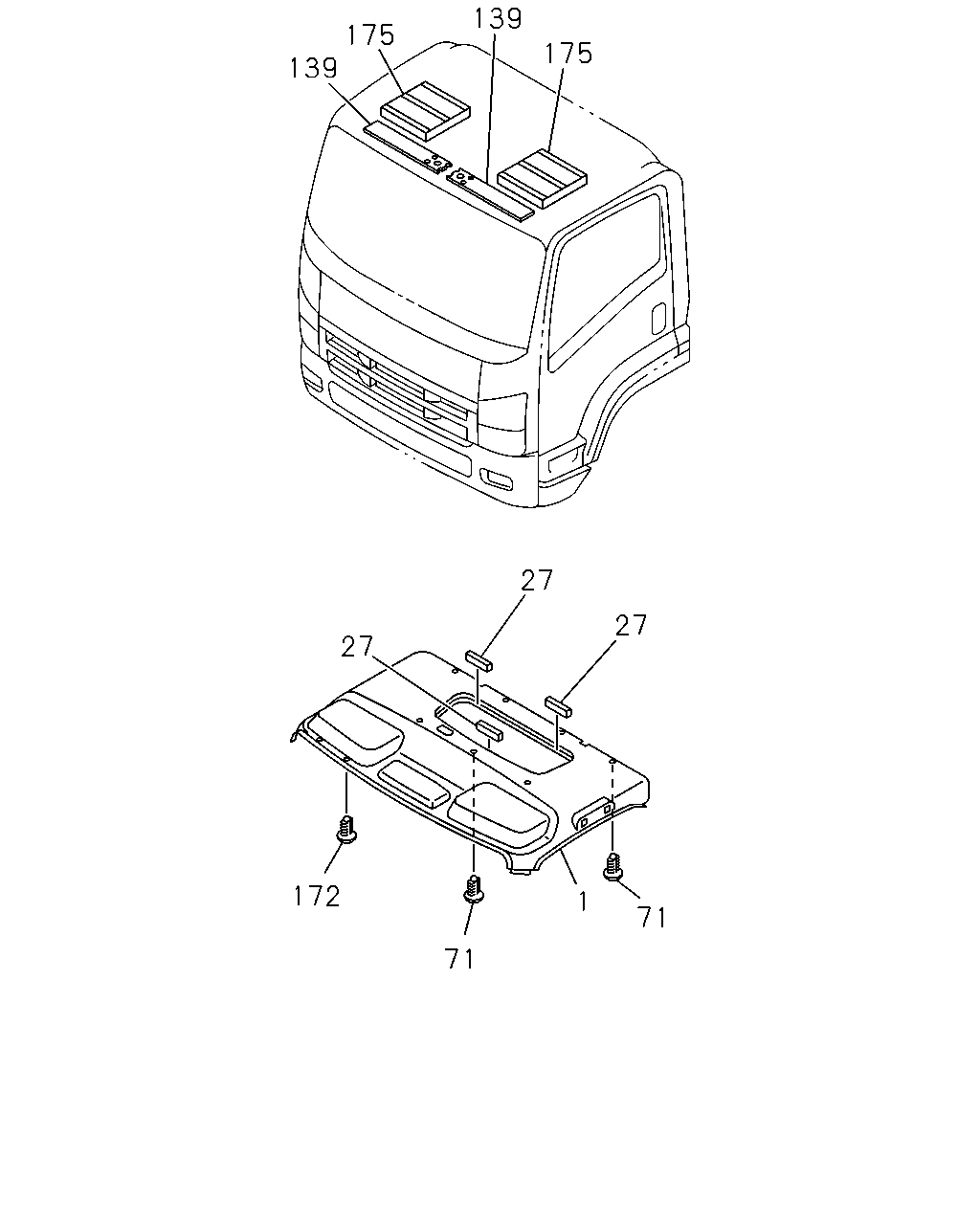

çizim 62763
139 175 139 175 27 27 27 172 1 71 71
BalonParca AdiParca NoAdetTipApplied Date
1 LINING; HD
RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97416-356-0 01 1 0907-1306
1 LINING; HD
RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97426-677-0 01 1 1307-
1 LINING; HD
RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97416-351-0 01 1 0907-1306
1 LINING; HD
RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97426-672-0 01 1 1307-
27 INSULATION; ROOF 8-98046-638-2 03 1 0907-
71 FASTENER; HD LINING
DARK GRAY 		8-97405-282-0 07 1 0907-
139 SEAL; ROOF 8-98076-274-0 02 1 0907-1009
139 SEAL; ROOF 8-98169-116-0 02 1 1010-
172 RETAINER; HEAD LINING
DARK GRAY 		8-97411-875-0 14 1 0907-
175 CUSHION; HEAD LINING 8-98030-965-2 02 1 0907-
