Isuzu WW
▶
TRUCKS
▶
FSR
▶
11227 - FSR(CNG)AUSTRALIA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶
6-47 — MUD GUARD AND INSULATOR
(#22887) — 54 parça
◀

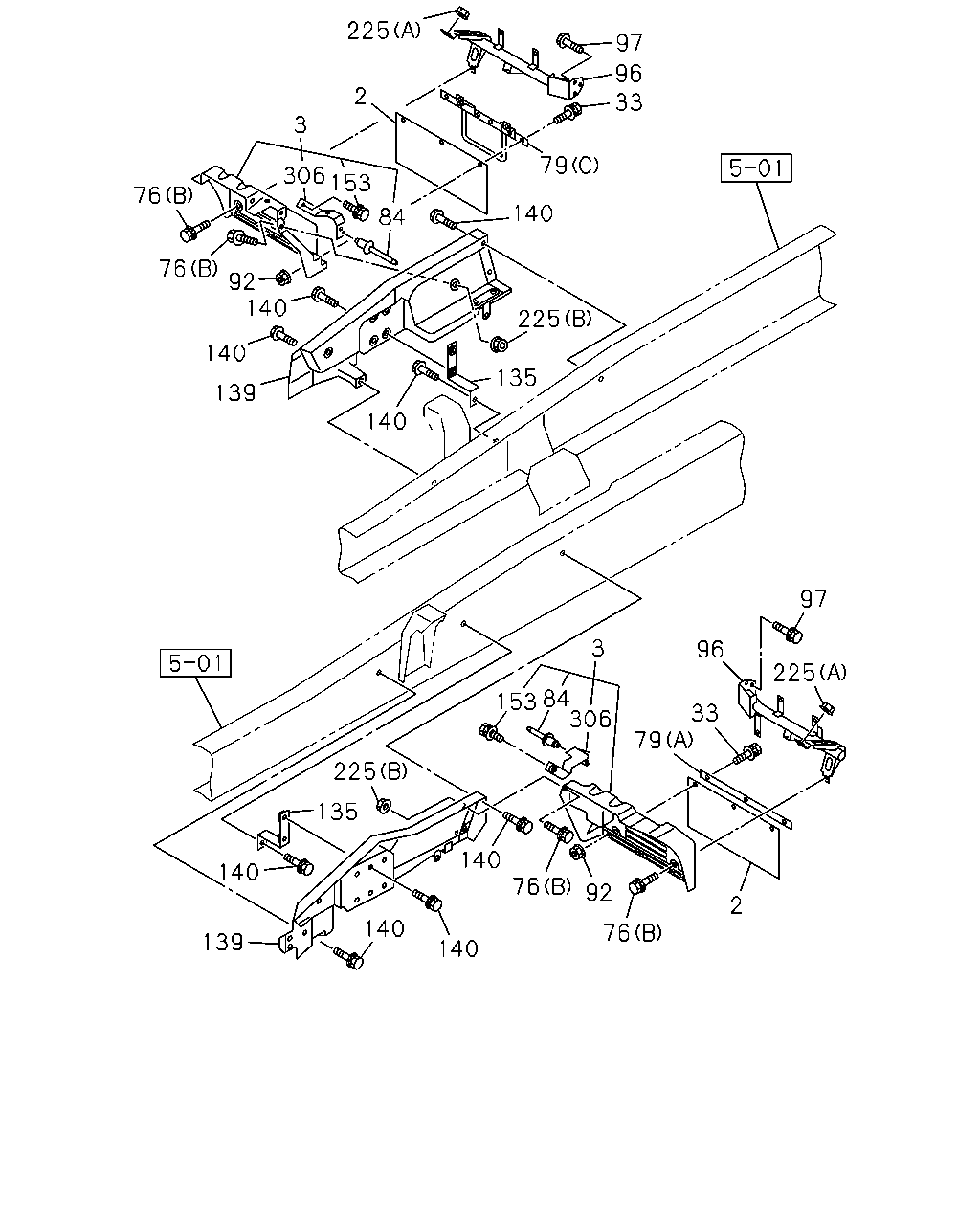

[647A] MUD GUARD;REAR AND SIDE PANEL (27 parça)

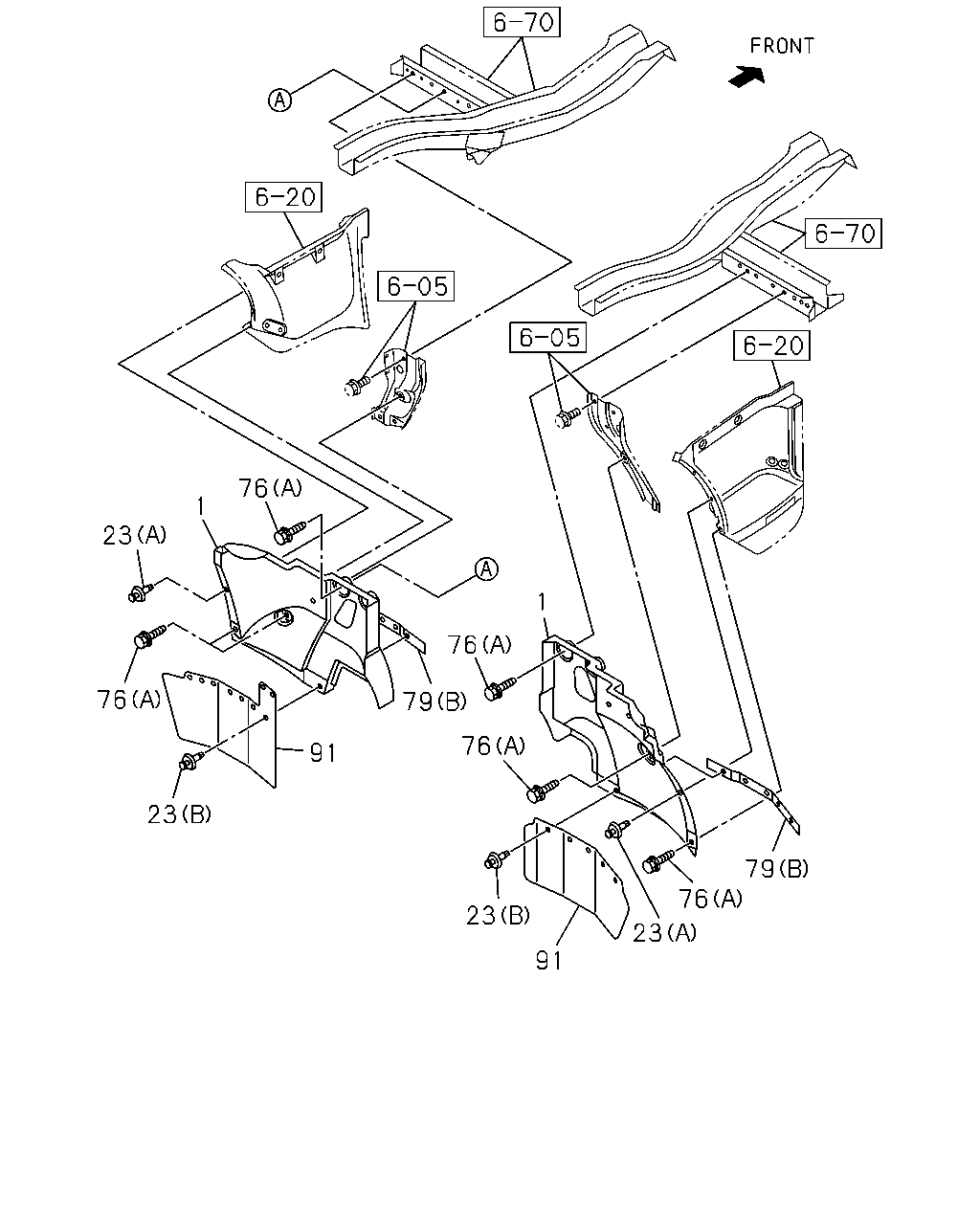

[647A] MUD GUARD;FRONT (15 parça)

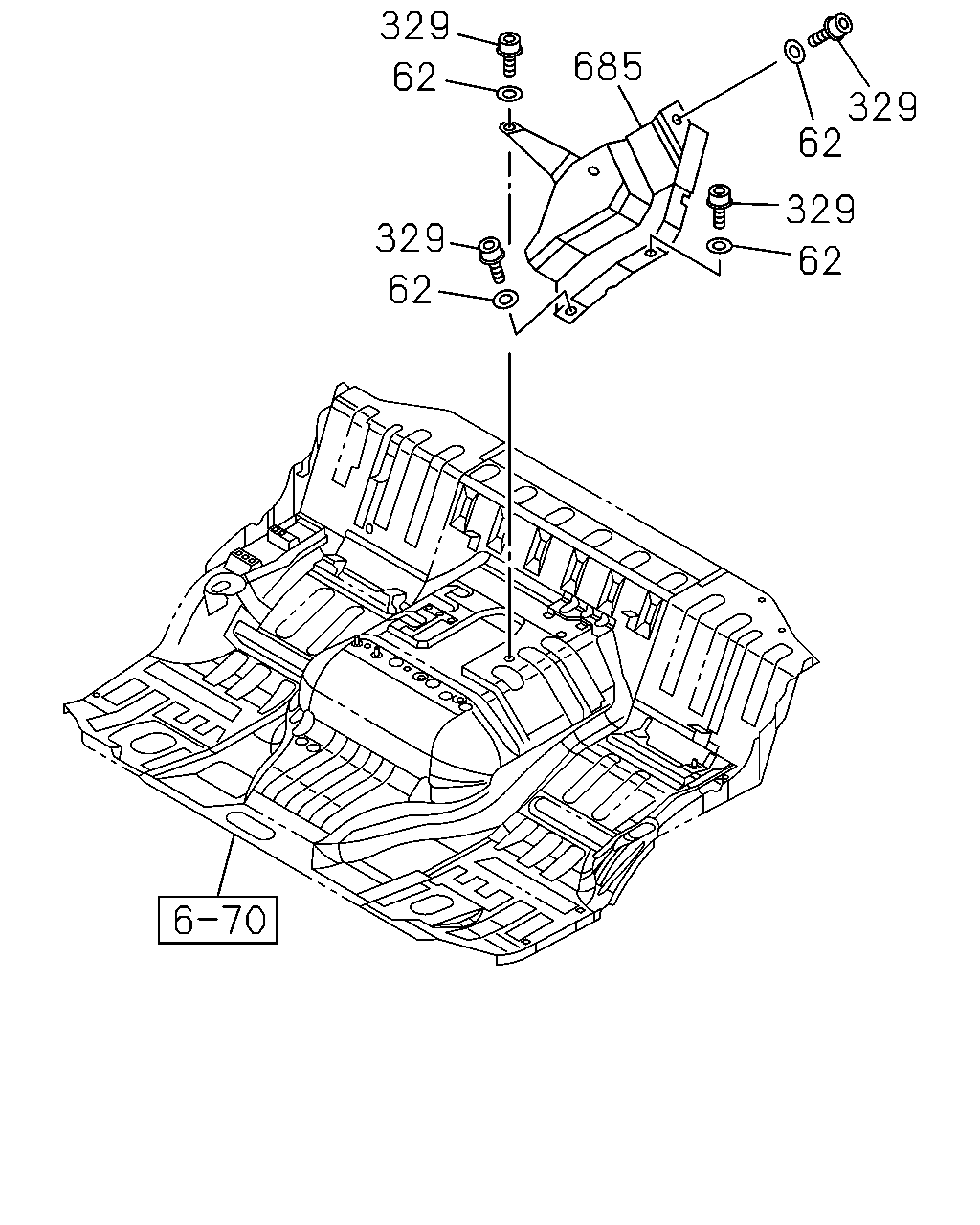

[647A] HEAT COVER (4 parça)

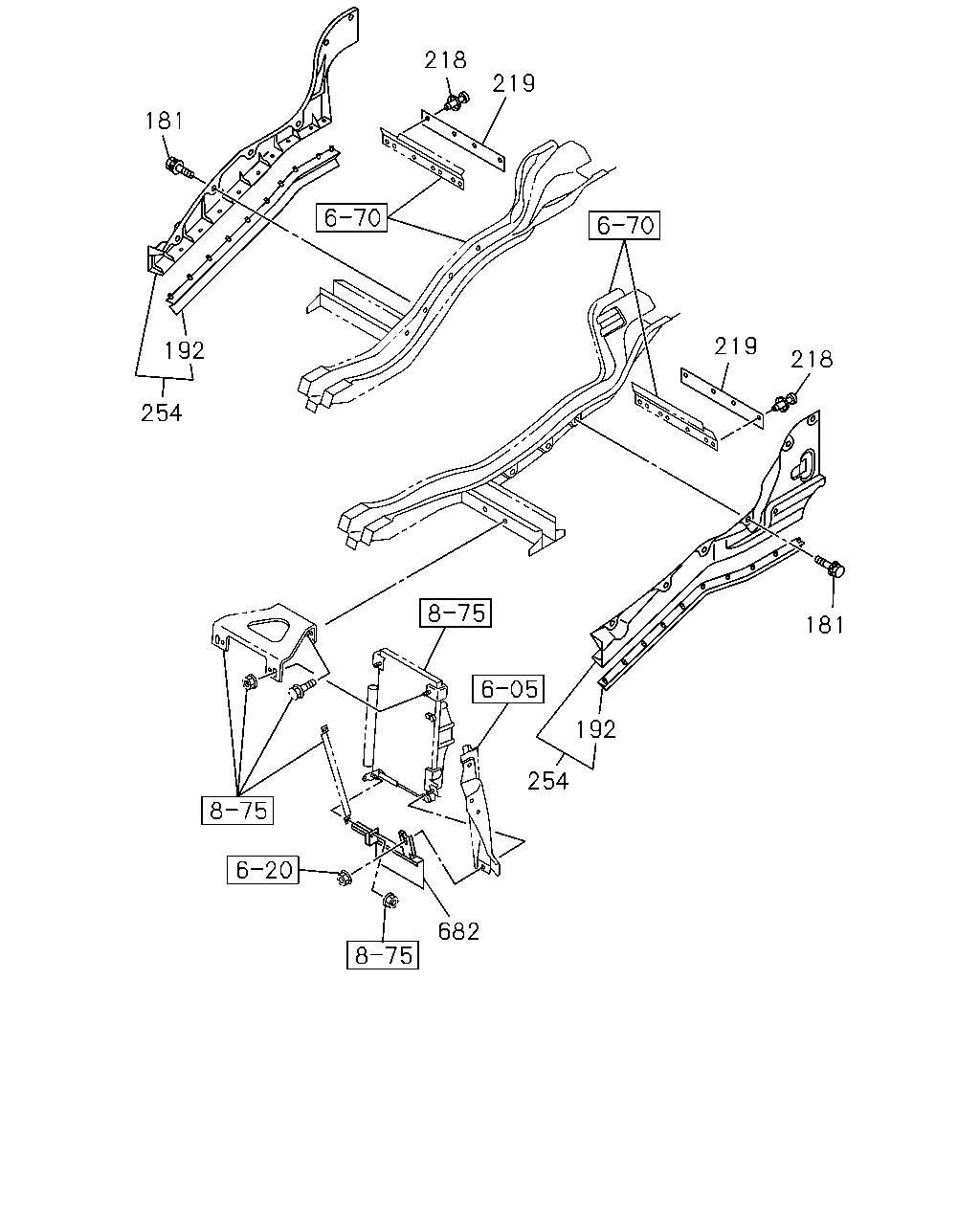

[647A] MUD COVER AND SEAL (8 parça)
▶
2
76
92
76
79
33
96
97
225
3
153
84
306
140
140
140
139
140
135
225
140
139
140
140
92
76
76
3
2
225
97
96
33
79
140
225
135
306
153
84
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
COVER; MUD,TIRE RR
1-79931-482-0
02
1
0907-
3
GUARD; MUD,RR
1-79931-471-0
01
1
0907-1212
3
GUARD; MUD,RR
8-98196-103-0
01
1
1301-
3
GUARD; MUD,RR
1-79931-475-0
01
1
0907-1212
3
GUARD; MUD,RR
8-98196-111-0
01
1
1301-
33
BOLT; MUD COVER
M6X20 W/LK&PL WASHER
1-09980-495-0
06
1
0907-
76
BOLT; MUD GUARD
(A) M8X24.5 W/LK&PL WASHER
8-98059-720-0
08
1
0907-0908
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
8-94331-747-1
08
1
0909-
76
BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER
1-09030-093-0
08
1
0907-1211
76
BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
08
1
1212-
79
RETAINER; MUD COVER
(B)
8-98041-217-1
02
1
0907-
79
RETAINER; MUD COVER
(A)
1-79931-484-0
01
1
0907-
79
RETAINER; MUD COVER
(C)
8-98105-000-0
01
1
0907-
84
RIVET; MUD GUARD
5-09734-006-1
04
1
1301-
92
NUT; MUD COVER
M6 FLANGE
0-91180-106-0
06
1
0907-
96
STAY; MUD GUARD
8-98066-745-2
01
1
0907-
96
STAY; MUD GUARD
1-79931-479-3
01
1
0907-
97
BOLT; STAY TO FRAME
M10X30 FLANGE
0-28651-030-0
07
1
0907-
135
BRACKET; SIDE PANEL
1-53457-191-0
02
1
0907-
139
PANEL; SIDE
8-98090-078-0
01
1
0907-
139
PANEL; SIDE
8-98094-072-1
01
1
0907-
140
BOLT; SIDE PANEL
M8X30 W/LK&PL WASHER
1-09030-095-0
10
1
0907-
153
BOLT; BRKT
M8X25 W/LK&PL WASHER
1-09030-093-0
02
1
1301-
225
NUT; MUD GUARD
(A) M8 FLANGE
0-91180-108-0
02
1
0907-
225
NUT; MUD GUARD
(B) M8 W/DISHED WASHER
8-97329-625-0
02
1
0907-
306
BRACKET; MUD GUARD
8-98196-125-0
01
1
1301-
306
BRACKET; MUD GUARD
8-98196-126-0
01
1
1301-
76
1
23
1
76
76
79
76
91
23
79
76
23
23
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GUARD; MUD,FRT
8-98039-843-2
01
1
0907-0908
1
GUARD; MUD,FRT
8-98152-647-0
01
1
0909-
1
GUARD; MUD,FRT
8-98039-842-2
01
1
0907-0908
1
GUARD; MUD,FRT
8-98152-646-0
01
1
0909-
23
FASTENER; MUD COVER
(B)
1-09470-001-0
08
1
0907-
23
FASTENER; MUD COVER
(A) D8X13.5
1-09987-248-1
04
1
0907-
76
BOLT; MUD GUARD
(A) M8X24.5 W/LK&PL WASHER
8-98059-720-0
08
1
0907-0908
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
8-94331-747-1
08
1
0909-
76
BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER
1-09030-093-0
08
1
0907-1211
76
BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
08
1
1212-
79
RETAINER; MUD COVER
(B)
8-98041-217-1
02
1
0907-
79
RETAINER; MUD COVER
(A)
1-79931-484-0
01
1
0907-
79
RETAINER; MUD COVER
(C)
8-98105-000-0
01
1
0907-
91
COVER; MUD,FRT
8-98092-834-0
01
1
0907-
91
COVER; MUD,FRT
8-98092-836-0
01
1
0907-
329
685
62
329
62
329
329
62
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
62
WASHER; COVER
ID=6.4 OD=18
0-91610-706-0
04
1
0907-
329
SCREW
0-72180-612-0
04
1
0907-
685
COVER; HEAT
8-98135-541-0
01
1
0907-0907
685
COVER; HEAT
8-98146-952-1
01
1
0908-
218
219
181
219
192
218
254
181
192
254
682
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
181
BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
12
1
0907-
192
SEAL; MUD COVER
8-98041-157-2
01
1
0907-
192
SEAL; MUD COVER
8-98041-156-2
01
1
0907-
218
FASTENER; RUBBER
D8X13.5
1-09987-248-1
08
1
0907-
219
FLAP; MUD GUARD
8-98041-150-1
02
1
0907-
254
COVER; MUD,VALANCE
8-98039-924-1
01
1
0907-
254
COVER; MUD,VALANCE
8-98039-923-2
01
1
0907-
682
FLAP; CONDENSER
FRONT UNDER RUN PROTECTOR<EBE>
8-98059-228-3
01
1
1108-
