◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11227 - FSR(CNG)AUSTRALIA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#22886) — 17 parça

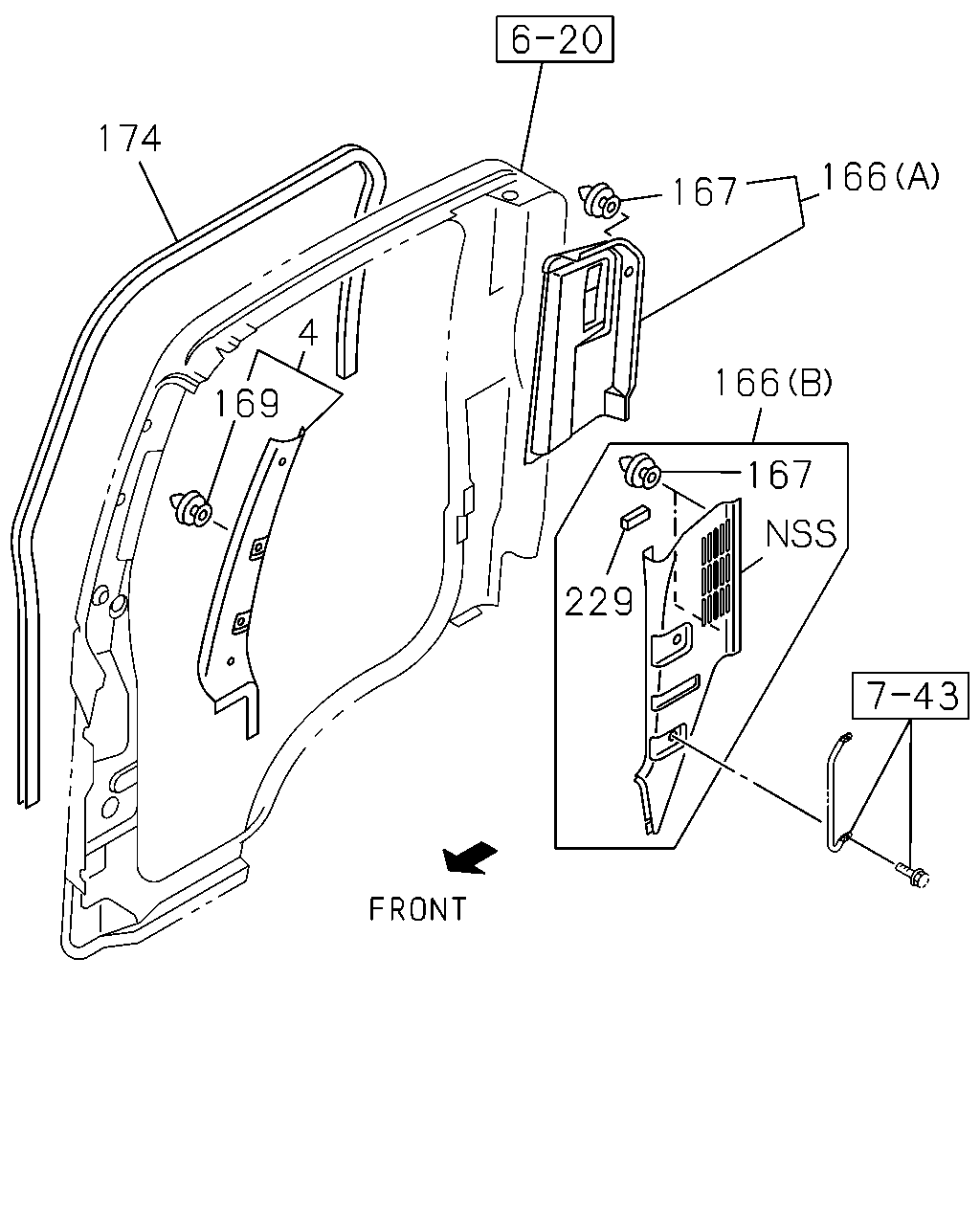

çizim 63241
174 166 167 4 166 169 167 229
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-416-1 01 1 0907-
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 0907-
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97406-796-1 01 1 0907-
166 TRIM; RR PILLAR
(B) GRAY 		8-97407-540-0 01 1 0907-
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97407-900-0 01 1 0907-
166 TRIM; RR PILLAR
(B) GRAY 		8-97414-301-0 01 1 0907-
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 04 1 0907-
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 02 1 0907-
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 02 1 0907-
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 0907-
174 FINISHER; BODY SIDE
DARK GRAY 		8-97412-918-1 01 1 0907-0912
174 FINISHER; BODY SIDE 8-98155-184-0 01 1 1001-1509
174 FINISHER; BODY SIDE 8-98249-514-0 01 1 1510-
174 FINISHER; BODY SIDE
DARK GRAY 		8-97412-917-1 01 1 0907-0912
174 FINISHER; BODY SIDE 8-98155-183-0 01 1 1001-1509
174 FINISHER; BODY SIDE 8-98249-513-0 01 1 1510-
229 SEAL 8-98092-662-0 01 1 0907-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
