Sayfa 4-80 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11227 - FSR(CNG)AUSTRALIA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶

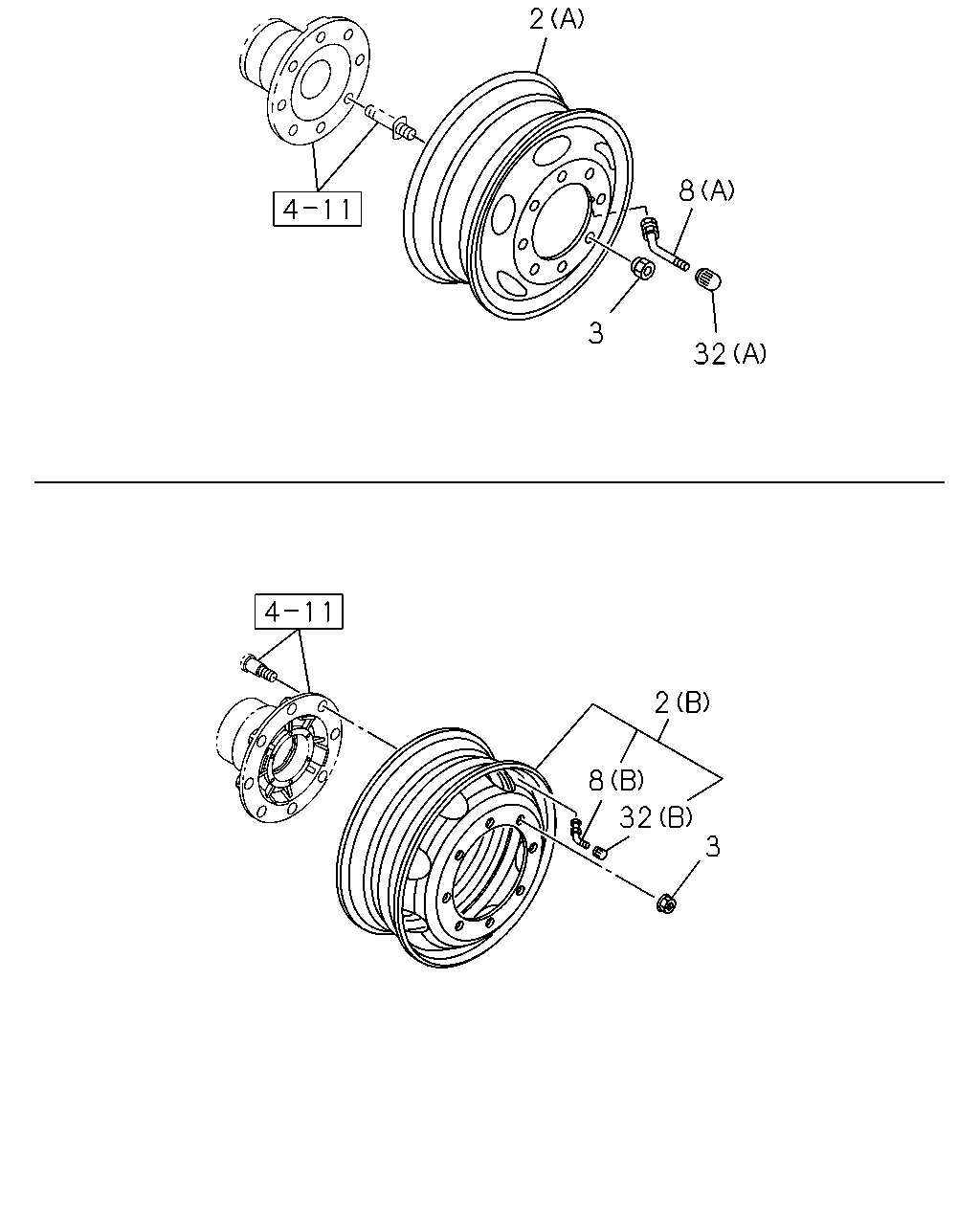

4-80 — ROAD WHEEL (#22870) — 63 parça

2 8 3 32 2 8 32 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> (B) SPARE	8-98222-134-0	01	1	1307-
2	WHEEL; DISC DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) WHEEL PAINTED LIGHT ARGENT<SKD> (B) FRONT,REAR	8-98222-134-0	06	1	1307-
2	WHEEL; DISC DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) SPARE	8-98222-135-0	01	1	1307-
2	WHEEL; DISC DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) FRONT,REAR	8-98222-135-0	06	1	1307-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> (A) SPARE	1-42350-761-1	01	1	1212-1306
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) (A) FRONT,REAR	1-42350-761-1	01	1	1307-
2	WHEEL; DISC WHEEL PAINTED LIGHT ARGENT<SKD> (A) FRONT,REAR	1-42350-761-1	06	1	1212-1306
2	WHEEL; DISC WHEEL PAINTED LIGHT ARGENT<SKD> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) (A) FRONT,REAR	1-42350-761-1	06	1	1307-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-762-1	01	1	0907-1211
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE	1-42350-762-1	01	1	1212-1306
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE	1-42350-762-1	01	1	1307-
2	WHEEL; DISC (A) FRONT,REAR	1-42350-762-1	06	1	0907-1211
2	WHEEL; DISC DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT,REAR	1-42350-762-1	06	1	1212-1306
2	WHEEL; DISC DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT,REAR	1-42350-762-1	06	1	1307-
3	NUT; WHEEL,FRT AXLE DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) M22X1.5	1-42333-055-0	16	1	1307-
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	08	1	0907-1306
3	NUT; WHEEL,FRT AXLE DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) M24 LH THREAD	1-42334-022-3	08	1	1307-
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	08	1	0907-1306
3	NUT; WHEEL,FRT AXLE DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) M24	1-42333-022-3	08	1	1307-
8	VALVE; TIRE DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) (B) SPARE	1-42370-048-0	01	1	1307-
8	VALVE; TIRE DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) (B) FRONT,REAR	1-42370-048-0	06	1	1307-
8	VALVE; TIRE (A) FRONT,REAR	1-42370-020-3	06	1	0907-1306
8	VALVE; TIRE DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) (A) FRONT,REAR	1-42370-020-3	06	1	1307-
8	VALVE; TIRE (A) SPARE	1-42370-020-3	01	1	0907-1306
8	VALVE; TIRE DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) (A) SPARE	1-42370-020-3	01	1	1307-
32	CAP; VALVE DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) (B)	1-42374-001-0	01	1	1307-
32	CAP; VALVE DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) (B)	1-42374-001-0	06	1	1307-
32	CAP; VALVE (A)	1-42374-001-0	07	1	0907-1306
32	CAP; VALVE DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) (A)	1-42374-001-0	07	1	1307-

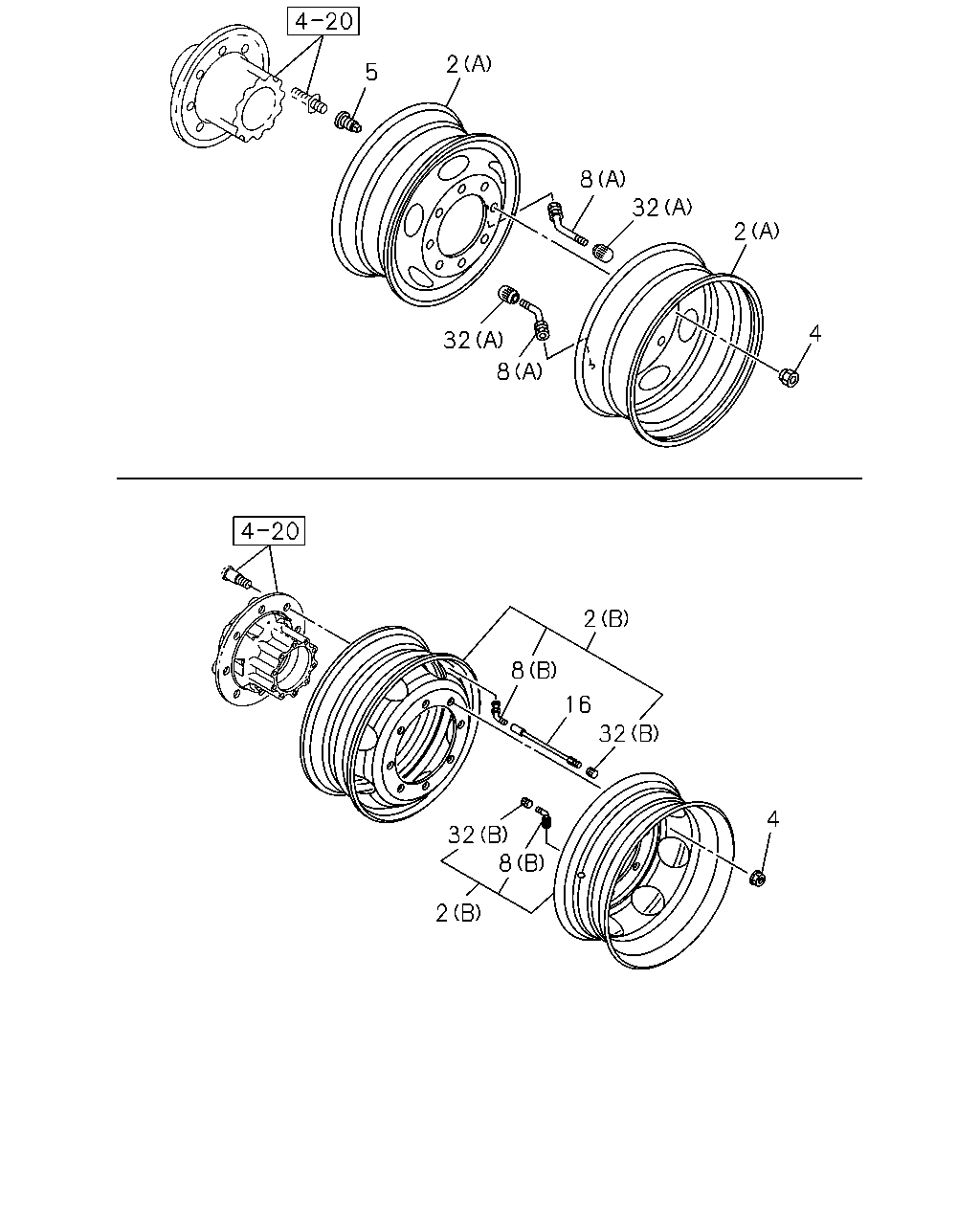

8 2 5 32 2 4 8 32 2 8 16 32 4 32 8 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> (B) SPARE	8-98222-134-0	01	1	1307-
2	WHEEL; DISC DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) WHEEL PAINTED LIGHT ARGENT<SKD> (B) FRONT,REAR	8-98222-134-0	06	1	1307-
2	WHEEL; DISC DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) SPARE	8-98222-135-0	01	1	1307-
2	WHEEL; DISC DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) FRONT,REAR	8-98222-135-0	06	1	1307-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> (A) SPARE	1-42350-761-1	01	1	1212-1306
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) (A) FRONT,REAR	1-42350-761-1	01	1	1307-
2	WHEEL; DISC WHEEL PAINTED LIGHT ARGENT<SKD> (A) FRONT,REAR	1-42350-761-1	06	1	1212-1306
2	WHEEL; DISC WHEEL PAINTED LIGHT ARGENT<SKD> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) (A) FRONT,REAR	1-42350-761-1	06	1	1307-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-762-1	01	1	0907-1211
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE	1-42350-762-1	01	1	1212-1306
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE	1-42350-762-1	01	1	1307-
2	WHEEL; DISC (A) FRONT,REAR	1-42350-762-1	06	1	0907-1211
2	WHEEL; DISC DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT,REAR	1-42350-762-1	06	1	1212-1306
2	WHEEL; DISC DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT,REAR	1-42350-762-1	06	1	1307-
4	NUT; WHEEL,RR AXLE DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) M22X1.5	1-42333-055-0	16	1	1307-
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	08	1	0907-1306
4	NUT; WHEEL,RR AXLE DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) M30 LH THREAD	8-97359-810-0	08	1	1307-
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	08	1	0907-1306
4	NUT; WHEEL,RR AXLE DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) M30 RH THREAD	8-97359-809-0	08	1	1307-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	08	1	0907-1306
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) OUTER M30,INNER M20 LH THREAD	8-97359-806-0	08	1	1307-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	08	1	0907-1306
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) OUTER M30,INNER M20 RH THREAD	8-97359-805-0	08	1	1307-
8	VALVE; TIRE DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) (B) SPARE	1-42370-048-0	01	1	1307-
8	VALVE; TIRE DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) (B) FRONT,REAR	1-42370-048-0	06	1	1307-
8	VALVE; TIRE (A) FRONT,REAR	1-42370-020-3	06	1	0907-1306
8	VALVE; TIRE DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) (A) FRONT,REAR	1-42370-020-3	06	1	1307-
8	VALVE; TIRE (A) SPARE	1-42370-020-3	01	1	0907-1306
8	VALVE; TIRE DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) (A) SPARE	1-42370-020-3	01	1	1307-
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) L=115	8-98167-051-0	02	1	1307-
32	CAP; VALVE DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) (B)	1-42374-001-0	01	1	1307-
32	CAP; VALVE DISC WHEEL 8STUD 19.5X6.75 147-12(FJR) (B)	1-42374-001-0	06	1	1307-
32	CAP; VALVE (A)	1-42374-001-0	07	1	0907-1306
32	CAP; VALVE DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) (A)	1-42374-001-0	07	1	1307-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
