0-20B — TIMING GEAR CASE AND FLYWHEEL HOUSING (#2287) — 68 parça

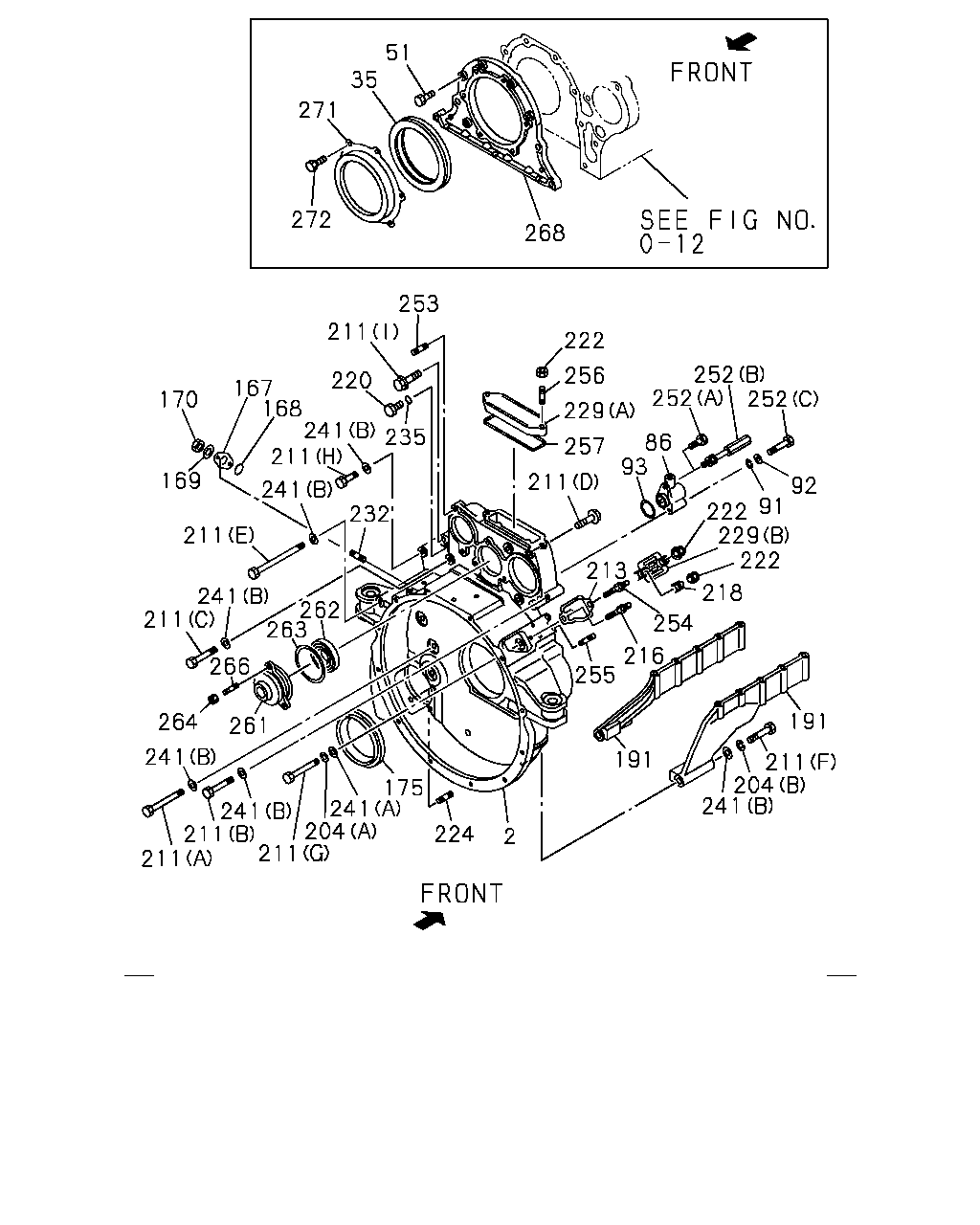

çizim 29557
211 211 241 211 204 241 175 224 2 191 241 204 211 191 255 216 254 213 218 222 229 222 91 92 211 93 257 86 232 262 263 266 261 241 264 211 241 211 169 241 211 170 167 241 168 220 235 211 253 272 271 35 51 268 222 256 229 252 252 252
BalonParca AdiParca NoAdetTipApplied Date A B C
2 HOUSING; FLYWHEEL 1-11341-223-6 01 1 9002- ● ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-506-0 01 1 9002-9302 ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-524-2 01 1 9303- ● ● ●
51 BOLT; GEAR CASE COVER
M8X28 		0-28020-828-0 08 1 9002-9005 ● ●
51 BOLT; GEAR CASE COVER
M8X28 FLANGE 		0-28080-828-0 08 1 9006- ● ● ●
86 ELBOW; TACHOMETER DRIVE 1-85860-039-1 01 1 9002-9309 ● ● ●
86 ELBOW; TACHOMETER DRIVE 1-85860-033-2 01 1 9310- ● ●
91 WASHER; LK,ELBOW
ID=8.2 		9-09150-508-0 01 1 9002- ● ● ●
92 WASHER; PL,ELBOW
ID=8.4 		9-09160-508-0 01 1 9002- ● ● ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7 		1-09623-416-0 01 1 9002- ● ● ●
167 COVER; OIL
DESERT ZONE PACKAGE(W01) 		1-11749-074-0 01 1 9111- ●
168 GASKET; COVER,OIL
DESERT ZONE PACKAGE(W01) ID=35.7 		1-09623-416-0 01 1 9111- ●
169 NUT; COVER
DESERT ZONE PACKAGE(W01) M10 		9-09110-410-0 02 1 9111- ●
170 WASHER; LK,COVER
DESERT ZONE PACKAGE(W01) ID=10.2 		9-09150-510-0 02 1 9111- ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-507-1 01 1 9002-9110 ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-525-2 01 1 9111- ● ● ●
191 STAY; FLYWHEEL HSG 1-11349-124-2 01 1 9002-9106 ● ●
191 STAY; FLYWHEEL HSG 1-11349-167-0 01 1 9107- ● ● ●
191 STAY; FLYWHEEL HSG 1-11349-078-2 01 1 9002-9106 ● ●
191 STAY; FLYWHEEL HSG 1-11349-168-0 01 1 9107- ● ● ●
204 WASHER; LK,HSG
(A) ID=10.2 		9-09150-510-0 01 1 9002- ● ● ●
204 WASHER; LK,HSG
(B) ID=14.2 		9-09150-514-0 15 1 9002- ● ● ●
211 BOLT; HSG
(H) M14X55 		9-91656-455-0 01 1 9002-9005 ● ●
211 BOLT; HSG
(H) M14X55 		0-16806-455-0 01 1 9006-9509 ● ● ●
211 BOLT; HSG
(B) M14X75 		9-91656-475-0 01 1 9002-9005 ● ●
211 BOLT; HSG
(B) M14X75 		0-16806-475-0 01 1 9006- ● ● ●
211 BOLT; HSG
(C) M14X95 		9-91656-495-0 01 1 9002-9005 ● ●
211 BOLT; HSG
(C) M14X95 		0-16806-495-0 01 1 9006-9509 ● ● ●
211 BOLT; HSG
(C) M14X95 		0-16806-495-0 01 1 9510- ● ●
211 BOLT; HSG
(D) M10X25 FLANGE 		0-28181-025-0 02 1 9002- ● ● ●
211 BOLT; HSG
(I) M10X28 FLANGE 		0-28181-028-0 01 1 9002- ● ● ●
211 BOLT; HSG
(E) M14X230 		1-09020-003-1 01 1 9002- ● ● ●
211 BOLT; HSG
(F) M14X155 		1-09020-008-0 02 1 9002- ● ● ●
211 BOLT; HSG
(G) M10X115 		9-09804-203-1 01 1 9002- ● ● ●
211 BOLT; HSG
(A) M14X125 		9-09804-234-0 09 1 9002- ● ● ●
211 BOLT; HSG
(H) M14X55 		0-16806-455-0 01 1 9510- ● ● ●
213 POINTER; FLYWHEEL HSG 1-11342-010-0 01 1 9002- ● ● ●
216 STUD; COVER,TIMING CHECK HOLE
M8X19 L=33 		1-09300-058-1 02 1 9002- ●
218 WASHER; PL,COVER 1-11349-127-0 01 1 9002- ●
220 PLUG; GEAR CHECK HOLE 1-09604-066-1 01 1 9002- ● ● ●
222 NUT; COVER,TIMING CHECK HOLE
M8 		9-09110-408-0 02 1 9002-9306 ●
222 NUT; COVER,TIMING CHECK HOLE
M8 FLANGE 		0-91150-108-0 02 1 9002- ● ●
222 NUT; COVER,TIMING CHECK HOLE
M8 FLANGE 		0-91150-108-0 07 1 9307- ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 03 1 9002- ● ● ●
229 COVER; TIMING CHECK HOLE
(A) 		1-11349-118-2 01 1 9002- ● ● ●
229 COVER; TIMING CHECK HOLE
(B) 		1-11349-126-0 01 1 9002- ● ● ●
232 STUD; OIL FILTER
M10X25 L=40 		9-04411-025-0 02 1 9002- ● ● ●
235 GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 01 1 9002- ● ● ●
241 WASHER; PL,HSG
(A) ID=10.5 OD=18 		9-09160-510-0 02 1 9002- ● ● ●
241 WASHER; PL,HSG
(B) ID=15 		9-09160-514-0 14 1 9002- ● ● ●
252 BOLT; GEAR BOX
(A) M8X18 		0-28010-818-0 01 1 9002-9106 ● ●
252 BOLT; GEAR BOX
(B) M8X22 W/LK&PL WASHER L=102 		1-09009-129-1 01 1 9107- ● ● ●
252 BOLT; GEAR BOX
(C) M8X70 		9-01055-870-0 01 1 9002-9005 ● ●
252 BOLT; GEAR BOX
(C) M8X70 		0-10805-870-0 01 1 9006- ● ● ●
253 STUD; POWER STRG PUMP
M10X25 L=45 		9-04311-025-0 02 1 9002- ● ● ●
254 STUD; POINTER & COVER
M8X14,M8X14 L=33 		1-09300-058-1 02 1 9002- ● ● ●
255 STUD; RELAY LEVER BRKT
M8X16 L=28 		9-04110-816-0 04 1 9002- ● ● ●
256 STUD; COVER
M8X35 L=47 		9-04110-835-0 02 1 9002- ● ● ●
257 GASKET; TIMING CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11349-142-0 01 1 9002- ● ● ●
261 COVER; INJ PUMP COUPLING 1-11349-117-0 01 1 9002- ● ● ●
262 BEARING 1-09810-126-0 01 1 9002- ● ● ●
263 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-422-0 01 1 9002- ● ● ●
264 NUT; COVER
M8 FLANGE 		0-91150-108-0 05 1 9002- ●
266 STUD; COVER & TACHO BOX
M8X20 L=32 		1-09305-005-0 03 1 9002- ● ● ●
268 COVER; FRT 1-11320-056-1 01 1 9002- ● ● ●
271 COVER; DUST 1-11329-004-0 01 1 9002- ● ● ●
272 BOLT; DUST COVER
M8X10 FLANGE 		0-28020-810-0 06 1 9002-9005 ● ●
272 BOLT; DUST COVER
M8X10 FLANGE 		0-28080-810-0 06 1 9006- ● ● ●
