Isuzu WW
▶
TRUCKS
▶
FSR
▶
11227 - FSR(CNG)AUSTRALIA
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶
4-50 — FRONT SUSPENSION
(#22866) — 36 parça
◀

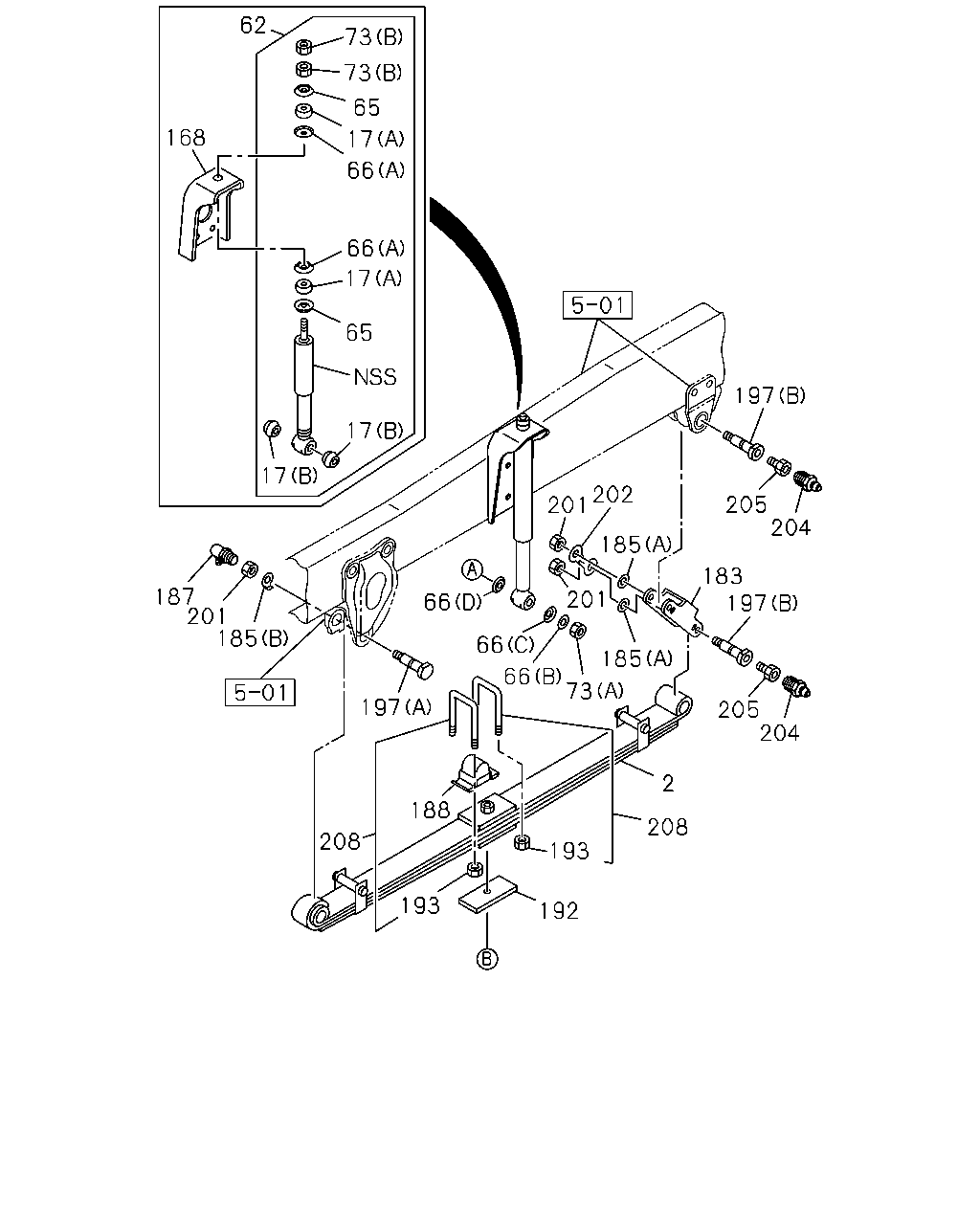

[450A] LEAF SPRING AND SHOCK ABSORBER (30 parça)

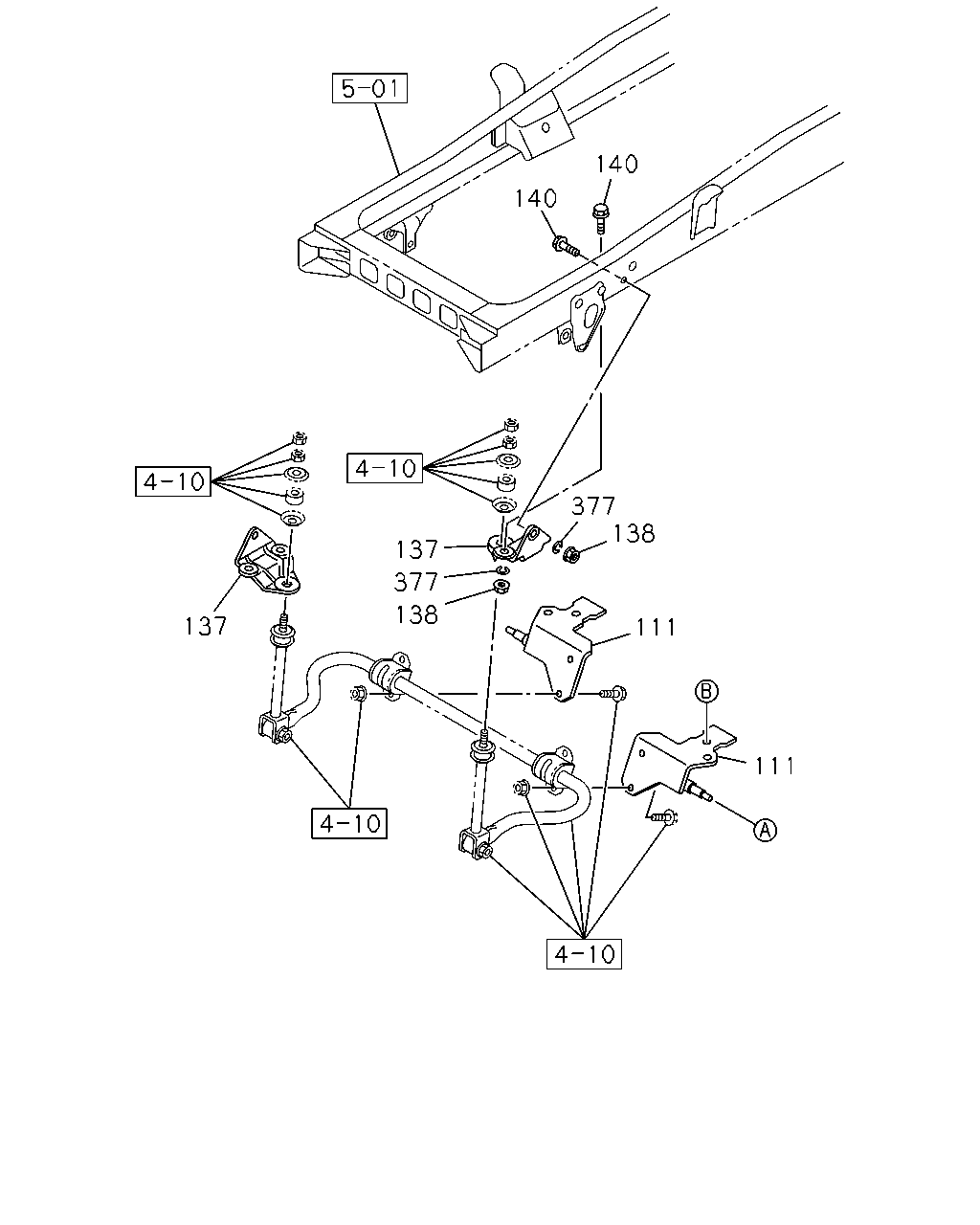

[450A] FRONT STABILIZER SHAFT (6 parça)
▶
73
62
73
65
168
17
66
66
65
17
187
201
185
17
17
66
197
208
188
193
193
192
2
208
73
66
66
201
202
185
201
185
205
204
197
183
205
204
197
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
8-98063-483-0
01
1
0907-1407
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF
8-98229-528-0
01
1
1408-
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
8-98063-484-0
01
1
0907-1407
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF
8-98229-529-0
01
1
1408-
17
BUSHING; RUBBER,S/ABS
(B)
1-51631-009-1
04
1
0907-
17
BUSHING; RUBBER,S/ABS
(A)
9-51631-050-0
04
1
0907-
62
ABSORBER ASM; SHOCK,FRT
1-51630-302-1
02
1
0907-
65
WASHER; S/ABS
ID=14.5
9-51631-051-0
04
1
0907-
66
WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30
0-91610-516-0
02
1
0907-
66
WASHER; LK,S/ABS SETTING
(D) ID=23
1-51631-019-0
02
1
0907-
66
WASHER; LK,S/ABS SETTING
(C) ID=17
1-51631-020-0
02
1
0907-
66
WASHER; LK,S/ABS SETTING
(A) ID=16.8
1-51631-022-0
04
1
0907-
73
NUT; BRKT,SHOCK
(A) M16
0-91110-516-0
02
1
0907-
73
NUT; BRKT,SHOCK
(B) M12
8-98010-412-0
04
1
0907-
168
BRACKET; S/ABS,FRT SUSP
1-51681-820-0
02
1
0907-1107
168
BRACKET; S/ABS,FRT SUSP
1-51681-820-0
02
1
1108-
183
SHACKLE; FRT SUSP
1-51162-037-0
02
1
0907-
185
WASHER; LK,PIN
(A) ID=25.5
8-98010-404-0
04
1
0907-
185
WASHER; LK,PIN
(B) ID=23
8-98010-411-0
02
1
0907-
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
0-90301-610-0
02
1
0907-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-124-0
02
1
0907-
192
PIECE; DIST
T=4.5
1-51177-149-0
AR
1
0907-
193
NUT; U BOLT
M18 FLANGE
1-09440-039-1
08
1
0907-
197
PIN; FRT SPR,FRT
(B)
8-98060-333-0
04
1
0907-
197
PIN; FRT SPR,FRT
(A)
8-98060-335-0
02
1
0907-
201
NUT; PIN LK
M22
0-91111-522-0
06
1
0907-
202
PLATE; LK,SPR PIN
8-98010-648-0
02
1
0907-
204
NIPPLE; GREASE,RR
PT1/8 STRAIGHT
0-90301-410-0
04
1
0907-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
04
1
0907-
208
U-BOLT SET; FRT SPRING
L=165
1-87870-444-0
04
1
0907-
140
140
377
138
137
377
138
137
111
111
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
111
SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59>
8-98010-629-1
01
1
0907-
111
SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59>
8-98010-630-1
01
1
0907-
137
BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59>
8-98021-304-0
02
1
0907-
138
NUT; BRKT
FRONT STABILIZER SHAFT<F59> M14
0-91110-514-0
06
1
0907-
140
BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M14X40
0-20951-440-0
06
1
0907-
377
WASHER; LK,BRKT
FRONT STABILIZER SHAFT<F59> ID=15
8-98010-627-1
06
1
0907-
