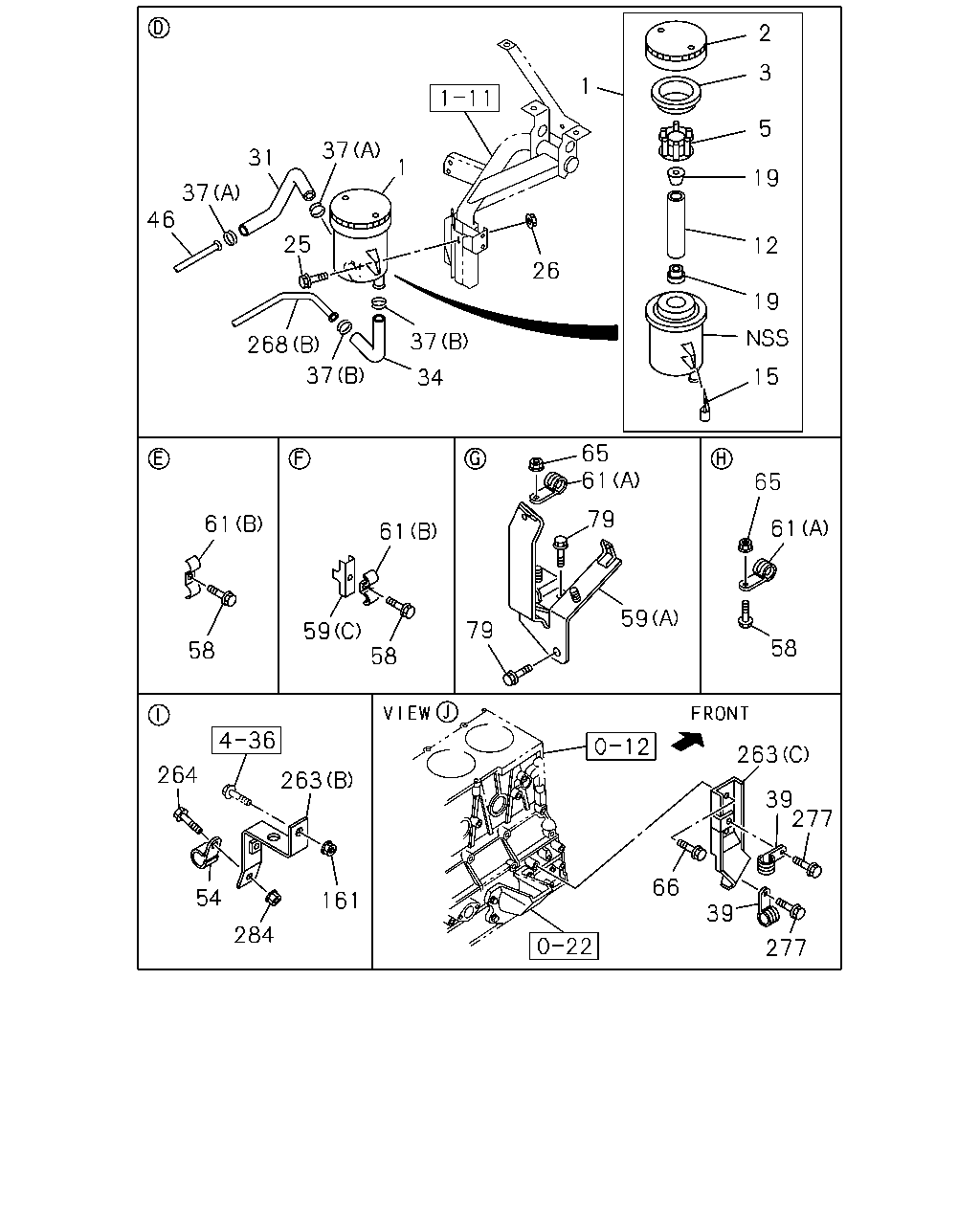

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#22862) — 62 parça

2 3 1 5 37 31 1 19 37 46 25 12 26 19 37 268 37 15 34 65 61 65 79 61 61 61 59 79 59 58 58 58 263 264 263 39 277 66 54 161 39 284 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0907-1006
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0907-1006
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0907-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0907-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0907-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0907-
19	SEAT; OIL TANK	1-21249-004-0	02	1	0907-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	0907-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0907-
31	HOSE; P/S OIL TANK,INL	8-98093-500-0	01	1	0907-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	0907-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0907-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0907-
39	CLIP; FLEX HOSE ID=24 L=27	1-09700-809-0	03	1	0907-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2855	8-98093-516-0	01	1	0907-
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	0907-
58	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0907-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0907-
58	BOLT; CLIP M8X35 FLANGE	0-28650-835-0	01	1	0907-
59	BRACKET; CLIP,OIL PIPE (C)	1-47475-427-1	01	1	0907-
59	BRACKET; CLIP,OIL PIPE (A)	8-98044-737-1	01	1	0907-
59	BRACKET; CLIP,OIL PIPE (B) L=85	8-98044-743-0	01	1	0907-
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	03	1	0907-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0907-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0907-
66	BOLT; BRKT,OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	0907-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	0907-
161	NUT; P/S PIPE M8 FLANGE	0-91180-108-0	01	1	0907-
263	BRACKET; P/S PIPE (A)	8-98049-251-0	01	1	0907-
263	BRACKET; P/S PIPE (C)	8-98071-752-0	01	1	0907-
263	BRACKET; P/S PIPE (B)	8-98079-445-0	01	1	0907-
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	0907-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98082-963-0	01	1	0907-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98082-964-0	01	1	0907-
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	03	1	0907-
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	0907-

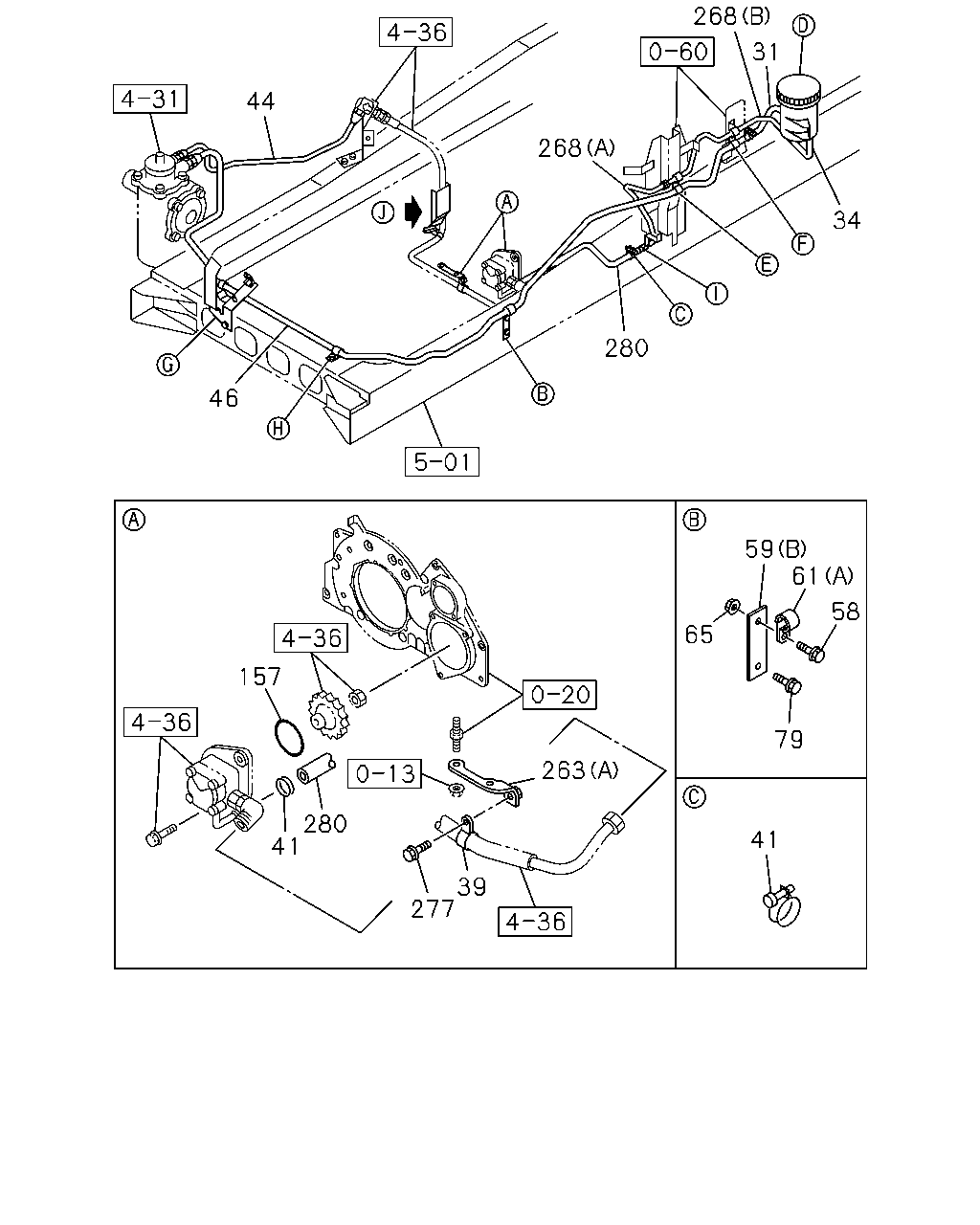

268 31 44 268 34 280 46 59 61 58 65 157 79 263 280 41 41 39 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL	8-98093-500-0	01	1	0907-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	0907-
39	CLIP; FLEX HOSE ID=24 L=27	1-09700-809-0	03	1	0907-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0907-
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98092-824-0	01	1	0907-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2855	8-98093-516-0	01	1	0907-
58	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0907-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0907-
58	BOLT; CLIP M8X35 FLANGE	0-28650-835-0	01	1	0907-
59	BRACKET; CLIP,OIL PIPE (C)	1-47475-427-1	01	1	0907-
59	BRACKET; CLIP,OIL PIPE (A)	8-98044-737-1	01	1	0907-
59	BRACKET; CLIP,OIL PIPE (B) L=85	8-98044-743-0	01	1	0907-
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	03	1	0907-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0907-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0907-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	0907-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-178-0	01	1	0907-
263	BRACKET; P/S PIPE (A)	8-98049-251-0	01	1	0907-
263	BRACKET; P/S PIPE (C)	8-98071-752-0	01	1	0907-
263	BRACKET; P/S PIPE (B)	8-98079-445-0	01	1	0907-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98082-963-0	01	1	0907-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98082-964-0	01	1	0907-
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	03	1	0907-
280	HOSE; P/S OIL PUMP,INL	8-98094-168-0	01	1	0907-
