◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11352 - FVR(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25A - REAR FINAL DRIVE ▶
4-25A — REAR FINAL DRIVE (#22851) — 111 parça

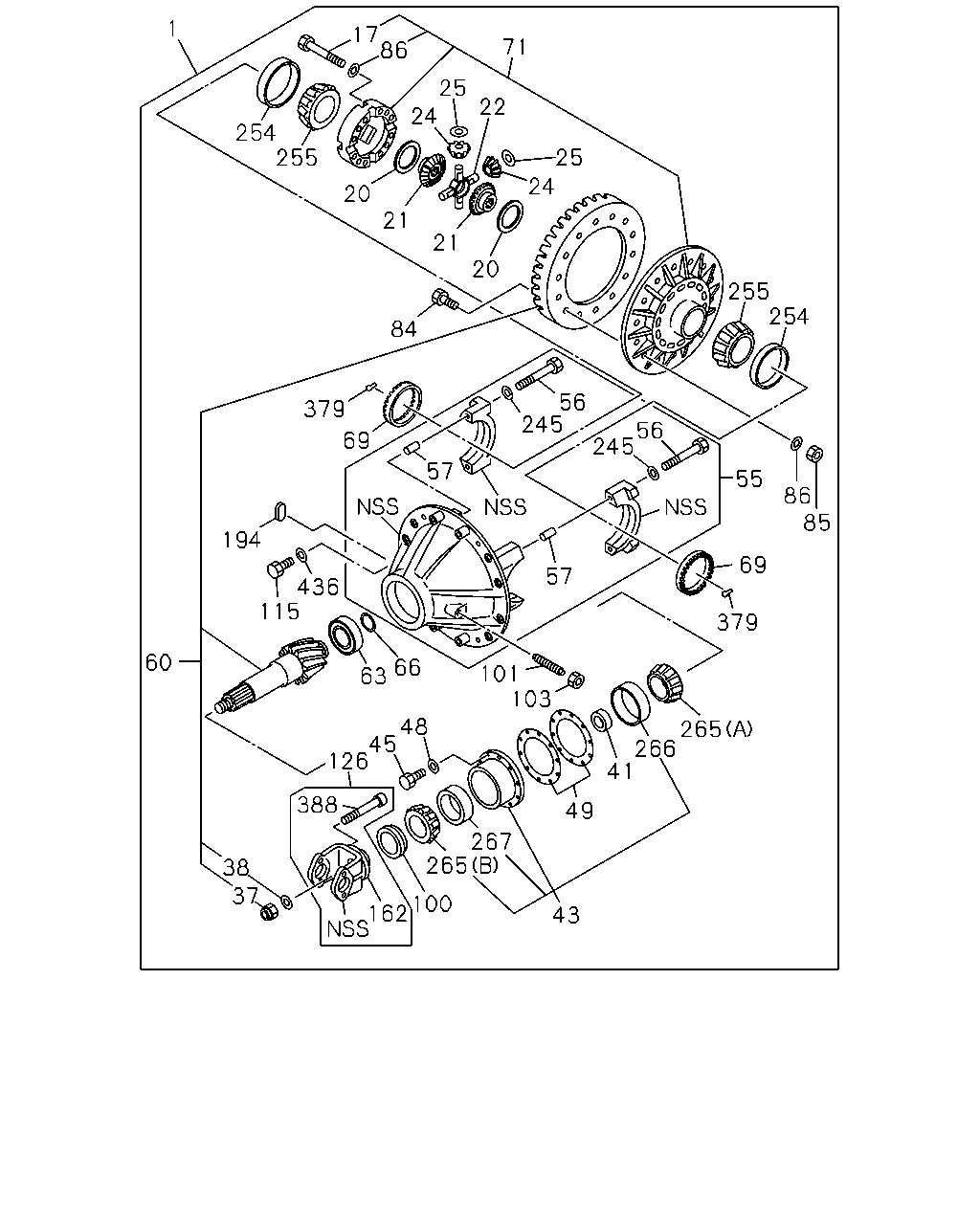

çizim 16557
1 17 86 71 25 22 24 254 255 25 24 20 21 21 20 255 254 84 56 245 379 56 245 69 57 55 86 85 194 69 57 436 115 379 60 66 63 101 103 48 45 126 265 266 41 388 49 267 265 38 37 100 162 43
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRIVE ASM; FINAL,RR
44/9 		1-41001-869-0 01 1 9601-9803 ●
1 DRIVE ASM; FINAL,RR
43/8 		1-41001-870-0 01 1 9601-0411 ●
1 DRIVE ASM; FINAL,RR
45/8 		1-41001-871-0 01 1 9601-0411 ●
1 DRIVE ASM; FINAL,RR
43/7 		1-41001-872-0 01 1 9601-0411 ●
17 BOLT; DIFF CAGE SETTING 1-41519-037-0 12 1 9601-9803 ● ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-037-0 12 1 9804-0411 ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41562-269-0 02 1 9804-0411 ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41562-269-0 02 1 9601-9803 ● ● ● ●
21 GEAR; SIDE,DIFF 1-41561-116-0 02 1 9804-0411 ● ● ●
21 GEAR; SIDE,DIFF 1-41561-116-0 02 1 9601-9803 ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-054-0 01 1 9601-9803 ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-054-0 01 1 9804-0411 ● ● ●
24 GEAR; PINION,DIFF 1-41551-035-0 04 1 9804-0411 ● ● ●
24 GEAR; PINION,DIFF 1-41551-035-0 04 1 9601-9803 ● ● ● ●
25 WASHER; THRUST,PINION 1-41552-037-0 04 1 9804-0411 ● ● ●
25 WASHER; THRUST,PINION 1-41552-037-0 04 1 9601-9803 ● ● ● ●
37 NUT; DRIVING PINION 1-41219-028-0 01 1 9601-9803 ● ● ● ●
37 NUT; DRIVING PINION 1-41219-028-0 01 1 9804-0411 ● ● ●
38 WASHER; PL,DRIVING PINION 1-41349-058-0 01 1 9601-9803 ● ● ● ●
38 WASHER; PL,DRIVING PINION 1-41349-058-0 01 1 9804-0411 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG 1-41229-360-0 01 1 9804-0411 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG 1-41229-360-0 01 1 9601-9803 ● ● ● ●
43 CAGE; FINAL PINION 1-41151-098-0 01 1 9804-0411 ● ● ●
43 CAGE; FINAL PINION 1-41151-098-0 01 1 9601-9803 ● ● ● ●
45 BOLT; FINAL PINION CAGE 1-41159-008-0 08 1 9601-9803 ● ● ● ●
45 BOLT; FINAL PINION CAGE 1-41159-008-0 08 1 9804-0411 ● ● ●
48 WASHER; LK,FINAL PINION 1-41159-009-0 08 1 9601-9803 ● ● ● ●
48 WASHER; LK,FINAL PINION 1-41159-009-0 08 1 9804-0411 ● ● ●
49 SHIM; FINAL PINION CAGE 1-41154-114-0 01 1 9804-0411 ● ● ●
49 SHIM; FINAL PINION CAGE 1-41154-114-0 01 1 9601-9803 ● ● ● ●
55 CARRIER; DIFF 1-41110-110-0 01 1 9601-9803 ● ● ● ●
55 CARRIER; DIFF 1-41110-110-0 01 1 9804-0411 ● ● ●
56 BOLT; BRG CAP 1-41119-066-0 04 1 9601-9803 ● ● ● ●
56 BOLT; BRG CAP 1-41119-066-0 04 1 9804-0411 ● ● ●
57 DOWEL; BRG CAP 1-41229-295-0 04 1 9601-9803 ● ● ● ●
57 DOWEL; BRG CAP 1-41229-295-0 04 1 9804-0112 ● ● ●
57 DOWEL; BRG CAP
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-41229-295-0 04 1 0201-0206 ●
57 DOWEL; BRG CAP
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-41229-295-0 04 1 0201-0206 ●
57 DOWEL; BRG CAP
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-41229-295-0 04 1 0207-0208 ●
60 GEAR SET; FINAL DRIVE,RR
44/9 		1-41210-538-0 01 1 9601-9803 ●
60 GEAR SET; FINAL DRIVE,RR
43/8 		1-41210-539-0 01 1 9601-0112 ●
60 GEAR SET; FINAL DRIVE,RR
HEAVY DUTY PACKAGE TRUCK<RD2> 43/8 		1-41210-539-0 01 1 0201-0206 ●
60 GEAR SET; FINAL DRIVE,RR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 43/8 		1-41210-650-0 01 1 0201-0206 ●
60 GEAR SET; FINAL DRIVE,RR
43/8 		1-41210-650-0 01 1 0207-0411 ●
60 GEAR SET; FINAL DRIVE,RR
45/8 		1-41210-540-0 01 1 9601-0112 ●
60 GEAR SET; FINAL DRIVE,RR
45/8 		1-41210-651-0 01 1 0201-0411 ●
60 GEAR SET; FINAL DRIVE,RR
43/7 		1-41210-541-0 01 1 9601-0112 ●
60 GEAR SET; FINAL DRIVE,RR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 43/7 		1-41210-541-0 01 1 0201-0208 ●
60 GEAR SET; FINAL DRIVE,RR
HEAVY DUTY PACKAGE TRUCK<RD2> 43/7 		1-41210-652-0 01 1 0201-0208 ●
60 GEAR SET; FINAL DRIVE,RR
43/7 		1-41210-652-0 01 1 0209-0411 ●
63 BEARING; PINION PILOT 1-41219-036-0 01 1 9601-9803 ● ● ● ●
63 BEARING; PINION PILOT 1-41219-036-0 01 1 9804-0411 ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-037-0 01 1 9601-9803 ● ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-037-0 01 1 9804-0411 ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-040-0 02 1 9601-9803 ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-040-0 02 1 9804-0411 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-286-0 01 1 9804-0411 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-286-0 01 1 9601-9803 ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41519-039-0 12 1 9601-9803 ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41519-039-0 12 1 9804-0411 ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 12 1 9601-9803 ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 12 1 9804-0411 ● ● ●
86 WASHER; PL,DIFF CAGE SETTING 1-41519-035-0 24 1 9601-9803 ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING 1-41519-035-0 24 1 9804-0411 ● ● ●
100 SEAL; OIL,FINAL PINION 1-41219-029-0 01 1 9601-9803 ● ● ● ●
100 SEAL; OIL,FINAL PINION 1-41219-029-0 01 1 9804-0112 ● ● ●
100 SEAL; OIL,FINAL PINION
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-41219-029-0 01 1 0201-0206 ●
100 SEAL; OIL,FINAL PINION
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-41219-029-0 01 1 0201-0206 ●
100 SEAL; OIL,FINAL PINION
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-41219-029-0 01 1 0207-0208 ●
100 SEAL; OIL,FINAL PINION
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-41349-180-0 01 1 0201-0206 ●
100 SEAL; OIL,FINAL PINION 1-41349-180-0 01 1 0201-0206 ●
100 SEAL; OIL,FINAL PINION
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-41349-180-0 01 1 0201-0206 ●
100 SEAL; OIL,FINAL PINION 1-41349-180-0 01 1 0207-0208 ● ●
100 SEAL; OIL,FINAL PINION
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-41349-180-0 01 1 0207-0208 ●
100 SEAL; OIL,FINAL PINION 1-41349-180-0 01 1 0209-0411 ● ● ●
101 BOLT; ADJ,DRIVEN GEAR THRUST 1-41259-001-0 01 1 9601-9803 ● ● ● ●
101 BOLT; ADJ,DRIVEN GEAR THRUST 1-41259-001-0 01 1 9804-0411 ● ● ●
103 NUT; ADJ BOLT 1-41259-002-0 01 1 9601-9803 ● ● ● ●
103 NUT; ADJ BOLT 1-41259-002-0 01 1 9804-0411 ● ● ●
115 BOLT; DIFF CARRIER 1-41119-072-0 01 1 9804-0411 ● ● ●
115 BOLT; DIFF CARRIER 1-41119-072-0 01 1 9601-9803 ● ● ● ●
126 COUPLING; DRIVING PINION 1-37245-301-0 01 1 9601-9803 ● ● ● ●
126 COUPLING; DRIVING PINION 1-37245-301-0 01 1 9804-0411 ● ● ●
162 COVER; DUST,INPUT FLANGE 1-37249-161-0 01 1 9601-9803 ● ● ● ●
162 COVER; DUST,INPUT FLANGE 1-37249-161-0 01 1 9804-0411 ● ● ●
194 PLUG 1-41119-077-0 01 1 9804-0411 ● ● ●
194 PLUG 1-41119-077-0 01 1 9601-9803 ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-065-0 04 1 9601-9803 ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-065-0 04 1 9804-0411 ● ● ●
254 CUP; DIFF BRG 1-41229-131-0 02 1 9601-9803 ● ● ● ●
254 CUP; DIFF BRG 1-41229-131-0 02 1 9804-0411 ● ● ●
255 CONE; DIFF BRG 1-41519-032-0 02 1 9601-9803 ● ● ● ●
255 CONE; DIFF BRG 1-41519-032-0 02 1 9804-0411 ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-033-0 01 1 9804-0411 ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-033-0 01 1 9601-9803 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-124-0 01 1 9804-0411 ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-124-0 01 1 9601-9803 ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER 1-41219-032-0 01 1 9804-0411 ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER 1-41219-032-0 01 1 9601-9803 ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-41349-050-0 01 1 0201-0206 ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER 1-41349-050-0 01 1 0201-0206 ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-41349-050-0 01 1 0201-0206 ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER 1-41349-050-0 01 1 0207-0208 ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-41349-050-0 01 1 0207-0208 ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER 1-41349-050-0 01 1 0209-0411 ● ● ●
379 PIN; SPLIT 1-41129-012-0 02 1 9601-9803 ● ● ● ●
379 PIN; SPLIT 1-41129-012-0 02 1 9804-0411 ● ● ●
388 BOLT; COUPLING 1-37249-160-0 04 1 9601-9803 ● ● ● ●
388 BOLT; COUPLING 1-37249-160-0 04 1 9804-0411 ● ● ●
436 WASHER; PL,DIFF CARRIER 1-41229-121-0 01 1 9804-0411 ● ● ●
436 WASHER; PL,DIFF CARRIER 1-41229-121-0 01 1 9601-9803 ● ● ● ●
