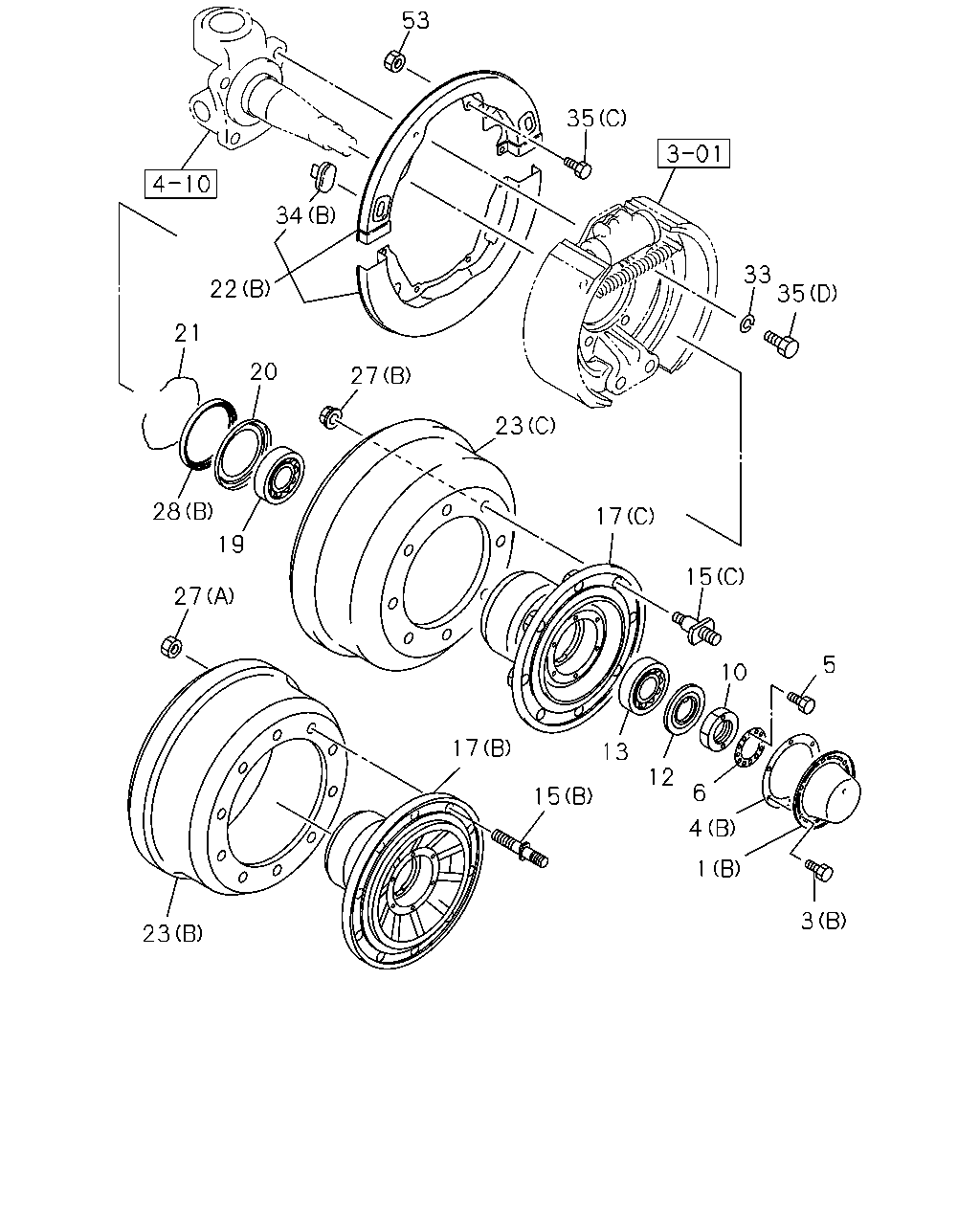

4-11 — FRONT HUB AND DRUM OR ROTOR (#22849) — 230 parça

53 35 33 23 35 17 15 5 10 13 12 6 4 1 3 15 17 23 27 28 19 20 27 21 22 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAP; HUB,FRT AXLE (A)	1-42313-016-1	02	1	9601-0211	●	●
1	CAP; HUB,FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	1-42313-016-1	02	1	0212-0308	●	●
1	CAP; HUB,FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	1-42313-016-1	02	1	0309-0411		●
1	CAP; HUB,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> (B) OD=156	9-42313-123-2	02	1	0303-0308	●	●
1	CAP; HUB,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> (B) OD=156	9-42313-123-2	02	1	0309-0411		●
1	CAP; HUB,FRT AXLE (B) OD=156	9-42313-123-2	02	1	0412-		●
3	BOLT; HUB CAP,FRT WHEEL (A) M8X16 FLANGE	0-28080-816-0	12	1	9601-0211	●	●
3	BOLT; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K> (A) M8X16 FLANGE	0-28080-816-0	12	1	0212-0308	●	●
3	BOLT; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K> (A) M8X16 FLANGE	0-28080-816-0	12	1	0309-0411		●
3	BOLT; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K> (B) M8X12 FLANGE	0-28080-812-0	12	1	0303-0308	●	●
3	BOLT; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K> (B) M8X12 FLANGE	0-28080-812-0	12	1	0309-0411		●
3	BOLT; HUB CAP,FRT WHEEL (B) M8X12 FLANGE	0-28080-812-0	12	1	0412-0512		●
3	BOLT; HUB CAP,FRT WHEEL (B) M8X12 FLANGE	0-28050-812-0	12	1	0601-		●
4	GASKET; HUB CAP,FRT WHEEL (A)	1-09630-119-0	02	1	9601-0211	●	●
4	GASKET; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K> (A)	1-09630-119-0	02	1	0212-0308	●	●
4	GASKET; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K> (A)	1-09630-119-0	02	1	0309-0411		●
4	GASKET; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42319-185-0	02	1	0303-0308	●	●
4	GASKET; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42319-185-0	02	1	0309-0411		●
4	GASKET; HUB CAP,FRT WHEEL (B)	1-42319-185-2	02	1	0412-		●
5	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	04	1	9601-9701	●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	9702-0308	●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	0309-0512		●
5	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	04	1	0601-0707		●
5	BOLT; LK WASHER M6X16 HEX SOCKET	8-98084-271-0	04	1	0708-1201		●
5	BOLT; LK WASHER M6X16 HEX SOCKET	8-98200-943-0	04	1	1202-		●
6	WASHER; LK,FRT HUB ID=48	1-09533-012-1	02	1	9601-0308	●	●
6	WASHER; LK,FRT HUB ID=48	1-09533-012-1	02	1	0309-0707		●
6	WASHER; LK,FRT HUB ID=48	8-98084-561-0	02	1	0708-		●
10	NUT; FRT HUB BRG M48	1-09840-012-5	02	1	9601-0308	●	●
10	NUT; FRT HUB BRG M48	1-09840-012-5	02	1	0309-		●
12	WASHER; LK,FRT HUB BRG ID=48	1-09533-016-0	02	1	9601-0308	●	●
12	WASHER; LK,FRT HUB BRG ID=48	1-09533-016-0	02	1	0309-0911		●
12	WASHER; LK,FRT HUB BRG ID=48	8-98156-755-0	02	1	0912-		●
13	BEARING; HUB OUTER,FRT AXLE NSK	1-09812-084-0	02	1	9601-9809	●	●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-234-0	02	1	9810-0308	●	●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-234-0	02	1	0309-		●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-085-0	02	1	9601-9809	●	●
15	PIN; WHEEL,FRT AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (C) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	1502-		●
15	PIN; WHEEL,FRT AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (C) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	1502-		●
15	PIN; WHEEL,FRT AXLE (A)	1-42337-052-0	20	1	9601-0211	●	●
15	PIN; WHEEL,FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	1-42337-052-0	20	1	0212-0308	●	●
15	PIN; WHEEL,FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	1-42337-052-0	20	1	0309-0411		●
15	PIN; WHEEL,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> (B) M22X42.8,M22X55.5 RH THREAD	1-42337-067-0	20	1	0303-0308	●	●
15	PIN; WHEEL,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> (B) M22X42.8,M22X55.5 RH THREAD	1-42337-067-0	20	1	0309-0411		●
15	PIN; WHEEL,FRT AXLE DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (B) M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	0412-		●
17	HUB; FRT AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (C)	1-42312-128-2	02	1	1502-		●
17	HUB; FRT AXLE (A)	1-42312-133-0	02	1	9601-0211	●	●
17	HUB; FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	1-42312-133-0	02	1	0212-0308	●	●
17	HUB; FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	1-42312-133-0	02	1	0309-0411		●
17	HUB; FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42312-100-1	02	1	0303-0308	●	●
17	HUB; FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42312-100-1	02	1	0309-0411		●
17	HUB; FRT AXLE DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (B)	1-42312-100-1	02	1	0412-		●
19	BEARING; HUB INNER,FRT AXLE NSK	1-09812-142-0	02	1	9601-9809	●	●
19	BEARING; HUB INNER,FRT AXLE JTEKT	1-09812-143-0	02	1	9601-9809	●	●
19	BEARING; HUB INNER,FRT AXLE JTEKT	1-09812-231-0	02	1	9810-0308	●	●
19	BEARING; HUB INNER,FRT AXLE JTEKT	1-09812-231-0	02	1	0309-		●
20	COVER; HUB BRG INNER EXC. HUB LUBRICATION OIL BATH<C5K>	1-42319-039-0	02	1	0303-0308	●	●
20	COVER; HUB BRG INNER EXC. HUB LUBRICATION OIL BATH<C5K>	1-42319-039-0	02	1	0309-0411		●
20	COVER; HUB BRG INNER	1-42319-039-0	02	1	0412-		●
21	RING; SNAP,HUB EXC. HUB LUBRICATION OIL BATH<C5K>	1-09587-017-0	02	1	0303-0308	●	●
21	RING; SNAP,HUB EXC. HUB LUBRICATION OIL BATH<C5K>	1-09587-017-0	02	1	0309-0411		●
21	RING; SNAP,HUB	1-09587-017-0	02	1	0412-		●
22	COVER SET; FRT BRK DRUM (A)	1-47151-642-0	01	1	9601-0211	●	●
22	COVER SET; FRT BRK DRUM HUB LUBRICATION OIL BATH<C5K> (A)	1-47151-642-0	01	1	0212-0308	●	●
22	COVER SET; FRT BRK DRUM HUB LUBRICATION OIL BATH<C5K> (A)	1-47151-642-0	01	1	0309-0411		●
22	COVER SET; FRT BRK DRUM (A)	1-47151-643-0	01	1	9601-0211	●	●
22	COVER SET; FRT BRK DRUM HUB LUBRICATION OIL BATH<C5K> (A)	1-47151-643-0	01	1	0212-0308	●	●
22	COVER SET; FRT BRK DRUM HUB LUBRICATION OIL BATH<C5K> (A)	1-47151-643-0	01	1	0309-0411		●
22	COVER SET; FRT BRK DRUM EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-47151-459-1	02	1	0303-0308	●	●
22	COVER SET; FRT BRK DRUM EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-47151-459-1	02	1	0309-0411		●
22	COVER SET; FRT BRK DRUM (B)	1-47151-459-1	02	1	0412-		●
23	DRUM; BRK,FRT WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (C)	1-42315-355-0	02	1	1502-		●
23	DRUM; BRK,FRT (A)	1-42315-348-2	02	1	9601-0211	●	●
23	DRUM; BRK,FRT HUB LUBRICATION OIL BATH<C5K> (A)	1-42315-348-2	02	1	0212-0308	●	●
23	DRUM; BRK,FRT HUB LUBRICATION OIL BATH<C5K> (A)	1-42315-348-2	02	1	0309-0411		●
23	DRUM; BRK,FRT EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42315-337-0	02	1	0303-0308	●	●
23	DRUM; BRK,FRT EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42315-337-0	02	1	0309-0411		●
23	DRUM; BRK,FRT DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (B)	1-42315-337-0	02	1	0412-		●
27	NUT; WHEEL PIN,FRT AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) M22 FLANGE	1-09440-065-0	16	1	1502-		●
27	NUT; WHEEL PIN,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> (A) M22	1-09400-071-0	20	1	0303-0308	●	●
27	NUT; WHEEL PIN,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> (A) M22	1-09400-071-0	20	1	0309-0411		●
27	NUT; WHEEL PIN,FRT AXLE DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (A) M22	1-09400-071-0	20	1	0412-		●
28	SEAL; OIL,FRT HUB (A) TBK	1-09625-449-1	02	1	9601-0211	●	●
28	SEAL; OIL,FRT HUB HUB LUBRICATION OIL BATH<C5K> (A) TBK	1-09625-449-1	02	1	0212-0308	●	●
28	SEAL; OIL,FRT HUB HUB LUBRICATION OIL BATH<C5K> (A) TBK	1-09625-449-1	02	1	0309-0411		●
28	SEAL; OIL,FRT HUB (A) JTEKT	1-09625-503-0	02	1	9601-0211	●	●
28	SEAL; OIL,FRT HUB HUB LUBRICATION OIL BATH<C5K> (A) JTEKT	1-09625-503-0	02	1	0212-0308	●	●
28	SEAL; OIL,FRT HUB HUB LUBRICATION OIL BATH<C5K> (A) JTEKT	1-09625-503-0	02	1	0309-0411		●
28	SEAL; OIL,FRT HUB EXC. HUB LUBRICATION OIL BATH<C5K> (B) OD=140	1-09625-041-0	02	1	0303-0308	●	●
28	SEAL; OIL,FRT HUB EXC. HUB LUBRICATION OIL BATH<C5K> (B) OD=140	1-09625-041-0	02	1	0309-0411		●
28	SEAL; OIL,FRT HUB (B) OD=140	1-09625-041-0	02	1	0412-		●
33	WASHER; LK,DRUM COVER ID=16.2	9-09150-816-0	04	1	9601-0308	●	●
33	WASHER; LK,DRUM COVER ID=16.2	9-09150-816-0	04	1	0309-0603		●
33	WASHER; LK,DRUM COVER ID=16.2	0-91510-816-0	04	1	0604-		●
34	COVER; CHECK HOLE,DRUM COVER (A)	1-87050-011-0	04	1	9601-0211	●	●
34	COVER; CHECK HOLE,DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A)	1-87050-011-0	04	1	0212-0308	●	●
34	COVER; CHECK HOLE,DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A)	1-87050-011-0	04	1	0309-0411		●
34	COVER; CHECK HOLE,DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-09333-151-0	04	1	0303-0308	●	●
34	COVER; CHECK HOLE,DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-09333-151-0	04	1	0309-0411		●
34	COVER; CHECK HOLE,DRUM COVER (B)	1-09333-151-0	04	1	0412-		●
35	BOLT; DRUM COVER (A) M16X52	1-09044-001-2	02	1	9601-0211	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A) M16X52	1-09044-001-2	02	1	0212-0308	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A) M16X52	1-09044-001-2	02	1	0309-0411		●
35	BOLT; DRUM COVER (A) M16X59 FLANGE	1-09044-002-2	02	1	9601-0211	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A) M16X59 FLANGE	1-09044-002-2	02	1	0212-0308	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A) M16X59 FLANGE	1-09044-002-2	02	1	0309-0411		●
35	BOLT; DRUM COVER (B)	1-47159-177-0	08	1	9601-0211	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (B)	1-47159-177-0	08	1	0212-0308	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (B)	1-47159-177-0	08	1	0309-0411		●
35	BOLT; DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (C) M10X16 W/LK WASHER	0-50041-016-0	12	1	0303-0308	●	●
35	BOLT; DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (C) M10X16 W/LK WASHER	0-50041-016-0	12	1	0309-0411		●
35	BOLT; DRUM COVER (C) M10X16 W/LK WASHER	0-50041-016-0	12	1	0412-0906		●
35	BOLT; DRUM COVER (C) M10X16 W/LK WASHER	0-50541-016-0	12	1	0907-		●
35	BOLT; DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (D) M16X59 FLANGE	1-09044-002-2	04	1	0303-0308	●	●
35	BOLT; DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (D) M16X59 FLANGE	1-09044-002-2	04	1	0309-0411		●
35	BOLT; DRUM COVER (D) M16X59 FLANGE	1-09044-002-2	04	1	0412-		●
53	NUT; DRUM COVER M16	9-99110-416-0	04	1	9601-9902	●	●
53	NUT; DRUM COVER M16	9-99110-516-0	04	1	9903-0308	●	●
53	NUT; DRUM COVER M16	9-99110-516-0	04	1	0309-0512		●
53	NUT; DRUM COVER M16	0-91110-516-0	04	1	0601-		●

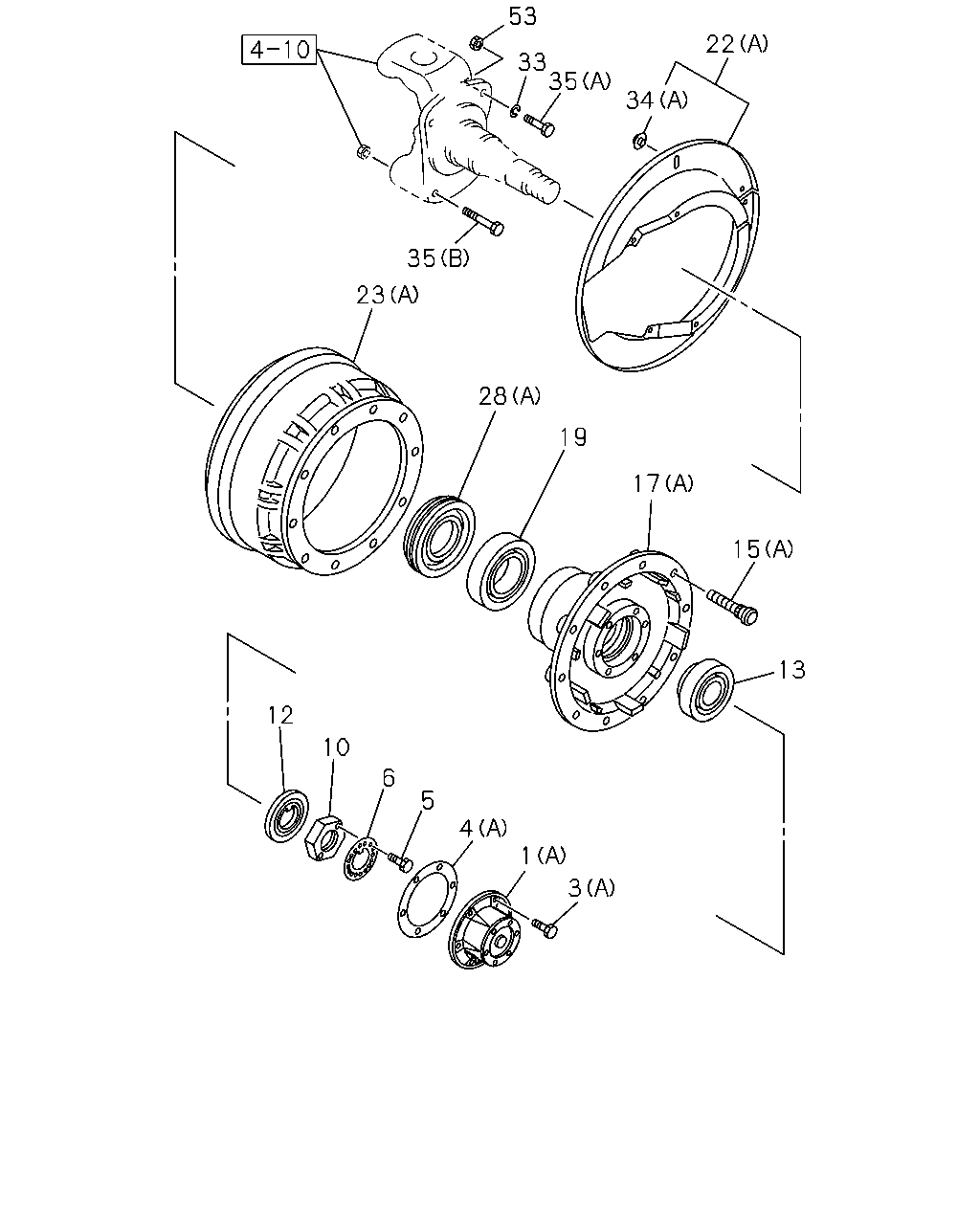

53 22 33 35 34 35 23 28 19 17 15 13 12 10 6 5 4 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAP; HUB,FRT AXLE (A)	1-42313-016-1	02	1	9601-0211	●	●
1	CAP; HUB,FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	1-42313-016-1	02	1	0212-0308	●	●
1	CAP; HUB,FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	1-42313-016-1	02	1	0309-0411		●
1	CAP; HUB,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> (B) OD=156	9-42313-123-2	02	1	0303-0308	●	●
1	CAP; HUB,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> (B) OD=156	9-42313-123-2	02	1	0309-0411		●
1	CAP; HUB,FRT AXLE (B) OD=156	9-42313-123-2	02	1	0412-		●
3	BOLT; HUB CAP,FRT WHEEL (A) M8X16 FLANGE	0-28080-816-0	12	1	9601-0211	●	●
3	BOLT; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K> (A) M8X16 FLANGE	0-28080-816-0	12	1	0212-0308	●	●
3	BOLT; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K> (A) M8X16 FLANGE	0-28080-816-0	12	1	0309-0411		●
3	BOLT; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K> (B) M8X12 FLANGE	0-28080-812-0	12	1	0303-0308	●	●
3	BOLT; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K> (B) M8X12 FLANGE	0-28080-812-0	12	1	0309-0411		●
3	BOLT; HUB CAP,FRT WHEEL (B) M8X12 FLANGE	0-28080-812-0	12	1	0412-0512		●
3	BOLT; HUB CAP,FRT WHEEL (B) M8X12 FLANGE	0-28050-812-0	12	1	0601-		●
4	GASKET; HUB CAP,FRT WHEEL (A)	1-09630-119-0	02	1	9601-0211	●	●
4	GASKET; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K> (A)	1-09630-119-0	02	1	0212-0308	●	●
4	GASKET; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K> (A)	1-09630-119-0	02	1	0309-0411		●
4	GASKET; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42319-185-0	02	1	0303-0308	●	●
4	GASKET; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42319-185-0	02	1	0309-0411		●
4	GASKET; HUB CAP,FRT WHEEL (B)	1-42319-185-2	02	1	0412-		●
5	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	04	1	9601-9701	●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	9702-0308	●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	0309-0512		●
5	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	04	1	0601-0707		●
5	BOLT; LK WASHER M6X16 HEX SOCKET	8-98084-271-0	04	1	0708-1201		●
5	BOLT; LK WASHER M6X16 HEX SOCKET	8-98200-943-0	04	1	1202-		●
6	WASHER; LK,FRT HUB ID=48	1-09533-012-1	02	1	9601-0308	●	●
6	WASHER; LK,FRT HUB ID=48	1-09533-012-1	02	1	0309-0707		●
6	WASHER; LK,FRT HUB ID=48	8-98084-561-0	02	1	0708-		●
10	NUT; FRT HUB BRG M48	1-09840-012-5	02	1	9601-0308	●	●
10	NUT; FRT HUB BRG M48	1-09840-012-5	02	1	0309-		●
12	WASHER; LK,FRT HUB BRG ID=48	1-09533-016-0	02	1	9601-0308	●	●
12	WASHER; LK,FRT HUB BRG ID=48	1-09533-016-0	02	1	0309-0911		●
12	WASHER; LK,FRT HUB BRG ID=48	8-98156-755-0	02	1	0912-		●
13	BEARING; HUB OUTER,FRT AXLE NSK	1-09812-084-0	02	1	9601-9809	●	●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-234-0	02	1	9810-0308	●	●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-234-0	02	1	0309-		●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-085-0	02	1	9601-9809	●	●
15	PIN; WHEEL,FRT AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (C) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	1502-		●
15	PIN; WHEEL,FRT AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (C) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	1502-		●
15	PIN; WHEEL,FRT AXLE (A)	1-42337-052-0	20	1	9601-0211	●	●
15	PIN; WHEEL,FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	1-42337-052-0	20	1	0212-0308	●	●
15	PIN; WHEEL,FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	1-42337-052-0	20	1	0309-0411		●
15	PIN; WHEEL,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> (B) M22X42.8,M22X55.5 RH THREAD	1-42337-067-0	20	1	0303-0308	●	●
15	PIN; WHEEL,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> (B) M22X42.8,M22X55.5 RH THREAD	1-42337-067-0	20	1	0309-0411		●
15	PIN; WHEEL,FRT AXLE DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (B) M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	0412-		●
17	HUB; FRT AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (C)	1-42312-128-2	02	1	1502-		●
17	HUB; FRT AXLE (A)	1-42312-133-0	02	1	9601-0211	●	●
17	HUB; FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	1-42312-133-0	02	1	0212-0308	●	●
17	HUB; FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	1-42312-133-0	02	1	0309-0411		●
17	HUB; FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42312-100-1	02	1	0303-0308	●	●
17	HUB; FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42312-100-1	02	1	0309-0411		●
17	HUB; FRT AXLE DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (B)	1-42312-100-1	02	1	0412-		●
19	BEARING; HUB INNER,FRT AXLE NSK	1-09812-142-0	02	1	9601-9809	●	●
19	BEARING; HUB INNER,FRT AXLE JTEKT	1-09812-143-0	02	1	9601-9809	●	●
19	BEARING; HUB INNER,FRT AXLE JTEKT	1-09812-231-0	02	1	9810-0308	●	●
19	BEARING; HUB INNER,FRT AXLE JTEKT	1-09812-231-0	02	1	0309-		●
22	COVER SET; FRT BRK DRUM (A)	1-47151-642-0	01	1	9601-0211	●	●
22	COVER SET; FRT BRK DRUM HUB LUBRICATION OIL BATH<C5K> (A)	1-47151-642-0	01	1	0212-0308	●	●
22	COVER SET; FRT BRK DRUM HUB LUBRICATION OIL BATH<C5K> (A)	1-47151-642-0	01	1	0309-0411		●
22	COVER SET; FRT BRK DRUM (A)	1-47151-643-0	01	1	9601-0211	●	●
22	COVER SET; FRT BRK DRUM HUB LUBRICATION OIL BATH<C5K> (A)	1-47151-643-0	01	1	0212-0308	●	●
22	COVER SET; FRT BRK DRUM HUB LUBRICATION OIL BATH<C5K> (A)	1-47151-643-0	01	1	0309-0411		●
22	COVER SET; FRT BRK DRUM EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-47151-459-1	02	1	0303-0308	●	●
22	COVER SET; FRT BRK DRUM EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-47151-459-1	02	1	0309-0411		●
22	COVER SET; FRT BRK DRUM (B)	1-47151-459-1	02	1	0412-		●
23	DRUM; BRK,FRT WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (C)	1-42315-355-0	02	1	1502-		●
23	DRUM; BRK,FRT (A)	1-42315-348-2	02	1	9601-0211	●	●
23	DRUM; BRK,FRT HUB LUBRICATION OIL BATH<C5K> (A)	1-42315-348-2	02	1	0212-0308	●	●
23	DRUM; BRK,FRT HUB LUBRICATION OIL BATH<C5K> (A)	1-42315-348-2	02	1	0309-0411		●
23	DRUM; BRK,FRT EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42315-337-0	02	1	0303-0308	●	●
23	DRUM; BRK,FRT EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42315-337-0	02	1	0309-0411		●
23	DRUM; BRK,FRT DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (B)	1-42315-337-0	02	1	0412-		●
28	SEAL; OIL,FRT HUB (A) TBK	1-09625-449-1	02	1	9601-0211	●	●
28	SEAL; OIL,FRT HUB HUB LUBRICATION OIL BATH<C5K> (A) TBK	1-09625-449-1	02	1	0212-0308	●	●
28	SEAL; OIL,FRT HUB HUB LUBRICATION OIL BATH<C5K> (A) TBK	1-09625-449-1	02	1	0309-0411		●
28	SEAL; OIL,FRT HUB (A) JTEKT	1-09625-503-0	02	1	9601-0211	●	●
28	SEAL; OIL,FRT HUB HUB LUBRICATION OIL BATH<C5K> (A) JTEKT	1-09625-503-0	02	1	0212-0308	●	●
28	SEAL; OIL,FRT HUB HUB LUBRICATION OIL BATH<C5K> (A) JTEKT	1-09625-503-0	02	1	0309-0411		●
28	SEAL; OIL,FRT HUB EXC. HUB LUBRICATION OIL BATH<C5K> (B) OD=140	1-09625-041-0	02	1	0303-0308	●	●
28	SEAL; OIL,FRT HUB EXC. HUB LUBRICATION OIL BATH<C5K> (B) OD=140	1-09625-041-0	02	1	0309-0411		●
28	SEAL; OIL,FRT HUB (B) OD=140	1-09625-041-0	02	1	0412-		●
33	WASHER; LK,DRUM COVER ID=16.2	9-09150-816-0	04	1	9601-0308	●	●
33	WASHER; LK,DRUM COVER ID=16.2	9-09150-816-0	04	1	0309-0603		●
33	WASHER; LK,DRUM COVER ID=16.2	0-91510-816-0	04	1	0604-		●
34	COVER; CHECK HOLE,DRUM COVER (A)	1-87050-011-0	04	1	9601-0211	●	●
34	COVER; CHECK HOLE,DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A)	1-87050-011-0	04	1	0212-0308	●	●
34	COVER; CHECK HOLE,DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A)	1-87050-011-0	04	1	0309-0411		●
34	COVER; CHECK HOLE,DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-09333-151-0	04	1	0303-0308	●	●
34	COVER; CHECK HOLE,DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-09333-151-0	04	1	0309-0411		●
34	COVER; CHECK HOLE,DRUM COVER (B)	1-09333-151-0	04	1	0412-		●
35	BOLT; DRUM COVER (A) M16X52	1-09044-001-2	02	1	9601-0211	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A) M16X52	1-09044-001-2	02	1	0212-0308	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A) M16X52	1-09044-001-2	02	1	0309-0411		●
35	BOLT; DRUM COVER (A) M16X59 FLANGE	1-09044-002-2	02	1	9601-0211	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A) M16X59 FLANGE	1-09044-002-2	02	1	0212-0308	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A) M16X59 FLANGE	1-09044-002-2	02	1	0309-0411		●
35	BOLT; DRUM COVER (B)	1-47159-177-0	08	1	9601-0211	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (B)	1-47159-177-0	08	1	0212-0308	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (B)	1-47159-177-0	08	1	0309-0411		●
35	BOLT; DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (C) M10X16 W/LK WASHER	0-50041-016-0	12	1	0303-0308	●	●
35	BOLT; DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (C) M10X16 W/LK WASHER	0-50041-016-0	12	1	0309-0411		●
35	BOLT; DRUM COVER (C) M10X16 W/LK WASHER	0-50041-016-0	12	1	0412-0906		●
35	BOLT; DRUM COVER (C) M10X16 W/LK WASHER	0-50541-016-0	12	1	0907-		●
35	BOLT; DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (D) M16X59 FLANGE	1-09044-002-2	04	1	0303-0308	●	●
35	BOLT; DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (D) M16X59 FLANGE	1-09044-002-2	04	1	0309-0411		●
35	BOLT; DRUM COVER (D) M16X59 FLANGE	1-09044-002-2	04	1	0412-		●
53	NUT; DRUM COVER M16	9-99110-416-0	04	1	9601-9902	●	●
53	NUT; DRUM COVER M16	9-99110-516-0	04	1	9903-0308	●	●
53	NUT; DRUM COVER M16	9-99110-516-0	04	1	0309-0512		●
53	NUT; DRUM COVER M16	0-91110-516-0	04	1	0601-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
