Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#22848) — 439 parça

116 116 116 116 115 112 115 115 112 115 115 112 115 114 115 112 115 114 127 128 110 111 110 296 237 91 111 128 127 91 93 105 234 87 93 304 303 237 87 93 234 103 93 87 87 82 1

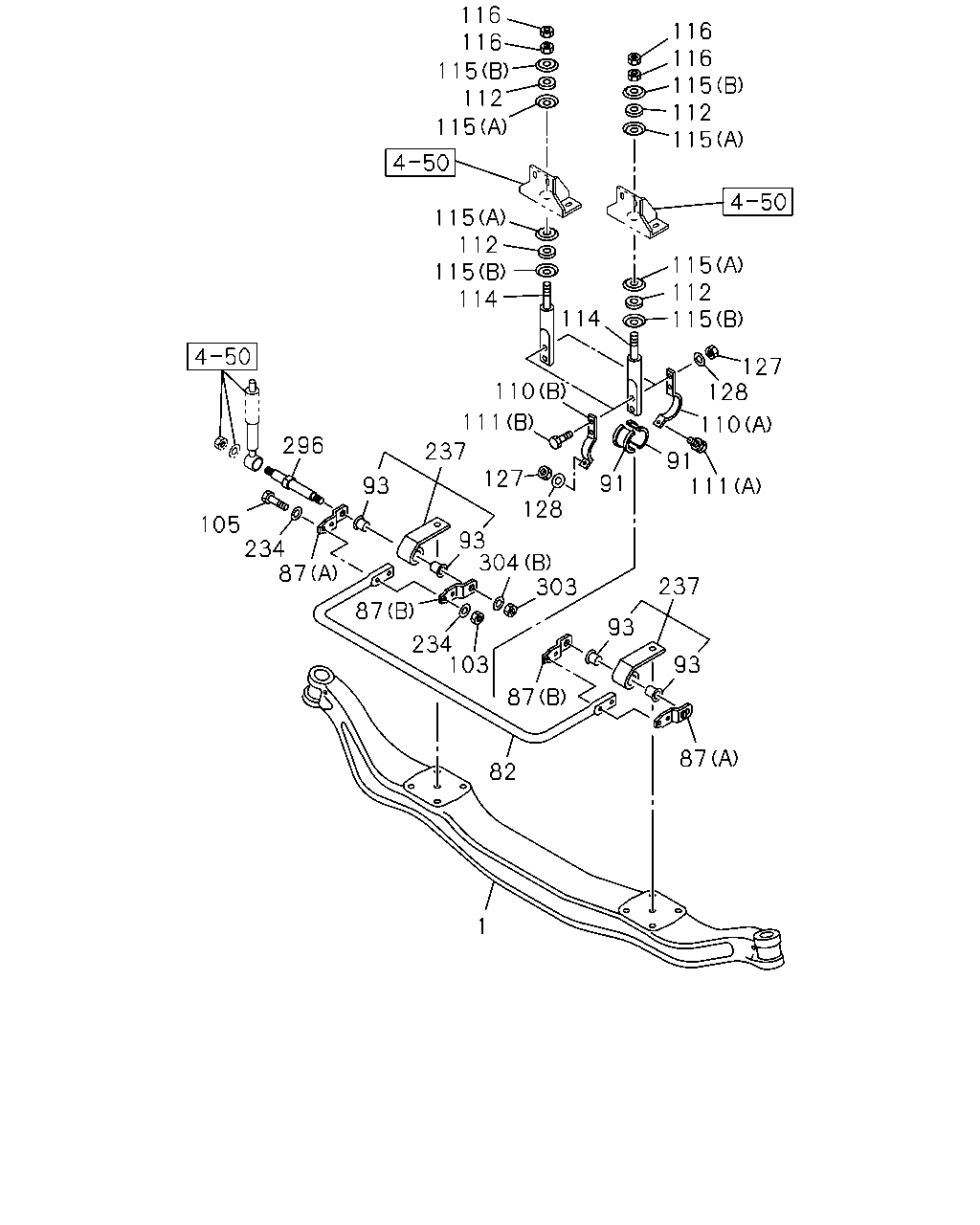

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT	1-43111-113-1	01	1	9601-0308	●	●
1	AXLE; FRT	1-43111-113-6	01	1	0309-		●
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51771-113-0	01	1	9601-0201	●	●
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51771-200-0	01	1	0202-0308	●	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	1-51781-083-1	02	1	9601-0308	●	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	1-51781-084-1	02	1	9601-0308	●	●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-084-0	04	1	9601-0201	●	●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-121-0	04	1	0202-0308	●	●
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-1	04	1	9601-0308	●	●
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	9-99110-514-0	04	1	9601-0308	●	●
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	9-91061-470-0	04	1	9601-0206	●	●
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	9-91066-470-0	04	1	0207-0308	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	9601-0308	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	9601-0308	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20801-230-0	02	1	9601-0308	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20801-250-0	04	1	9601-0308	●	●
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	9601-0308	●	●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-084-0	02	1	9601-0308	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=16.8	1-51631-022-0	04	1	9601-0308	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=14.5	9-51631-051-0	04	1	9601-0308	●	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	9-99111-414-0	04	1	9601-0308	●	●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	9-99110-412-0	06	1	9601-0308	●	●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	9-09150-512-0	06	1	9601-0308	●	●
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	08	1	9601-0308	●	●
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-724-0	02	1	9601-0209	●	●
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	0210-0308	●	●
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	1-51682-145-2	02	1	9601-0308	●	●
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	9-99110-520-0	02	1	9601-0308	●	●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	9601-0308	●	●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0309-0704		●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0705-		●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	9601-0308	●	●

3 33 34 60 6 2 8 314 80 25 32 66 58 8 6 8 11 275 61 305 59 74 51 68 80 304 58 66 21 21 44 59 50 48 61 81 275 45 74 304 30 17 18 68 6 34 1 8 40 33 21 21 2 32 5 60 25 8 8 6 11 314 36 37 305

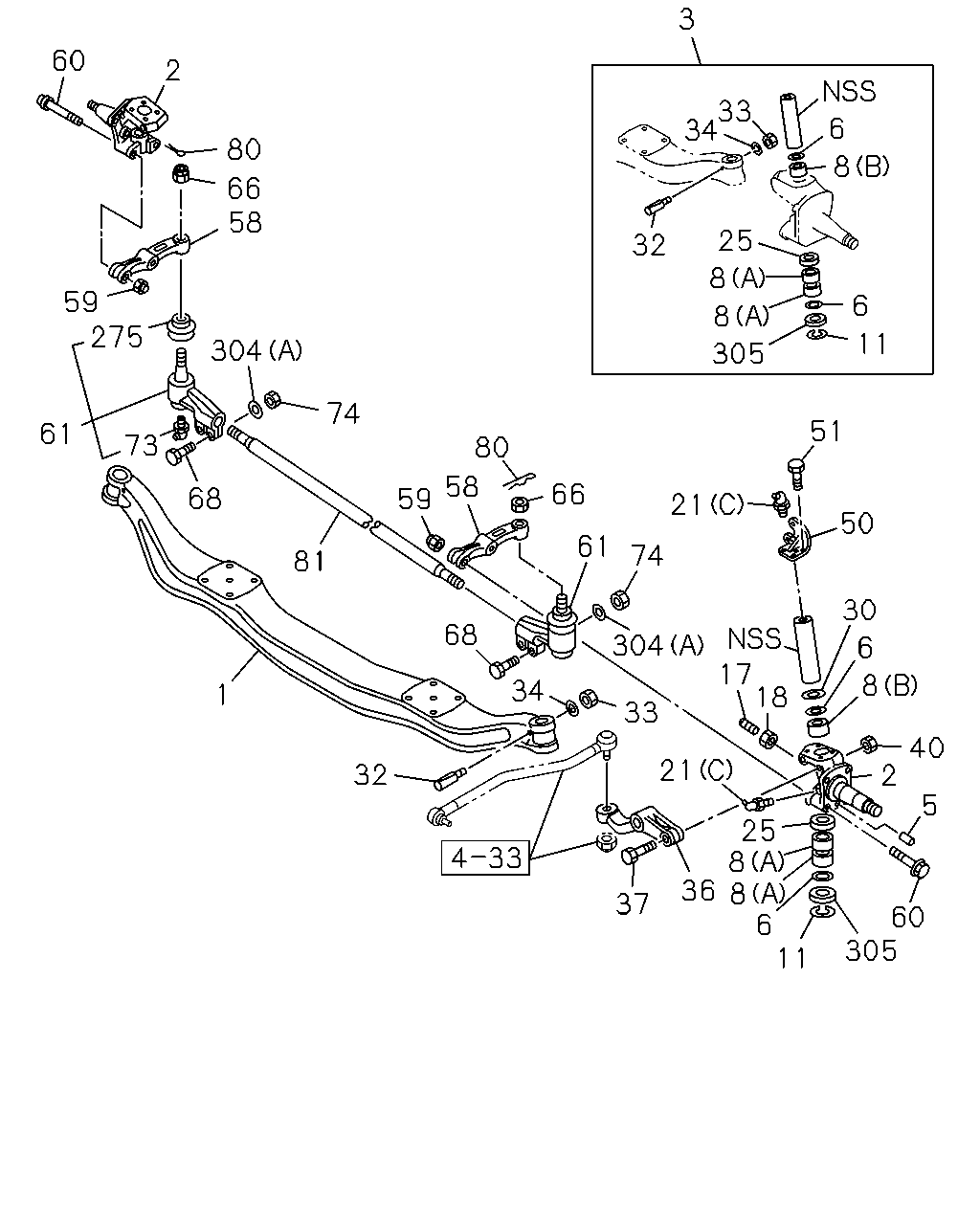

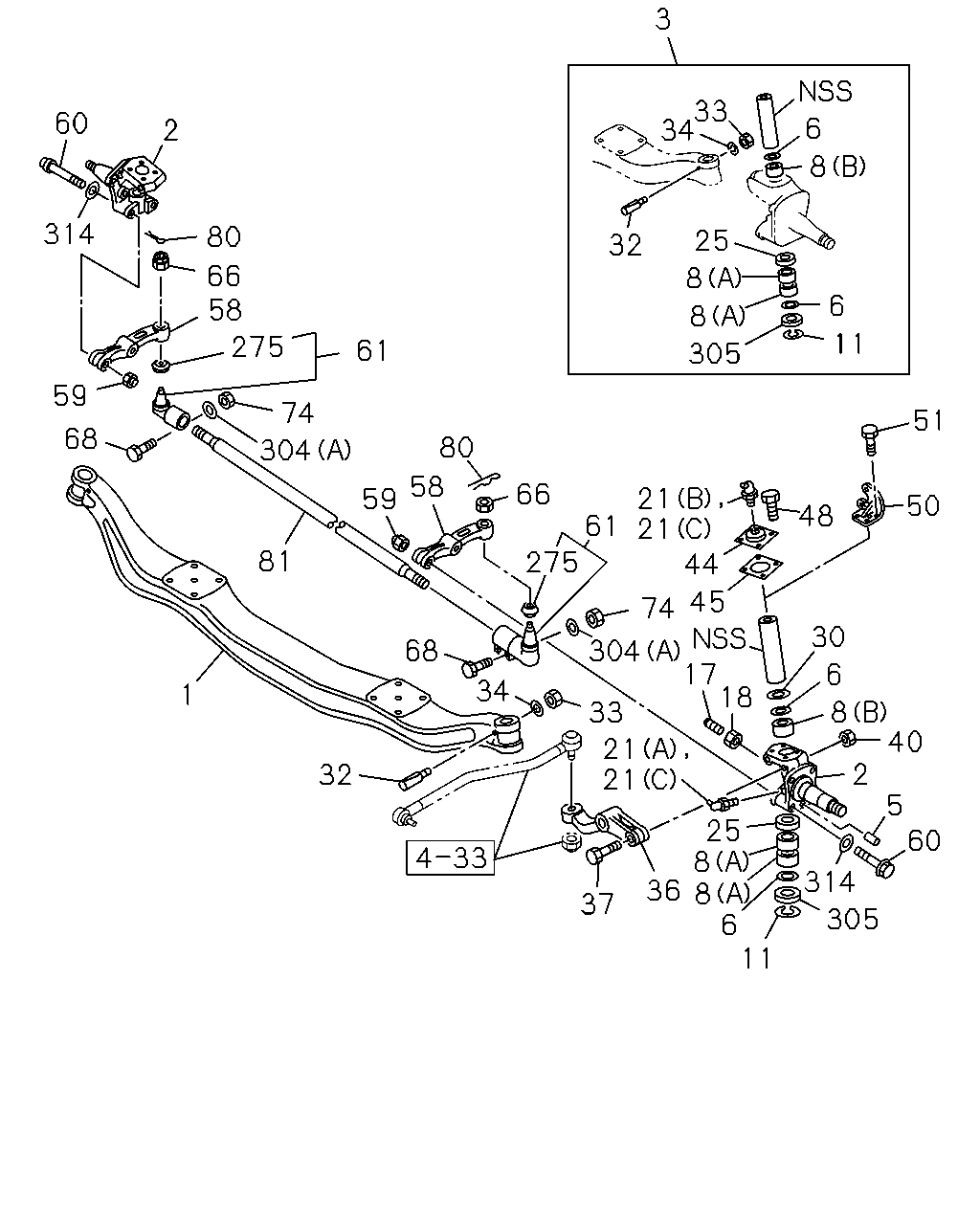

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT	1-43111-113-1	01	1	9601-0308	●	●
1	AXLE; FRT	1-43111-113-6	01	1	0309-		●
2	KNUCKLE; FRT AXLE	1-43132-087-0	01	1	9601-0211	●	●
2	KNUCKLE; FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-43132-087-0	01	1	0212-0308	●	●
2	KNUCKLE; FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-43132-087-0	01	1	0309-0411		●
2	KNUCKLE; FRT AXLE	1-43132-090-0	01	1	9601-0211	●	●
2	KNUCKLE; FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-43132-090-0	01	1	0212-0308	●	●
2	KNUCKLE; FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-43132-090-0	01	1	0309-0411		●
2	KNUCKLE; FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K>	1-43131-079-0	01	1	0303-0308	●	●
2	KNUCKLE; FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K>	1-43131-079-0	01	1	0309-0411		●
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	0412-1501		●
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	1502-		●
2	KNUCKLE; FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K>	1-43132-079-0	01	1	0303-0308	●	●
2	KNUCKLE; FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K>	1-43132-079-0	01	1	0309-0411		●
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	0412-1501		●
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	1502-		●
3	KING PIN SET	1-87830-738-1	02	1	9601-0308	●	●
3	KING PIN SET	1-87830-738-6	02	1	0309-		●
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	9601-0308	●	●
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	0309-		●
6	SEAL; KING PIN	9-09926-024-0	04	1	9601-0308	●	●
6	SEAL; KING PIN	9-09926-024-0	04	1	0309-		●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	9601-0308	●	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0309-		●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	9601-0308	●	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0309-		●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	9601-0308	●	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0309-		●
17	BOLT; STOPPER KNUCKLE M18X53	1-09009-066-0	02	1	9601-0211	●	●
17	BOLT; STOPPER KNUCKLE HUB LUBRICATION OIL BATH<C5K> M18X53	1-09009-066-0	02	1	0212-0308	●	●
17	BOLT; STOPPER KNUCKLE HUB LUBRICATION OIL BATH<C5K> M18X53	1-09009-066-0	02	1	0309-0411		●
17	BOLT; STOPPER KNUCKLE EXC. HUB LUBRICATION OIL BATH<C5K> M18X43	1-09009-065-0	02	1	0303-0308	●	●
17	BOLT; STOPPER KNUCKLE EXC. HUB LUBRICATION OIL BATH<C5K> M18X43	1-09009-065-0	02	1	0309-0411		●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0412-0705		●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-		●
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	9601-0308	●	●
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	0309-0512		●
18	NUT; STOPPER BOLT,KNUCKLE M18	0-91110-518-0	02	1	0601-		●
21	NIPPLE; GREASE,KING PIN (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9601-9704	●	●
21	NIPPLE; GREASE,KING PIN (C) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	9705-0308	●	●
21	NIPPLE; GREASE,KING PIN (C) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0309-0512		●
21	NIPPLE; GREASE,KING PIN (C) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-		●
21	NIPPLE; GREASE,KING PIN (B) PT1/8 ELBOW	9-09031-210-0	02	1	9601-9704	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	9601-0308	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0309-		●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	9601-0308	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0309-		●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	9601-0308	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0309-		●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	9601-0308	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0309-		●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	9601-0308	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0309-		●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	9601-0308	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0309-		●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	9601-0308	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0309-		●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	9601-0308	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0309-		●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	9601-0308	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0309-		●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	9601-0308	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0309-		●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	9601-0308	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0309-		●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	9601-0308	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0309-		●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	9601-0308	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0309-		●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	9601-0308	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0309-		●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	9601-0308	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0309-		●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	9601-0308	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0309-		●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	9601-0308	●	●
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0309-		●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9601-0308	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0309-0512		●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-		●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9601-0308	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0309-0603		●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-		●
36	ARM; KNUCKLE	1-43133-066-1	01	1	9601-0211	●	●
36	ARM; KNUCKLE HUB LUBRICATION OIL BATH<C5K>	1-43133-066-1	01	1	0212-0308	●	●
36	ARM; KNUCKLE HUB LUBRICATION OIL BATH<C5K>	1-43133-066-1	01	1	0309-0411		●
36	ARM; KNUCKLE EXC. HUB LUBRICATION OIL BATH<C5K>	1-43133-063-1	01	1	0303-0308	●	●
36	ARM; KNUCKLE EXC. HUB LUBRICATION OIL BATH<C5K>	1-43133-063-1	01	1	0309-0411		●
36	ARM; KNUCKLE	1-43133-063-3	01	1	0412-		●
37	BOLT; KNUCKLE ARM M22X179	1-09000-578-1	01	1	9601-0308	●	●
37	BOLT; KNUCKLE ARM M22X179	1-09000-578-1	01	1	0309-0704		●
37	BOLT; KNUCKLE ARM M22X179	8-98052-380-1	01	1	0705-		●
37	BOLT; KNUCKLE ARM M22X167	9-09806-847-3	01	1	9601-0308	●	●
37	BOLT; KNUCKLE ARM M22X167	9-09806-847-3	01	1	0309-0704		●
37	BOLT; KNUCKLE ARM M22X167	8-98052-381-1	01	1	0705-		●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	9601-0308	●	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0309-0704		●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-		●
44	COVER; KING PIN	1-43175-014-1	02	1	9601-0211	●	●
44	COVER; KING PIN HUB LUBRICATION OIL BATH<C5K>	1-43175-014-1	02	1	0212-0308	●	●
44	COVER; KING PIN HUB LUBRICATION OIL BATH<C5K>	1-43175-014-1	02	1	0309-0411		●
45	GASKET; KING PIN COVER	1-42319-044-0	02	1	9601-0211	●	●
45	GASKET; KING PIN COVER HUB LUBRICATION OIL BATH<C5K>	1-42319-044-0	02	1	0212-0308	●	●
45	GASKET; KING PIN COVER HUB LUBRICATION OIL BATH<C5K>	1-42319-044-0	02	1	0309-0411		●
48	BOLT; COVER M12X16 FLANGE	0-28081-216-0	08	1	9601-0211	●	●
48	BOLT; COVER HUB LUBRICATION OIL BATH<C5K> M12X16 FLANGE	0-28081-216-0	08	1	0212-0308	●	●
48	BOLT; COVER HUB LUBRICATION OIL BATH<C5K> M12X16 FLANGE	0-28081-216-0	08	1	0309-0411		●
50	BRACKET; POWER CHAMBER EXC. HUB LUBRICATION OIL BATH<C5K>	1-43145-009-3	01	1	0303-0308	●	●
50	BRACKET; POWER CHAMBER EXC. HUB LUBRICATION OIL BATH<C5K>	1-43145-009-3	01	1	0309-0411		●
50	BRACKET; POWER CHAMBER	1-43145-009-3	01	1	0412-1501		●
50	BRACKET; POWER CHAMBER	1-43145-009-3	01	1	1502-		●
50	BRACKET; POWER CHAMBER EXC. HUB LUBRICATION OIL BATH<C5K>	1-43145-010-3	01	1	0303-0308	●	●
50	BRACKET; POWER CHAMBER EXC. HUB LUBRICATION OIL BATH<C5K>	1-43145-010-3	01	1	0309-0411		●
50	BRACKET; POWER CHAMBER	1-43145-010-3	01	1	0412-1501		●
50	BRACKET; POWER CHAMBER	1-43145-010-3	01	1	1502-		●
51	BOLT; POWER CHAMBER BRKT EXC. HUB LUBRICATION OIL BATH<C5K> M12X60 FLANGE	0-28081-260-0	02	1	0303-0308	●	●
51	BOLT; POWER CHAMBER BRKT EXC. HUB LUBRICATION OIL BATH<C5K> M12X60 FLANGE	0-28081-260-0	02	1	0309-0411		●
51	BOLT; POWER CHAMBER BRKT M12X60 FLANGE	0-28081-260-0	02	1	0412-0512		●
51	BOLT; POWER CHAMBER BRKT M12X60 FLANGE	0-28051-260-0	02	1	0601-		●
51	BOLT; POWER CHAMBER BRKT EXC. HUB LUBRICATION OIL BATH<C5K> M12X25 FLANGE	0-28681-225-0	06	1	0303-0308	●	●
51	BOLT; POWER CHAMBER BRKT EXC. HUB LUBRICATION OIL BATH<C5K> M12X25 FLANGE	0-28681-225-0	06	1	0309-0411		●
51	BOLT; POWER CHAMBER BRKT M12X25 FLANGE	0-28681-225-0	06	1	0412-0512		●
51	BOLT; POWER CHAMBER BRKT M12X25 FLANGE	0-28651-225-0	06	1	0601-		●
58	ARM; TIE ROD	1-43134-044-1	01	1	9601-0211	●	●
58	ARM; TIE ROD HUB LUBRICATION OIL BATH<C5K>	1-43134-044-1	01	1	0212-0308	●	●
58	ARM; TIE ROD HUB LUBRICATION OIL BATH<C5K>	1-43134-044-1	01	1	0309-0411		●
58	ARM; TIE ROD	1-43135-044-1	01	1	9601-0211	●	●
58	ARM; TIE ROD HUB LUBRICATION OIL BATH<C5K>	1-43135-044-1	01	1	0212-0308	●	●
58	ARM; TIE ROD HUB LUBRICATION OIL BATH<C5K>	1-43135-044-1	01	1	0309-0411		●
58	ARM; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K>	1-43134-042-1	01	1	0303-0308	●	●
58	ARM; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K>	1-43134-042-1	01	1	0309-0411		●
58	ARM; TIE ROD	1-43134-042-3	01	1	0412-1501		●
58	ARM; TIE ROD	1-43134-042-3	01	1	1502-		●
58	ARM; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K>	1-43135-042-1	01	1	0303-0308	●	●
58	ARM; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K>	1-43135-042-1	01	1	0309-0411		●
58	ARM; TIE ROD	1-43135-042-3	01	1	0412-1501		●
58	ARM; TIE ROD	1-43135-042-3	01	1	1502-		●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	9601-0308	●	●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0309-0704		●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-		●
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	02	1	9601-0211	●	●
60	BOLT; TIE ROD ARM HUB LUBRICATION OIL BATH<C5K> M22X193	1-09000-154-2	02	1	0212-0308	●	●
60	BOLT; TIE ROD ARM HUB LUBRICATION OIL BATH<C5K> M22X193	1-09000-154-2	02	1	0309-0411		●
60	BOLT; TIE ROD ARM M22X180.5	1-09070-117-1	02	1	9601-0211	●	●
60	BOLT; TIE ROD ARM HUB LUBRICATION OIL BATH<C5K> M22X180.5	1-09070-117-1	02	1	0212-0308	●	●
60	BOLT; TIE ROD ARM HUB LUBRICATION OIL BATH<C5K> M22X180.5	1-09070-117-1	02	1	0309-0411		●
60	BOLT; TIE ROD ARM EXC. HUB LUBRICATION OIL BATH<C5K> M22X193	1-09000-154-2	04	1	0303-0308	●	●
60	BOLT; TIE ROD ARM EXC. HUB LUBRICATION OIL BATH<C5K> M22X193	1-09000-154-2	04	1	0309-0411		●
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	0412-0704		●
60	BOLT; TIE ROD ARM M22X193	8-98052-379-1	04	1	0705-		●
61	ROD END; TIE ROD	1-43150-626-2	01	1	9601-9812	●	●
61	ROD END; TIE ROD	1-43150-792-0	01	1	9901-0211	●	●
61	ROD END; TIE ROD HUB LUBRICATION OIL BATH<C5K>	1-43150-792-0	01	1	0212-0308	●	●
61	ROD END; TIE ROD HUB LUBRICATION OIL BATH<C5K>	1-43150-792-0	01	1	0309-0411		●
61	ROD END; TIE ROD	1-43150-627-2	01	1	9601-9812	●	●
61	ROD END; TIE ROD	1-43150-793-0	01	1	9901-0211	●	●
61	ROD END; TIE ROD HUB LUBRICATION OIL BATH<C5K>	1-43150-793-0	01	1	0212-0308	●	●
61	ROD END; TIE ROD HUB LUBRICATION OIL BATH<C5K>	1-43150-793-0	01	1	0309-0411		●
61	ROD END; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K>	1-43150-801-0	01	1	0303-0308	●	●
61	ROD END; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K>	1-43150-801-0	01	1	0309-0411		●
61	ROD END; TIE ROD	1-43150-801-0	01	1	0412-1009		●
61	ROD END; TIE ROD	8-98171-444-0	01	1	1010-1306		●
61	ROD END; TIE ROD	8-98236-800-0	01	1	1307-1501		●
61	ROD END; TIE ROD	8-98236-800-0	01	1	1502-		●
61	ROD END; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K>	1-43150-802-0	01	1	0303-0308	●	●
61	ROD END; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K>	1-43150-802-0	01	1	0309-0411		●
61	ROD END; TIE ROD	1-43150-802-0	01	1	0412-1009		●
61	ROD END; TIE ROD	8-98171-445-0	01	1	1010-1306		●
61	ROD END; TIE ROD	8-98236-801-0	01	1	1307-1501		●
61	ROD END; TIE ROD	8-98236-801-0	01	1	1502-		●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	9601-0308	●	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0309-0805		●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-		●
68	BOLT; TIE ROD END M12X55	9-91061-255-0	04	1	9601-0211	●	●
68	BOLT; TIE ROD END HUB LUBRICATION OIL BATH<C5K> M12X55	9-91061-255-0	04	1	0212-0308	●	●
68	BOLT; TIE ROD END HUB LUBRICATION OIL BATH<C5K> M12X55	9-91061-255-0	04	1	0309-0411		●
68	BOLT; TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K> M12X65	9-91061-265-0	04	1	0303-0308	●	●
68	BOLT; TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K> M12X65	9-91061-265-0	04	1	0309-0411		●
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	0412-0704		●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0705-		●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9601-0308	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	0309-0512		●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-		●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	9601-0308	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0309-0606		●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-		●
81	ROD; TIE	9-43151-120-1	01	1	9601-0211	●	●
81	ROD; TIE HUB LUBRICATION OIL BATH<C5K>	9-43151-120-1	01	1	0212-0308	●	●
81	ROD; TIE HUB LUBRICATION OIL BATH<C5K>	9-43151-120-1	01	1	0309-0411		●
81	ROD; TIE EXC. HUB LUBRICATION OIL BATH<C5K>	1-43151-119-0	01	1	0303-0308	●	●
81	ROD; TIE EXC. HUB LUBRICATION OIL BATH<C5K>	1-43151-119-0	01	1	0309-0411		●
81	ROD; TIE	1-43151-119-0	01	1	0412-1009		●
81	ROD; TIE	8-98172-133-0	01	1	1010-1109		●
81	ROD; TIE	8-98193-965-0	01	1	1110-		●
275	BOOT; ROD END,TIE	1-43159-078-0	02	1	9601-9812	●	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	9901-0308	●	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0309-1009		●
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306		●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-		●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	9601-0308	●	●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0309-0704		●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0705-		●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	9601-0308	●	●
305	COVER; KNUCKLE	1-43175-021-0	02	1	9601-0308	●	●
305	COVER; KNUCKLE	1-43175-021-0	02	1	0309-0704		●
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-		●
314	WASHER; PL,TIE ROD ARM ID=23	9-09164-522-0	04	1	9708-0211	●	●
314	WASHER; PL,TIE ROD ARM HUB LUBRICATION OIL BATH<C5K> ID=23	9-09164-522-0	04	1	0212-0308	●	●
314	WASHER; PL,TIE ROD ARM HUB LUBRICATION OIL BATH<C5K> ID=23	9-09164-522-0	04	1	0309-0411		●

3 60 2 33 34 6 80 8 66 58 25 32 8 59 275 6 8 11 304 305 74 51 61 73 80 58 66 68 59 21 50 61 74 81 30 68 17 18 304 6 8 34 1 33 40 2 21 32 5 25 8 8 6 11 36 37 60 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT	1-43111-113-1	01	1	9601-0308	●	●
1	AXLE; FRT	1-43111-113-6	01	1	0309-		●
2	KNUCKLE; FRT AXLE	1-43132-087-0	01	1	9601-0211	●	●
2	KNUCKLE; FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-43132-087-0	01	1	0212-0308	●	●
2	KNUCKLE; FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-43132-087-0	01	1	0309-0411		●
2	KNUCKLE; FRT AXLE	1-43132-090-0	01	1	9601-0211	●	●
2	KNUCKLE; FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-43132-090-0	01	1	0212-0308	●	●
2	KNUCKLE; FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-43132-090-0	01	1	0309-0411		●
2	KNUCKLE; FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K>	1-43131-079-0	01	1	0303-0308	●	●
2	KNUCKLE; FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K>	1-43131-079-0	01	1	0309-0411		●
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	0412-1501		●
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	1502-		●
2	KNUCKLE; FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K>	1-43132-079-0	01	1	0303-0308	●	●
2	KNUCKLE; FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K>	1-43132-079-0	01	1	0309-0411		●
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	0412-1501		●
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	1502-		●
3	KING PIN SET	1-87830-738-1	02	1	9601-0308	●	●
3	KING PIN SET	1-87830-738-6	02	1	0309-		●
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	9601-0308	●	●
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	0309-		●
6	SEAL; KING PIN	9-09926-024-0	04	1	9601-0308	●	●
6	SEAL; KING PIN	9-09926-024-0	04	1	0309-		●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	9601-0308	●	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0309-		●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	9601-0308	●	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0309-		●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	9601-0308	●	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0309-		●
17	BOLT; STOPPER KNUCKLE M18X53	1-09009-066-0	02	1	9601-0211	●	●
17	BOLT; STOPPER KNUCKLE HUB LUBRICATION OIL BATH<C5K> M18X53	1-09009-066-0	02	1	0212-0308	●	●
17	BOLT; STOPPER KNUCKLE HUB LUBRICATION OIL BATH<C5K> M18X53	1-09009-066-0	02	1	0309-0411		●
17	BOLT; STOPPER KNUCKLE EXC. HUB LUBRICATION OIL BATH<C5K> M18X43	1-09009-065-0	02	1	0303-0308	●	●
17	BOLT; STOPPER KNUCKLE EXC. HUB LUBRICATION OIL BATH<C5K> M18X43	1-09009-065-0	02	1	0309-0411		●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0412-0705		●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-		●
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	9601-0308	●	●
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	0309-0512		●
18	NUT; STOPPER BOLT,KNUCKLE M18	0-91110-518-0	02	1	0601-		●
21	NIPPLE; GREASE,KING PIN (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9601-9704	●	●
21	NIPPLE; GREASE,KING PIN (C) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	9705-0308	●	●
21	NIPPLE; GREASE,KING PIN (C) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0309-0512		●
21	NIPPLE; GREASE,KING PIN (C) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-		●
21	NIPPLE; GREASE,KING PIN (B) PT1/8 ELBOW	9-09031-210-0	02	1	9601-9704	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	9601-0308	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0309-		●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	9601-0308	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0309-		●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	9601-0308	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0309-		●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	9601-0308	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0309-		●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	9601-0308	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0309-		●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	9601-0308	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0309-		●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	9601-0308	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0309-		●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	9601-0308	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0309-		●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	9601-0308	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0309-		●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	9601-0308	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0309-		●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	9601-0308	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0309-		●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	9601-0308	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0309-		●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	9601-0308	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0309-		●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	9601-0308	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0309-		●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	9601-0308	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0309-		●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	9601-0308	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0309-		●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	9601-0308	●	●
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0309-		●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9601-0308	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0309-0512		●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-		●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9601-0308	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0309-0603		●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-		●
36	ARM; KNUCKLE	1-43133-066-1	01	1	9601-0211	●	●
36	ARM; KNUCKLE HUB LUBRICATION OIL BATH<C5K>	1-43133-066-1	01	1	0212-0308	●	●
36	ARM; KNUCKLE HUB LUBRICATION OIL BATH<C5K>	1-43133-066-1	01	1	0309-0411		●
36	ARM; KNUCKLE EXC. HUB LUBRICATION OIL BATH<C5K>	1-43133-063-1	01	1	0303-0308	●	●
36	ARM; KNUCKLE EXC. HUB LUBRICATION OIL BATH<C5K>	1-43133-063-1	01	1	0309-0411		●
36	ARM; KNUCKLE	1-43133-063-3	01	1	0412-		●
37	BOLT; KNUCKLE ARM M22X179	1-09000-578-1	01	1	9601-0308	●	●
37	BOLT; KNUCKLE ARM M22X179	1-09000-578-1	01	1	0309-0704		●
37	BOLT; KNUCKLE ARM M22X179	8-98052-380-1	01	1	0705-		●
37	BOLT; KNUCKLE ARM M22X167	9-09806-847-3	01	1	9601-0308	●	●
37	BOLT; KNUCKLE ARM M22X167	9-09806-847-3	01	1	0309-0704		●
37	BOLT; KNUCKLE ARM M22X167	8-98052-381-1	01	1	0705-		●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	9601-0308	●	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0309-0704		●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-		●
50	BRACKET; POWER CHAMBER EXC. HUB LUBRICATION OIL BATH<C5K>	1-43145-009-3	01	1	0303-0308	●	●
50	BRACKET; POWER CHAMBER EXC. HUB LUBRICATION OIL BATH<C5K>	1-43145-009-3	01	1	0309-0411		●
50	BRACKET; POWER CHAMBER	1-43145-009-3	01	1	0412-1501		●
50	BRACKET; POWER CHAMBER	1-43145-009-3	01	1	1502-		●
50	BRACKET; POWER CHAMBER EXC. HUB LUBRICATION OIL BATH<C5K>	1-43145-010-3	01	1	0303-0308	●	●
50	BRACKET; POWER CHAMBER EXC. HUB LUBRICATION OIL BATH<C5K>	1-43145-010-3	01	1	0309-0411		●
50	BRACKET; POWER CHAMBER	1-43145-010-3	01	1	0412-1501		●
50	BRACKET; POWER CHAMBER	1-43145-010-3	01	1	1502-		●
51	BOLT; POWER CHAMBER BRKT EXC. HUB LUBRICATION OIL BATH<C5K> M12X60 FLANGE	0-28081-260-0	02	1	0303-0308	●	●
51	BOLT; POWER CHAMBER BRKT EXC. HUB LUBRICATION OIL BATH<C5K> M12X60 FLANGE	0-28081-260-0	02	1	0309-0411		●
51	BOLT; POWER CHAMBER BRKT M12X60 FLANGE	0-28081-260-0	02	1	0412-0512		●
51	BOLT; POWER CHAMBER BRKT M12X60 FLANGE	0-28051-260-0	02	1	0601-		●
51	BOLT; POWER CHAMBER BRKT EXC. HUB LUBRICATION OIL BATH<C5K> M12X25 FLANGE	0-28681-225-0	06	1	0303-0308	●	●
51	BOLT; POWER CHAMBER BRKT EXC. HUB LUBRICATION OIL BATH<C5K> M12X25 FLANGE	0-28681-225-0	06	1	0309-0411		●
51	BOLT; POWER CHAMBER BRKT M12X25 FLANGE	0-28681-225-0	06	1	0412-0512		●
51	BOLT; POWER CHAMBER BRKT M12X25 FLANGE	0-28651-225-0	06	1	0601-		●
58	ARM; TIE ROD	1-43134-044-1	01	1	9601-0211	●	●
58	ARM; TIE ROD HUB LUBRICATION OIL BATH<C5K>	1-43134-044-1	01	1	0212-0308	●	●
58	ARM; TIE ROD HUB LUBRICATION OIL BATH<C5K>	1-43134-044-1	01	1	0309-0411		●
58	ARM; TIE ROD	1-43135-044-1	01	1	9601-0211	●	●
58	ARM; TIE ROD HUB LUBRICATION OIL BATH<C5K>	1-43135-044-1	01	1	0212-0308	●	●
58	ARM; TIE ROD HUB LUBRICATION OIL BATH<C5K>	1-43135-044-1	01	1	0309-0411		●
58	ARM; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K>	1-43134-042-1	01	1	0303-0308	●	●
58	ARM; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K>	1-43134-042-1	01	1	0309-0411		●
58	ARM; TIE ROD	1-43134-042-3	01	1	0412-1501		●
58	ARM; TIE ROD	1-43134-042-3	01	1	1502-		●
58	ARM; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K>	1-43135-042-1	01	1	0303-0308	●	●
58	ARM; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K>	1-43135-042-1	01	1	0309-0411		●
58	ARM; TIE ROD	1-43135-042-3	01	1	0412-1501		●
58	ARM; TIE ROD	1-43135-042-3	01	1	1502-		●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	9601-0308	●	●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0309-0704		●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-		●
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	02	1	9601-0211	●	●
60	BOLT; TIE ROD ARM HUB LUBRICATION OIL BATH<C5K> M22X193	1-09000-154-2	02	1	0212-0308	●	●
60	BOLT; TIE ROD ARM HUB LUBRICATION OIL BATH<C5K> M22X193	1-09000-154-2	02	1	0309-0411		●
60	BOLT; TIE ROD ARM M22X180.5	1-09070-117-1	02	1	9601-0211	●	●
60	BOLT; TIE ROD ARM HUB LUBRICATION OIL BATH<C5K> M22X180.5	1-09070-117-1	02	1	0212-0308	●	●
60	BOLT; TIE ROD ARM HUB LUBRICATION OIL BATH<C5K> M22X180.5	1-09070-117-1	02	1	0309-0411		●
60	BOLT; TIE ROD ARM EXC. HUB LUBRICATION OIL BATH<C5K> M22X193	1-09000-154-2	04	1	0303-0308	●	●
60	BOLT; TIE ROD ARM EXC. HUB LUBRICATION OIL BATH<C5K> M22X193	1-09000-154-2	04	1	0309-0411		●
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	0412-0704		●
60	BOLT; TIE ROD ARM M22X193	8-98052-379-1	04	1	0705-		●
61	ROD END; TIE ROD	1-43150-626-2	01	1	9601-9812	●	●
61	ROD END; TIE ROD	1-43150-792-0	01	1	9901-0211	●	●
61	ROD END; TIE ROD HUB LUBRICATION OIL BATH<C5K>	1-43150-792-0	01	1	0212-0308	●	●
61	ROD END; TIE ROD HUB LUBRICATION OIL BATH<C5K>	1-43150-792-0	01	1	0309-0411		●
61	ROD END; TIE ROD	1-43150-627-2	01	1	9601-9812	●	●
61	ROD END; TIE ROD	1-43150-793-0	01	1	9901-0211	●	●
61	ROD END; TIE ROD HUB LUBRICATION OIL BATH<C5K>	1-43150-793-0	01	1	0212-0308	●	●
61	ROD END; TIE ROD HUB LUBRICATION OIL BATH<C5K>	1-43150-793-0	01	1	0309-0411		●
61	ROD END; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K>	1-43150-801-0	01	1	0303-0308	●	●
61	ROD END; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K>	1-43150-801-0	01	1	0309-0411		●
61	ROD END; TIE ROD	1-43150-801-0	01	1	0412-1009		●
61	ROD END; TIE ROD	8-98171-444-0	01	1	1010-1306		●
61	ROD END; TIE ROD	8-98236-800-0	01	1	1307-1501		●
61	ROD END; TIE ROD	8-98236-800-0	01	1	1502-		●
61	ROD END; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K>	1-43150-802-0	01	1	0303-0308	●	●
61	ROD END; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K>	1-43150-802-0	01	1	0309-0411		●
61	ROD END; TIE ROD	1-43150-802-0	01	1	0412-1009		●
61	ROD END; TIE ROD	8-98171-445-0	01	1	1010-1306		●
61	ROD END; TIE ROD	8-98236-801-0	01	1	1307-1501		●
61	ROD END; TIE ROD	8-98236-801-0	01	1	1502-		●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	9601-0308	●	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0309-0805		●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-		●
68	BOLT; TIE ROD END M12X55	9-91061-255-0	04	1	9601-0211	●	●
68	BOLT; TIE ROD END HUB LUBRICATION OIL BATH<C5K> M12X55	9-91061-255-0	04	1	0212-0308	●	●
68	BOLT; TIE ROD END HUB LUBRICATION OIL BATH<C5K> M12X55	9-91061-255-0	04	1	0309-0411		●
68	BOLT; TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K> M12X65	9-91061-265-0	04	1	0303-0308	●	●
68	BOLT; TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K> M12X65	9-91061-265-0	04	1	0309-0411		●
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	0412-0704		●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0705-		●
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1010-		●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9601-0308	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	0309-0512		●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-		●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	9601-0308	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0309-0606		●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-		●
81	ROD; TIE	9-43151-120-1	01	1	9601-0211	●	●
81	ROD; TIE HUB LUBRICATION OIL BATH<C5K>	9-43151-120-1	01	1	0212-0308	●	●
81	ROD; TIE HUB LUBRICATION OIL BATH<C5K>	9-43151-120-1	01	1	0309-0411		●
81	ROD; TIE EXC. HUB LUBRICATION OIL BATH<C5K>	1-43151-119-0	01	1	0303-0308	●	●
81	ROD; TIE EXC. HUB LUBRICATION OIL BATH<C5K>	1-43151-119-0	01	1	0309-0411		●
81	ROD; TIE	1-43151-119-0	01	1	0412-1009		●
81	ROD; TIE	8-98172-133-0	01	1	1010-1109		●
81	ROD; TIE	8-98193-965-0	01	1	1110-		●
275	BOOT; ROD END,TIE	1-43159-078-0	02	1	9601-9812	●	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	9901-0308	●	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0309-1009		●
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306		●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-		●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	9601-0308	●	●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0309-0704		●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0705-		●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	9601-0308	●	●
305	COVER; KNUCKLE	1-43175-021-0	02	1	9601-0308	●	●
305	COVER; KNUCKLE	1-43175-021-0	02	1	0309-0704		●
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
