◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11352 - FVR(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶

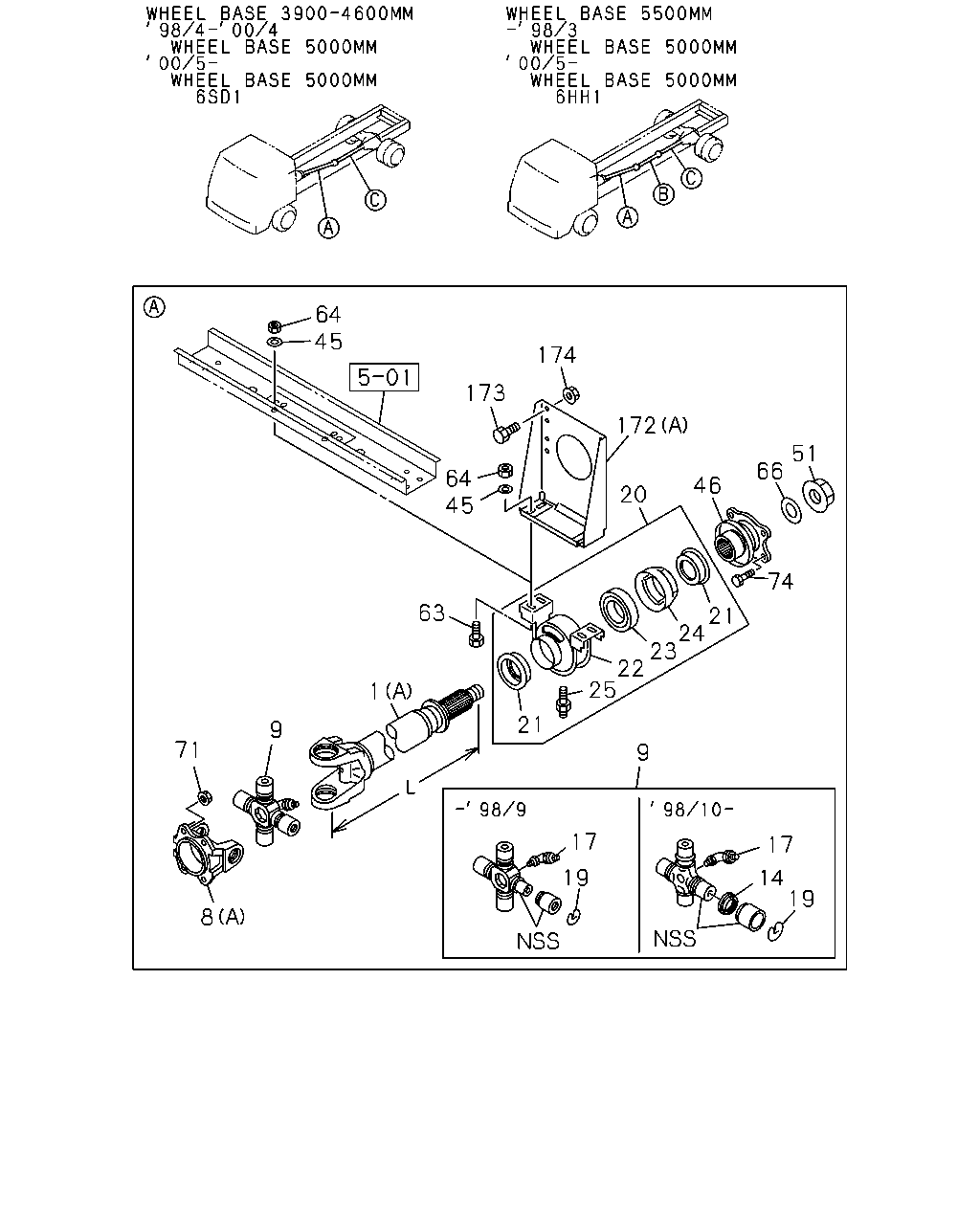

4-01 — PROPELLER SHAFT (#22847) — 742 parça

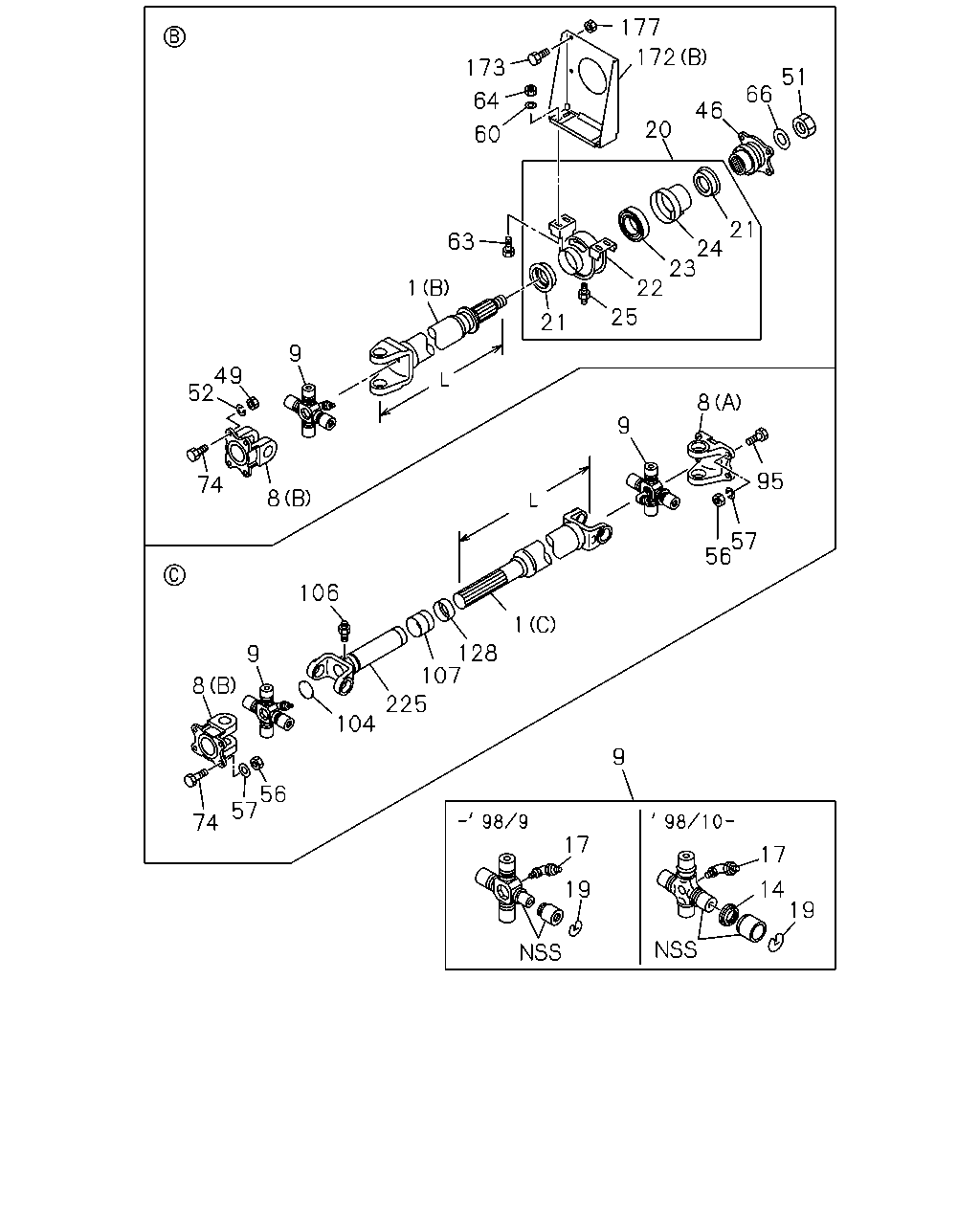

çizim 15831
177 172 173 51 66 64 46 20 60 21 24 23 22 63 1 25 21 9 49 52 8 9 74 95 8 57 56 106 1 128 107 9 8 225 104 9 56 57 74 17 17 19 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHAFT; PROP
6HH1 STD ENG(65L) (C) L=876 		1-37124-186-1 01 1 9601-0302 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) EXC. FINAL GEAR 17.5"<B5D> (C) L=876 		1-37124-186-1 01 1 0303-0308 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) FINAL GEAR 17.5"<B5D> (C) L=886 		1-37124-084-1 01 1 0303-0308 ●
1 SHAFT; PROP
6SD1 STD ENG(37L) (C) L=701 		1-37123-763-1 01 1 9601-0308 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD6 M/T<X9Y> (C) L=701 		1-37151-939-1 01 1 9601-0308 ● ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=701 		1-37151-939-1 01 1 0309-1111 ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=694 		8-98069-611-0 01 1 1112- ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD7 M/T<X9Z> (A) L=601 		1-37152-005-1 01 1 9601-0308 ● ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=601 		1-37152-005-1 01 1 0309-1111 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=594 		8-98069-607-0 01 1 1112- ●
1 SHAFT; PROP
6SD1 STD ENG(37L) (A) L=711 		1-37151-634-1 01 1 9601-0308 ● ●
1 SHAFT; PROP
6HH1 STD ENG(65L) (C) L=1226 		1-37124-096-0 01 1 9601-9803 ●
1 SHAFT; PROP
(C) L=1226 		1-37124-096-0 01 1 9601-9803 ● ●
1 SHAFT; PROP
6HH1 STD ENG(65L) (C) L=1226 		1-37124-096-1 01 1 9804-0308 ● ●
1 SHAFT; PROP
(C) L=1226 		1-37124-096-1 01 1 9804-0308 ●
1 SHAFT; PROP
(C) L=1226 		1-37124-096-1 01 1 0309- ●
1 SHAFT; PROP
6SD1 STD ENG(37L) (C) L=1041 		1-37124-183-1 01 1 9601-0308 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD6 M/T<X9Y> (A) L=1096 		1-37151-941-1 01 1 9601-0308 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD7 M/T<X9Z> (A) L=996 		1-37152-006-1 01 1 9601-0308 ●
1 SHAFT; PROP
6SD1 STD ENG(37L) (A) L=931 		1-37151-576-0 01 1 9601-9803 ●
1 SHAFT; PROP
6SD1 STD ENG(37L) (C) L=1176 		1-37124-342-1 01 1 9804-0308 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) (B) L=811 		1-37151-355-0 01 1 9601-9803 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) (B) L=811 		1-37151-355-1 01 1 0005-0308 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD6 M/T<X9Y> (A) L=621 		1-37151-483-0 01 1 9601-9803 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD6 M/T<X9Y> (A) L=1501 		1-37152-231-1 01 1 9804-0004 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD6 M/T<X9Y> (A) L=621 		1-37151-483-1 01 1 0005-0308 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD7 M/T<X9Z> (A) L=526 		1-37152-007-0 01 1 9601-9803 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD7 M/T<X9Z> (A) L=1401 		1-37152-288-1 01 1 9804-0004 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD7 M/T<X9Z> (A) L=526 		1-37152-007-1 01 1 0005-0308 ●
1 SHAFT; PROP
6SD1 STD ENG(37L) (B) L=651 		1-37151-645-0 01 1 9601-9803 ●
1 SHAFT; PROP
6SD1 STD ENG(37L) (A) L=611 		1-37152-055-0 01 1 9601-9803 ●
1 SHAFT; PROP
6SD1 STD ENG(37L) (A) L=1331 		1-37152-098-1 01 1 9804-0308 ●
1 SHAFT; PROP
(C) L=1216 		1-37123-465-1 01 1 9601- ●
1 SHAFT; PROP
6HH1 STD ENG(65L) (B) L=1081 		1-37151-641-1 01 1 9601- ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD6 M/T<X9Y> (A) L=861 		1-37151-943-1 01 1 9601- ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD7 M/T<X9Z> (A) L=761 		1-37151-772-1 01 1 9601- ●
1 SHAFT; PROP
6SD1 STD ENG(37L) (A) L=971 		1-37152-056-0 01 1 9601-9803 ●
1 SHAFT; PROP
6SD1 STD ENG(37L) (A) L=971 		1-37152-056-1 01 1 9804-0308 ● ●
1 SHAFT; PROP
6SD1 STD ENG(37L) (B) L=796 		1-37152-058-1 01 1 9601-0308 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-0 01 1 9601-9803 ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-0 01 1 9601-9803 ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-0 01 1 9804-0004 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-0 01 1 9804-0004 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
6HH1 STD ENG(65L) (A) 		1-37211-054-0 01 1 9804-0004 ●
8 YOKE; FLANGE,PROP SHAFT
6HH1 STD ENG(65L) (A) 		1-37211-054-0 01 1 9804-0004 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-0 01 1 0005-0308 ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-0 01 1 0005-0308 ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-0 01 1 0309-1111 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-0 01 1 0309-1111 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1112- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1112- ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-2 01 1 9601-9803 ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-2 01 1 9601-9803 ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 9804-0004 ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 9804-0004 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 0005-0308 ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
6HH1 STD ENG(65L) (B) 		1-37211-056-3 01 1 0005-0308 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 0005-0308 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 0309- ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 0309- ●
8 YOKE; FLANGE,PROP SHAFT
6SD1 STD ENG(37L) (A) 		1-37211-054-0 02 1 9804-0004 ●
9 JOURNAL ASM; PROP SHAFT
1ST 		8-98048-925-1 AR 1 1112- ● ●
9 JOURNAL ASM; PROP SHAFT
1ST 		8-98048-925-1 AR 1 1112- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9601-9607 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9601-9607 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9601-9607 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9608-9608 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9608-9608 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
6HH1 STD ENG(65L) MLD6 M/T<X9Y> 		1-37300-069-0 AR 1 9608-9608 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9608-9608 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9609-9609 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9609-9609 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
6HH1 STD ENG(65L) MLD6 M/T<X9Y> 		1-37300-069-0 AR 1 9609-9609 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9609-9609 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9609-9609 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9610-9611 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9610-9611 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
6HH1 STD ENG(65L) MLD6 M/T<X9Y> 		1-37300-069-0 AR 1 9610-9611 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9610-9611 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9612-9803 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9612-9803 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9612-9803 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9804-9809 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9804-9809 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
6HH1 STD ENG(65L) 		1-37300-069-0 AR 1 9804-9809 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9804-9809 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 9810-0004 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 9810-0004 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
6HH1 STD ENG(65L) 		1-37300-102-0 AR 1 9810-0004 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 9810-0004 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 0005-0308 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 0005-0308 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
6HH1 STD ENG(65L) 		1-37300-102-0 AR 1 0005-0308 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 0005-0308 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0309-1111 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0309-1111 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0309-1111 ●
9 JOURNAL ASM; PROP SHAFT
6HH1 STD ENG(65L) 2ND,END 		1-37300-102-1 AR 1 1112- ●
14 COVER; DUST,SPIDER
1ST 		8-98020-800-0 04 1 1112- ● ●
14 COVER; DUST,SPIDER
6HH1 STD ENG(65L) 		1-37319-012-0 08 1 9810-9811 ●
14 COVER; DUST,SPIDER
6SD1 STD ENG(37L) 		1-37319-012-0 08 1 9810-9811 ●
14 COVER; DUST,SPIDER 1-37319-012-0 04 1 9812-0004 ● ● ● ●
14 COVER; DUST,SPIDER
6HH1 STD ENG(65L) 		1-37319-012-0 04 1 9812-0004 ●
14 COVER; DUST,SPIDER 1-37319-012-0 04 1 9812-0004 ●
14 COVER; DUST,SPIDER 1-37319-012-0 04 1 0005-0308 ● ● ● ● ●
14 COVER; DUST,SPIDER
6HH1 STD ENG(65L) 		1-37319-012-0 04 1 0005-0308 ●
14 COVER; DUST,SPIDER 1-37319-012-0 04 1 0005-0308 ●
14 COVER; DUST,SPIDER 1-37319-012-0 08 1 0309-1111 ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 1112- ● ●
14 COVER; DUST,SPIDER
6HH1 STD ENG(65L) MLD7 M/T<X9Z> 		1-37319-012-0 04 1 9810-9811 ● ● ● ●
14 COVER; DUST,SPIDER
6HH1 STD ENG(65L) 		1-37319-012-0 04 1 9810-9811 ●
14 COVER; DUST,SPIDER
6SD1 STD ENG(37L) 		1-37319-012-0 04 1 9810-9811 ● ●
14 COVER; DUST,SPIDER
6SD1 STD ENG(37L) 		1-37319-012-0 04 1 9810-9811 ●
14 COVER; DUST,SPIDER 1-37319-012-0 08 1 9812-0004 ● ● ● ●
14 COVER; DUST,SPIDER
6HH1 STD ENG(65L) 		1-37319-012-0 08 1 9812-0004 ●
14 COVER; DUST,SPIDER 1-37319-012-0 08 1 0005-0308 ● ● ● ● ●
14 COVER; DUST,SPIDER 1-37319-012-0 04 1 0309-1111 ● ●
14 COVER; DUST,SPIDER 1-37319-012-0 04 1 0309-1111 ●
14 COVER; DUST,SPIDER
2ND 		1-37319-012-0 04 1 1112- ●
14 COVER; DUST,SPIDER
6SD1 STD ENG(37L) 		1-37319-012-0 12 1 9810-0004 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 9601-9803 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 9601-9803 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 9804-0004 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
6HH1 STD ENG(65L) PT1/8 ELBOW 		9-09031-210-0 01 1 9804-0004 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 9804-0004 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 0005-0308 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
6HH1 STD ENG(65L) PT1/8 ELBOW 		9-09031-210-0 01 1 0005-0308 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 0005-0308 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 0309-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 9601-9803 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 9804-0004 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
6HH1 STD ENG(65L) PT1/8 ELBOW 		9-09031-210-0 02 1 9804-0004 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 0005-0308 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 0309-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 0309-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 STD ENG(37L) PT1/8 ELBOW 		9-09031-210-0 03 1 9804-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 9601-9803 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 9601-9803 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 9804-0004 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HH1 STD ENG(65L) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 9804-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 9804-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0005-0308 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HH1 STD ENG(65L) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0005-0308 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0005-0308 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0309- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 9601-9803 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 9804-0004 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HH1 STD ENG(65L) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 9804-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0005-0308 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0309- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0309- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 9601-9803 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 9601-9803 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 9804-0004 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HH1 STD ENG(65L) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 9804-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 9804-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0005-0308 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HH1 STD ENG(65L) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0005-0308 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0005-0308 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0309- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 9601-9803 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 9804-0004 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HH1 STD ENG(65L) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 9804-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0005-0308 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0309- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0309- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 9601-9803 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 9601-9803 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 9804-0004 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HH1 STD ENG(65L) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 9804-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 9804-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0005-0308 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HH1 STD ENG(65L) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0005-0308 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0005-0308 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0309- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 9601-9803 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 9804-0004 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HH1 STD ENG(65L) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 9804-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0005-0308 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0309- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0309- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6SD1 STD ENG(37L) OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 9804-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6SD1 STD ENG(37L) OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 9804-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6SD1 STD ENG(37L) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 9804-0004 ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		8-98020-881-0 01 1 1112- ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9601-9803 ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9601-9803 ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9804-0004 ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9804-0004 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0005-0308 ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
6HH1 STD ENG(65L) 		1-37510-105-0 01 1 0005-0308 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0005-0308 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0309-1111 ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0309-1111 ●
20 BEARING ASM; CTR,PROP SHAFT
2ND 		1-37510-105-0 01 1 1112- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9601-9803 ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9601-9803 ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9804-0004 ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9804-0004 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0005-0308 ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
6HH1 STD ENG(65L) ID=54 		1-09625-161-0 02 1 0005-0308 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0005-0308 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0309- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0309- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9601-9803 ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9601-9803 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9804-0004 ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9804-0004 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0005-0308 ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
6HH1 STD ENG(65L) 		1-37516-059-0 01 1 0005-0308 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0005-0308 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0309- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0309- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9601-9803 ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9601-9803 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9804-0004 ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9804-0004 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0005-0308 ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
6HH1 STD ENG(65L) 		9-00090-071-0 01 1 0005-0308 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0005-0308 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0309- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0309- ●
24 RETAINER; CENTER BRG,1ST
1ST 		8-98020-882-0 01 1 1112- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9601-9803 ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9601-9803 ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9804-0004 ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9804-0004 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0005-0308 ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
6HH1 STD ENG(65L) 		1-37529-068-0 01 1 0005-0308 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0005-0308 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0309-1111 ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0309-1111 ●
24 RETAINER; CENTER BRG,1ST
2ND 		1-37529-068-0 01 1 1112- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9601-9803 ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9601-9803 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9804-0004 ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9804-0004 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0308 ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
6HH1 STD ENG(65L) MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0308 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0308 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0309- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0309- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		8-98020-815-0 01 1 1112- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9601-9803 ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9601-9803 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9804-0004 ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9804-0004 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0005-0308 ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
6HH1 STD ENG(65L) 		1-37245-071-0 01 1 0005-0308 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0005-0308 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0309-1111 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0309-1111 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND 		1-37245-071-0 01 1 1112- ●
49 NUT; YOKE
M14 		9-99110-514-0 04 1 9601-9803 ● ●
49 NUT; YOKE
M14 		9-99110-514-0 04 1 9804-0004 ●
49 NUT; YOKE
6HH1 STD ENG(65L) M14 		9-99110-514-0 04 1 0005-0308 ●
49 NUT; YOKE
M14 		9-99110-514-0 04 1 0005-0308 ●
49 NUT; YOKE
M14 		9-99110-514-0 04 1 0309-0512 ●
49 NUT; YOKE
M14 		0-91110-514-0 04 1 0601- ●
51 NUT; FLANGE,SPLINED
M30 H=23 		1-09449-068-0 01 1 9601-9801 ● ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 H=23 		1-09449-068-0 01 1 9601-9801 ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9802-9803 ● ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9802-9803 ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9804-0004 ● ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9804-0004 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0005-0308 ● ● ● ● ●
51 NUT; FLANGE,SPLINED
6HH1 STD ENG(65L) M30 		8-97160-857-0 01 1 0005-0308 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0005-0308 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0309- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0309- ●
52 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 9601-9803 ● ●
52 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 9804-0004 ●
52 WASHER; LK,YOKE
6HH1 STD ENG(65L) ID=14.2 		9-09150-614-0 04 1 0005-0308 ●
52 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 0005-0308 ●
52 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 0309-0603 ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0604- ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9601-0004 ● ● ● ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0005-0308 ● ● ● ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0309- ● ●
56 NUT; YOKE
M14 		9-99110-514-0 04 1 9601-0004 ● ● ● ● ●
56 NUT; YOKE
M14 		9-99110-514-0 04 1 0005-0308 ● ● ● ● ●
56 NUT; YOKE
M14 		9-99110-514-0 04 1 0309-0512 ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 0601- ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 9601-0004 ● ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 0005-0308 ● ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 0309-0603 ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0604- ● ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 9601-9803 ● ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 9804-0004 ●
60 WASHER; PL,RET TO BRKT
6HH1 STD ENG(65L) ID=10.5 OD=22 		9-09164-610-0 04 1 0005-0308 ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0005-0308 ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0309-0605 ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0606- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9601-9803 ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9601-9803 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9804-0004 ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9804-0004 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0005-0308 ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
6HH1 STD ENG(65L) M10X35 FLANGE 		0-28681-035-0 04 1 0005-0308 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0005-0308 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0309-0512 ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0309-0512 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9601-9608 ● ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9601-9608 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9609-9803 ● ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9609-9803 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9804-0004 ● ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9804-0004 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0308 ● ● ● ● ●
64 NUT; RET TO BRKT
6HH1 STD ENG(65L) M10 FLANGE 		0-91150-210-0 04 1 0005-0308 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0308 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0309-0602 ● ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0309-0602 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ●
66 WASHER
ID=30.5 		1-09503-025-0 01 1 9601-9801 ● ● ● ● ●
66 WASHER
ID=30.5 		1-09503-025-0 01 1 9601-9801 ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9601-9803 ● ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9601-9803 ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9804-0004 ● ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9804-0004 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0005-0308 ● ● ● ● ●
74 BOLT; YOKE,TRANS
6HH1 STD ENG(65L) M14X37 		1-09000-121-0 04 1 0005-0308 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0005-0308 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0309- ● ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0309- ●
95 BOLT; YOKE,FINAL
FINAL GEAR 17.5"<B5D> M16X48 		1-09000-383-0 04 1 0404-0411 ● ●
95 BOLT; YOKE,FINAL
M16X48 		1-09000-383-0 04 1 0412- ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 9601-0308 ● ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0309- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9601-0308 ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0309-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
107 COVER; RET,SLEEVE 1-37249-060-0 01 1 9601-0308 ● ● ● ● ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0309- ● ●
128 SEAL; SLEEVE
6HH1 STD ENG(65L) 		1-37247-024-0 01 1 9810-9811 ●
128 SEAL; SLEEVE
6SD1 STD ENG(37L) 		1-37247-024-0 01 1 9810-9811 ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 9812-0308 ● ● ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0309- ● ●
128 SEAL; SLEEVE 1-37247-015-0 01 1 9601-9809 ● ● ● ● ●
128 SEAL; SLEEVE
6SD1 STD ENG(37L) 		1-37247-015-0 01 1 9810-9811 ●
128 SEAL; SLEEVE
6HH1 STD ENG(65L) 		1-37247-015-0 01 1 9810-9811 ● ●
128 SEAL; SLEEVE 1-37247-015-0 01 1 9810-9811 ● ●
172 BRACKET; CENTER BRG
(A) 		1-37515-102-0 01 1 9601-9803 ● ●
172 BRACKET; CENTER BRG
6SD1 STD ENG(37L) (A) 		1-37515-102-0 01 1 9601-9803 ●
172 BRACKET; CENTER BRG
6HH1 STD ENG(65L) (A) 		1-37515-102-0 01 1 9601-9803 ●
172 BRACKET; CENTER BRG
(A) 		1-37515-102-0 01 1 9804-0308 ● ●
172 BRACKET; CENTER BRG
6HH1 STD ENG(65L) (A) 		1-37515-102-0 01 1 9804-0308 ●
172 BRACKET; CENTER BRG
(A) 		1-37515-102-0 01 1 0309- ●
172 BRACKET; CENTER BRG
6HH1 STD ENG(65L) (A) 		1-37515-102-0 01 1 0309- ●
172 BRACKET; CENTER BRG
6HH1 STD ENG(65L) (A) 4600,5500MM,(B) 5000MM 		1-37515-071-2 01 1 9601-9803 ●
172 BRACKET; CENTER BRG
(A) 4600,5500MM,(B) 5000MM 		1-37515-071-2 01 1 9601-9803 ●
172 BRACKET; CENTER BRG
6SD1 STD ENG(37L) (A) 4600,5500MM,(B) 5000MM 		1-37515-071-2 01 1 9601-9803 ●
172 BRACKET; CENTER BRG
(A) 		1-37515-071-2 01 1 9804-0006 ●
172 BRACKET; CENTER BRG
6SD1 STD ENG(37L) (A) 		1-37515-071-2 01 1 9804-0006 ●
172 BRACKET; CENTER BRG
(A) 4600,5500MM,(B) 5000MM 		1-37515-071-2 01 1 0007-0308 ●
172 BRACKET; CENTER BRG
6HH1 STD ENG(65L) (A) 4600,5500MM,(B) 5000MM 		1-37515-071-2 01 1 0007-0308 ●
172 BRACKET; CENTER BRG
6SD1 STD ENG(37L) (A) 4600,5500MM,(B) 5000MM 		1-37515-071-2 01 1 0007-0308 ●
172 BRACKET; CENTER BRG
(A) 		1-37515-136-0 01 1 9804-0004 ●
172 BRACKET; CENTER BRG
6SD1 STD ENG(37L) (A) 		1-37515-136-0 01 1 0005-0308 ●
172 BRACKET; CENTER BRG
(B) 		1-37515-101-0 01 1 9601- ●
173 BOLT; BRKT
M10X20 FLANGE 		0-28081-020-0 04 1 9601-9602 ● ● ● ● ●
173 BOLT; BRKT
M10X20 FLANGE 		0-28081-020-0 04 1 9601-9602 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 04 1 9603-9606 ● ● ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 04 1 9603-9606 ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 9607-9712 ● ● ● ● ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 9607-9712 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9801-0308 ● ● ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9801-0308 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0309-0512 ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0309-0512 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ●
177 NUT
M10 		9-09110-510-0 04 1 9601-9606 ● ●
177 NUT
M10 FLANGE 		0-91150-210-0 04 1 9607-9803 ● ●
177 NUT
M10 FLANGE 		0-91150-210-0 04 1 9804-0004 ●
177 NUT
6HH1 STD ENG(65L) M10 FLANGE 		0-91150-210-0 04 1 0005-0308 ●
177 NUT
M10 FLANGE 		0-91150-210-0 04 1 0005-0308 ●
177 NUT
M10 FLANGE 		0-91150-210-0 04 1 0309-0602 ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 0603- ●
177 NUT
M12 		9-99110-512-0 04 1 9601-9606 ● ●
177 NUT
M12 FLANGE 		0-91150-212-0 04 1 9607-9701 ● ●
225 YOKE; SLEEVE,PROP SHAFT
6HH1 STD ENG(65L) L=271 		1-37241-129-0 01 1 9810-9811 ●
225 YOKE; SLEEVE,PROP SHAFT
6SD1 STD ENG(37L) L=271 		1-37241-129-0 01 1 9810-9811 ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-129-0 01 1 9812-9902 ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 9903-0308 ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 0309- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-1 01 1 9601-9809 ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
6SD1 STD ENG(37L) L=271 		1-37241-099-2 01 1 9810-9811 ●
225 YOKE; SLEEVE,PROP SHAFT
6HH1 STD ENG(65L) L=271 		1-37241-099-2 01 1 9810-9811 ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 9810-9811 ● ●
çizim 66615
64 45 174 173 172 51 66 64 45 46 20 74 63 21 24 23 22 25 1 21 9 71 9 17 17 9 14 19 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHAFT; PROP
6HH1 STD ENG(65L) (C) L=876 		1-37124-186-1 01 1 9601-0302 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) EXC. FINAL GEAR 17.5"<B5D> (C) L=876 		1-37124-186-1 01 1 0303-0308 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) FINAL GEAR 17.5"<B5D> (C) L=886 		1-37124-084-1 01 1 0303-0308 ●
1 SHAFT; PROP
6SD1 STD ENG(37L) (C) L=701 		1-37123-763-1 01 1 9601-0308 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD6 M/T<X9Y> (C) L=701 		1-37151-939-1 01 1 9601-0308 ● ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=701 		1-37151-939-1 01 1 0309-1111 ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=694 		8-98069-611-0 01 1 1112- ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD7 M/T<X9Z> (A) L=601 		1-37152-005-1 01 1 9601-0308 ● ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=601 		1-37152-005-1 01 1 0309-1111 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=594 		8-98069-607-0 01 1 1112- ●
1 SHAFT; PROP
6SD1 STD ENG(37L) (A) L=711 		1-37151-634-1 01 1 9601-0308 ● ●
1 SHAFT; PROP
6HH1 STD ENG(65L) (C) L=1226 		1-37124-096-0 01 1 9601-9803 ●
1 SHAFT; PROP
(C) L=1226 		1-37124-096-0 01 1 9601-9803 ● ●
1 SHAFT; PROP
6HH1 STD ENG(65L) (C) L=1226 		1-37124-096-1 01 1 9804-0308 ● ●
1 SHAFT; PROP
(C) L=1226 		1-37124-096-1 01 1 9804-0308 ●
1 SHAFT; PROP
(C) L=1226 		1-37124-096-1 01 1 0309- ●
1 SHAFT; PROP
6SD1 STD ENG(37L) (C) L=1041 		1-37124-183-1 01 1 9601-0308 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD6 M/T<X9Y> (A) L=1096 		1-37151-941-1 01 1 9601-0308 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD7 M/T<X9Z> (A) L=996 		1-37152-006-1 01 1 9601-0308 ●
1 SHAFT; PROP
6SD1 STD ENG(37L) (A) L=931 		1-37151-576-0 01 1 9601-9803 ●
1 SHAFT; PROP
6SD1 STD ENG(37L) (C) L=1176 		1-37124-342-1 01 1 9804-0308 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) (B) L=811 		1-37151-355-0 01 1 9601-9803 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) (B) L=811 		1-37151-355-1 01 1 0005-0308 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD6 M/T<X9Y> (A) L=621 		1-37151-483-0 01 1 9601-9803 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD6 M/T<X9Y> (A) L=1501 		1-37152-231-1 01 1 9804-0004 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD6 M/T<X9Y> (A) L=621 		1-37151-483-1 01 1 0005-0308 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD7 M/T<X9Z> (A) L=526 		1-37152-007-0 01 1 9601-9803 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD7 M/T<X9Z> (A) L=1401 		1-37152-288-1 01 1 9804-0004 ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD7 M/T<X9Z> (A) L=526 		1-37152-007-1 01 1 0005-0308 ●
1 SHAFT; PROP
6SD1 STD ENG(37L) (B) L=651 		1-37151-645-0 01 1 9601-9803 ●
1 SHAFT; PROP
6SD1 STD ENG(37L) (A) L=611 		1-37152-055-0 01 1 9601-9803 ●
1 SHAFT; PROP
6SD1 STD ENG(37L) (A) L=1331 		1-37152-098-1 01 1 9804-0308 ●
1 SHAFT; PROP
(C) L=1216 		1-37123-465-1 01 1 9601- ●
1 SHAFT; PROP
6HH1 STD ENG(65L) (B) L=1081 		1-37151-641-1 01 1 9601- ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD6 M/T<X9Y> (A) L=861 		1-37151-943-1 01 1 9601- ●
1 SHAFT; PROP
6HH1 STD ENG(65L) MLD7 M/T<X9Z> (A) L=761 		1-37151-772-1 01 1 9601- ●
1 SHAFT; PROP
6SD1 STD ENG(37L) (A) L=971 		1-37152-056-0 01 1 9601-9803 ●
1 SHAFT; PROP
6SD1 STD ENG(37L) (A) L=971 		1-37152-056-1 01 1 9804-0308 ● ●
1 SHAFT; PROP
6SD1 STD ENG(37L) (B) L=796 		1-37152-058-1 01 1 9601-0308 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-0 01 1 9601-9803 ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-0 01 1 9601-9803 ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-0 01 1 9804-0004 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-0 01 1 9804-0004 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
6HH1 STD ENG(65L) (A) 		1-37211-054-0 01 1 9804-0004 ●
8 YOKE; FLANGE,PROP SHAFT
6HH1 STD ENG(65L) (A) 		1-37211-054-0 01 1 9804-0004 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-0 01 1 0005-0308 ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-0 01 1 0005-0308 ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-0 01 1 0309-1111 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-0 01 1 0309-1111 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1112- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1112- ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-2 01 1 9601-9803 ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-2 01 1 9601-9803 ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 9804-0004 ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 9804-0004 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 0005-0308 ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
6HH1 STD ENG(65L) (B) 		1-37211-056-3 01 1 0005-0308 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 0005-0308 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 0309- ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 0309- ●
8 YOKE; FLANGE,PROP SHAFT
6SD1 STD ENG(37L) (A) 		1-37211-054-0 02 1 9804-0004 ●
9 JOURNAL ASM; PROP SHAFT
1ST 		8-98048-925-1 AR 1 1112- ● ●
9 JOURNAL ASM; PROP SHAFT
1ST 		8-98048-925-1 AR 1 1112- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9601-9607 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9601-9607 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9601-9607 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9608-9608 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9608-9608 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
6HH1 STD ENG(65L) MLD6 M/T<X9Y> 		1-37300-069-0 AR 1 9608-9608 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9608-9608 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9609-9609 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9609-9609 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
6HH1 STD ENG(65L) MLD6 M/T<X9Y> 		1-37300-069-0 AR 1 9609-9609 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9609-9609 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9609-9609 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9610-9611 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9610-9611 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
6HH1 STD ENG(65L) MLD6 M/T<X9Y> 		1-37300-069-0 AR 1 9610-9611 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9610-9611 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9612-9803 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9612-9803 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9612-9803 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9804-9809 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9804-9809 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
6HH1 STD ENG(65L) 		1-37300-069-0 AR 1 9804-9809 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9804-9809 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 9810-0004 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 9810-0004 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
6HH1 STD ENG(65L) 		1-37300-102-0 AR 1 9810-0004 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 9810-0004 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 0005-0308 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 0005-0308 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
6HH1 STD ENG(65L) 		1-37300-102-0 AR 1 0005-0308 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 0005-0308 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0309-1111 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0309-1111 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0309-1111 ●
9 JOURNAL ASM; PROP SHAFT
6HH1 STD ENG(65L) 2ND,END 		1-37300-102-1 AR 1 1112- ●
14 COVER; DUST,SPIDER
1ST 		8-98020-800-0 04 1 1112- ● ●
14 COVER; DUST,SPIDER
6HH1 STD ENG(65L) 		1-37319-012-0 08 1 9810-9811 ●
14 COVER; DUST,SPIDER
6SD1 STD ENG(37L) 		1-37319-012-0 08 1 9810-9811 ●
14 COVER; DUST,SPIDER 1-37319-012-0 04 1 9812-0004 ● ● ● ●
14 COVER; DUST,SPIDER
6HH1 STD ENG(65L) 		1-37319-012-0 04 1 9812-0004 ●
14 COVER; DUST,SPIDER 1-37319-012-0 04 1 9812-0004 ●
14 COVER; DUST,SPIDER 1-37319-012-0 04 1 0005-0308 ● ● ● ● ●
14 COVER; DUST,SPIDER
6HH1 STD ENG(65L) 		1-37319-012-0 04 1 0005-0308 ●
14 COVER; DUST,SPIDER 1-37319-012-0 04 1 0005-0308 ●
14 COVER; DUST,SPIDER 1-37319-012-0 08 1 0309-1111 ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 1112- ● ●
14 COVER; DUST,SPIDER
6HH1 STD ENG(65L) MLD7 M/T<X9Z> 		1-37319-012-0 04 1 9810-9811 ● ● ● ●
14 COVER; DUST,SPIDER
6HH1 STD ENG(65L) 		1-37319-012-0 04 1 9810-9811 ●
14 COVER; DUST,SPIDER
6SD1 STD ENG(37L) 		1-37319-012-0 04 1 9810-9811 ● ●
14 COVER; DUST,SPIDER
6SD1 STD ENG(37L) 		1-37319-012-0 04 1 9810-9811 ●
14 COVER; DUST,SPIDER 1-37319-012-0 08 1 9812-0004 ● ● ● ●
14 COVER; DUST,SPIDER
6HH1 STD ENG(65L) 		1-37319-012-0 08 1 9812-0004 ●
14 COVER; DUST,SPIDER 1-37319-012-0 08 1 0005-0308 ● ● ● ● ●
14 COVER; DUST,SPIDER 1-37319-012-0 04 1 0309-1111 ● ●
14 COVER; DUST,SPIDER 1-37319-012-0 04 1 0309-1111 ●
14 COVER; DUST,SPIDER
2ND 		1-37319-012-0 04 1 1112- ●
14 COVER; DUST,SPIDER
6SD1 STD ENG(37L) 		1-37319-012-0 12 1 9810-0004 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 9601-9803 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 9601-9803 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 9804-0004 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
6HH1 STD ENG(65L) PT1/8 ELBOW 		9-09031-210-0 01 1 9804-0004 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 9804-0004 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 0005-0308 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
6HH1 STD ENG(65L) PT1/8 ELBOW 		9-09031-210-0 01 1 0005-0308 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 0005-0308 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 0309-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 9601-9803 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 9804-0004 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
6HH1 STD ENG(65L) PT1/8 ELBOW 		9-09031-210-0 02 1 9804-0004 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 0005-0308 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 0309-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 0309-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 STD ENG(37L) PT1/8 ELBOW 		9-09031-210-0 03 1 9804-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 9601-9803 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 9601-9803 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 9804-0004 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HH1 STD ENG(65L) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 9804-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 9804-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0005-0308 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HH1 STD ENG(65L) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0005-0308 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0005-0308 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0309- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 9601-9803 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 9804-0004 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HH1 STD ENG(65L) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 9804-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0005-0308 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0309- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0309- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 9601-9803 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 9601-9803 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 9804-0004 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HH1 STD ENG(65L) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 9804-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 9804-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0005-0308 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HH1 STD ENG(65L) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0005-0308 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0005-0308 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0309- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 9601-9803 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 9804-0004 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HH1 STD ENG(65L) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 9804-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0005-0308 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0309- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0309- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 9601-9803 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 9601-9803 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 9804-0004 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HH1 STD ENG(65L) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 9804-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 9804-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0005-0308 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HH1 STD ENG(65L) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0005-0308 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0005-0308 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0309- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 9601-9803 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 9804-0004 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HH1 STD ENG(65L) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 9804-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0005-0308 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0309- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0309- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6SD1 STD ENG(37L) OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 9804-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6SD1 STD ENG(37L) OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 9804-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6SD1 STD ENG(37L) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 9804-0004 ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		8-98020-881-0 01 1 1112- ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9601-9803 ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9601-9803 ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9804-0004 ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9804-0004 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0005-0308 ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
6HH1 STD ENG(65L) 		1-37510-105-0 01 1 0005-0308 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0005-0308 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0309-1111 ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0309-1111 ●
20 BEARING ASM; CTR,PROP SHAFT
2ND 		1-37510-105-0 01 1 1112- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9601-9803 ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9601-9803 ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9804-0004 ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9804-0004 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0005-0308 ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
6HH1 STD ENG(65L) ID=54 		1-09625-161-0 02 1 0005-0308 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0005-0308 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0309- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0309- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9601-9803 ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9601-9803 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9804-0004 ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9804-0004 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0005-0308 ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
6HH1 STD ENG(65L) 		1-37516-059-0 01 1 0005-0308 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0005-0308 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0309- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0309- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9601-9803 ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9601-9803 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9804-0004 ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9804-0004 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0005-0308 ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
6HH1 STD ENG(65L) 		9-00090-071-0 01 1 0005-0308 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0005-0308 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0309- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0309- ●
24 RETAINER; CENTER BRG,1ST
1ST 		8-98020-882-0 01 1 1112- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9601-9803 ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9601-9803 ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9804-0004 ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9804-0004 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0005-0308 ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
6HH1 STD ENG(65L) 		1-37529-068-0 01 1 0005-0308 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0005-0308 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0309-1111 ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0309-1111 ●
24 RETAINER; CENTER BRG,1ST
2ND 		1-37529-068-0 01 1 1112- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9601-9803 ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9601-9803 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9804-0004 ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9804-0004 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0308 ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
6HH1 STD ENG(65L) MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0308 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0308 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0309- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0309- ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 9601-0004 ● ● ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0005-0308 ● ● ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0309-0605 ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0606- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		8-98020-815-0 01 1 1112- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9601-9803 ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9601-9803 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9804-0004 ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9804-0004 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0005-0308 ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
6HH1 STD ENG(65L) 		1-37245-071-0 01 1 0005-0308 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0005-0308 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0309-1111 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0309-1111 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND 		1-37245-071-0 01 1 1112- ●
51 NUT; FLANGE,SPLINED
M30 H=23 		1-09449-068-0 01 1 9601-9801 ● ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 H=23 		1-09449-068-0 01 1 9601-9801 ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9802-9803 ● ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9802-9803 ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9804-0004 ● ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9804-0004 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0005-0308 ● ● ● ● ●
51 NUT; FLANGE,SPLINED
6HH1 STD ENG(65L) M30 		8-97160-857-0 01 1 0005-0308 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0005-0308 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0309- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0309- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9601-9803 ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9601-9803 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9804-0004 ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9804-0004 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0005-0308 ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
6HH1 STD ENG(65L) M10X35 FLANGE 		0-28681-035-0 04 1 0005-0308 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0005-0308 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0309-0512 ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0309-0512 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9601-9608 ● ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9601-9608 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9609-9803 ● ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9609-9803 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9804-0004 ● ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9804-0004 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0308 ● ● ● ● ●
64 NUT; RET TO BRKT
6HH1 STD ENG(65L) M10 FLANGE 		0-91150-210-0 04 1 0005-0308 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0308 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0309-0602 ● ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0309-0602 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ●
66 WASHER
ID=30.5 		1-09503-025-0 01 1 9601-9801 ● ● ● ● ●
66 WASHER
ID=30.5 		1-09503-025-0 01 1 9601-9801 ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9601-0308 ● ● ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0309- ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9601-9803 ● ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9601-9803 ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9804-0004 ● ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9804-0004 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0005-0308 ● ● ● ● ●
74 BOLT; YOKE,TRANS
6HH1 STD ENG(65L) M14X37 		1-09000-121-0 04 1 0005-0308 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0005-0308 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0309- ● ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0309- ●
172 BRACKET; CENTER BRG
(A) 		1-37515-102-0 01 1 9601-9803 ● ●
172 BRACKET; CENTER BRG
6SD1 STD ENG(37L) (A) 		1-37515-102-0 01 1 9601-9803 ●
172 BRACKET; CENTER BRG
6HH1 STD ENG(65L) (A) 		1-37515-102-0 01 1 9601-9803 ●
172 BRACKET; CENTER BRG
(A) 		1-37515-102-0 01 1 9804-0308 ● ●
172 BRACKET; CENTER BRG
6HH1 STD ENG(65L) (A) 		1-37515-102-0 01 1 9804-0308 ●
172 BRACKET; CENTER BRG
(A) 		1-37515-102-0 01 1 0309- ●
172 BRACKET; CENTER BRG
6HH1 STD ENG(65L) (A) 		1-37515-102-0 01 1 0309- ●
172 BRACKET; CENTER BRG
6HH1 STD ENG(65L) (A) 4600,5500MM,(B) 5000MM 		1-37515-071-2 01 1 9601-9803 ●
172 BRACKET; CENTER BRG
(A) 4600,5500MM,(B) 5000MM 		1-37515-071-2 01 1 9601-9803 ●
172 BRACKET; CENTER BRG
6SD1 STD ENG(37L) (A) 4600,5500MM,(B) 5000MM 		1-37515-071-2 01 1 9601-9803 ●
172 BRACKET; CENTER BRG
(A) 		1-37515-071-2 01 1 9804-0006 ●
172 BRACKET; CENTER BRG
6SD1 STD ENG(37L) (A) 		1-37515-071-2 01 1 9804-0006 ●
172 BRACKET; CENTER BRG
(A) 4600,5500MM,(B) 5000MM 		1-37515-071-2 01 1 0007-0308 ●
172 BRACKET; CENTER BRG
6HH1 STD ENG(65L) (A) 4600,5500MM,(B) 5000MM 		1-37515-071-2 01 1 0007-0308 ●
172 BRACKET; CENTER BRG
6SD1 STD ENG(37L) (A) 4600,5500MM,(B) 5000MM 		1-37515-071-2 01 1 0007-0308 ●
172 BRACKET; CENTER BRG
(A) 		1-37515-136-0 01 1 9804-0004 ●
172 BRACKET; CENTER BRG
6SD1 STD ENG(37L) (A) 		1-37515-136-0 01 1 0005-0308 ●
172 BRACKET; CENTER BRG
(B) 		1-37515-101-0 01 1 9601- ●
173 BOLT; BRKT
M10X20 FLANGE 		0-28081-020-0 04 1 9601-9602 ● ● ● ● ●
173 BOLT; BRKT
M10X20 FLANGE 		0-28081-020-0 04 1 9601-9602 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 04 1 9603-9606 ● ● ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 04 1 9603-9606 ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 9607-9712 ● ● ● ● ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 9607-9712 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9801-0308 ● ● ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9801-0308 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0309-0512 ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0309-0512 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ●
174 NUT; BRKT
M10 		9-09110-510-0 04 1 9601-9606 ● ● ● ●
174 NUT; BRKT 0-91150-216-0 04 1 9607-9701 ● ● ● ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9702-9803 ● ● ● ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9804-0004 ● ● ● ● ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0308 ● ● ● ●
174 NUT; BRKT
6SD1 STD ENG(37L) M10 FLANGE 		0-91150-210-0 04 1 0005-0308 ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0309-0602 ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
