Sayfa 3-78 - Isuzu EPC

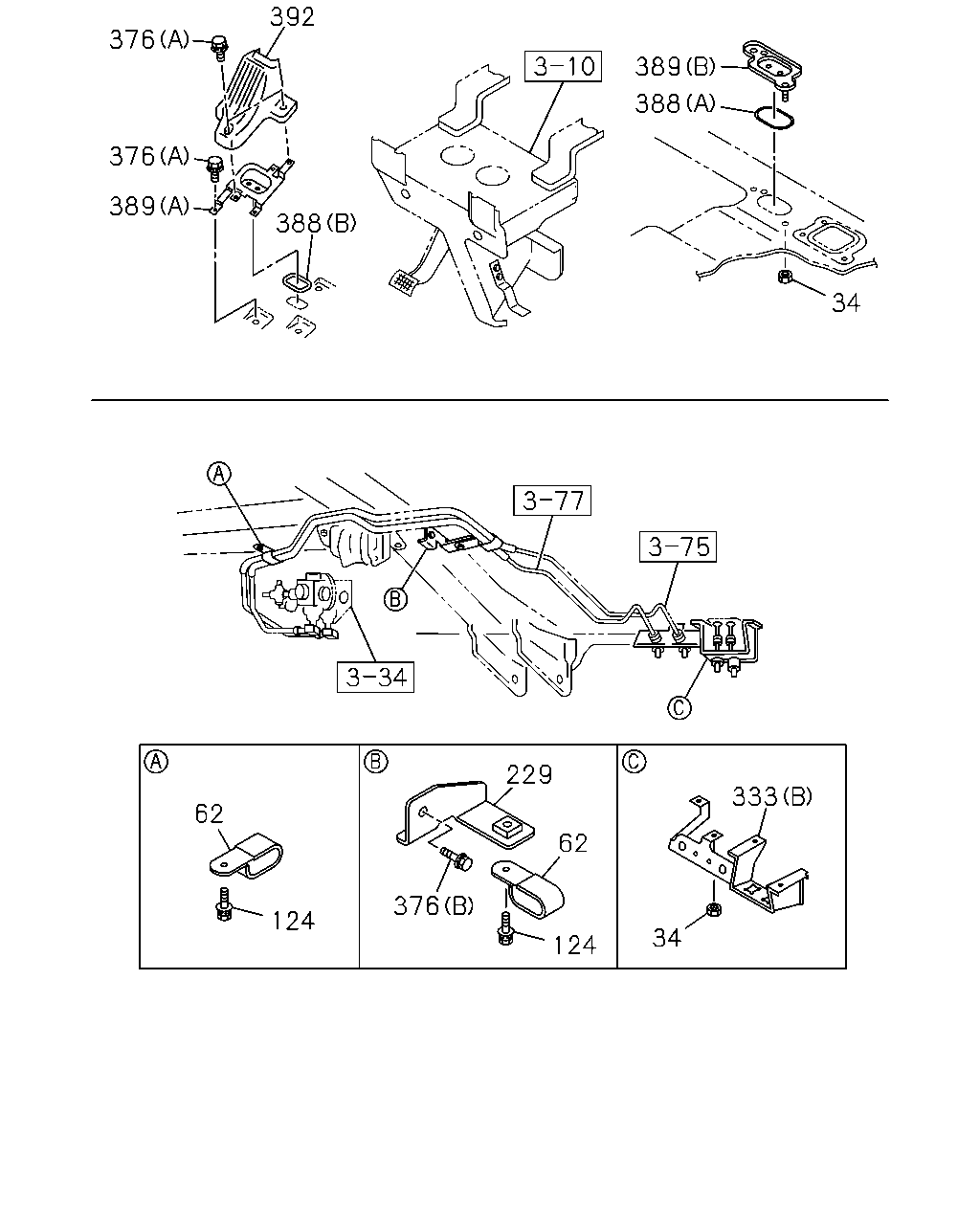

3-78 — FIXING PARTS; AIR PIPING (#22846) — 388 parça

11 133 375 31 39 78 13 91 97 333 14 20 28 30 55 79 98 108 126 267 288 371 6 21 80 92 99 103 309 295 290 268 127 109 265 4 13 286 39 78 292 318 74 76 107 128 265 266 286 331 332 361 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; AIR PIPE 6SD1 STD ENG(37L) ID=11 H=20 L=20	5-09700-351-0	01	1	9601-0308	●	●
6	NUT; PIPE CLIP 6SD1 STD ENG(37L) M8	9-09110-408-0	01	1	9601-9606	●	●
6	NUT; PIPE CLIP 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	01	1	9607-0308	●	●
11	BOLT; CLIP BRKT 6SD1 STD ENG(37L) M8X30 FLANGE	0-28680-830-0	01	1	0202-0308	●	●
13	CLIP; AIR PIPE 6HH1 STD ENG(65L) (A) ID=7 L=38 H=21	1-09700-916-0	01	1	9601-0308	●	●
13	CLIP; AIR PIPE (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0309-		●
13	CLIP; AIR PIPE 6HH1 STD ENG(65L) (B) ID=7 L=40	9-09524-675-0	01	1	9601-0308	●	●
13	CLIP; AIR PIPE (B) ID=7 L=40	9-09524-675-0	01	1	0309-0606		●
13	CLIP; AIR PIPE (B) ID=7 L=40	0-95234-675-0	01	1	0607-		●
14	BOLT; PIPE CLIP 6SD1 STD ENG(37L) M8X25 FLANGE	0-28080-825-0	01	1	9601-9606	●	●
14	BOLT; PIPE CLIP 6SD1 STD ENG(37L) M8X30 FLANGE	0-28680-830-0	01	1	9607-0308	●	●
20	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9601-9608	●	●
20	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9607-9803	●	●
20	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9804-0308	●	●
20	BOLT; CLIP PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE	0-28680-825-0	01	1	9804-0308	●	●
20	BOLT; CLIP 6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	01	1	0309-0512		●
20	BOLT; CLIP 6HH1 STD ENG(65L) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE	0-28680-825-0	01	1	0309-0512		●
20	BOLT; CLIP 6HH1 STD ENG(65L) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE	0-28650-825-0	01	1	0601-0612		●
20	BOLT; CLIP 6HH1 STD ENG(65L) M8X25 FLANGE	0-28650-825-0	01	1	0601-0612		●
20	BOLT; CLIP 6HH1 STD ENG(65L) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE	0-28650-825-0	01	1	0701-		●
20	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	01	1	0701-		●
21	NUT; CLIP M8	9-09110-408-0	01	1	9601-9606	●	●
21	NUT; CLIP MAL6S M/T(Y1V) M8	9-09110-408-0	01	1	9601-9606	●	●
21	NUT; CLIP MAL6S M/T(Y1V) M8 FLANGE	0-91150-108-0	01	1	9607-9803	●	●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9607-9803	●	●
21	NUT; CLIP MAL6S M/T(Y1V) M8 FLANGE	0-91150-108-0	01	1	9804-0004	●	●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9804-0004	●	●
21	NUT; CLIP PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91150-108-0	01	1	9804-0004	●	●
21	NUT; CLIP MAL6S M/T(Y1V) M8 FLANGE	0-91150-108-0	01	1	0005-0308	●	●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0005-0308	●	●
21	NUT; CLIP PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91150-108-0	01	1	0005-0308	●	●
21	NUT; CLIP 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	01	1	0309-0602		●
21	NUT; CLIP 6HH1 STD ENG(65L) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91150-108-0	01	1	0309-0602		●
21	NUT; CLIP 6HH1 STD ENG(65L) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91180-108-0	01	1	0603-		●
21	NUT; CLIP 6HH1 STD ENG(65L) M8 FLANGE	0-91180-108-0	01	1	0603-		●
21	NUT; CLIP M8	9-09110-408-0	01	1	9607-9608	●	●
28	BOLT; CLIP,FLEX HOSE 6SD1 STD ENG(37L) M8X20 FLANGE	0-28080-820-0	04	1	9601-9606	●	●
28	BOLT; CLIP,FLEX HOSE 6SD1 STD ENG(37L) M8X25 FLANGE	0-28680-825-0	04	1	9607-0209	●	●
28	BOLT; CLIP,FLEX HOSE 6SD1 STD ENG(37L) M8X20 FLANGE	0-28680-820-0	04	1	0210-0308	●	●
30	BOLT; CLIP BRKT 6SD1 STD ENG(37L) M8X30 FLANGE	0-28080-830-0	01	1	9601-9606	●	●
30	BOLT; CLIP BRKT 6SD1 STD ENG(37L) M8X35 FLANGE	0-28680-835-0	01	1	9607-0308	●	●
31	NUT; CLIP BRKT 6SD1 STD ENG(37L) M10 FLANGE	5-09440-006-0	02	1	9601-9605	●	●
31	NUT; CLIP BRKT MAL6S M/T(Y1V) M10 FLANGE	5-09440-006-0	03	1	9606-0004	●	●
31	NUT; CLIP BRKT MAL6S M/T(Y1V) M10 FLANGE	5-09440-006-0	03	1	0005-0308	●	●
31	NUT; CLIP BRKT 6SD1 STD ENG(37L) M8	9-09110-408-0	01	1	9601-9606	●	●
31	NUT; CLIP BRKT 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	01	1	9607-0308	●	●
39	CLIP; AIR PIPE (A) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9601-0109	●	●
39	CLIP; AIR PIPE EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	0110-0308	●	●
39	CLIP; AIR PIPE EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	0309-		●
39	CLIP; AIR PIPE 6HH1 STD ENG(65L) (B) ID=6.35 & 15	1-09709-276-1	01	1	9804-0109	●	●
39	CLIP; AIR PIPE 6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> (B) ID=6.35 & 15	1-09709-276-1	01	1	0110-0308	●	●
39	CLIP; AIR PIPE 6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> (B) ID=6.35 & 15	1-09709-276-1	01	1	0309-		●
39	CLIP; AIR PIPE 6HH1 STD ENG(65L) AIR DRYER<PS7> (B) ID=15 & 15	1-09709-282-1	01	1	0110-0308	●	●
39	CLIP; AIR PIPE 6HH1 STD ENG(65L) AIR DRYER<PS7> (B) ID=15 & 15	1-09709-282-1	01	1	0309-		●
55	BOLT; PIPE CLIP 6HH1 STD ENG(65L) M8X25 FLANGE	0-28080-825-0	04	1	9601-9606	●	●
55	BOLT; PIPE CLIP 6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	04	1	9607-0308	●	●
55	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	04	1	0309-0512		●
55	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	04	1	0601-		●
55	BOLT; PIPE CLIP 6SD1 STD ENG(37L) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●	●
55	BOLT; PIPE CLIP 6SD1 STD ENG(37L) M8X30 FLANGE	0-28680-830-0	02	1	9607-0308	●	●
74	CLIP; NYLON TUBE 6SD1 STD ENG(37L) L=250	1-09707-126-0	01	1	9601-9602	●	●
76	CLIP; NYLON TUBE 6HH1 STD ENG(65L) L=250	1-09707-126-0	06	1	9601-9602	●	●
76	CLIP; NYLON TUBE 6SD1 STD ENG(37L) L=250	1-09707-126-0	01	1	9601-9602	●	●
76	CLIP; NYLON TUBE 6SD1 STD ENG(37L) L=250	1-09707-126-0	07	1	9601-9602	●	●
78	CLIP; AIR PIPE 6SD1 STD ENG(37L) (A) ID=6.35 & 15	1-09709-276-1	03	1	9601-9601	●
78	CLIP; AIR PIPE 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) (A) ID=6.35 & 15	1-09709-276-1	03	1	9601-9601		●
78	CLIP; AIR PIPE 6SD1 STD ENG(37L) (A) ID=6.35 & 15	1-09709-276-1	02	1	9602-0109	●	●
78	CLIP; AIR PIPE 6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> (A) ID=6.35 & 15	1-09709-276-1	02	1	0110-0308	●	●
78	CLIP; AIR PIPE 6SD1 STD ENG(37L) AIR DRYER<PS7> (A) ID=6.35 & 15	1-09709-276-1	04	1	0110-0308	●
78	CLIP; AIR PIPE 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) AIR DRYER<PS7> (A) ID=6.35 & 15	1-09709-276-1	04	1	0110-0308		●
78	CLIP; AIR PIPE 6HH1 STD ENG(65L) AIR DRYER<PS7> (A) ID=6.35 & 15	1-09709-276-1	01	1	0110-0308	●	●
78	CLIP; AIR PIPE 6HH1 STD ENG(65L) AIR DRYER<PS7> (A) ID=6.35 & 15	1-09709-276-1	01	1	0309-		●
78	CLIP; AIR PIPE 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) AIR DRYER<PS7> (A) ID=6.35 & 15	1-09709-276-1	06	1	0110-0308		●
78	CLIP; AIR PIPE 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) (A) ID=6.35 & 15	1-09709-276-1	02	1	9601-9601		●
78	CLIP; AIR PIPE 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) (B) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9602-9803		●
78	CLIP; AIR PIPE 6SD1 STD ENG(37L) (B) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9804-9806	●	●
79	BOLT; PIPE CLIP 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) M8X50 FLANGE	0-28080-850-0	01	1	9602-9803		●
79	BOLT; PIPE CLIP 6SD1 STD ENG(37L) M8X50 FLANGE	0-28080-850-0	01	1	9804-9806	●	●
80	NUT; CLIP,AIR PIPE 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) M8	9-09110-408-0	01	1	9602-9606		●
80	NUT; CLIP,AIR PIPE 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) M8 FLANGE	0-91150-108-0	01	1	9607-9803		●
80	NUT; CLIP,AIR PIPE 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	01	1	9804-9806	●	●
91	CLIP; AIR PIPE 6HH1 STD ENG(65L) ID=11 H=20 L=20	5-09700-351-0	04	1	9601-0308	●	●
91	CLIP; AIR PIPE ID=11 H=20 L=20	5-09700-351-0	04	1	0309-0707		●
91	CLIP; AIR PIPE ID=11 H=20 L=20	8-98033-780-0	04	1	0708-		●
91	CLIP; AIR PIPE 6SD1 STD ENG(37L) ID=11 H=20 L=20	5-09700-351-0	02	1	9601-0308	●	●
92	NUT; PIPE CLIP 6HH1 STD ENG(65L) M8	9-09110-408-0	02	1	9601-9606	●	●
92	NUT; PIPE CLIP 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	9607-0308	●	●
92	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0309-0602		●
92	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-		●
92	NUT; PIPE CLIP 6SD1 STD ENG(37L) M8	9-09110-408-0	01	1	9601-9606	●	●
92	NUT; PIPE CLIP 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	01	1	9607-0308	●	●
97	CLIP; AIR PIPE 6SD1 STD ENG(37L) ID=11 H=20 L=20	5-09700-351-0	01	1	9601-0308	●	●
98	BOLT; PIPE CLIP 6SD1 STD ENG(37L) M8X25 FLANGE	0-28080-825-0	01	1	9601-9606	●	●
98	BOLT; PIPE CLIP 6SD1 STD ENG(37L) M8X30 FLANGE	0-28680-830-0	01	1	9607-0308	●	●
99	NUT; PIPE CLIP 6SD1 STD ENG(37L) M8	9-09110-408-0	01	1	9601-9606	●	●
99	NUT; PIPE CLIP 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	01	1	9607-0308	●	●
103	NUT; PIPE CLIP 6HH1 STD ENG(65L) M8	9-09110-408-0	02	1	9601-9606	●	●
103	NUT; PIPE CLIP 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	9607-0308	●	●
103	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0309-0602		●
103	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-		●
103	NUT; PIPE CLIP 6SD1 STD ENG(37L) M8	9-09110-408-0	01	1	9601-9606	●	●
103	NUT; PIPE CLIP 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	01	1	9607-0308	●	●
107	CLIP; NYLON TUBE 6SD1 STD ENG(37L) (B) L=250	1-09707-126-0	14	1	9601-9602	●
107	CLIP; NYLON TUBE 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) (B) L=250	1-09707-126-0	14	1	9601-9602		●
107	CLIP; NYLON TUBE 6SD1 STD ENG(37L) (B) L=250	1-09707-126-0	13	1	9603-0308	●
107	CLIP; NYLON TUBE 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) (B) L=250	1-09707-126-0	13	1	9603-0308		●
107	CLIP; NYLON TUBE (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9601-0004	●	●
107	CLIP; NYLON TUBE (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0005-0308	●	●
107	CLIP; NYLON TUBE (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0309-		●
107	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9601-0004	●	●
107	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	0005-0308	●	●
107	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	0309-		●
107	CLIP; NYLON TUBE 6HH1 STD ENG(65L) (A) ID=35 H=45 L=33	1-09700-947-0	02	1	9601-9905	●	●
107	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09700-947-0	02	1	9906-0308	●	●
107	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09700-947-0	02	1	0309-		●
107	CLIP; NYLON TUBE 6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	08	1	9601-0006	●	●
107	CLIP; NYLON TUBE 6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	09	1	0007-0105	●	●
107	CLIP; NYLON TUBE 6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	10	1	0106-0308	●	●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	10	1	0309-		●
107	CLIP; NYLON TUBE 6SD1 STD ENG(37L) (B) L=250	1-09707-126-0	01	1	0202-0308	●	●
107	CLIP; NYLON TUBE 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) (B) L=250	1-09707-126-0	15	1	9601-9602		●
107	CLIP; NYLON TUBE 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (B) L=250	1-09707-126-0	14	1	9603-0308		●
108	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9601-0004	●	●
108	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	02	1	0005-0308	●	●
108	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	02	1	0309-0512		●
108	BOLT; TUBE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
108	BOLT; TUBE CLIP 6HH1 STD ENG(65L) M8X25 FLANGE	0-28080-825-0	03	1	9601-9606	●	●
108	BOLT; TUBE CLIP 6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	03	1	9607-0308	●	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	03	1	0309-0512		●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	03	1	0601-		●
108	BOLT; TUBE CLIP 6SD1 STD ENG(37L) M8X30 FLANGE	0-28680-830-0	02	1	9804-0308	●	●
109	NUT; TUBE CLIP M8	9-09110-408-0	02	1	9601-9606	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	04	1	9804-0308	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	04	1	0309-0602		●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	04	1	0603-		●
109	NUT; TUBE CLIP 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	01	1	0105-0308	●	●
126	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	03	1	9601-9606	●	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	03	1	9607-0308	●	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	03	1	0309-0512		●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	03	1	0601-		●
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28080-830-0	02	1	9601-9606	●	●
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	02	1	9607-9803	●	●
126	BOLT; CLIP BRKT 6HH1 STD ENG(65L) M8X30 FLANGE	0-28080-830-0	01	1	9601-9606	●	●
126	BOLT; CLIP BRKT 6HH1 STD ENG(65L) M8X35 FLANGE	0-28680-835-0	01	1	9607-9803	●	●
126	BOLT; CLIP BRKT WHEEL BASE 5000MM(50W) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606		●
126	BOLT; CLIP BRKT WHEEL BASE 5000MM(50W) M8X30 FLANGE	0-28680-830-0	02	1	9607-0308		●
127	NUT; CLIP BRKT M8	9-09110-408-0	05	1	9601-9606	●	●
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	05	1	9607-9803	●	●
127	NUT; CLIP BRKT 6HH1 STD ENG(65L) M8	9-09110-408-0	01	1	9601-9606	●	●
127	NUT; CLIP BRKT 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	01	1	9607-9803	●	●
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	9804-9807	●	●
127	NUT; CLIP BRKT WHEEL BASE 5000MM(50W) M8 FLANGE	0-91150-108-0	02	1	9804-9807		●
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	03	1	9808-0308	●	●
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	03	1	0309-0602		●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	03	1	0603-		●
127	NUT; CLIP BRKT WHEEL BASE 5000MM(50W) M8	9-09110-408-0	02	1	9601-9606		●
127	NUT; CLIP BRKT WHEEL BASE 5000MM(50W) M8 FLANGE	0-91150-108-0	02	1	9607-9803		●
127	NUT; CLIP BRKT WHEEL BASE 5000MM(50W) M8 FLANGE	0-91150-108-0	02	1	9808-0308		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) (A) L=250	1-09707-126-0	09	1	9601-9602	●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	09	1	9601-9602		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) (A) L=250	1-09707-126-0	13	1	9603-0006	●
128	CLIP; NYLON TUBE 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	13	1	9603-0006		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) (A) L=250	1-09707-126-0	13	1	0007-0308	●
128	CLIP; NYLON TUBE 6SD1 STD ENG(37L) (A) L=250	1-09707-126-0	05	1	9601-9602	●
128	CLIP; NYLON TUBE 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) (A) L=250	1-09707-126-0	05	1	9601-9602		●
128	CLIP; NYLON TUBE 6SD1 STD ENG(37L) (A) L=250	1-09707-126-0	11	1	9603-0006	●
128	CLIP; NYLON TUBE 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) (A) L=250	1-09707-126-0	11	1	9603-0006		●
128	CLIP; NYLON TUBE 6SD1 STD ENG(37L) (A) L=250	1-09707-126-0	12	1	0007-0308	●
128	CLIP; NYLON TUBE 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) (A) L=250	1-09707-126-0	12	1	0007-0308		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	17	1	0309-1302		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	19	1	1303-		●
128	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	02	1	9601-9602	●	●
128	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	02	1	9601-9602		●
128	CLIP; NYLON TUBE 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	16	1	9603-0006		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W) (A) L=250	1-09707-126-0	14	1	0007-0308		●
128	CLIP; NYLON TUBE 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	14	1	0007-0308		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) (B) ID=21 L=30 H=40	1-09700-991-1	01	1	9601-9903	●	●
128	CLIP; NYLON TUBE 6SD1 STD ENG(37L) (A) L=250	1-09707-126-0	01	1	0202-0308	●	●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W) (A) L=250	1-09707-126-0	14	1	0309-1302		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W) (A) L=250	1-09707-126-0	15	1	1303-		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W) (A) L=250	1-09707-126-0	10	1	9601-9602		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W) (A) L=250	1-09707-126-0	14	1	9603-0006		●
128	CLIP; NYLON TUBE 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	17	1	0007-0308		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	17	1	0007-0308		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	11	1	9601-9602		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	15	1	9603-0308		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	12	1	9601-9602		●
128	CLIP; NYLON TUBE 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	06	1	9601-9602		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	17	1	9603-0006		●
128	CLIP; NYLON TUBE 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	07	1	9601-9602		●
133	BOLT; BRKT 6SD1 STD ENG(37L) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●	●
133	BOLT; BRKT 6SD1 STD ENG(37L) M8X30 FLANGE	0-28680-830-0	02	1	9607-0308	●	●
265	CLIP; NYLON TUBE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9601-9808	●	●
265	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	9601-9808	●	●
266	CLIP; NYLON TUBE L=250	1-09707-126-0	01	1	9804-0006	●	●
266	CLIP; NYLON TUBE L=250	1-09707-126-0	02	1	0007-0308	●	●
266	CLIP; NYLON TUBE L=250	1-09707-126-0	02	1	0309-		●
267	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	01	1	9601-9606	●	●
267	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	9607-9808	●	●
268	NUT; CLIP BRKT M8	9-09110-408-0	01	1	9601-9606	●	●
268	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	9607-9808	●	●
286	CLIP; NYLON TUBE 6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	06	1	9603-9610	●	●
286	CLIP; NYLON TUBE 6HH1 STD ENG(65L) (A) L=250	1-09707-126-0	09	1	9611-0006	●	●
286	CLIP; NYLON TUBE 6HH1 STD ENG(65L) (A) L=250	1-09707-126-0	11	1	0007-0008	●	●
286	CLIP; NYLON TUBE 6SD1 STD ENG(37L) (A) L=250	1-09707-126-0	07	1	9603-9610	●	●
286	CLIP; NYLON TUBE 6SD1 STD ENG(37L) (A) L=250	1-09707-126-0	10	1	9611-0008	●	●
286	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	11	1	0009-0308	●	●
286	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	11	1	0309-		●
286	CLIP; NYLON TUBE 6SD1 STD ENG(37L) (B) ID=15 L=28	1-09701-216-0	01	1	0105-0208	●	●
286	CLIP; NYLON TUBE 6SD1 STD ENG(37L) (B) ID=18 L=28	1-09701-067-0	01	1	0209-0308	●	●
288	BOLT; CLIP,AIR PIPE 6HH1 STD ENG(65L) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
288	BOLT; CLIP,AIR PIPE 6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	02	1	9607-9712	●	●
288	BOLT; CLIP,AIR PIPE 6HH1 STD ENG(65L) M8X20 FLANGE	0-28680-820-0	02	1	9801-0308	●	●
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28680-820-0	02	1	0309-0512		●
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
290	NUT; CLIP,AIR PIPE 6HH1 STD ENG(65L) M8	9-09110-408-0	02	1	9601-9606	●	●
290	NUT; CLIP,AIR PIPE 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	9607-0308	●	●
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	0309-0602		●
290	NUT; CLIP,AIR PIPE 6HH1 STD ENG(65L) M8 FLANGE	0-91180-108-0	02	1	0603-		●
292	CLIP; AIR PIPE 6HH1 STD ENG(65L) AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	03	1	0110-0308	●	●
292	CLIP; AIR PIPE 6HH1 STD ENG(65L) AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	03	1	0309-		●
295	NUT; CLIP,AIR PIPE 6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0404-0602		●
295	NUT; CLIP,AIR PIPE 6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	0603-		●
295	NUT; CLIP,AIR PIPE 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) M8	9-09110-408-0	01	1	9601-9601		●
309	NUT; BRKT FIX 6SD1 STD ENG(37L) M8	9-09110-408-0	02	1	9601-9606	●	●
309	NUT; BRKT FIX 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	02	1	9607-0308	●	●
318	CLIP; AIR PIPE 6HH1 STD ENG(65L) ID=6.35 & 15	1-09709-276-1	01	1	9601-0308	●	●
318	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	01	1	0309-		●
318	CLIP; AIR PIPE 6SD1 STD ENG(37L) AIR DRYER<PS7> ID=6.35 & 6.35	1-09709-273-1	01	1	0110-0308	●	●
331	CLIP; NYLON TUBE 6SD1 STD ENG(37L) L=250	1-09707-126-0	02	1	9601-9602	●	●
331	CLIP; NYLON TUBE 6SD1 STD ENG(37L) L=250	1-09707-126-0	05	1	9603-9603	●	●
331	CLIP; NYLON TUBE 6SD1 STD ENG(37L) L=250	1-09707-126-0	06	1	9603-0308	●	●
332	CLIP; BAND L=250	1-09707-126-0	02	1	9604-0308	●	●
332	CLIP; BAND L=250	1-09707-126-0	02	1	0309-		●
333	BRACKET; BRK AIR PIPE (A)	1-47475-427-1	01	1	9601-0109	●	●
333	BRACKET; BRK AIR PIPE EXC. AIR DRYER<PS7> (A)	1-47475-427-1	01	1	0110-0308	●	●
333	BRACKET; BRK AIR PIPE EXC. AIR DRYER<PS7> (A)	1-47475-427-1	01	1	0309-		●
333	BRACKET; BRK AIR PIPE (B)	1-79738-804-4	01	1	9601-0308	●	●
333	BRACKET; BRK AIR PIPE (B)	1-79738-804-4	01	1	0309-		●
361	CLIP; FLEX HOSE,AIR PRESS GAGE L=140	5-09707-031-1	01	1	9601-0308	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE L=140	5-09707-031-1	01	1	0309-		●
371	BOLT; CLIP,AIR PIPE M8X50 FLANGE	0-28080-850-0	01	1	9601-0109	●	●
371	BOLT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8X50 FLANGE	0-28080-850-0	01	1	0110-0308	●	●
371	BOLT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8X50 FLANGE	0-28080-850-0	01	1	0309-0512		●
371	BOLT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8X50 FLANGE	0-28050-850-0	01	1	0601-		●
375	CLIP; AIR PIPE (A) ID=14 H=50 L=20	1-09700-843-0	01	1	9601-9803	●	●
375	CLIP; AIR PIPE (A) ID=9 H=60	1-09700-956-0	01	1	9804-0308	●	●
375	CLIP; AIR PIPE PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> (A) ID=9 H=60	1-09700-956-0	01	1	9804-0308	●	●
375	CLIP; AIR PIPE 6HH1 STD ENG(65L) (A) ID=9 H=60	1-09700-956-0	01	1	0309-		●
375	CLIP; AIR PIPE 6HH1 STD ENG(65L) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,ASSISTOR SHIFT CONTROL<WX8> (A) ID=9 H=60	1-09700-956-0	01	1	0309-		●
375	CLIP; AIR PIPE 6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	01	1	9601-0008	●	●
375	CLIP; AIR PIPE 6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	01	1	0009-0308	●	●
375	CLIP; AIR PIPE 6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	01	1	0009-0308	●	●
375	CLIP; AIR PIPE 6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	01	1	0309-		●
375	CLIP; AIR PIPE 6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	01	1	0309-		●

16 16 16 128 29 16 322 379 376 297 22 29 27 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	BRACKET; PIPE CLIP (C) L=55	1-47476-177-0	01	1	9601-0308	●	●
16	BRACKET; PIPE CLIP (C) L=55	1-47476-177-0	01	1	0309-0502		●
16	BRACKET; PIPE CLIP (C) L=55 B=25	1-47478-439-0	01	1	0503-		●
16	BRACKET; PIPE CLIP (A)	1-47476-699-2	01	1	9601-0308	●	●
16	BRACKET; PIPE CLIP (A)	1-47476-699-2	01	1	0309-		●
16	BRACKET; PIPE CLIP (B) L=100 H=30	1-47477-645-2	02	1	9601-9803	●	●
16	BRACKET; PIPE CLIP 6HH1 STD ENG(65L) (B) L=100 H=30	1-47477-645-2	01	1	9601-9803	●	●
16	BRACKET; PIPE CLIP WHEEL BASE 5000MM(50W) (D) L=150 H=30	1-47477-629-2	02	1	9601-0308		●
22	BRACKET; CLIP 6SD1 STD ENG(37L)	1-47477-571-3	01	1	0202-0308	●	●
27	CLIP; FLEX HOSE 6SD1 STD ENG(37L) ID=25 H=30 L=35	1-09700-875-0	02	1	9601-9605	●	●
27	CLIP; FLEX HOSE MAL6S M/T(Y1V) ID=25 H=30 L=35	1-09700-875-0	02	1	9601-9605	●	●
27	CLIP; FLEX HOSE MAL6S M/T(Y1V) ID=25 H=30 L=35	1-09700-875-0	03	1	9606-0004	●	●
27	CLIP; FLEX HOSE MAL6S M/T(Y1V) ID=25 H=30 L=35	1-09700-875-0	03	1	0005-0308	●	●
27	CLIP; FLEX HOSE 6SD1 STD ENG(37L) ID=25 H=30 L=35	1-09700-875-0	01	1	9606-0308	●	●
29	BRACKET; CLIP,AIR PIPE 6SD1 STD ENG(37L) (B) L=105 B=25	1-47476-161-0	01	1	9601-0308	●	●
29	BRACKET; CLIP,AIR PIPE 6SD1 STD ENG(37L) (A)	1-47477-190-2	02	1	9601-9605	●	●
29	BRACKET; CLIP,AIR PIPE MAL6S M/T(Y1V) (A)	1-82699-639-1	03	1	9606-0004	●	●
29	BRACKET; CLIP,AIR PIPE MAL6S M/T(Y1V) (A)	1-82699-639-1	03	1	0005-0308	●	●
107	CLIP; NYLON TUBE 6SD1 STD ENG(37L) (B) L=250	1-09707-126-0	14	1	9601-9602	●
107	CLIP; NYLON TUBE 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) (B) L=250	1-09707-126-0	14	1	9601-9602		●
107	CLIP; NYLON TUBE 6SD1 STD ENG(37L) (B) L=250	1-09707-126-0	13	1	9603-0308	●
107	CLIP; NYLON TUBE 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) (B) L=250	1-09707-126-0	13	1	9603-0308		●
107	CLIP; NYLON TUBE (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9601-0004	●	●
107	CLIP; NYLON TUBE (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0005-0308	●	●
107	CLIP; NYLON TUBE (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0309-		●
107	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9601-0004	●	●
107	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	0005-0308	●	●
107	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	0309-		●
107	CLIP; NYLON TUBE 6HH1 STD ENG(65L) (A) ID=35 H=45 L=33	1-09700-947-0	02	1	9601-9905	●	●
107	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09700-947-0	02	1	9906-0308	●	●
107	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09700-947-0	02	1	0309-		●
107	CLIP; NYLON TUBE 6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	08	1	9601-0006	●	●
107	CLIP; NYLON TUBE 6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	09	1	0007-0105	●	●
107	CLIP; NYLON TUBE 6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	10	1	0106-0308	●	●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	10	1	0309-		●
107	CLIP; NYLON TUBE 6SD1 STD ENG(37L) (B) L=250	1-09707-126-0	01	1	0202-0308	●	●
107	CLIP; NYLON TUBE 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) (B) L=250	1-09707-126-0	15	1	9601-9602		●
107	CLIP; NYLON TUBE 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (B) L=250	1-09707-126-0	14	1	9603-0308		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) (A) L=250	1-09707-126-0	09	1	9601-9602	●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	09	1	9601-9602		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) (A) L=250	1-09707-126-0	13	1	9603-0006	●
128	CLIP; NYLON TUBE 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	13	1	9603-0006		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) (A) L=250	1-09707-126-0	13	1	0007-0308	●
128	CLIP; NYLON TUBE 6SD1 STD ENG(37L) (A) L=250	1-09707-126-0	05	1	9601-9602	●
128	CLIP; NYLON TUBE 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) (A) L=250	1-09707-126-0	05	1	9601-9602		●
128	CLIP; NYLON TUBE 6SD1 STD ENG(37L) (A) L=250	1-09707-126-0	11	1	9603-0006	●
128	CLIP; NYLON TUBE 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) (A) L=250	1-09707-126-0	11	1	9603-0006		●
128	CLIP; NYLON TUBE 6SD1 STD ENG(37L) (A) L=250	1-09707-126-0	12	1	0007-0308	●
128	CLIP; NYLON TUBE 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) (A) L=250	1-09707-126-0	12	1	0007-0308		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	17	1	0309-1302		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	19	1	1303-		●
128	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	02	1	9601-9602	●	●
128	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	02	1	9601-9602		●
128	CLIP; NYLON TUBE 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	16	1	9603-0006		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W) (A) L=250	1-09707-126-0	14	1	0007-0308		●
128	CLIP; NYLON TUBE 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	14	1	0007-0308		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) (B) ID=21 L=30 H=40	1-09700-991-1	01	1	9601-9903	●	●
128	CLIP; NYLON TUBE 6SD1 STD ENG(37L) (A) L=250	1-09707-126-0	01	1	0202-0308	●	●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W) (A) L=250	1-09707-126-0	14	1	0309-1302		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W) (A) L=250	1-09707-126-0	15	1	1303-		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W) (A) L=250	1-09707-126-0	10	1	9601-9602		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W) (A) L=250	1-09707-126-0	14	1	9603-0006		●
128	CLIP; NYLON TUBE 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	17	1	0007-0308		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	17	1	0007-0308		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	11	1	9601-9602		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	15	1	9603-0308		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	12	1	9601-9602		●
128	CLIP; NYLON TUBE 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	06	1	9601-9602		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	17	1	9603-0006		●
128	CLIP; NYLON TUBE 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	07	1	9601-9602		●
297	NUT; BRKT 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	01	1	0009-0308	●	●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0309-0602		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-		●
322	BRACKET; CLIP 6HH1 STD ENG(65L) L=90	1-47477-755-1	01	1	0009-0308	●	●
322	BRACKET; CLIP L=90	1-47477-755-1	01	1	0309-		●
322	BRACKET; CLIP 6SD1 STD ENG(37L) L=95	1-82699-085-0	01	1	0105-0308	●	●
376	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-0308	●	●
376	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0309-		●
376	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9601-0308	●	●
376	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0309-		●
376	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9601-0308	●	●
376	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0309-0904		●
376	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-		●
376	BOLT; BRKT 6HH1 STD ENG(65L) (C) M8X25 FLANGE	0-28680-825-0	01	1	0009-0308	●	●
376	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	01	1	0309-0512		●
376	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
376	BOLT; BRKT 6SD1 STD ENG(37L) (C) M8X30 FLANGE	0-28680-830-0	01	1	0105-0308	●	●
379	BRACKET; NYLON TUBE 6SD1 STD ENG(37L)	1-47477-514-3	02	1	9601-0308	●	●

392 376 389 388 376 389 388 34 229 333 62 62 376 124 34 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	NUT; BRKT M8 FLANGE	8-94279-517-0	01	1	9601-9611	●	●
34	NUT; BRKT M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9612-0308	●	●
34	NUT; BRKT M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0309-0605		●
34	NUT; BRKT M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0606-		●
34	NUT; BRKT M8 FLANGE	8-94279-517-0	03	1	9601-9611	●	●
34	NUT; BRKT M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-0308	●	●
34	NUT; BRKT M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0309-0605		●
34	NUT; BRKT 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	01	1	0105-0308	●	●
62	CLIP; AIR PIPE ID=13X2 L=20	9-09535-236-0	02	1	9601-0308	●	●
62	CLIP; AIR PIPE ID=13X2 L=20	9-09535-236-0	02	1	0309-0606		●
62	CLIP; AIR PIPE ID=13X2 L=20	0-95325-236-0	02	1	0607-		●
124	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9601-0308	●	●
124	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0309-0904		●
124	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-		●
229	BRACKET; PIPE CLIP	1-79738-819-0	01	1	9601-0004	●	●
229	BRACKET; PIPE CLIP	1-79738-858-0	01	1	0005-0308	●	●
229	BRACKET; PIPE CLIP	1-79738-858-0	01	1	0309-		●
333	BRACKET; BRK AIR PIPE (A)	1-47475-427-1	01	1	9601-0109	●	●
333	BRACKET; BRK AIR PIPE EXC. AIR DRYER<PS7> (A)	1-47475-427-1	01	1	0110-0308	●	●
333	BRACKET; BRK AIR PIPE EXC. AIR DRYER<PS7> (A)	1-47475-427-1	01	1	0309-		●
333	BRACKET; BRK AIR PIPE (B)	1-79738-804-4	01	1	9601-0308	●	●
333	BRACKET; BRK AIR PIPE (B)	1-79738-804-4	01	1	0309-		●
376	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-0308	●	●
376	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0309-		●
376	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9601-0308	●	●
376	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0309-		●
376	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9601-0308	●	●
376	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0309-0904		●
376	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-		●
376	BOLT; BRKT 6HH1 STD ENG(65L) (C) M8X25 FLANGE	0-28680-825-0	01	1	0009-0308	●	●
376	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	01	1	0309-0512		●
376	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
376	BOLT; BRKT 6SD1 STD ENG(37L) (C) M8X30 FLANGE	0-28680-830-0	01	1	0105-0308	●	●
388	SEAL (A) L=280	1-79738-793-1	01	1	9601-0308	●	●
388	SEAL (A) L=280	1-79738-793-1	01	1	0309-		●
388	SEAL (B) L=215	1-79738-794-1	01	1	9601-0308	●	●
388	SEAL (B) L=215	1-79738-794-1	01	1	0309-		●
389	BRACKET; UNION (A)	1-79738-790-1	01	1	9601-0308	●	●
389	BRACKET; UNION (A)	1-79738-790-1	01	1	0309-		●
389	BRACKET; UNION (B)	1-79738-806-1	01	1	9601-9803	●	●
389	BRACKET; UNION (B)	1-79738-839-0	01	1	9804-0308	●	●
389	BRACKET; UNION (B)	1-79738-839-0	01	1	0309-		●
392	COVER; BRKT	1-73996-264-1	01	1	9601-0308	●	●
392	COVER; BRKT	1-73996-264-1	01	1	0309-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
