Sayfa 3-75 - Isuzu EPC

3-75 — BRAKE PIPING; AIR,FRONT (#22844) — 212 parça

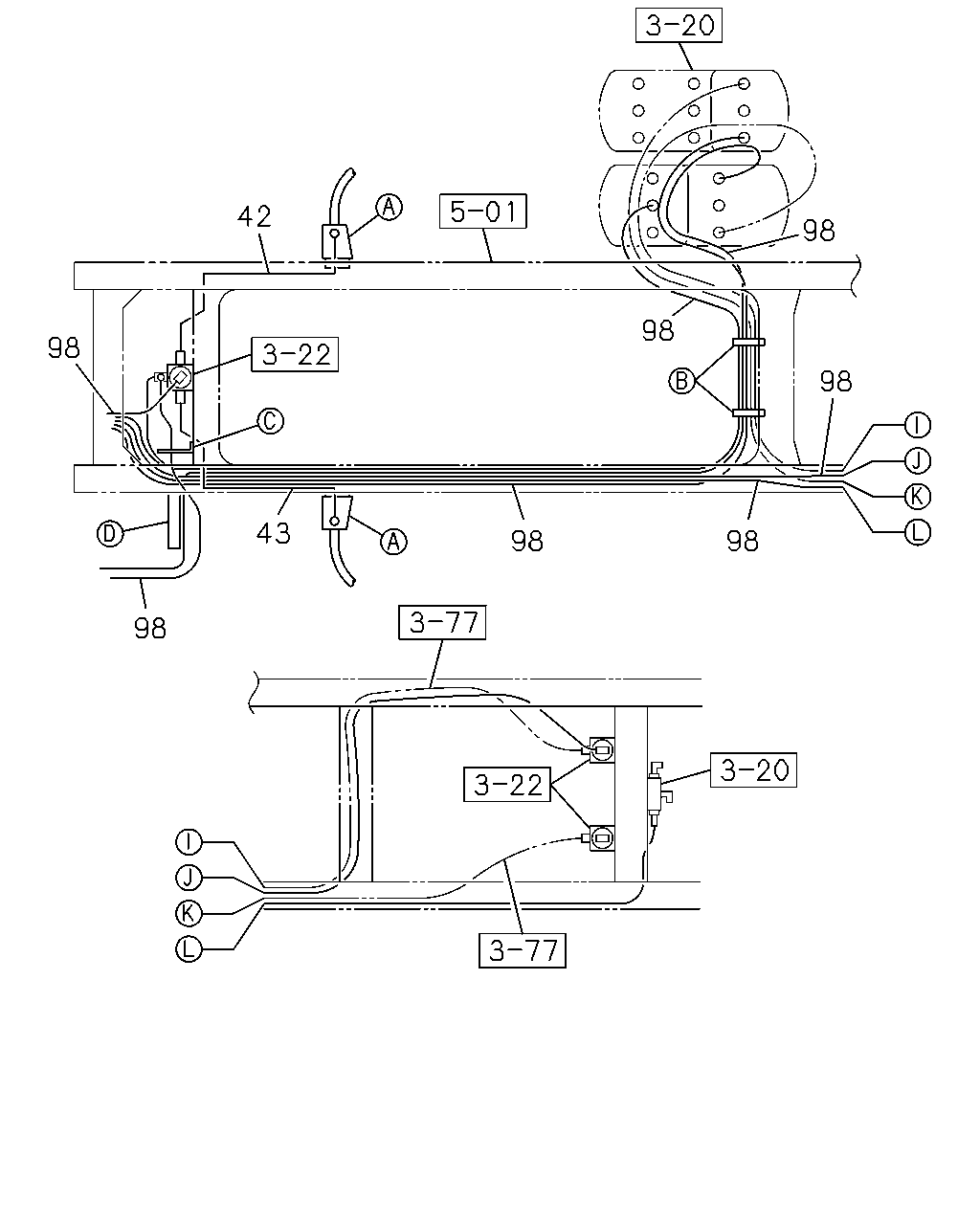

42 98 98 98 98 43 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HH1 STD ENG(65L) L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	9601-0308	●	●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	0309-		●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HH1 STD ENG(65L) L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	9601-0308	●	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	0309-		●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=12	1-87411-015-0	AR	1	9601-	●	●

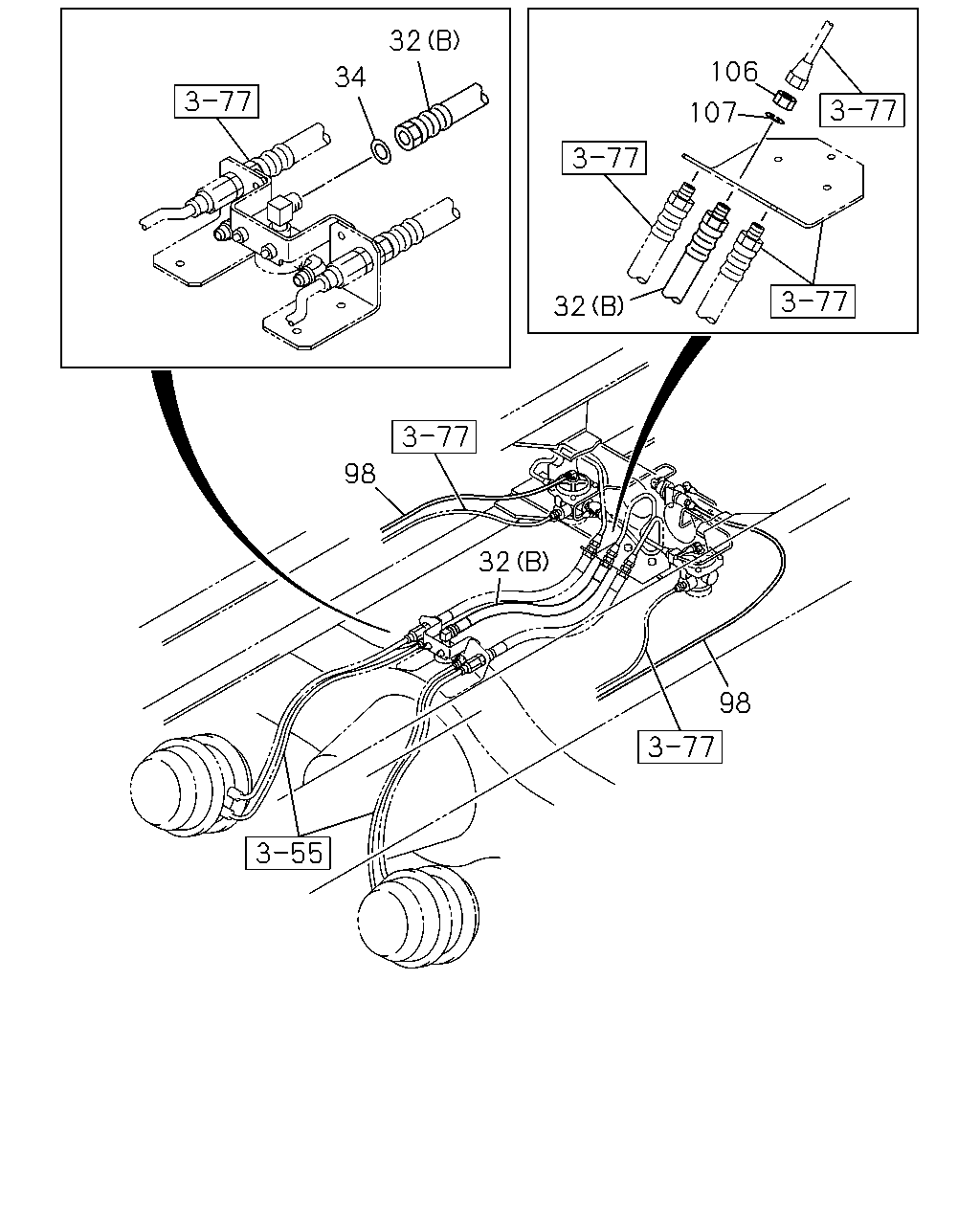

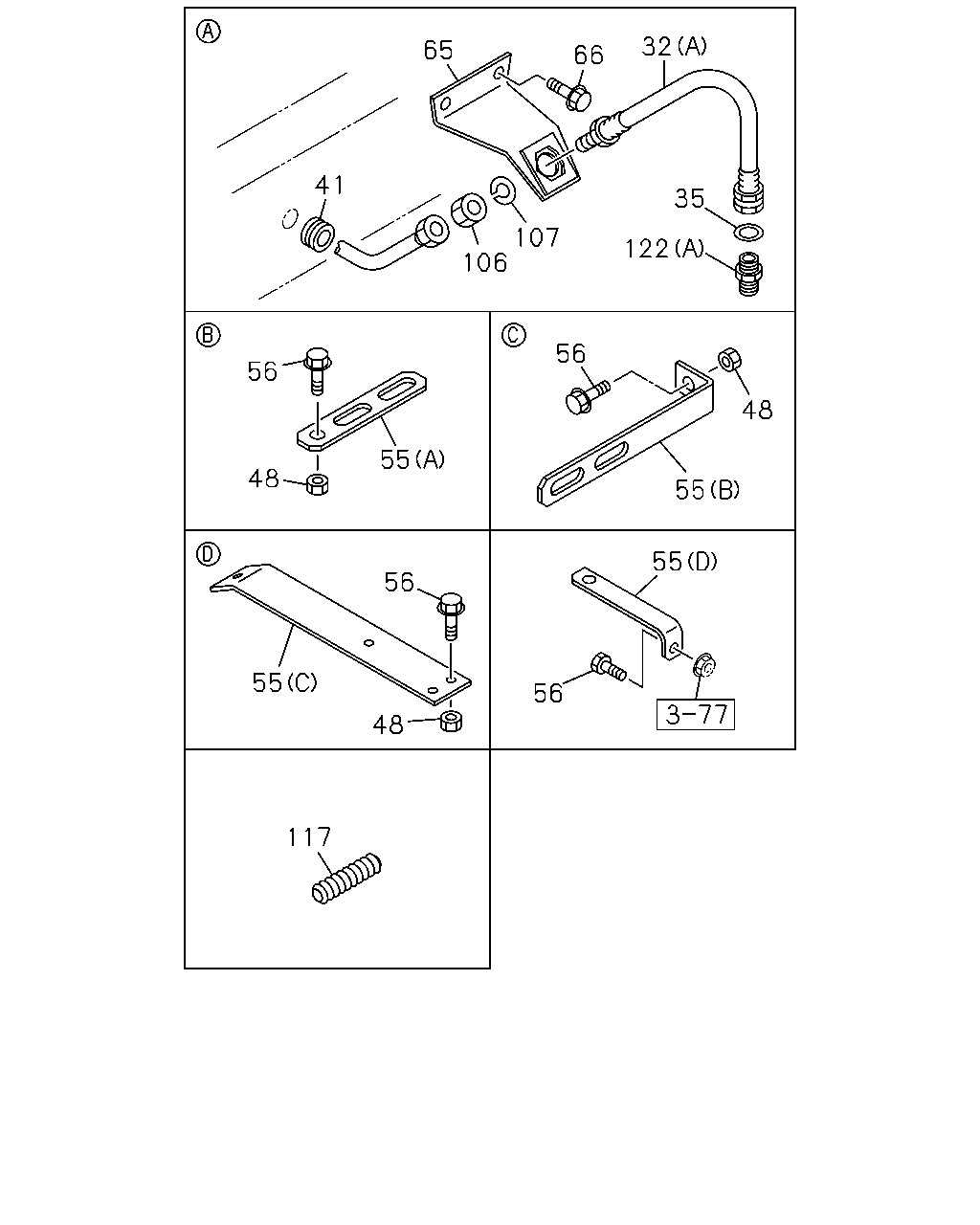

32 65 66 41 35 107 106 122 56 56 48 55 48 55 55 56 55 56 48 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	HOSE; FLEX,FRT (A) L=630	0-07475-630-1	02	1	9601-0308	●	●
32	HOSE; FLEX,FRT (A) L=630	0-07475-630-1	02	1	0309-0605		●
32	HOSE; FLEX,FRT (A) L=630	0-57475-630-1	02	1	0606-		●
32	HOSE; FLEX,FRT (B) L=610	0-07807-610-1	01	1	9601-0308	●	●
32	HOSE; FLEX,FRT (B) L=610	0-07807-610-1	01	1	0309-0605		●
32	HOSE; FLEX,FRT (B) L=610	0-57807-610-1	01	1	0606-		●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9601-0308	●	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	0309-		●
41	GROMMET; AIR PIPE ID=28 OD=35 T=25	1-09332-011-1	02	1	9601-0308	●	●
41	GROMMET; AIR PIPE ID=28 OD=35 T=25	1-09332-011-1	02	1	0309-		●
48	NUT; UNION BRKT M8	9-09110-408-0	04	1	9601-9606	●	●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	04	1	9607-9704	●	●
48	NUT; UNION BRKT 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	04	1	9705-9905	●	●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	02	1	9906-0004	●	●
48	NUT; UNION BRKT 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	03	1	0005-0105	●	●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	03	1	0106-0106	●	●
48	NUT; UNION BRKT 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	04	1	0106-0112	●	●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	03	1	0201-0201	●	●
48	NUT; UNION BRKT 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	04	1	0202-0308	●	●
48	NUT; UNION BRKT 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	9705-9905	●	●
48	NUT; UNION BRKT 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	0005-0105	●	●
48	NUT; UNION BRKT 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	03	1	0106-0112	●	●
48	NUT; UNION BRKT 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	03	1	0202-0308	●	●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	03	1	0309-0602		●
48	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	03	1	0603-		●
55	BRACKET; TUBE UNION (C)	1-47477-650-0	01	1	9601-0004	●	●
55	BRACKET; TUBE UNION (C)	1-47477-650-0	01	1	0005-0308	●	●
55	BRACKET; TUBE UNION (C)	1-47477-650-0	01	1	0309-		●
55	BRACKET; TUBE UNION 6HH1 STD ENG(65L) (A)	1-47477-514-2	03	1	9601-9704	●	●
55	BRACKET; TUBE UNION 6HH1 STD ENG(65L) (A)	1-47477-514-3	02	1	9705-0308	●	●
55	BRACKET; TUBE UNION (A)	1-47477-514-3	02	1	0309-		●
55	BRACKET; TUBE UNION 6HH1 STD ENG(65L) (B) L=150 H=30	1-47477-629-1	01	1	9601-9704	●	●
55	BRACKET; TUBE UNION 6SD1 STD ENG(37L) (A)	1-47477-514-3	01	1	9601-0004	●	●
55	BRACKET; TUBE UNION 6SD1 STD ENG(37L) (A)	1-47477-514-3	01	1	0005-0308	●	●
55	BRACKET; TUBE UNION 6SD1 STD ENG(37L) (B) L=225	1-47477-646-3	01	1	9601-0105	●	●
55	BRACKET; TUBE UNION (B) L=225	1-47477-646-3	01	1	0106-0308	●	●
55	BRACKET; TUBE UNION (B) L=225	1-47477-646-3	01	1	0309-		●
55	BRACKET; TUBE UNION 6SD1 STD ENG(37L) (D) L=60 H=30	1-47477-716-1	01	1	0202-0308	●	●
56	BOLT; UNION BRKT M8X20 FLANGE	0-28080-820-0	04	1	9601-9606	●	●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	04	1	9607-9704	●	●
56	BOLT; UNION BRKT 6SD1 STD ENG(37L) M8X25 FLANGE	0-28680-825-0	04	1	9705-9905	●	●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	02	1	9906-0105	●	●
56	BOLT; UNION BRKT 6SD1 STD ENG(37L) M8X25 FLANGE	0-28680-825-0	02	1	0106-0308	●	●
56	BOLT; UNION BRKT M10X16 FLANGE	0-28181-016-0	02	1	9601-0004	●	●
56	BOLT; UNION BRKT M10X16 FLANGE	0-28181-016-0	02	1	0005-0308	●	●
56	BOLT; UNION BRKT M10X16 FLANGE	0-28181-016-0	02	1	0309-0512		●
56	BOLT; UNION BRKT M10X16 FLANGE	0-28151-016-0	02	1	0601-		●
56	BOLT; UNION BRKT 6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	02	1	9705-9905	●	●
56	BOLT; UNION BRKT 6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	03	1	0106-0308	●	●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	03	1	0309-0512		●
56	BOLT; UNION BRKT 6HH1 STD ENG(65L) M8X25 FLANGE	0-28650-825-0	03	1	0601-		●
56	BOLT; UNION BRKT 6SD1 STD ENG(37L) M8X30 FLANGE	0-28680-830-0	01	1	0202-0308	●	●
65	BRACKET; FLEX HOSE	1-47476-210-0	01	1	9601-0308	●	●
65	BRACKET; FLEX HOSE	1-47476-210-0	01	1	0309-		●
65	BRACKET; FLEX HOSE	1-47476-211-0	01	1	9601-0308	●	●
65	BRACKET; FLEX HOSE	1-47476-211-0	01	1	0309-		●
66	BOLT; HOSE BRKT M8X25 FLANGE	0-28080-825-0	04	1	9601-9602	●	●
66	BOLT; HOSE BRKT M8X16 FLANGE	0-28080-816-0	04	1	9603-9603	●	●
66	BOLT; HOSE BRKT M8X12 FLANGE	0-28080-812-0	04	1	9603-0308	●	●
66	BOLT; HOSE BRKT M8X12 FLANGE	0-28080-812-0	04	1	0309-0512		●
66	BOLT; HOSE BRKT M8X12 FLANGE	0-28050-812-0	04	1	0601-		●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9601-9601	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	01	1	9601-9601	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9601-0308	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9601-0308	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0309-0512		●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0309-0512		●
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-		●
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-		●
106	NUT; FLEX HOSE M20	9-99111-420-0	01	1	9601-0308	●	●
106	NUT; FLEX HOSE M20	9-99111-420-0	01	1	0309-0512		●
106	NUT; FLEX HOSE M20	0-91111-520-0	01	1	0601-		●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9601-9601	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	01	1	9601-9601	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9601-0308	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9601-0308	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0309-0603		●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0309-0603		●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-		●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-		●
107	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	01	1	9601-0308	●	●
107	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	01	1	0309-0603		●
107	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	01	1	0604-		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	9601-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	9601-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	9601-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	9601-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	9601-	●	●
122	CONNECTOR; FLEX HOSE (B)	1-09656-700-0	01	1	9601-9811	●	●
122	CONNECTOR; FLEX HOSE (B) M16X2 & PT1/4 3WAY	1-09656-329-1	01	1	9812-0308	●	●
122	CONNECTOR; FLEX HOSE (B) M16X2 & PT1/4 3WAY	1-09656-329-1	01	1	0309-		●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	02	1	9601-0211	●	●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> (A) L=35	1-09660-039-0	02	1	0212-0308	●	●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> (A) L=35	1-09660-039-0	02	1	0309-0411		●

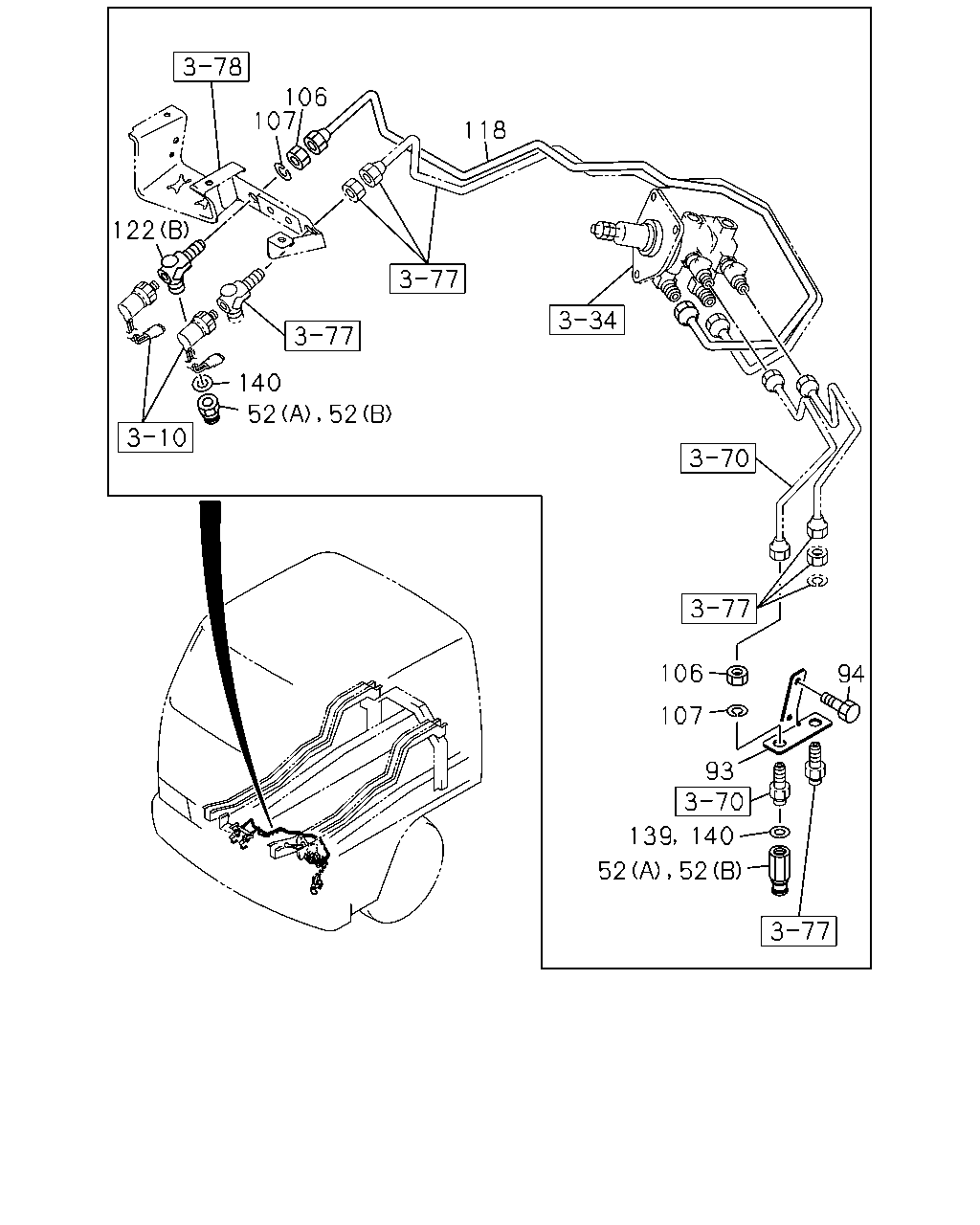

106 107 118 122 140 52 52 106 94 107 93 139 140 52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	CONNECTOR; NYLON TUBE (A)	1-09660-728-1	01	1	9601-9601	●	●
52	CONNECTOR; NYLON TUBE (A)	1-09660-728-1	01	1	9601-9803	●	●
52	CONNECTOR; NYLON TUBE (A)	1-09660-728-1	01	1	9601-9803	●	●
52	CONNECTOR; NYLON TUBE (A)	1-09660-728-1	01	1	9804-9811	●	●
52	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9812-0007	●	●
52	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9804-0007	●	●
52	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-0308	●	●
52	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-0308	●	●
52	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0309-		●
52	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0309-		●
93	BRACKET; UNION,TUBE	1-71996-119-0	01	1	9601-0308	●	●
93	BRACKET; UNION,TUBE	1-71996-119-0	01	1	0309-		●
94	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9601-0308	●	●
94	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0309-0904		●
94	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-		●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9601-9601	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	01	1	9601-9601	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9601-0308	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9601-0308	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0309-0512		●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0309-0512		●
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-		●
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-		●
106	NUT; FLEX HOSE M20	9-99111-420-0	01	1	9601-0308	●	●
106	NUT; FLEX HOSE M20	9-99111-420-0	01	1	0309-0512		●
106	NUT; FLEX HOSE M20	0-91111-520-0	01	1	0601-		●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9601-9601	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	01	1	9601-9601	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9601-0308	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9601-0308	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0309-0603		●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0309-0603		●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-		●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-		●
107	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	01	1	9601-0308	●	●
107	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	01	1	0309-0603		●
107	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	01	1	0604-		●
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=1303	1-49116-437-0	01	1	9601-0004	●	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=989	1-49121-666-0	01	1	0005-0308	●	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=989	1-49121-666-0	01	1	0309-		●
122	CONNECTOR; FLEX HOSE (B)	1-09656-700-0	01	1	9601-9811	●	●
122	CONNECTOR; FLEX HOSE (B) M16X2 & PT1/4 3WAY	1-09656-329-1	01	1	9812-0308	●	●
122	CONNECTOR; FLEX HOSE (B) M16X2 & PT1/4 3WAY	1-09656-329-1	01	1	0309-		●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	02	1	9601-0211	●	●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> (A) L=35	1-09660-039-0	02	1	0212-0308	●	●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> (A) L=35	1-09660-039-0	02	1	0309-0411		●
139	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	9601-9601	●	●
140	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	01	1	9601-9601	●	●
140	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	01	1	9601-9803	●	●
140	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	01	1	9601-9803	●	●
140	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	01	1	9804-9811	●	●

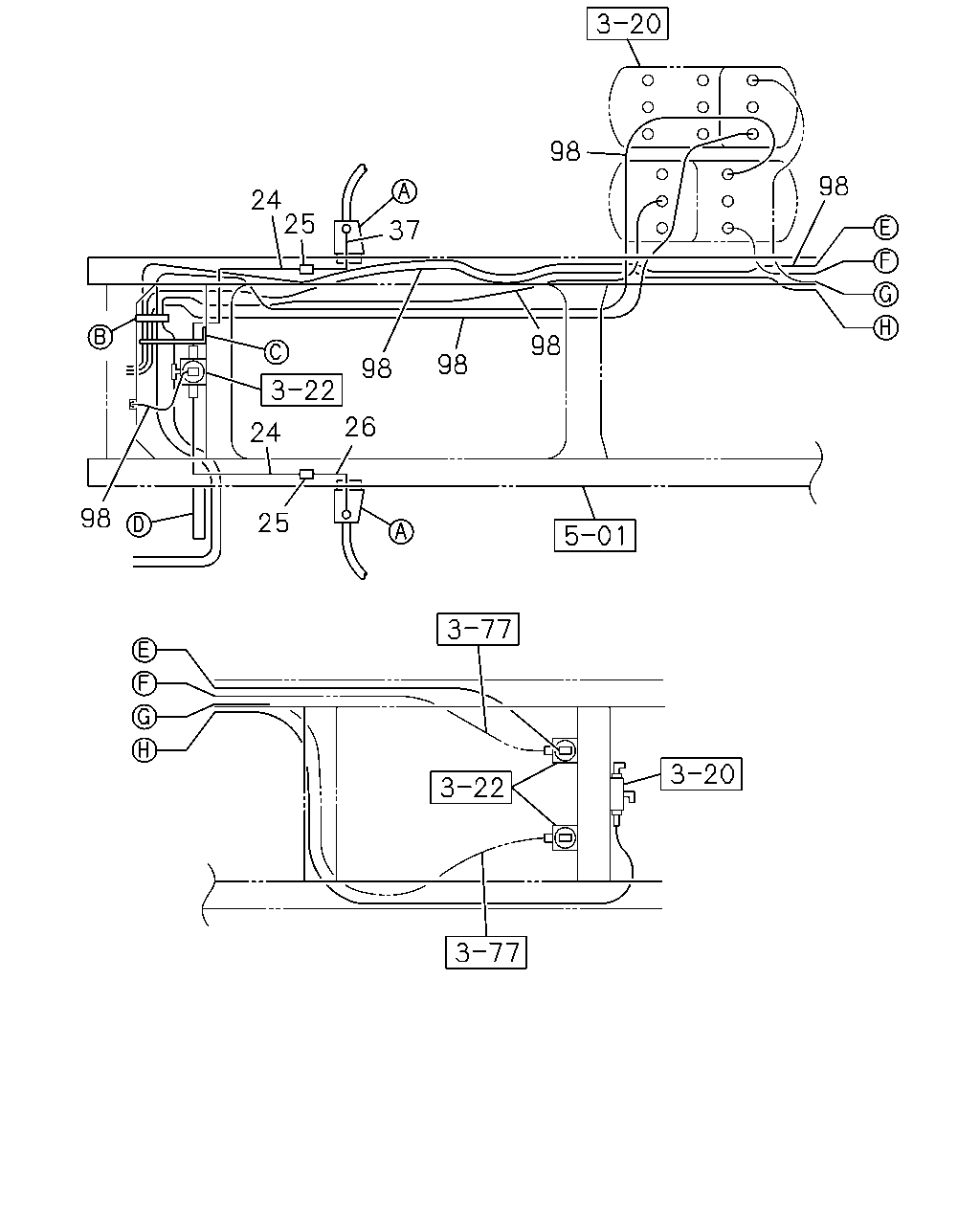

98 98 24 25 37 98 98 98 26 24 98 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 STD ENG(37L)	1-49113-324-0	01	1	9601-0301	●	●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 STD ENG(37L)	1-49124-019-0	01	1	0302-0308	●	●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 STD ENG(37L)	1-49113-326-0	01	1	9601-0308	●	●
25	UNION; AIR PIPE 6SD1 STD ENG(37L) M16 L=42	9-09233-010-1	02	1	9601-0308	●	●
26	PIPE; AIR,UNION TO FLEX HOSE 6SD1 STD ENG(37L) L=332	1-49113-325-0	01	1	9601-0308	●	●
37	PIPE; AIR,UNION TO FLEX HOSE 6SD1 STD ENG(37L) L=332	1-49113-327-0	01	1	9601-0308	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=12	1-87411-015-0	AR	1	9601-	●	●

32 106 34 107 32 98 32 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	HOSE; FLEX,FRT (A) L=630	0-07475-630-1	02	1	9601-0308	●	●
32	HOSE; FLEX,FRT (A) L=630	0-07475-630-1	02	1	0309-0605		●
32	HOSE; FLEX,FRT (A) L=630	0-57475-630-1	02	1	0606-		●
32	HOSE; FLEX,FRT (B) L=610	0-07807-610-1	01	1	9601-0308	●	●
32	HOSE; FLEX,FRT (B) L=610	0-07807-610-1	01	1	0309-0605		●
32	HOSE; FLEX,FRT (B) L=610	0-57807-610-1	01	1	0606-		●
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	9601-0308	●	●
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	0309-		●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=12	1-87411-015-0	AR	1	9601-	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9601-9601	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	01	1	9601-9601	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9601-0308	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9601-0308	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0309-0512		●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0309-0512		●
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-		●
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-		●
106	NUT; FLEX HOSE M20	9-99111-420-0	01	1	9601-0308	●	●
106	NUT; FLEX HOSE M20	9-99111-420-0	01	1	0309-0512		●
106	NUT; FLEX HOSE M20	0-91111-520-0	01	1	0601-		●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9601-9601	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	01	1	9601-9601	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9601-0308	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9601-0308	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0309-0603		●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0309-0603		●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-		●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-		●
107	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	01	1	9601-0308	●	●
107	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	01	1	0309-0603		●
107	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	01	1	0604-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
