Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#22843) — 438 parça

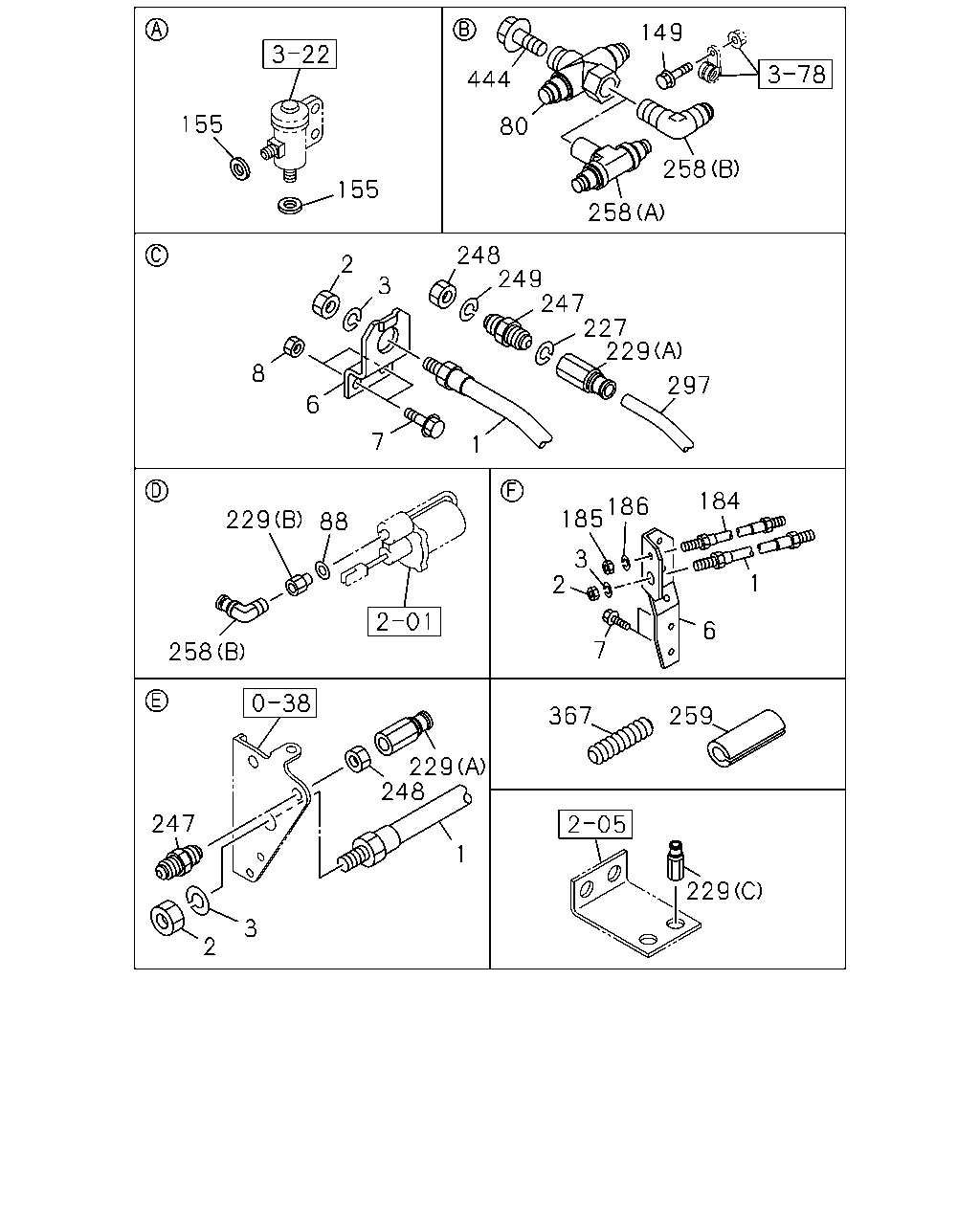

149 444 155 80 258 155 258 248 249 247 227 229 2 3 8 297 6 7 1 184 186 185 229 88 3 2 1 6 7 258 367 259 229 248 247 1 229 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK 6HH1 STD ENG(65L) L=360	1-09363-530-0	01	1	9601-0308	●	●
1	HOSE; FLEX,AIR TANK L=360	1-09363-530-0	01	1	0309-		●
1	HOSE; FLEX,AIR TANK 6SD1 STD ENG(37L) L=1500	0-17716-150-0	01	1	9601-0308	●	●
2	NUT; FLEX HOSE,AIR TANK M22	9-09111-422-0	01	1	9601-9609	●	●
2	NUT; FLEX HOSE,AIR TANK 6HH1 STD ENG(65L) M22	9-09111-422-0	01	1	9610-9701	●	●
2	NUT; FLEX HOSE,AIR TANK M22	9-09111-422-0	01	1	9702-0308	●	●
2	NUT; FLEX HOSE,AIR TANK M22	9-09111-422-0	01	1	0309-0512		●
2	NUT; FLEX HOSE,AIR TANK M22	0-91111-522-0	01	1	0601-		●
2	NUT; FLEX HOSE,AIR TANK 6SD1 STD ENG(37L) M20	9-99111-420-0	01	1	9601-0308	●	●
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	9-09150-522-0	01	1	9601-9609	●	●
3	WASHER; LK,FLEX HOSE,AIR TANK 6HH1 STD ENG(65L) ID=22.5	9-09150-522-0	01	1	9610-9701	●	●
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	9-09150-522-0	01	1	9702-0308	●	●
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	9-09150-522-0	01	1	0309-0603		●
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	0-91510-522-0	01	1	0604-		●
3	WASHER; LK,FLEX HOSE,AIR TANK 6SD1 STD ENG(37L) ID=20.2	9-09150-520-0	01	1	9601-0308	●	●
6	BRACKET; FLEX HOSE,AIR TANK 6HH1 STD ENG(65L)	1-47477-264-2	01	1	9601-0304	●	●
6	BRACKET; FLEX HOSE,AIR TANK 6HH1 STD ENG(65L)	1-47478-864-0	01	1	0305-0308	●	●
6	BRACKET; FLEX HOSE,AIR TANK	1-47478-864-0	01	1	0309-		●
6	BRACKET; FLEX HOSE,AIR TANK 6SD1 STD ENG(37L)	1-47476-693-1	01	1	9601-0308	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6HH1 STD ENG(65L) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	02	1	9607-0308	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	0309-0512		●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6SD1 STD ENG(37L) M8X30 FLANGE	0-28080-830-0	02	1	9601-9606	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6SD1 STD ENG(37L) M8X35 FLANGE	0-28680-835-0	02	1	9607-0308	●	●
8	NUT; BRKT,FLEX HOSE,AIR TANK 6SD1 STD ENG(37L) M8	9-09110-408-0	02	1	9601-9606	●	●
8	NUT; BRKT,FLEX HOSE,AIR TANK 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	02	1	9607-0308	●	●
80	UNION; 3 WAY 6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> DIN8 RC1/4 & M8	1-09660-735-1	01	1	9601-0004	●	●
80	UNION; 3 WAY 6SD1 STD ENG(37L) MAL6S M/T(Y1V) DIN8 RC1/4 & M8	1-09660-735-1	01	1	9601-0004	●	●
80	UNION; 3 WAY 6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> DIN8 RC1/4 & M8	1-09660-735-1	01	1	9601-0004	●	●
80	UNION; 3 WAY 6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0005-0308	●	●
80	UNION; 3 WAY 6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0005-0308	●	●
80	UNION; 3 WAY 6SD1 STD ENG(37L) MAL6S M/T(Y1V) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0005-0308	●	●
80	UNION; 3 WAY 6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0309-		●
80	UNION; 3 WAY 6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0309-		●
88	GASKET; NYLON TUBE 6SD1 STD ENG(37L) ID=14.2 OD=23.0	9-09572-014-0	01	1	9601-0004	●	●
88	GASKET; NYLON TUBE 6SD1 STD ENG(37L) ID=14.2 OD=23.0	9-09572-014-0	01	1	0005-0308	●	●
149	BOLT; TUBE CLIP 6SD1 STD ENG(37L) M8X16 FLANGE	0-28080-816-0	01	1	0105-0308	●	●
155	GASKET; AIR PIPE ID=11 OD=18	9-09572-510-0	02	1	9601-0004	●	●
184	HOSE; FLEX,AIR GOV 6HH1 STD ENG(65L) L=330	1-09363-584-0	01	1	9601-9606	●	●
184	HOSE; FLEX,AIR GOV 6HH1 STD ENG(65L) L=350	1-09363-651-0	01	1	9607-0308	●	●
184	HOSE; FLEX,AIR GOV L=350	1-09363-651-0	01	1	0309-		●
185	NUT; FLEX HOSE,AIR GOV 6HH1 STD ENG(65L) M12	9-09840-280-0	01	1	9601-0308	●	●
185	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	0309-		●
186	WASHER; LK,FLEX HOSE,AIR GOV 6HH1 STD ENG(65L) ID=12.2	9-09150-512-0	01	1	9601-0308	●	●
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	01	1	0309-0603		●
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	0-91510-512-0	01	1	0604-		●
227	WASHER; LK,UNION 6SD1 STD ENG(37L) ID=12.2	9-09150-512-0	01	1	9601-0308	●	●
229	ADAPTER; NYLON TUBE 6SD1 STD ENG(37L) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	02	1	9601-0004	●	●
229	ADAPTER; NYLON TUBE 6SD1 STD ENG(37L) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0005-0005	●	●
229	ADAPTER; NYLON TUBE 6SD1 STD ENG(37L) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	02	1	0006-0308	●	●
229	ADAPTER; NYLON TUBE 6SD1 STD ENG(37L) (B) M14 & PT1/4	9-48319-149-0	01	1	9601-0004	●	●
229	ADAPTER; NYLON TUBE 6SD1 STD ENG(37L) (C) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	0005-0005	●	●
229	ADAPTER; NYLON TUBE 6SD1 STD ENG(37L) (B) M14 & PT1/4	9-48319-149-0	01	1	0005-0308	●	●
247	UNION; AIR PIPE 6SD1 STD ENG(37L) M12 L=66.5	9-09223-306-1	02	1	9601-9803	●	●
247	UNION; AIR PIPE 6SD1 STD ENG(37L) M12 L=66.5	9-09223-306-1	01	1	9804-0004	●	●
247	UNION; AIR PIPE 6SD1 STD ENG(37L) M12 L=66.5	9-09223-306-1	01	1	9804-0004	●	●
247	UNION; AIR PIPE 6SD1 STD ENG(37L) M12 L=66.5	9-09223-306-1	02	1	0005-0308	●	●
248	NUT; PIPE UNION 6SD1 STD ENG(37L) M12	9-09840-280-0	02	1	9601-9803	●	●
248	NUT; PIPE UNION 6SD1 STD ENG(37L) M12	9-09840-280-0	01	1	9804-0004	●	●
248	NUT; PIPE UNION 6SD1 STD ENG(37L) M12	9-09840-280-0	01	1	9804-0004	●	●
248	NUT; PIPE UNION 6SD1 STD ENG(37L) M12	9-09840-280-0	02	1	0005-0308	●	●
249	WASHER; LK,PIPE UNION 6SD1 STD ENG(37L) ID=12.2	9-09150-512-0	01	1	9601-0308	●	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (C) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	9601-0302	●	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0303-0308	●	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0309-		●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9707-9811	●	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-9911	●	●
258	CONNECTOR; NYLON TUBE 6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0308	●	●
258	CONNECTOR; NYLON TUBE 6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0308	●	●
258	CONNECTOR; NYLON TUBE 6SD1 STD ENG(37L) MAL6S M/T(Y1V) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0308	●	●
258	CONNECTOR; NYLON TUBE 6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0309-		●
258	CONNECTOR; NYLON TUBE 6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0309-		●
258	CONNECTOR; NYLON TUBE 6SD1 STD ENG(37L) (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9601-9803	●	●
258	CONNECTOR; NYLON TUBE 6SD1 STD ENG(37L) MAL6S M/T(Y1V) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9601-9803	●	●
258	CONNECTOR; NYLON TUBE 6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9601-9803	●	●
258	CONNECTOR; NYLON TUBE 6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9601-9803	●	●
258	CONNECTOR; NYLON TUBE 6SD1 STD ENG(37L) MAL6S M/T(Y1V) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9804-0004	●	●
258	CONNECTOR; NYLON TUBE 6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9804-0004	●	●
258	CONNECTOR; NYLON TUBE 6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9804-0004	●	●
258	CONNECTOR; NYLON TUBE 6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0005-0308	●	●
258	CONNECTOR; NYLON TUBE 6SD1 STD ENG(37L) MAL6S M/T(Y1V) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0005-0308	●	●
258	CONNECTOR; NYLON TUBE 6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0309-		●
258	CONNECTOR; NYLON TUBE 6SD1 STD ENG(37L) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9804-0004	●	●
258	CONNECTOR; NYLON TUBE 6SD1 STD ENG(37L) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0005-0308	●	●
258	CONNECTOR; NYLON TUBE 6SD1 STD ENG(37L) MAL6S M/T(Y1V) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY	1-09660-659-1	01	1	9601-0004	●	●
258	CONNECTOR; NYLON TUBE 6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY	1-09660-659-1	01	1	9601-0004	●	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0005-0007	●	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-0308	●	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0309-		●
259	SLEEVE; RUBBER,NYLON TUBE 6HH1 STD ENG(65L) ID=29 OD=39 L=40	1-09337-013-0	02	1	9611-0104	●	●
259	SLEEVE; RUBBER,NYLON TUBE 6HH1 STD ENG(65L) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0007-0308	●	●
259	SLEEVE; RUBBER,NYLON TUBE L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0309-		●
259	SLEEVE; RUBBER,NYLON TUBE 6SD1 STD ENG(37L) ID=29 OD=39 L=40	1-09337-013-0	01	1	9601-9602	●	●
259	SLEEVE; RUBBER,NYLON TUBE ID=29 OD=39 L=40	1-09337-013-0	01	1	9603-9610	●	●
259	SLEEVE; RUBBER,NYLON TUBE 6SD1 STD ENG(37L) ID=29 OD=39 L=40	1-09337-013-0	03	1	9611-9803	●	●
259	SLEEVE; RUBBER,NYLON TUBE 6SD1 STD ENG(37L) ID=29 OD=39 L=40	1-09337-013-0	03	1	9804-0004	●	●
259	SLEEVE; RUBBER,NYLON TUBE 6SD1 STD ENG(37L) ID=29 OD=39 L=40	1-09337-013-0	03	1	9804-0004	●	●
259	SLEEVE; RUBBER,NYLON TUBE 6SD1 STD ENG(37L) ID=29 OD=39 L=40	1-09337-013-0	03	1	0005-0104	●	●
259	SLEEVE; RUBBER,NYLON TUBE ID=29 OD=39 L=40	1-09337-013-0	02	1	0105-0308	●	●
259	SLEEVE; RUBBER,NYLON TUBE ID=29 OD=39 L=40	1-09337-013-0	02	1	0309-		●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	9601-	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	9601-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	9601-	●	●
444	BOLT; UNION 6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE	0-28080-825-0	01	1	9601-0308	●	●
444	BOLT; UNION 6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE	0-28080-825-0	01	1	9601-0308	●	●
444	BOLT; UNION 6SD1 STD ENG(37L) M8X25 FLANGE	0-28080-825-0	01	1	9601-0308	●	●
444	BOLT; UNION 6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE	0-28080-825-0	01	1	0309-0512		●
444	BOLT; UNION 6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE	0-28080-825-0	01	1	0309-0512		●
444	BOLT; UNION 6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE	0-28050-825-0	01	1	0601-		●
444	BOLT; UNION 6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE	0-28050-825-0	01	1	0601-		●

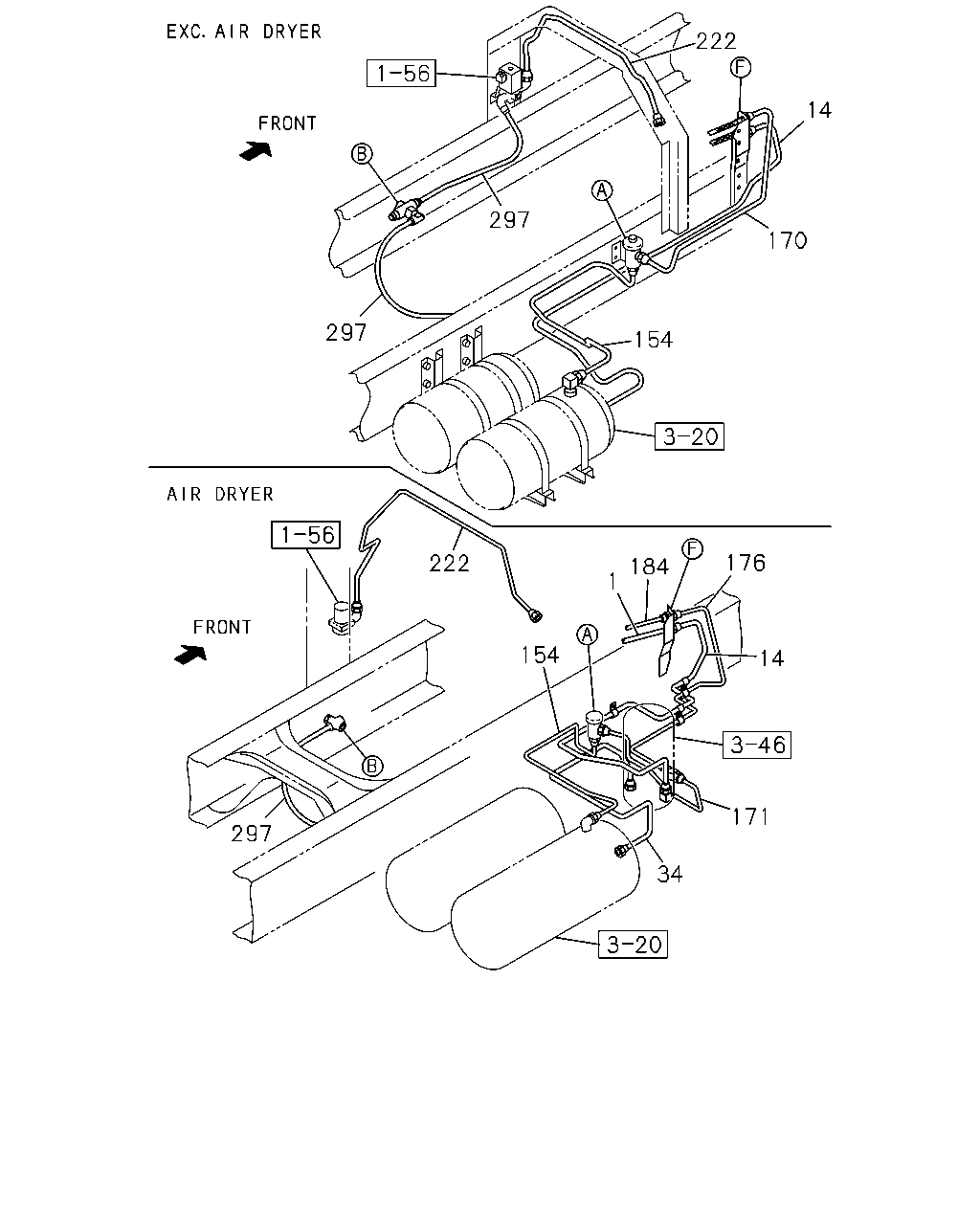

14 154 170 34 154 176 14 171 1 184 297 222 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK 6HH1 STD ENG(65L) L=360	1-09363-530-0	01	1	9601-0308	●	●
1	HOSE; FLEX,AIR TANK L=360	1-09363-530-0	01	1	0309-		●
1	HOSE; FLEX,AIR TANK 6SD1 STD ENG(37L) L=1500	0-17716-150-0	01	1	9601-0308	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L)	1-49115-541-0	01	1	9601-9601	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W)	1-49115-541-0	01	1	9601-9601		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L)	1-49117-173-0	01	1	9602-9803	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W)	1-49117-173-0	01	1	9602-9803		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L)	1-49118-372-0	01	1	9804-0109	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) EXC. AIR DRYER<PS7>	1-49118-372-0	01	1	0110-0308	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L)	1-49115-561-0	01	1	9601-9803	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L)	1-49118-850-0	01	1	9804-0103	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L)	1-49123-077-0	01	1	0104-0109	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>	1-49123-077-0	01	1	0110-0212	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>	1-49124-004-0	01	1	0301-0308	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>	1-49124-004-0	01	1	0309-		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L) AIR DRYER<PS7>	1-49123-059-0	01	1	0110-0212	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L) AIR DRYER<PS7>	1-49124-003-0	01	1	0301-0308	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK AIR DRYER<PS7>	1-49124-003-0	01	1	0309-		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) AIR DRYER<PS7>	1-49115-575-0	01	1	0110-0308	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W)	1-49115-542-0	01	1	9601-9601		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W)	1-49117-174-0	01	1	9602-9803		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W)	1-49118-407-0	01	1	9804-0109		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7>	1-49118-407-0	01	1	0110-0308		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-49115-545-0	01	1	9601-9601		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-49117-175-0	01	1	9602-9803		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-49119-130-0	01	1	9804-0109		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) EXC. AIR DRYER<PS7>	1-49119-130-0	01	1	0110-0308		●
34	PIPE; AIR 6SD1 STD ENG(37L) AIR DRYER<PS7>	1-49118-408-0	01	1	0110-0308	●
34	PIPE; AIR 6HH1 STD ENG(65L) AIR DRYER<PS7>	1-49118-521-0	01	1	0110-0308	●	●
34	PIPE; AIR AIR DRYER<PS7>	1-49118-521-0	01	1	0309-		●
34	PIPE; AIR 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) AIR DRYER<PS7>	1-49118-409-0	01	1	0110-0308		●
34	PIPE; AIR 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) AIR DRYER<PS7>	1-49119-129-0	01	1	0110-0308		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L)	1-49115-552-0	01	1	9601-9601	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W)	1-49115-552-0	01	1	9601-9601		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L)	1-49117-152-0	01	1	9602-9803	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W)	1-49117-152-0	01	1	9602-9803		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L)	1-49118-375-0	01	1	9804-0004	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) L=1096	1-49122-170-0	01	1	0005-0104	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L)	1-49123-061-0	01	1	0105-0109	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) EXC. AIR DRYER<PS7>	1-49123-061-0	01	1	0110-0308	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) AIR DRYER<PS7>	1-49122-172-0	01	1	0110-0308	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HH1 STD ENG(65L)	1-49113-599-0	01	1	9601-9803	●	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HH1 STD ENG(65L)	1-49118-524-0	01	1	9804-0004	●	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HH1 STD ENG(65L)	1-49122-177-0	01	1	0005-0109	●	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>	1-49122-177-0	01	1	0110-0308	●	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>	1-49122-177-0	01	1	0309-		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HH1 STD ENG(65L) AIR DRYER<PS7>	1-49122-178-0	01	1	0110-0308	●	●
154	PIPE; AIR,AIR TANK TO AIR GOV AIR DRYER<PS7>	1-49122-178-0	01	1	0309-		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W)	1-49115-554-0	01	1	9601-9601		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W)	1-49117-153-0	01	1	9602-9803		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W)	1-49118-412-0	01	1	9804-0004		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W)	1-49122-174-0	01	1	0005-0104		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W)	1-49123-062-0	01	1	0105-0109		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7>	1-49123-062-0	01	1	0110-0308		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) AIR DRYER<PS7>	1-49122-173-0	01	1	0110-0308		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) AIR DRYER<PS7>	1-49123-106-0	01	1	0110-0308		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-49115-555-0	01	1	9601-9601		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-49117-154-0	01	1	9602-9803		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-49119-132-0	01	1	9804-0004		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-49122-181-0	01	1	0005-0104		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-49123-063-0	01	1	0105-0109		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) EXC. AIR DRYER<PS7>	1-49123-063-0	01	1	0110-0308		●
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6HH1 STD ENG(65L)	1-49115-566-0	01	1	9601-9803	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6HH1 STD ENG(65L)	1-49118-852-0	01	1	9804-0004	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6HH1 STD ENG(65L)	1-49122-188-0	01	1	0005-0109	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>	1-49122-188-0	01	1	0110-0308	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>	1-49122-188-0	01	1	0309-		●
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6SD1 STD ENG(37L)	1-49116-227-0	01	1	9601-0004	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6SD1 STD ENG(37L) L=401	1-49122-185-0	01	1	0005-0104	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6SD1 STD ENG(37L)	1-49123-060-0	01	1	0105-0109	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6SD1 STD ENG(37L) EXC. AIR DRYER<PS7>	1-49123-060-0	01	1	0110-0308	●	●
171	PIPE; AIR,GOV TO AIR DRYER 6HH1 STD ENG(65L) AIR DRYER<PS7>	1-49122-167-0	01	1	0110-0308	●	●
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7>	1-49122-167-0	01	1	0309-		●
171	PIPE; AIR,GOV TO AIR DRYER 6SD1 STD ENG(37L) AIR DRYER<PS7>	1-49122-192-0	01	1	0110-0308	●	●
176	PIPE; AIR,AIR DRYER TO UNION 6HH1 STD ENG(65L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200	1-47426-352-0	01	1	0110-0308	●	●
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> L=1174 SERVICED BY L=1200	1-47426-352-0	01	1	0309-		●
176	PIPE; AIR,AIR DRYER TO UNION 6SD1 STD ENG(37L) AIR DRYER<PS7>	1-49115-551-0	01	1	0110-0308	●	●
184	HOSE; FLEX,AIR GOV 6HH1 STD ENG(65L) L=330	1-09363-584-0	01	1	9601-9606	●	●
184	HOSE; FLEX,AIR GOV 6HH1 STD ENG(65L) L=350	1-09363-651-0	01	1	9607-0308	●	●
184	HOSE; FLEX,AIR GOV L=350	1-09363-651-0	01	1	0309-		●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HH1 STD ENG(65L) L=1105 SERVICED BY L=1250	1-47434-389-0	01	1	9601-0308	●	●
222	PIPE; AIR,MAG VLV TO FLEX HOSE L=1105 SERVICED BY L=1250	1-47434-389-0	01	1	0309-		●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HH1 STD ENG(65L) L=1224 SERVICED BY L=1250	1-47428-817-0	01	1	0404-0404		●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	9601-	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	9601-	●	●

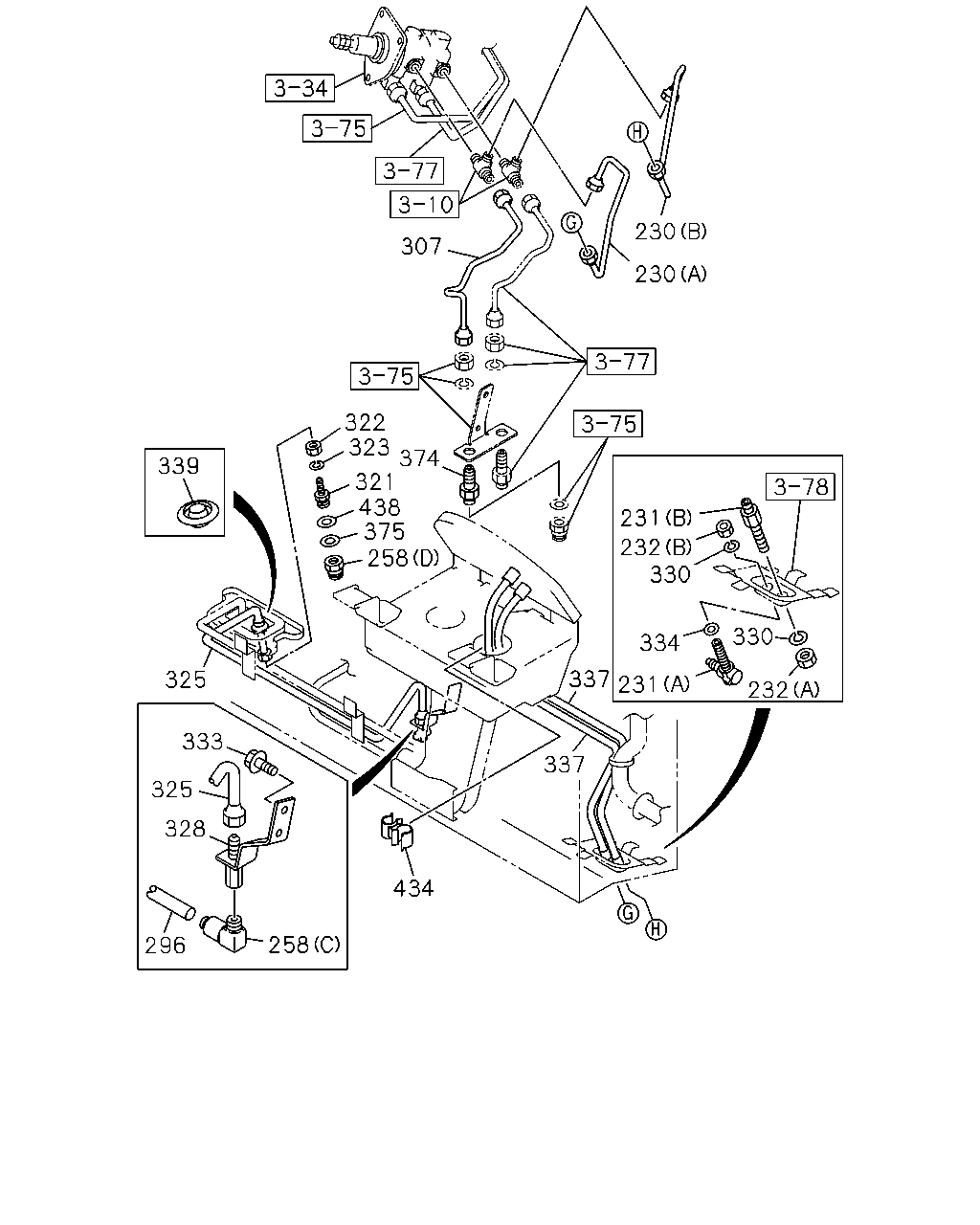

230 307 230 322 323 374 321 438 375 258 339 231 232 330 330 334 337 231 325 232 333 337 325 328 434 258 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
230	PIPE; AIR,UNION TO UNION (A) L=426	1-49116-433-0	01	1	9601-0308	●	●
230	PIPE; AIR,UNION TO UNION (A) L=426	1-49116-433-0	01	1	0309-		●
230	PIPE; AIR,UNION TO UNION (B) L=483	1-49116-434-0	01	1	9601-0308	●	●
230	PIPE; AIR,UNION TO UNION (B) L=483	1-49116-434-0	01	1	0309-		●
231	UNION; AIR PIPE (A) M10 ELBOW	1-09654-186-2	01	1	9601-0308	●	●
231	UNION; AIR PIPE (A) M10 ELBOW	1-09654-186-2	01	1	0309-		●
231	UNION; AIR PIPE (B) M10 STRAIGHT	1-09654-361-0	01	1	9601-0308	●	●
231	UNION; AIR PIPE (B) M10 STRAIGHT	1-09654-361-0	01	1	0309-		●
232	NUT; UNION,AIR PIPE (A) M10 H=8	1-09400-029-0	01	1	9601-0308	●	●
232	NUT; UNION,AIR PIPE (A) M10 H=8	1-09400-029-0	01	1	0309-		●
232	NUT; UNION,AIR PIPE (B) M10	9-09110-410-0	01	1	9601-0308	●	●
232	NUT; UNION,AIR PIPE (B) M10	9-09110-410-0	01	1	0309-0512		●
232	NUT; UNION,AIR PIPE (B) M10	0-91110-510-0	01	1	0601-		●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (C) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	9601-0302	●	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0303-0308	●	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0309-		●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9707-9811	●	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-9911	●	●
258	CONNECTOR; NYLON TUBE 6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0308	●	●
258	CONNECTOR; NYLON TUBE 6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0308	●	●
258	CONNECTOR; NYLON TUBE 6SD1 STD ENG(37L) MAL6S M/T(Y1V) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0308	●	●
258	CONNECTOR; NYLON TUBE 6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0309-		●
258	CONNECTOR; NYLON TUBE 6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0309-		●
258	CONNECTOR; NYLON TUBE 6SD1 STD ENG(37L) (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9601-9803	●	●
258	CONNECTOR; NYLON TUBE 6SD1 STD ENG(37L) MAL6S M/T(Y1V) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9601-9803	●	●
258	CONNECTOR; NYLON TUBE 6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9601-9803	●	●
258	CONNECTOR; NYLON TUBE 6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9601-9803	●	●
258	CONNECTOR; NYLON TUBE 6SD1 STD ENG(37L) MAL6S M/T(Y1V) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9804-0004	●	●
258	CONNECTOR; NYLON TUBE 6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9804-0004	●	●
258	CONNECTOR; NYLON TUBE 6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9804-0004	●	●
258	CONNECTOR; NYLON TUBE 6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0005-0308	●	●
258	CONNECTOR; NYLON TUBE 6SD1 STD ENG(37L) MAL6S M/T(Y1V) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0005-0308	●	●
258	CONNECTOR; NYLON TUBE 6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0309-		●
258	CONNECTOR; NYLON TUBE 6SD1 STD ENG(37L) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9804-0004	●	●
258	CONNECTOR; NYLON TUBE 6SD1 STD ENG(37L) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0005-0308	●	●
258	CONNECTOR; NYLON TUBE 6SD1 STD ENG(37L) MAL6S M/T(Y1V) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY	1-09660-659-1	01	1	9601-0004	●	●
258	CONNECTOR; NYLON TUBE 6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY	1-09660-659-1	01	1	9601-0004	●	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0005-0007	●	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-0308	●	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0309-		●
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> SERVICED BY L=30000 OD=6	1-09366-235-0	01	1	9601-0001	●	●
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> L=1200 OD=6	1-09366-256-1	01	1	0002-0308	●	●
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> L=1200 OD=6	1-09366-256-1	01	1	0309-		●
307	PIPE; AIR,FLEX HOSE TO BRK VLV L=540	1-49113-427-2	01	1	9601-0308	●	●
307	PIPE; AIR,FLEX HOSE TO BRK VLV L=540	1-49113-427-2	01	1	0309-		●
321	JOINT; FLEX HOSE AIR SUSP DRIVER SEAT<A56>	1-09654-362-1	01	1	9601-9811	●	●
321	JOINT; FLEX HOSE AIR SUSP DRIVER SEAT<A56>	1-09656-738-0	01	1	9812-0308	●	●
321	JOINT; FLEX HOSE AIR SUSP DRIVER SEAT<A56>	1-09656-738-0	01	1	0309-		●
322	NUT; JOINT,FLEX HOSE AIR SUSP DRIVER SEAT<A56> M10 H=8	1-09400-029-0	01	1	9601-0308	●	●
322	NUT; JOINT,FLEX HOSE AIR SUSP DRIVER SEAT<A56> M10 H=8	1-09400-029-0	01	1	0309-		●
323	WASHER; LK,JOINT AIR SUSP DRIVER SEAT<A56> ID=10.2	9-09150-510-0	01	1	9601-0308	●	●
323	WASHER; LK,JOINT AIR SUSP DRIVER SEAT<A56> ID=10.2	9-09150-510-0	01	1	0309-0603		●
323	WASHER; LK,JOINT AIR SUSP DRIVER SEAT<A56> ID=10.2	0-91510-510-0	01	1	0604-		●
325	PIPE; AIR,FLEX HOSE TO UNION AIR SUSP DRIVER SEAT<A56> L=791	1-49116-077-0	01	1	9601-0308	●	●
325	PIPE; AIR,FLEX HOSE TO UNION AIR SUSP DRIVER SEAT<A56> L=791	1-49116-077-0	01	1	0309-		●
328	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56>	1-47470-415-1	01	1	9601-0308	●	●
328	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56>	1-47470-415-1	01	1	0309-		●
330	WASHER; LK,UNION,AIR PIPE ID=10.2	9-09150-510-0	02	1	9601-0308	●	●
330	WASHER; LK,UNION,AIR PIPE ID=10.2	9-09150-510-0	02	1	0309-0603		●
330	WASHER; LK,UNION,AIR PIPE ID=10.2	0-91510-510-0	02	1	0604-		●
333	BOLT; PIPE UNION AIR SUSP DRIVER SEAT<A56> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-0308	●	●
333	BOLT; PIPE UNION AIR SUSP DRIVER SEAT<A56> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0309-		●
334	SPACER; PIPE UNION ID=10.5 OD=22 T=4	1-09503-045-0	01	1	9601-0308	●	●
334	SPACER; PIPE UNION ID=10.5 OD=22 T=4	1-09503-045-0	01	1	0309-		●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=720	0-07210-720-0	02	1	9601-0308	●	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=720	0-07210-720-0	02	1	0309-0608		●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=720	0-57210-720-0	02	1	0609-		●
339	GROMMET; AIR PIPE EXC. AIR SUSP DRIVER SEAT<A56> OD=28	8-94279-720-0	01	1	9601-0308	●	●
339	GROMMET; AIR PIPE EXC. AIR SUSP DRIVER SEAT<A56> OD=28	8-94279-720-0	01	1	0309-		●
374	CONNECTOR	1-09654-324-0	01	1	9601-9803	●	●
374	CONNECTOR M16 STRAIGHT	1-09654-380-0	01	1	9804-0308	●	●
374	CONNECTOR M16 STRAIGHT	1-09654-380-0	01	1	0309-		●
375	GASKET AIR SUSP DRIVER SEAT<A56> ID=11 OD=18	9-09572-510-0	01	1	9707-9811	●	●
434	CLIP ID=10 & 10	1-09709-221-0	01	1	9812-0308	●	●
434	CLIP ID=10 & 10	1-09709-221-0	01	1	0309-		●
438	WASHER; PL,JOINT AIR SUSP DRIVER SEAT<A56> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9601-0308	●	●
438	WASHER; PL,JOINT AIR SUSP DRIVER SEAT<A56> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0309-		●

34 171 176 14 154 297 154 170 14 297 297 297 1 297 297 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK 6HH1 STD ENG(65L) L=360	1-09363-530-0	01	1	9601-0308	●	●
1	HOSE; FLEX,AIR TANK L=360	1-09363-530-0	01	1	0309-		●
1	HOSE; FLEX,AIR TANK 6SD1 STD ENG(37L) L=1500	0-17716-150-0	01	1	9601-0308	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L)	1-49115-541-0	01	1	9601-9601	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W)	1-49115-541-0	01	1	9601-9601		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L)	1-49117-173-0	01	1	9602-9803	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W)	1-49117-173-0	01	1	9602-9803		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L)	1-49118-372-0	01	1	9804-0109	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) EXC. AIR DRYER<PS7>	1-49118-372-0	01	1	0110-0308	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L)	1-49115-561-0	01	1	9601-9803	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L)	1-49118-850-0	01	1	9804-0103	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L)	1-49123-077-0	01	1	0104-0109	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>	1-49123-077-0	01	1	0110-0212	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>	1-49124-004-0	01	1	0301-0308	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>	1-49124-004-0	01	1	0309-		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L) AIR DRYER<PS7>	1-49123-059-0	01	1	0110-0212	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L) AIR DRYER<PS7>	1-49124-003-0	01	1	0301-0308	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK AIR DRYER<PS7>	1-49124-003-0	01	1	0309-		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) AIR DRYER<PS7>	1-49115-575-0	01	1	0110-0308	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W)	1-49115-542-0	01	1	9601-9601		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W)	1-49117-174-0	01	1	9602-9803		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W)	1-49118-407-0	01	1	9804-0109		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7>	1-49118-407-0	01	1	0110-0308		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-49115-545-0	01	1	9601-9601		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-49117-175-0	01	1	9602-9803		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-49119-130-0	01	1	9804-0109		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) EXC. AIR DRYER<PS7>	1-49119-130-0	01	1	0110-0308		●
34	PIPE; AIR 6SD1 STD ENG(37L) AIR DRYER<PS7>	1-49118-408-0	01	1	0110-0308	●
34	PIPE; AIR 6HH1 STD ENG(65L) AIR DRYER<PS7>	1-49118-521-0	01	1	0110-0308	●	●
34	PIPE; AIR AIR DRYER<PS7>	1-49118-521-0	01	1	0309-		●
34	PIPE; AIR 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) AIR DRYER<PS7>	1-49118-409-0	01	1	0110-0308		●
34	PIPE; AIR 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) AIR DRYER<PS7>	1-49119-129-0	01	1	0110-0308		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L)	1-49115-552-0	01	1	9601-9601	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W)	1-49115-552-0	01	1	9601-9601		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L)	1-49117-152-0	01	1	9602-9803	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W)	1-49117-152-0	01	1	9602-9803		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L)	1-49118-375-0	01	1	9804-0004	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) L=1096	1-49122-170-0	01	1	0005-0104	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L)	1-49123-061-0	01	1	0105-0109	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) EXC. AIR DRYER<PS7>	1-49123-061-0	01	1	0110-0308	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) AIR DRYER<PS7>	1-49122-172-0	01	1	0110-0308	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HH1 STD ENG(65L)	1-49113-599-0	01	1	9601-9803	●	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HH1 STD ENG(65L)	1-49118-524-0	01	1	9804-0004	●	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HH1 STD ENG(65L)	1-49122-177-0	01	1	0005-0109	●	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>	1-49122-177-0	01	1	0110-0308	●	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>	1-49122-177-0	01	1	0309-		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HH1 STD ENG(65L) AIR DRYER<PS7>	1-49122-178-0	01	1	0110-0308	●	●
154	PIPE; AIR,AIR TANK TO AIR GOV AIR DRYER<PS7>	1-49122-178-0	01	1	0309-		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W)	1-49115-554-0	01	1	9601-9601		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W)	1-49117-153-0	01	1	9602-9803		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W)	1-49118-412-0	01	1	9804-0004		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W)	1-49122-174-0	01	1	0005-0104		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W)	1-49123-062-0	01	1	0105-0109		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7>	1-49123-062-0	01	1	0110-0308		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) AIR DRYER<PS7>	1-49122-173-0	01	1	0110-0308		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) AIR DRYER<PS7>	1-49123-106-0	01	1	0110-0308		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-49115-555-0	01	1	9601-9601		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-49117-154-0	01	1	9602-9803		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-49119-132-0	01	1	9804-0004		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-49122-181-0	01	1	0005-0104		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-49123-063-0	01	1	0105-0109		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) EXC. AIR DRYER<PS7>	1-49123-063-0	01	1	0110-0308		●
163	BRACKET; AIR PIPE 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-47475-427-1	01	1	9602-0308		●
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6HH1 STD ENG(65L)	1-49115-566-0	01	1	9601-9803	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6HH1 STD ENG(65L)	1-49118-852-0	01	1	9804-0004	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6HH1 STD ENG(65L)	1-49122-188-0	01	1	0005-0109	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>	1-49122-188-0	01	1	0110-0308	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>	1-49122-188-0	01	1	0309-		●
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6SD1 STD ENG(37L)	1-49116-227-0	01	1	9601-0004	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6SD1 STD ENG(37L) L=401	1-49122-185-0	01	1	0005-0104	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6SD1 STD ENG(37L)	1-49123-060-0	01	1	0105-0109	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6SD1 STD ENG(37L) EXC. AIR DRYER<PS7>	1-49123-060-0	01	1	0110-0308	●	●
171	PIPE; AIR,GOV TO AIR DRYER 6HH1 STD ENG(65L) AIR DRYER<PS7>	1-49122-167-0	01	1	0110-0308	●	●
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7>	1-49122-167-0	01	1	0309-		●
171	PIPE; AIR,GOV TO AIR DRYER 6SD1 STD ENG(37L) AIR DRYER<PS7>	1-49122-192-0	01	1	0110-0308	●	●
176	PIPE; AIR,AIR DRYER TO UNION 6HH1 STD ENG(65L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200	1-47426-352-0	01	1	0110-0308	●	●
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> L=1174 SERVICED BY L=1200	1-47426-352-0	01	1	0309-		●
176	PIPE; AIR,AIR DRYER TO UNION 6SD1 STD ENG(37L) AIR DRYER<PS7>	1-49115-551-0	01	1	0110-0308	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	9601-	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	9601-	●	●

222 14 297 170 297 154 176 222 184 1 154 14 171 297 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK 6HH1 STD ENG(65L) L=360	1-09363-530-0	01	1	9601-0308	●	●
1	HOSE; FLEX,AIR TANK L=360	1-09363-530-0	01	1	0309-		●
1	HOSE; FLEX,AIR TANK 6SD1 STD ENG(37L) L=1500	0-17716-150-0	01	1	9601-0308	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L)	1-49115-541-0	01	1	9601-9601	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W)	1-49115-541-0	01	1	9601-9601		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L)	1-49117-173-0	01	1	9602-9803	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W)	1-49117-173-0	01	1	9602-9803		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L)	1-49118-372-0	01	1	9804-0109	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) EXC. AIR DRYER<PS7>	1-49118-372-0	01	1	0110-0308	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L)	1-49115-561-0	01	1	9601-9803	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L)	1-49118-850-0	01	1	9804-0103	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L)	1-49123-077-0	01	1	0104-0109	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>	1-49123-077-0	01	1	0110-0212	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>	1-49124-004-0	01	1	0301-0308	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>	1-49124-004-0	01	1	0309-		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L) AIR DRYER<PS7>	1-49123-059-0	01	1	0110-0212	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L) AIR DRYER<PS7>	1-49124-003-0	01	1	0301-0308	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK AIR DRYER<PS7>	1-49124-003-0	01	1	0309-		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) AIR DRYER<PS7>	1-49115-575-0	01	1	0110-0308	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W)	1-49115-542-0	01	1	9601-9601		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W)	1-49117-174-0	01	1	9602-9803		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W)	1-49118-407-0	01	1	9804-0109		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7>	1-49118-407-0	01	1	0110-0308		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-49115-545-0	01	1	9601-9601		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-49117-175-0	01	1	9602-9803		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-49119-130-0	01	1	9804-0109		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) EXC. AIR DRYER<PS7>	1-49119-130-0	01	1	0110-0308		●
34	PIPE; AIR 6SD1 STD ENG(37L) AIR DRYER<PS7>	1-49118-408-0	01	1	0110-0308	●
34	PIPE; AIR 6HH1 STD ENG(65L) AIR DRYER<PS7>	1-49118-521-0	01	1	0110-0308	●	●
34	PIPE; AIR AIR DRYER<PS7>	1-49118-521-0	01	1	0309-		●
34	PIPE; AIR 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) AIR DRYER<PS7>	1-49118-409-0	01	1	0110-0308		●
34	PIPE; AIR 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) AIR DRYER<PS7>	1-49119-129-0	01	1	0110-0308		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L)	1-49115-552-0	01	1	9601-9601	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W)	1-49115-552-0	01	1	9601-9601		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L)	1-49117-152-0	01	1	9602-9803	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W)	1-49117-152-0	01	1	9602-9803		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L)	1-49118-375-0	01	1	9804-0004	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) L=1096	1-49122-170-0	01	1	0005-0104	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L)	1-49123-061-0	01	1	0105-0109	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) EXC. AIR DRYER<PS7>	1-49123-061-0	01	1	0110-0308	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) AIR DRYER<PS7>	1-49122-172-0	01	1	0110-0308	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HH1 STD ENG(65L)	1-49113-599-0	01	1	9601-9803	●	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HH1 STD ENG(65L)	1-49118-524-0	01	1	9804-0004	●	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HH1 STD ENG(65L)	1-49122-177-0	01	1	0005-0109	●	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>	1-49122-177-0	01	1	0110-0308	●	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>	1-49122-177-0	01	1	0309-		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HH1 STD ENG(65L) AIR DRYER<PS7>	1-49122-178-0	01	1	0110-0308	●	●
154	PIPE; AIR,AIR TANK TO AIR GOV AIR DRYER<PS7>	1-49122-178-0	01	1	0309-		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W)	1-49115-554-0	01	1	9601-9601		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W)	1-49117-153-0	01	1	9602-9803		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W)	1-49118-412-0	01	1	9804-0004		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W)	1-49122-174-0	01	1	0005-0104		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W)	1-49123-062-0	01	1	0105-0109		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7>	1-49123-062-0	01	1	0110-0308		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) AIR DRYER<PS7>	1-49122-173-0	01	1	0110-0308		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) AIR DRYER<PS7>	1-49123-106-0	01	1	0110-0308		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-49115-555-0	01	1	9601-9601		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-49117-154-0	01	1	9602-9803		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-49119-132-0	01	1	9804-0004		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-49122-181-0	01	1	0005-0104		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)	1-49123-063-0	01	1	0105-0109		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) EXC. AIR DRYER<PS7>	1-49123-063-0	01	1	0110-0308		●
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6HH1 STD ENG(65L)	1-49115-566-0	01	1	9601-9803	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6HH1 STD ENG(65L)	1-49118-852-0	01	1	9804-0004	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6HH1 STD ENG(65L)	1-49122-188-0	01	1	0005-0109	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>	1-49122-188-0	01	1	0110-0308	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>	1-49122-188-0	01	1	0309-		●
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6SD1 STD ENG(37L)	1-49116-227-0	01	1	9601-0004	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6SD1 STD ENG(37L) L=401	1-49122-185-0	01	1	0005-0104	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6SD1 STD ENG(37L)	1-49123-060-0	01	1	0105-0109	●	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE 6SD1 STD ENG(37L) EXC. AIR DRYER<PS7>	1-49123-060-0	01	1	0110-0308	●	●
171	PIPE; AIR,GOV TO AIR DRYER 6HH1 STD ENG(65L) AIR DRYER<PS7>	1-49122-167-0	01	1	0110-0308	●	●
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7>	1-49122-167-0	01	1	0309-		●
171	PIPE; AIR,GOV TO AIR DRYER 6SD1 STD ENG(37L) AIR DRYER<PS7>	1-49122-192-0	01	1	0110-0308	●	●
176	PIPE; AIR,AIR DRYER TO UNION 6HH1 STD ENG(65L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200	1-47426-352-0	01	1	0110-0308	●	●
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> L=1174 SERVICED BY L=1200	1-47426-352-0	01	1	0309-		●
176	PIPE; AIR,AIR DRYER TO UNION 6SD1 STD ENG(37L) AIR DRYER<PS7>	1-49115-551-0	01	1	0110-0308	●	●
184	HOSE; FLEX,AIR GOV 6HH1 STD ENG(65L) L=330	1-09363-584-0	01	1	9601-9606	●	●
184	HOSE; FLEX,AIR GOV 6HH1 STD ENG(65L) L=350	1-09363-651-0	01	1	9607-0308	●	●
184	HOSE; FLEX,AIR GOV L=350	1-09363-651-0	01	1	0309-		●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HH1 STD ENG(65L) L=1105 SERVICED BY L=1250	1-47434-389-0	01	1	9601-0308	●	●
222	PIPE; AIR,MAG VLV TO FLEX HOSE L=1105 SERVICED BY L=1250	1-47434-389-0	01	1	0309-		●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HH1 STD ENG(65L) L=1224 SERVICED BY L=1250	1-47428-817-0	01	1	0404-0404		●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	9601-	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	9601-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
