3-46 — AIR DRYER (#22841) — 67 parça

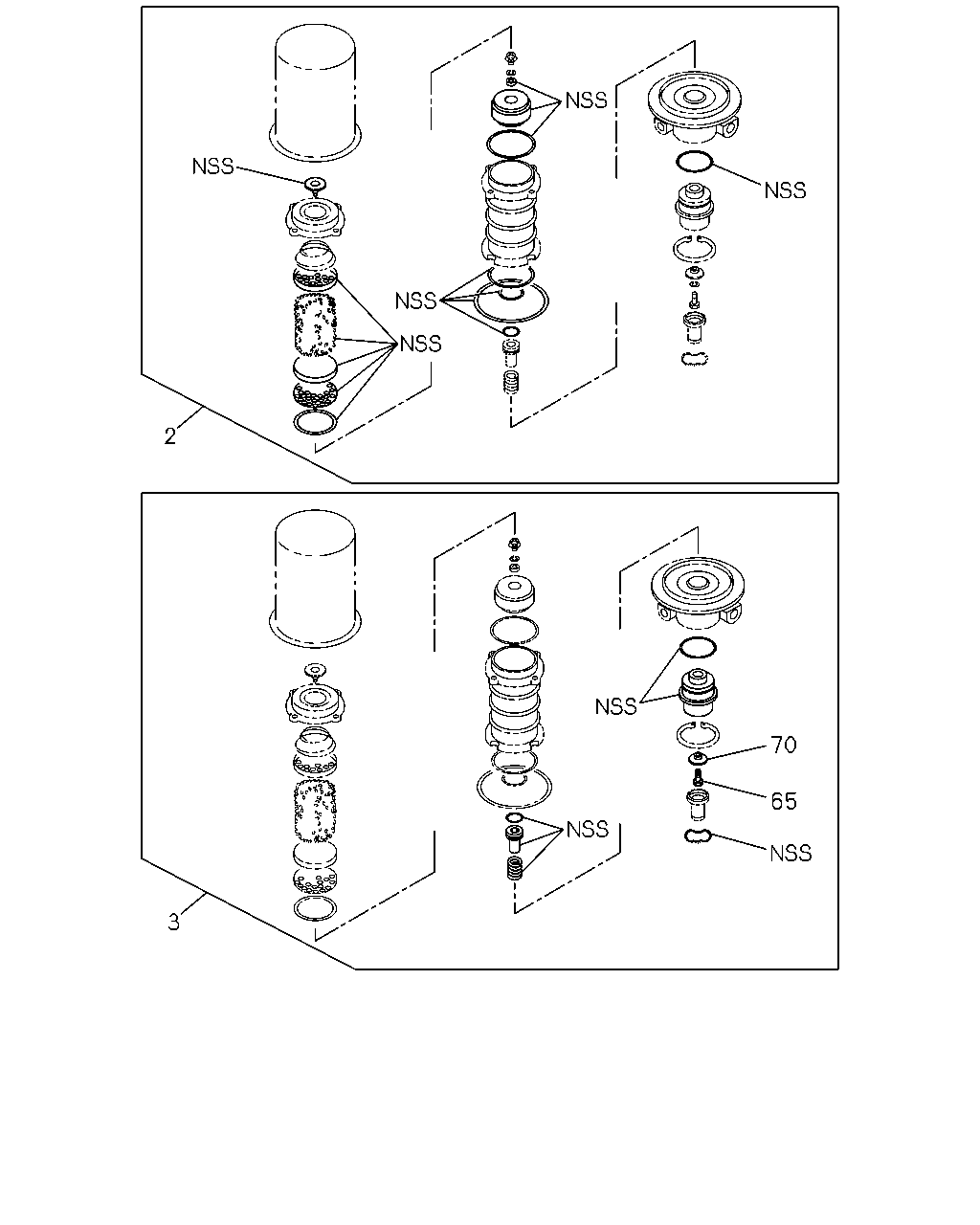

çizim 65381
2 70 65 3
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-055-1 01 1 0110-0308 ● ●
2 REPAIR KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-055-1 01 1 0309-1001 ●
2 REPAIR KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-226-0 01 1 1002- ●
3 PISTON KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-057-1 01 1 0110-0308 ● ●
3 PISTON KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-057-1 01 1 0309- ●
65 BOLT; PURGE VLV
AIR DRYER<PS7> 		1-48199-413-0 01 1 0110-0308 ● ●
65 BOLT; PURGE VLV
AIR DRYER<PS7> 		1-48199-413-0 01 1 0309-1001 ●
65 BOLT; PURGE VLV
AIR DRYER<PS7> 		1-48199-393-0 01 1 1002- ●
70 VALVE; AIR DRYER
AIR DRYER<PS7> 		1-48199-105-0 01 1 0110-0308 ● ●
70 VALVE; AIR DRYER
AIR DRYER<PS7> 		1-48199-105-0 01 1 0309- ●

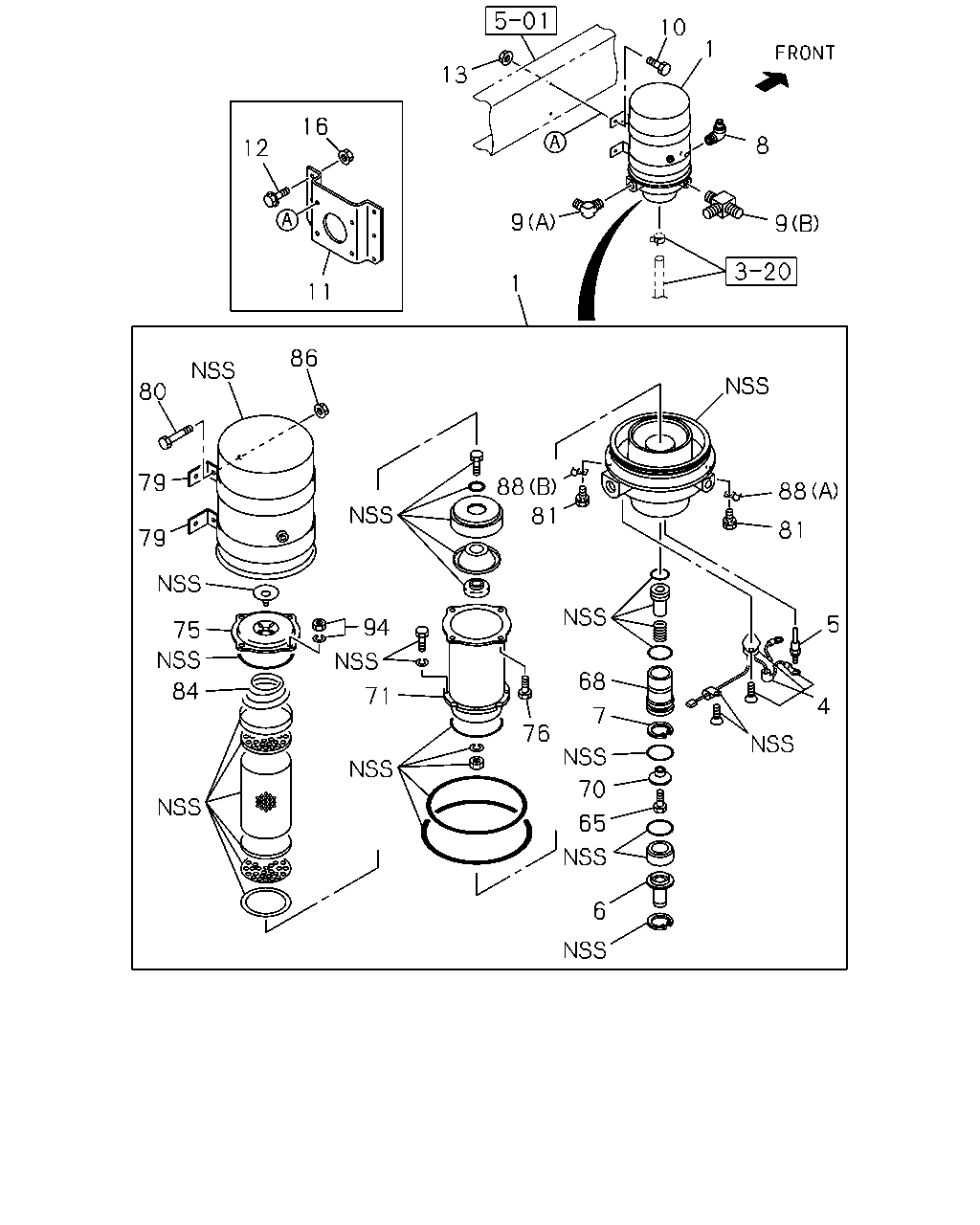

çizim 66573
10 1 13 16 8 12 9 9 1 11 86 80 79 88 88 81 81 79 5 94 75 68 84 71 4 7 76 70 65 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRYER; AIR
AIR DRYER<PS7> 		1-48190-105-3 01 1 0110-0308 ● ●
1 DRYER; AIR
AIR DRYER<PS7> 		1-48190-105-3 01 1 0309-1001 ●
1 DRYER; AIR
AIR DRYER<PS7> 		1-48190-373-0 01 1 1002- ●
4 THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-129-0 01 1 0110-0308 ● ●
4 THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-129-0 01 1 0309- ●
5 HEATER ASM; AIR DRYER
AIR DRYER<PS7> 		1-48199-085-0 02 1 0110-0308 ● ●
5 HEATER ASM; AIR DRYER
AIR DRYER<PS7> 		1-48199-085-0 02 1 0309- ●
6 COVER; EXH,AIR DRYER
AIR DRYER<PS7> 		1-48199-101-0 01 1 0110-0308 ● ●
6 COVER; EXH,AIR DRYER
AIR DRYER<PS7> 		1-48199-101-0 01 1 0309- ●
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> 		1-48199-154-0 01 1 0110-0308 ● ●
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> 		1-48199-154-0 01 1 0309- ●
8 CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7> M22 & PT1/2 ELBOW 		1-09650-444-0 01 1 0110-0308 ● ●
8 CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7> M22 & PT1/2 ELBOW 		1-09650-444-0 01 1 0309-0607 ●
8 CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7> M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 0608- ●
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0110-0308 ● ●
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0309- ●
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 0110-0308 ● ●
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 0309- ●
10 BOLT; AIR DRYER
6HH1 STD ENG(65L) AIR DRYER<PS7> M10X40 FLANGE 		0-28681-040-0 04 1 0110-0308 ● ●
10 BOLT; AIR DRYER
AIR DRYER<PS7> M10X40 FLANGE 		0-28681-040-0 04 1 0309-0512 ●
10 BOLT; AIR DRYER
AIR DRYER<PS7> M10X40 FLANGE 		0-28651-040-0 04 1 0601- ●
10 BOLT; AIR DRYER
6SD1 STD ENG(37L) AIR DRYER<PS7> M10X30 FLANGE 		0-28681-030-0 04 1 0110-0308 ● ●
11 BRACKET; AIR DRYER
6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-48195-055-0 01 1 0211-0308 ● ●
12 BOLT; BRKT
6SD1 STD ENG(37L) AIR DRYER<PS7> M10X35 FLANGE 		0-28681-035-0 04 1 0211-0308 ● ●
13 NUT; AIR DRYER
AIR DRYER<PS7> M10 FLANGE 		0-91150-210-0 04 1 0110-0308 ● ●
13 NUT; AIR DRYER
AIR DRYER<PS7> M10 FLANGE 		0-91150-210-0 04 1 0309-0602 ●
13 NUT; AIR DRYER
AIR DRYER<PS7> M10 FLANGE 		0-91180-210-0 04 1 0603- ●
16 NUT; BRKT
6SD1 STD ENG(37L) AIR DRYER<PS7> M10 FLANGE 		0-91150-210-0 04 1 0211-0308 ● ●
65 BOLT; PURGE VLV
AIR DRYER<PS7> 		1-48199-413-0 01 1 0110-0308 ● ●
65 BOLT; PURGE VLV
AIR DRYER<PS7> 		1-48199-413-0 01 1 0309-1001 ●
65 BOLT; PURGE VLV
AIR DRYER<PS7> 		1-48199-393-0 01 1 1002- ●
68 BODY; VALVE
AIR DRYER<PS7> 		1-48199-216-0 01 1 0110-0308 ● ●
68 BODY; VALVE
AIR DRYER<PS7> 		1-48199-216-0 01 1 0309- ●
70 VALVE; AIR DRYER
AIR DRYER<PS7> 		1-48199-105-0 01 1 0110-0308 ● ●
70 VALVE; AIR DRYER
AIR DRYER<PS7> 		1-48199-105-0 01 1 0309- ●
71 CASE; INNER,AIR DRYER
AIR DRYER<PS7> 		1-48199-156-1 01 1 0110-0308 ● ●
71 CASE; INNER,AIR DRYER
AIR DRYER<PS7> 		1-48199-156-1 01 1 0309- ●
75 COVER; CASE,AIR DRYER
AIR DRYER<PS7> 		1-48199-167-0 01 1 0110-0308 ● ●
75 COVER; CASE,AIR DRYER
AIR DRYER<PS7> 		1-48199-167-0 01 1 0309- ●
76 BOLT; COVER,AIR DRYER
AIR DRYER<PS7> 		1-48199-478-0 06 1 0110-0308 ● ●
76 BOLT; COVER,AIR DRYER
AIR DRYER<PS7> 		1-48199-478-0 06 1 0309- ●
79 BRACKET; AIR DRYER
AIR DRYER<PS7> 		1-48199-189-0 02 1 0110-0308 ● ●
79 BRACKET; AIR DRYER
AIR DRYER<PS7> 		1-48199-189-0 02 1 0309- ●
80 BOLT; BRKT
AIR DRYER<PS7> 		1-48199-190-0 02 1 0110-0308 ● ●
80 BOLT; BRKT
AIR DRYER<PS7> 		1-48199-190-0 02 1 0309- ●
81 BOLT; CASE,AIR DRYER
AIR DRYER<PS7> 		1-48199-177-0 02 1 0110-0308 ● ●
81 BOLT; CASE,AIR DRYER
AIR DRYER<PS7> 		1-48199-177-0 02 1 0309- ●
84 SPRING; AIR DRYER
AIR DRYER<PS7> 		1-48199-166-0 01 1 0110-0308 ● ●
84 SPRING; AIR DRYER
AIR DRYER<PS7> 		1-48199-166-0 01 1 0309- ●
86 NUT; BRKT
AIR DRYER<PS7> 		1-48199-320-0 02 1 0110-0308 ● ●
86 NUT; BRKT
AIR DRYER<PS7> 		1-48199-320-0 02 1 0309- ●
88 PLATE; STOPPER
AIR DRYER<PS7> (A) 		1-48199-178-0 01 1 0110-0308 ● ●
88 PLATE; STOPPER
AIR DRYER<PS7> (A) 		1-48199-178-0 01 1 0309- ●
88 PLATE; STOPPER
AIR DRYER<PS7> (B) 		1-48199-179-0 01 1 0110-0308 ● ●
88 PLATE; STOPPER
AIR DRYER<PS7> (B) 		1-48199-179-0 01 1 0309- ●
94 NUT; COVER,AIR DRYER
AIR DRYER<PS7> 		1-48199-479-0 07 1 0110-0308 ● ●
94 NUT; COVER,AIR DRYER
AIR DRYER<PS7> 		1-48199-479-0 07 1 0309- ●
