◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11352 - FVR(MIDDLE EAST) ▶ 3 - Brakes, Brake System ▶ 3-41 - REAR BRAKE POWER CHAMBER ▶
3-41 — REAR BRAKE POWER CHAMBER (#22840) — 256 parça

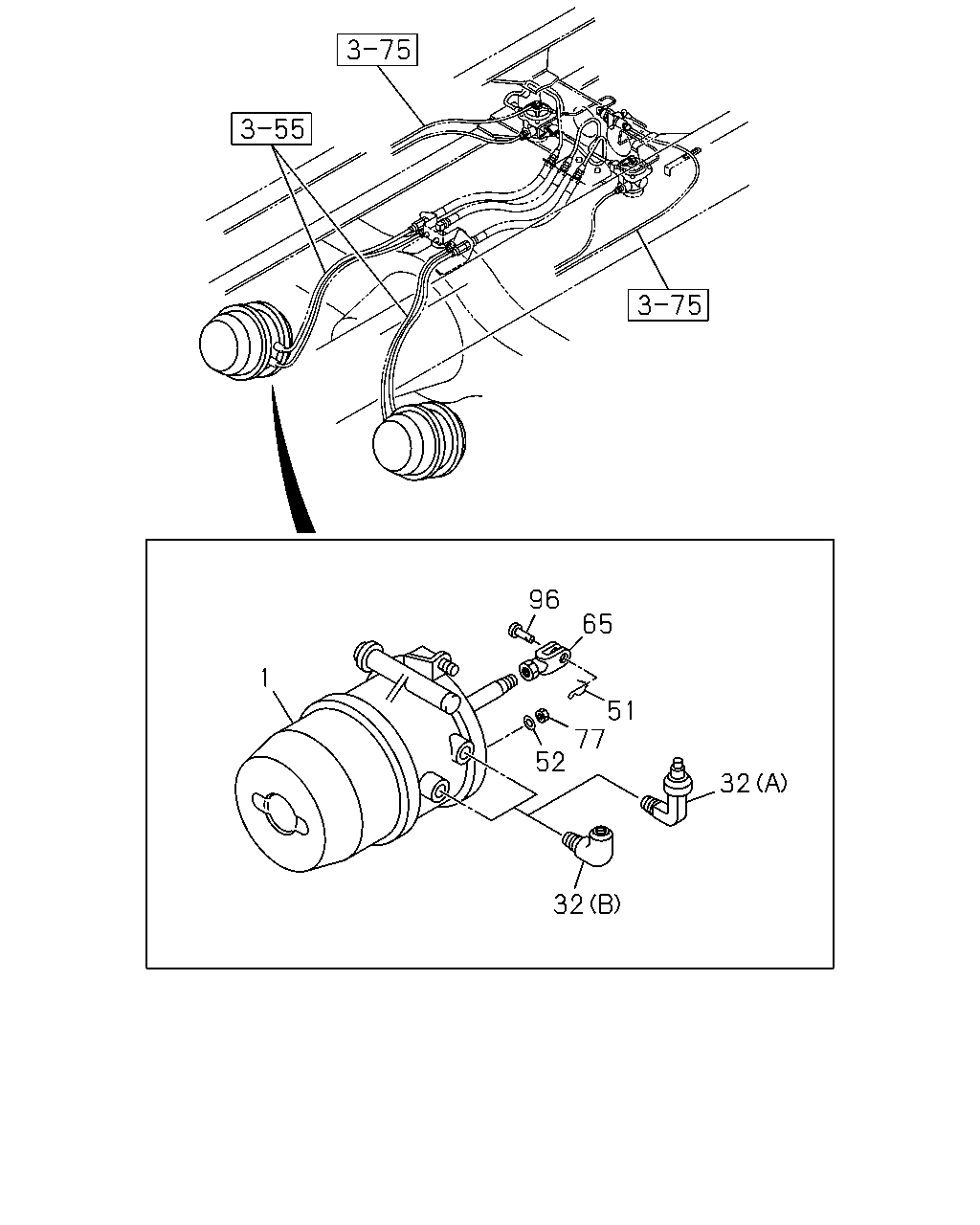

çizim 15797
96 65 1 51 77 52 32 32
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; SPRING 1-48250-558-0 02 1 9601-0004 ● ●
1 CHAMBER ASM; SPRING
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-48250-558-0 02 1 0005-0411 ● ●
1 CHAMBER ASM; SPRING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48250-640-0 01 1 0212-0302 ● ●
1 CHAMBER ASM; SPRING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48250-640-1 01 1 0303-0308 ● ●
1 CHAMBER ASM; SPRING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48250-640-1 01 1 0309-0411 ●
1 CHAMBER ASM; SPRING 1-48250-640-1 01 1 0412- ●
1 CHAMBER ASM; SPRING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48250-641-0 01 1 0212-0302 ● ●
1 CHAMBER ASM; SPRING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48250-641-1 01 1 0303-0308 ● ●
1 CHAMBER ASM; SPRING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48250-641-1 01 1 0309-0411 ●
1 CHAMBER ASM; SPRING 1-48250-641-1 01 1 0412- ●
32 CONNECTOR; SPR CHAMBER
(A) 		1-09660-741-0 02 1 9601-9803 ● ●
32 CONNECTOR; SPR CHAMBER
(A) 		1-09660-741-0 02 1 9601-9803 ● ●
32 CONNECTOR; SPR CHAMBER
(B) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 9804-0302 ● ●
32 CONNECTOR; SPR CHAMBER
(B) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 9804-0302 ● ●
32 CONNECTOR; SPR CHAMBER
EXC. FINAL GEAR 17.5"<B5D> (B) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 0303-0308 ● ●
32 CONNECTOR; SPR CHAMBER
EXC. FINAL GEAR 17.5"<B5D> (B) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 0303-0308 ● ●
32 CONNECTOR; SPR CHAMBER
EXC. FINAL GEAR 17.5"<B5D> (B) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 0309-0411 ●
32 CONNECTOR; SPR CHAMBER
EXC. FINAL GEAR 17.5"<B5D> (B) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 0309-0411 ●
32 CONNECTOR; SPR CHAMBER
FINAL GEAR 17.5"<B5D> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0303-0308 ● ●
32 CONNECTOR; SPR CHAMBER
FINAL GEAR 17.5"<B5D> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0303-0308 ● ●
32 CONNECTOR; SPR CHAMBER
FINAL GEAR 17.5"<B5D> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0309-0411 ●
32 CONNECTOR; SPR CHAMBER
FINAL GEAR 17.5"<B5D> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0309-0411 ●
32 CONNECTOR; SPR CHAMBER
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0412- ●
32 CONNECTOR; SPR CHAMBER
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0412- ●
51 PIN; SPLIT
FINAL GEAR 43/8 18" ROCKWELL(W6A) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-48259-275-0 02 1 0201-0206 ● ●
51 PIN; SPLIT
FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-48259-275-0 02 1 0201-0206 ● ●
51 PIN; SPLIT
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-48259-275-0 02 1 0201-0206 ● ●
51 PIN; SPLIT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-48259-275-0 02 1 0207-0208 ● ●
51 PIN; SPLIT
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-48259-275-0 02 1 0207-0208 ● ●
51 PIN; SPLIT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-48259-275-0 02 1 0209-0411 ● ●
52 WASHER; PL 1-48259-291-0 04 1 9601-0004 ● ●
52 WASHER; PL
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-48259-291-0 04 1 0005-0112 ● ●
52 WASHER; PL
FINAL GEAR 43/8 18" ROCKWELL(W6A) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-48259-291-0 04 1 0201-0206 ● ●
52 WASHER; PL
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-48259-291-0 04 1 0201-0206 ● ●
52 WASHER; PL
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-48259-291-0 04 1 0207-0208 ● ●
52 WASHER; PL
FINAL GEAR 43/8 18" ROCKWELL(W6A) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-41519-038-0 04 1 0201-0206 ● ●
52 WASHER; PL
FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-41519-038-0 04 1 0201-0206 ● ●
52 WASHER; PL
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-41519-038-0 04 1 0201-0206 ● ●
52 WASHER; PL
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-41519-038-0 04 1 0207-0208 ● ●
52 WASHER; PL
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-41519-038-0 04 1 0207-0208 ● ●
52 WASHER; PL
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-41519-038-0 04 1 0209-0411 ● ●
65 JOINT; JAW
FINAL GEAR 43/8 18" ROCKWELL(W6A) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-48259-274-0 02 1 0201-0206 ● ●
65 JOINT; JAW
FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-48259-274-0 02 1 0201-0206 ● ●
65 JOINT; JAW
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-48259-274-0 02 1 0201-0206 ● ●
65 JOINT; JAW
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-48259-274-0 02 1 0207-0208 ● ●
65 JOINT; JAW
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-48259-274-0 02 1 0207-0208 ● ●
65 JOINT; JAW
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-48259-274-0 02 1 0209-0411 ● ●
77 NUT; SPR CHAMBER BRK 1-48259-290-0 04 1 9601-0004 ● ●
77 NUT; SPR CHAMBER BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-48259-290-0 04 1 0005-0112 ● ●
77 NUT; SPR CHAMBER BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-48259-290-0 04 1 0201-0206 ● ●
77 NUT; SPR CHAMBER BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-48259-290-0 04 1 0201-0206 ● ●
77 NUT; SPR CHAMBER BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-48259-290-0 04 1 0207-0208 ● ●
77 NUT; SPR CHAMBER BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-87050-052-0 04 1 0201-0206 ● ●
77 NUT; SPR CHAMBER BRK
FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-87050-052-0 04 1 0201-0206 ● ●
77 NUT; SPR CHAMBER BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-87050-052-0 04 1 0201-0206 ● ●
77 NUT; SPR CHAMBER BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-87050-052-0 04 1 0207-0208 ● ●
77 NUT; SPR CHAMBER BRK
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-87050-052-0 04 1 0207-0208 ● ●
77 NUT; SPR CHAMBER BRK
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-87050-052-0 04 1 0209-0411 ● ●
96 PIN; JAW JOINT
FINAL GEAR 43/8 18" ROCKWELL(W6A) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-48259-273-0 02 1 0201-0206 ● ●
96 PIN; JAW JOINT
FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-48259-273-0 02 1 0201-0206 ● ●
96 PIN; JAW JOINT
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-48259-273-0 02 1 0201-0206 ● ●
96 PIN; JAW JOINT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B) 		1-48259-273-0 02 1 0207-0208 ● ●
96 PIN; JAW JOINT
FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-48259-273-0 02 1 0207-0208 ● ●
96 PIN; JAW JOINT
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-48259-273-0 02 1 0209-0411 ● ●

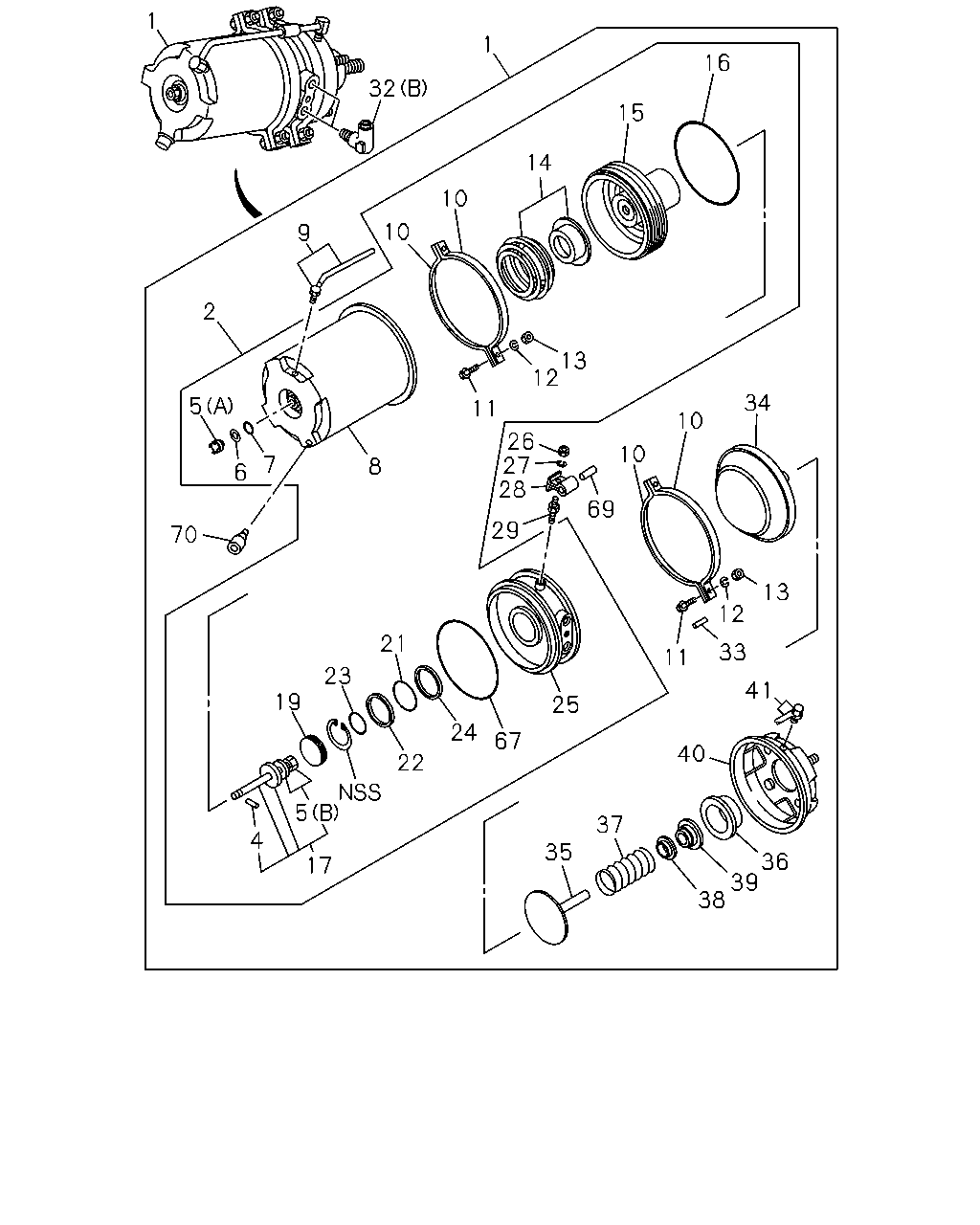

çizim 16327
1 1 16 32 15 14 10 10 9 2 13 12 34 5 11 10 26 27 28 10 7 8 6 69 29 70 13 12 21 33 11 23 41 19 25 24 67 40 22 5 37 4 35 36 39 38 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; SPRING 1-48250-558-0 02 1 9601-0004 ● ●
1 CHAMBER ASM; SPRING
FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C) 		1-48250-558-0 02 1 0005-0411 ● ●
1 CHAMBER ASM; SPRING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48250-640-0 01 1 0212-0302 ● ●
1 CHAMBER ASM; SPRING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48250-640-1 01 1 0303-0308 ● ●
1 CHAMBER ASM; SPRING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48250-640-1 01 1 0309-0411 ●
1 CHAMBER ASM; SPRING 1-48250-640-1 01 1 0412- ●
1 CHAMBER ASM; SPRING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48250-641-0 01 1 0212-0302 ● ●
1 CHAMBER ASM; SPRING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48250-641-1 01 1 0303-0308 ● ●
1 CHAMBER ASM; SPRING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48250-641-1 01 1 0309-0411 ●
1 CHAMBER ASM; SPRING 1-48250-641-1 01 1 0412- ●
2 CHAMBER; EMERGENCY
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48252-014-0 01 1 0212-0302 ● ●
2 CHAMBER; EMERGENCY
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48252-014-0 01 1 0303-0308 ● ●
2 CHAMBER; EMERGENCY
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48252-014-0 01 1 0309-0411 ●
2 CHAMBER; EMERGENCY 1-48252-014-0 01 1 0412- ●
2 CHAMBER; EMERGENCY
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48252-015-0 01 1 0212-0302 ● ●
2 CHAMBER; EMERGENCY
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48252-015-0 01 1 0303-0308 ● ●
2 CHAMBER; EMERGENCY
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48252-015-0 01 1 0309-0411 ●
2 CHAMBER; EMERGENCY 1-48252-015-0 01 1 0412- ●
4 PIN; STRAIGHT,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48259-056-0 04 1 0212-0302 ● ●
4 PIN; STRAIGHT,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-056-0 04 1 0303-0308 ● ●
4 PIN; STRAIGHT,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-056-0 04 1 0309-0411 ●
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 04 1 0412- ●
5 NUT; SHELL
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (A) 		1-48259-054-0 02 1 0212-0302 ● ●
5 NUT; SHELL
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (A) 		1-48259-054-0 02 1 0303-0308 ● ●
5 NUT; SHELL
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (A) 		1-48259-054-0 02 1 0309-0411 ●
5 NUT; SHELL
(A) 		1-48259-054-0 02 1 0412- ●
5 NUT; SHELL
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (B) 		1-48259-074-0 02 1 0212-0302 ● ●
5 NUT; SHELL
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (B) 		1-48259-074-0 02 1 0303-0308 ● ●
5 NUT; SHELL
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) (B) 		1-48259-074-0 02 1 0309-0411 ●
5 NUT; SHELL
(B) 		1-48259-074-0 02 1 0412- ●
6 GASKET; SHELL
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		9-09920-268-0 02 1 0212-0302 ● ●
6 GASKET; SHELL
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		9-09920-268-0 02 1 0303-0308 ● ●
6 GASKET; SHELL
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		9-09920-268-0 02 1 0309-0411 ●
6 GASKET; SHELL 9-09920-268-0 02 1 0412- ●
7 GASKET
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48259-055-0 02 1 0212-0302 ● ●
7 GASKET
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-055-0 02 1 0303-0308 ● ●
7 GASKET
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-055-0 02 1 0309-0411 ●
7 GASKET 1-48259-055-0 02 1 0412- ●
8 SHELL; CYL,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48259-069-0 01 1 0212-0302 ● ●
8 SHELL; CYL,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-069-0 01 1 0303-0308 ● ●
8 SHELL; CYL,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-069-0 01 1 0309-0411 ●
8 SHELL; CYL,SPR CHAMBER 1-48259-069-0 01 1 0412- ●
8 SHELL; CYL,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48259-070-0 01 1 0212-0302 ● ●
8 SHELL; CYL,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-070-0 01 1 0303-0308 ● ●
8 SHELL; CYL,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-070-0 01 1 0309-0411 ●
8 SHELL; CYL,SPR CHAMBER 1-48259-070-0 01 1 0412- ●
9 PIPE ASM; SHELL
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48259-076-0 02 1 0212-0302 ● ●
9 PIPE ASM; SHELL
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-076-0 02 1 0303-0308 ● ●
9 PIPE ASM; SHELL
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-076-0 02 1 0309-0411 ●
9 PIPE ASM; SHELL 1-48259-076-0 02 1 0412- ●
10 RING; CLAMP,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48259-016-0 08 1 0212-0302 ● ●
10 RING; CLAMP,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-016-0 08 1 0303-0308 ● ●
10 RING; CLAMP,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-016-0 08 1 0309-0411 ●
10 RING; CLAMP,SPR CHAMBER 1-48259-016-0 08 1 0412- ●
11 BOLT; CLAMP RING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48259-092-0 08 1 0212-0302 ● ●
11 BOLT; CLAMP RING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-092-0 08 1 0303-0308 ● ●
11 BOLT; CLAMP RING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-092-0 08 1 0309-0411 ●
11 BOLT; CLAMP RING 1-48259-092-0 08 1 0412- ●
12 WASHER; LK,CLAMP RING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) ID=10.2 		9-09150-510-0 08 1 0212-0302 ● ●
12 WASHER; LK,CLAMP RING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) ID=10.2 		9-09150-510-0 08 1 0303-0308 ● ●
12 WASHER; LK,CLAMP RING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) ID=10.2 		9-09150-510-0 08 1 0309-0411 ●
12 WASHER; LK,CLAMP RING
ID=10.2 		9-09150-510-0 08 1 0412- ●
13 NUT; CLAMP RING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		9-83315-080-0 08 1 0212-0302 ● ●
13 NUT; CLAMP RING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		9-83315-080-0 08 1 0303-0308 ● ●
13 NUT; CLAMP RING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		9-83315-080-0 08 1 0309-0411 ●
13 NUT; CLAMP RING 9-83315-080-0 08 1 0412- ●
14 SPRING & SEAT SET
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48259-037-0 02 1 0212-0302 ● ●
14 SPRING & SEAT SET
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-037-1 02 1 0303-0308 ● ●
14 SPRING & SEAT SET
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-037-1 02 1 0309-0411 ●
14 SPRING & SEAT SET 1-48259-037-1 02 1 0412- ●
15 PISTON
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48262-005-0 02 1 0212-0302 ● ●
15 PISTON
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48262-005-0 02 1 0303-0308 ● ●
15 PISTON
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48262-005-0 02 1 0309-0411 ●
15 PISTON 1-48262-005-0 02 1 0412- ●
16 GASKET
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48259-048-0 02 1 0212-0302 ● ●
16 GASKET
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-048-0 02 1 0303-0308 ● ●
16 GASKET
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-048-0 02 1 0309-0411 ●
16 GASKET 1-48259-048-0 02 1 0412- ●
17 BOLT ASM; EMERGENCY
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48259-073-0 02 1 0212-0302 ● ●
17 BOLT ASM; EMERGENCY
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-073-0 02 1 0303-0308 ● ●
17 BOLT ASM; EMERGENCY
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-073-0 02 1 0309-0411 ●
17 BOLT ASM; EMERGENCY 1-48259-073-0 02 1 0412- ●
19 COVER; PISTON
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48269-011-0 02 1 0212-0302 ● ●
19 COVER; PISTON
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48269-011-0 02 1 0303-0308 ● ●
19 COVER; PISTON
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48269-011-0 02 1 0309-0411 ●
19 COVER; PISTON 1-48269-011-0 02 1 0412- ●
21 GASKET; SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48259-049-0 02 1 0212-0302 ● ●
21 GASKET; SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-049-0 02 1 0303-0308 ● ●
21 GASKET; SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-049-0 02 1 0309-0411 ●
21 GASKET; SPR CHAMBER 1-48259-049-0 02 1 0412- ●
22 RING; BACKUP,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48259-019-0 02 1 0212-0302 ● ●
22 RING; BACKUP,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-019-0 02 1 0303-0308 ● ●
22 RING; BACKUP,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-019-0 02 1 0309-0411 ●
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 02 1 0412- ●
23 GASKET; SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48259-047-0 02 1 0212-0302 ● ●
23 GASKET; SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-047-0 02 1 0303-0308 ● ●
23 GASKET; SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-047-0 02 1 0309-0411 ●
23 GASKET; SPR CHAMBER 1-48259-047-0 02 1 0412- ●
24 BEARING; SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48259-020-0 02 1 0212-0302 ● ●
24 BEARING; SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-020-0 02 1 0303-0308 ● ●
24 BEARING; SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-020-0 02 1 0309-0411 ●
24 BEARING; SPR CHAMBER 1-48259-020-0 02 1 0412- ●
25 PLATE; PRESSURE,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48259-077-0 01 1 0212-0302 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-077-0 01 1 0303-0308 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-077-0 01 1 0309-0411 ●
25 PLATE; PRESSURE,SPR CHAMBER 1-48259-077-0 01 1 0412- ●
25 PLATE; PRESSURE,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48259-078-0 01 1 0212-0302 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-078-0 01 1 0303-0308 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-078-0 01 1 0309-0411 ●
25 PLATE; PRESSURE,SPR CHAMBER 1-48259-078-0 01 1 0412- ●
26 NUT; PRESSURE PLATE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48259-058-0 04 1 0212-0302 ● ●
26 NUT; PRESSURE PLATE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-058-0 04 1 0303-0308 ● ●
26 NUT; PRESSURE PLATE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-058-0 04 1 0309-0411 ●
26 NUT; PRESSURE PLATE 1-48259-058-0 04 1 0412- ●
27 WASHER; PRESSURE PLATE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) ID=8.2 		9-09150-508-0 02 1 0212-0302 ● ●
27 WASHER; PRESSURE PLATE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) ID=8.2 		9-09150-508-0 02 1 0303-0308 ● ●
27 WASHER; PRESSURE PLATE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) ID=8.2 		9-09150-508-0 02 1 0309-0411 ●
27 WASHER; PRESSURE PLATE
ID=8.2 		9-09150-508-0 02 1 0412- ●
28 BRACKET; PRESSURE PLATE,HOSE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48259-059-0 02 1 0212-0302 ● ●
28 BRACKET; PRESSURE PLATE,HOSE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-059-0 02 1 0303-0308 ● ●
28 BRACKET; PRESSURE PLATE,HOSE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-059-0 02 1 0309-0411 ●
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 02 1 0412- ●
29 STUD; PRESSURE PLATE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48259-050-0 02 1 0212-0302 ● ●
29 STUD; PRESSURE PLATE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-050-0 02 1 0303-0308 ● ●
29 STUD; PRESSURE PLATE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-050-0 02 1 0309-0411 ●
29 STUD; PRESSURE PLATE 1-48259-050-0 02 1 0412- ●
32 CONNECTOR; SPR CHAMBER
(A) 		1-09660-741-0 02 1 9601-9803 ● ●
32 CONNECTOR; SPR CHAMBER
(A) 		1-09660-741-0 02 1 9601-9803 ● ●
32 CONNECTOR; SPR CHAMBER
(B) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 9804-0302 ● ●
32 CONNECTOR; SPR CHAMBER
(B) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 9804-0302 ● ●
32 CONNECTOR; SPR CHAMBER
EXC. FINAL GEAR 17.5"<B5D> (B) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 0303-0308 ● ●
32 CONNECTOR; SPR CHAMBER
EXC. FINAL GEAR 17.5"<B5D> (B) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 0303-0308 ● ●
32 CONNECTOR; SPR CHAMBER
EXC. FINAL GEAR 17.5"<B5D> (B) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 0309-0411 ●
32 CONNECTOR; SPR CHAMBER
EXC. FINAL GEAR 17.5"<B5D> (B) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 0309-0411 ●
32 CONNECTOR; SPR CHAMBER
FINAL GEAR 17.5"<B5D> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0303-0308 ● ●
32 CONNECTOR; SPR CHAMBER
FINAL GEAR 17.5"<B5D> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0303-0308 ● ●
32 CONNECTOR; SPR CHAMBER
FINAL GEAR 17.5"<B5D> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0309-0411 ●
32 CONNECTOR; SPR CHAMBER
FINAL GEAR 17.5"<B5D> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0309-0411 ●
32 CONNECTOR; SPR CHAMBER
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0412- ●
32 CONNECTOR; SPR CHAMBER
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0412- ●
33 RETAINER; DIAPH
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48259-044-0 04 1 0212-0302 ● ●
33 RETAINER; DIAPH
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-044-0 04 1 0303-0308 ● ●
33 RETAINER; DIAPH
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-044-0 04 1 0309-0411 ●
33 RETAINER; DIAPH 1-48259-044-0 04 1 0412- ●
34 DIAPHRAGM
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48252-056-0 02 1 0212-0302 ● ●
34 DIAPHRAGM
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48252-056-0 02 1 0303-0308 ● ●
34 DIAPHRAGM
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48252-056-0 02 1 0309-0411 ●
34 DIAPHRAGM 1-48252-056-0 02 1 0412- ●
35 PLATE; ROD END,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48253-010-0 02 1 0212-0302 ● ●
35 PLATE; ROD END,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48253-010-0 02 1 0303-0308 ● ●
35 PLATE; ROD END,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48253-010-0 02 1 0309-0411 ●
35 PLATE; ROD END,SPR CHAMBER 1-48253-010-0 02 1 0412- ●
36 RETAINER; SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48259-043-0 02 1 0212-0302 ● ●
36 RETAINER; SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-043-0 02 1 0303-0308 ● ●
36 RETAINER; SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-043-0 02 1 0309-0411 ●
36 RETAINER; SPR CHAMBER 1-48259-043-0 02 1 0412- ●
37 SPRING; LWR,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48255-016-0 02 1 0212-0302 ● ●
37 SPRING; LWR,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48255-016-0 02 1 0303-0308 ● ●
37 SPRING; LWR,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48255-016-0 02 1 0309-0411 ●
37 SPRING; LWR,SPR CHAMBER 1-48255-016-0 02 1 0412- ●
38 COVER; ROD & PLATE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48259-066-0 02 1 0212-0302 ● ●
38 COVER; ROD & PLATE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-066-0 02 1 0303-0308 ● ●
38 COVER; ROD & PLATE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-066-0 02 1 0309-0411 ●
38 COVER; ROD & PLATE 1-48259-066-0 02 1 0412- ●
39 COVER; ROD & PLATE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48259-065-0 02 1 0212-0302 ● ●
39 COVER; ROD & PLATE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-065-0 02 1 0303-0308 ● ●
39 COVER; ROD & PLATE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-065-0 02 1 0309-0411 ●
39 COVER; ROD & PLATE 1-48259-065-0 02 1 0412- ●
40 COVER ASM; LWR,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48259-067-1 01 1 0212-0302 ● ●
40 COVER ASM; LWR,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-067-1 01 1 0303-0308 ● ●
40 COVER ASM; LWR,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-067-1 01 1 0309-0411 ●
40 COVER ASM; LWR,SPR CHAMBER 1-48259-067-1 01 1 0412- ●
40 COVER ASM; LWR,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48259-068-1 01 1 0212-0302 ● ●
40 COVER ASM; LWR,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-068-1 01 1 0303-0308 ● ●
40 COVER ASM; LWR,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-068-1 01 1 0309-0411 ●
40 COVER ASM; LWR,SPR CHAMBER 1-48259-068-1 01 1 0412- ●
41 PIPE ASM; LWR COVER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48259-075-0 02 1 0212-0302 ● ●
41 PIPE ASM; LWR COVER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-075-0 02 1 0303-0308 ● ●
41 PIPE ASM; LWR COVER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-075-0 02 1 0309-0411 ●
41 PIPE ASM; LWR COVER 1-48259-075-0 02 1 0412- ●
67 GASKET; SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48259-053-0 02 1 0212-0302 ● ●
67 GASKET; SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-053-0 02 1 0303-0308 ● ●
67 GASKET; SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-053-0 02 1 0309-0411 ●
67 GASKET; SPR CHAMBER 1-48259-053-0 02 1 0412- ●
69 HOSE; PRESSURE PLATE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48259-051-0 02 1 0212-0302 ● ●
69 HOSE; PRESSURE PLATE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-051-0 02 1 0303-0308 ● ●
69 HOSE; PRESSURE PLATE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-051-0 02 1 0309-0411 ●
69 HOSE; PRESSURE PLATE 1-48259-051-0 02 1 0412- ●
70 COVER; EXH,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-48259-052-0 02 1 0212-0302 ● ●
70 COVER; EXH,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-052-0 02 1 0303-0308 ● ●
70 COVER; EXH,SPR CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) 		1-48259-052-0 02 1 0309-0411 ●
70 COVER; EXH,SPR CHAMBER 1-48259-052-0 02 1 0412- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
