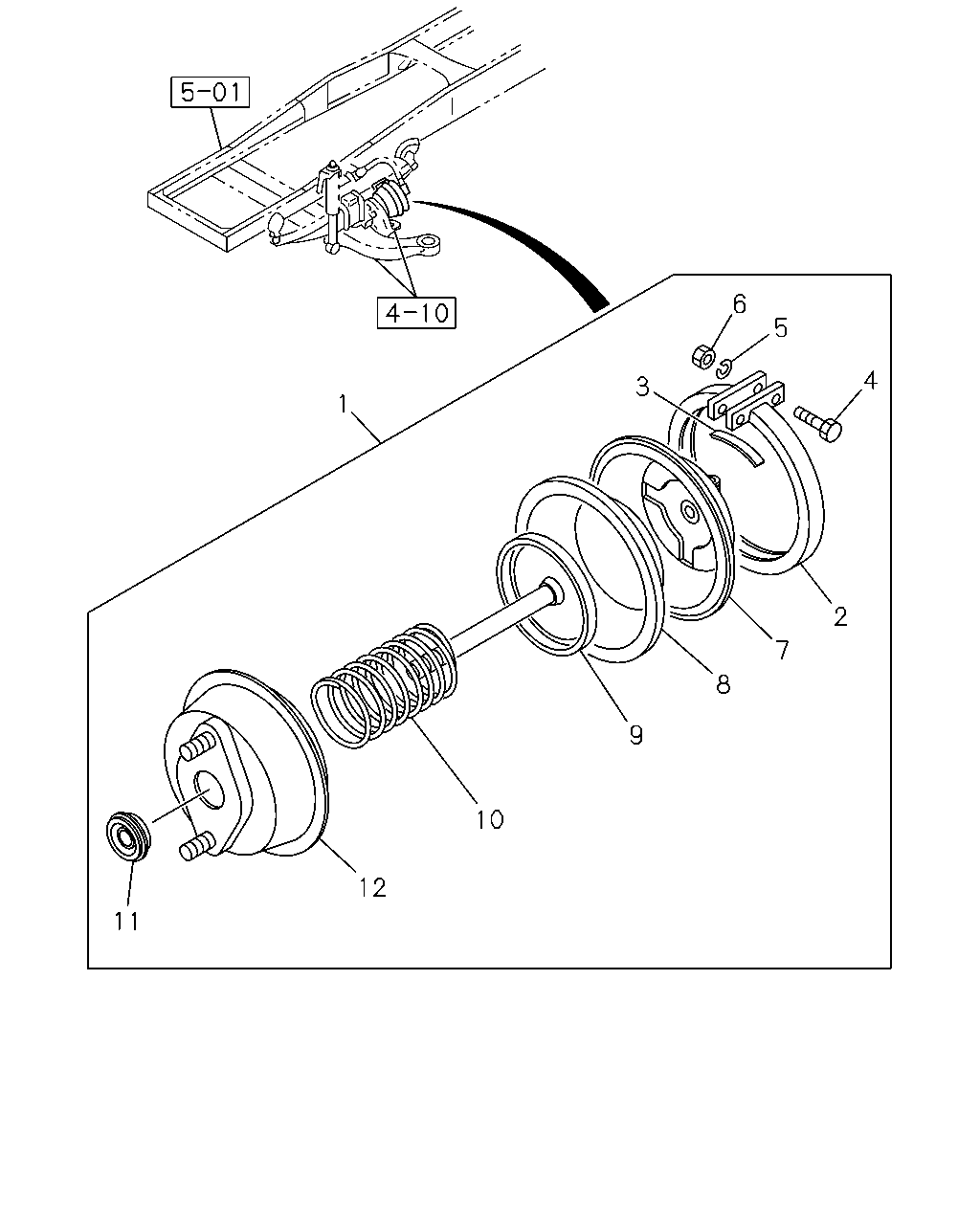

3-40 — FRONT BRAKE POWER CHAMBER (#22839) — 66 parça

6 5 4 3 1 2 7 8 9 10 12 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; POWER,FRT BRK	1-48250-560-0	01	1	9601-0211	●	●
1	CHAMBER ASM; POWER,FRT BRK HUB LUBRICATION OIL BATH<C5K>	1-48250-560-0	01	1	0212-0308	●	●
1	CHAMBER ASM; POWER,FRT BRK HUB LUBRICATION OIL BATH<C5K>	1-48250-560-0	01	1	0309-0411		●
1	CHAMBER ASM; POWER,FRT BRK	1-48250-561-0	01	1	9601-0211	●	●
1	CHAMBER ASM; POWER,FRT BRK HUB LUBRICATION OIL BATH<C5K>	1-48250-561-0	01	1	0212-0308	●	●
1	CHAMBER ASM; POWER,FRT BRK HUB LUBRICATION OIL BATH<C5K>	1-48250-561-0	01	1	0309-0411		●
1	CHAMBER ASM; POWER,FRT BRK EXC. HUB LUBRICATION OIL BATH<C5K>	1-48250-062-2	02	1	0303-0308	●	●
1	CHAMBER ASM; POWER,FRT BRK EXC. HUB LUBRICATION OIL BATH<C5K>	1-48250-062-2	02	1	0309-0411		●
1	CHAMBER ASM; POWER,FRT BRK	1-48250-062-2	02	1	0412-		●
2	RING; CLAMP,SPR CHAMBER EXC. HUB LUBRICATION OIL BATH<C5K>	1-48259-001-0	02	1	0303-0308	●	●
2	RING; CLAMP,SPR CHAMBER EXC. HUB LUBRICATION OIL BATH<C5K>	1-48259-001-0	02	1	0309-0411		●
2	RING; CLAMP,SPR CHAMBER	1-48259-001-0	02	1	0412-		●
3	RETAINER; DIAPH EXC. HUB LUBRICATION OIL BATH<C5K>	9-48259-016-0	02	1	0303-0308	●	●
3	RETAINER; DIAPH EXC. HUB LUBRICATION OIL BATH<C5K>	9-48259-016-0	02	1	0309-0411		●
3	RETAINER; DIAPH	9-48259-016-0	02	1	0412-		●
4	BOLT; CLAMP RING EXC. HUB LUBRICATION OIL BATH<C5K>	1-48259-002-0	04	1	0303-0308	●	●
4	BOLT; CLAMP RING EXC. HUB LUBRICATION OIL BATH<C5K>	1-48259-002-0	04	1	0309-0411		●
4	BOLT; CLAMP RING	1-48259-002-0	04	1	0412-		●
5	WASHER; LK,CLAMP RING EXC. HUB LUBRICATION OIL BATH<C5K> ID=10.2	9-09150-510-0	04	1	0303-0308	●	●
5	WASHER; LK,CLAMP RING EXC. HUB LUBRICATION OIL BATH<C5K> ID=10.2	9-09150-510-0	04	1	0309-0411		●
5	WASHER; LK,CLAMP RING ID=10.2	9-09150-510-0	04	1	0412-		●
6	NUT; CLAMP RING EXC. HUB LUBRICATION OIL BATH<C5K> M10	9-09110-010-0	04	1	0303-0308	●	●
6	NUT; CLAMP RING EXC. HUB LUBRICATION OIL BATH<C5K> M10	9-09110-010-0	04	1	0309-0411		●
6	NUT; CLAMP RING M10	9-09110-010-0	04	1	0412-		●
7	COVER ASM; UPR,SPR CHAMBER EXC. HUB LUBRICATION OIL BATH<C5K>	1-48251-039-0	02	1	0303-0308	●	●
7	COVER ASM; UPR,SPR CHAMBER EXC. HUB LUBRICATION OIL BATH<C5K>	1-48251-039-0	02	1	0309-0411		●
7	COVER ASM; UPR,SPR CHAMBER	1-48251-039-0	02	1	0412-		●
8	DIAPHRAGM; SPR CHAMBER EXC. HUB LUBRICATION OIL BATH<C5K>	1-48252-054-0	02	1	0303-0308	●	●
8	DIAPHRAGM; SPR CHAMBER EXC. HUB LUBRICATION OIL BATH<C5K>	1-48252-054-0	02	1	0309-0411		●
8	DIAPHRAGM; SPR CHAMBER	1-48252-054-0	02	1	0412-		●
9	PISTON; SPR CHAMBER EXC. HUB LUBRICATION OIL BATH<C5K>	1-48253-001-0	02	1	0303-0308	●	●
9	PISTON; SPR CHAMBER EXC. HUB LUBRICATION OIL BATH<C5K>	1-48253-001-0	02	1	0309-0411		●
9	PISTON; SPR CHAMBER	1-48253-001-0	02	1	0412-		●
10	SPRING; PISTON,SPR CHAMBER EXC. HUB LUBRICATION OIL BATH<C5K>	1-48255-001-0	02	1	0303-0308	●	●
10	SPRING; PISTON,SPR CHAMBER EXC. HUB LUBRICATION OIL BATH<C5K>	1-48255-001-0	02	1	0309-0411		●
10	SPRING; PISTON,SPR CHAMBER	1-48255-001-0	02	1	0412-		●
11	SEAL; PISTON,SPR CHAMBER EXC. HUB LUBRICATION OIL BATH<C5K>	1-48252-025-0	02	1	0303-0308	●	●
11	SEAL; PISTON,SPR CHAMBER EXC. HUB LUBRICATION OIL BATH<C5K>	1-48252-025-0	02	1	0309-0411		●
11	SEAL; PISTON,SPR CHAMBER	1-48252-025-0	02	1	0412-		●
12	COVER ASM; LWR,SPR CHAMBER EXC. HUB LUBRICATION OIL BATH<C5K>	1-48251-019-0	02	1	0303-0308	●	●
12	COVER ASM; LWR,SPR CHAMBER EXC. HUB LUBRICATION OIL BATH<C5K>	1-48251-019-0	02	1	0309-0411		●
12	COVER ASM; LWR,SPR CHAMBER	1-48251-019-0	02	1	0412-		●

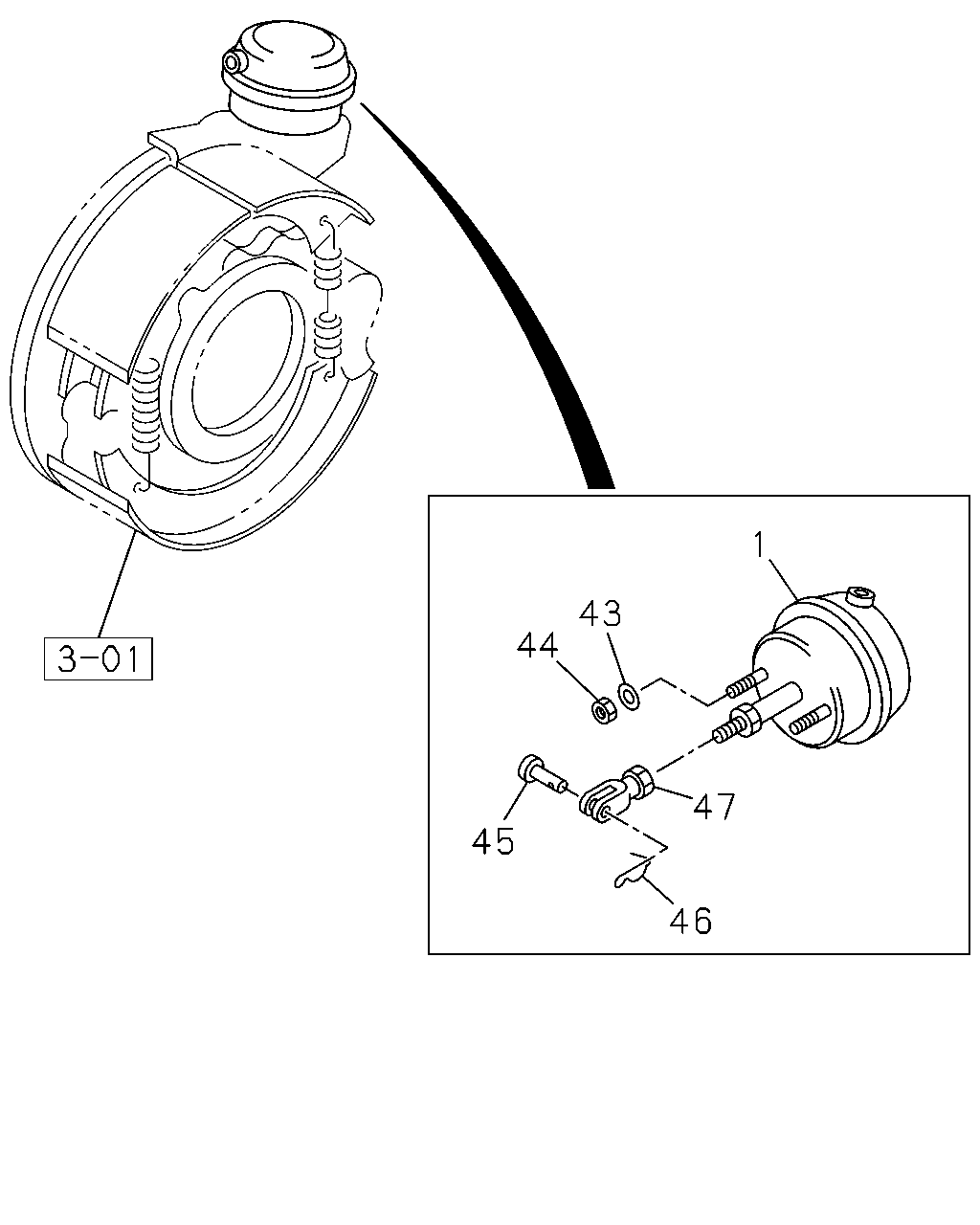

1 43 44 47 45 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; POWER,FRT BRK	1-48250-560-0	01	1	9601-0211	●	●
1	CHAMBER ASM; POWER,FRT BRK HUB LUBRICATION OIL BATH<C5K>	1-48250-560-0	01	1	0212-0308	●	●
1	CHAMBER ASM; POWER,FRT BRK HUB LUBRICATION OIL BATH<C5K>	1-48250-560-0	01	1	0309-0411		●
1	CHAMBER ASM; POWER,FRT BRK	1-48250-561-0	01	1	9601-0211	●	●
1	CHAMBER ASM; POWER,FRT BRK HUB LUBRICATION OIL BATH<C5K>	1-48250-561-0	01	1	0212-0308	●	●
1	CHAMBER ASM; POWER,FRT BRK HUB LUBRICATION OIL BATH<C5K>	1-48250-561-0	01	1	0309-0411		●
1	CHAMBER ASM; POWER,FRT BRK EXC. HUB LUBRICATION OIL BATH<C5K>	1-48250-062-2	02	1	0303-0308	●	●
1	CHAMBER ASM; POWER,FRT BRK EXC. HUB LUBRICATION OIL BATH<C5K>	1-48250-062-2	02	1	0309-0411		●
1	CHAMBER ASM; POWER,FRT BRK	1-48250-062-2	02	1	0412-		●
43	WASHER; LK,POWER CHAMBER	1-48259-282-0	04	1	9601-0211	●	●
43	WASHER; LK,POWER CHAMBER HUB LUBRICATION OIL BATH<C5K>	1-48259-282-0	04	1	0212-0308	●	●
43	WASHER; LK,POWER CHAMBER HUB LUBRICATION OIL BATH<C5K>	1-48259-282-0	04	1	0309-0411		●
44	NUT; POWER CHAMBER	1-48259-283-0	04	1	9601-0211	●	●
44	NUT; POWER CHAMBER HUB LUBRICATION OIL BATH<C5K>	1-48259-283-0	04	1	0212-0308	●	●
44	NUT; POWER CHAMBER HUB LUBRICATION OIL BATH<C5K>	1-48259-283-0	04	1	0309-0411		●
45	PIN; JAW JOINT,POWER CHAMBER	1-48259-285-0	02	1	9601-0211	●	●
45	PIN; JAW JOINT,POWER CHAMBER HUB LUBRICATION OIL BATH<C5K>	1-48259-285-0	02	1	0212-0308	●	●
45	PIN; JAW JOINT,POWER CHAMBER HUB LUBRICATION OIL BATH<C5K>	1-48259-285-0	02	1	0309-0411		●
46	PIN; SPLIT,JAW JOINT	1-48259-284-0	02	1	9601-0211	●	●
46	PIN; SPLIT,JAW JOINT HUB LUBRICATION OIL BATH<C5K>	1-48259-284-0	02	1	0212-0308	●	●
46	PIN; SPLIT,JAW JOINT HUB LUBRICATION OIL BATH<C5K>	1-48259-284-0	02	1	0309-0411		●
47	JOINT; JAW,POWER CHAMBER	1-48259-286-0	02	1	9601-0211	●	●
47	JOINT; JAW,POWER CHAMBER HUB LUBRICATION OIL BATH<C5K>	1-48259-286-0	02	1	0212-0308	●	●
47	JOINT; JAW,POWER CHAMBER HUB LUBRICATION OIL BATH<C5K>	1-48259-286-0	02	1	0309-0411		●
