Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#22836) — 265 parça

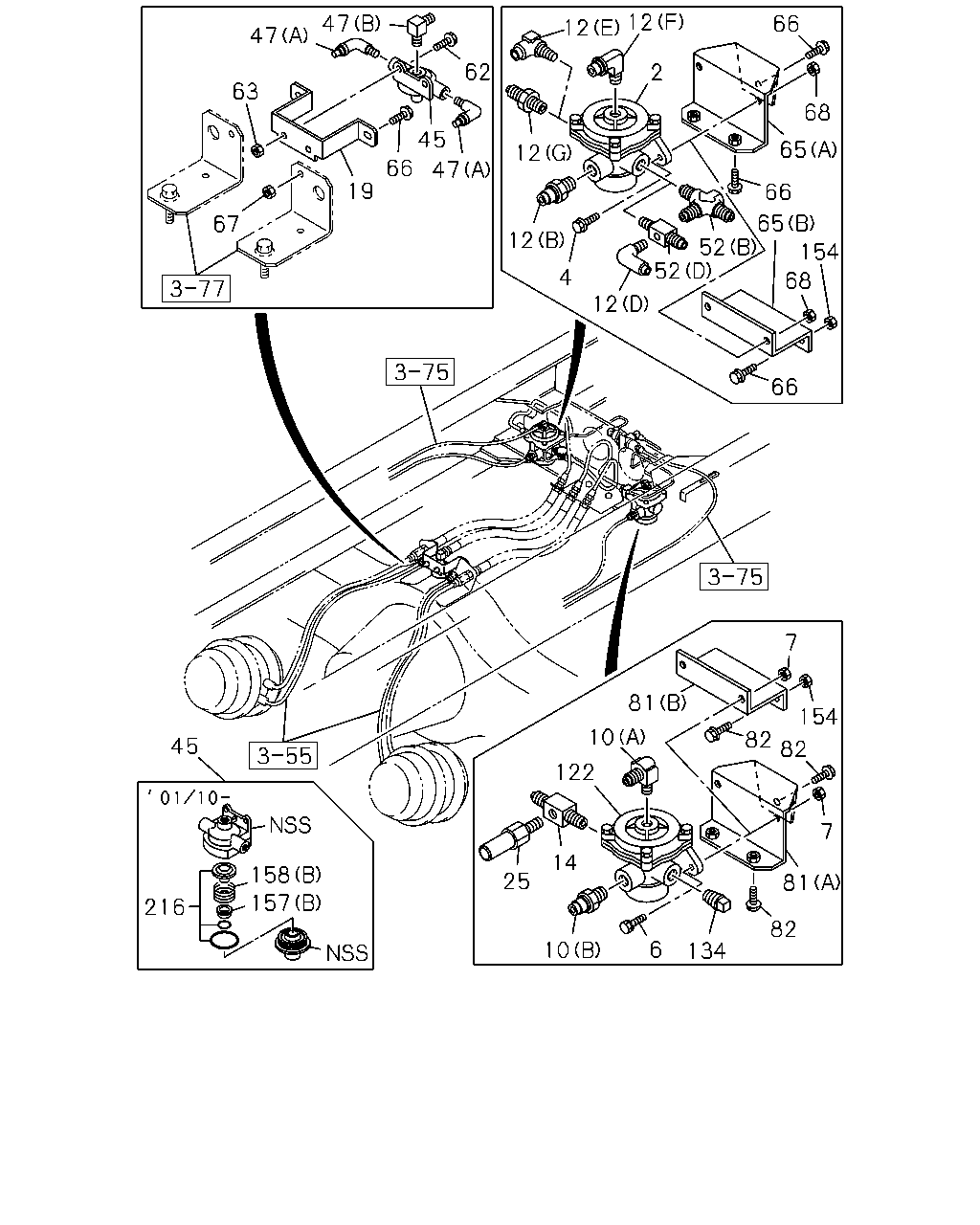

12 12 47 66 47 62 2 63 68 45 65 12 66 47 19 66 67 65 52 52 12 154 4 68 12 66 7 81 154 10 82 82 45 122 7 14 158 25 81 157 216 82 6 10 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY	1-48210-278-0	01	1	9601-0004	●	●
2	VALVE; RELAY	1-48210-278-0	01	1	9601-0004	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0308	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0308	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0309-		●
2	VALVE; RELAY	1-48210-755-0	01	1	0309-		●
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE	0-28081-030-0	02	1	9601-9702	●	●
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE	0-28681-030-0	02	1	9703-0308	●	●
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE	0-28681-030-0	02	1	0309-0512		●
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-		●
6	BOLT; VLV M10X30 FLANGE	0-28081-030-0	02	1	9601-9702	●	●
6	BOLT; VLV M10X30 FLANGE	0-28681-030-0	02	1	9703-0308	●	●
6	BOLT; VLV M10X30 FLANGE	0-28681-030-0	02	1	0309-0512		●
6	BOLT; VLV M10X30 FLANGE	0-28651-030-0	02	1	0601-		●
7	NUT; RELAY VLV M10	9-09110-510-0	02	1	9601-9606	●	●
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	9607-0308	●	●
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	0309-0602		●
7	NUT; RELAY VLV M10 FLANGE	0-91180-210-0	02	1	0603-		●
10	CONNECTOR (A) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	9601-9803	●	●
10	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9804-0308	●	●
10	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0309-		●
10	CONNECTOR (B) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9601-9803	●	●
10	CONNECTOR (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9804-0308	●	●
10	CONNECTOR (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0309-		●
12	CONNECTOR; RELAY VLV (C) M16 & PT1/2 STRAIGHT	1-09650-245-1	02	1	9601-0308	●	●
12	CONNECTOR; RELAY VLV (C) M16 & PT1/2 STRAIGHT	1-09650-245-1	02	1	0309-		●
12	CONNECTOR; RELAY VLV (G) M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	9601-9803	●	●
12	CONNECTOR; RELAY VLV (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9804-0308	●	●
12	CONNECTOR; RELAY VLV (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0309-		●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9803	●	●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9804-0308	●	●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0309-		●
12	CONNECTOR; RELAY VLV (F) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-9803	●	●
12	CONNECTOR; RELAY VLV (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9804-0308	●	●
12	CONNECTOR; RELAY VLV (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0309-		●
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9601-9803	●	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9804-0308	●	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0309-		●
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9804-0308	●	●
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0309-		●
14	CONNECTOR; RELAY VLV	1-09656-476-0	01	1	9601-0308	●	●
14	CONNECTOR; RELAY VLV	1-09656-476-0	01	1	0309-		●
19	BRACKET; QUICK RELEASE VLV	1-47477-518-0	01	1	9601-0308	●	●
19	BRACKET; QUICK RELEASE VLV	1-47477-518-0	01	1	0309-		●
25	SWITCH; PRESSURE	1-82410-163-1	01	1	9601-0308	●	●
25	SWITCH; PRESSURE	1-82410-163-1	01	1	0309-		●
45	VALVE; QUICK RELEASE	1-48410-320-0	01	1	9601-0109	●	●
45	VALVE; QUICK RELEASE	1-48410-659-0	01	1	0110-0308	●	●
45	VALVE; QUICK RELEASE	1-48410-659-0	01	1	0309-		●
47	CONNECTOR; RELAY VLV,CONT (A) DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	9601-9803	●	●
47	CONNECTOR; RELAY VLV,CONT (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9804-0308	●	●
47	CONNECTOR; RELAY VLV,CONT (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0309-		●
47	CONNECTOR; RELAY VLV,CONT (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	9601-0308	●	●
47	CONNECTOR; RELAY VLV,CONT (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0309-		●
52	CONNECTOR; RELAY VLV (B)	1-09656-475-1	01	1	9601-9803	●	●
52	CONNECTOR; RELAY VLV (D)	1-09656-476-0	01	1	9804-0308	●	●
52	CONNECTOR; RELAY VLV (D)	1-09656-476-0	01	1	0309-		●
52	CONNECTOR; RELAY VLV 6HH1 STD ENG(65L) (A)	1-09660-719-1	01	1	9601-9803	●	●
52	CONNECTOR; RELAY VLV 6HH1 STD ENG(65L) (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	9804-0308	●	●
52	CONNECTOR; RELAY VLV (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0309-		●
52	CONNECTOR; RELAY VLV 6SD1 STD ENG(37L) (C)	1-09660-661-1	01	1	9601-9806	●	●
52	CONNECTOR; RELAY VLV 6SD1 STD ENG(37L) (C) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	9807-0308	●	●
62	BOLT; BRKT FIX M8X25 FLANGE	0-28080-825-0	02	1	9601-0308	●	●
62	BOLT; BRKT FIX M8X25 FLANGE	0-28080-825-0	02	1	0309-0512		●
62	BOLT; BRKT FIX M8X25 FLANGE	0-28050-825-0	02	1	0601-		●
63	NUT; BRKT FIX M8	9-09110-408-0	02	1	9601-0308	●	●
63	NUT; BRKT FIX M8	9-09110-408-0	02	1	0309-0512		●
63	NUT; BRKT FIX M8	0-91110-508-0	02	1	0601-		●
65	BRACKET; RELAY VLV RR (A)	1-48495-132-0	01	1	9601-9803	●	●
65	BRACKET; RELAY VLV RR (B)	1-47477-964-0	01	1	9804-0308	●	●
65	BRACKET; RELAY VLV RR (B)	1-47477-964-0	01	1	0309-		●
66	BOLT; BRKT,RELAY VLV RR M8X20 FLANGE	0-28080-820-0	05	1	9601-9606	●	●
66	BOLT; BRKT,RELAY VLV RR M8X25 FLANGE	0-28680-825-0	05	1	9607-9803	●	●
66	BOLT; BRKT,RELAY VLV RR M8X25 FLANGE	0-28680-825-0	02	1	9804-0308	●	●
66	BOLT; BRKT,RELAY VLV RR M8X25 FLANGE	0-28680-825-0	02	1	0309-0512		●
66	BOLT; BRKT,RELAY VLV RR M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
66	BOLT; BRKT,RELAY VLV RR M10X25 FLANGE	0-28681-025-0	02	1	9804-0207	●	●
66	BOLT; BRKT,RELAY VLV RR M10X30 FLANGE	0-28681-030-0	02	1	0208-0308	●	●
66	BOLT; BRKT,RELAY VLV RR M10X30 FLANGE	0-28681-030-0	02	1	0309-0512		●
66	BOLT; BRKT,RELAY VLV RR M10X30 FLANGE	0-28651-030-0	02	1	0601-		●
67	NUT; BRKT,RELAY VLV RR M8	9-09110-408-0	02	1	9601-9606	●	●
67	NUT; BRKT,RELAY VLV RR M8 FLANGE	0-91150-108-0	02	1	9607-0308	●	●
67	NUT; BRKT,RELAY VLV RR M8 FLANGE	0-91150-108-0	02	1	0309-0602		●
67	NUT; BRKT,RELAY VLV RR M8 FLANGE	0-91180-108-0	02	1	0603-		●
67	NUT; BRKT,RELAY VLV RR M10 FLANGE	0-91150-210-0	02	1	9804-0308	●	●
67	NUT; BRKT,RELAY VLV RR M10 FLANGE	0-91150-210-0	02	1	0309-0602		●
67	NUT; BRKT,RELAY VLV RR M10 FLANGE	0-91180-210-0	02	1	0603-		●
68	NUT; RELAY VLV TO BRKT M10	9-09110-510-0	02	1	9601-9606	●	●
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91150-210-0	02	1	9607-0308	●	●
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91150-210-0	02	1	0309-0602		●
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-		●
81	BRACKET; RELAY VLV,PARKING BRK (A)	1-48495-132-0	01	1	9601-9803	●	●
81	BRACKET; RELAY VLV,PARKING BRK (B)	1-47477-964-0	01	1	9804-0308	●	●
81	BRACKET; RELAY VLV,PARKING BRK (B)	1-47477-964-0	01	1	0309-		●
82	BOLT; BRKT,RELAY VLV M8X20 FLANGE	0-28080-820-0	03	1	9601-9606	●	●
82	BOLT; BRKT,RELAY VLV M8X25 FLANGE	0-28680-825-0	03	1	9607-9803	●	●
82	BOLT; BRKT,RELAY VLV M10X25 FLANGE	0-28681-025-0	02	1	9804-0207	●	●
82	BOLT; BRKT,RELAY VLV M10X30 FLANGE	0-28681-030-0	02	1	0208-0308	●	●
82	BOLT; BRKT,RELAY VLV M10X30 FLANGE	0-28681-030-0	02	1	0309-0512		●
82	BOLT; BRKT,RELAY VLV M10X30 FLANGE	0-28651-030-0	02	1	0601-		●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-278-0	01	1	9612-0004	●	●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-755-0	01	1	0005-0308	●	●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-755-0	01	1	0309-		●
134	PLUG; RELAY VALVE PT1/2	9-09204-521-0	01	1	9601-0308	●	●
134	PLUG; RELAY VALVE PT1/2	9-09204-521-0	01	1	0309-		●
154	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9804-0308	●	●
154	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0309-0602		●
154	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-		●

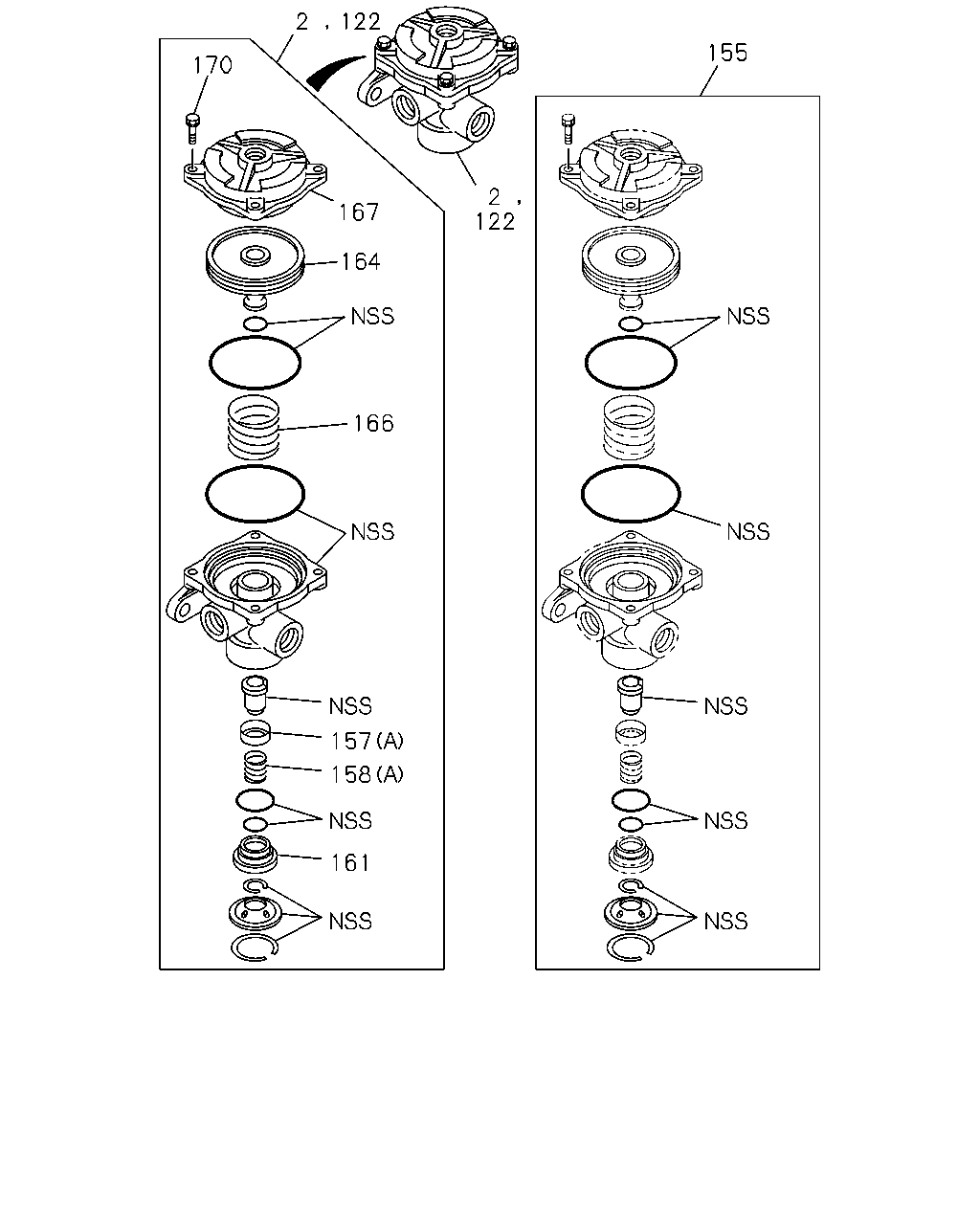

157	RETAINER; VALVE (A)	1-48213-002-0	01	1	9601-0211	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0212-0308	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0212-0308	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0212-0308	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0309-		●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0309-		●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	9601-0211	●	●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0110-0308	●	●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0309-		●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	9601-0211	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0212-0308	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0212-0308	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0212-0308	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0309-		●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0309-		●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	9601-0211	●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0110-0308	●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0309-		●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	0110-0308	●	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	0309-		●

240 31 30 34 93 93 33 38 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	GOVERNOR; AIR CONT	1-48350-059-0	01	1	9601-0004	●	●
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	0005-0308	●	●
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	0309-		●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28080-830-0	02	1	9601-9602	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9607-0308	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	0309-0512		●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
33	BRACKET; GOV,AIR CONT	1-48359-045-0	01	1	9601-0004	●	●
33	BRACKET; GOV,AIR CONT	1-48359-107-1	01	1	0005-0308	●	●
33	BRACKET; GOV,AIR CONT	1-48359-107-1	01	1	0309-		●
34	BOLT; BRKT,GOV M8X25 FLANGE	0-28080-825-0	02	1	9601-9602	●	●
34	BOLT; BRKT,GOV M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●	●
34	BOLT; BRKT,GOV M8X35 FLANGE	0-28680-835-0	02	1	9607-9803	●	●
34	BOLT; BRKT,GOV M8X30 FLANGE	0-28680-830-0	02	1	9804-0308	●	●
34	BOLT; BRKT,GOV M8X30 FLANGE	0-28680-830-0	02	1	0309-0512		●
34	BOLT; BRKT,GOV M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
35	NUT; GOV TO FRAME M8	9-09110-408-0	02	1	9601-9606	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	9607-0308	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	0309-0602		●
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-		●
38	NUT; BRKT,GOV M8	9-09110-408-0	02	1	9601-9606	●	●
38	NUT; BRKT,GOV M8 FLANGE	0-91150-108-0	02	1	9607-0308	●	●
38	NUT; BRKT,GOV M8 FLANGE	0-91150-108-0	02	1	0309-0602		●
38	NUT; BRKT,GOV M8 FLANGE	0-91180-108-0	02	1	0603-		●
93	CONNECTOR; GOV M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0005-0308	●	●
93	CONNECTOR; GOV M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0309-		●
240	REPAIR KIT; AIR CONT GOV	1-85576-466-0	01	1	9601-0004	●	●
240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	0005-0308	●	●
240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	0309-		●

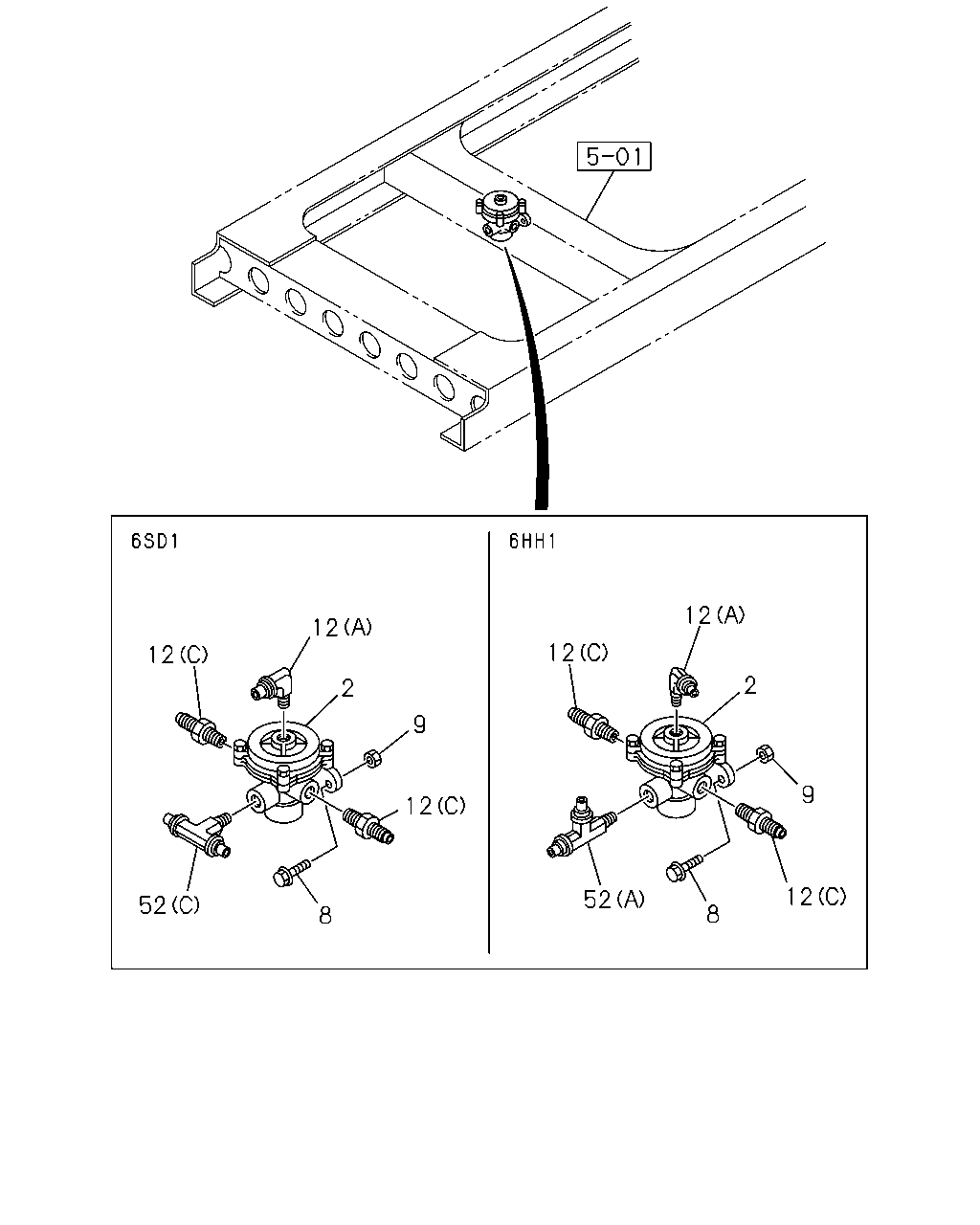

12 12 12 12 2 2 9 9 12 12 52 52 8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY	1-48210-278-0	01	1	9601-0004	●	●
2	VALVE; RELAY	1-48210-278-0	01	1	9601-0004	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0308	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0308	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0309-		●
2	VALVE; RELAY	1-48210-755-0	01	1	0309-		●
8	BOLT; BRKT M10X30 FLANGE	0-28081-030-0	02	1	9601-9702	●	●
8	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9703-0308	●	●
8	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	0309-0512		●
8	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-		●
9	NUT M10	9-09110-510-0	02	1	9601-9606	●	●
9	NUT M10 FLANGE	0-91150-210-0	02	1	9607-0308	●	●
9	NUT M10 FLANGE	0-91150-210-0	02	1	0309-0602		●
9	NUT M10 FLANGE	0-91180-210-0	02	1	0603-		●
12	CONNECTOR; RELAY VLV (C) M16 & PT1/2 STRAIGHT	1-09650-245-1	02	1	9601-0308	●	●
12	CONNECTOR; RELAY VLV (C) M16 & PT1/2 STRAIGHT	1-09650-245-1	02	1	0309-		●
12	CONNECTOR; RELAY VLV (G) M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	9601-9803	●	●
12	CONNECTOR; RELAY VLV (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9804-0308	●	●
12	CONNECTOR; RELAY VLV (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0309-		●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9803	●	●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9804-0308	●	●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0309-		●
12	CONNECTOR; RELAY VLV (F) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-9803	●	●
12	CONNECTOR; RELAY VLV (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9804-0308	●	●
12	CONNECTOR; RELAY VLV (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0309-		●
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9601-9803	●	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9804-0308	●	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0309-		●
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9804-0308	●	●
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0309-		●
52	CONNECTOR; RELAY VLV (B)	1-09656-475-1	01	1	9601-9803	●	●
52	CONNECTOR; RELAY VLV (D)	1-09656-476-0	01	1	9804-0308	●	●
52	CONNECTOR; RELAY VLV (D)	1-09656-476-0	01	1	0309-		●
52	CONNECTOR; RELAY VLV 6HH1 STD ENG(65L) (A)	1-09660-719-1	01	1	9601-9803	●	●
52	CONNECTOR; RELAY VLV 6HH1 STD ENG(65L) (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	9804-0308	●	●
52	CONNECTOR; RELAY VLV (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0309-		●
52	CONNECTOR; RELAY VLV 6SD1 STD ENG(37L) (C)	1-09660-661-1	01	1	9601-9806	●	●
52	CONNECTOR; RELAY VLV 6SD1 STD ENG(37L) (C) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	9807-0308	●	●

2 122 155 170 2 122 167 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY	1-48210-278-0	01	1	9601-0004	●	●
2	VALVE; RELAY	1-48210-278-0	01	1	9601-0004	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0308	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0308	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0309-		●
2	VALVE; RELAY	1-48210-755-0	01	1	0309-		●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-278-0	01	1	9612-0004	●	●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-755-0	01	1	0005-0308	●	●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-755-0	01	1	0309-		●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	9601-0211	●	●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0212-0308	●	●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0212-0308	●	●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0212-0308	●	●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0309-		●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0309-		●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	02	1	9601-0211	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	9601-0211	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0212-0308	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0212-0308	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0212-0308	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0309-		●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0309-		●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	9601-0211	●	●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0110-0308	●	●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0309-		●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	9601-0211	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0212-0308	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0212-0308	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0212-0308	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0309-		●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0309-		●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	9601-0211	●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0110-0308	●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0309-		●
161	GUIDE; VALVE	1-48129-014-0	01	1	9601-0211	●	●
161	GUIDE; VALVE	1-48129-014-0	01	1	0212-0308	●	●
161	GUIDE; VALVE	1-48129-014-0	01	1	0212-0308	●	●
161	GUIDE; VALVE	1-48129-014-0	01	1	0212-0308	●	●
161	GUIDE; VALVE	1-48129-014-0	01	1	0309-		●
161	GUIDE; VALVE	1-48129-014-0	01	1	0309-		●
161	GUIDE; VALVE	1-48129-014-0	02	1	9601-0211	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	9601-0211	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0212-0308	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0212-0308	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0212-0308	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0309-		●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0309-		●
164	PISTON; RELAY VALVE	1-48219-071-0	02	1	9601-0211	●	●
166	SPRING; PISTON	1-47819-090-0	01	1	9601-0211	●	●
166	SPRING; PISTON	1-47819-090-0	01	1	0212-0308	●	●
166	SPRING; PISTON	1-47819-090-0	01	1	0212-0308	●	●
166	SPRING; PISTON	1-47819-090-0	01	1	0212-0308	●	●
166	SPRING; PISTON	1-47819-090-0	01	1	0309-		●
166	SPRING; PISTON	1-47819-090-0	01	1	0309-		●
166	SPRING; PISTON	1-47819-090-0	02	1	9601-0211	●	●
167	COVER; VALVE	1-48219-070-0	01	1	9601-0211	●	●
167	COVER; VALVE	1-48219-070-0	01	1	0212-0308	●	●
167	COVER; VALVE	1-48219-070-0	01	1	0212-0308	●	●
167	COVER; VALVE	1-48219-070-0	01	1	0212-0308	●	●
167	COVER; VALVE	1-48219-070-0	01	1	0309-		●
167	COVER; VALVE	1-48219-070-0	01	1	0309-		●
167	COVER; VALVE	1-48219-070-0	02	1	9601-0211	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	9601-0211	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0212-0308	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0212-0308	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0212-0308	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0309-		●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0309-		●
170	SCREW; COVER TO BODY	1-48219-039-0	08	1	9601-0211	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
