Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#22835) — 229 parça

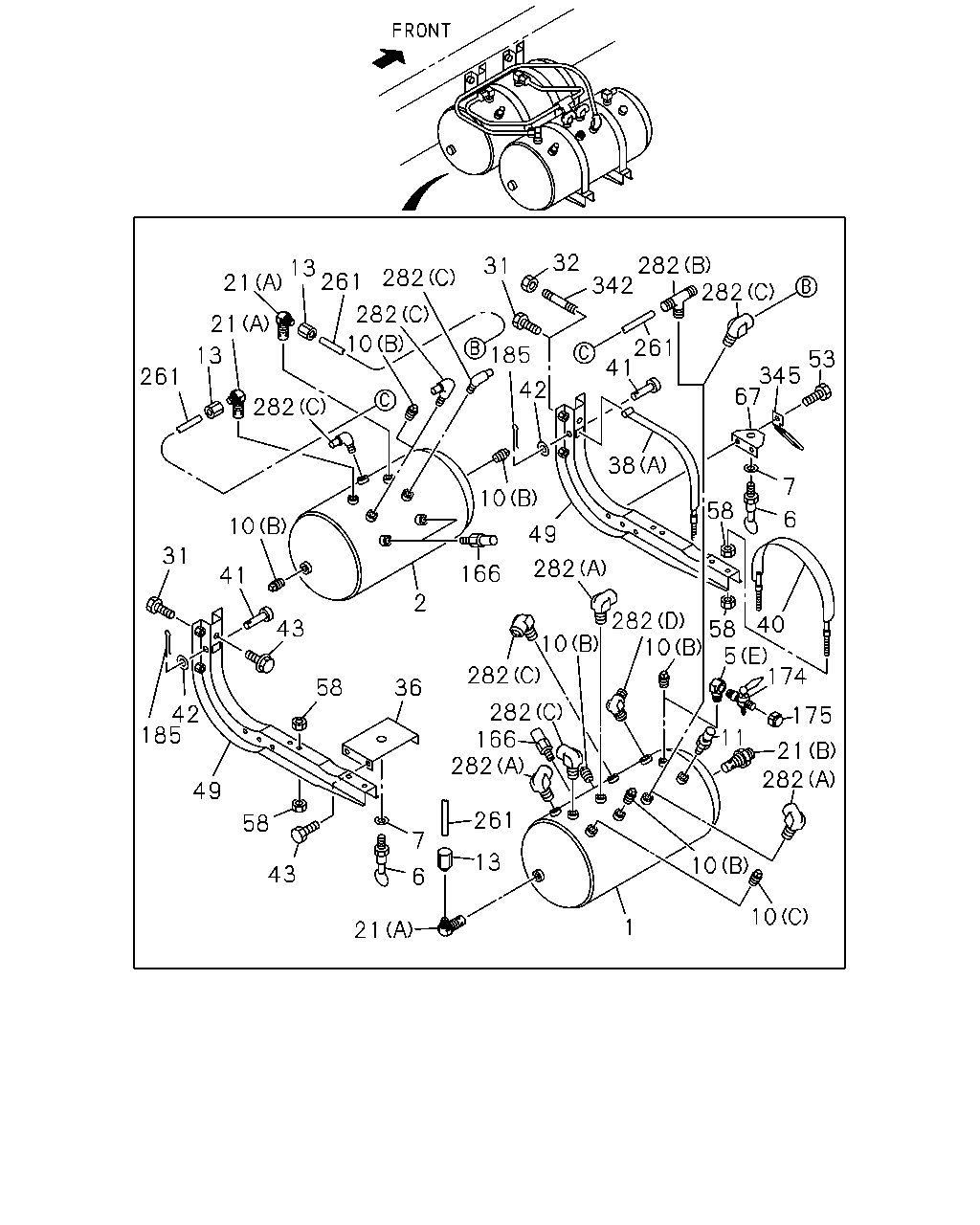

32 282 342 282 31 13 261 282 21 282 21 10 261 41 185 13 53 345 67 261 42 282 38 7 10 58 6 10 49 31 282 166 41 2 282 58 10 5 174 40 43 10 282 58 36 282 166 282 42 185 175 11 21 282 49 261 58 7 13 10 43 6 10 1 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR	1-48370-194-0	01	1	9601-9803	●	●
1	TANK ASM; AIR	1-48370-221-0	01	1	9804-0308	●	●
1	TANK ASM; AIR	1-48370-221-0	01	1	0309-		●
2	TANK; AIR	1-48370-181-1	01	1	9601-0308	●	●
2	TANK; AIR	1-48370-181-1	01	1	0309-		●
5	UNION; AIR TANK (A) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	9601-9803	●	●
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-652-1	02	1	9601-9803	●	●
5	UNION; AIR TANK (D) DIN12 & R3/8 ELBOW	1-09660-653-1	05	1	9601-9803	●	●
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	9601-9803	●	●
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9804-0308	●	●
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0309-		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	9601-0308	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	0309-		●
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	05	1	9601-9604	●	●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	05	1	9605-9606	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	9609-0308	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	0309-		●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	05	1	9609-9803	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	9601-9803	●	●
10	PLUG; AIR TANK (C) PT3/4	9-09204-526-0	01	1	9804-0308	●	●
10	PLUG; AIR TANK (C) PT3/4	9-09204-526-0	01	1	0309-		●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> (A) PT1/4	9-99204-513-0	02	1	9601-9803	●	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	05	1	9804-0308	●	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	05	1	0309-		●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> (A) PT1/4	9-99204-513-0	03	1	9601-9803	●	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	06	1	9804-0308	●	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	06	1	0309-		●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	9601-0308	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0309-		●
13	ADAPTER; NYLON TUBE DIN12 & M12 STRAIGHT	1-09660-878-0	03	1	9601-9803	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	9804-0004	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	0005-0007	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-0308	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0309-		●
21	VALVE; CHECK,AIR TANK (B) M22 & PT3/4	1-48410-136-3	01	1	9804-0308	●	●
21	VALVE; CHECK,AIR TANK (B) M22 & PT3/4	1-48410-136-3	01	1	0309-		●
21	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9804-0308	●	●
21	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0309-		●
31	BOLT; BRKT TO FRAME 6SD1 STD ENG(37L) M12X45	1-09030-052-1	06	1	9601-9601	●
31	BOLT; BRKT TO FRAME 6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) M12X45	1-09030-052-1	06	1	9601-9601		●
31	BOLT; BRKT TO FRAME 6SD1 STD ENG(37L) M12X40 FLANGE	0-28681-240-0	06	1	9602-9803	●
31	BOLT; BRKT TO FRAME 6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) M12X40 FLANGE	0-28681-240-0	06	1	9602-9803		●
31	BOLT; BRKT TO FRAME 6SD1 STD ENG(37L) M12X40 FLANGE	0-28681-240-0	06	1	9804-0308	●	●
31	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) M12X45	1-09030-052-1	08	1	9601-9601	●	●
31	BOLT; BRKT TO FRAME 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) M12X45	1-09030-052-1	08	1	9601-9601		●
31	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	08	1	9602-9803	●	●
31	BOLT; BRKT TO FRAME 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) M12X40 FLANGE	0-28681-240-0	08	1	9602-9803		●
31	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	07	1	9804-0308	●	●
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	07	1	0309-0512		●
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28651-240-0	07	1	0601-		●
32	NUT; BRKT TO FRAME 6SD1 STD ENG(37L) M12	9-99110-512-0	02	1	9601-9602	●
32	NUT; BRKT TO FRAME 6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) M12	9-99110-512-0	02	1	9601-9602		●
32	NUT; BRKT TO FRAME 6SD1 STD ENG(37L) M12	9-09120-412-0	02	1	9603-9606	●
32	NUT; BRKT TO FRAME 6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) M12	9-09120-412-0	02	1	9603-9606		●
32	NUT; BRKT TO FRAME 6SD1 STD ENG(37L) M12 FLANGE	0-91250-112-0	02	1	9607-9803	●
32	NUT; BRKT TO FRAME 6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) M12 FLANGE	0-91250-112-0	02	1	9607-9803		●
32	NUT; BRKT TO FRAME 6SD1 STD ENG(37L) M12 FLANGE	0-91250-112-0	02	1	9804-0308	●	●
32	NUT; BRKT TO FRAME 6HH1 STD ENG(65L) M12 FLANGE	0-91250-112-0	01	1	9804-0308	●	●
32	NUT; BRKT TO FRAME M12 FLANGE	0-91250-112-0	01	1	0309-0602		●
32	NUT; BRKT TO FRAME M12 FLANGE	0-91280-112-0	01	1	0603-		●
36	STAY; MAIN TANK	1-48317-607-0	01	1	9804-0308	●	●
36	STAY; MAIN TANK	1-48317-607-0	01	1	0309-		●
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	9601-0308	●	●
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	0309-		●
38	BAND; AIR TANK (B)	1-48317-109-2	02	1	9601-9803	●	●
40	BAND ASM; AIR TANK	1-48317-109-2	02	1	9804-0308	●	●
40	BAND ASM; AIR TANK	1-48317-109-2	02	1	0309-		●
41	PIN; BAND FIX OD=10 L=60	9-08224-060-0	02	1	9601-0308	●	●
41	PIN; BAND FIX 6HH1 STD ENG(65L) OD=10 L=60	9-08224-060-0	02	1	0309-0606		●
41	PIN; BAND FIX OD=10 L=60	0-82254-060-0	02	1	0607-		●
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	9601-0308	●	●
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	0309-		●
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	06	1	9601-9702	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	06	1	9703-9803	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	04	1	9804-0308	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	04	1	0309-0512		●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28650-825-0	04	1	0601-		●
49	BRACKET; AIR TANK	1-48317-601-5	02	1	9804-0308	●	●
49	BRACKET; AIR TANK	1-48317-601-5	02	1	0309-		●
53	BOLT; STAY,AIR TANK M8X25 FLANGE	0-28680-825-0	02	1	9804-0308	●	●
53	BOLT; STAY,AIR TANK M8X25 FLANGE	0-28680-825-0	02	1	0309-0512		●
53	BOLT; STAY,AIR TANK M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
58	NUT; BAND,AIR TANK M8	9-09110-408-0	12	1	9804-0308	●	●
58	NUT; BAND,AIR TANK M8	9-09110-408-0	12	1	0309-0512		●
58	NUT; BAND,AIR TANK M8	0-91110-508-0	12	1	0601-		●
67	STAY; SUB TANK	1-48317-691-0	01	1	9601-0308	●	●
67	STAY; SUB TANK	1-48317-691-0	01	1	0309-		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	03	1	9601-0308	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	03	1	0309-		●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	01	1	9601-0010	●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0011-0308	●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0309-		●
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	9601-0308	●	●
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	0309-		●
185	PIN; SNAP L=32.6	1-09987-142-0	02	1	9601-0308	●	●
185	PIN; SNAP L=32.6	1-09987-142-0	02	1	0309-		●
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	02	1	9601-9803	●	●
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	03	1	9804-0212	●	●
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	03	1	0301-0308	●	●
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	03	1	0309-		●
261	TUBE; NYLON L=1350 SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	9601-9803	●	●
282	UNION; 2 WAY (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9804-0308	●	●
282	UNION; 2 WAY (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0309-		●
282	UNION; 2 WAY (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9804-0308	●	●
282	UNION; 2 WAY (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0309-		●
282	UNION; 2 WAY (C) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	9804-0308	●	●
282	UNION; 2 WAY (C) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0309-		●
282	UNION; 2 WAY (B) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	9804-0308	●	●
282	UNION; 2 WAY (B) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	0309-		●
342	STUD 6SD1 STD ENG(37L) M12X40 L=64	9-94321-240-0	02	1	9601-9803	●
342	STUD 6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) M12X40 L=64	9-94321-240-0	02	1	9601-9803		●
342	STUD 6SD1 STD ENG(37L) M12X40 L=64	9-94321-240-0	02	1	9804-0308	●	●
342	STUD 6HH1 STD ENG(65L) M12X40 L=64	9-94321-240-0	01	1	9804-0308	●	●
342	STUD M12X40 L=64	9-94321-240-0	01	1	0309-0604		●
342	STUD M12X40 L=64	0-43211-240-0	01	1	0605-		●
345	CLIP; HARNESS L=63	1-09700-418-1	01	1	9607-0305	●	●

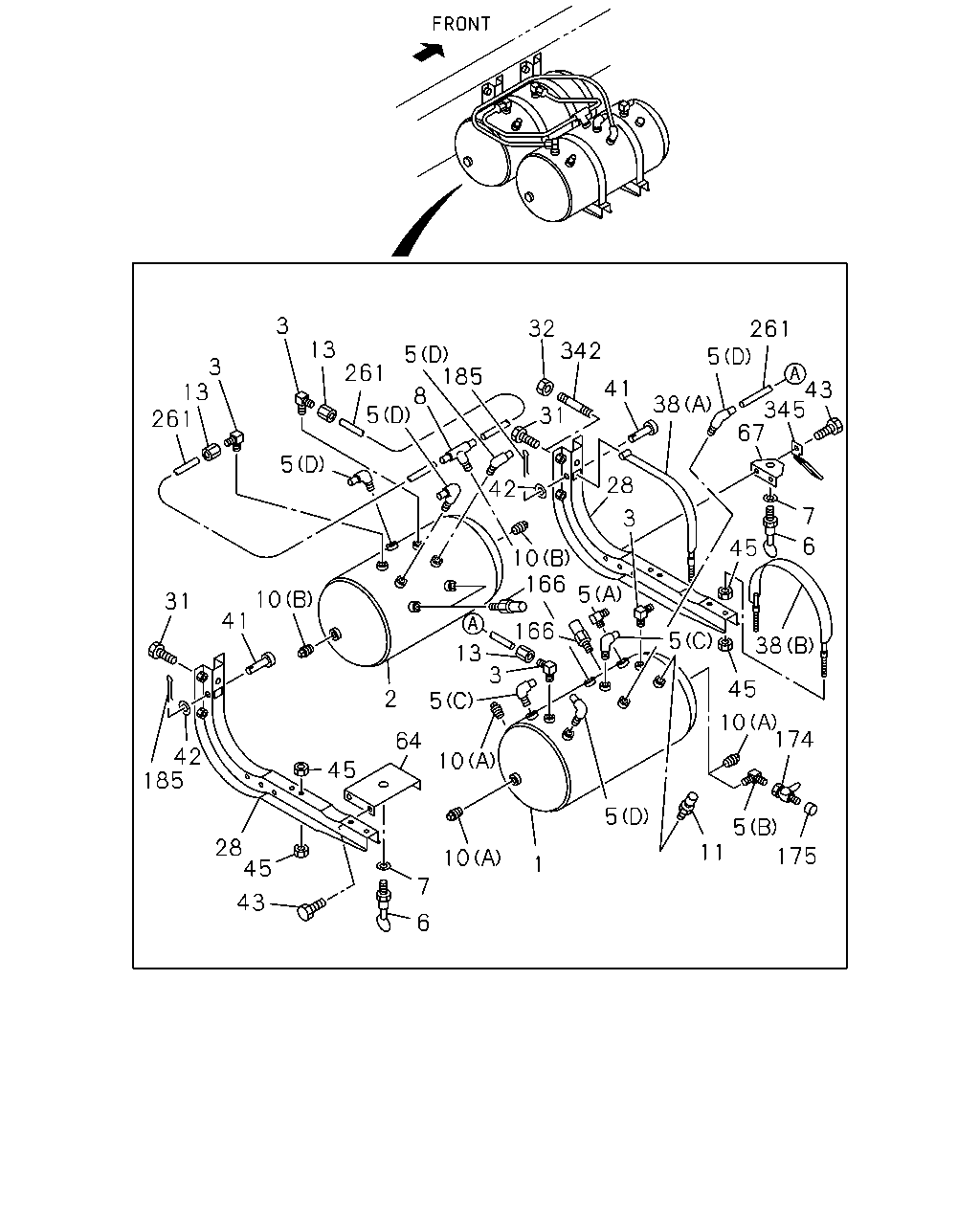

3 2 342 261 5 13 261 5 185 3 13 261 43 345 67 41 8 5 38 31 5 28 42 7 3 6 45 10 166 5 10 31 41 166 5 38 13 3 45 2 5 10 174 64 42 185 10 45 5 5 28 45 11 175 10 1 7 43 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR	1-48370-194-0	01	1	9601-9803	●	●
1	TANK ASM; AIR	1-48370-221-0	01	1	9804-0308	●	●
1	TANK ASM; AIR	1-48370-221-0	01	1	0309-		●
2	TANK; AIR	1-48370-181-1	01	1	9601-0308	●	●
2	TANK; AIR	1-48370-181-1	01	1	0309-		●
3	VALVE; CHECK,AIR TANK M22 & PT3/4 ELBOW	1-48410-134-3	04	1	9601-9803	●	●
5	UNION; AIR TANK (A) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	9601-9803	●	●
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-652-1	02	1	9601-9803	●	●
5	UNION; AIR TANK (D) DIN12 & R3/8 ELBOW	1-09660-653-1	05	1	9601-9803	●	●
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	9601-9803	●	●
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9804-0308	●	●
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0309-		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	9601-0308	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	0309-		●
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	05	1	9601-9604	●	●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	05	1	9605-9606	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	9609-0308	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	0309-		●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	05	1	9609-9803	●	●
8	CONNECTOR; AIR TANK DIN12X2 & R3/8 3WAY	1-09660-660-1	01	1	9601-9803	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	9601-9803	●	●
10	PLUG; AIR TANK (C) PT3/4	9-09204-526-0	01	1	9804-0308	●	●
10	PLUG; AIR TANK (C) PT3/4	9-09204-526-0	01	1	0309-		●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> (A) PT1/4	9-99204-513-0	02	1	9601-9803	●	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	05	1	9804-0308	●	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	05	1	0309-		●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> (A) PT1/4	9-99204-513-0	03	1	9601-9803	●	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	06	1	9804-0308	●	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	06	1	0309-		●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	9601-0308	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0309-		●
13	ADAPTER; NYLON TUBE DIN12 & M12 STRAIGHT	1-09660-878-0	03	1	9601-9803	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	9804-0004	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	0005-0007	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-0308	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0309-		●
28	BRACKET; AIR TANK	1-48317-601-4	02	1	9601-9803	●	●
31	BOLT; BRKT TO FRAME 6SD1 STD ENG(37L) M12X45	1-09030-052-1	06	1	9601-9601	●
31	BOLT; BRKT TO FRAME 6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) M12X45	1-09030-052-1	06	1	9601-9601		●
31	BOLT; BRKT TO FRAME 6SD1 STD ENG(37L) M12X40 FLANGE	0-28681-240-0	06	1	9602-9803	●
31	BOLT; BRKT TO FRAME 6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) M12X40 FLANGE	0-28681-240-0	06	1	9602-9803		●
31	BOLT; BRKT TO FRAME 6SD1 STD ENG(37L) M12X40 FLANGE	0-28681-240-0	06	1	9804-0308	●	●
31	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) M12X45	1-09030-052-1	08	1	9601-9601	●	●
31	BOLT; BRKT TO FRAME 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) M12X45	1-09030-052-1	08	1	9601-9601		●
31	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	08	1	9602-9803	●	●
31	BOLT; BRKT TO FRAME 6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) M12X40 FLANGE	0-28681-240-0	08	1	9602-9803		●
31	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	07	1	9804-0308	●	●
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	07	1	0309-0512		●
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28651-240-0	07	1	0601-		●
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	9601-0308	●	●
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	0309-		●
38	BAND; AIR TANK (B)	1-48317-109-2	02	1	9601-9803	●	●
41	PIN; BAND FIX OD=10 L=60	9-08224-060-0	02	1	9601-0308	●	●
41	PIN; BAND FIX 6HH1 STD ENG(65L) OD=10 L=60	9-08224-060-0	02	1	0309-0606		●
41	PIN; BAND FIX OD=10 L=60	0-82254-060-0	02	1	0607-		●
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	9601-0308	●	●
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	0309-		●
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	06	1	9601-9702	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	06	1	9703-9803	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	04	1	9804-0308	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	04	1	0309-0512		●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28650-825-0	04	1	0601-		●
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	12	1	9601-9803	●	●
64	STAY; AIR TANK,MAIN	1-48317-607-0	01	1	9601-9803	●	●
67	STAY; SUB TANK	1-48317-691-0	01	1	9601-0308	●	●
67	STAY; SUB TANK	1-48317-691-0	01	1	0309-		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	03	1	9601-0308	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	03	1	0309-		●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	01	1	9601-0010	●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0011-0308	●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0309-		●
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	9601-0308	●	●
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	0309-		●
185	PIN; SNAP L=32.6	1-09987-142-0	02	1	9601-0308	●	●
185	PIN; SNAP L=32.6	1-09987-142-0	02	1	0309-		●
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	02	1	9601-9803	●	●
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	03	1	9804-0212	●	●
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	03	1	0301-0308	●	●
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	03	1	0309-		●
261	TUBE; NYLON L=1350 SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	9601-9803	●	●
342	STUD 6SD1 STD ENG(37L) M12X40 L=64	9-94321-240-0	02	1	9601-9803	●
342	STUD 6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) M12X40 L=64	9-94321-240-0	02	1	9601-9803		●
342	STUD 6SD1 STD ENG(37L) M12X40 L=64	9-94321-240-0	02	1	9804-0308	●	●
342	STUD 6HH1 STD ENG(65L) M12X40 L=64	9-94321-240-0	01	1	9804-0308	●	●
342	STUD M12X40 L=64	9-94321-240-0	01	1	0309-0604		●
342	STUD M12X40 L=64	0-43211-240-0	01	1	0605-		●
345	CLIP; HARNESS L=63	1-09700-418-1	01	1	9607-0305	●	●

111 111 111 95 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
95	VALVE; DOUBLE CHECK	1-48410-050-0	01	1	9601-9902	●	●
95	VALVE; DOUBLE CHECK	1-48410-531-0	01	1	9903-0308	●	●
95	VALVE; DOUBLE CHECK	1-48410-531-1	01	1	0309-		●
111	CONNECTOR; CHECK VLV (A) M12 & PT3/8 ELBOW	1-09650-436-0	02	1	9601-9803	●	●
111	CONNECTOR; CHECK VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9804-0308	●	●
111	CONNECTOR; CHECK VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0309-		●
111	CONNECTOR; CHECK VLV (B) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9601-9803	●	●
111	CONNECTOR; CHECK VLV (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9804-0308	●	●
111	CONNECTOR; CHECK VLV (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0309-		●
121	BOLT; DOUBLE CHECK VLV M8X14 FLANGE	0-28080-814-0	02	1	9601-9803	●	●
121	BOLT; DOUBLE CHECK VLV M8X20 FLANGE	0-28080-820-0	02	1	9804-0308	●	●
121	BOLT; DOUBLE CHECK VLV M8X20 FLANGE	0-28080-820-0	02	1	0309-0512		●
121	BOLT; DOUBLE CHECK VLV M8X20 FLANGE	0-28050-820-0	02	1	0601-0711		●
121	BOLT; DOUBLE CHECK VLV M8X25 FLANGE	0-28050-825-0	02	1	0712-		●

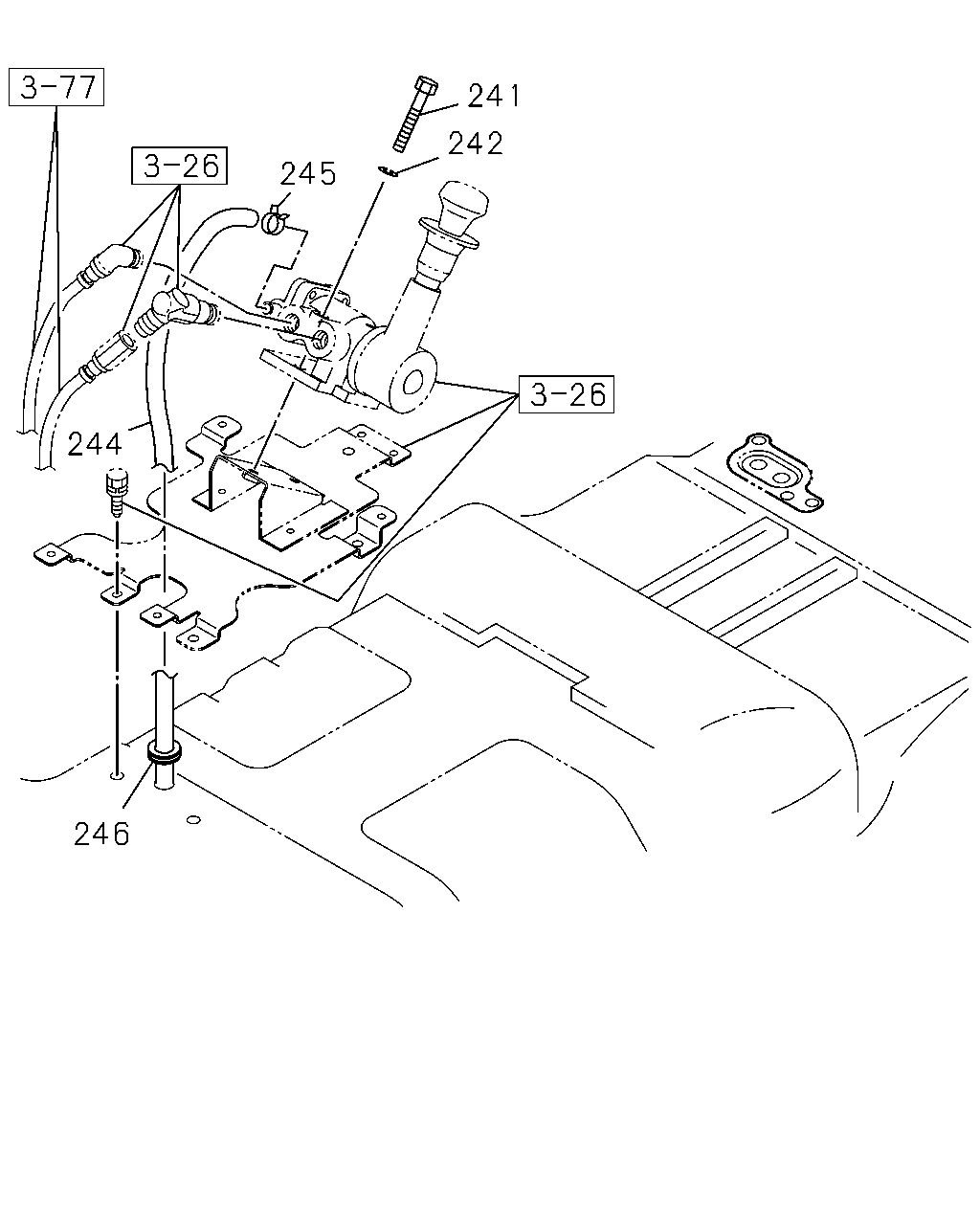

241 242 245 244 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
241	BOLT; SET,CONT VLV M8X65	0-10805-865-0	02	1	9601-9704	●	●
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28080-870-0	02	1	9705-0308	●	●
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28080-870-0	02	1	0309-0512		●
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	0601-		●
242	WASHER; LK,CONT VLV ID=8.2	9-09150-508-0	02	1	9601-9704	●	●
244	PIPE; VINYL,EXH L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9601-0110	●	●
244	PIPE; VINYL,EXH L=350 SERVICED BY L=10000	9-09914-701-0	01	1	0111-0308	●	●
244	PIPE; VINYL,EXH L=350 SERVICED BY L=10000	9-09914-701-0	01	1	0309-		●
245	CLIP; VINYL PIPE ID=14	8-94238-572-0	01	1	9601-0308	●	●
245	CLIP; VINYL PIPE ID=14	8-94238-572-0	01	1	0309-		●
246	GROMMET; VINYL PIPE OD=24	9-61166-007-0	01	1	9601-0308	●	●
246	GROMMET; VINYL PIPE OD=24	9-61166-007-0	01	1	0309-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
